Test B: Powertrain Control Module (PCM) Power Relay

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2007 Ford.

AI Repair Guides
PINPOINT TEST B: POWERTRAIN CONTROL MODULE (PCM) POWER RELAY

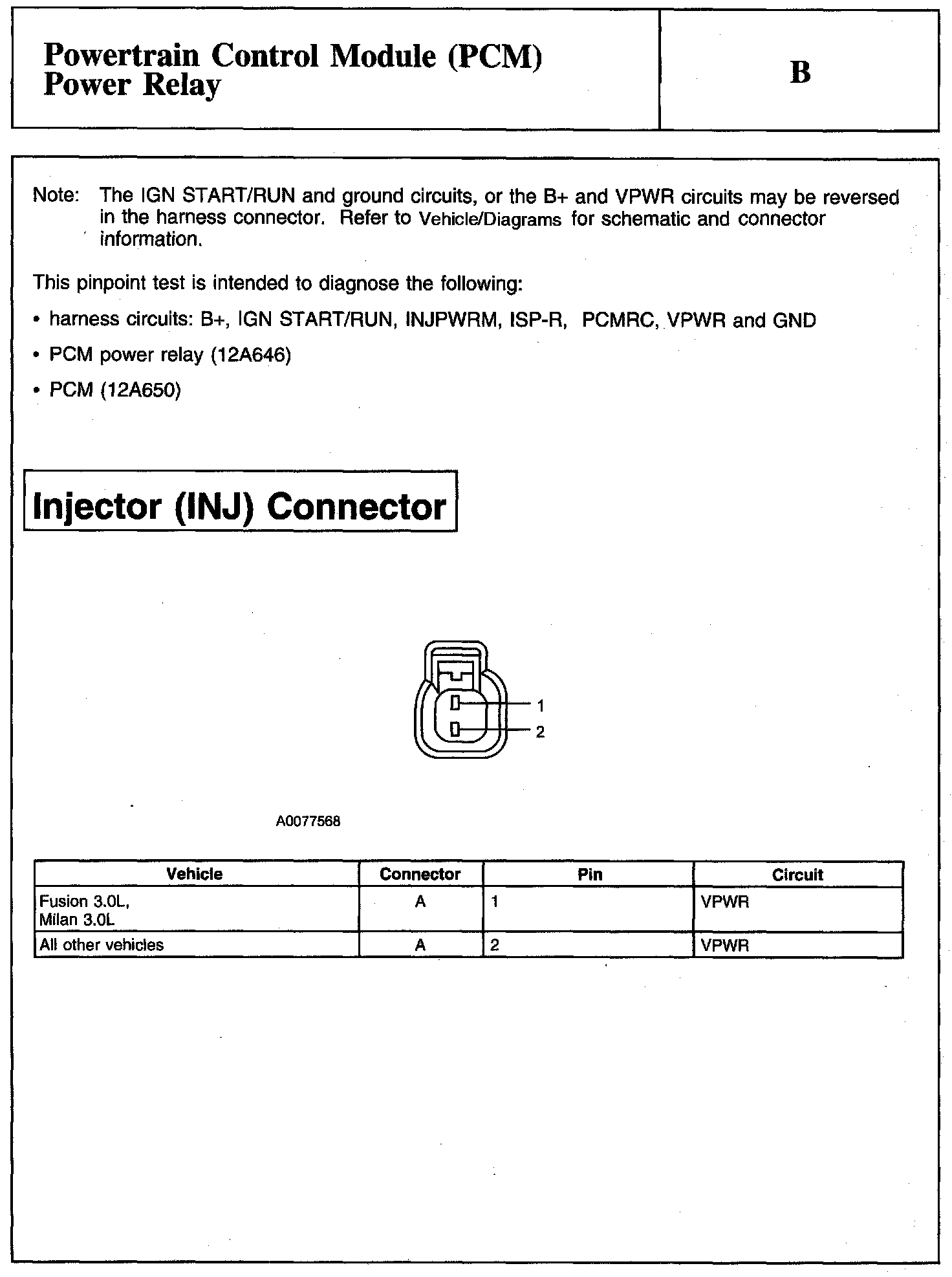

Note And Injector (INJ) Connector:

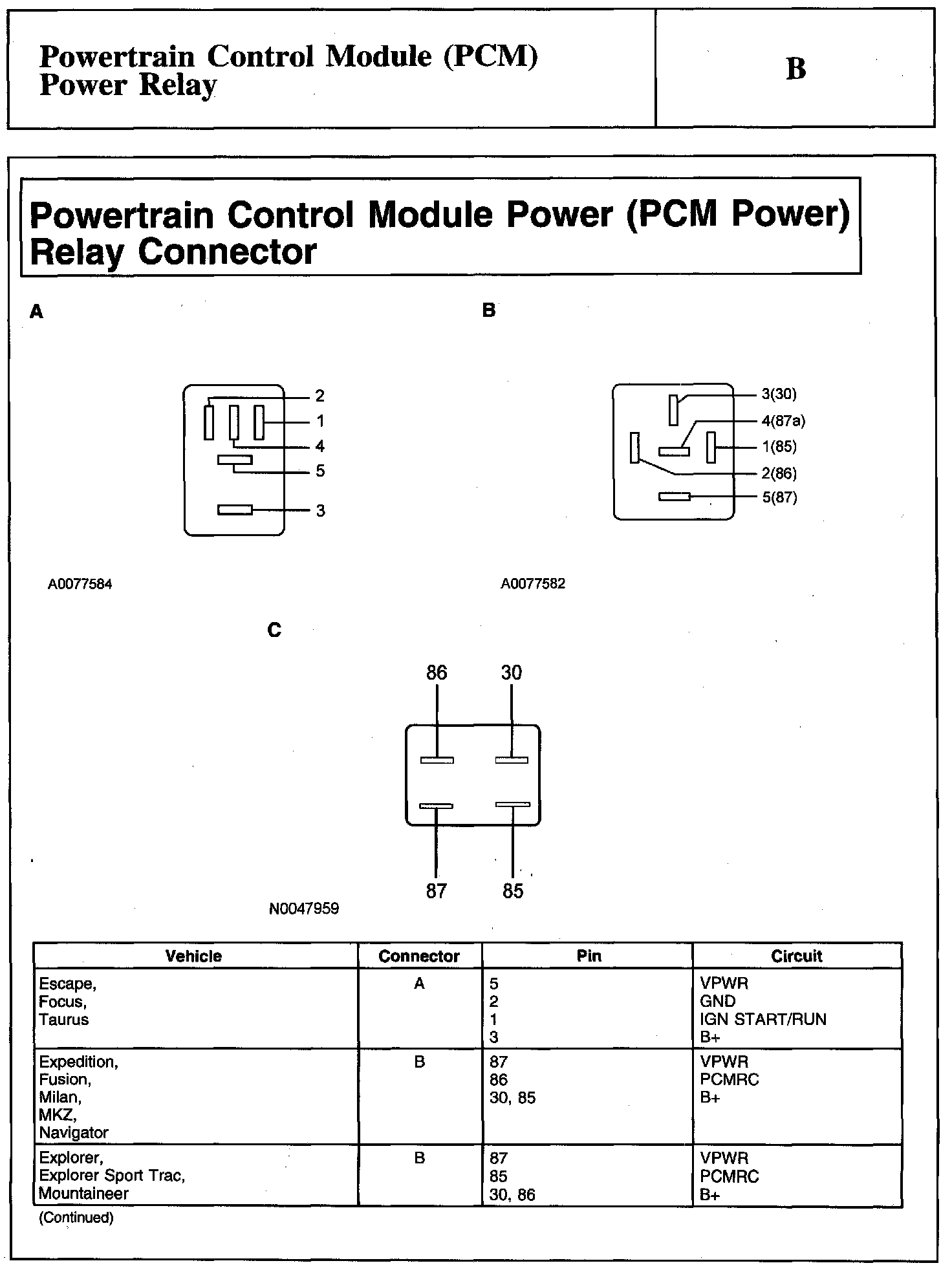

Powertrain Control Module Power (PCM Power) Relay Connector:






Powertrain Control Module Power (PCM Power) Relay Connector And Powertrain Control Module (PCM) Connector:

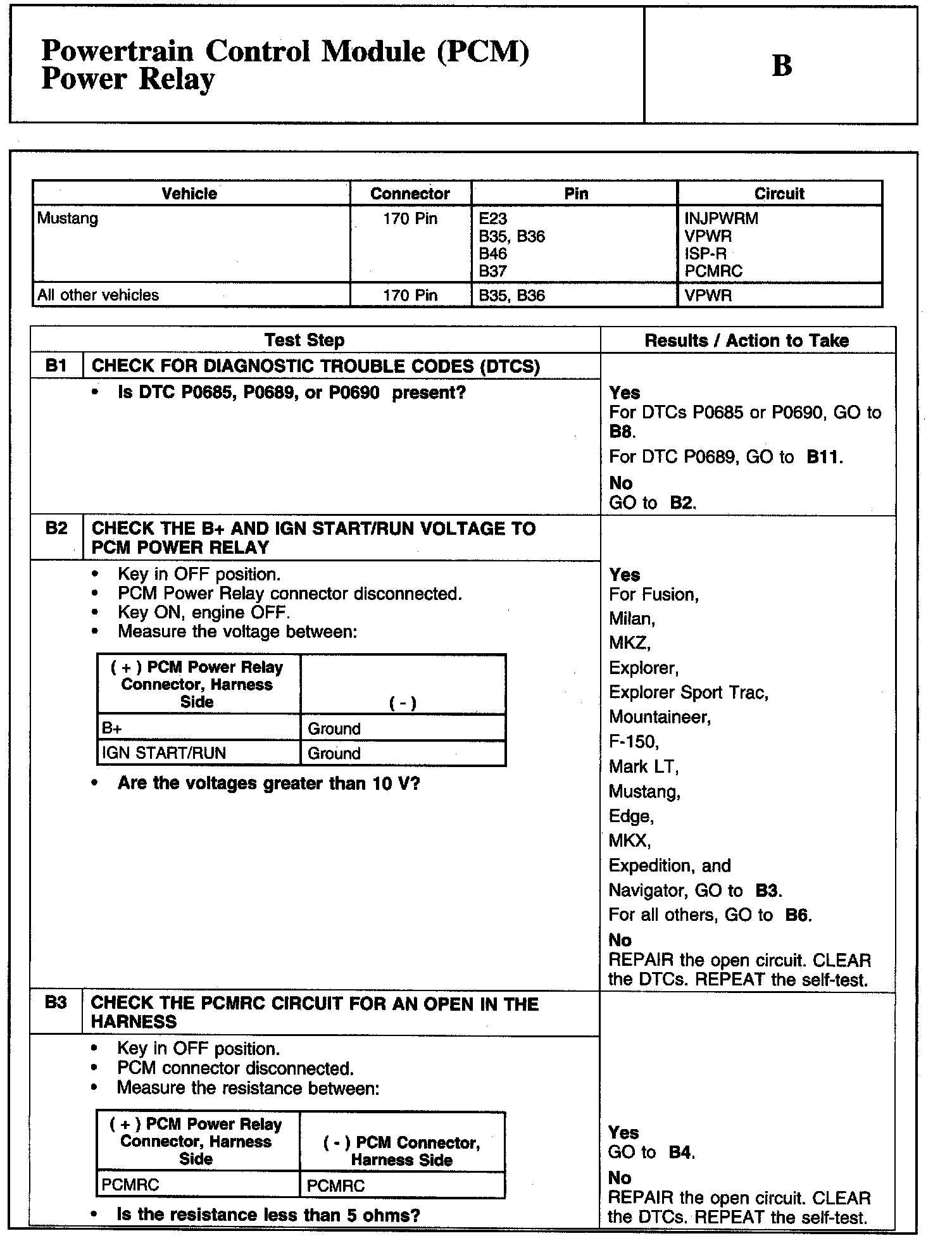

B1-B3:

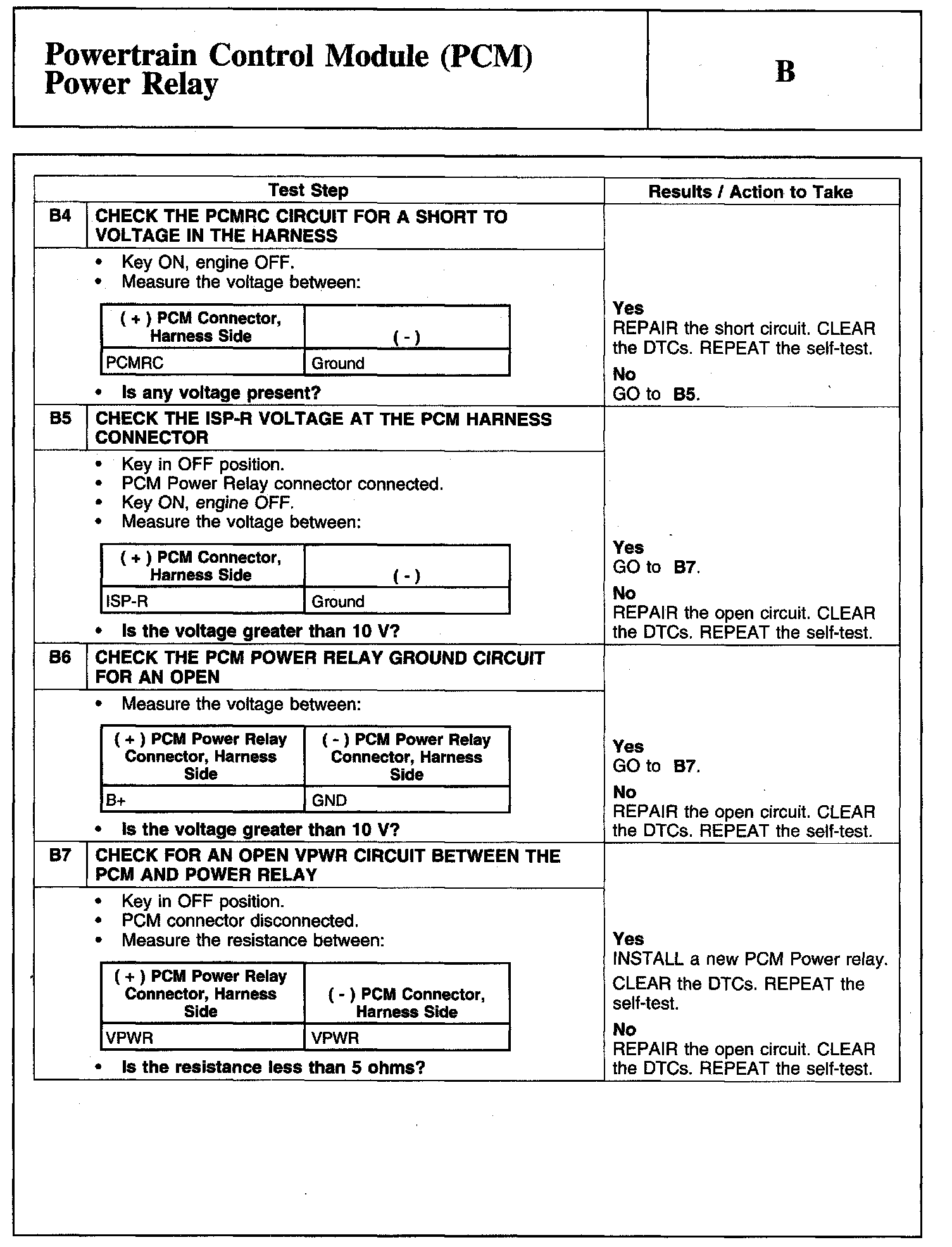

B4-B7:

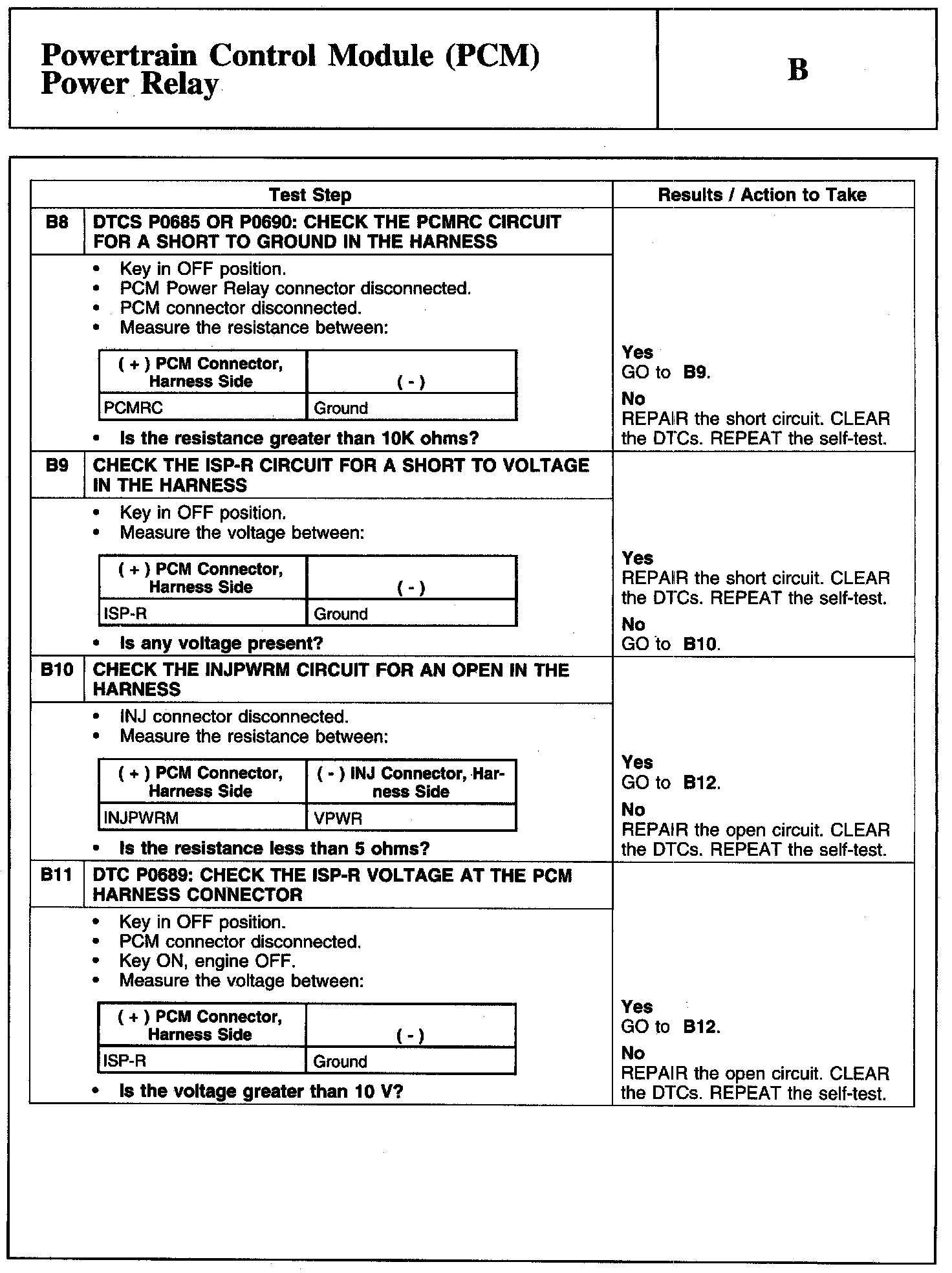

B8-B11:

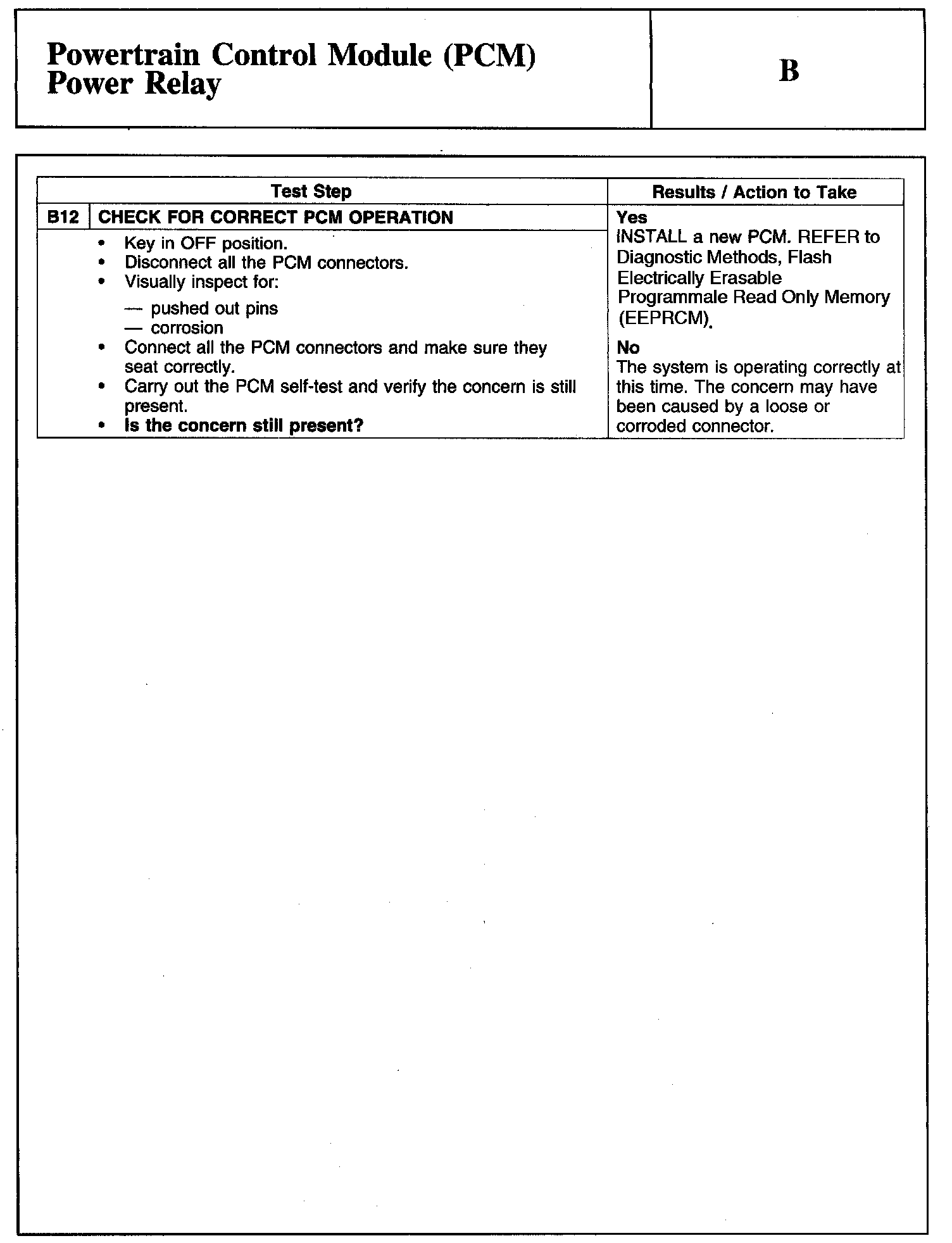

B12:
