Reference Value PID/Measured Signal Chart

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2007 Ford.

AI Repair Guides

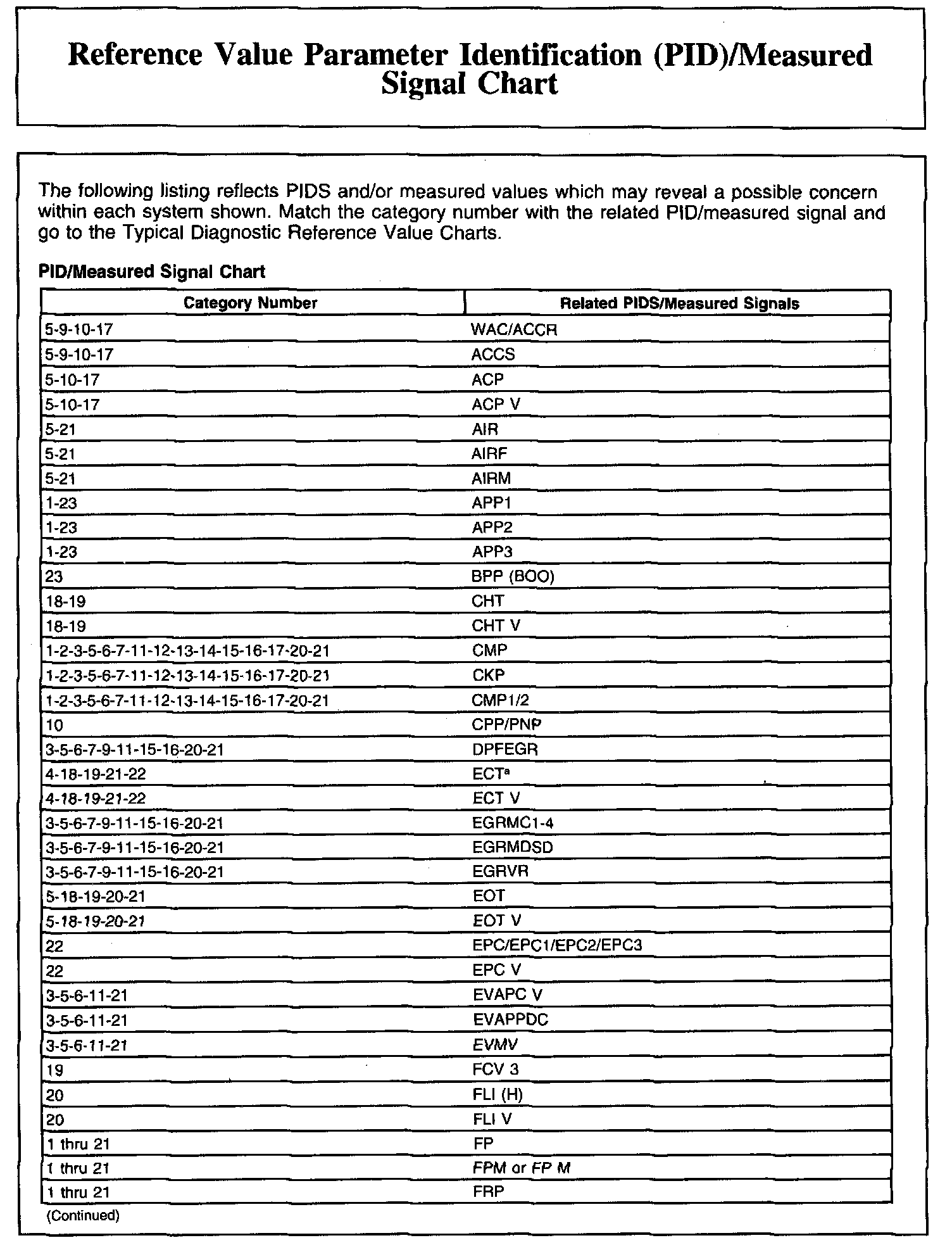

Reference Value Parameter Identification (PID)/Measured Signal Chart (Part 1):

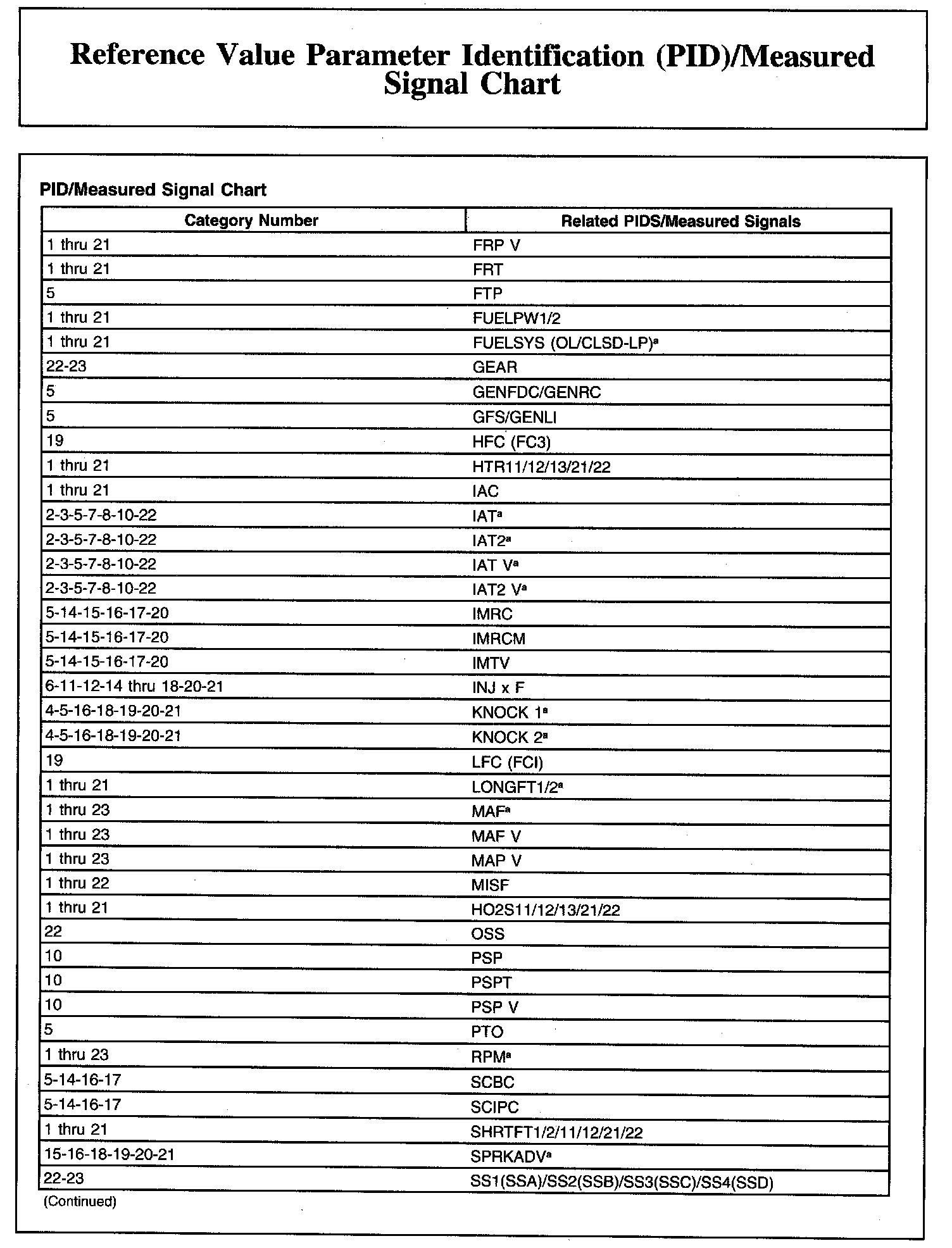

Reference Value Parameter Identification (PID)/Measured Signal Chart (Part 2):

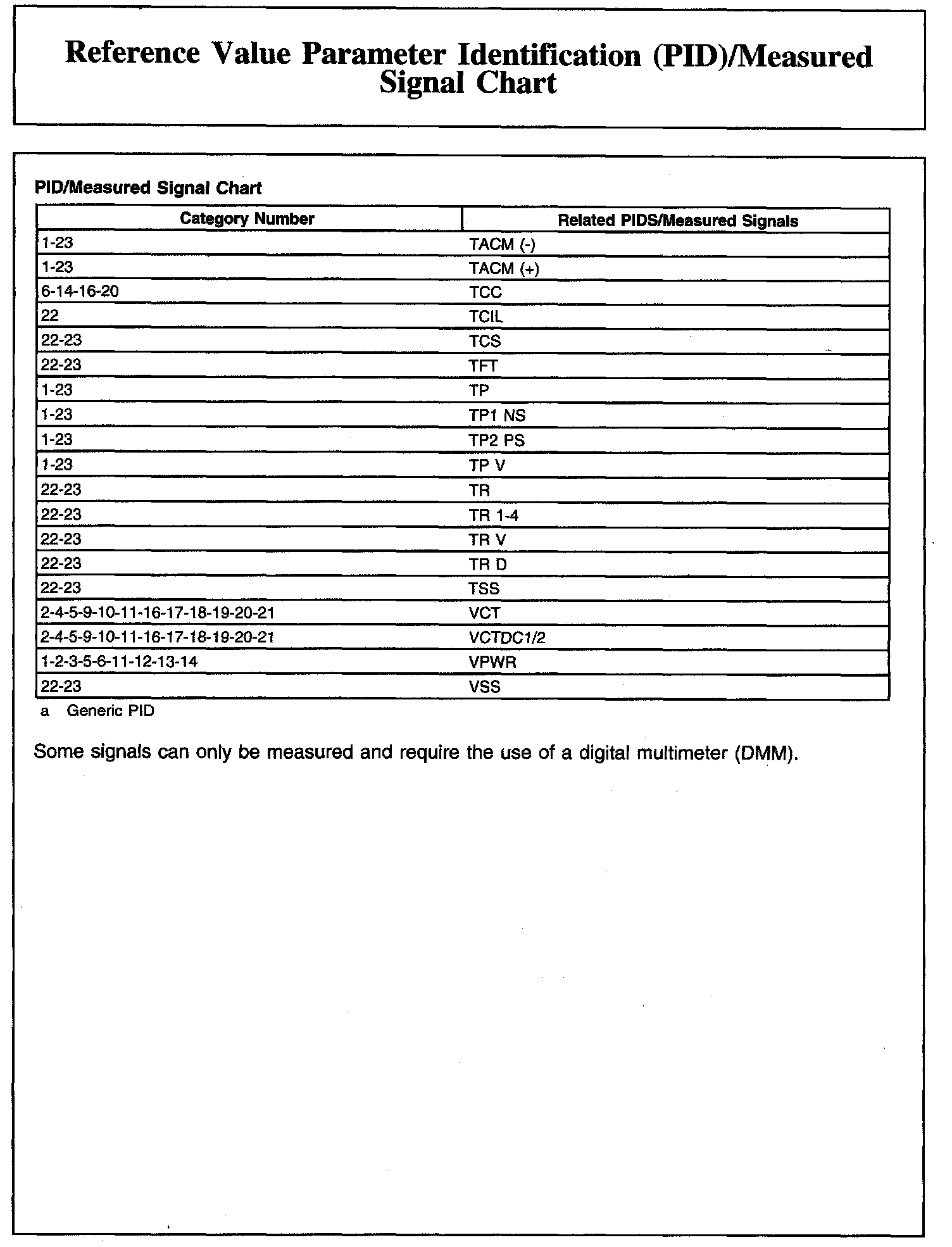

Reference Value Parameter Identification (PID)/Measured Signal Chart (Part 3):
