DRIVER SEAT MODULE (DSM)

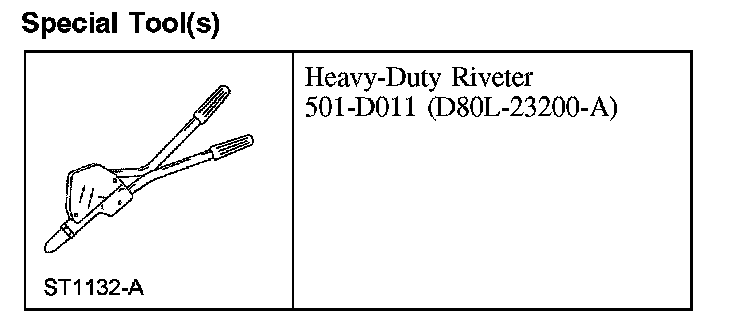

Special Tool(s):






Special Tool(s)

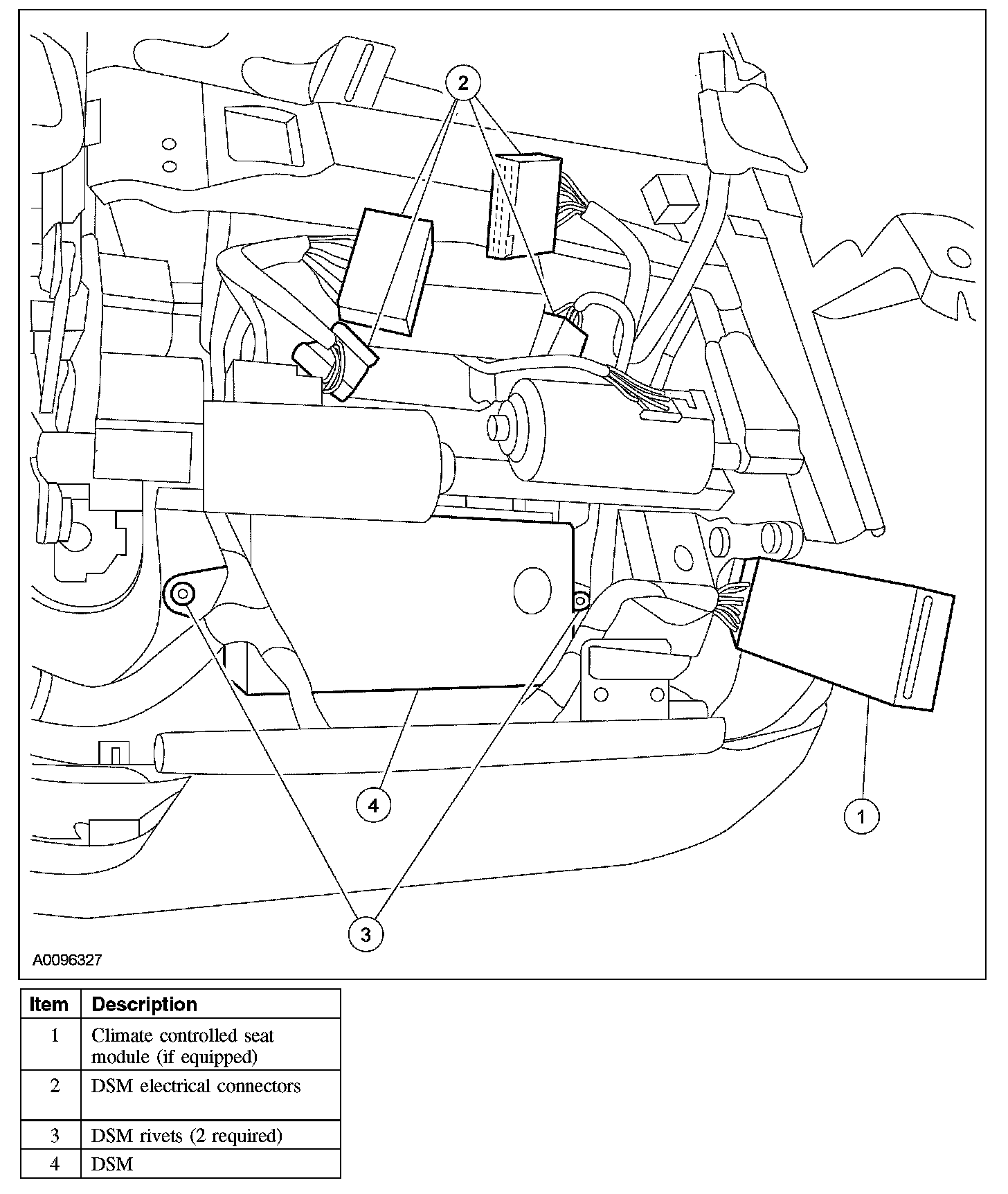

Removal and Installation
1. Remove the driver seat.
2. If equipped, position the climate controlled seat module aside.
3. Disconnect the DSM electrical connectors.
4. Remove the 2 rivets and the DSM.
5. To install, reverse the removal procedure.
- Use the special tool to install the 2 rivets.
