Air Flow Meter/Sensor: Service and Repair

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2007 Ford.

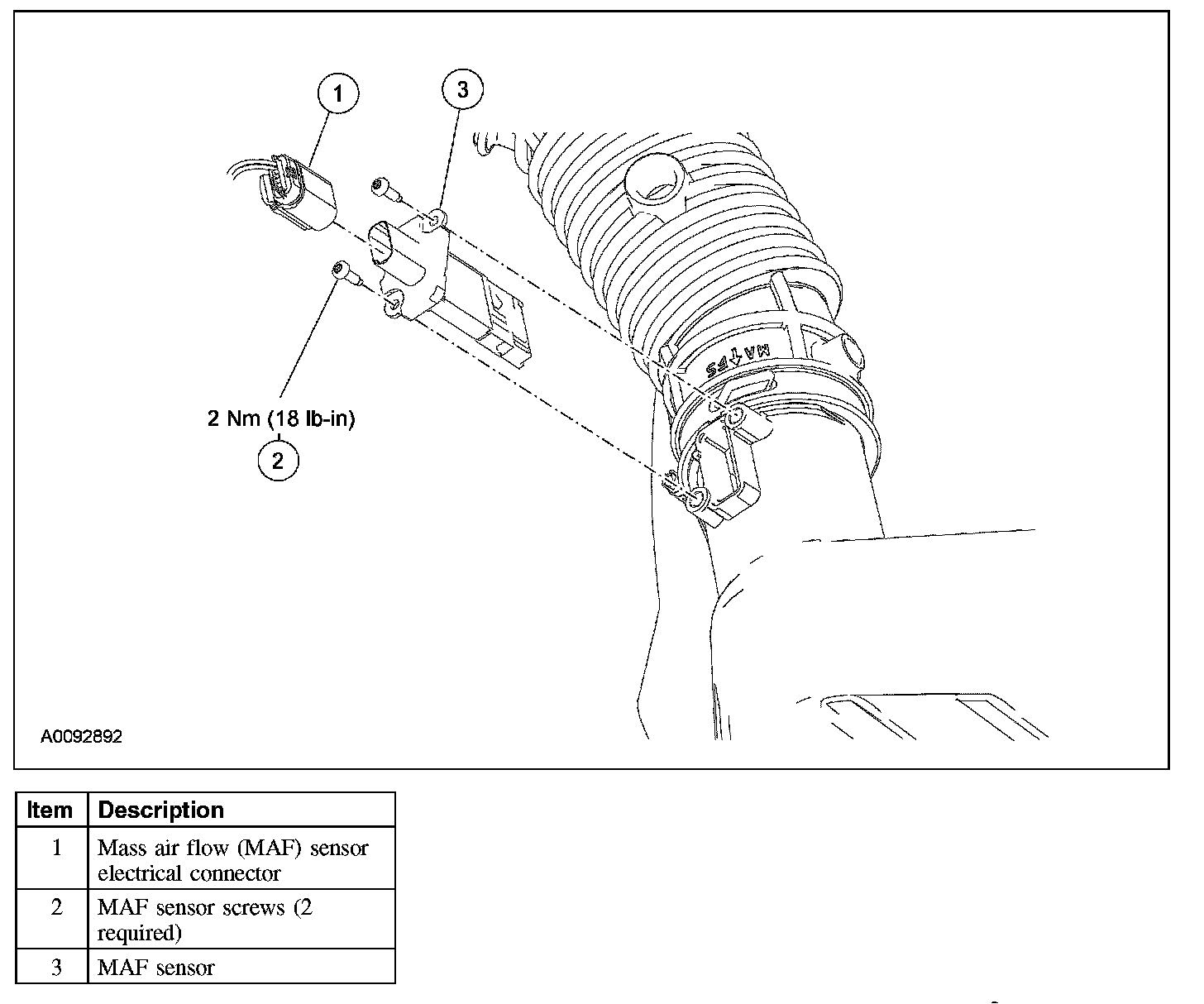

MASS AIR FLOW (MAF) SENSOR

Removal and Installation
1. Disconnect the battery ground cable.
2. Disconnect the mass air flow (MAF) sensor electrical connector.
3. Remove the 2 screws and the MAF sensor.
- To install, tighten to 2 Nm (18 lb-in).

4. To install, reverse the removal procedure.
