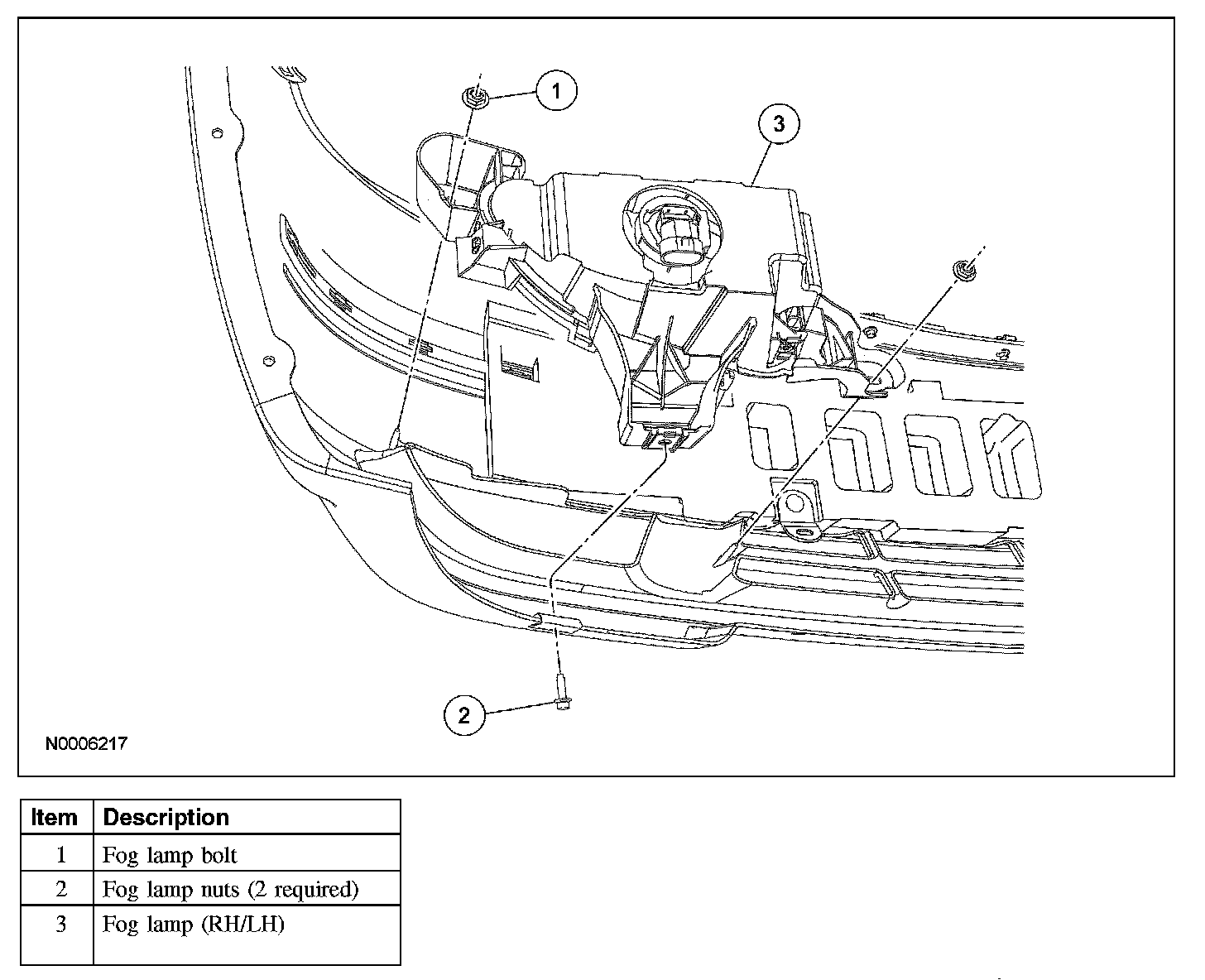

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the fog lamp bolt.
3. Remove the 2 nuts and the fog lamp.
- Disconnect the electrical connector.
4. To install, reverse the removal procedure.
Fog/Driving Lamp: Service and Repair
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2007 Ford.
Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the fog lamp bolt.
3. Remove the 2 nuts and the fog lamp.
- Disconnect the electrical connector.
4. To install, reverse the removal procedure.
