Removal and Installation
1. Remove the mirror glass.

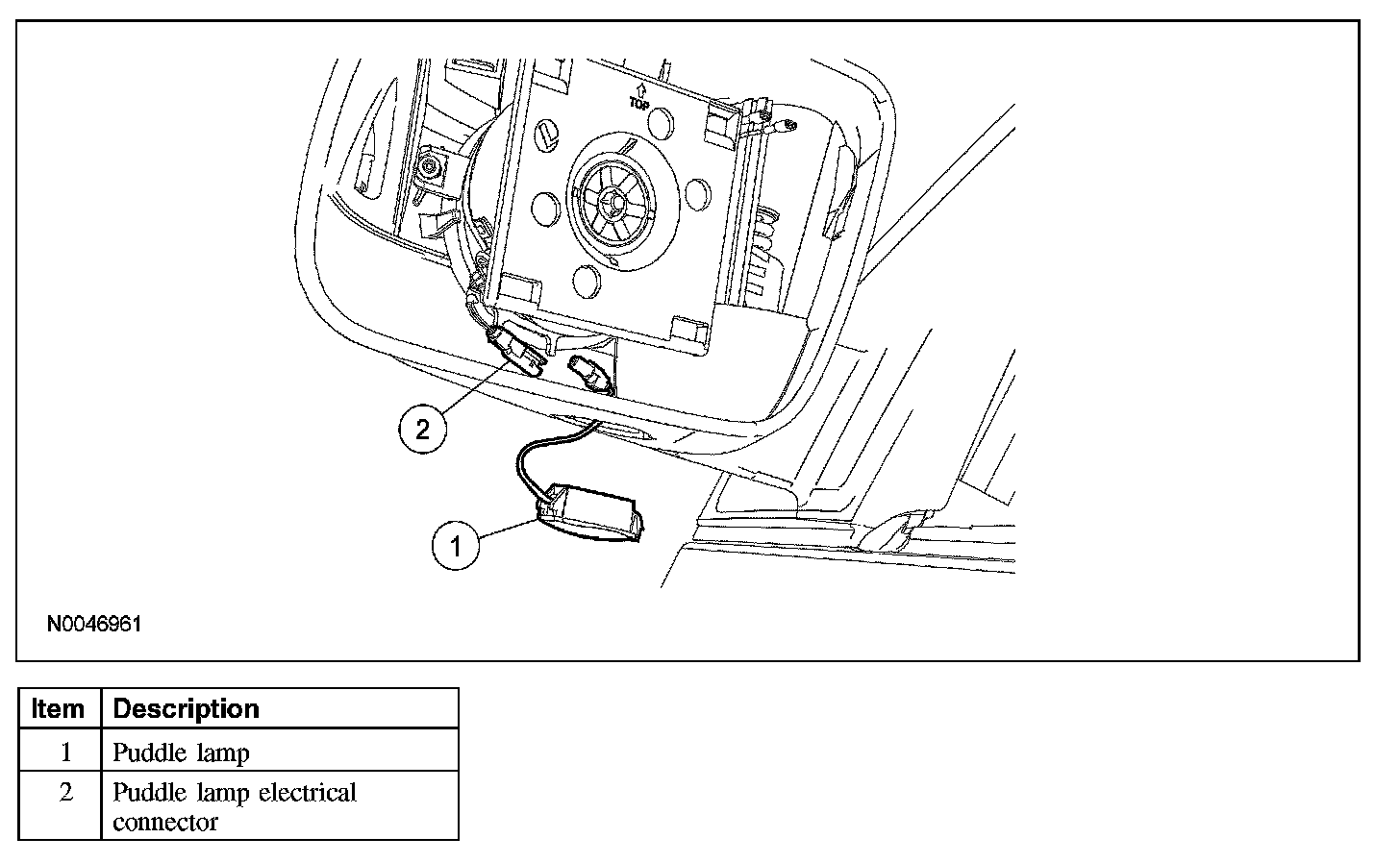

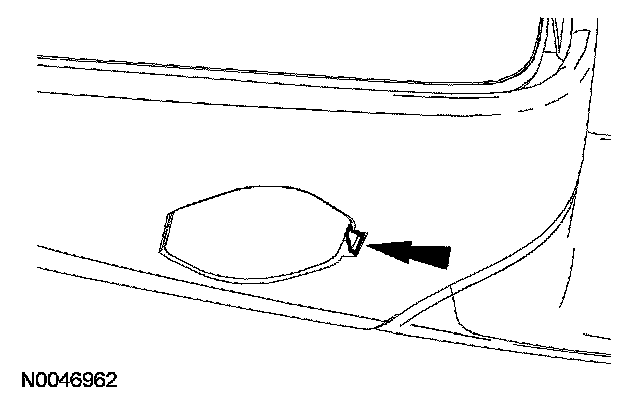

2. Release the tab and remove the puddle lamp.
- Disconnect the electrical connector.
3. To install, reverse the removal procedure.
Courtesy Lamp: Service and Repair
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2007 Ford.
Removal and Installation
1. Remove the mirror glass.
2. Release the tab and remove the puddle lamp.
- Disconnect the electrical connector.
3. To install, reverse the removal procedure.
