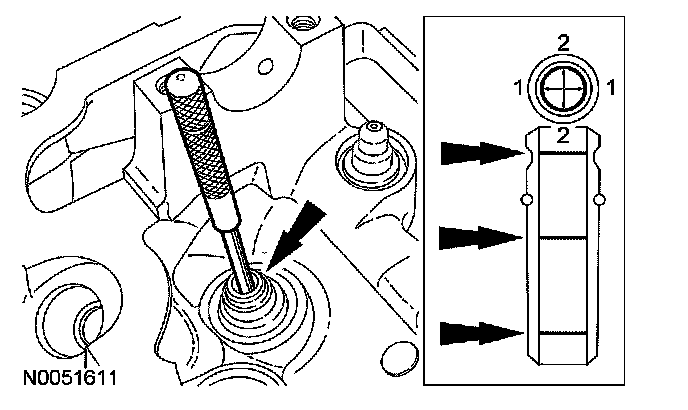

1. NOTE: Valve guides tend to wear in an hourglass pattern. The ball gauge can be inserted into the combustion chamber side of the valve guide if necessary.
Use a ball gauge to determine the inner diameter of the valve guides in 2 directions at the top, middle and bottom of the valve guide.

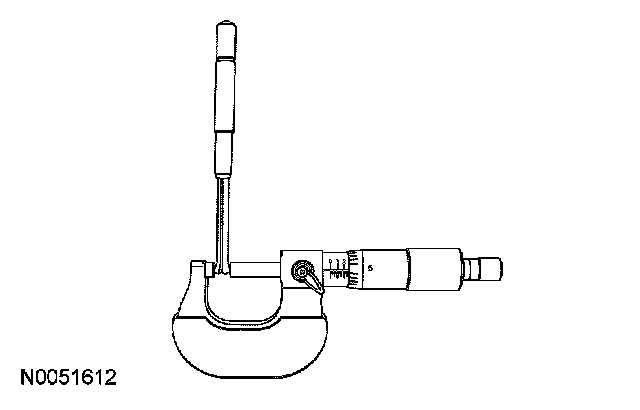

2. Measure the ball gauge with a micrometer.
^
3. If the valve guide is not within specifications, ream the valve guide and install a valve with an oversize stem or remove the valve guide and install a new valve guide.
