Part 1:
Part 2:
Removal and Installation
1. Remove the left and right side rear quarter trim panels.

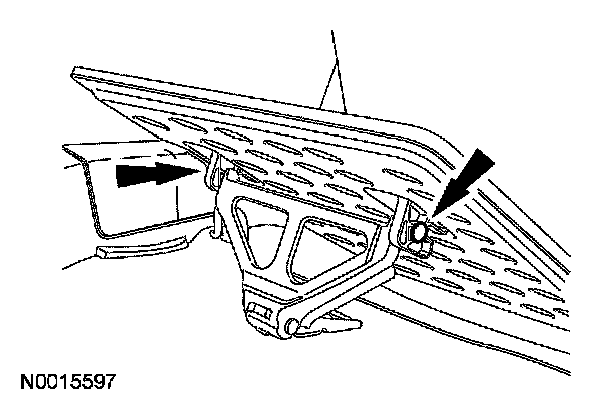

2. NOTE: 50/50 seat shown, bench seat similar. Remove the 2 load floor supports (1 shown) from the load floor panel(s).
- Push the load floor support back and lift up on the load floor to disengage.

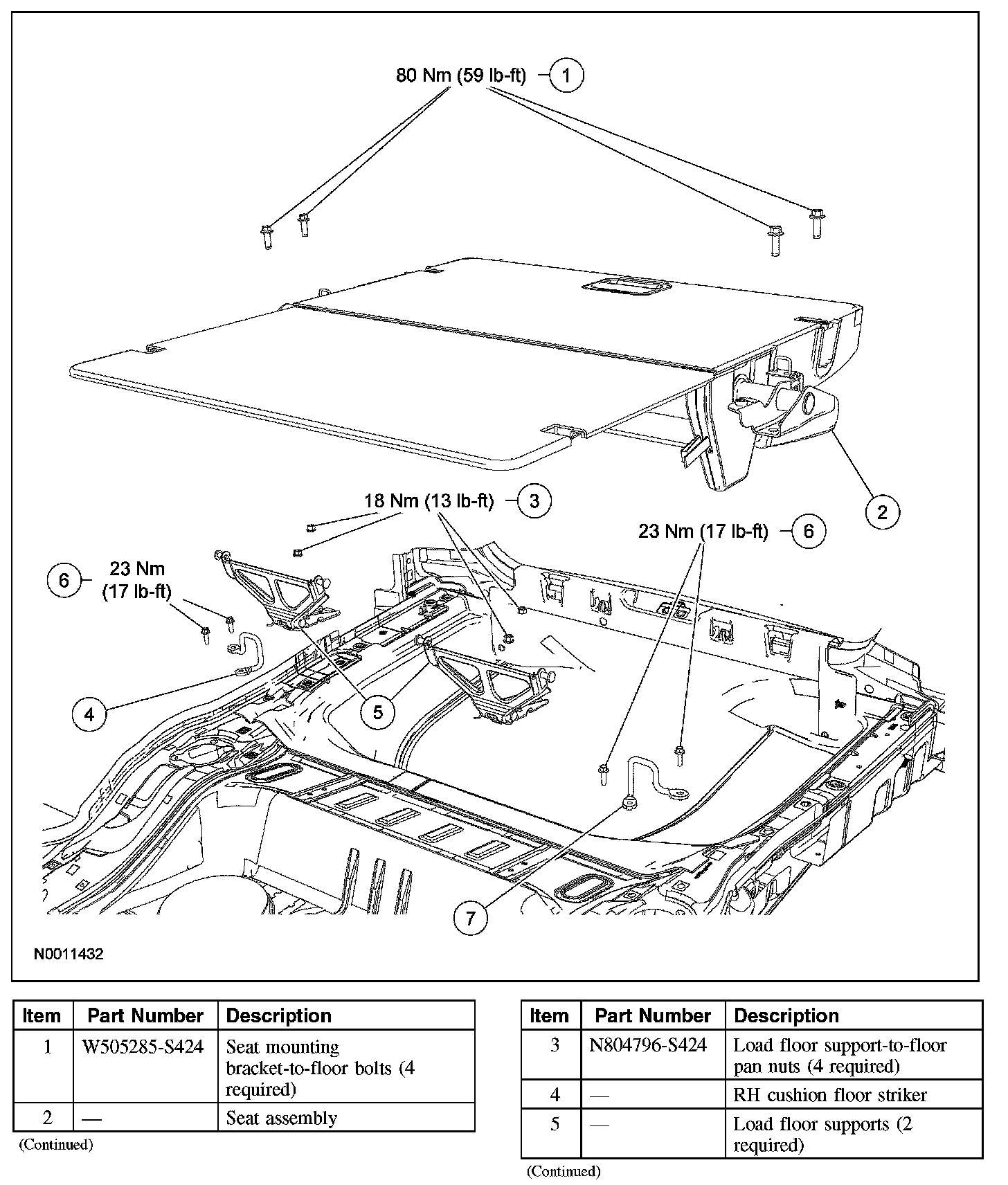

3. Remove the 4 bolts and remove the third row seat.
- To install, tighten to 80 Nm (59 lb-ft).
4. To install, reverse the removal procedure.
- Make sure the safety belt buckles are accessible to the occupants after installation.
