Engine Control Module: Service and Repair

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2001 Ford.

REMOVAL

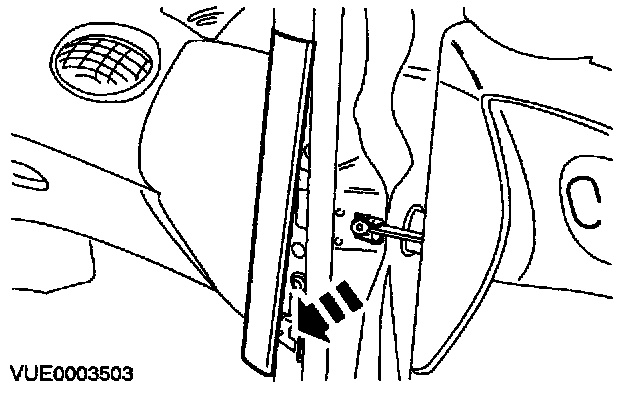

1. Remove the instrument panel side trim.

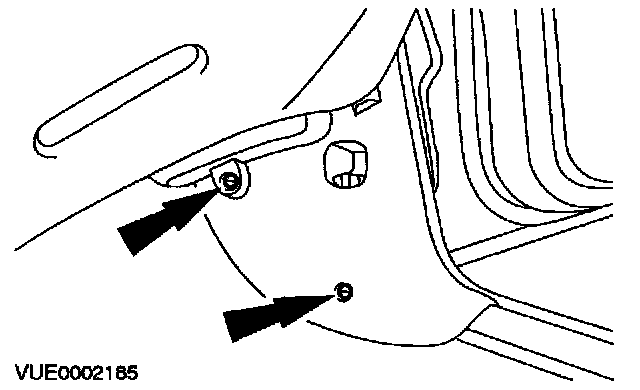

2. Remove the cowl side trim panel.

3. Remove the glovebox.

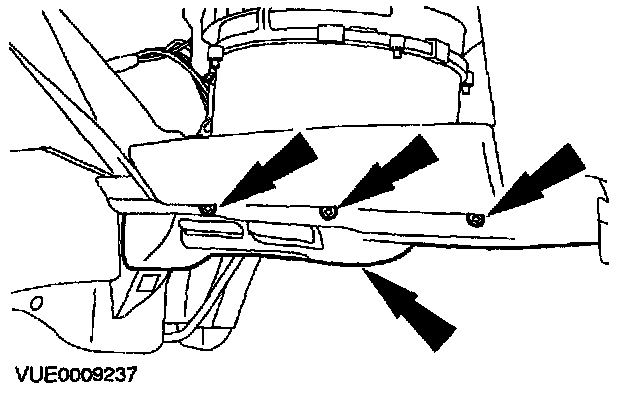

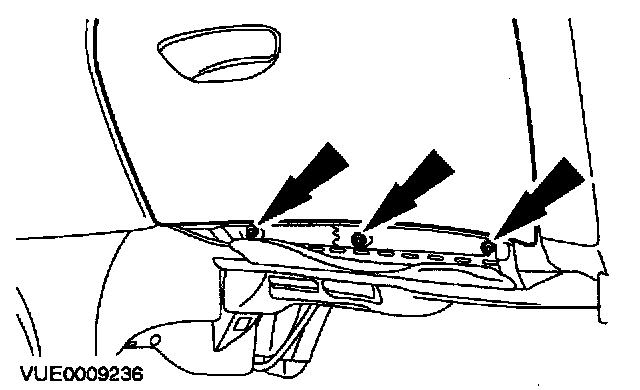

4. Remove the passenger side lower footwell trim panel.

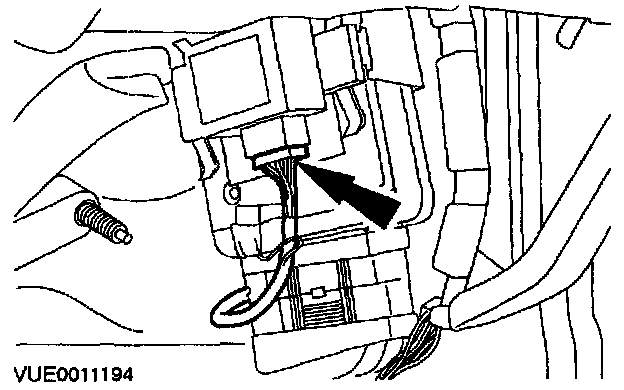

5. Disconnect the Central Security Module (CSM) electrical connector.

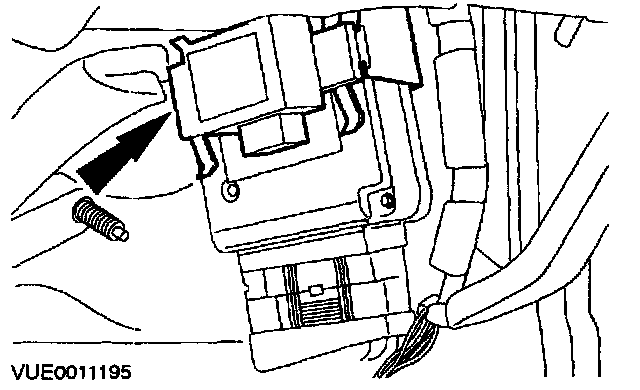

6. Detach the Powertrain Control Module (PCM) securing bracket.

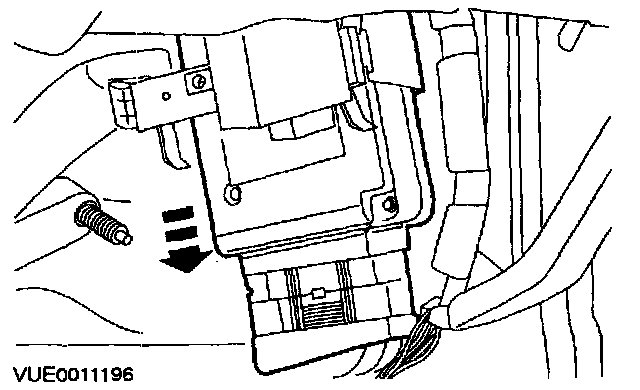

7. Remove the PCM from the securing bracket.

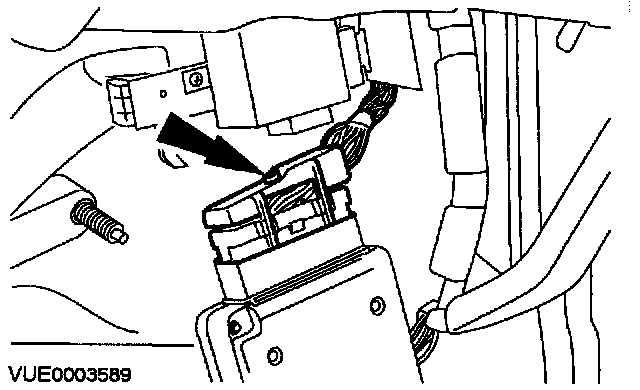

8. Remove the PCM.

INSTALLATION
1. To install, reverse the removal procedure.
