AX4S

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1999 Ford.

AI Repair Guides

1 of 7:




2 Of 7:




3 Of 7:




4 Of 7:




5 Of 7:




6 Of 7:




7 Of 7:

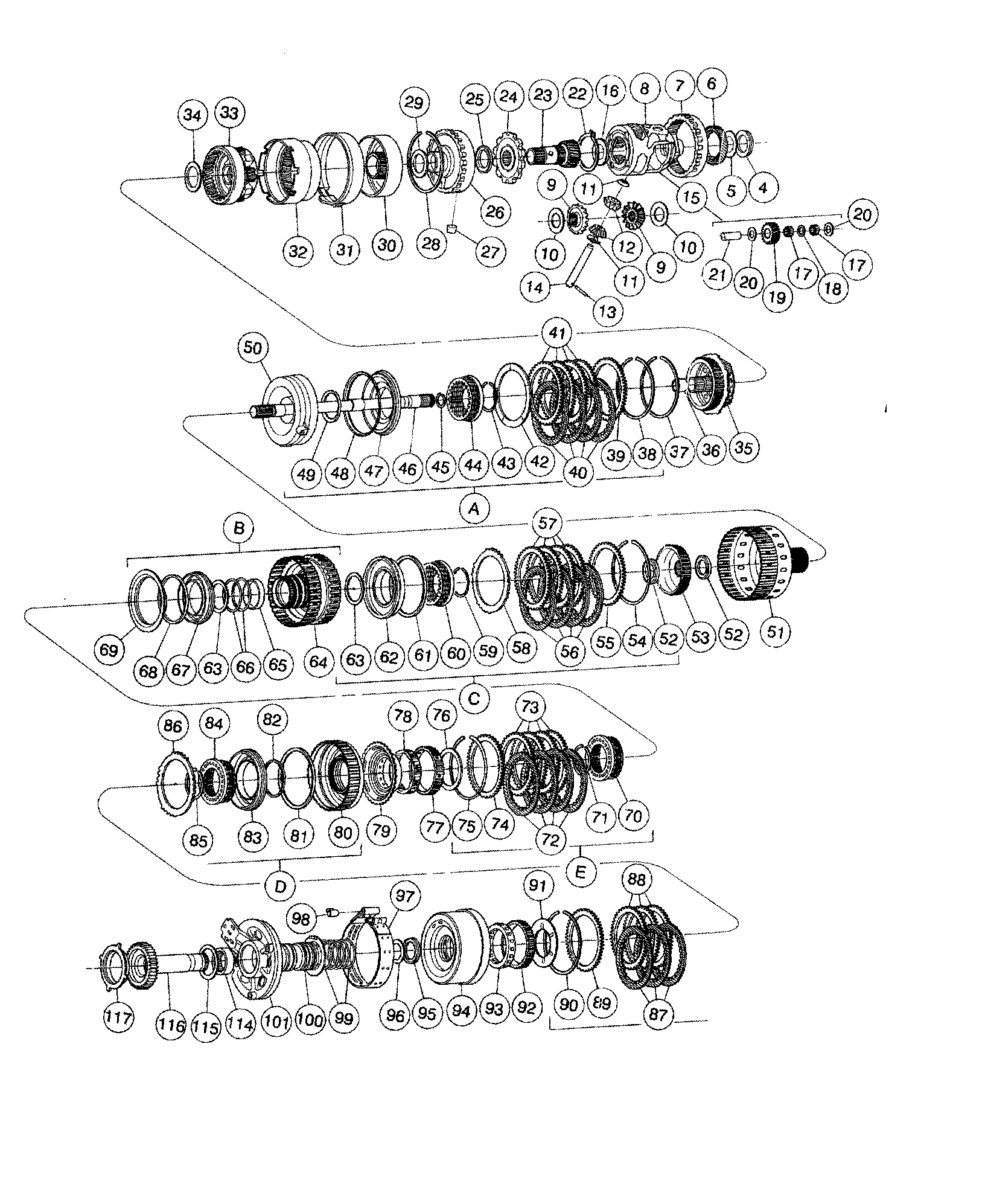

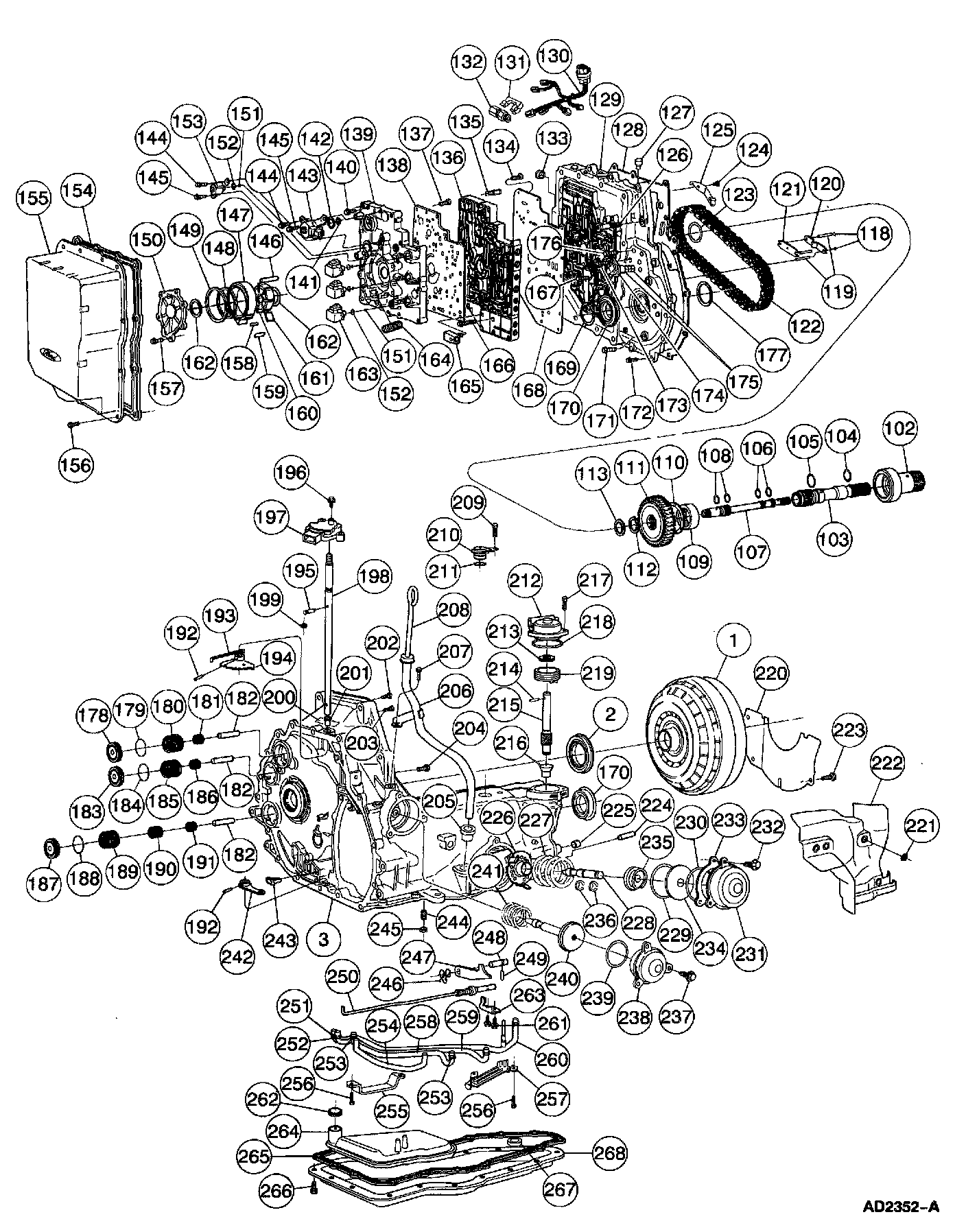

Disassembled View - Transaxle, Automatic
