REMOVAL
1. Remove the battery and battery tray.

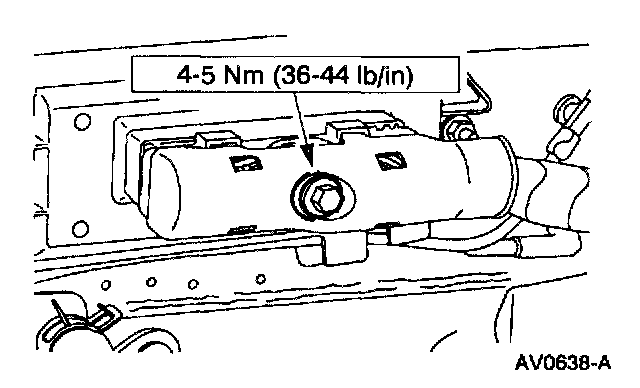

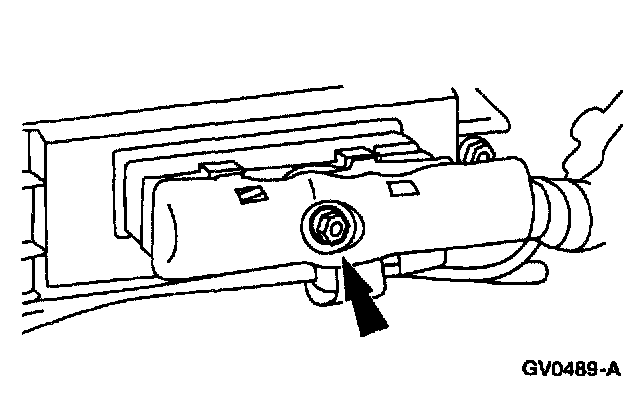

2. Loosen the bolt and separate the PCM electrical connectors.

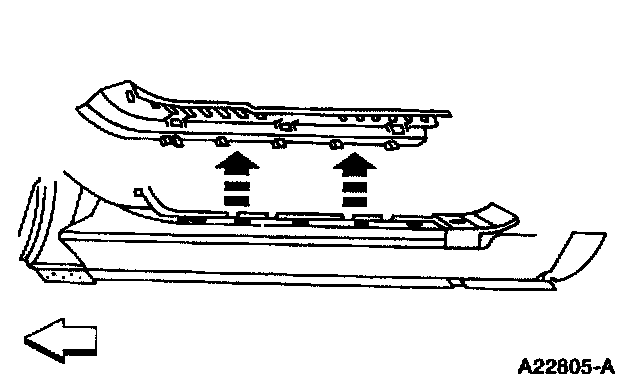

3. Remove the RH front door scuff plate.

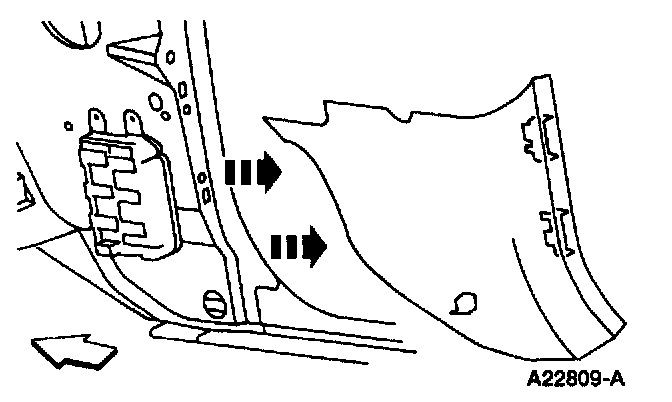

4. Remove the RH cowl side trim panel.

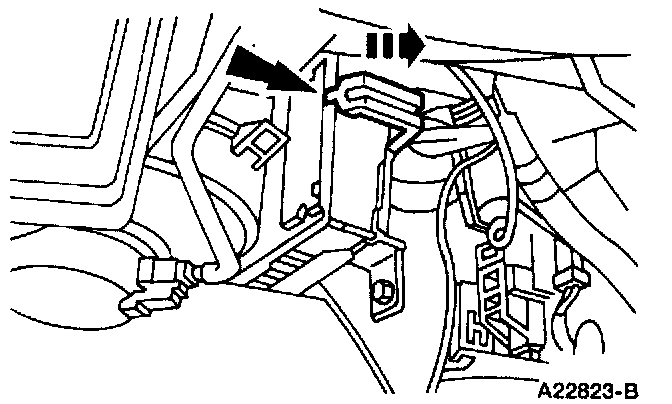

5. Remove the PCM bracket clip.







6. Remove the powertrain control module.

INSTALLATION







1. Follow the removal procedure in reverse order.
