REMOVAL
1. Disconnect the battery ground cable.

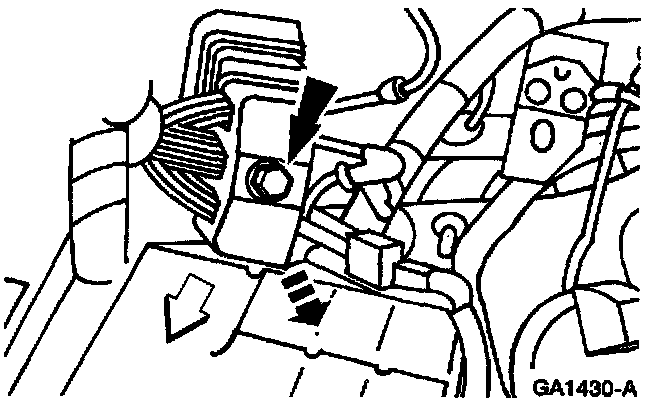

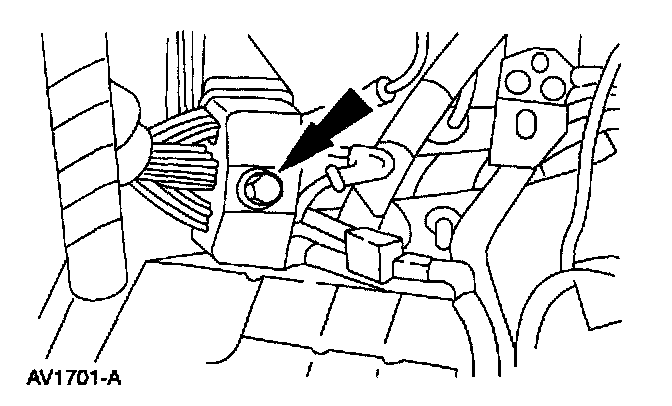

2. Loosen the bolt and disconnect the electrical connectors.

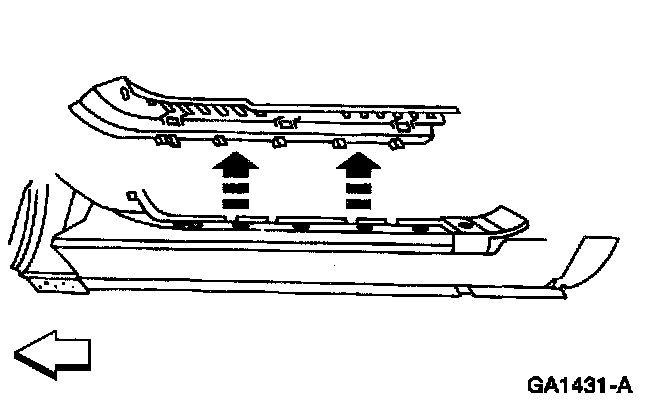

3. Remove the RH front door scuff plate.

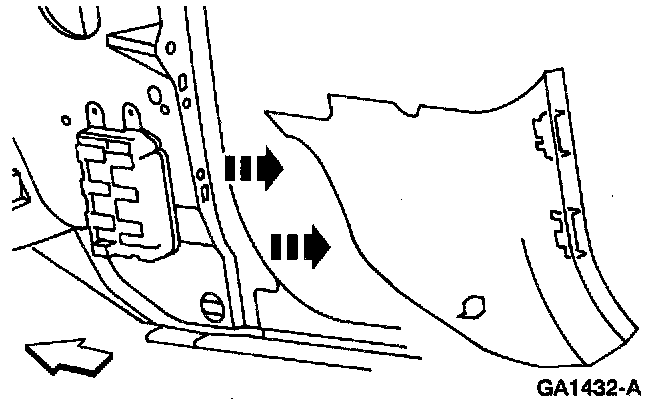

4. Remove the RH cowl side trim panel.

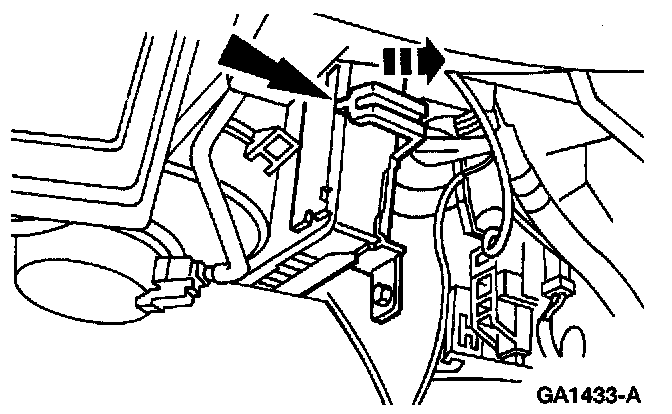

5. Remove the bracket clip.

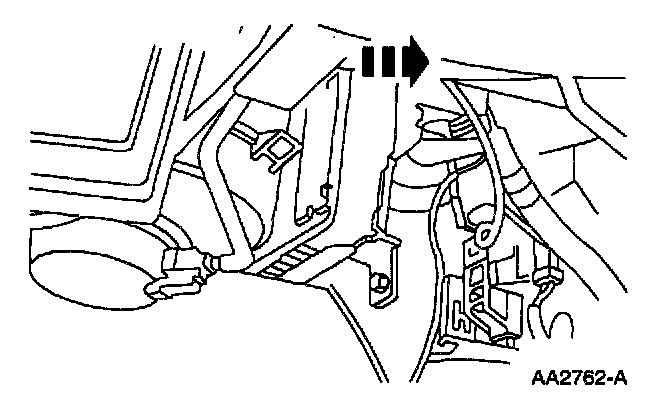

6. Remove the Powertrain Control Module (PCM).

INSTALLATION







1. To install, reverse the removal procedure.
