Window Glass: Service and Repair

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1997 Ford.

AI Repair Guides
REMOVAL
1. Remove the door trim panel.

NOTE: Lower the door window glass.

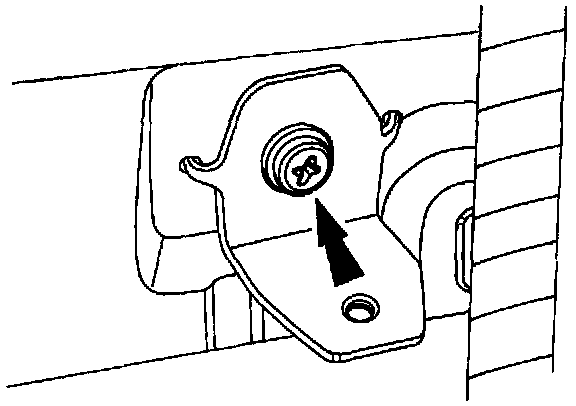

2. Remove the door armrest bracket screw and bracket.

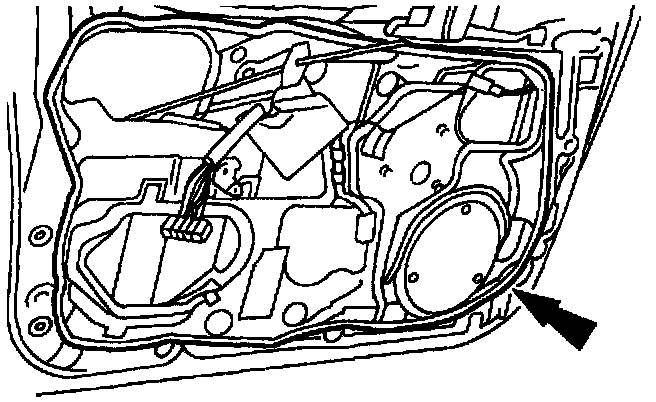

3. Remove the watershield.

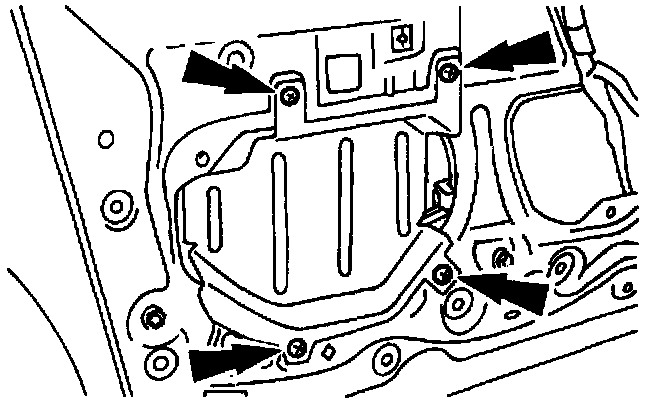

4. Remove the four bolts and the access panel (front door only).

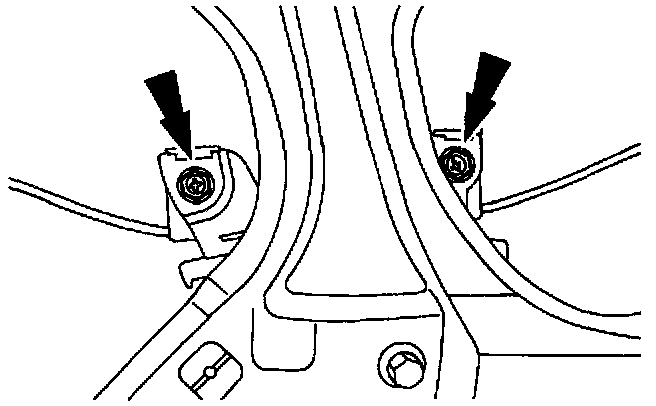

5. Remove the two bolts from the bottom of the door window glass and remove the door window glass.







INSTALLATION

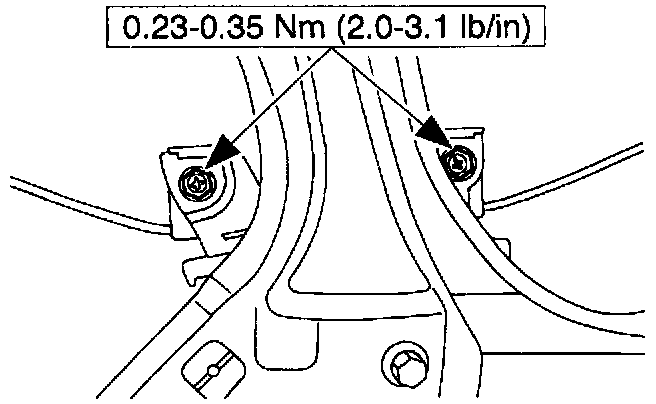

1. To install, reverse the removal procedure.
