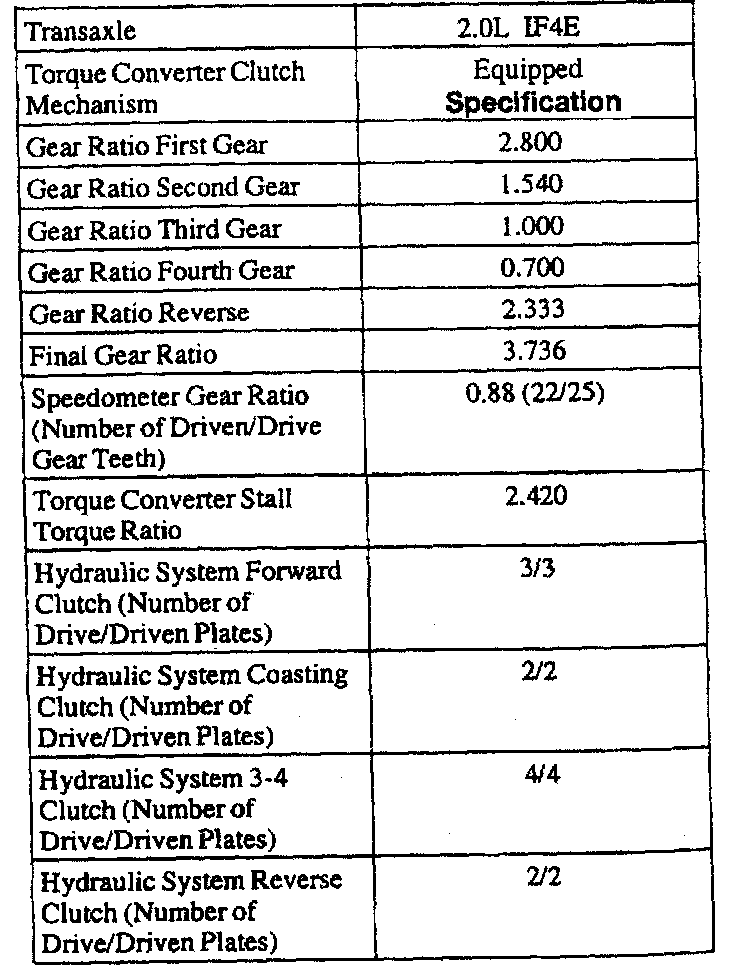

IF4E 4-spd A/T, Gear Ratios/Plates (Escort/Tracer):

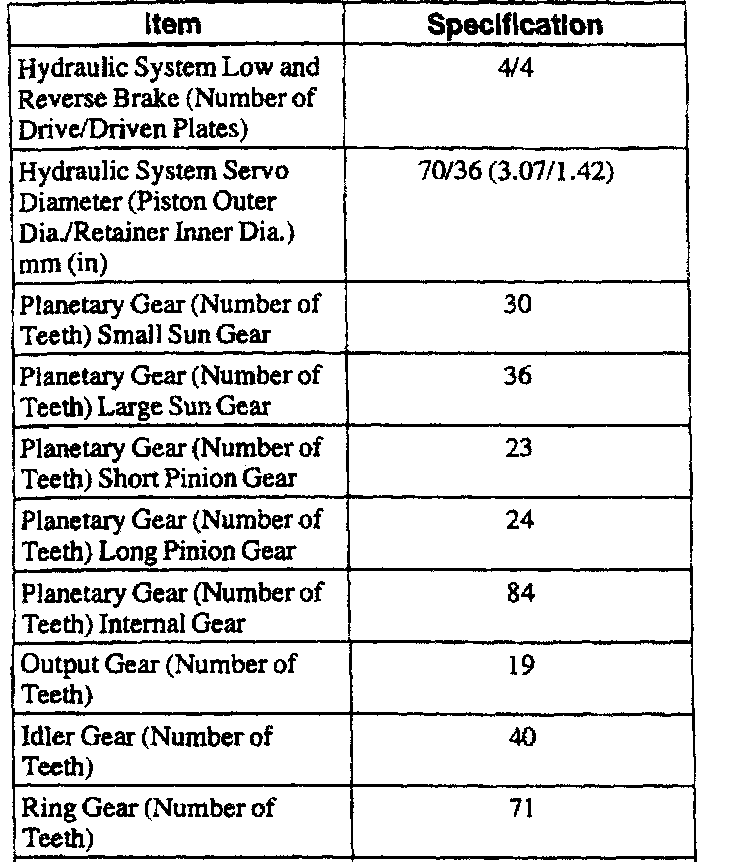

IF4E 4-spd A/T, Drive Plates/Teeth (Escort/Tracer):

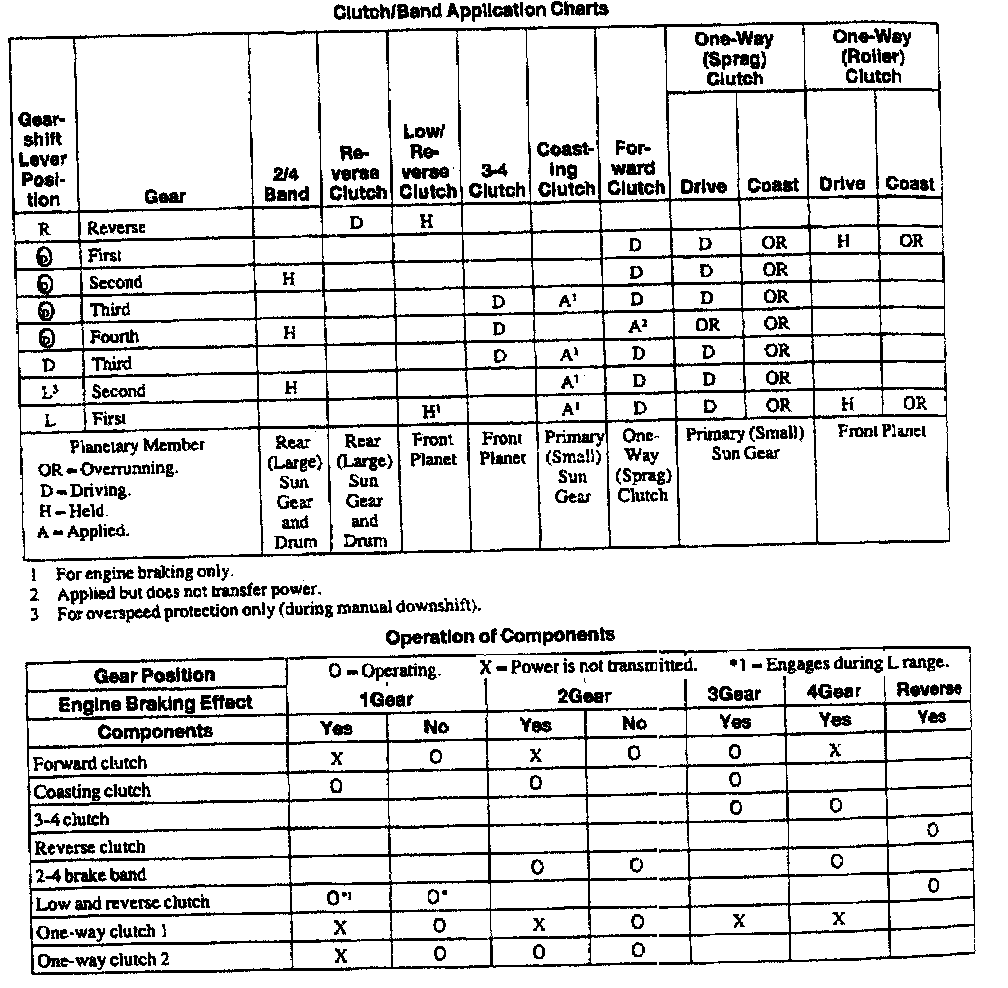

IF4E 4-spd A/T, Clutch/Band Application (Escort/Tracer):

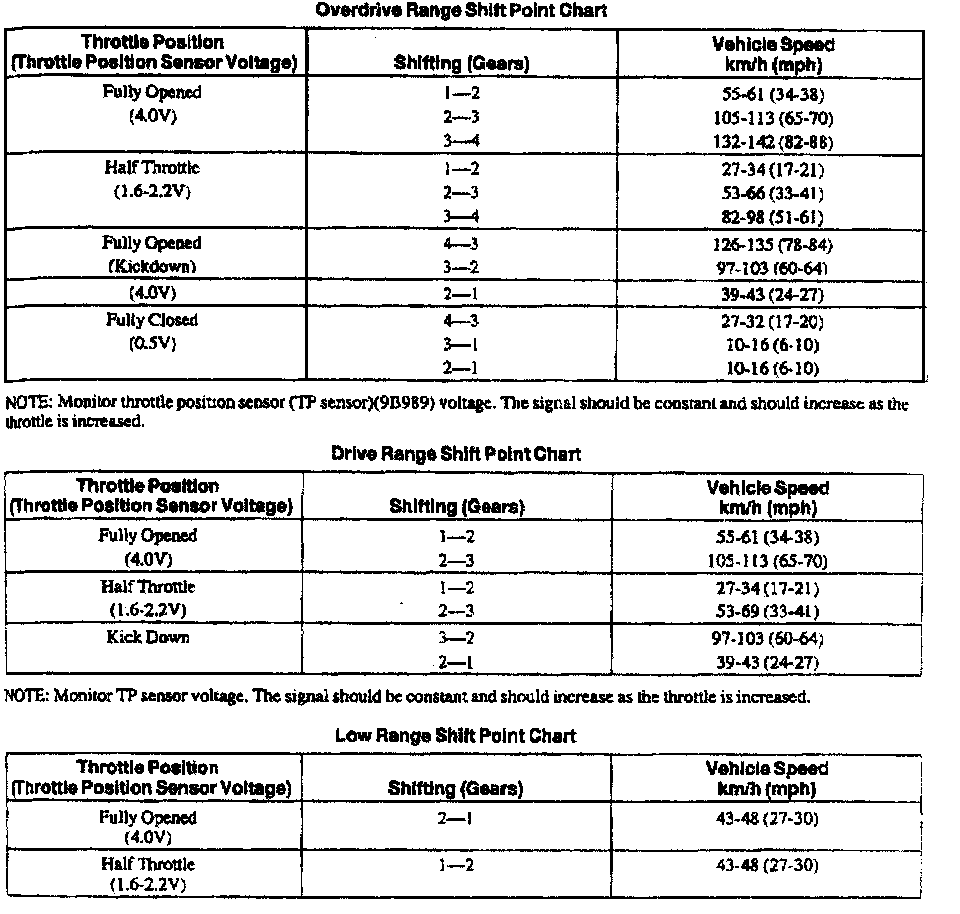

IF4E 4-spd A/T, Shift Point Chart (Escort/Tracer):
A/T Technical Data
