Connector Views

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1994 Ford.

AI Repair Guides

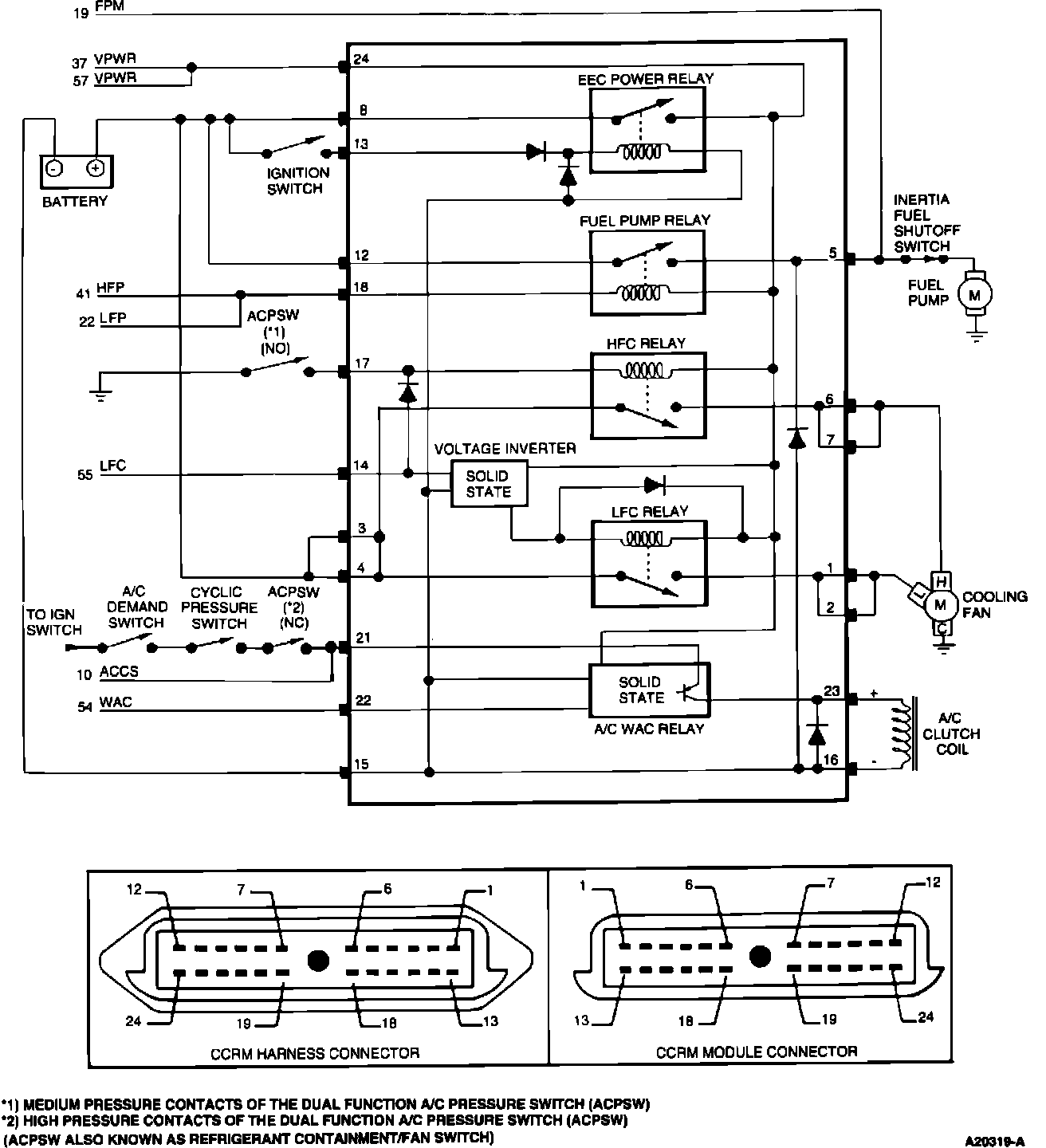

Constant Control Relay Module (CCRM) Schematic:
