Wiper and Washer System - Exploded View

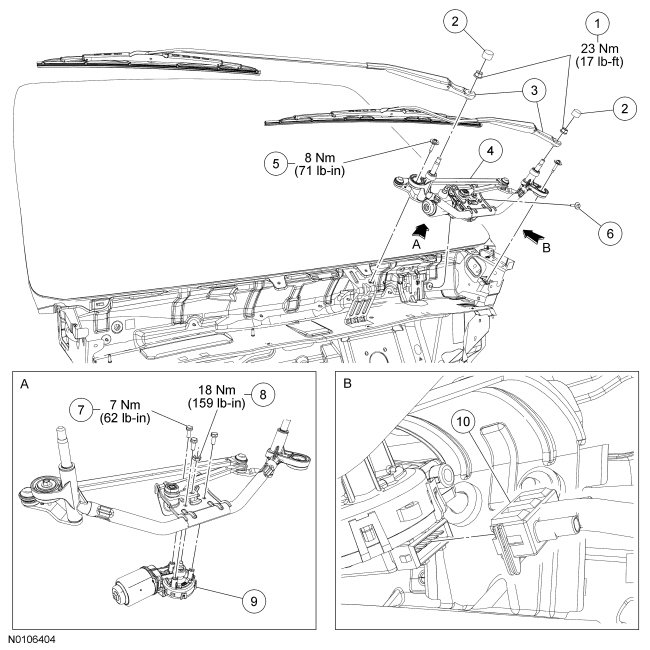

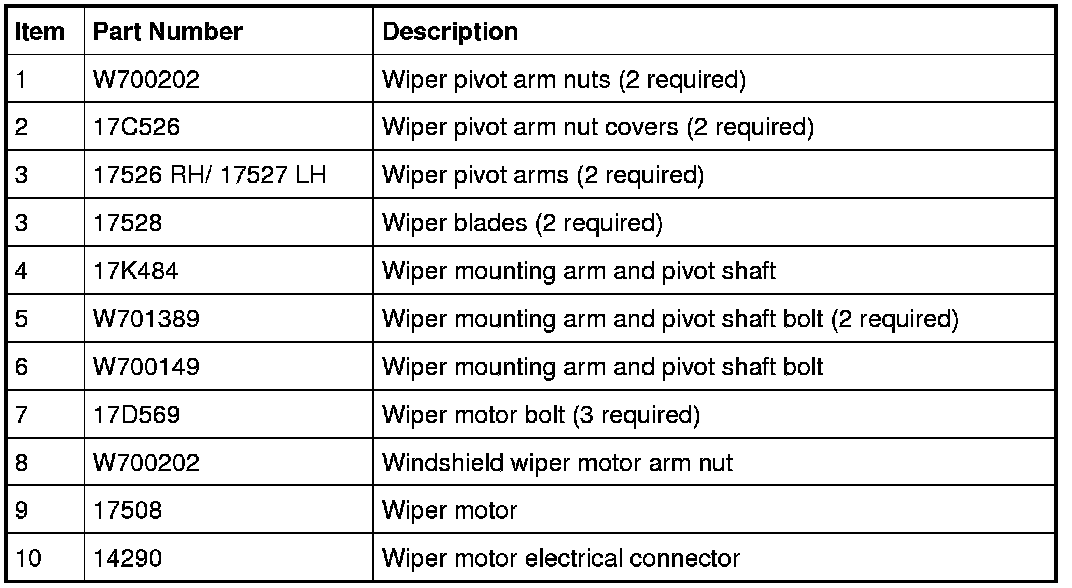

Front Wipers

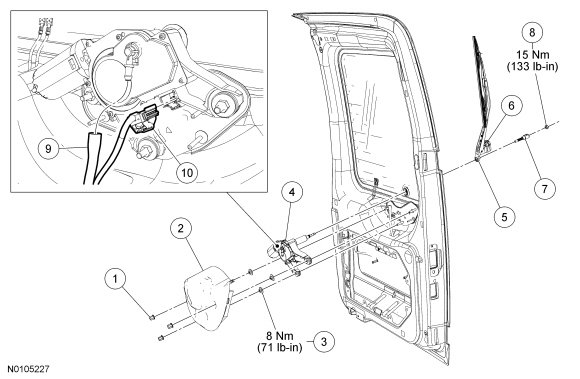

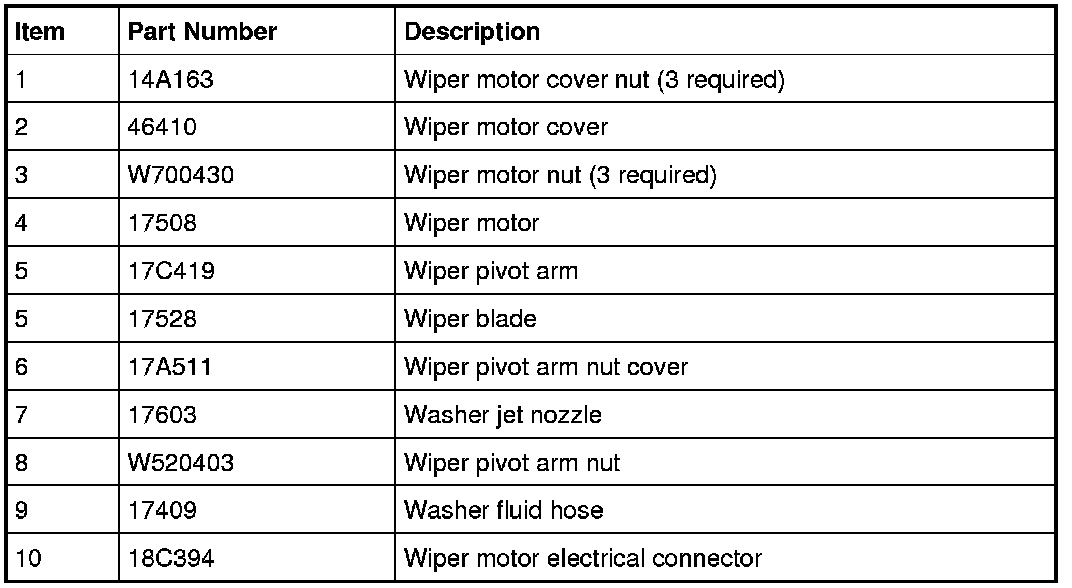

Rear Wiper
NOTE: RH cargo door shown, LH cargo door similar.

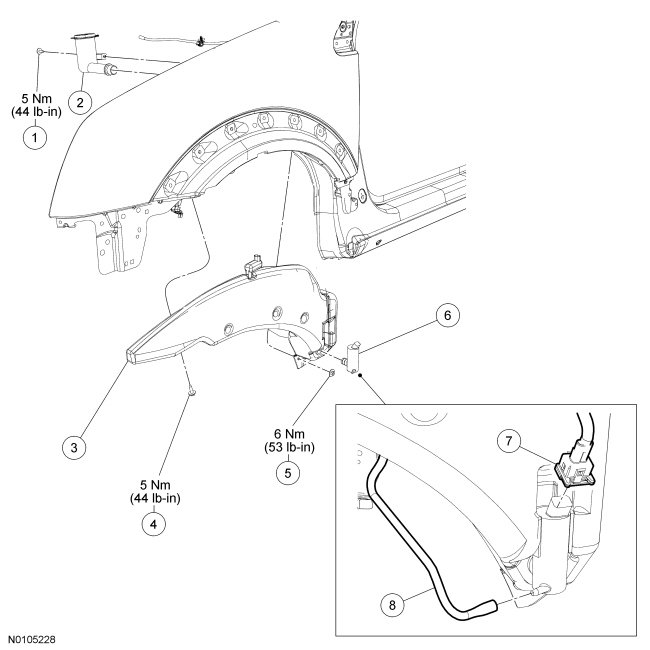

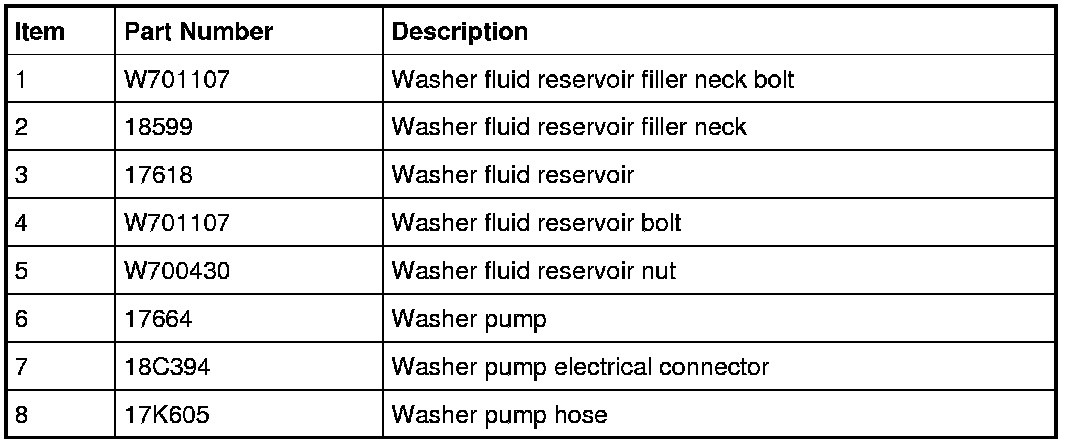

Washer Pump and Reservoir
