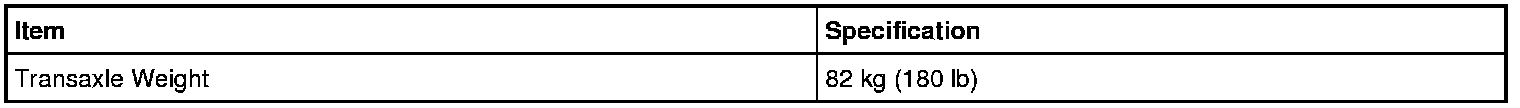

General Specifications

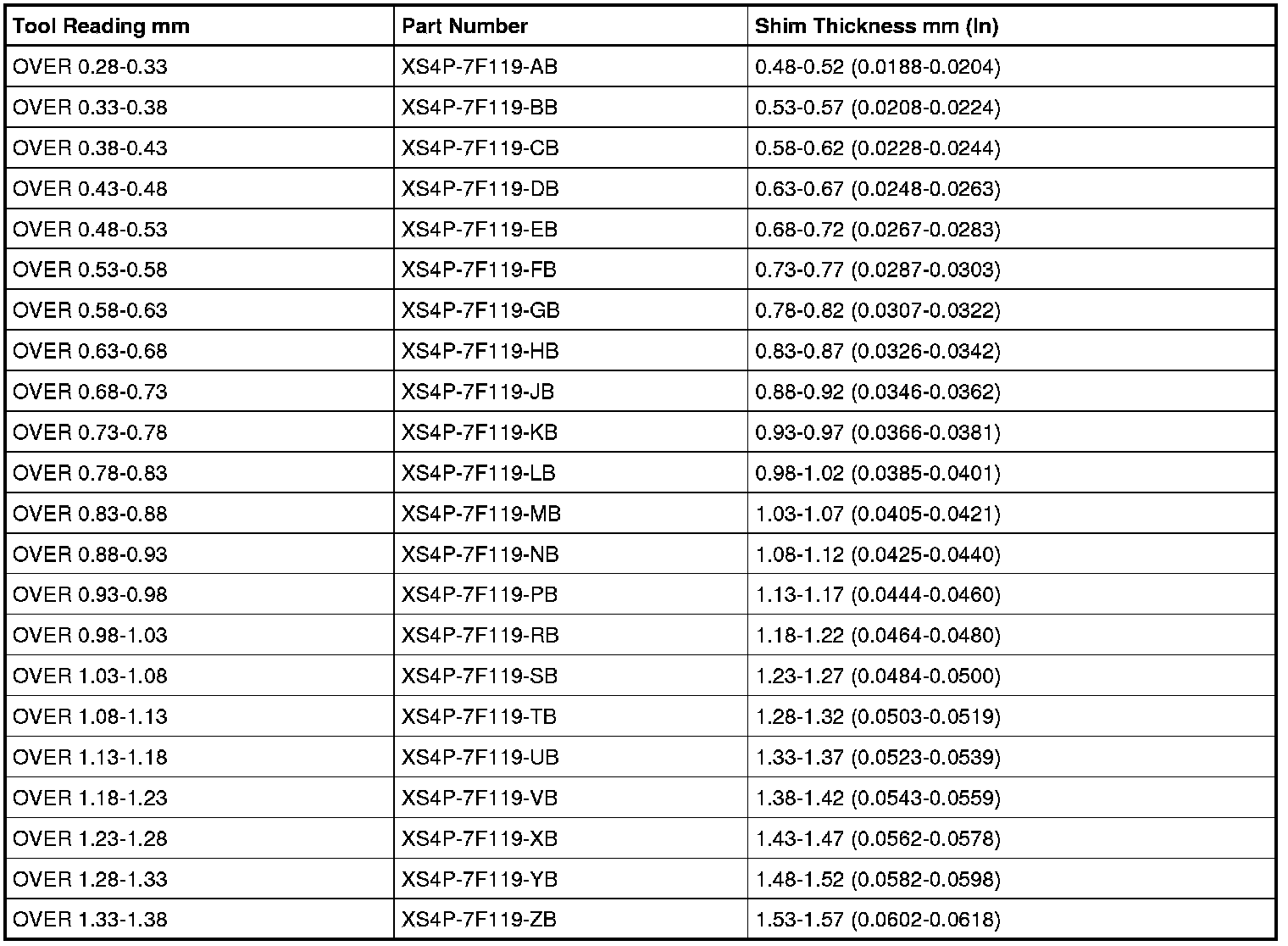

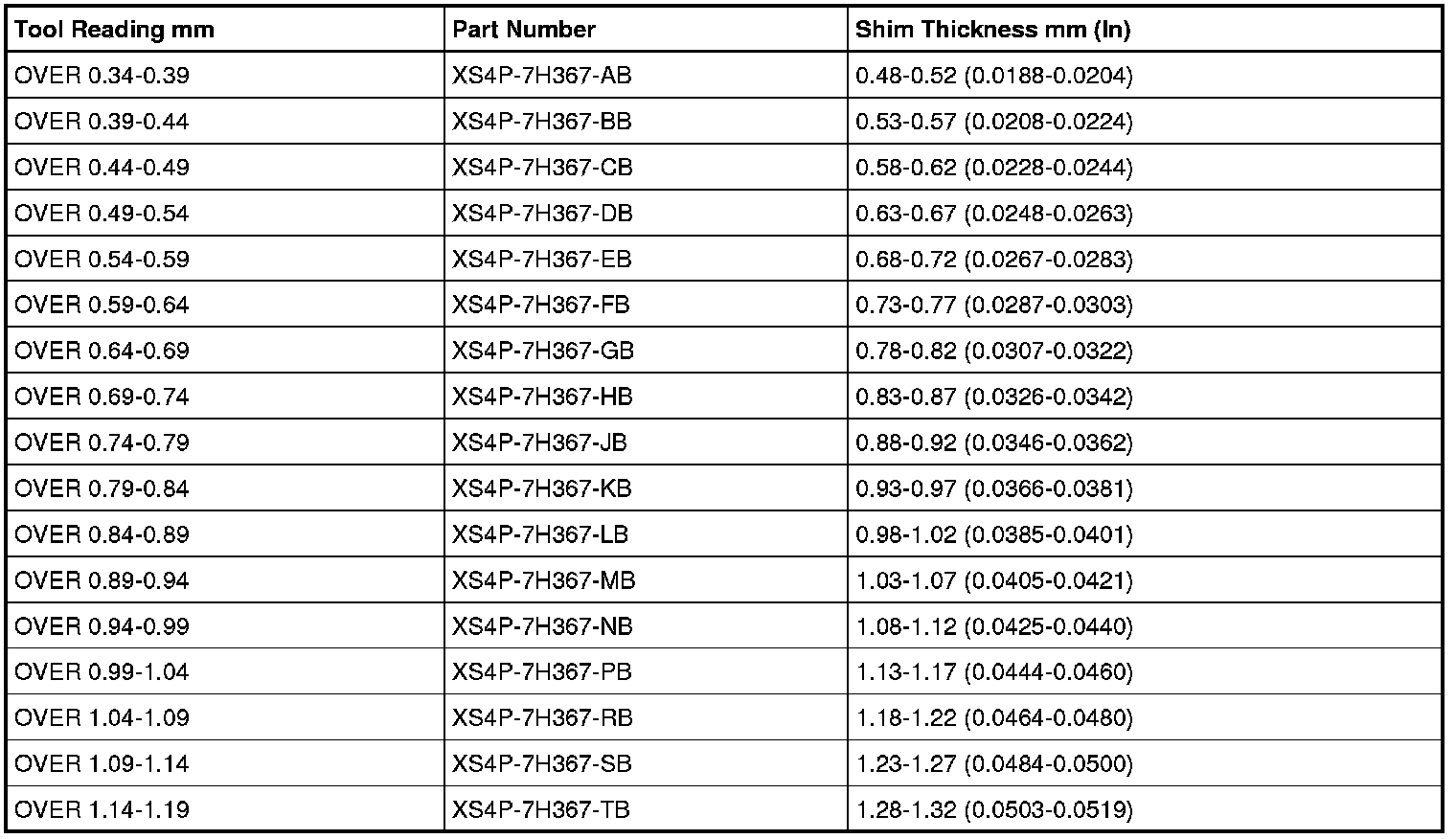

Direct Clutch Hub Shim Selection Chart

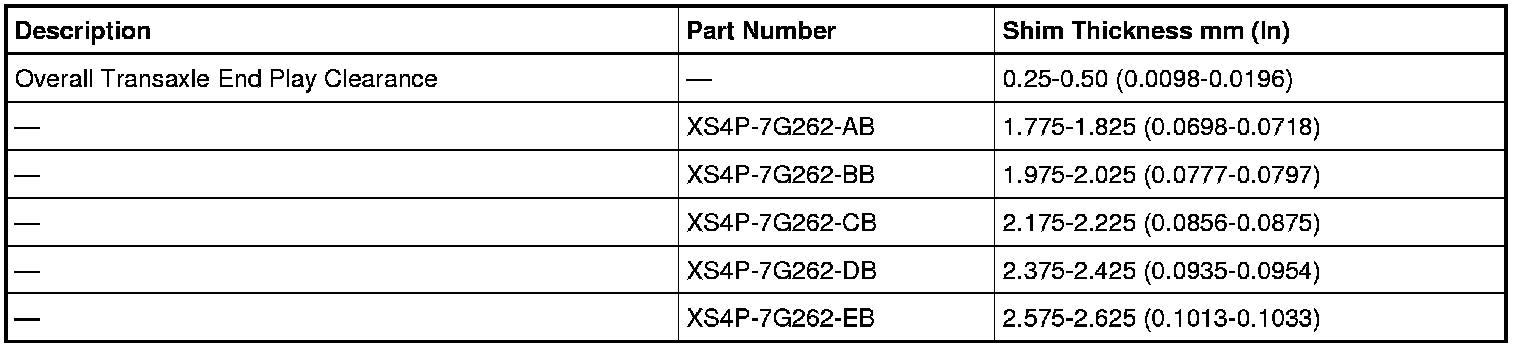

Transfer Shaft Shim Selection Chart
Differential Shaft Shim Selection Chart

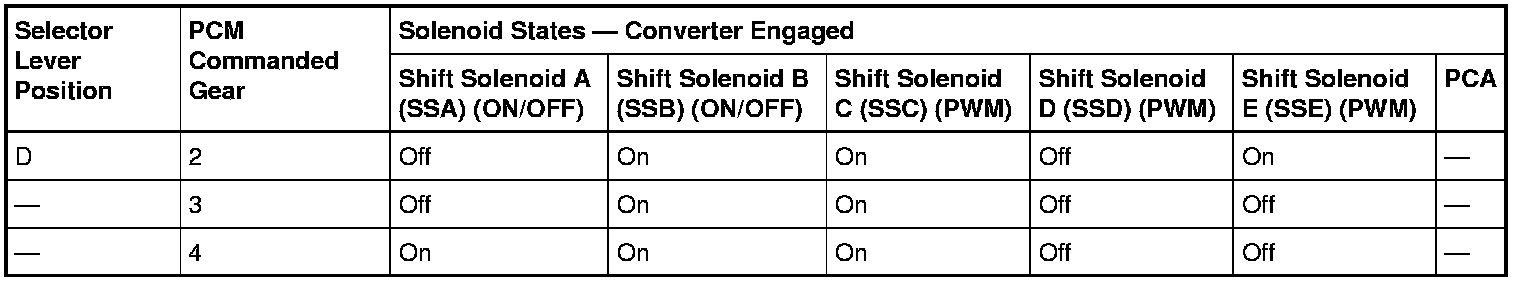

Solenoid Operation Chart - Converter Engaged

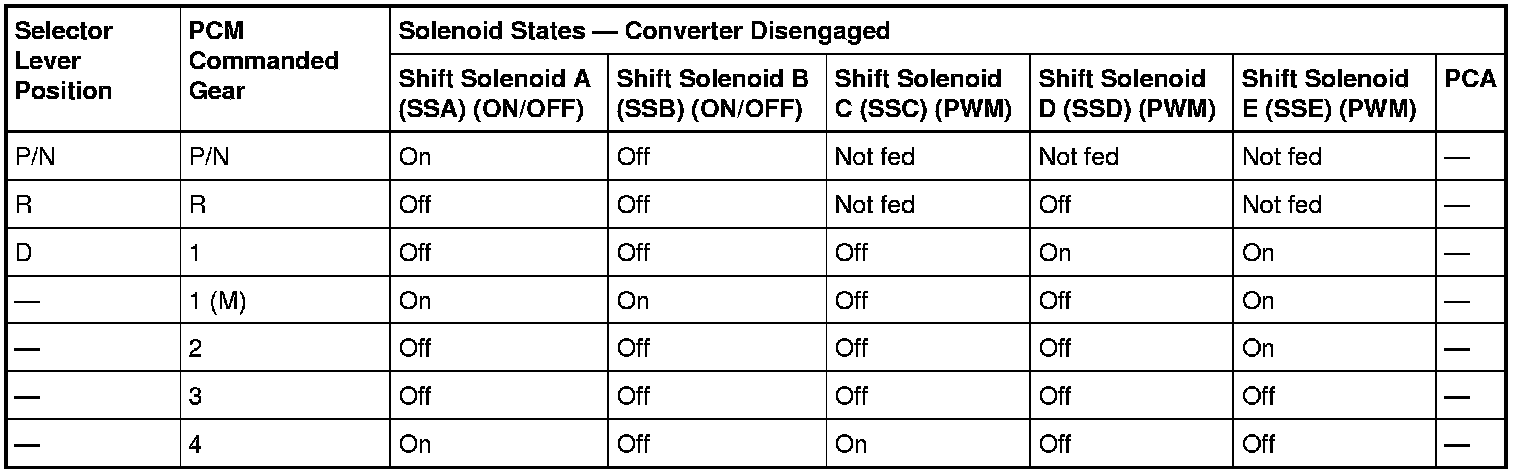

Solenoid Operation Chart - Converter Disengaged

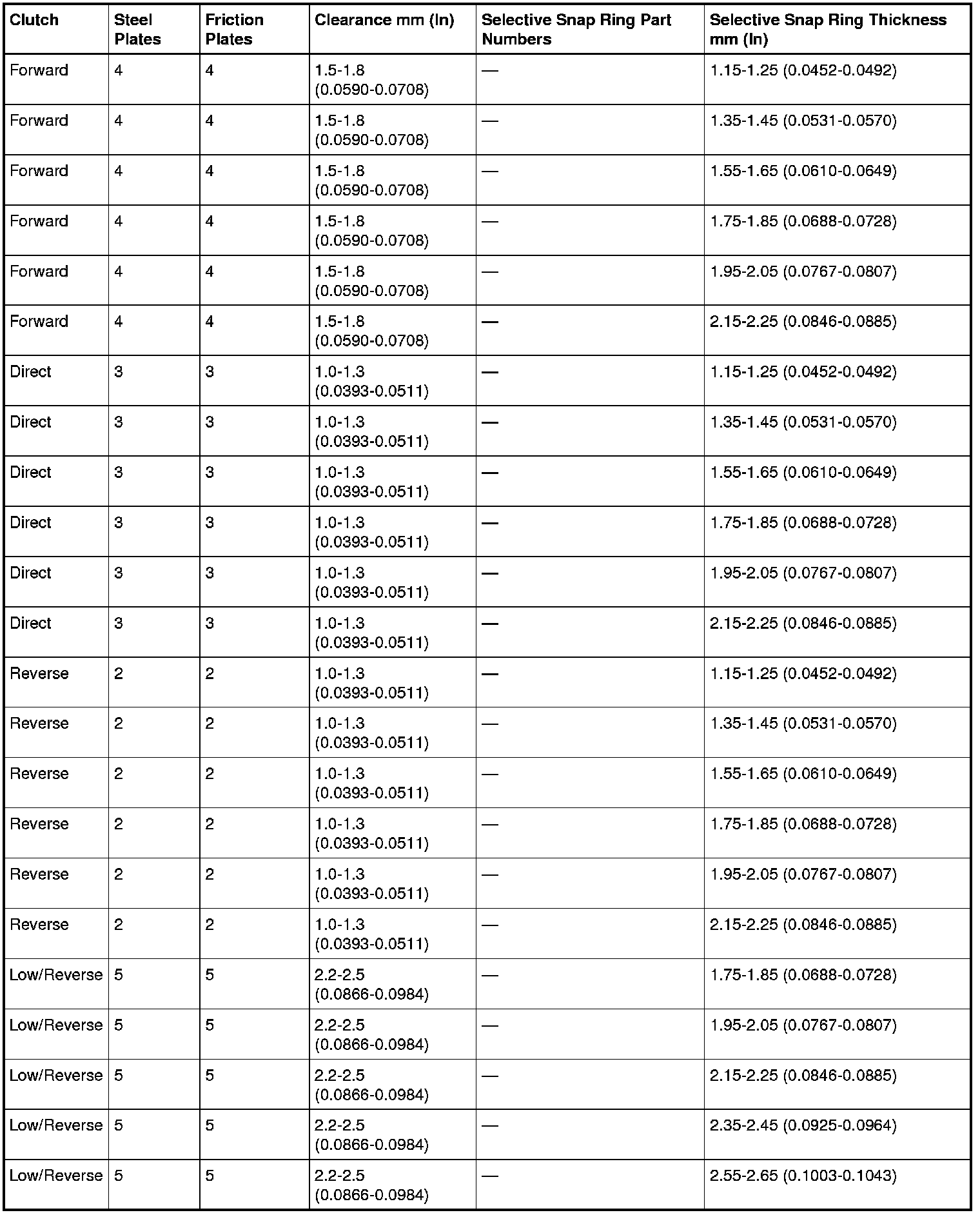

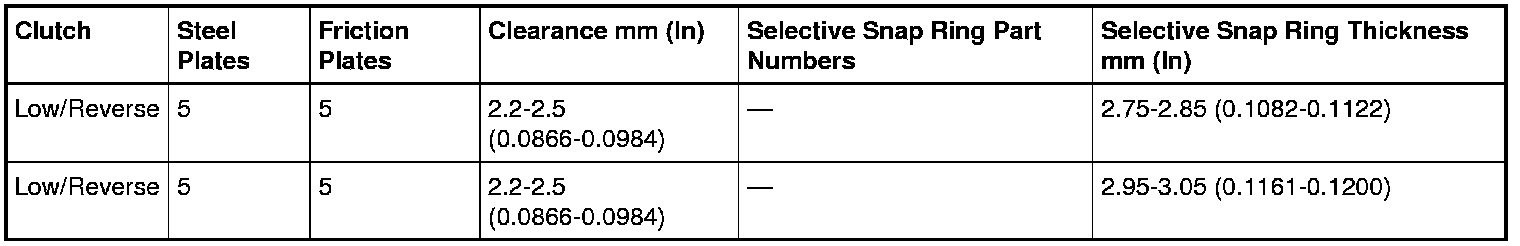

Clutch Plate Usage and Clearance Specification Chart

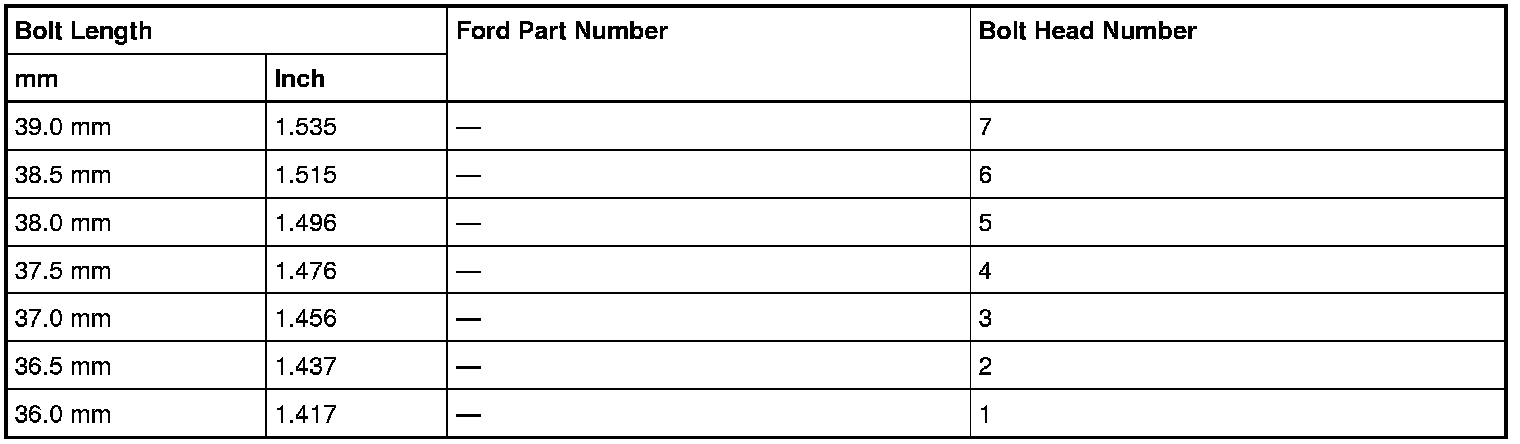

Intermediate/Overdrive Band Bolt Chart

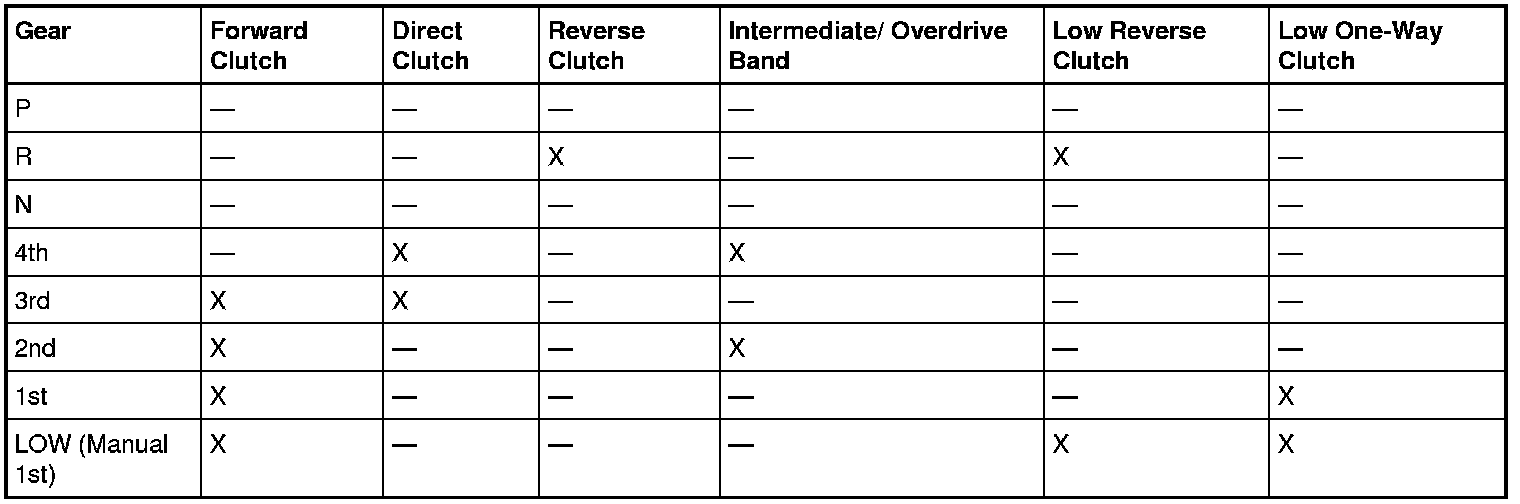

Reference: Band/Clutch Application Chart

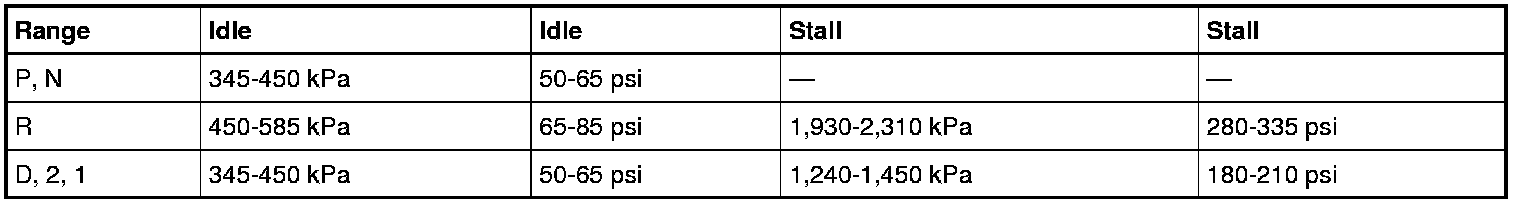

Line Pressure Chart

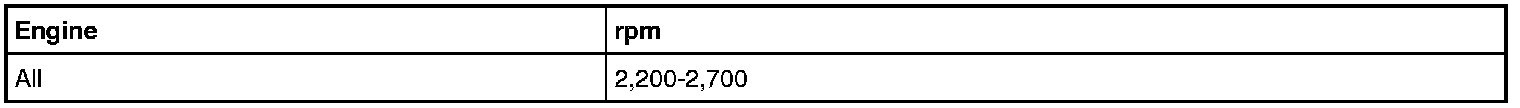

Stall Speed Chart

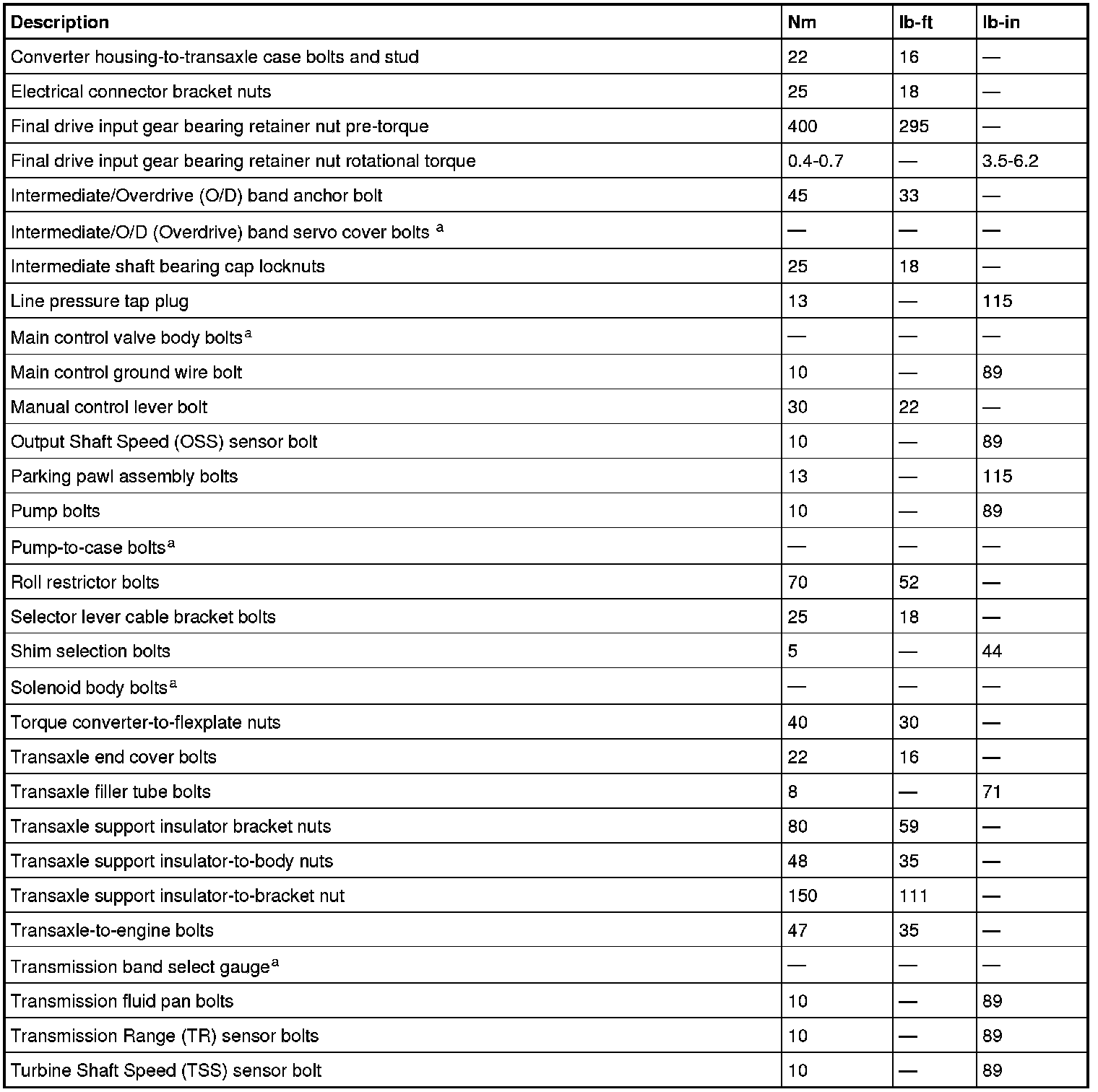

Torque Specifications
a Refer to the procedure.
