Electronic Throttle Control (ETC) System

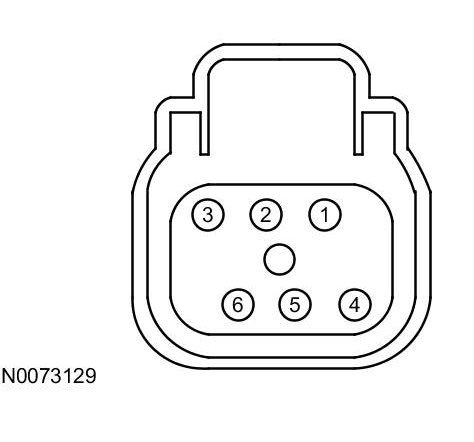

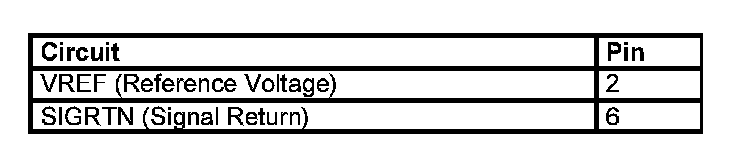

EGR System Module (ESM) Connector
Harness Side

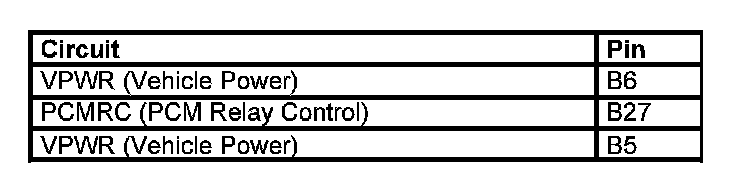

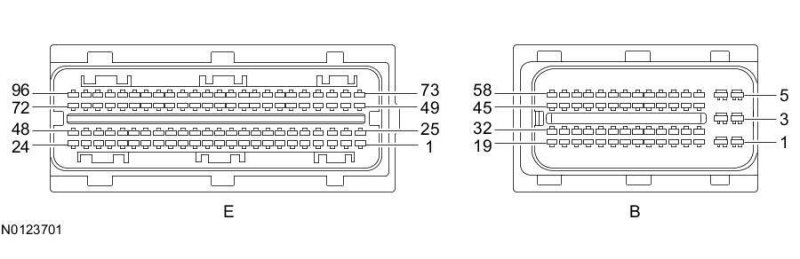

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side

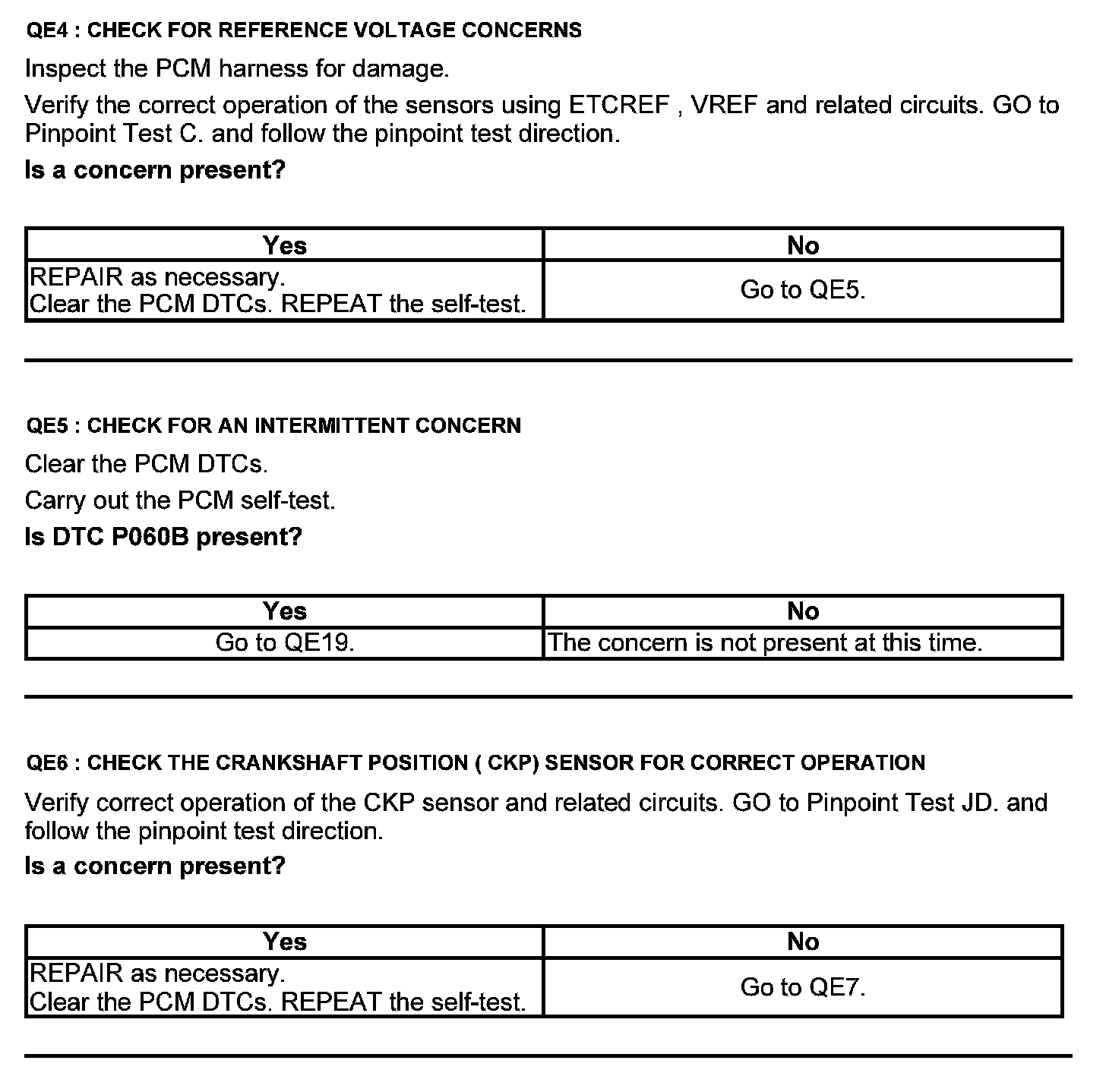

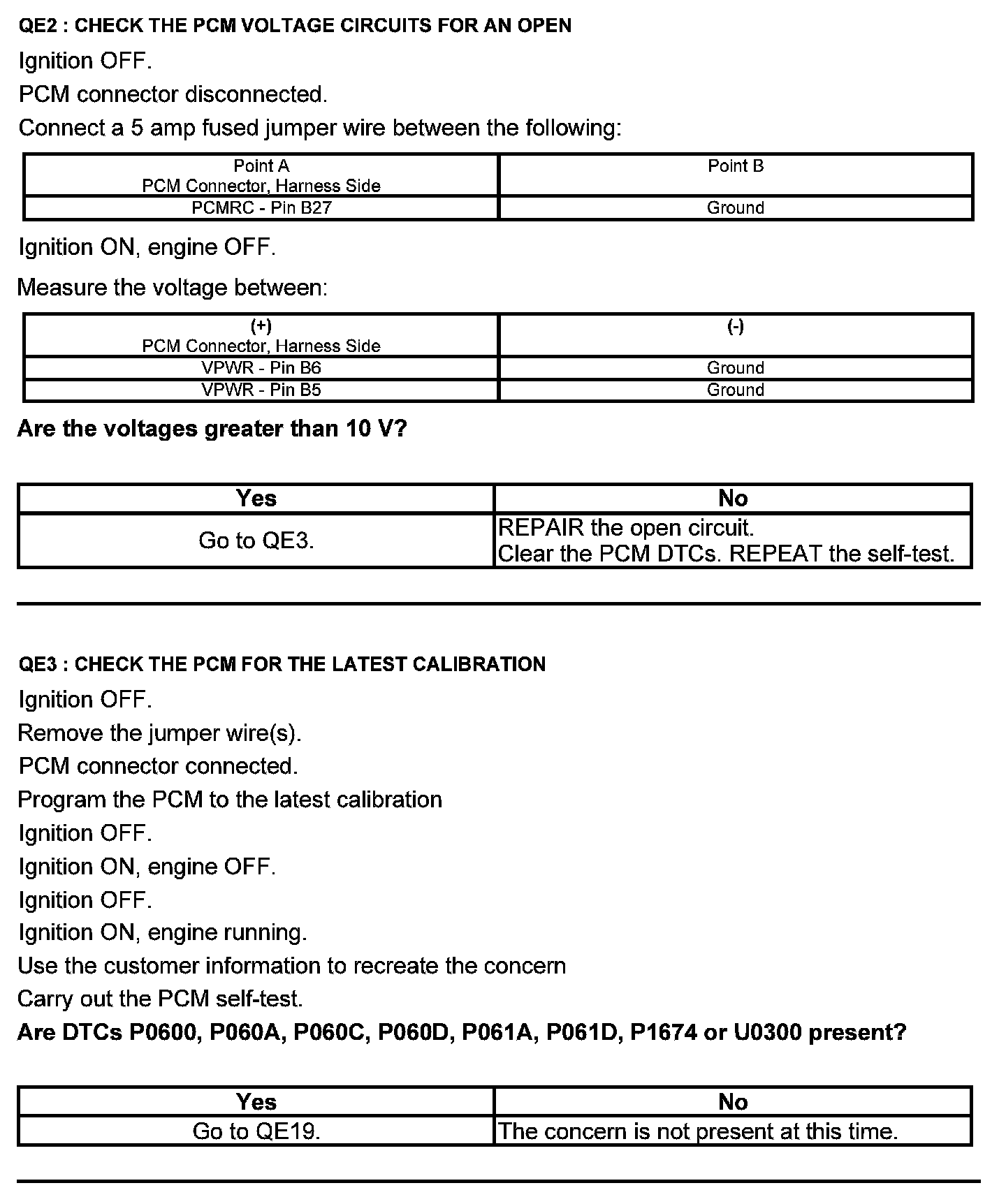

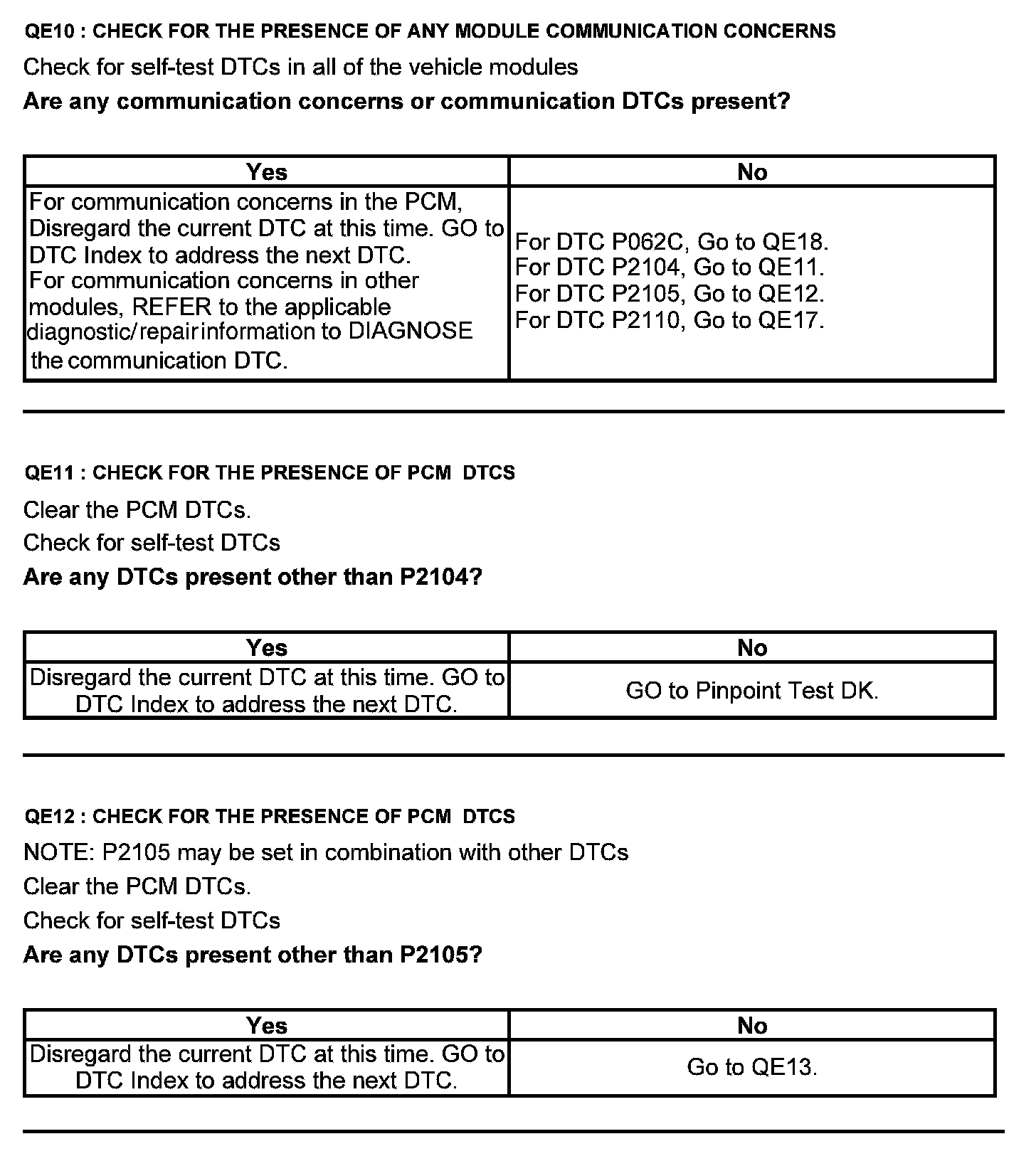

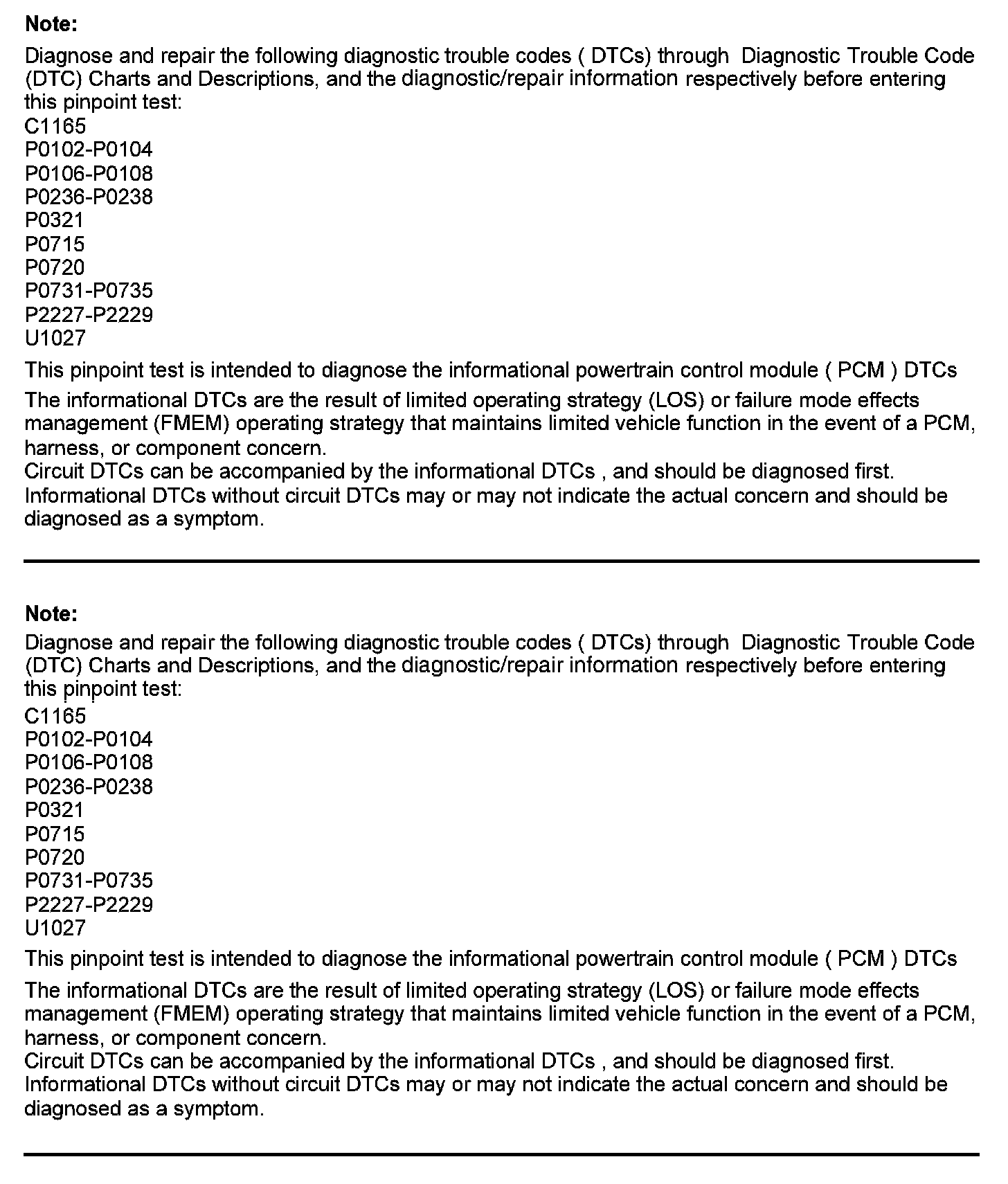

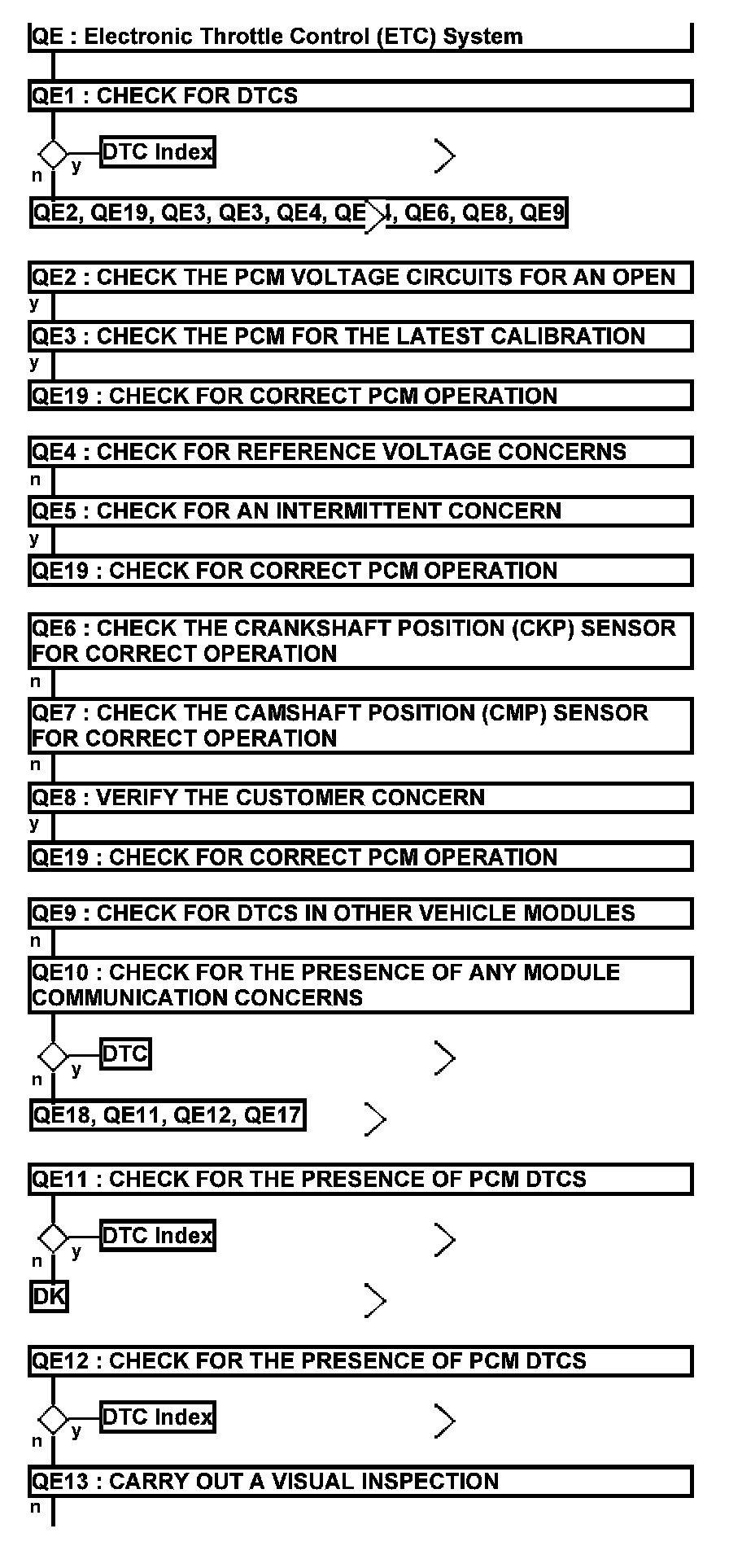

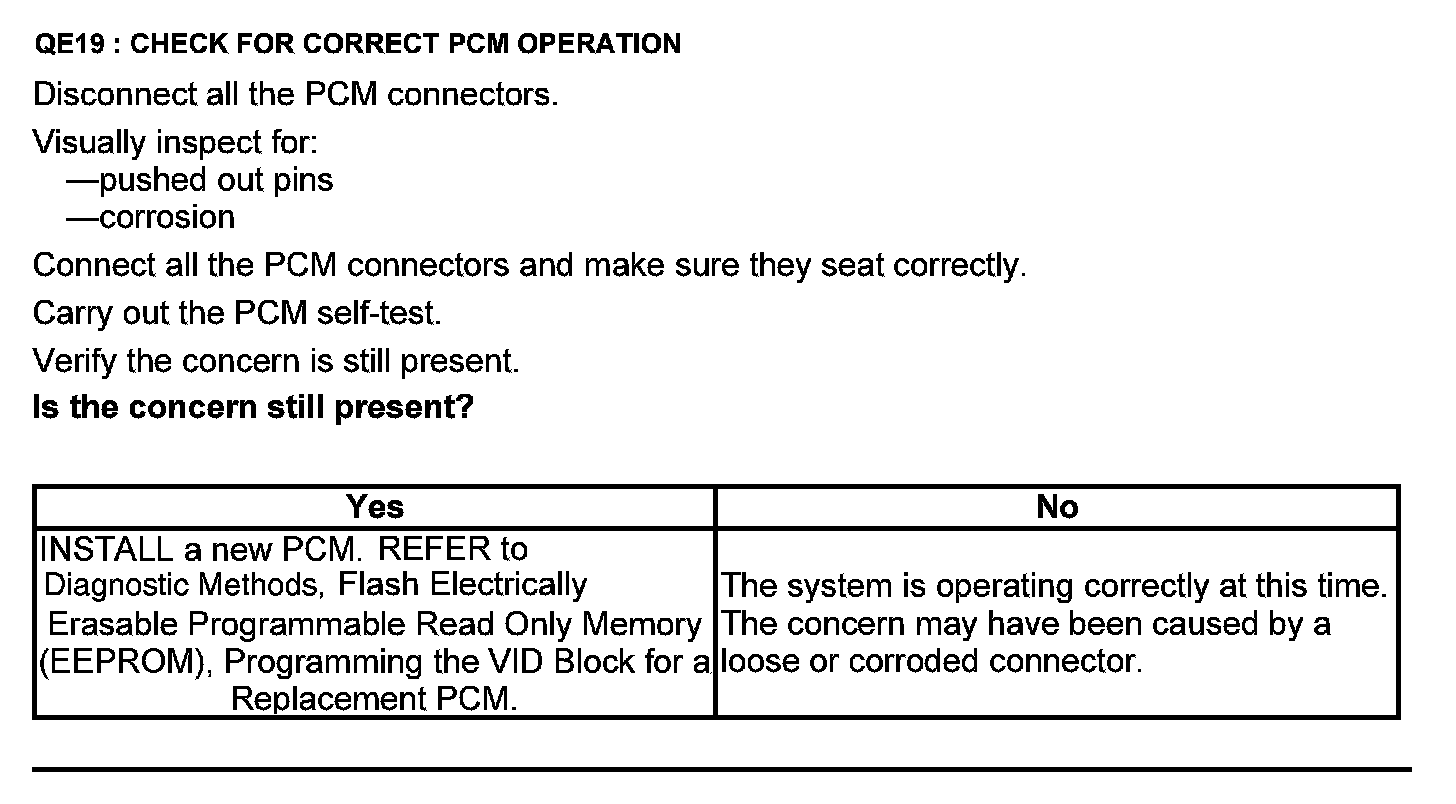

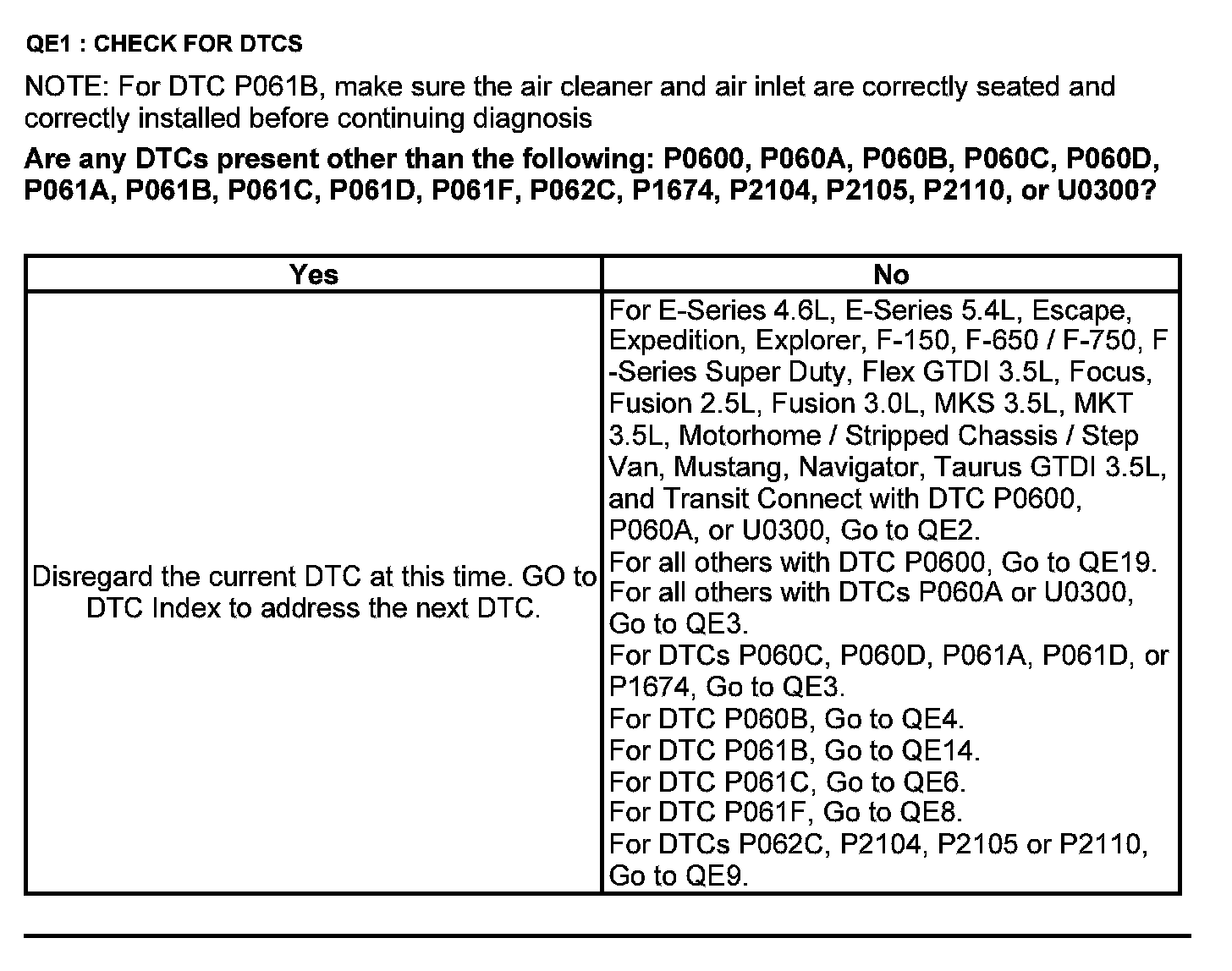

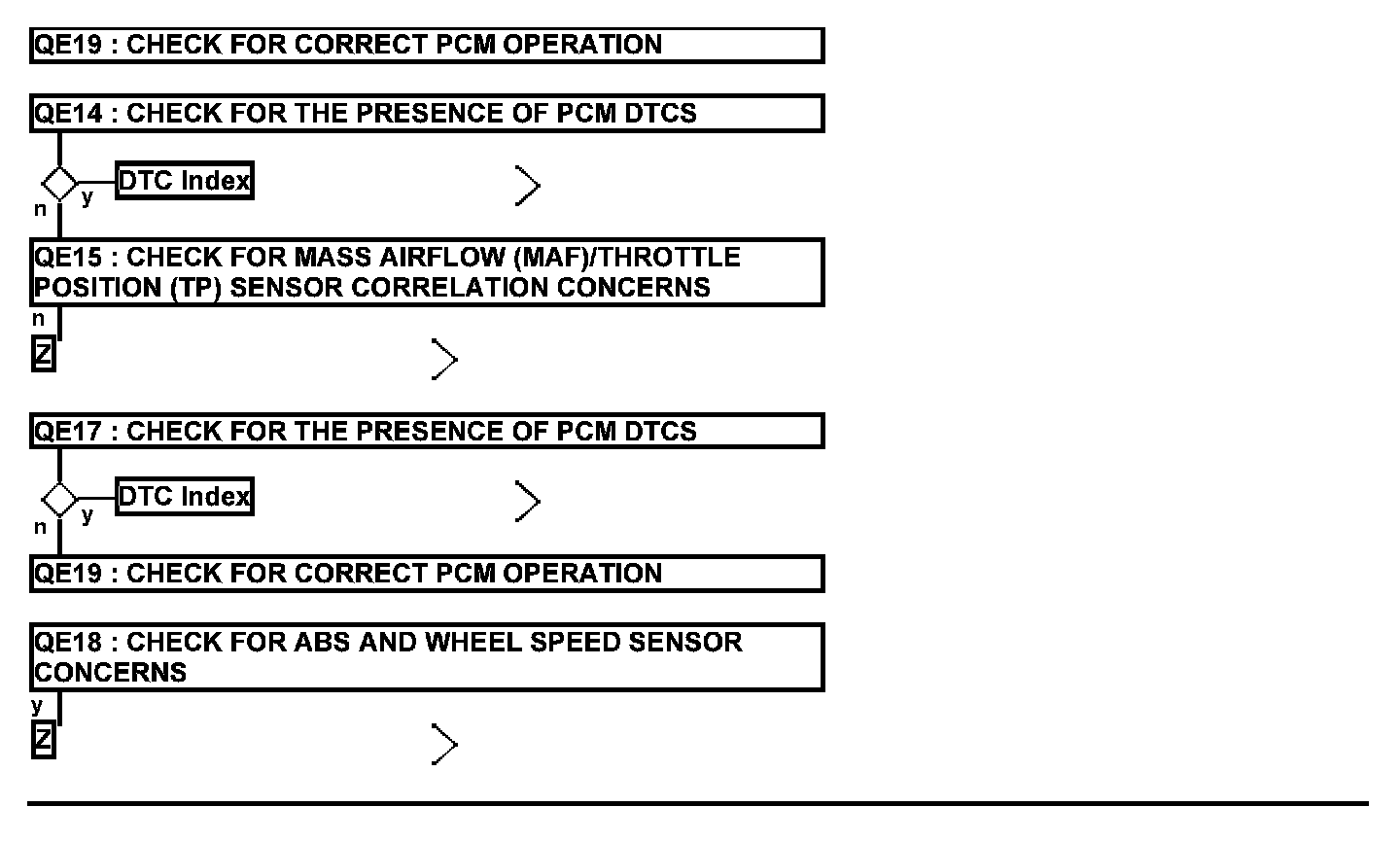

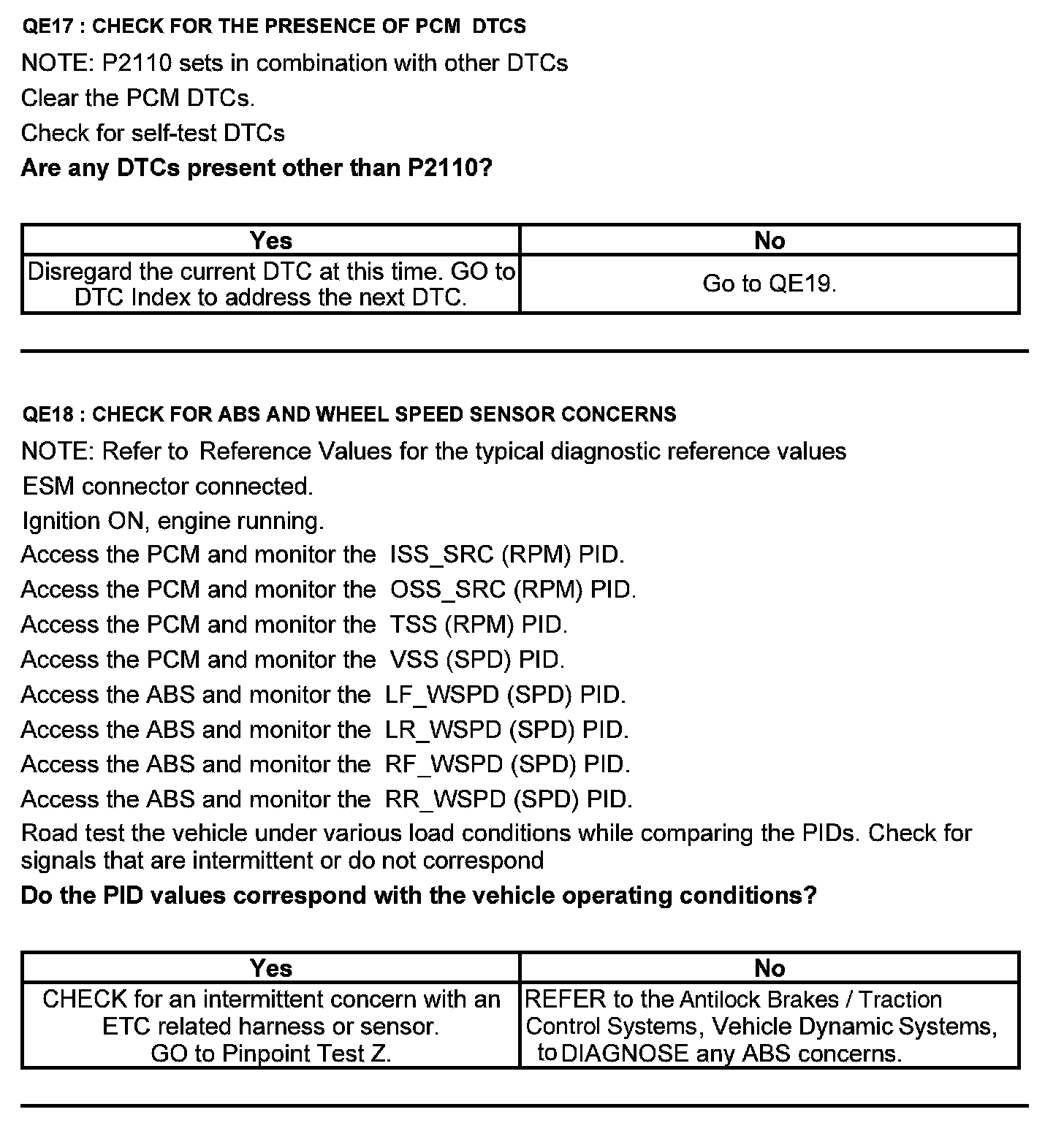

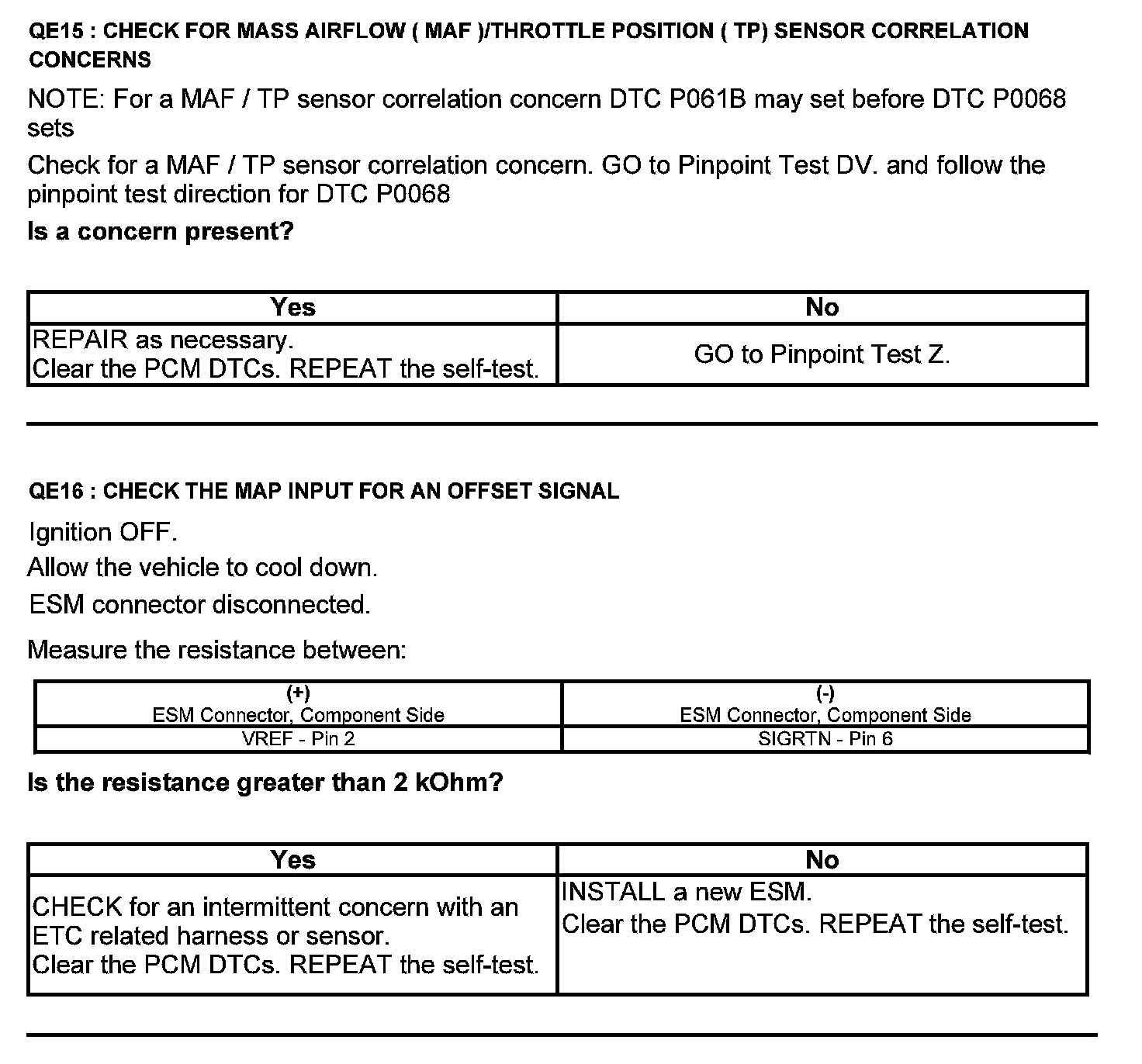

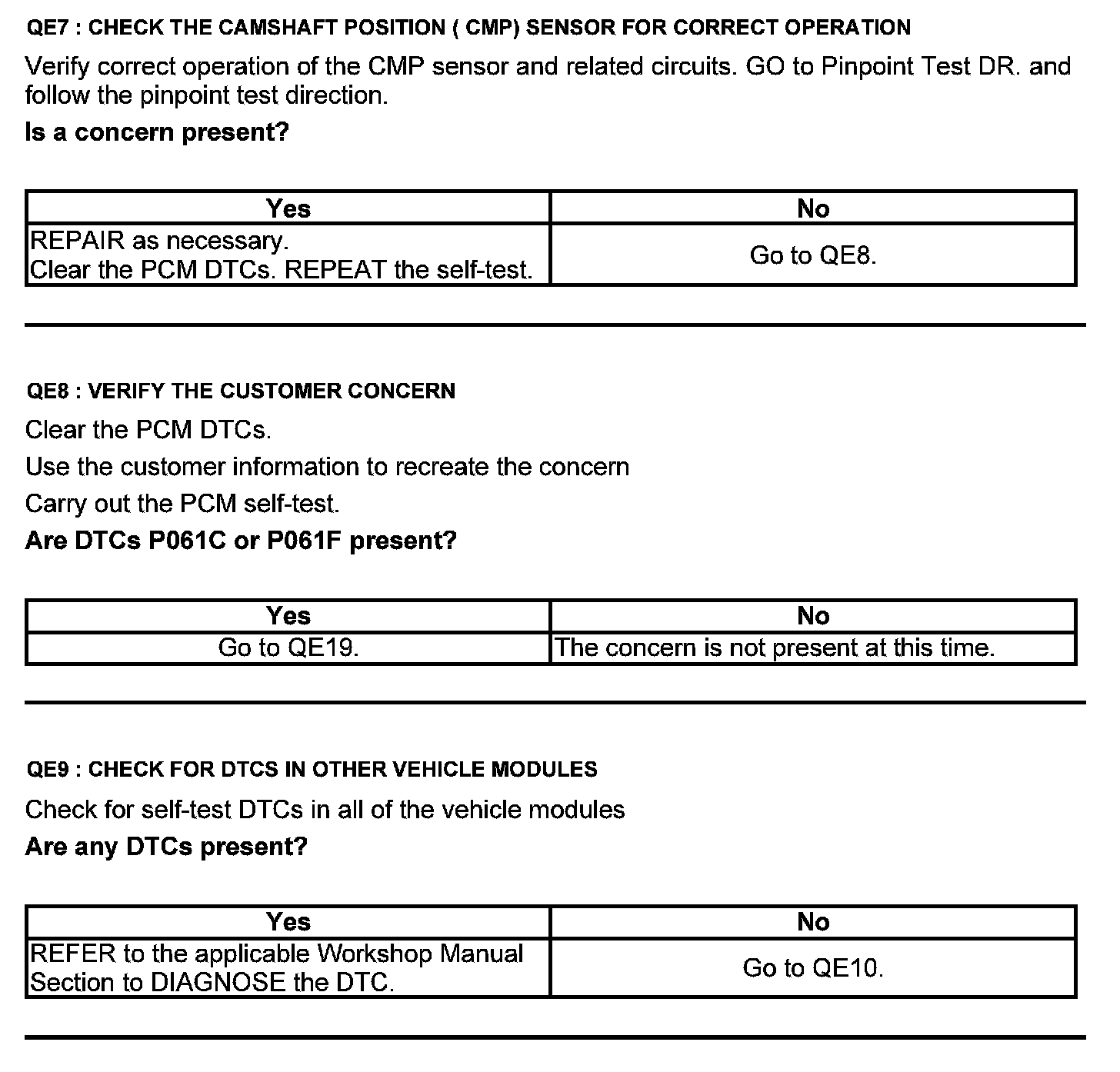

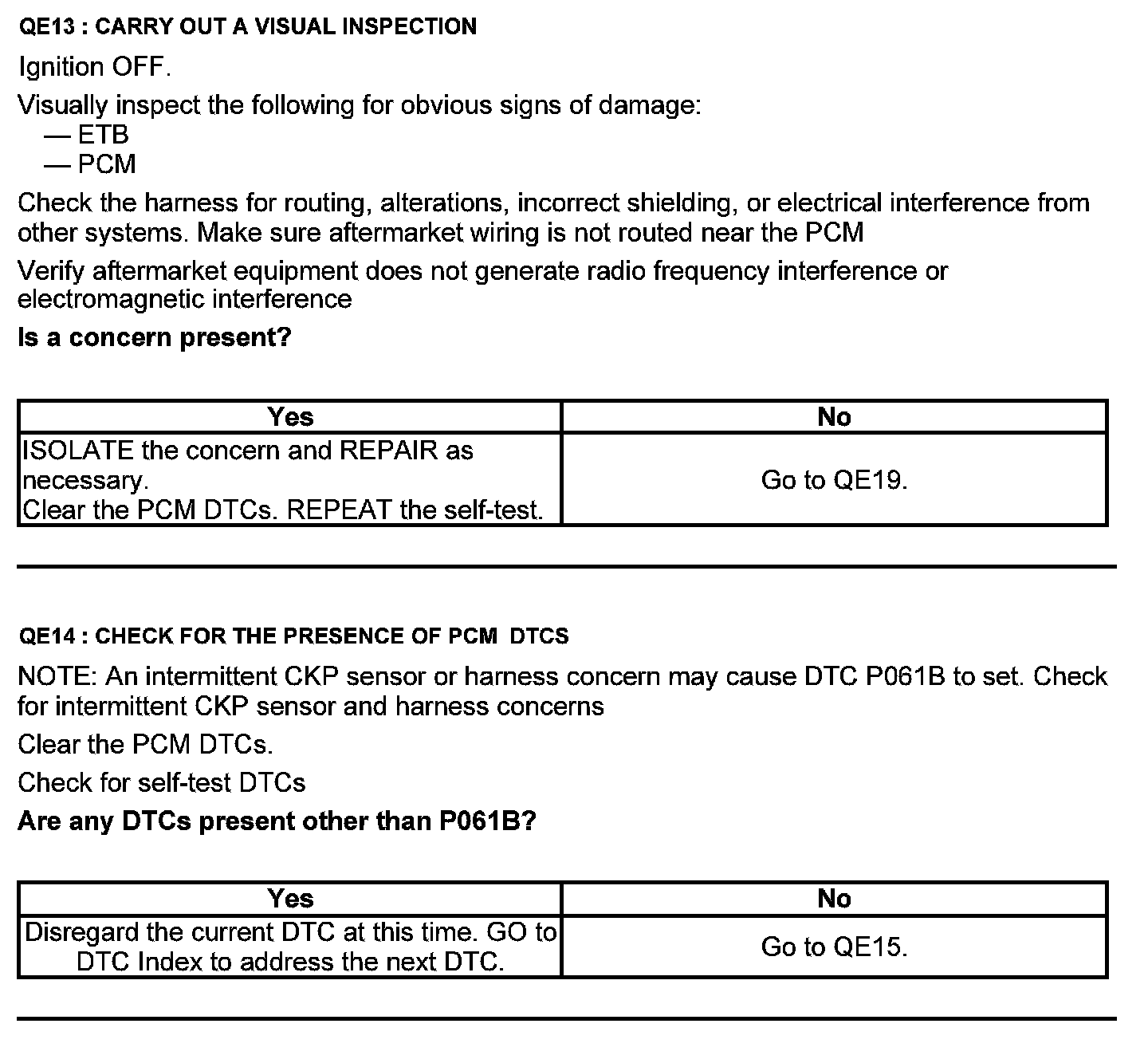

Test QE: Electronic Throttle Control (ETC) System
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2012 Ford Truck.
Electronic Throttle Control (ETC) System
EGR System Module (ESM) Connector
Harness Side
Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side
