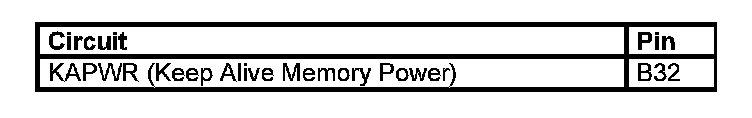

Keep Alive Power (KAPWR)

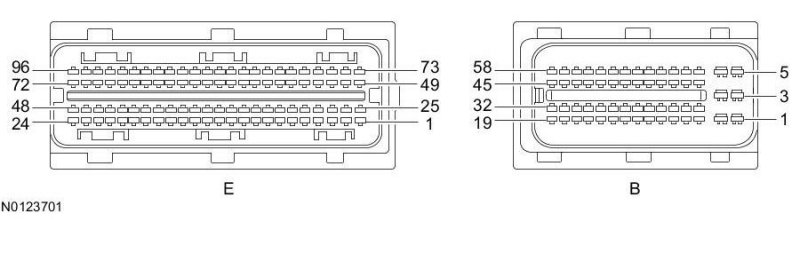

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side

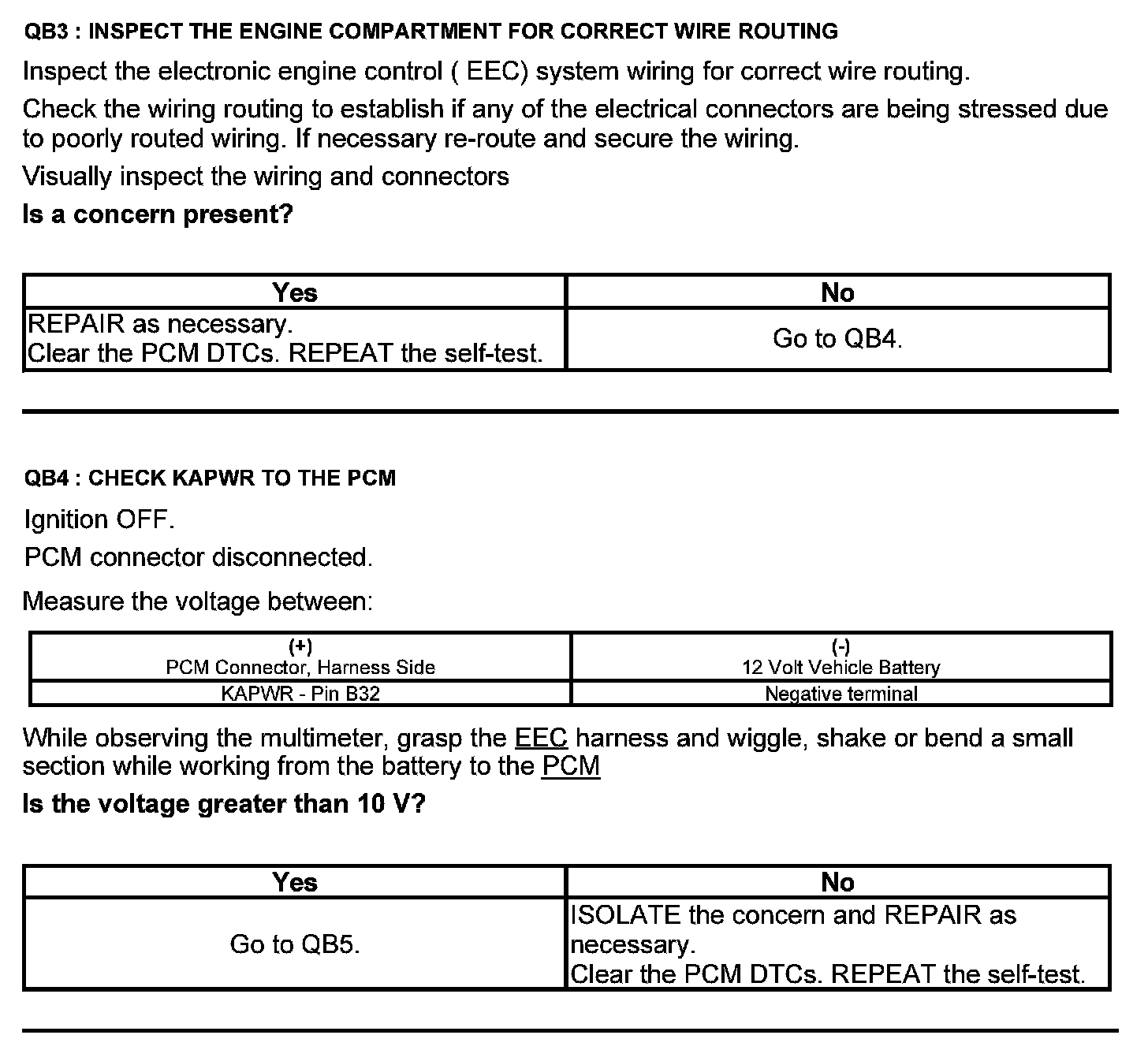

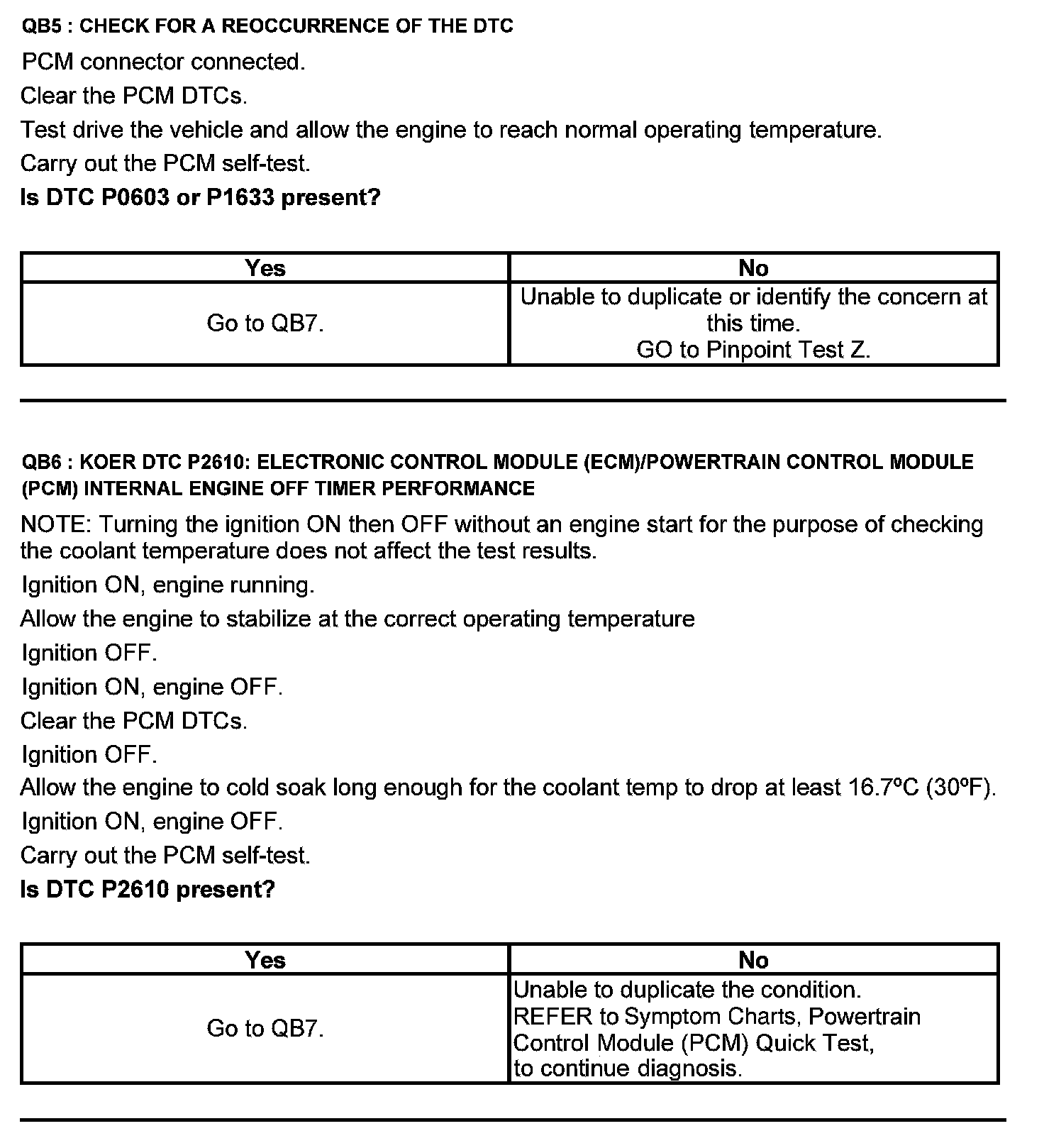

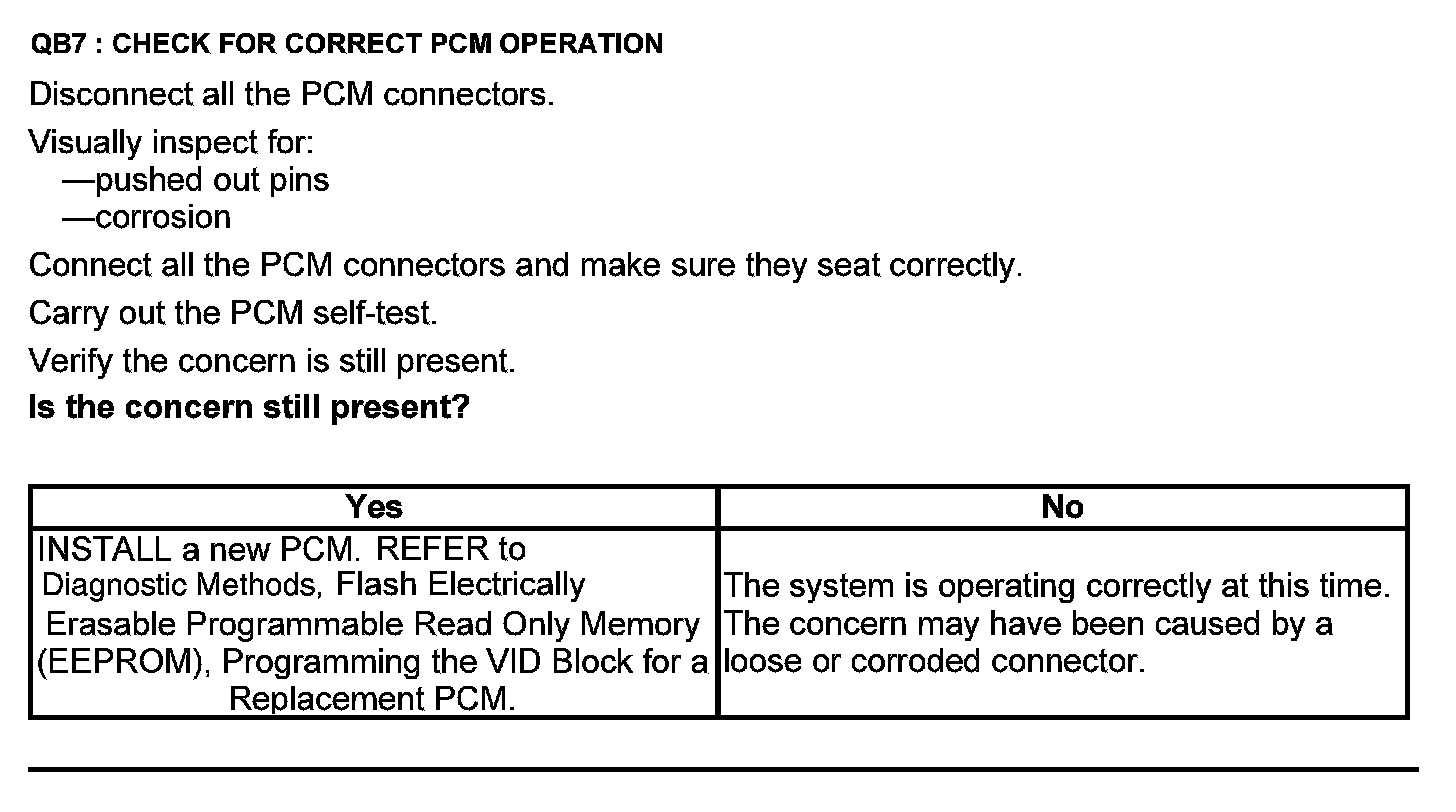

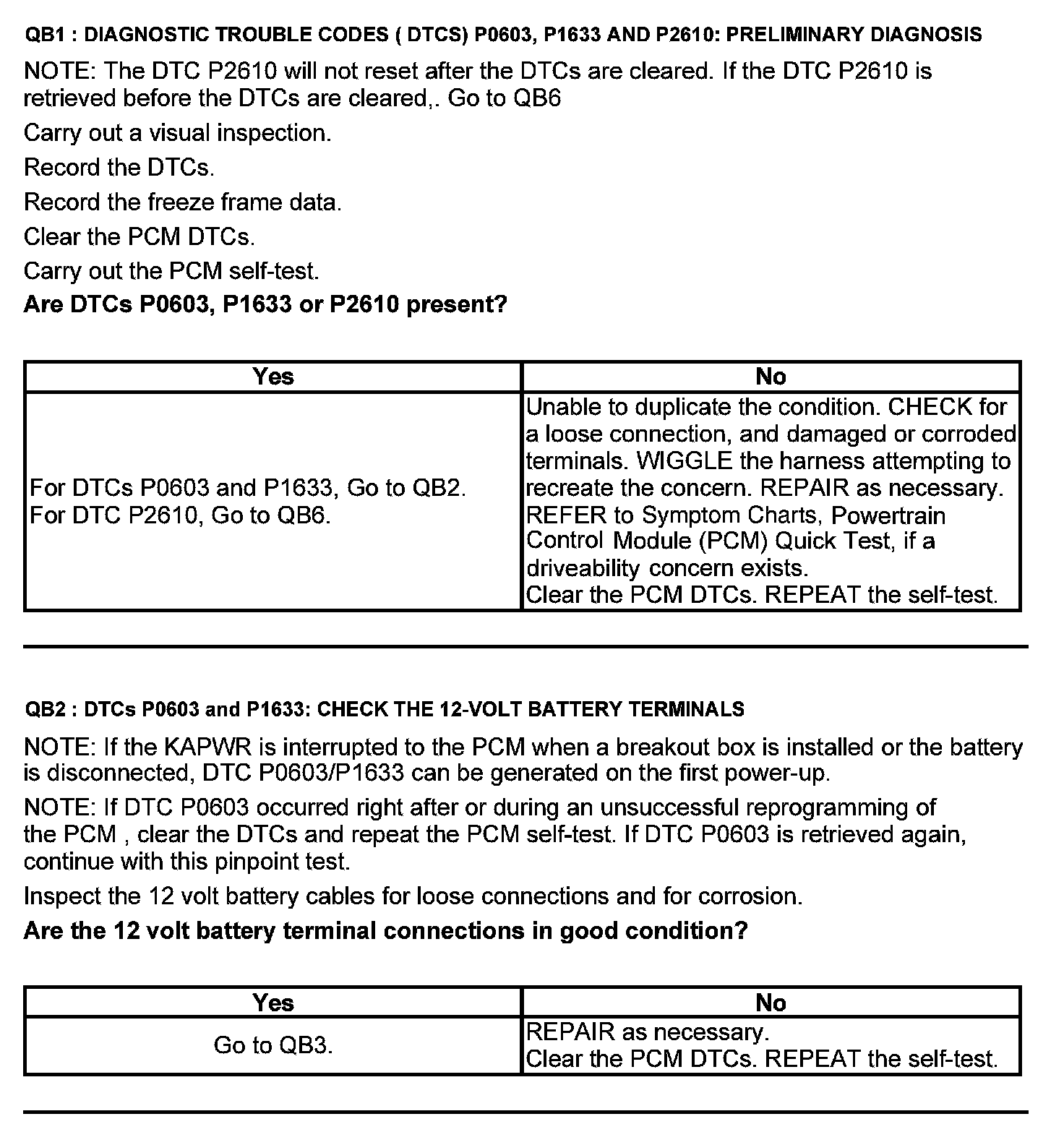

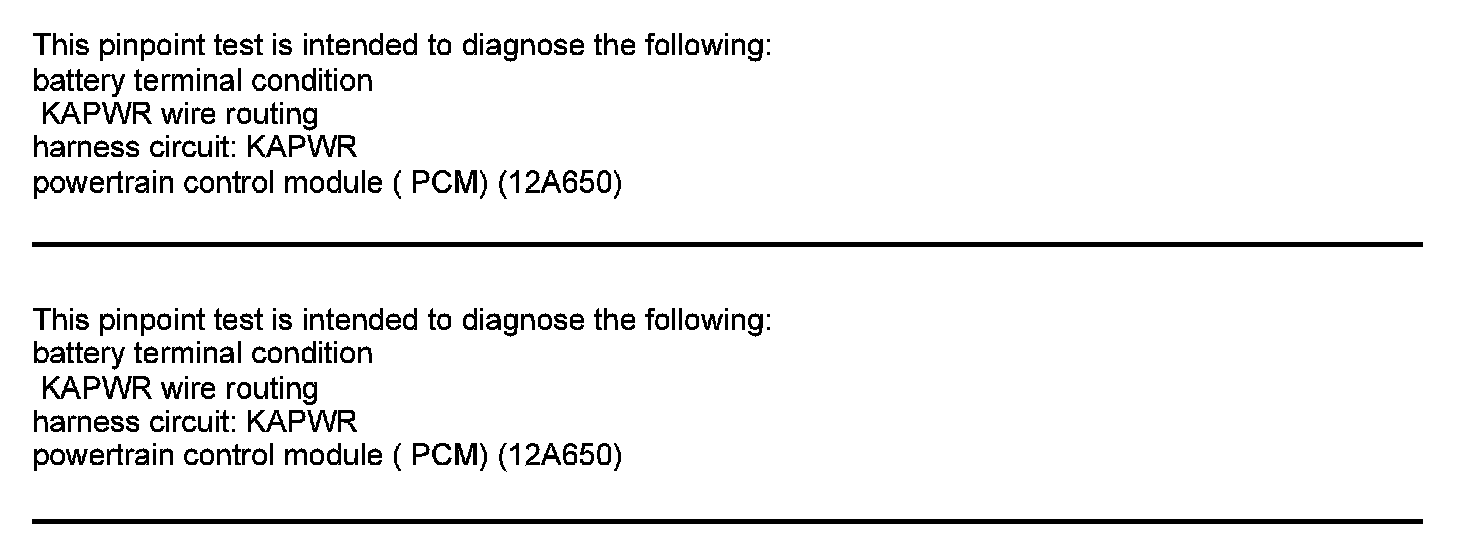

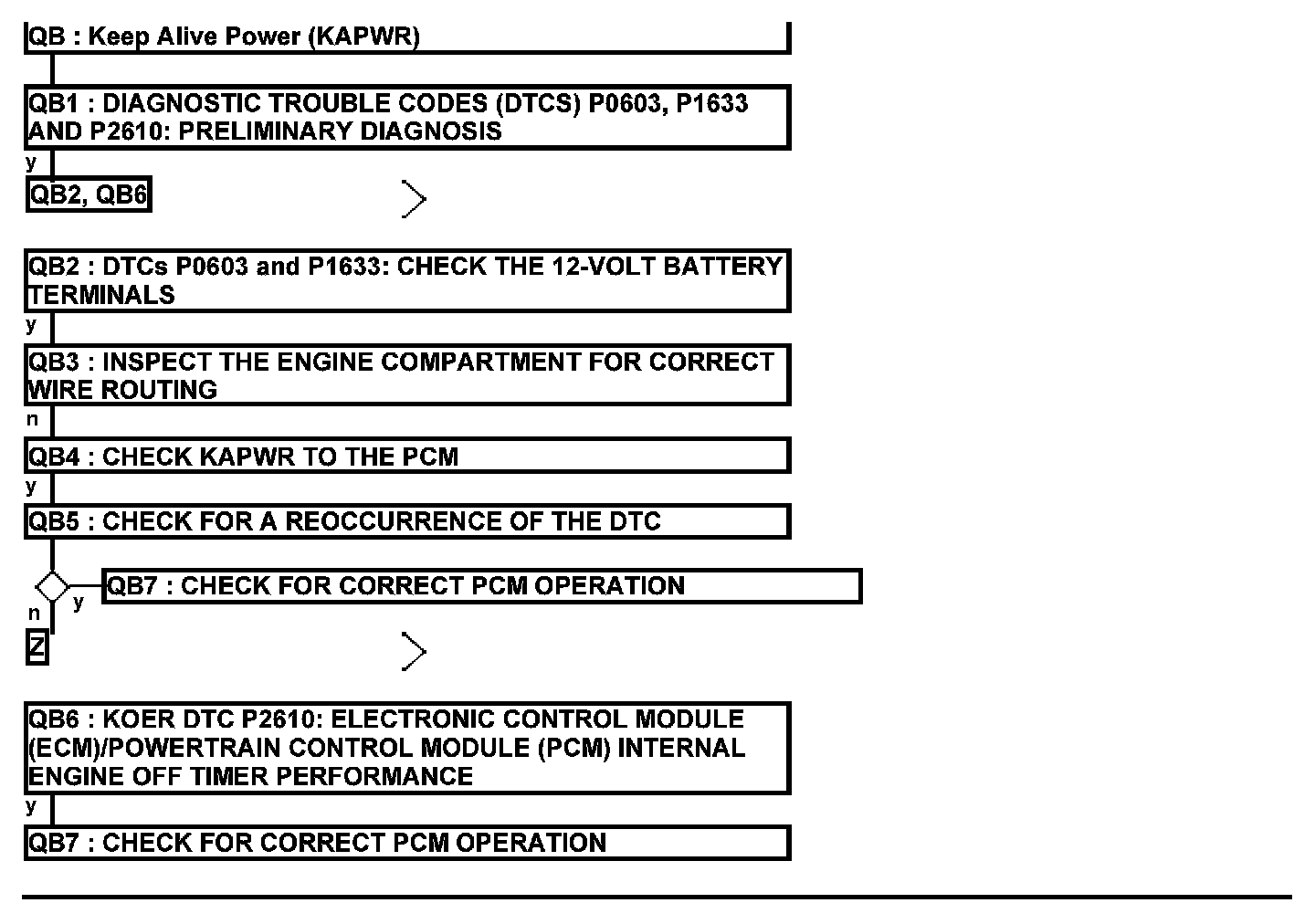

Test QB: Keep Alive Power (KAPWR)
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2012 Ford Truck.
Keep Alive Power (KAPWR)
Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side
