Crankshaft Position (CKP) Sensor

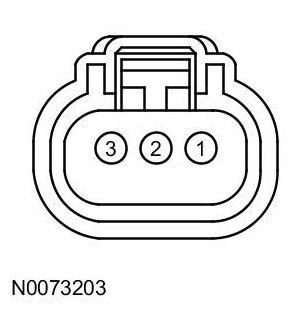

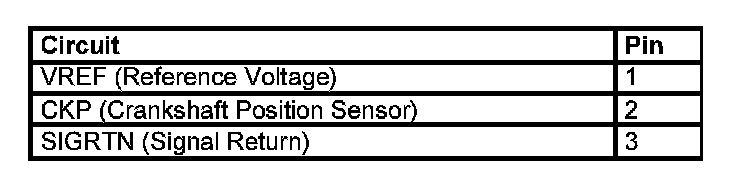

Crankshaft Position (CKP) Sensor Connector
Harness Side

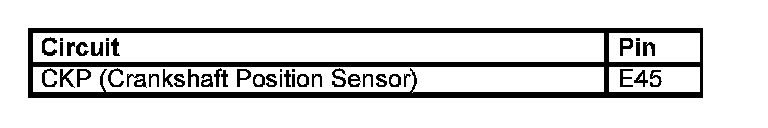

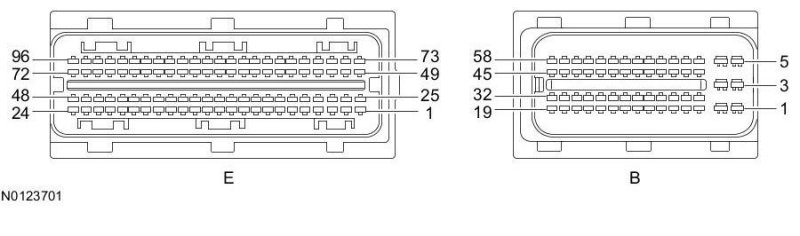

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side

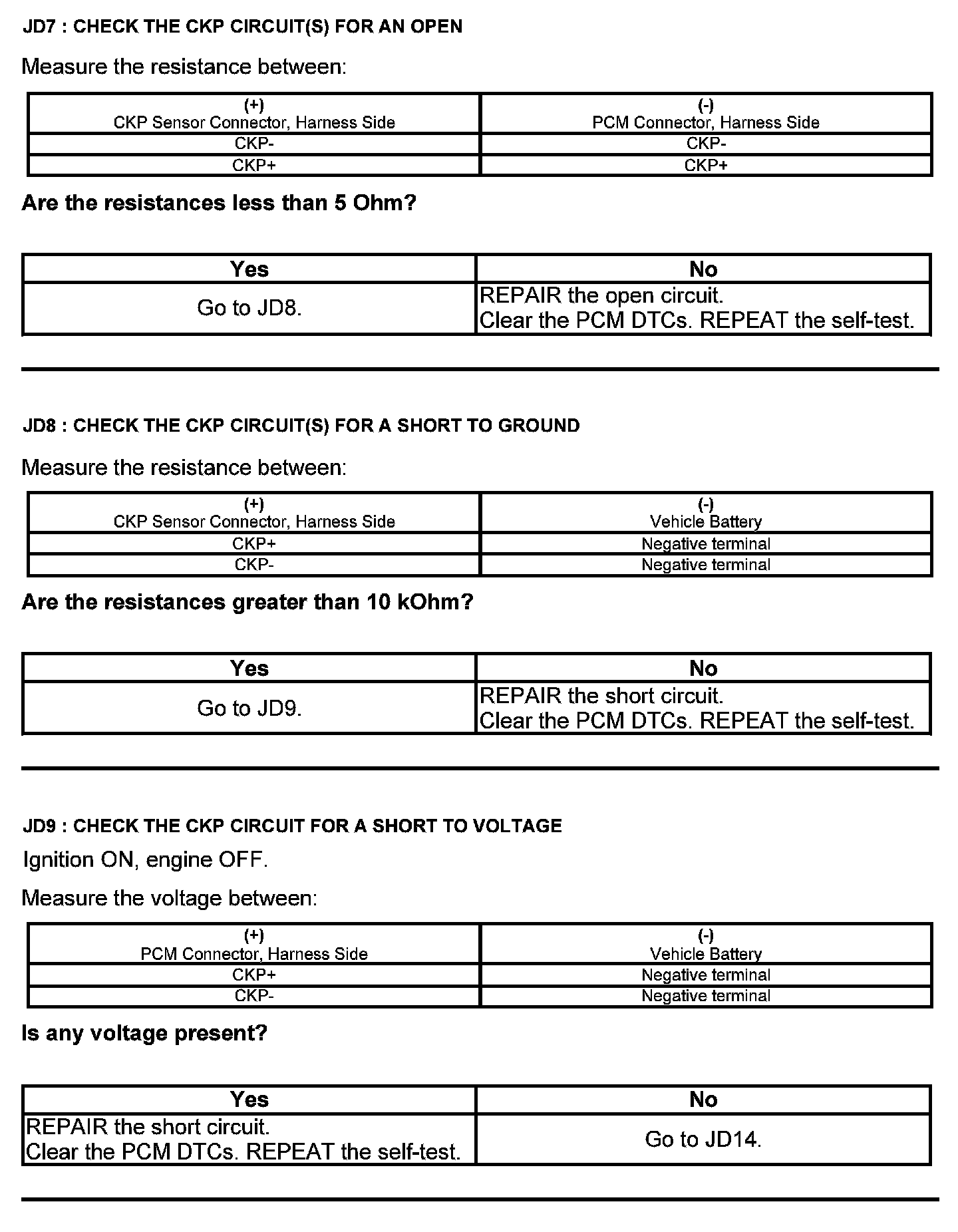

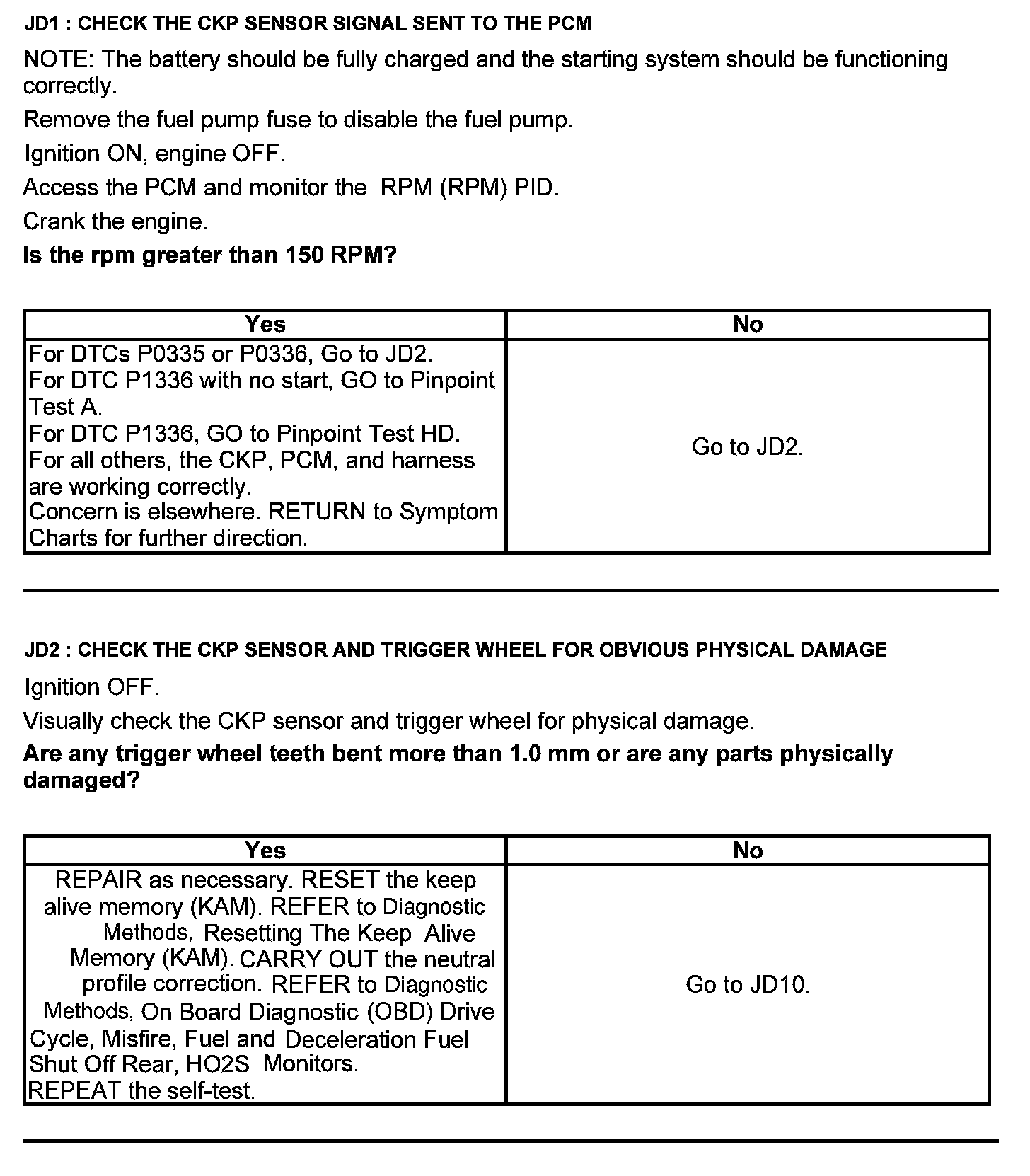

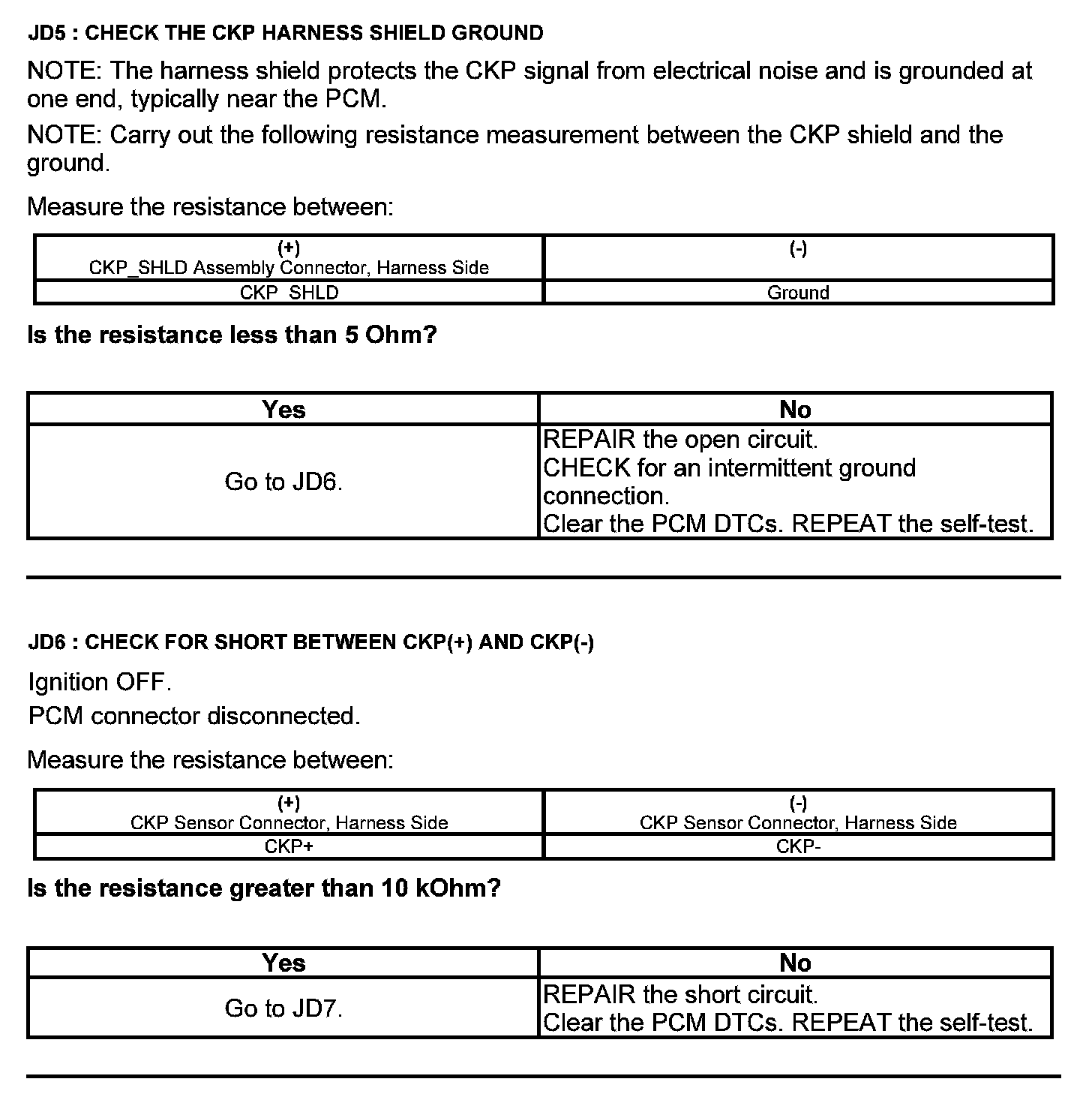

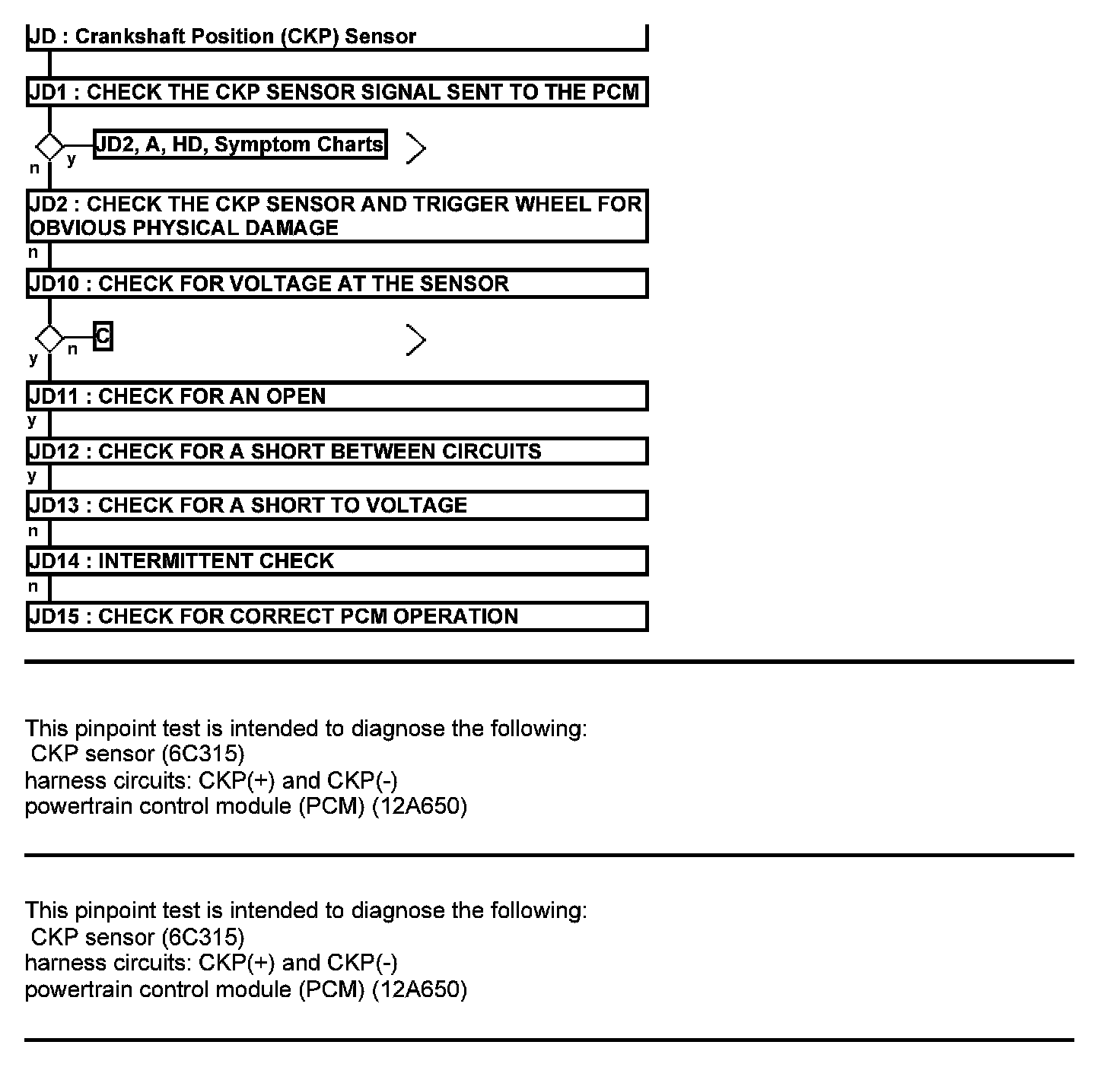

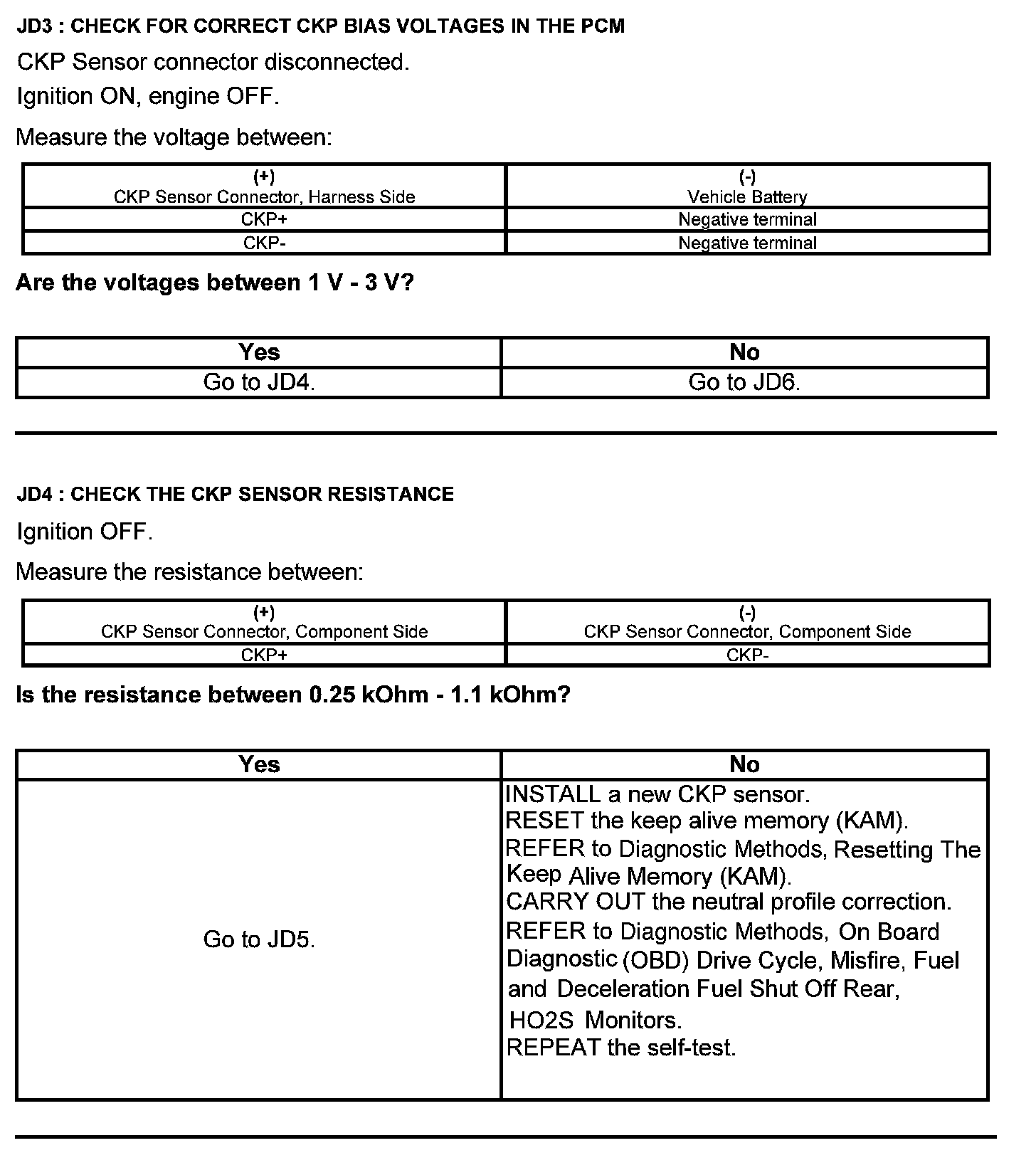

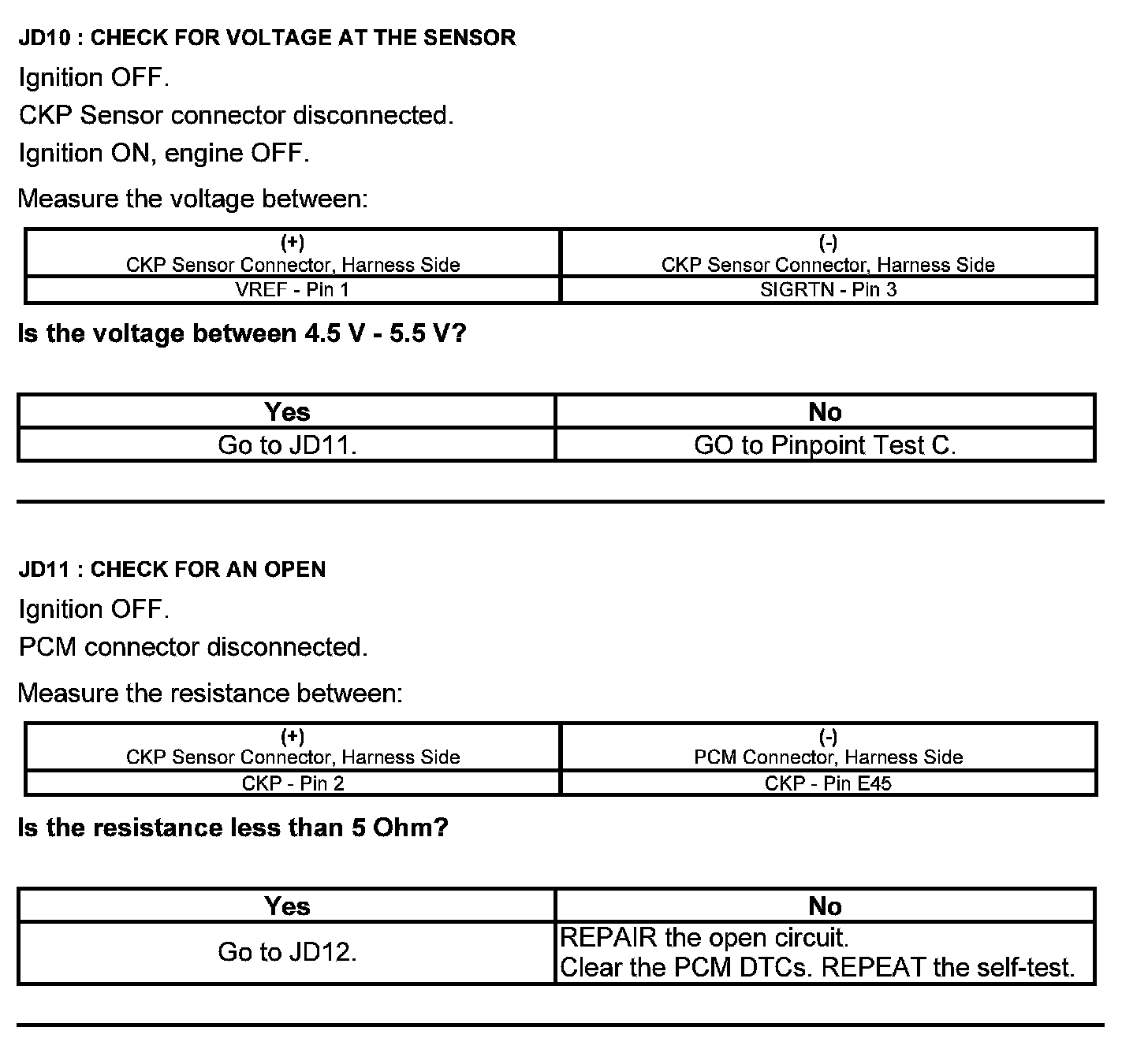

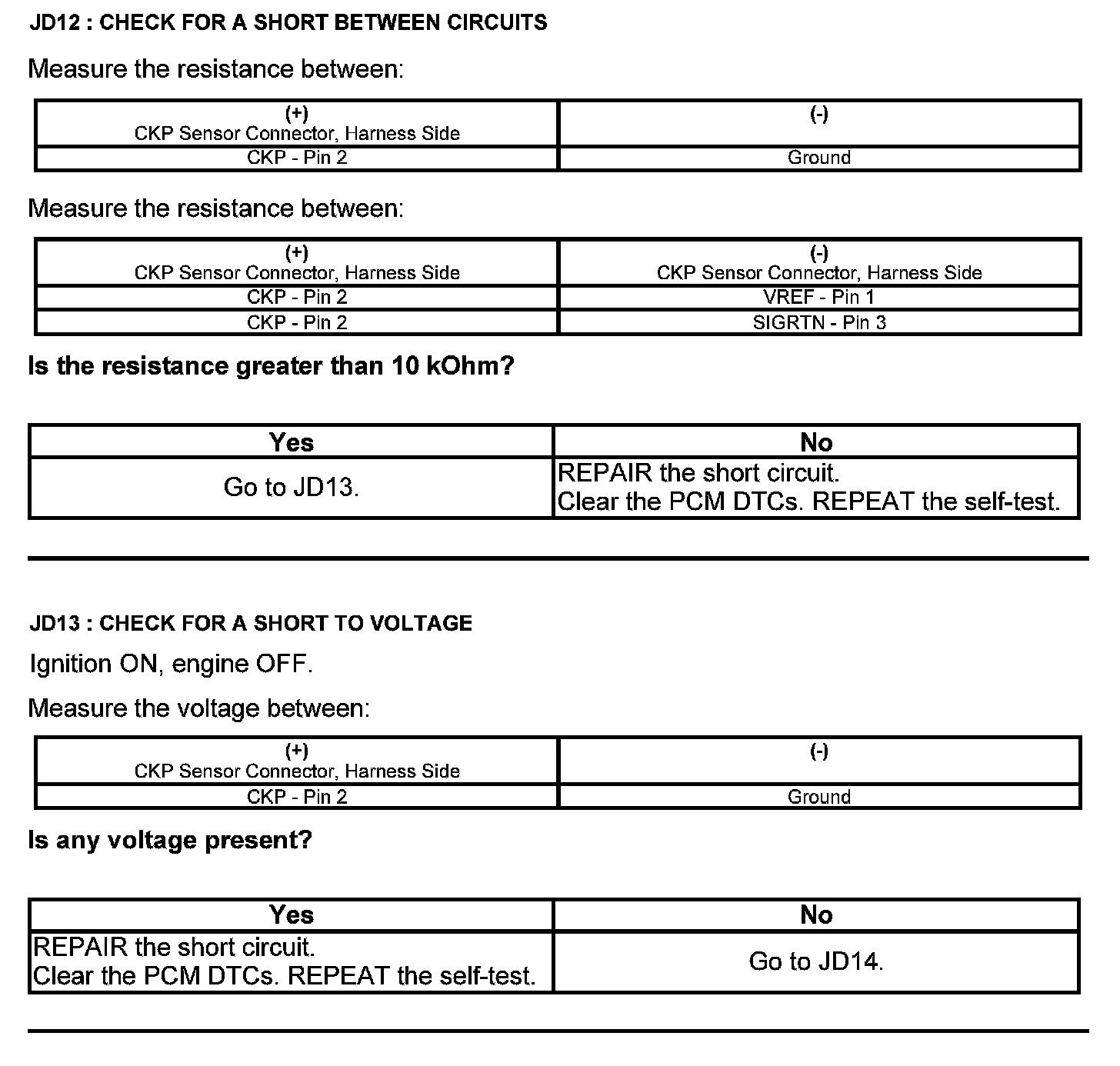

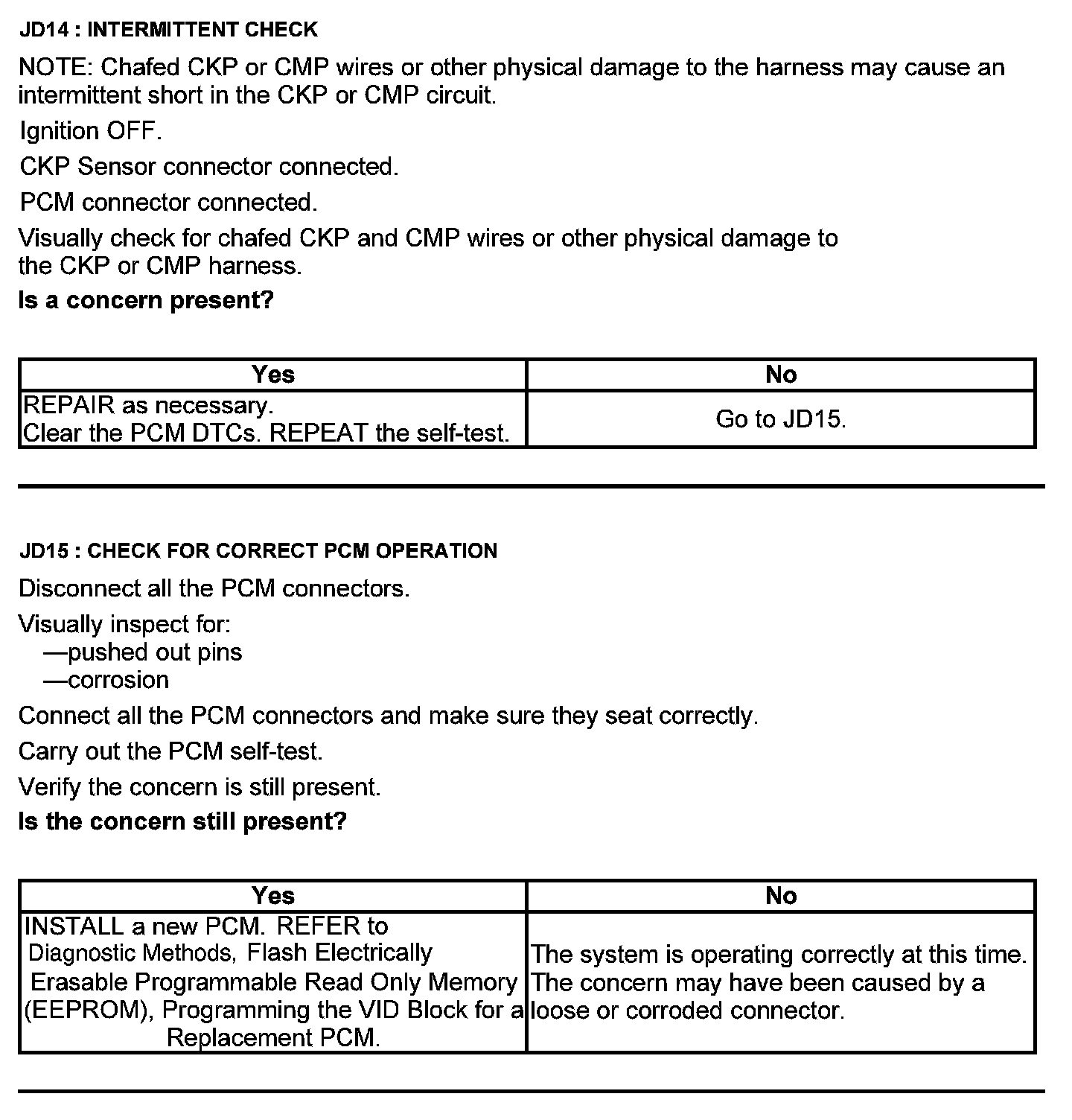

Test JD: Crankshaft Position (CKP) Sensor
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2012 Ford Truck.
Crankshaft Position (CKP) Sensor
Crankshaft Position (CKP) Sensor Connector
Harness Side
Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side
