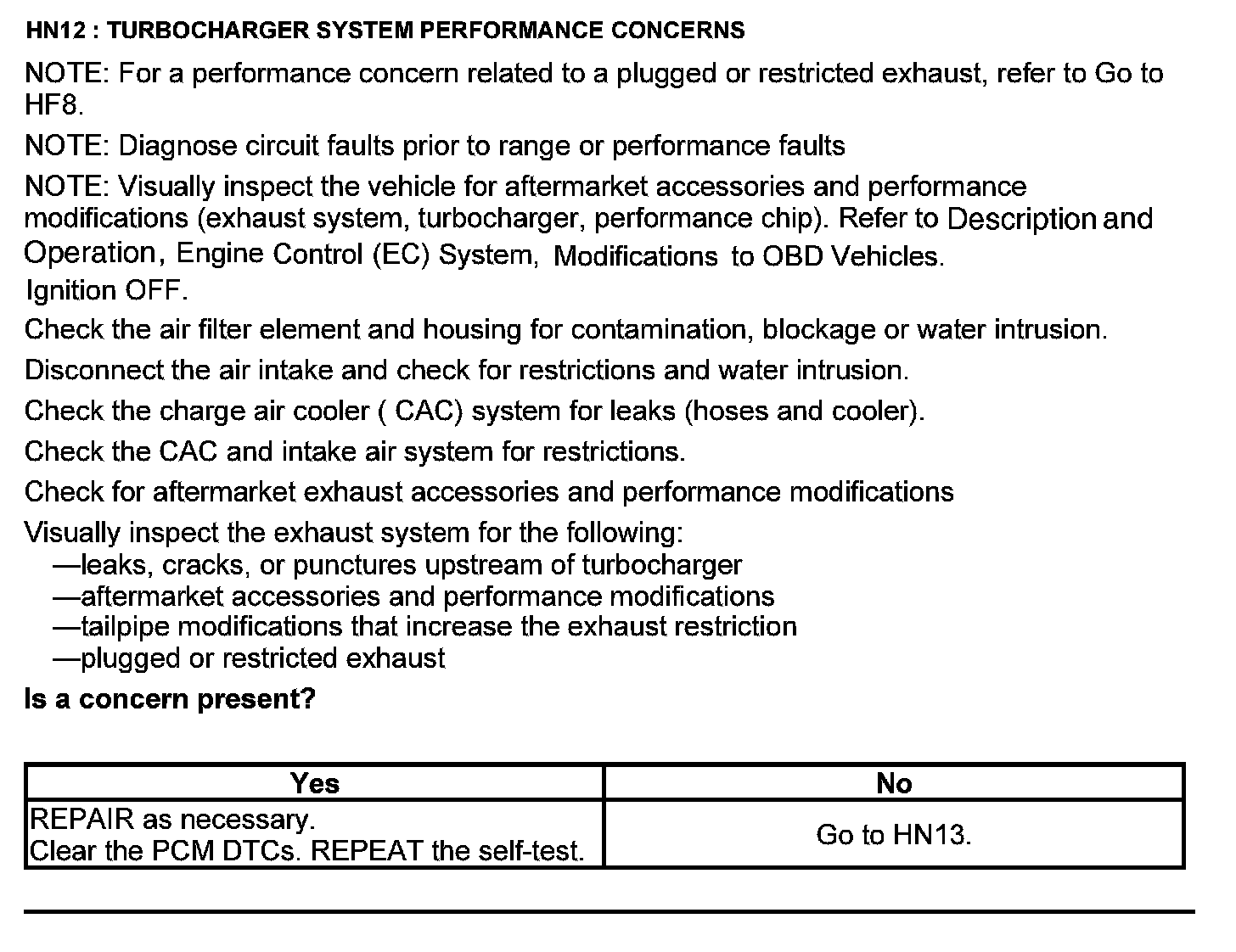

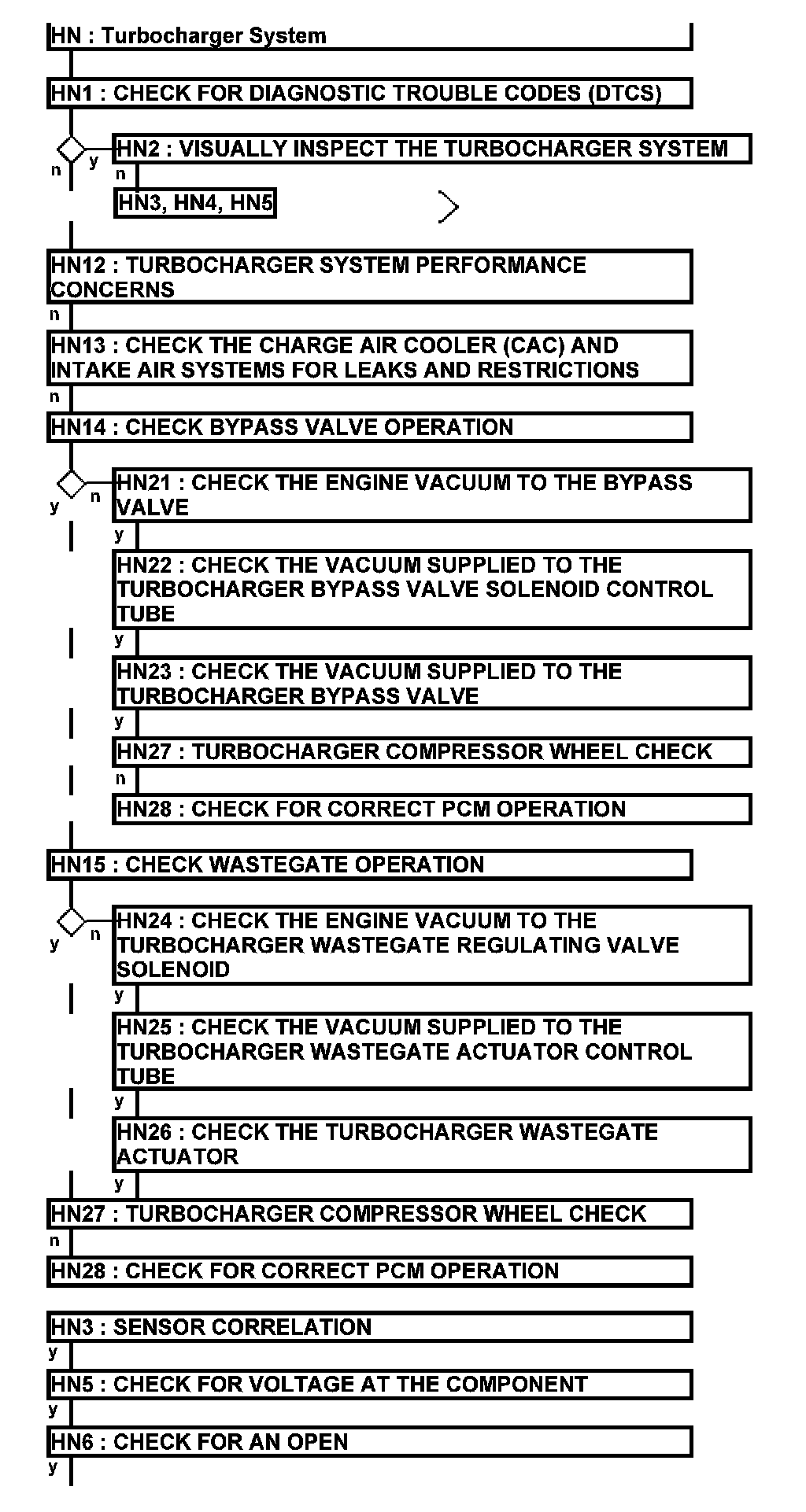

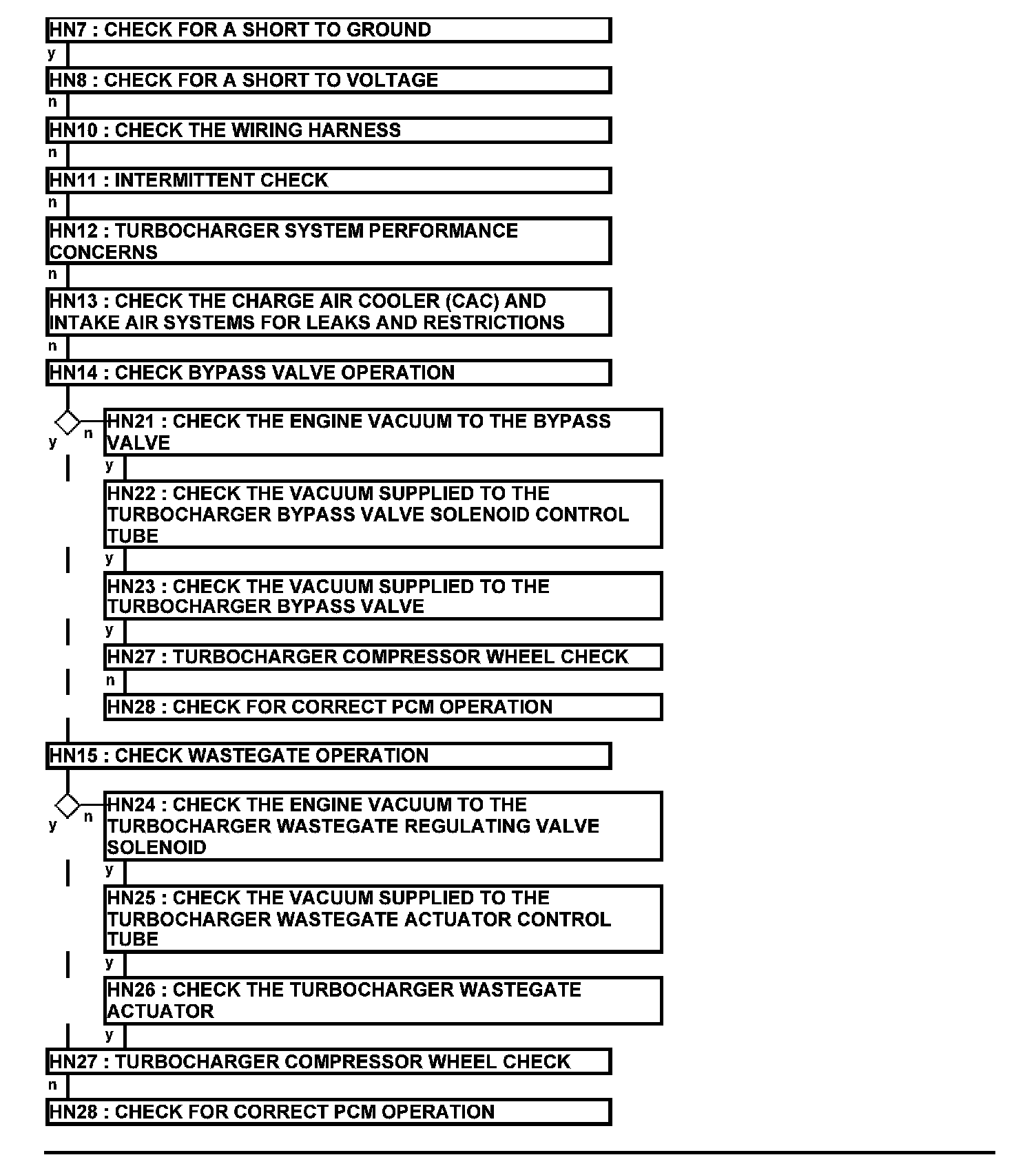

Turbocharger System

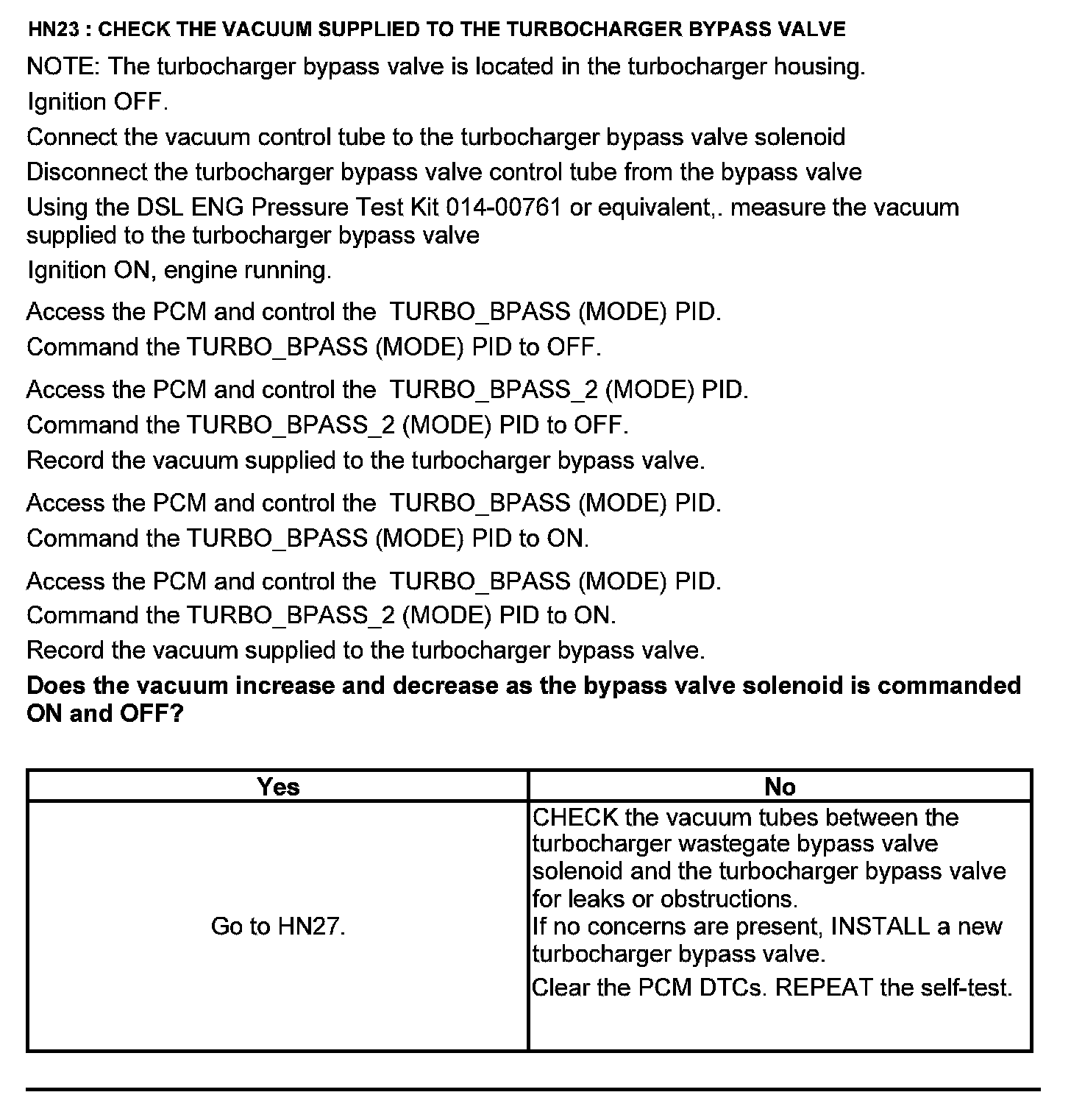

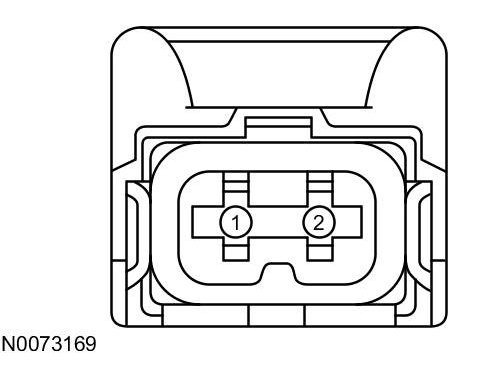

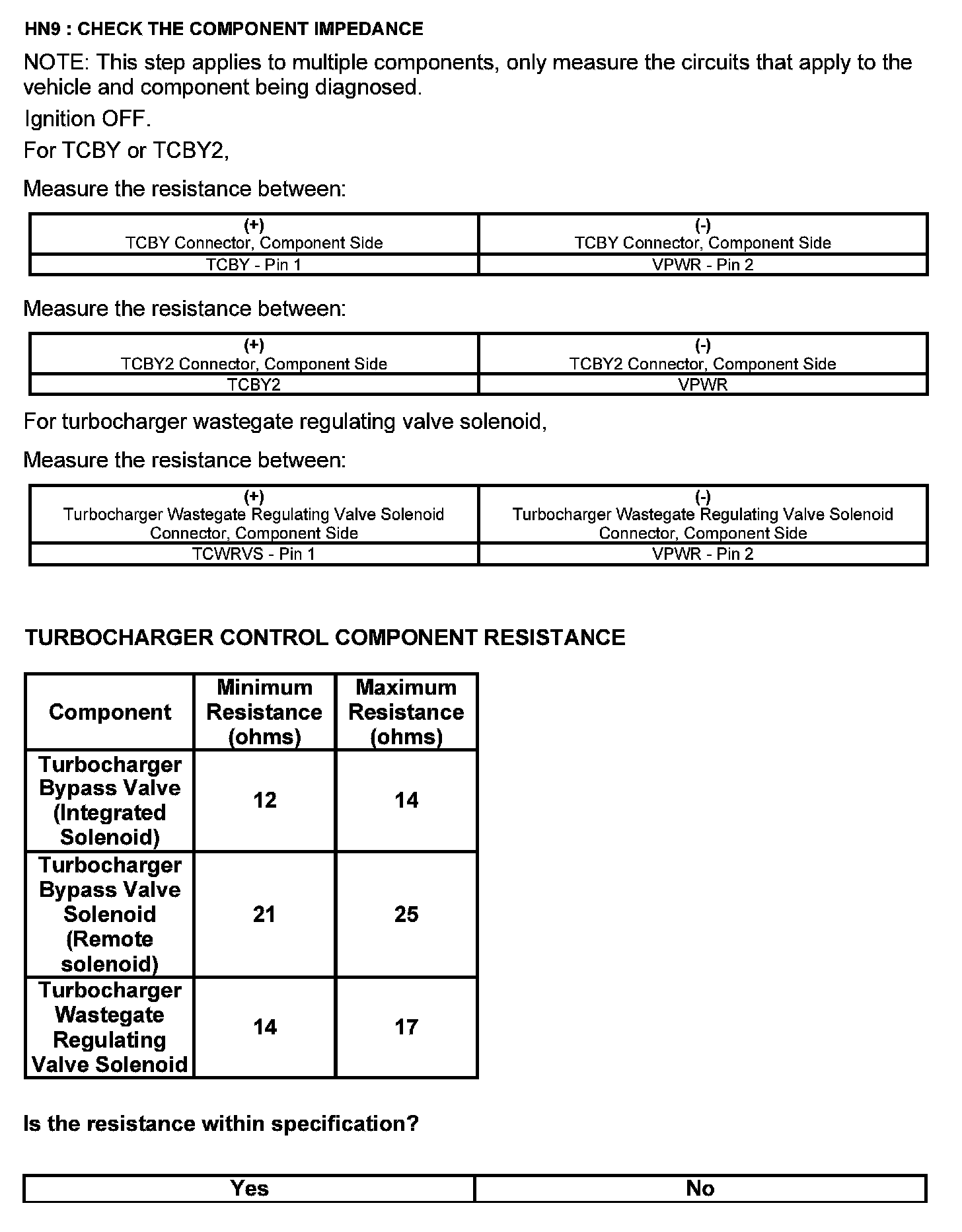

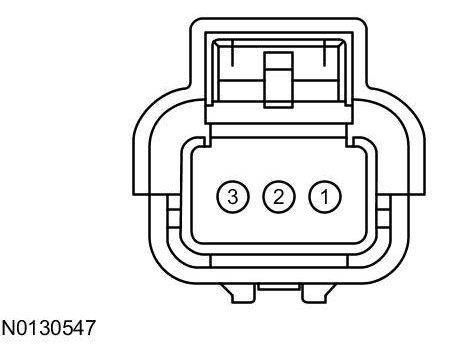

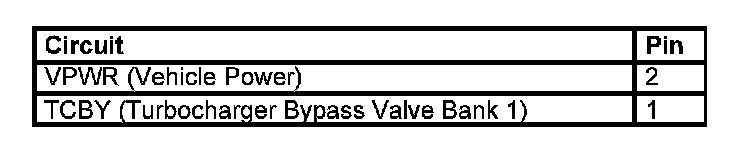

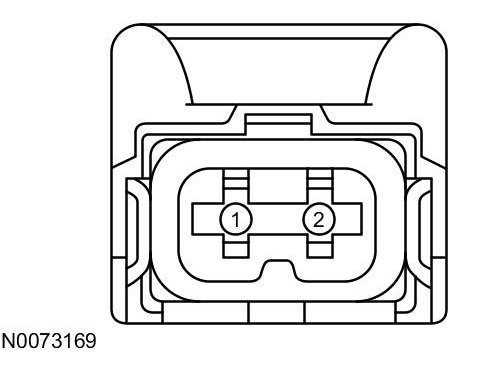

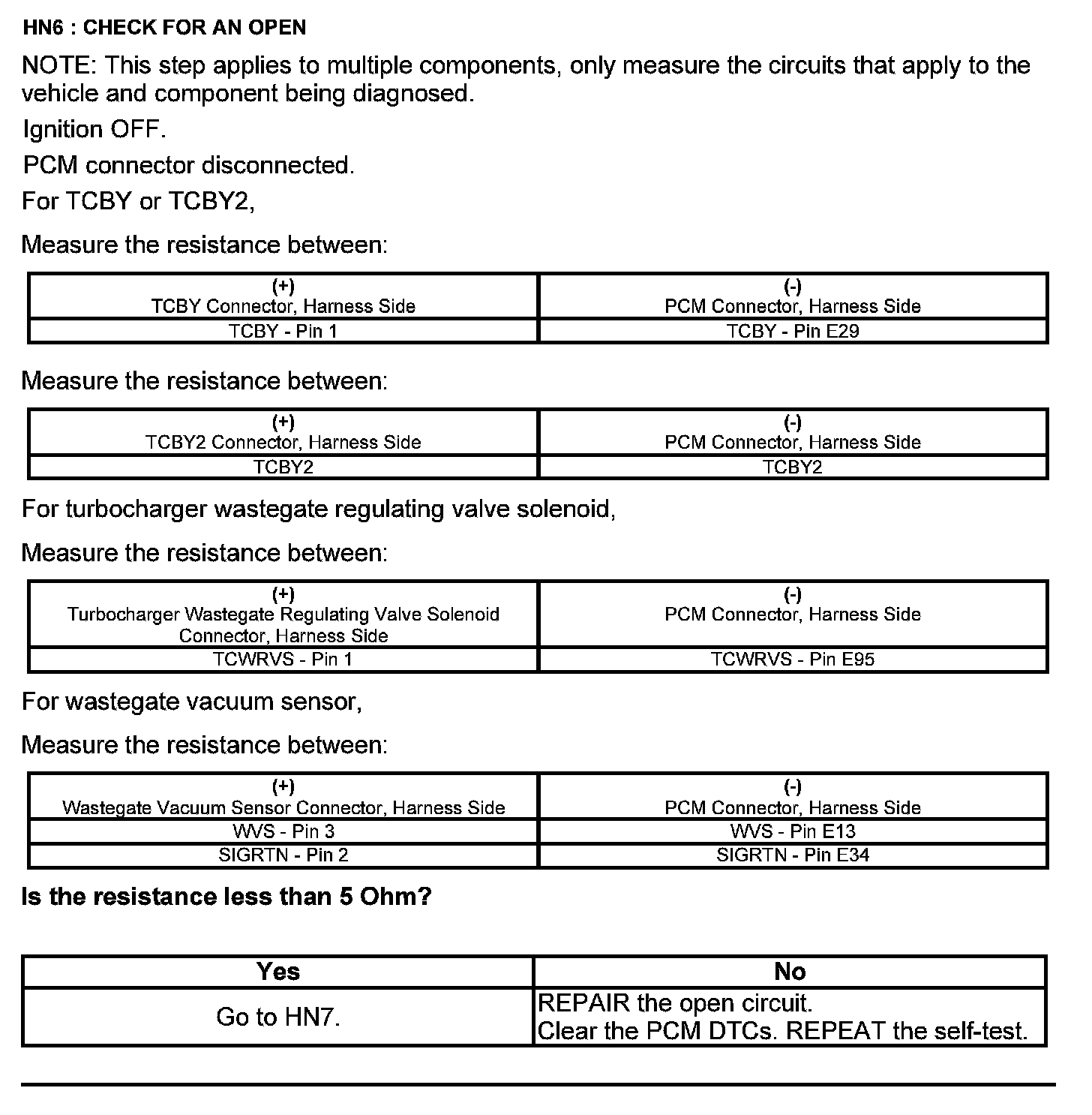

Turbocharger Bypass Valve (TCBY) Connector





Harness Side

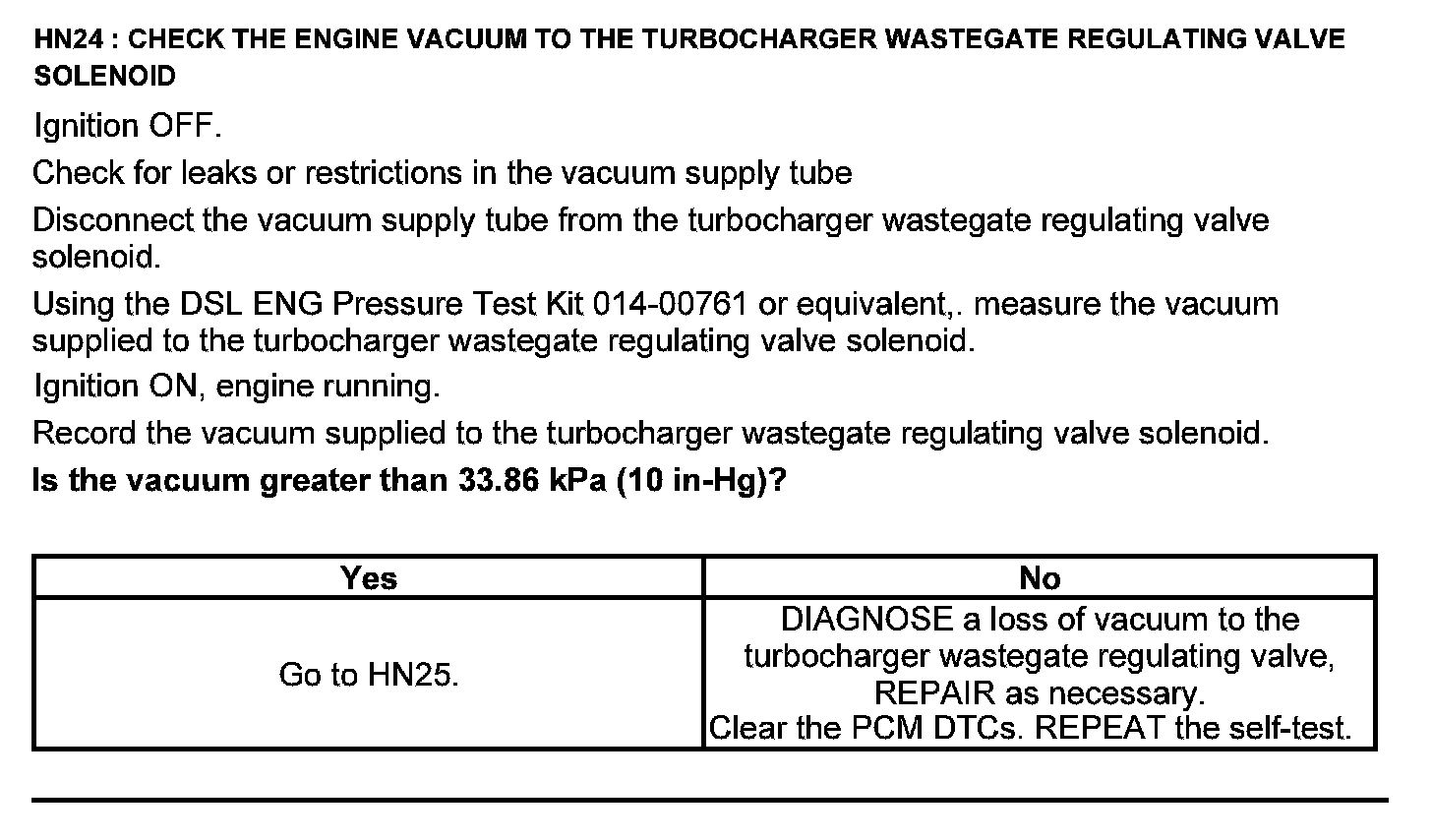

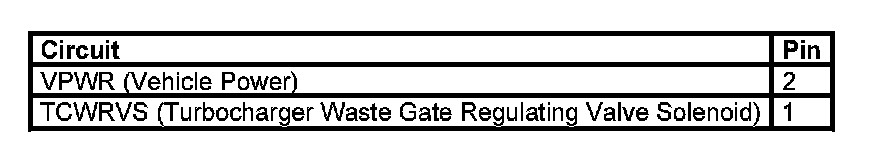

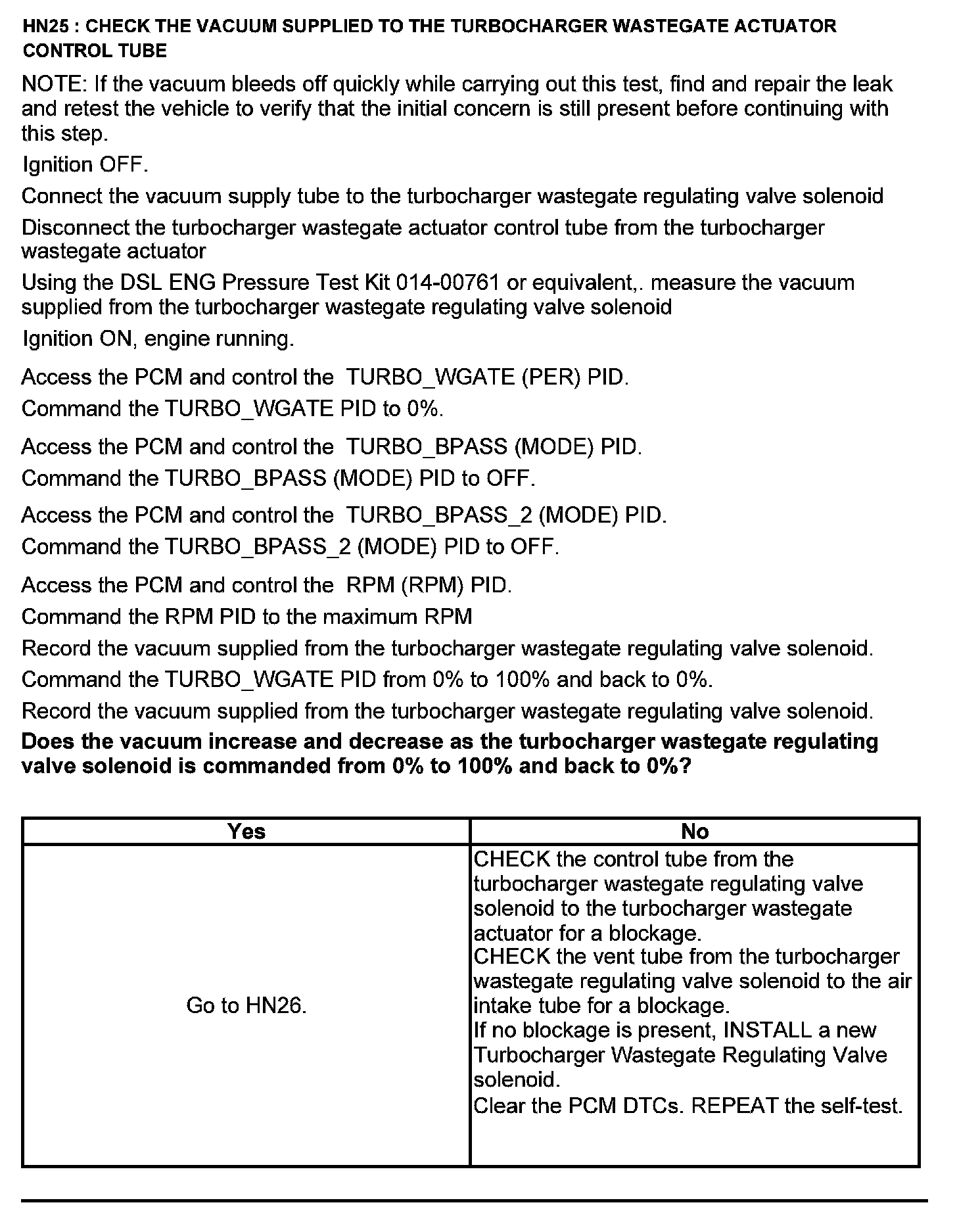

Turbocharger Wastegate Regulating Valve Solenoid Connector





Harness Side

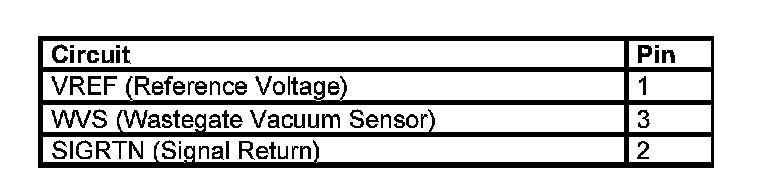

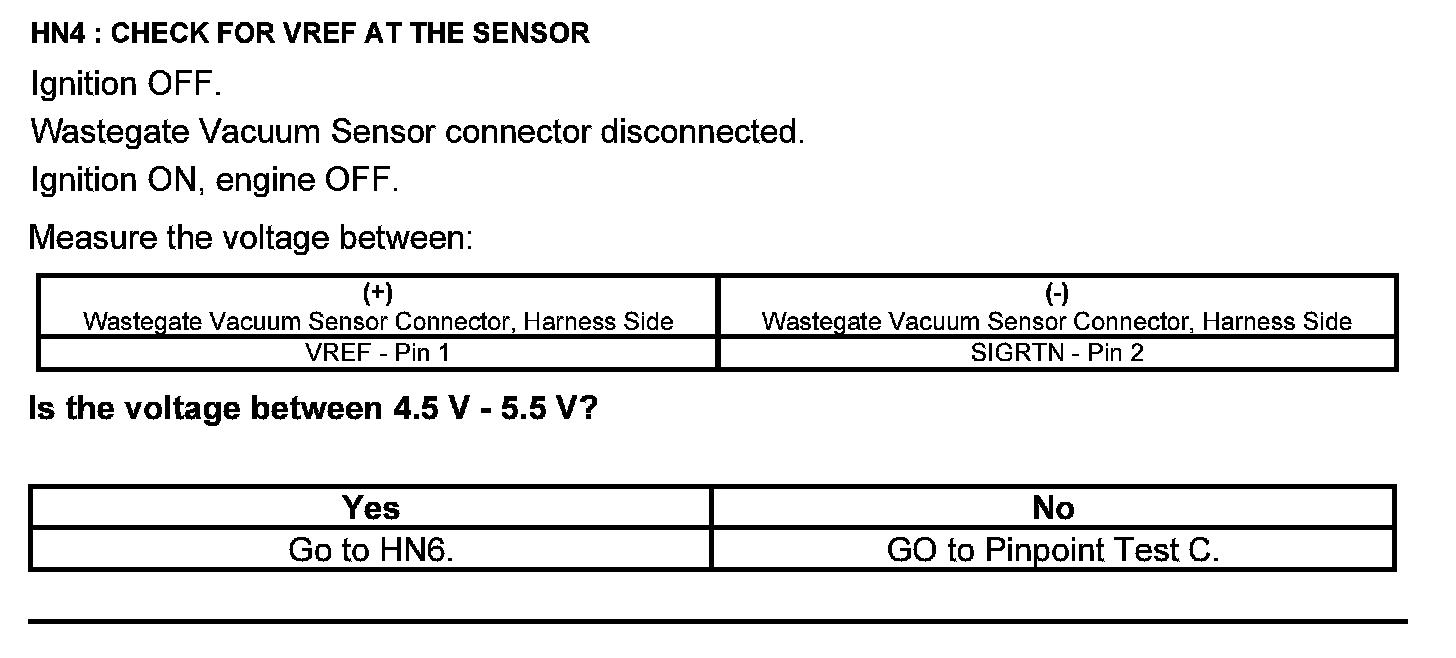

Wastegate Vacuum Sensor Connector





Harness Side

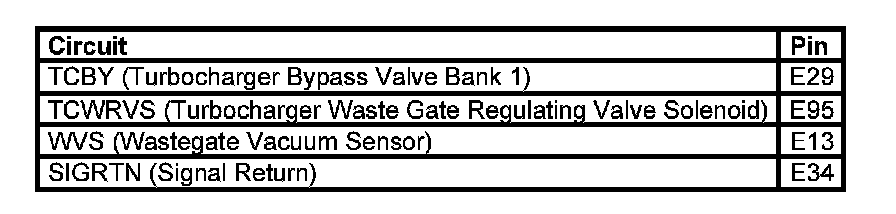

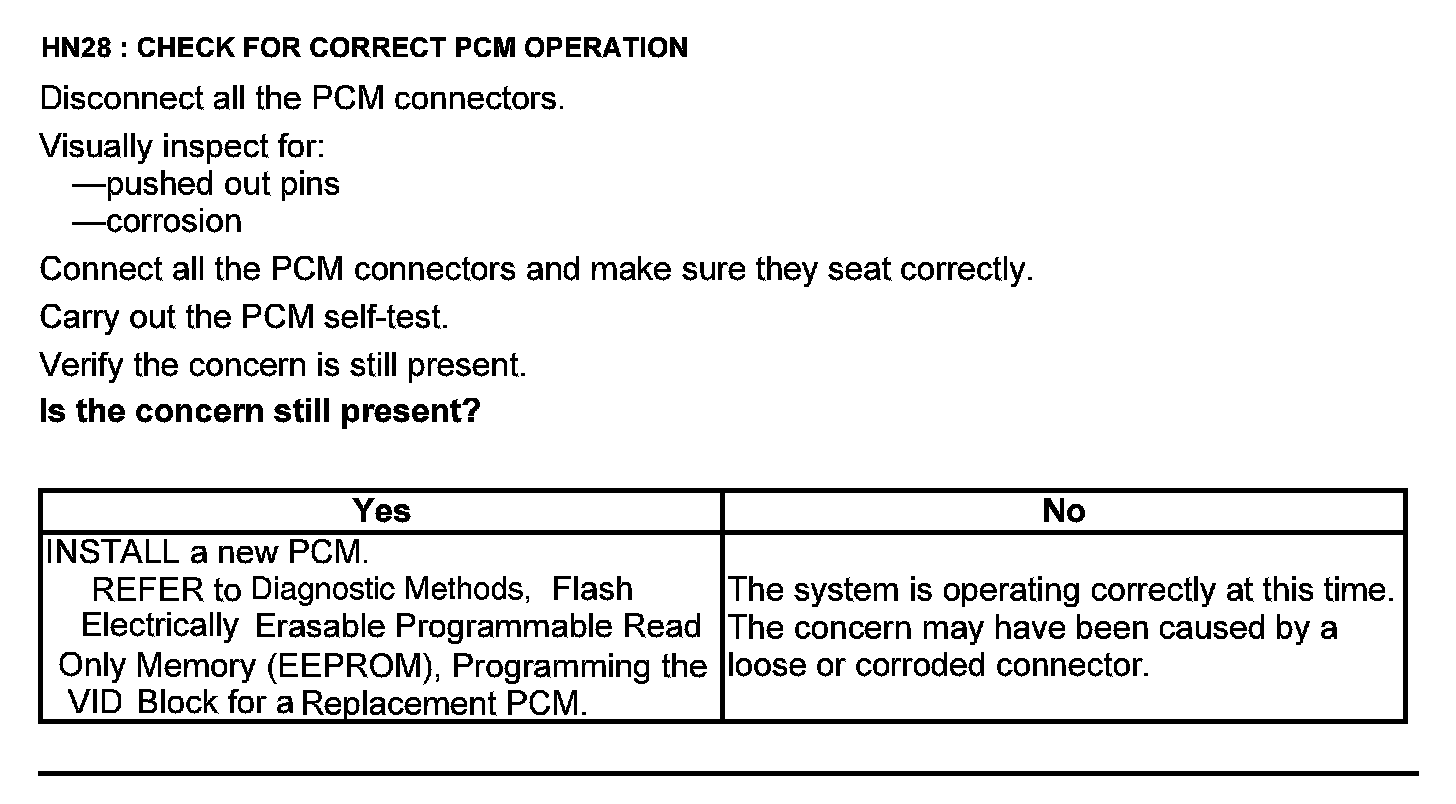

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
