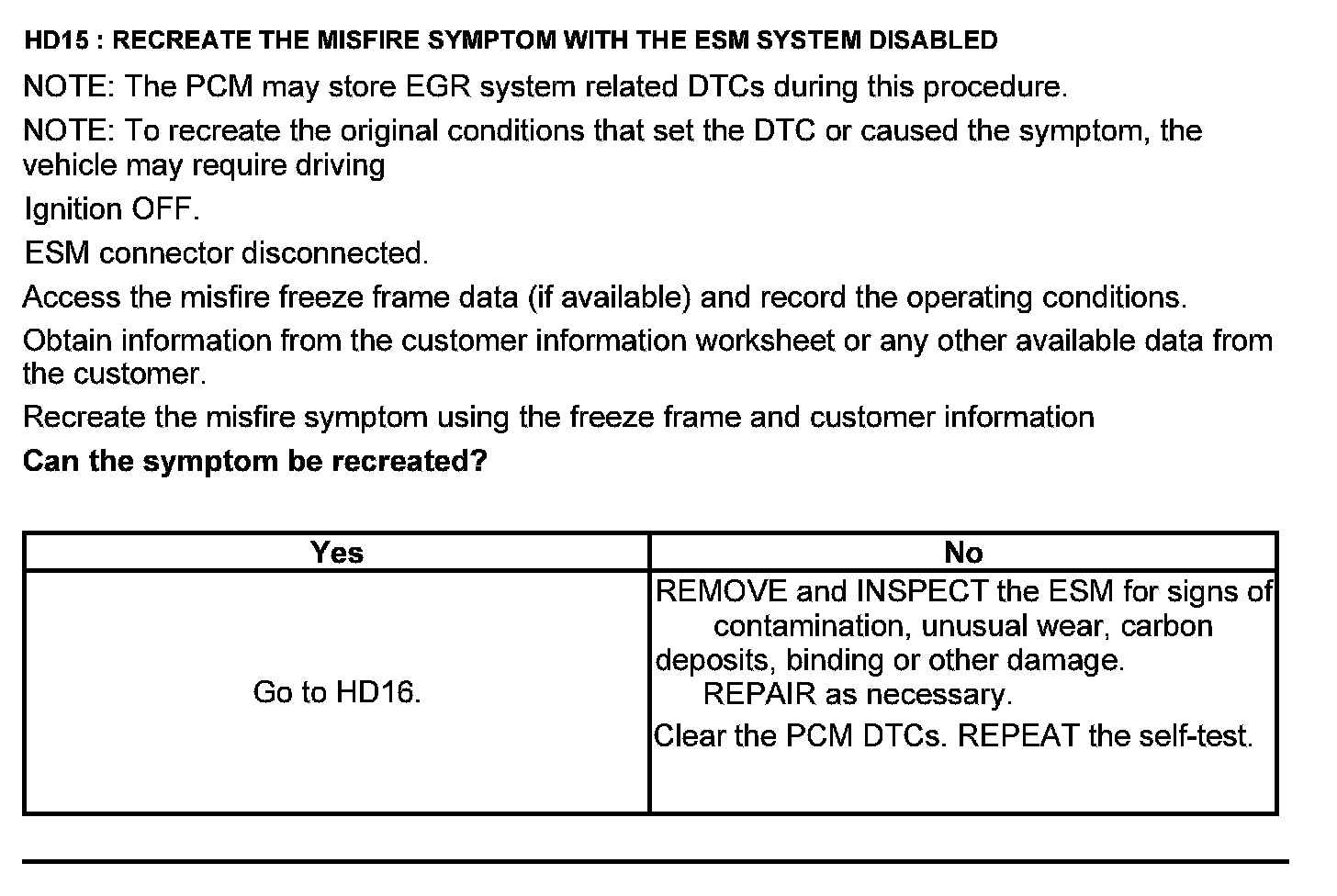

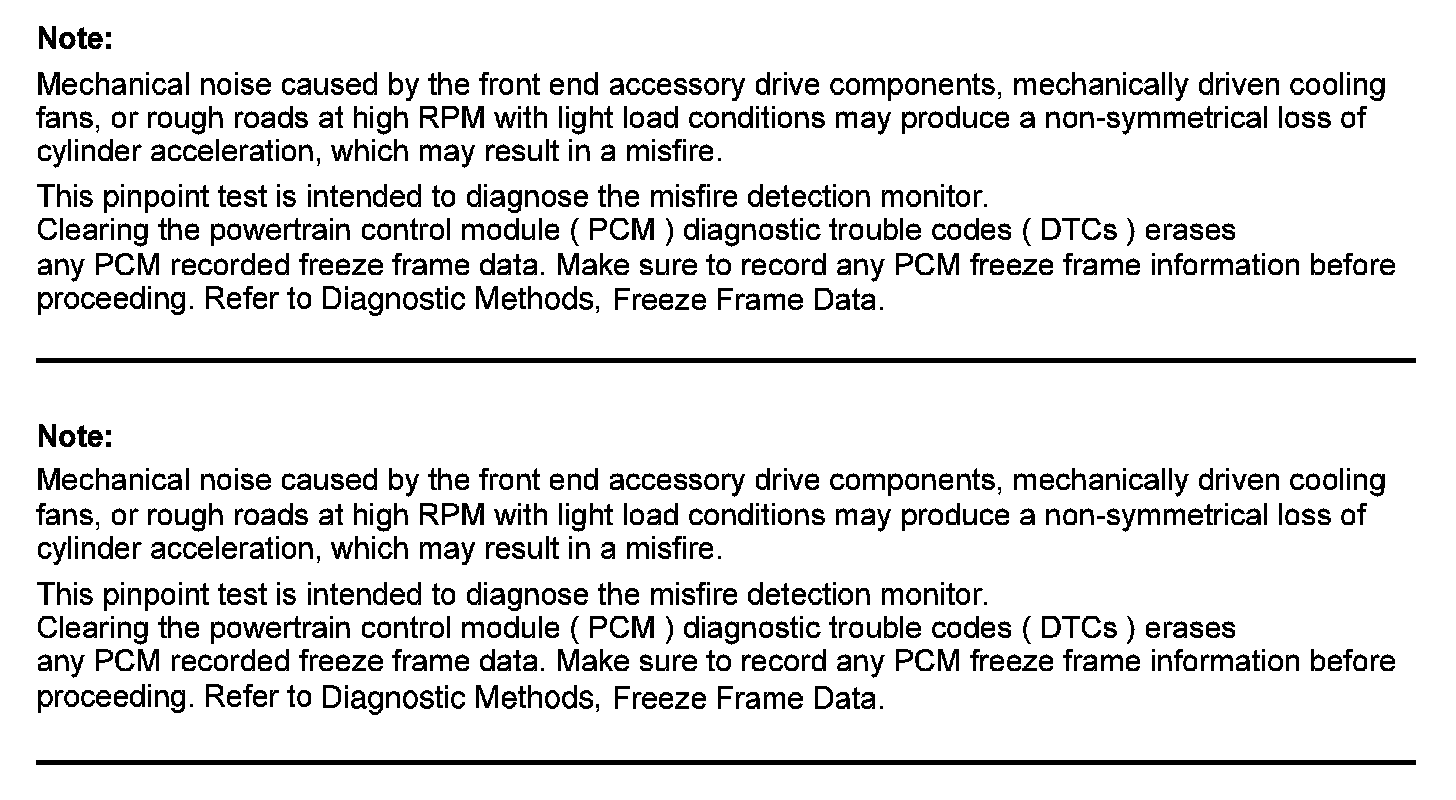

Test HD: Misfire Detection Monitor

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2012 Ford Truck.

AI Repair Guides

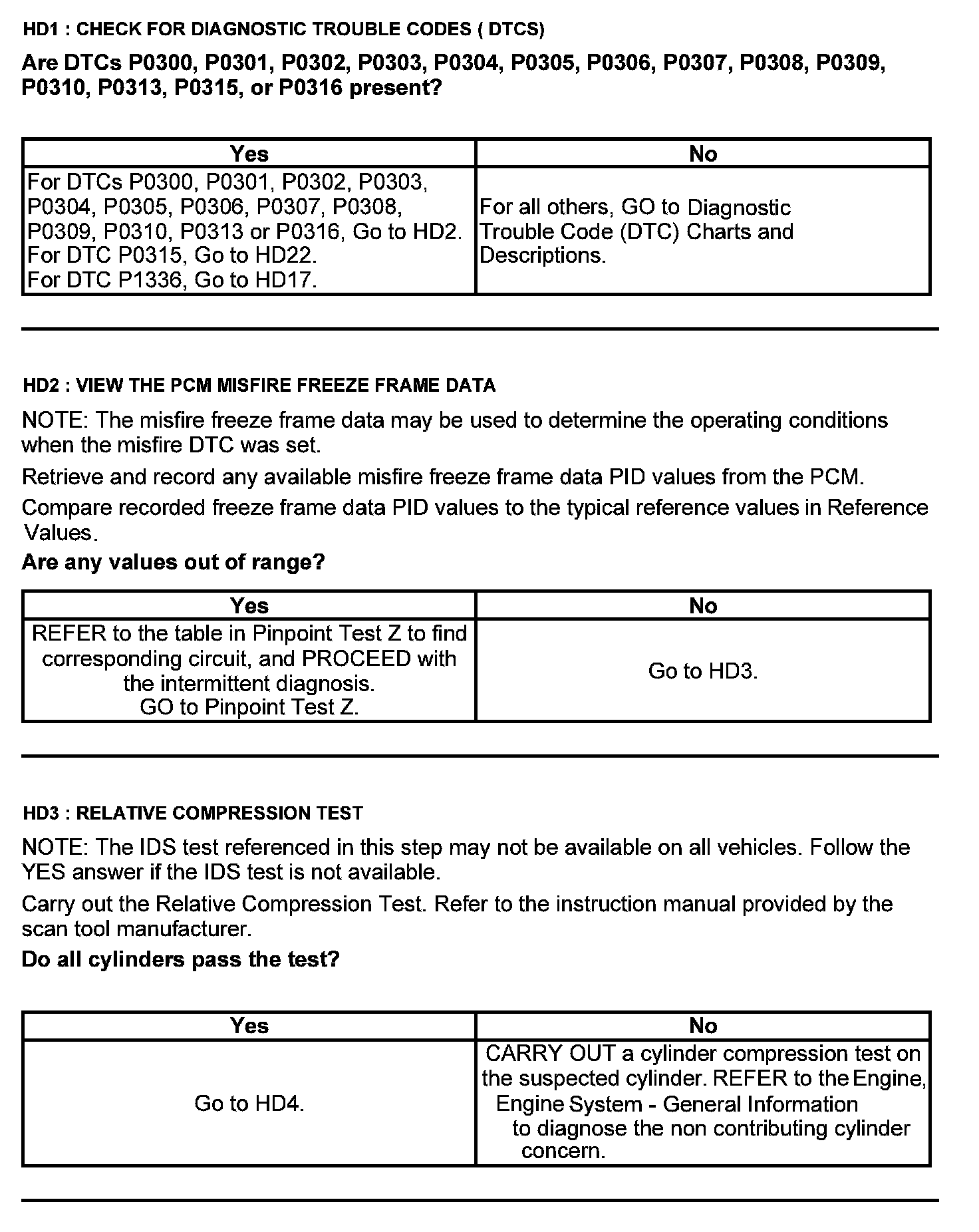

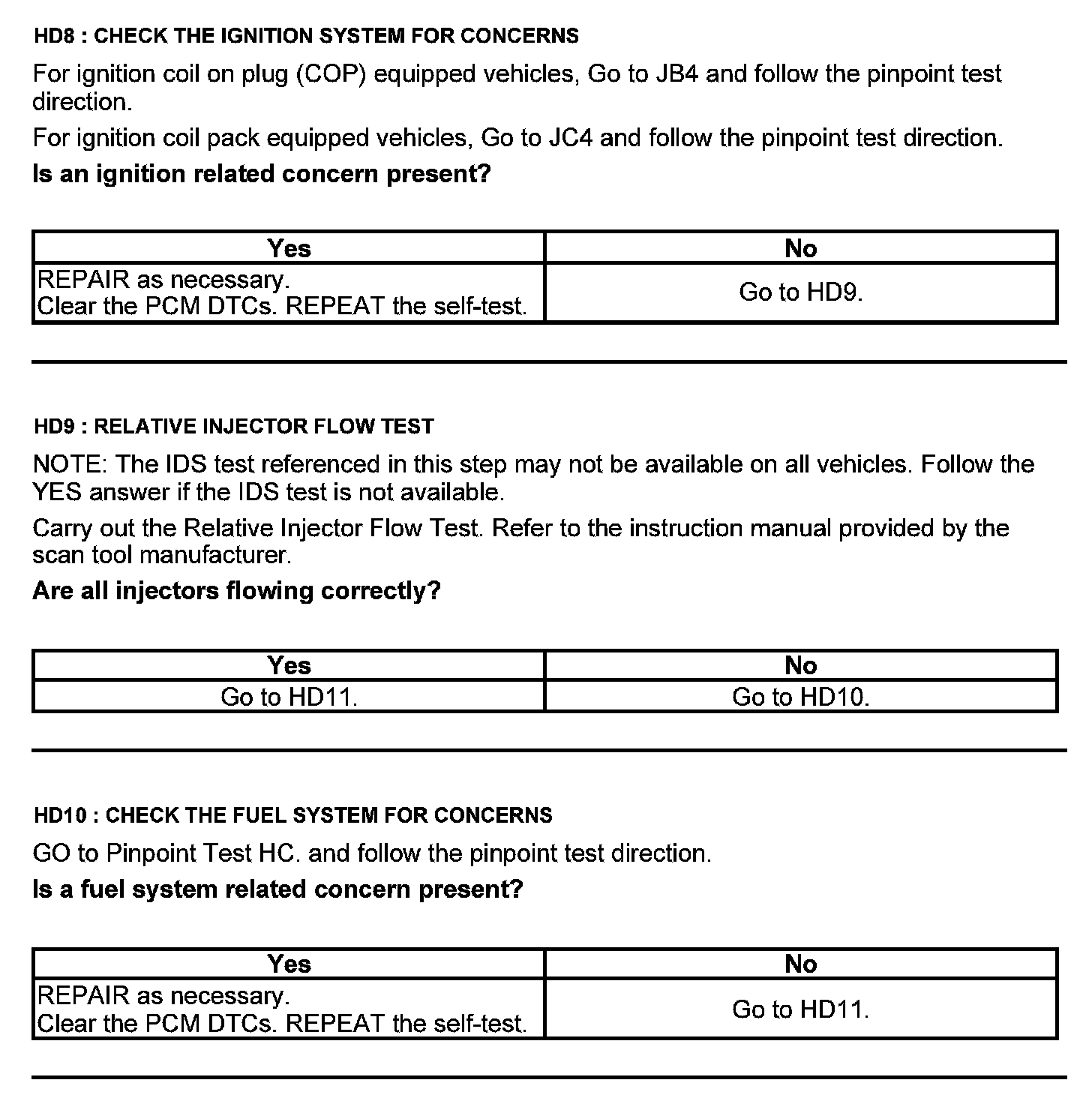

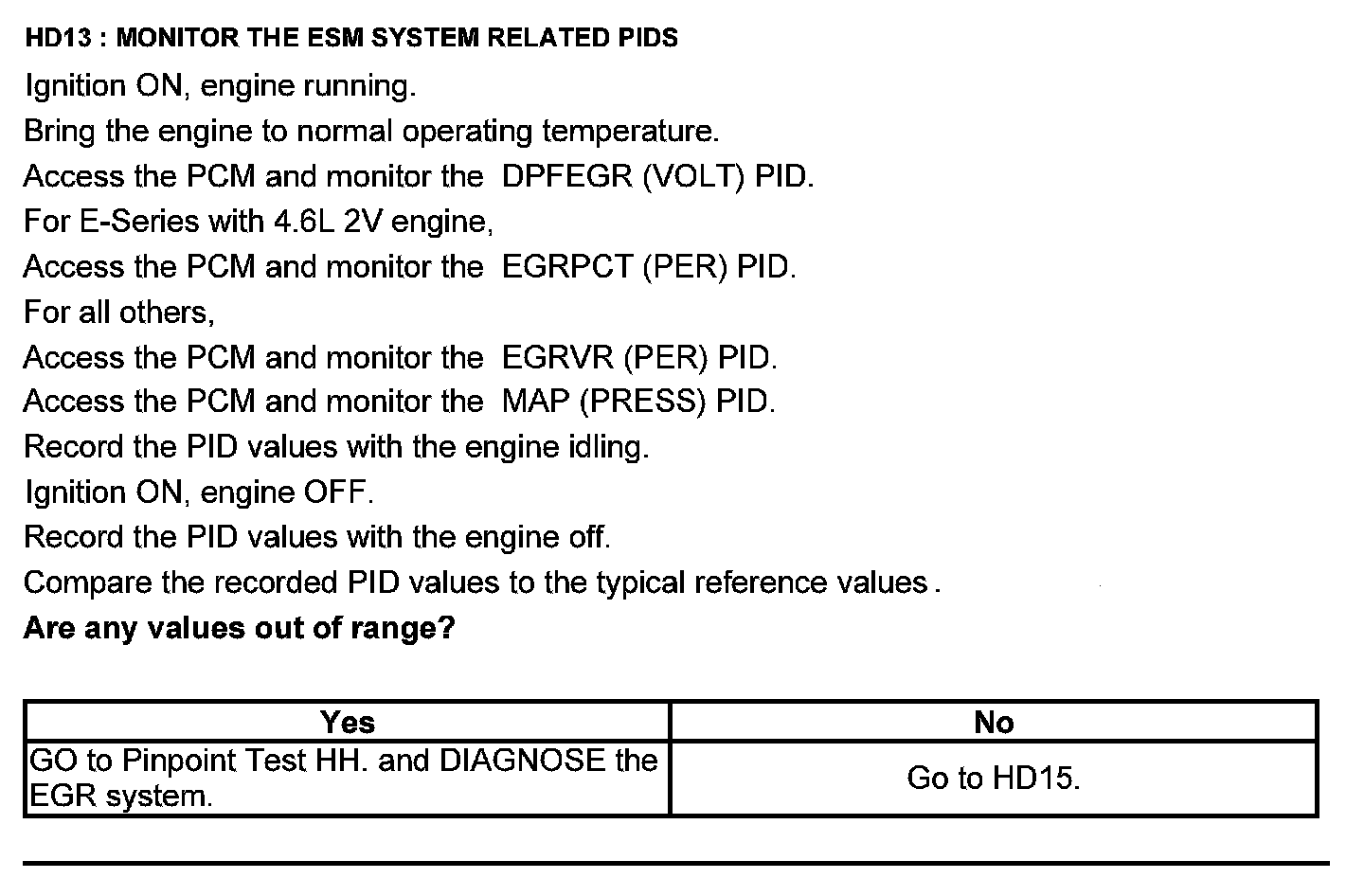

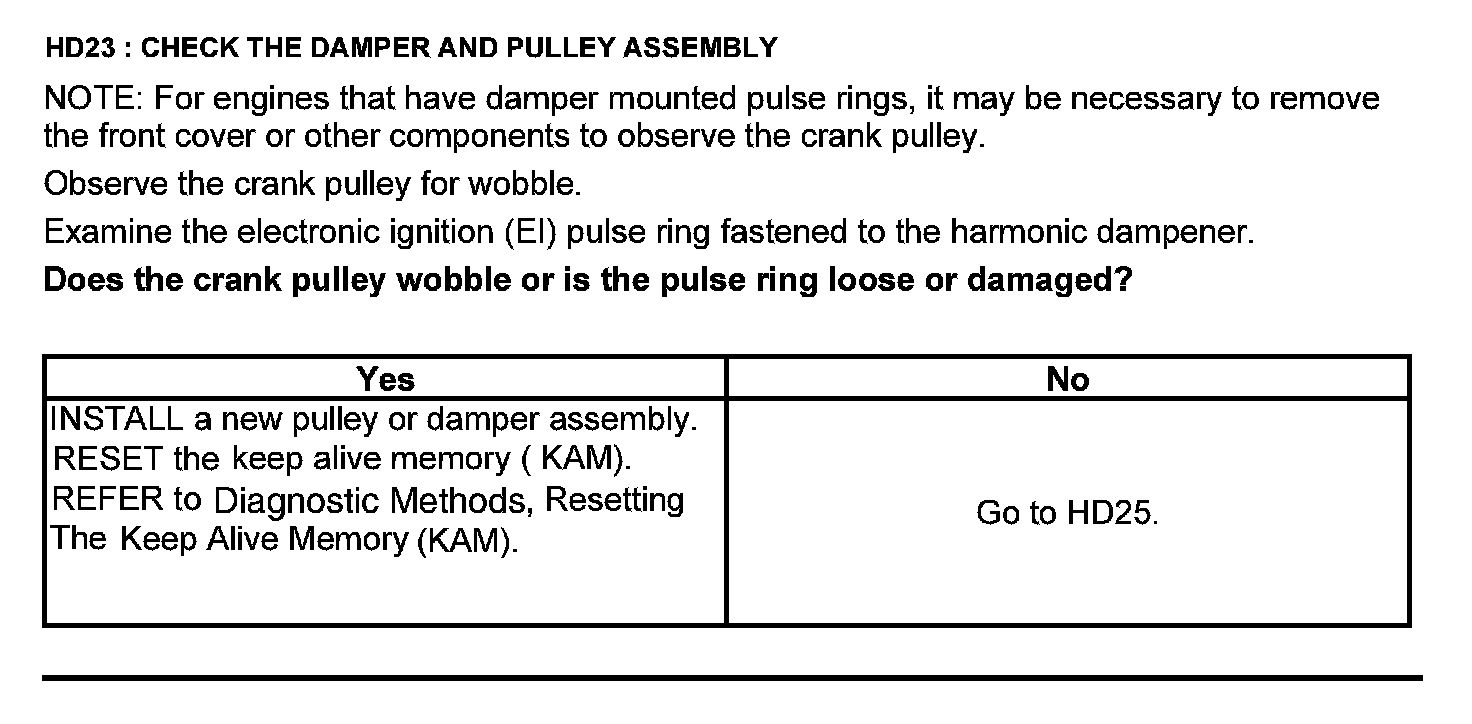

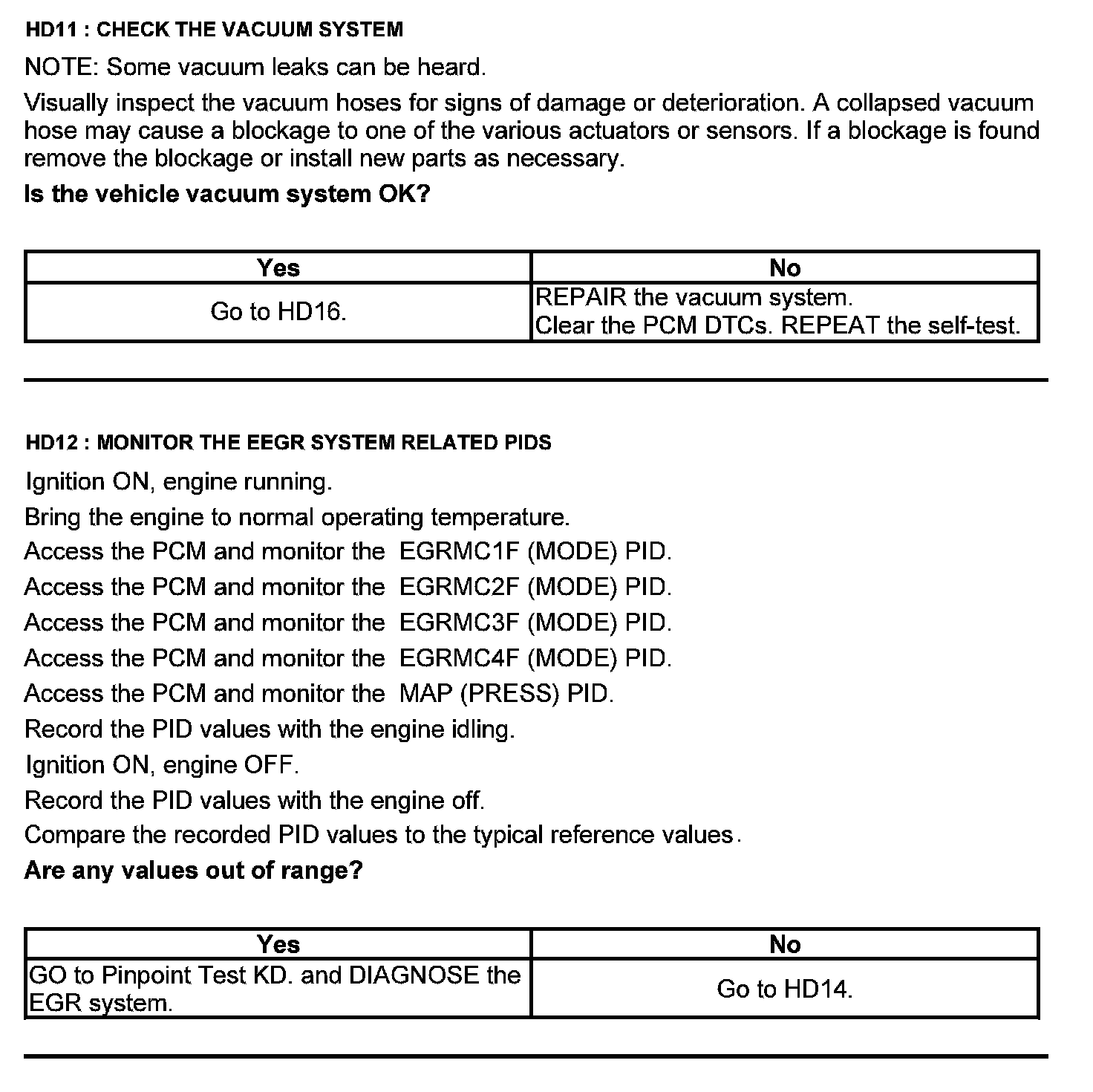

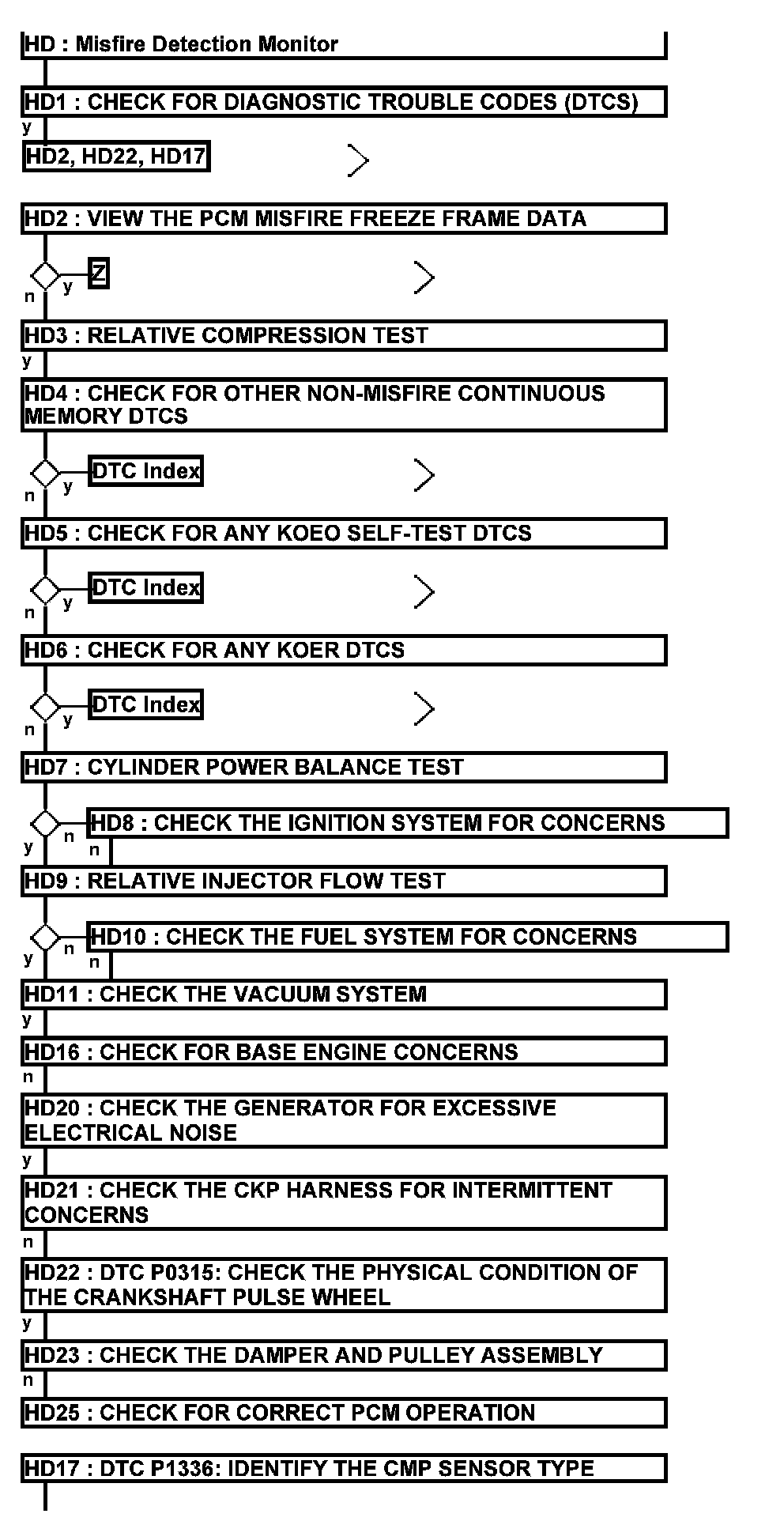

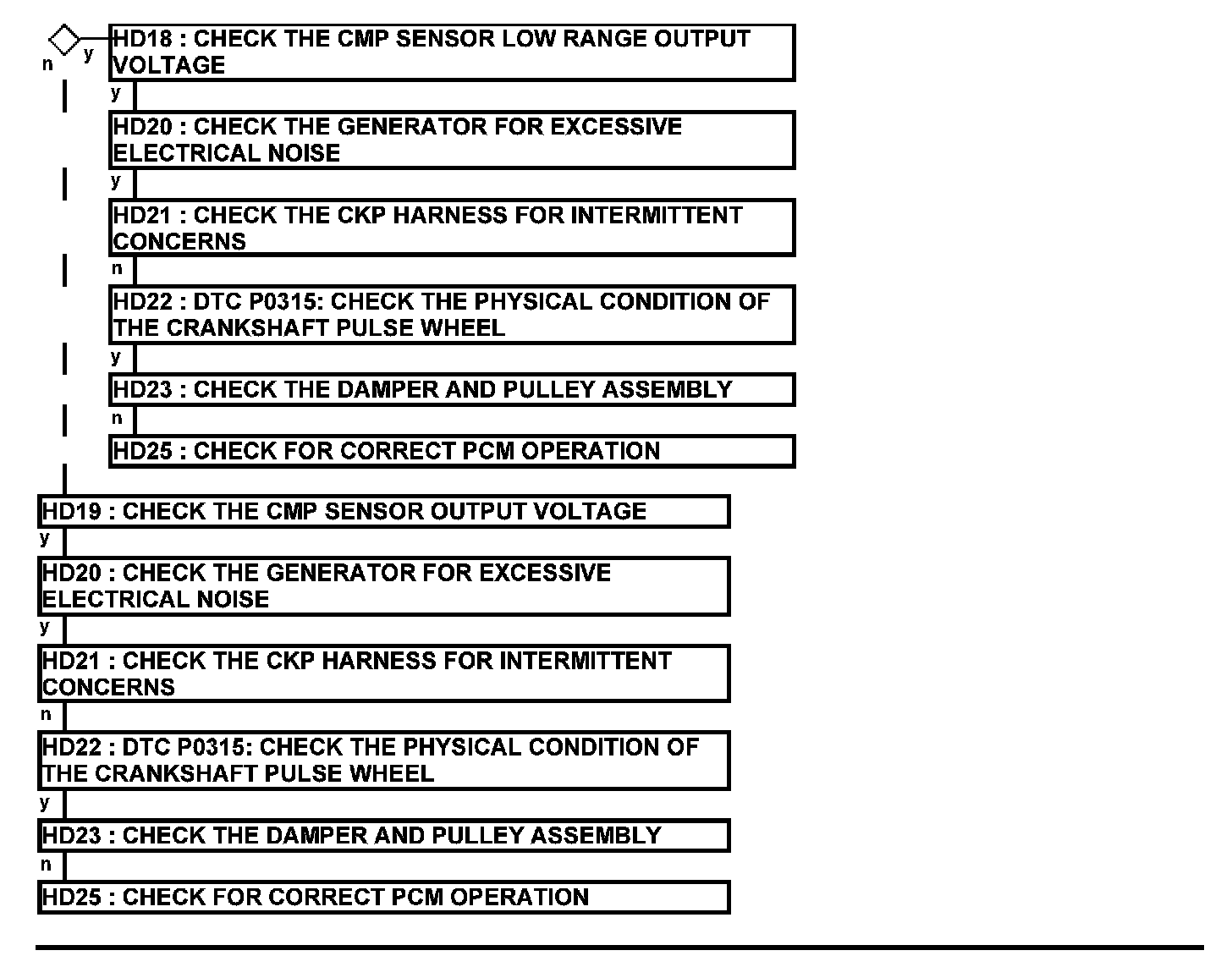

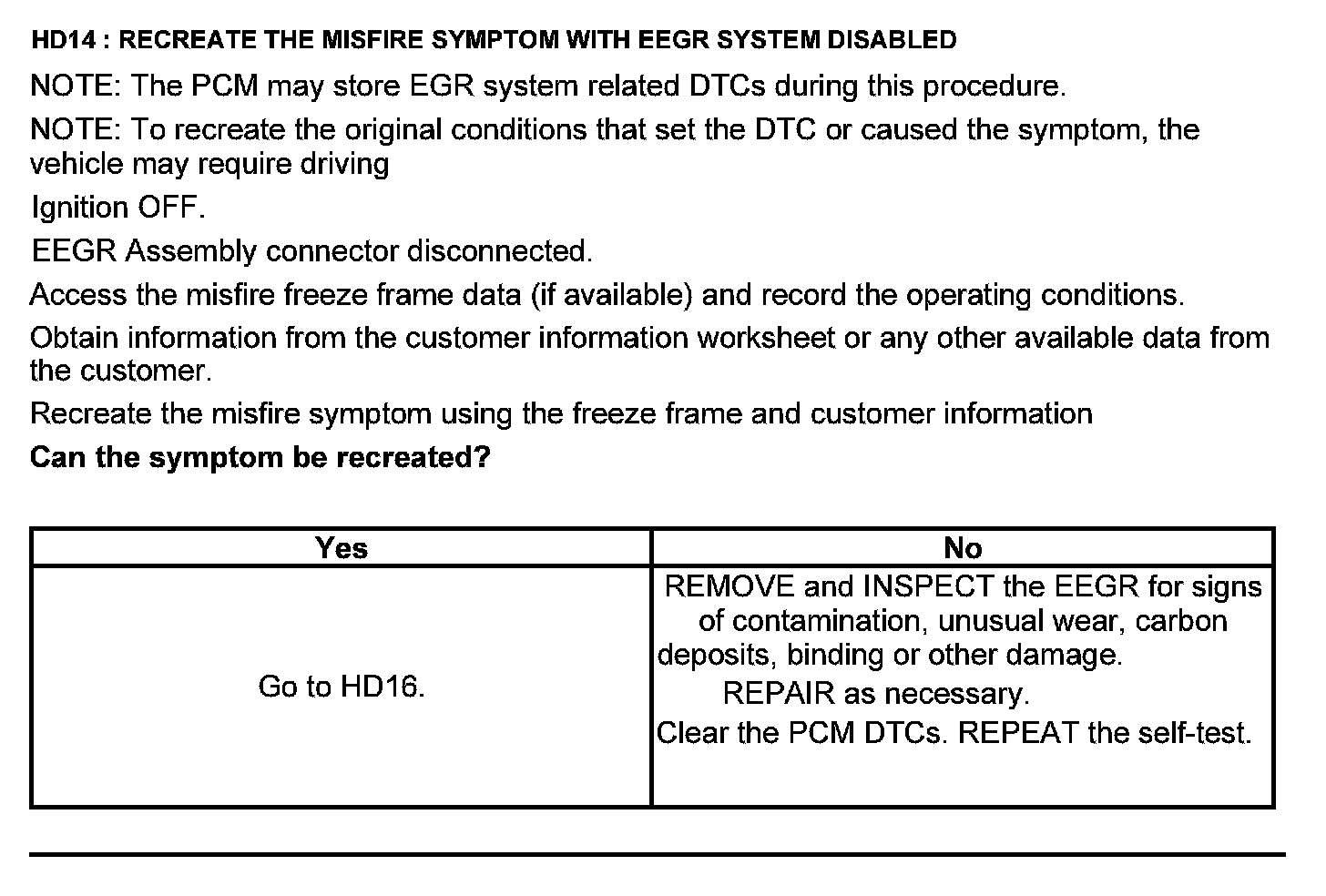

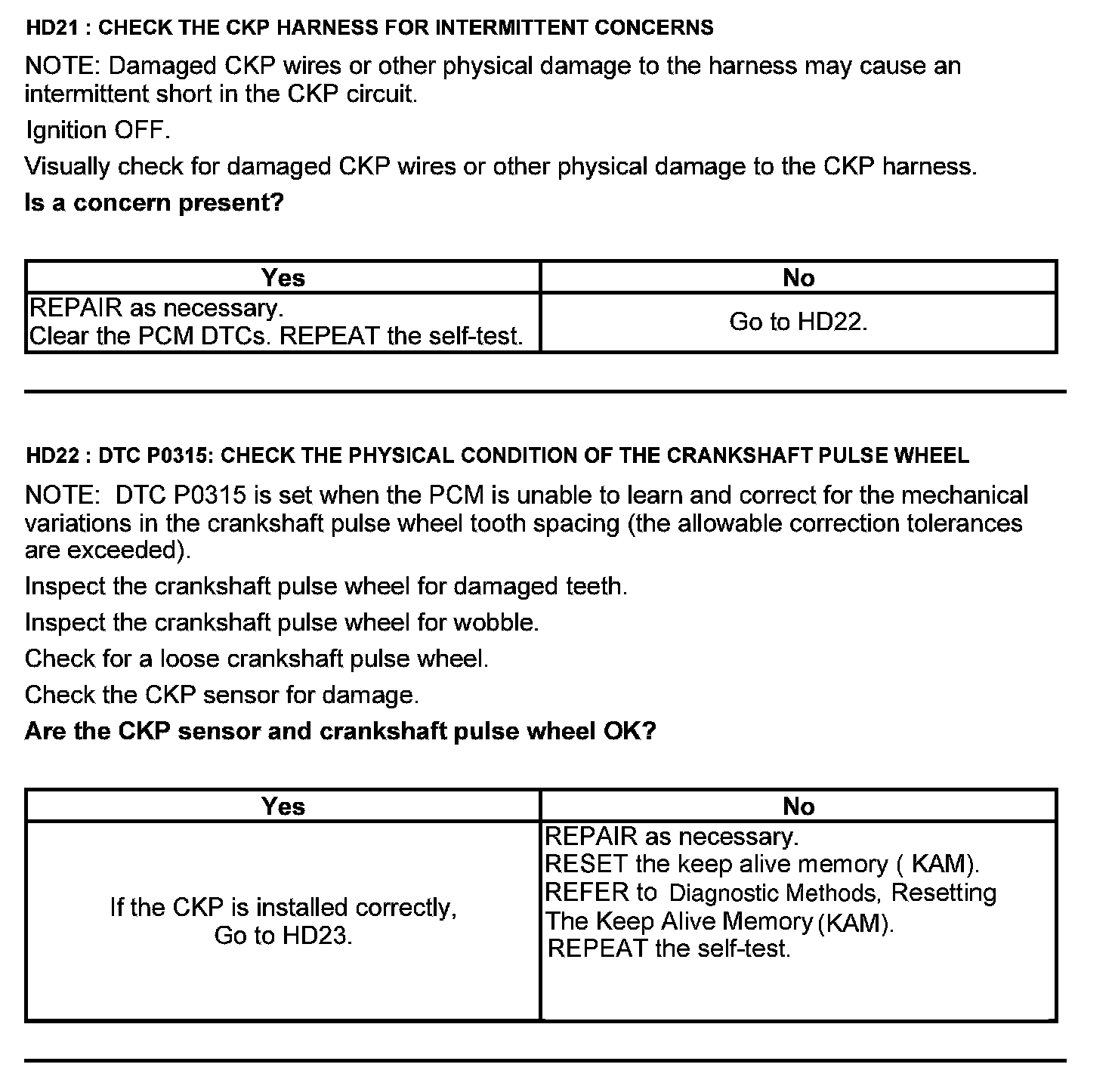

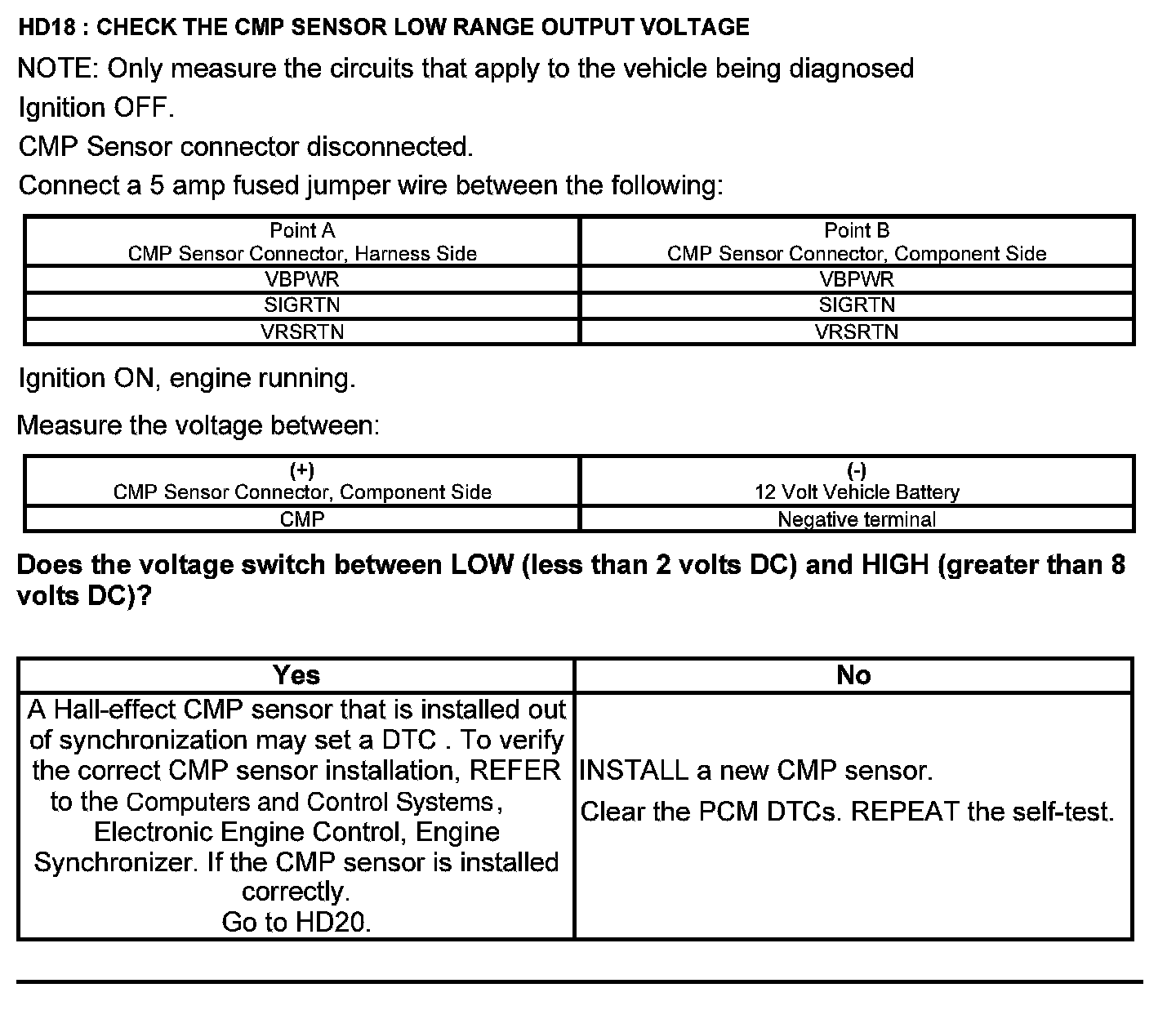

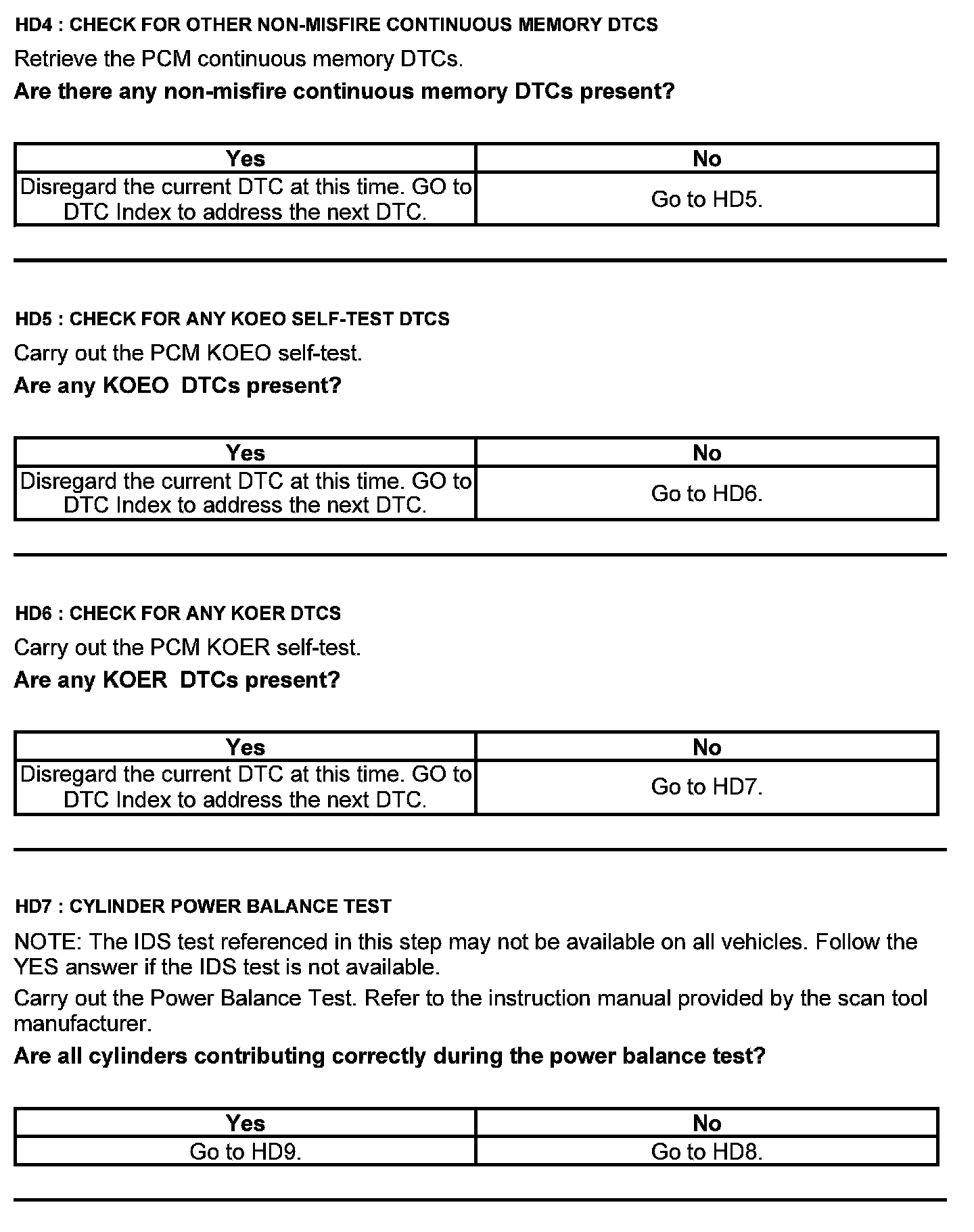

Misfire Detection Monitor

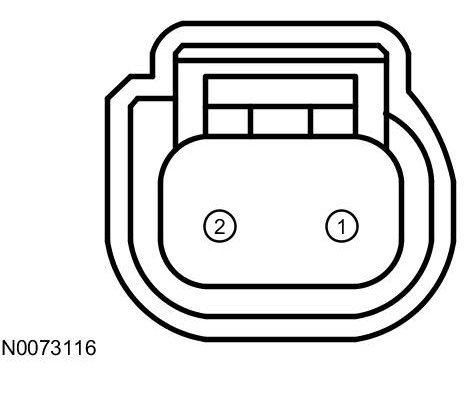

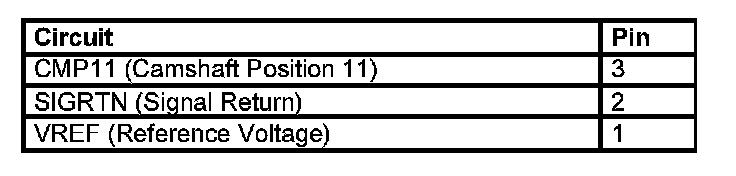

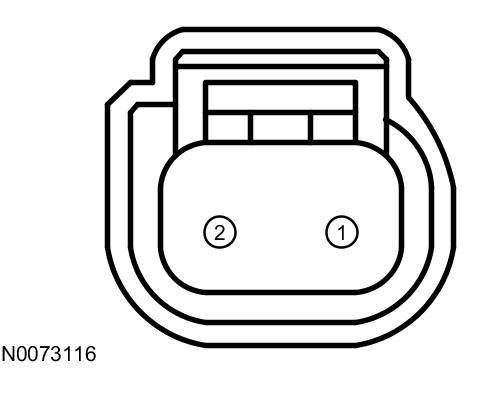

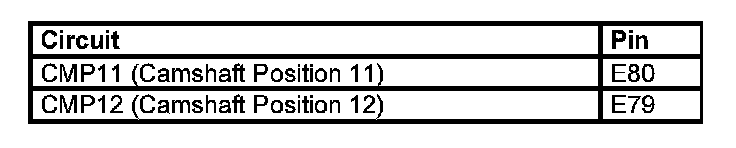

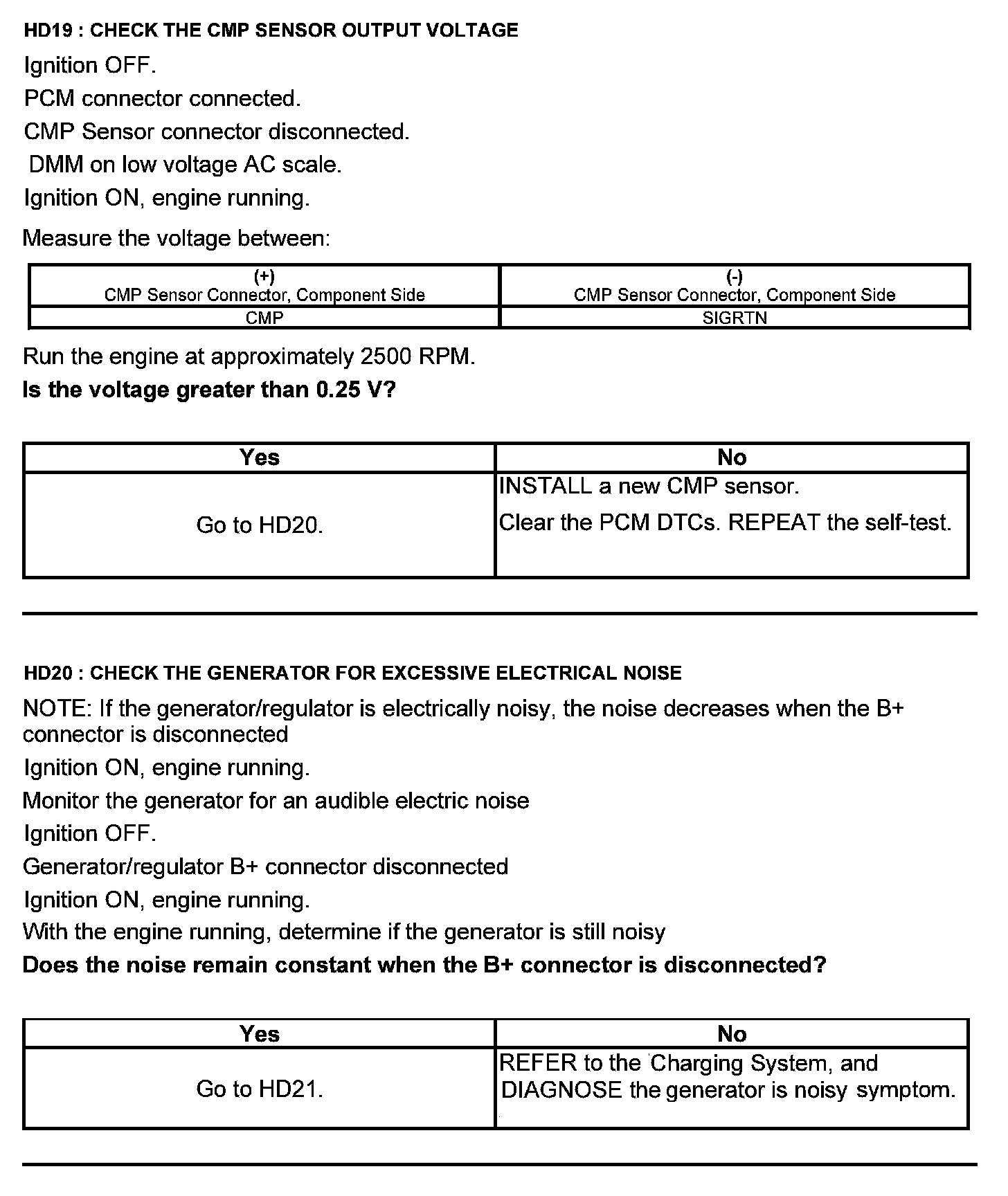

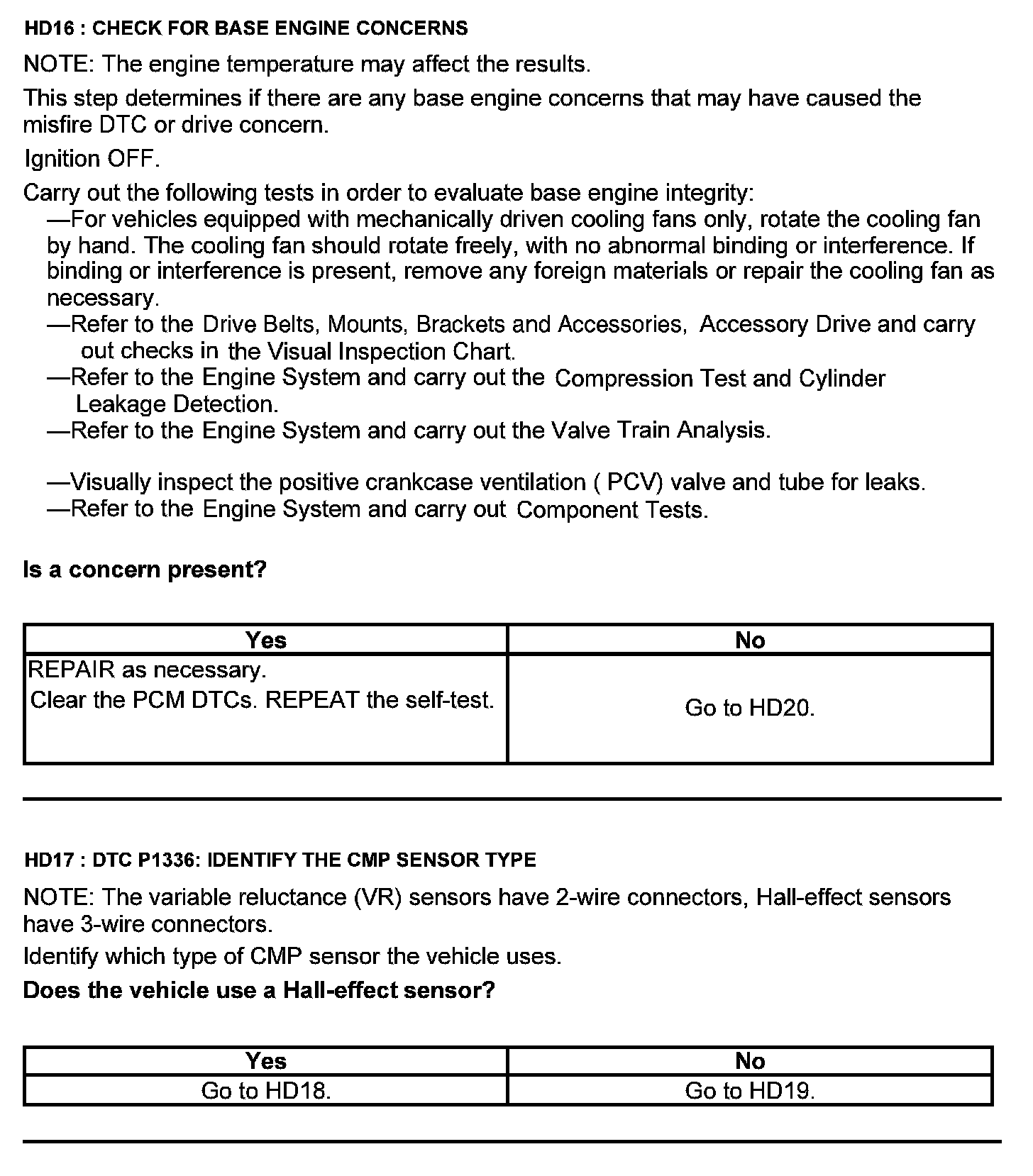

Camshaft Position 11 (CMP11) Sensor Connector





Harness Side

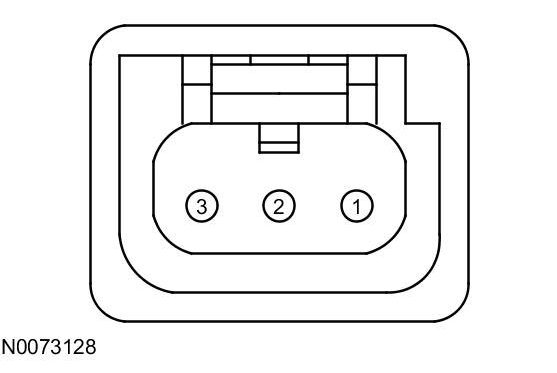

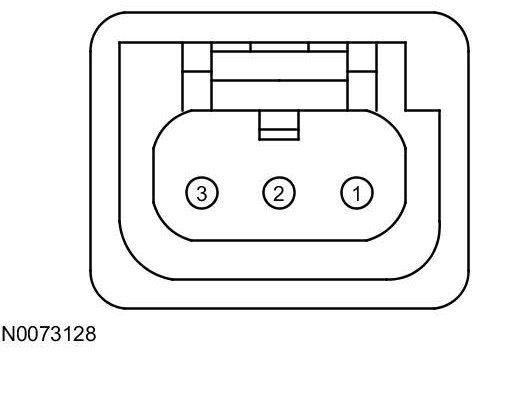

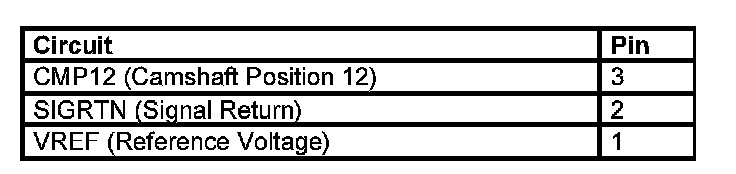

Camshaft Position 12 (CMP12) Sensor Connector





Harness Side

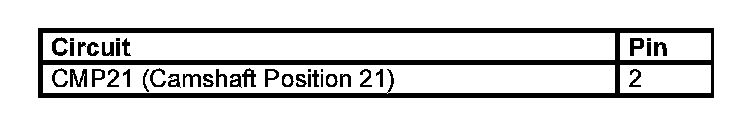

Camshaft Position 21 (CMP21) Sensor Connector





Harness Side







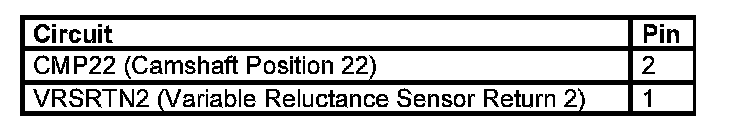

Camshaft Position 22 (CMP22) Sensor Connector




Harness Side

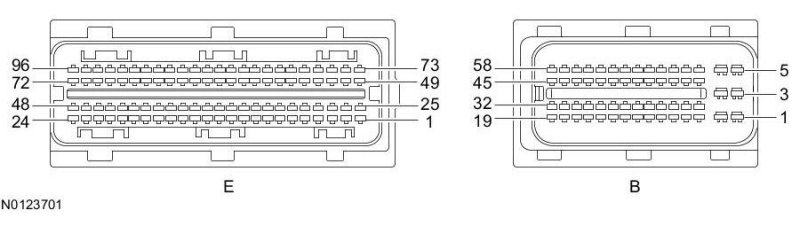

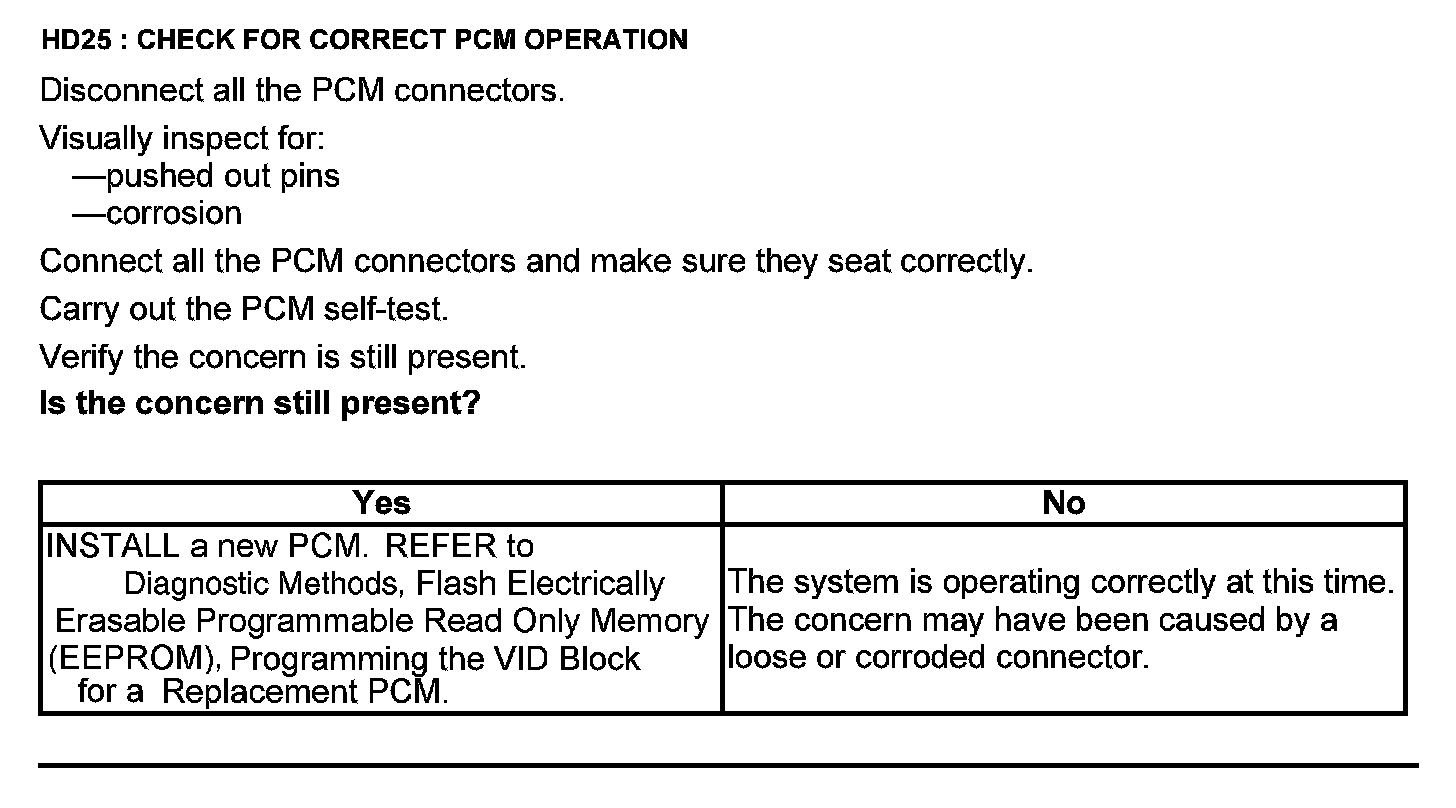

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
