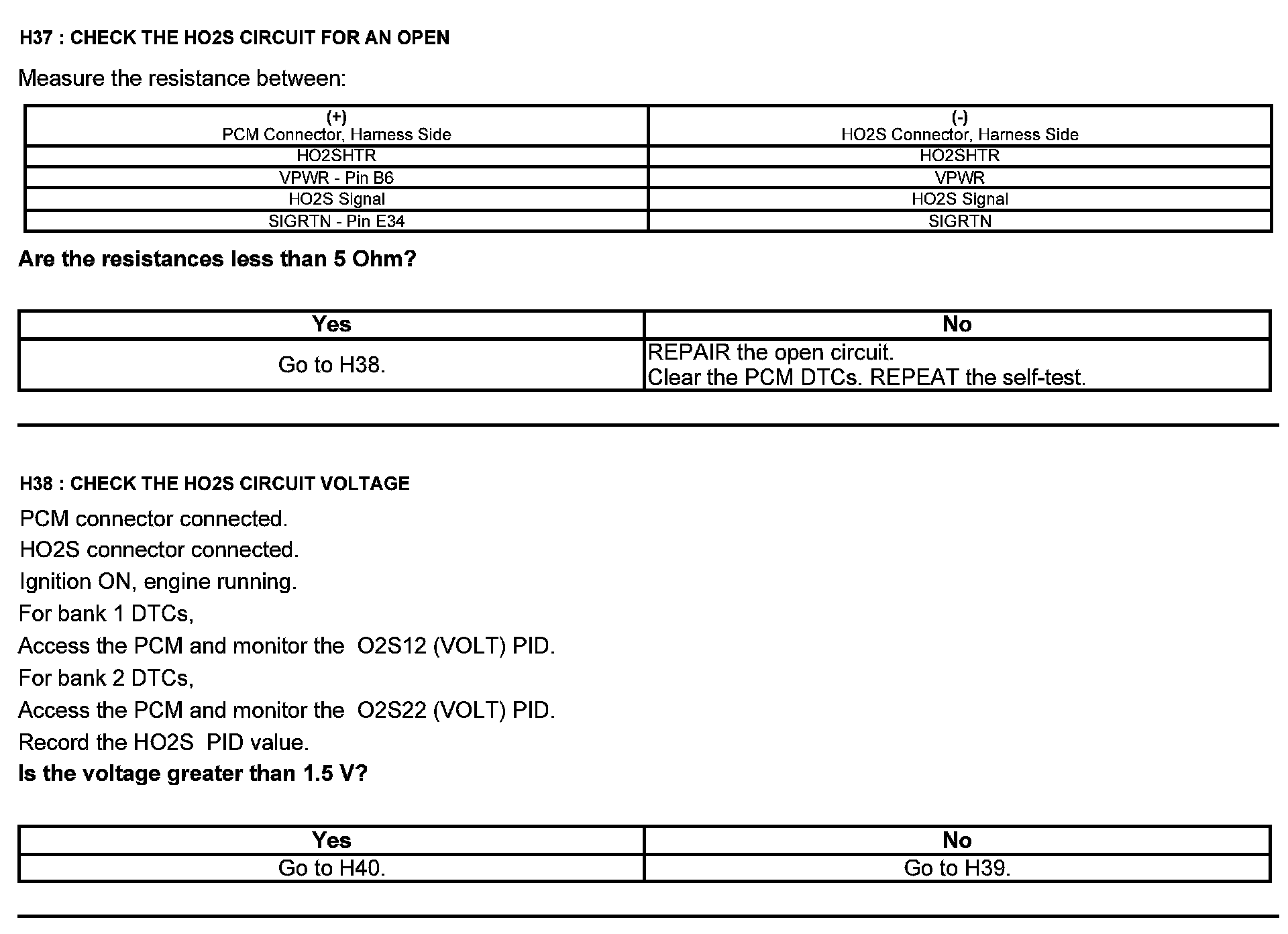

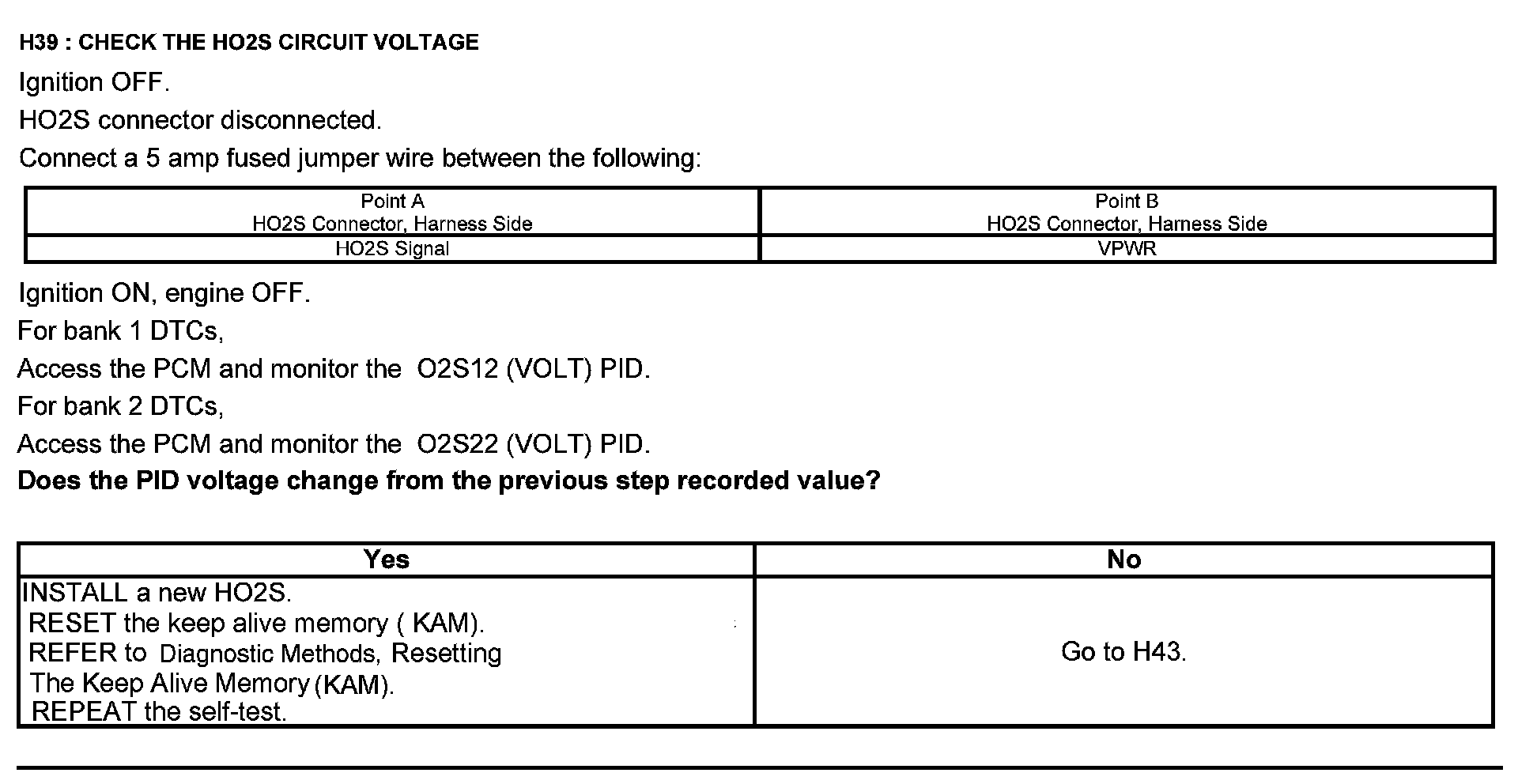

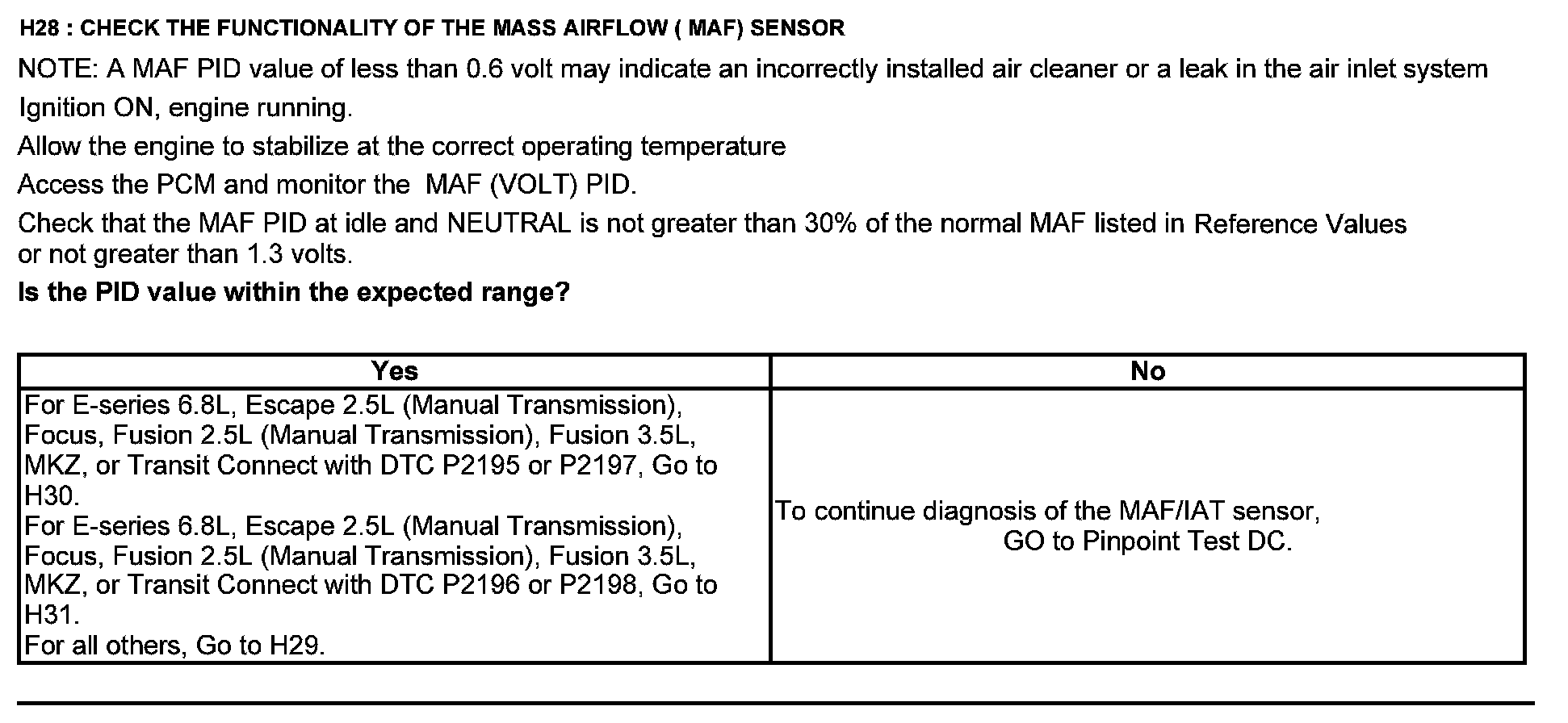

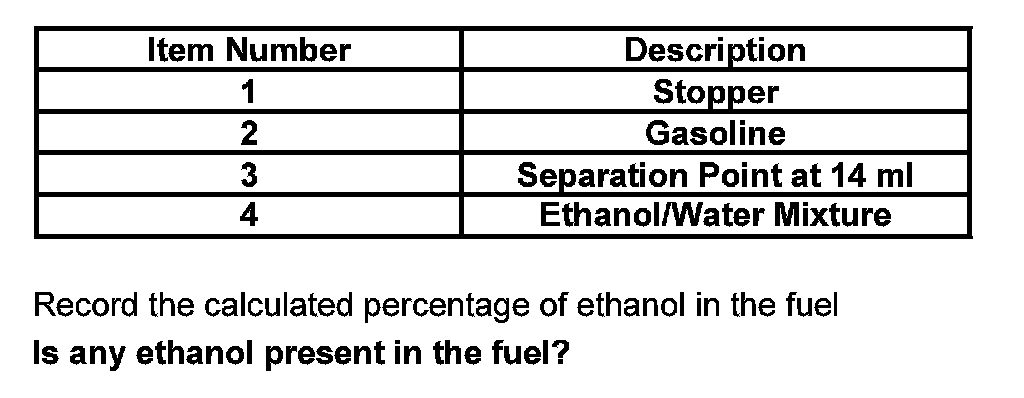

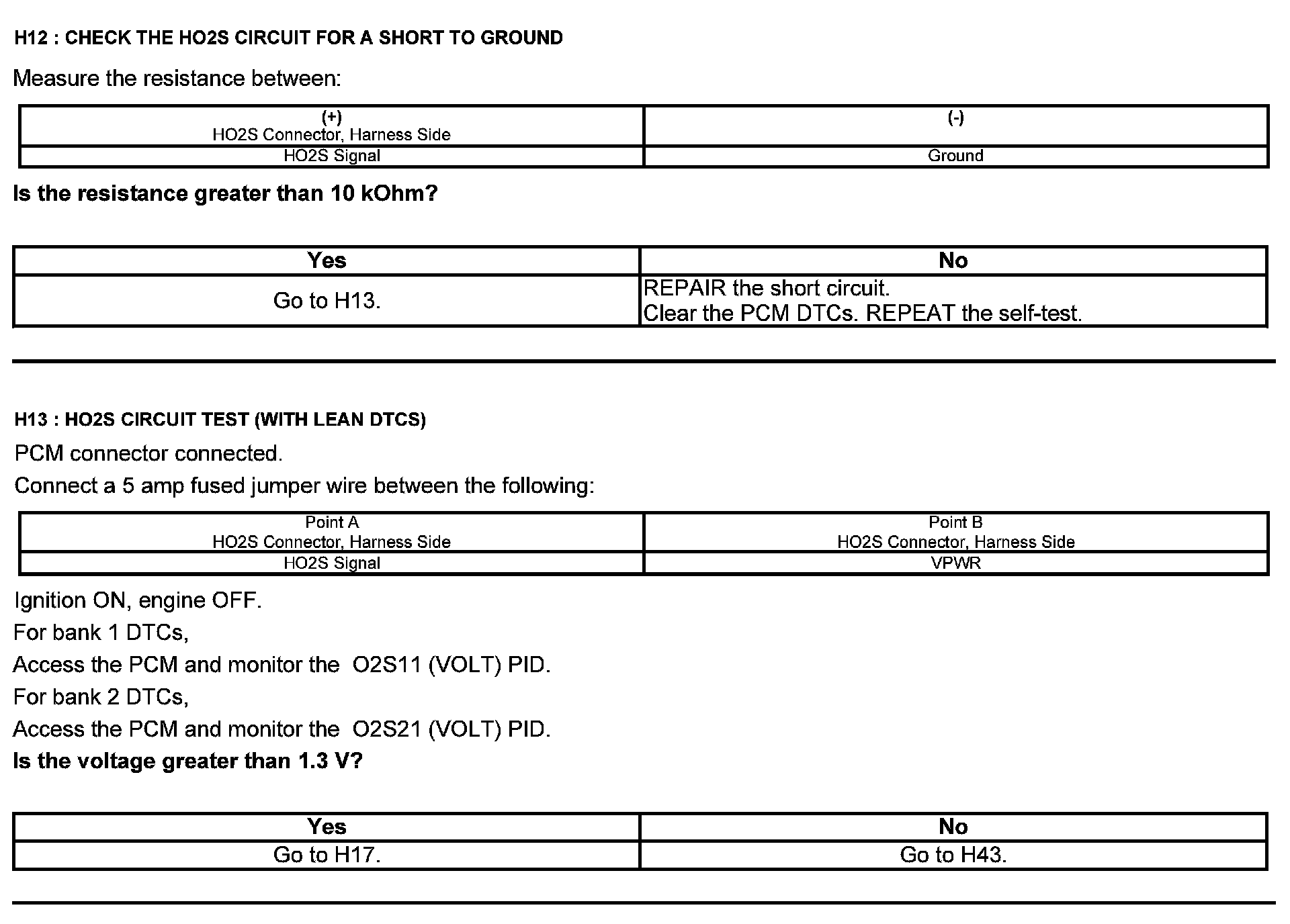

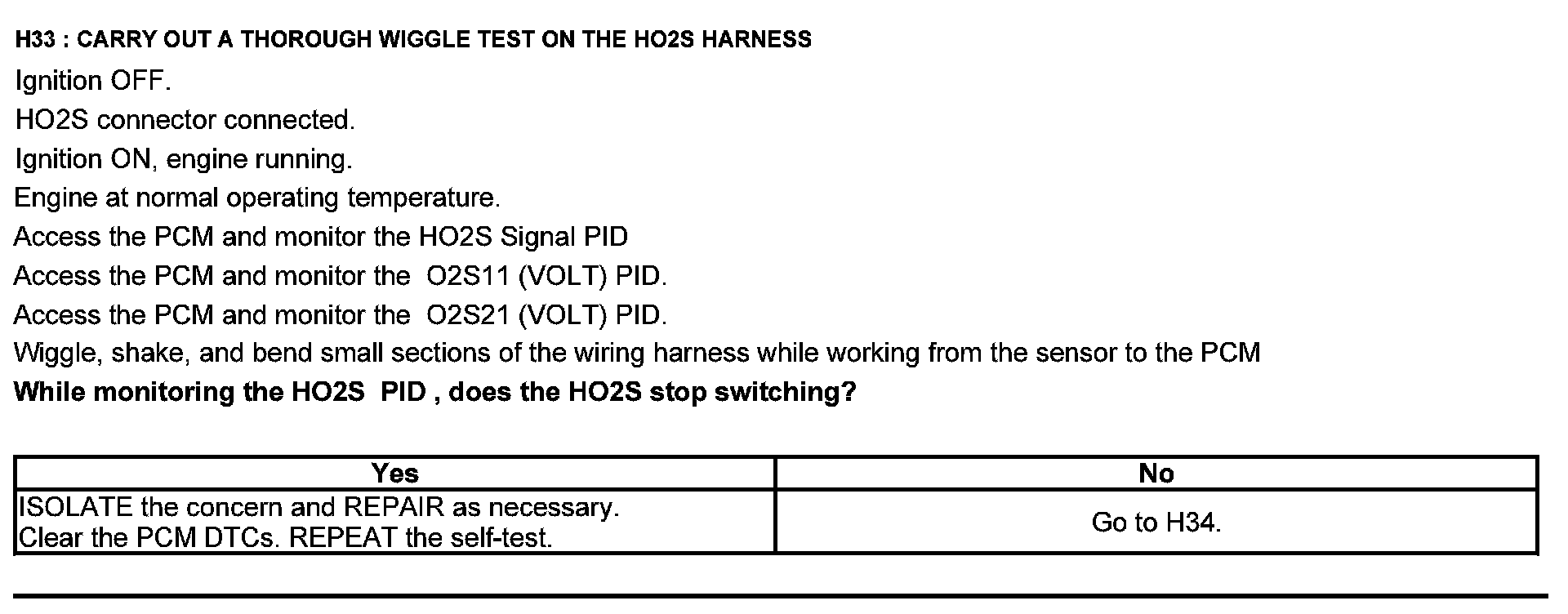

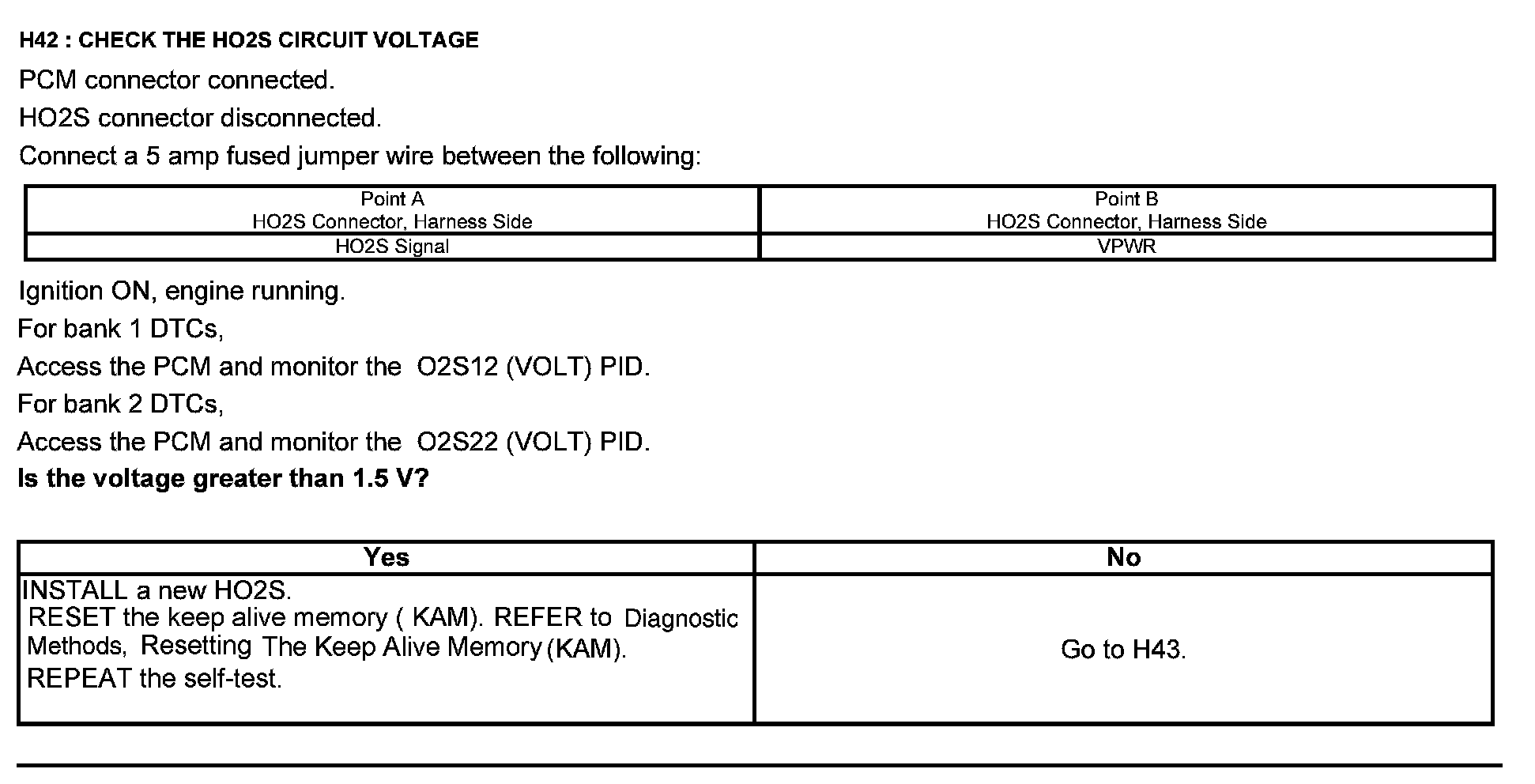

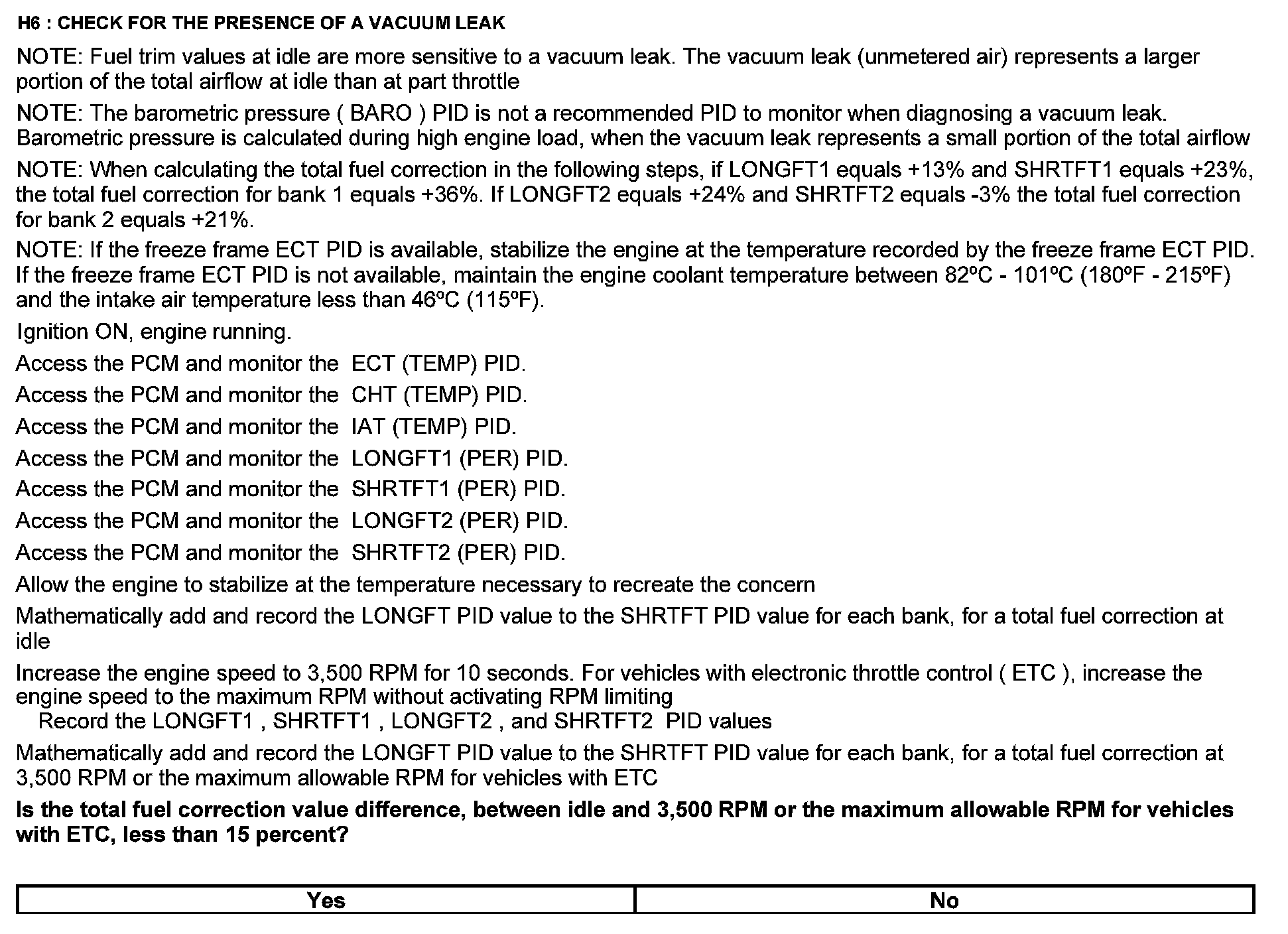

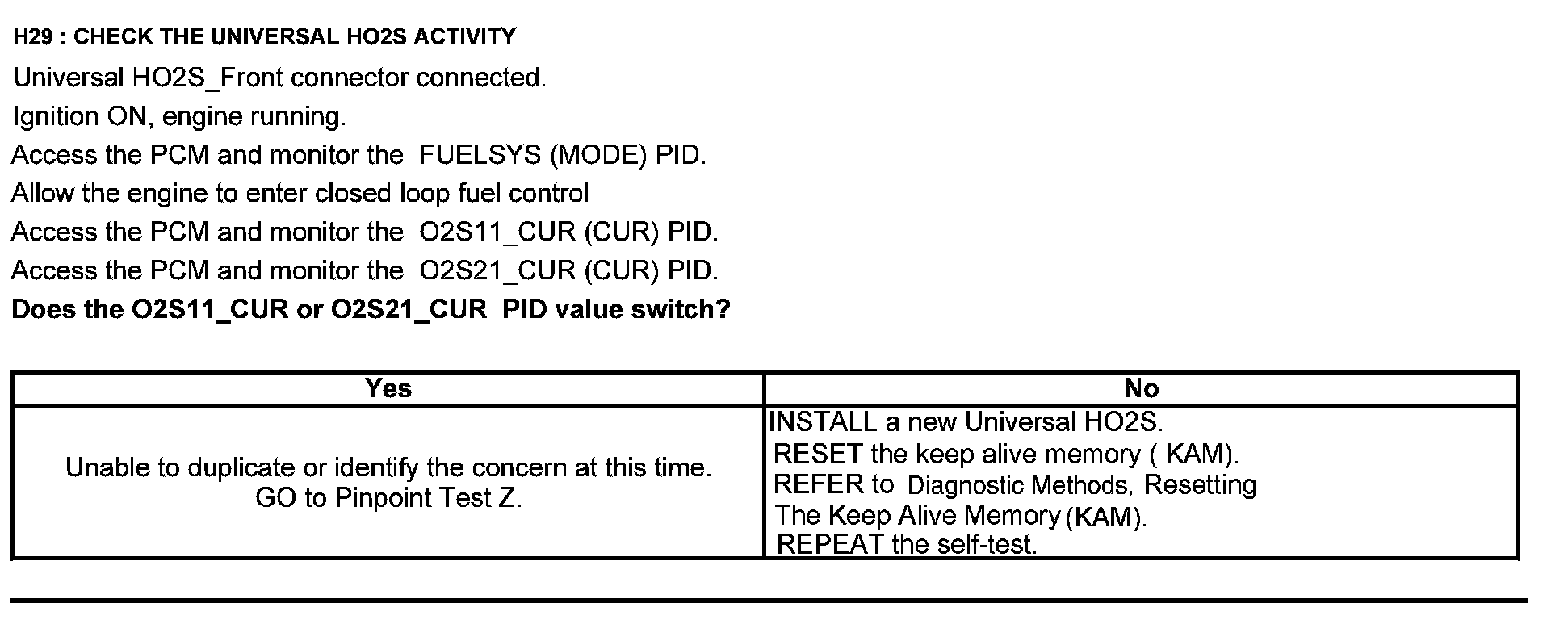

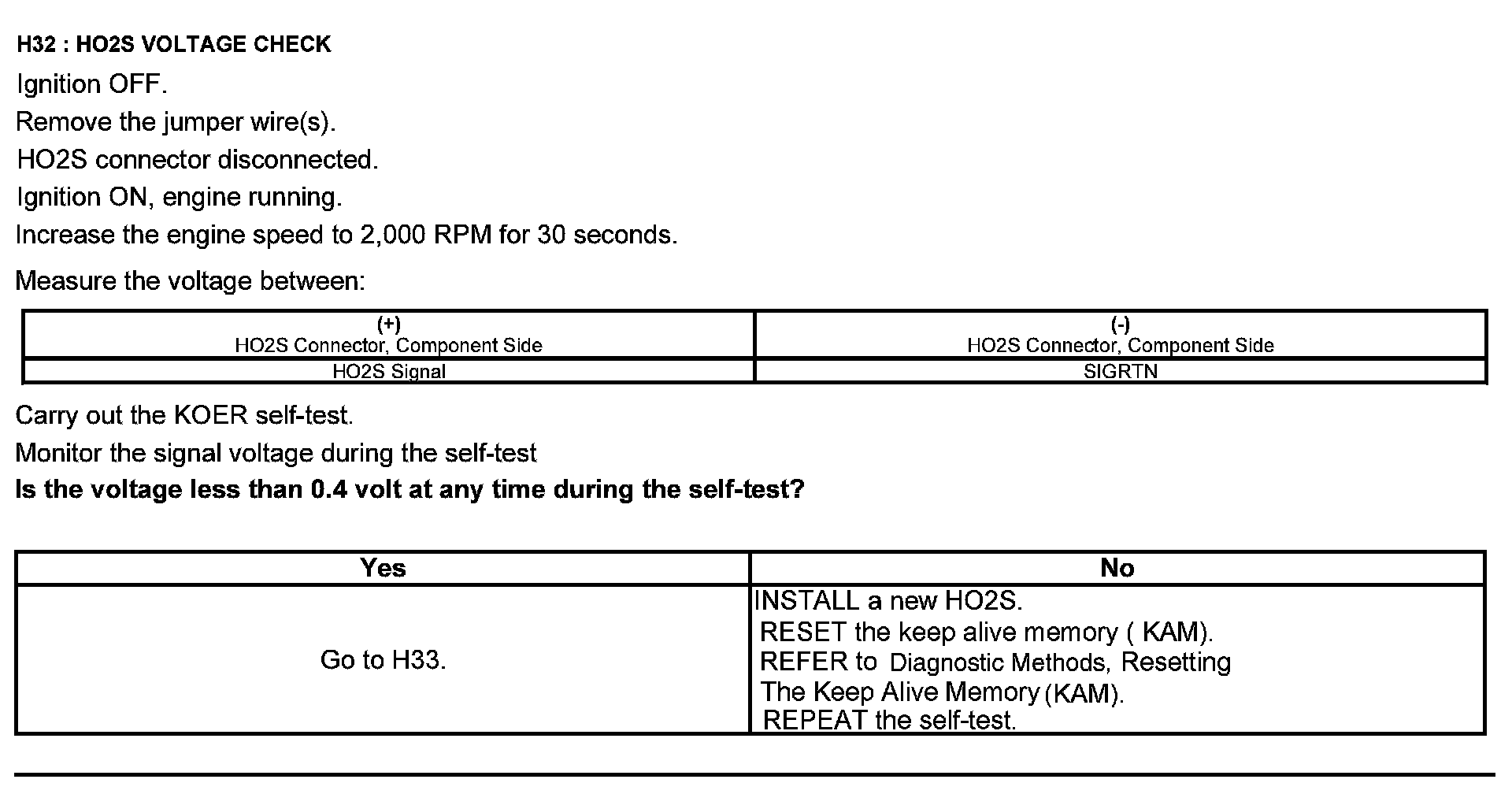

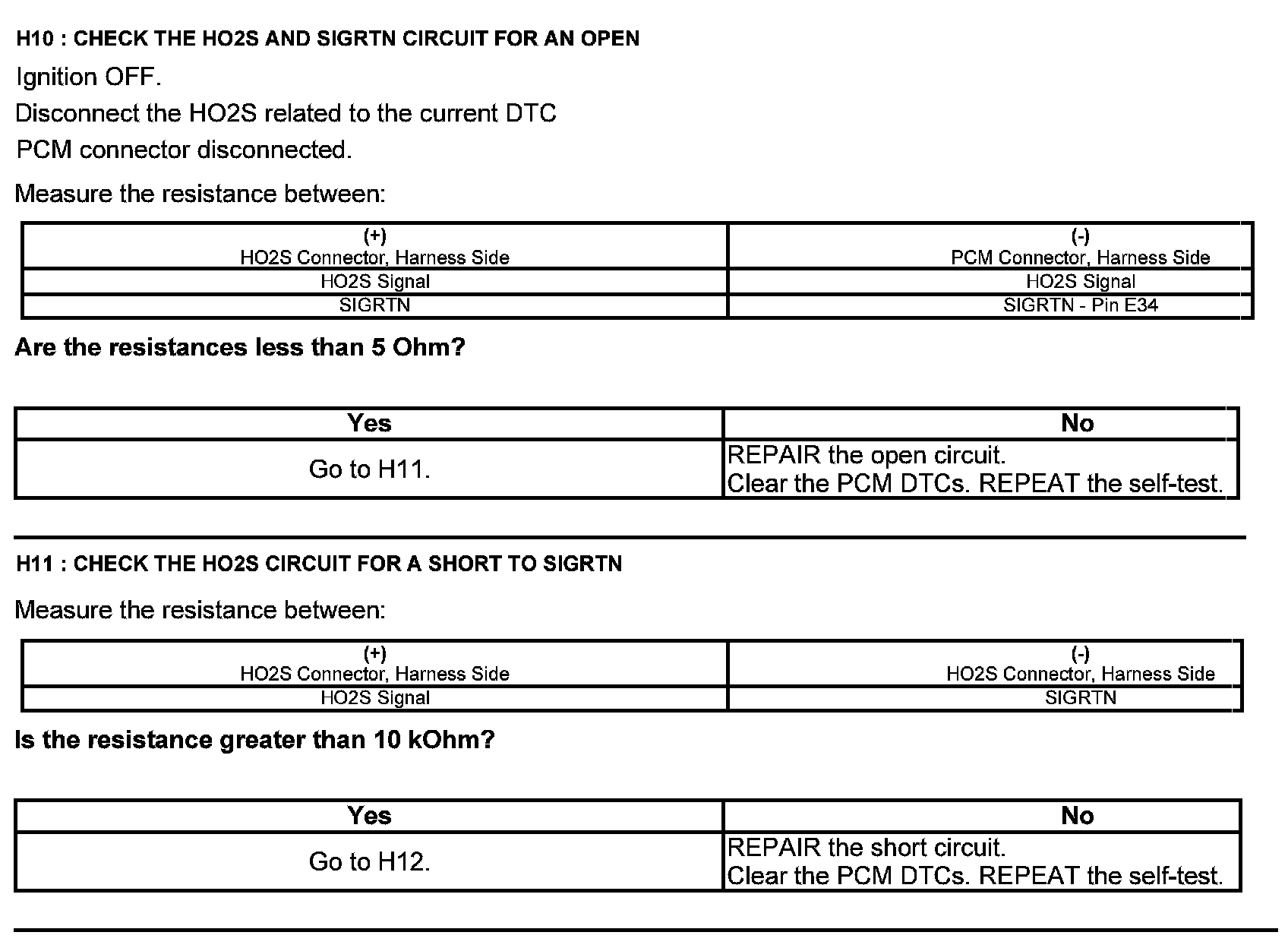

Test H: Fuel Control

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2012 Ford Truck.

AI Repair Guides


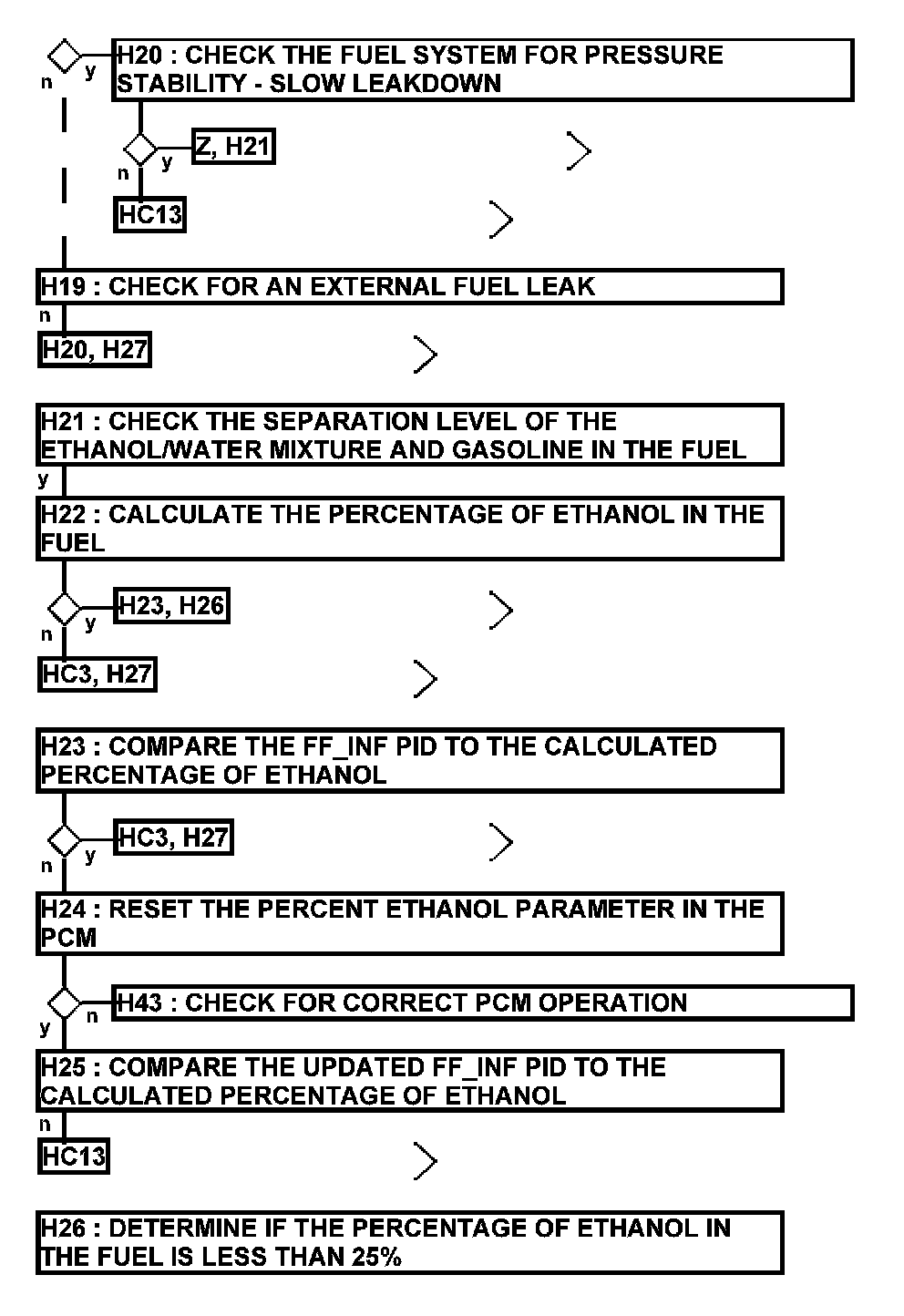

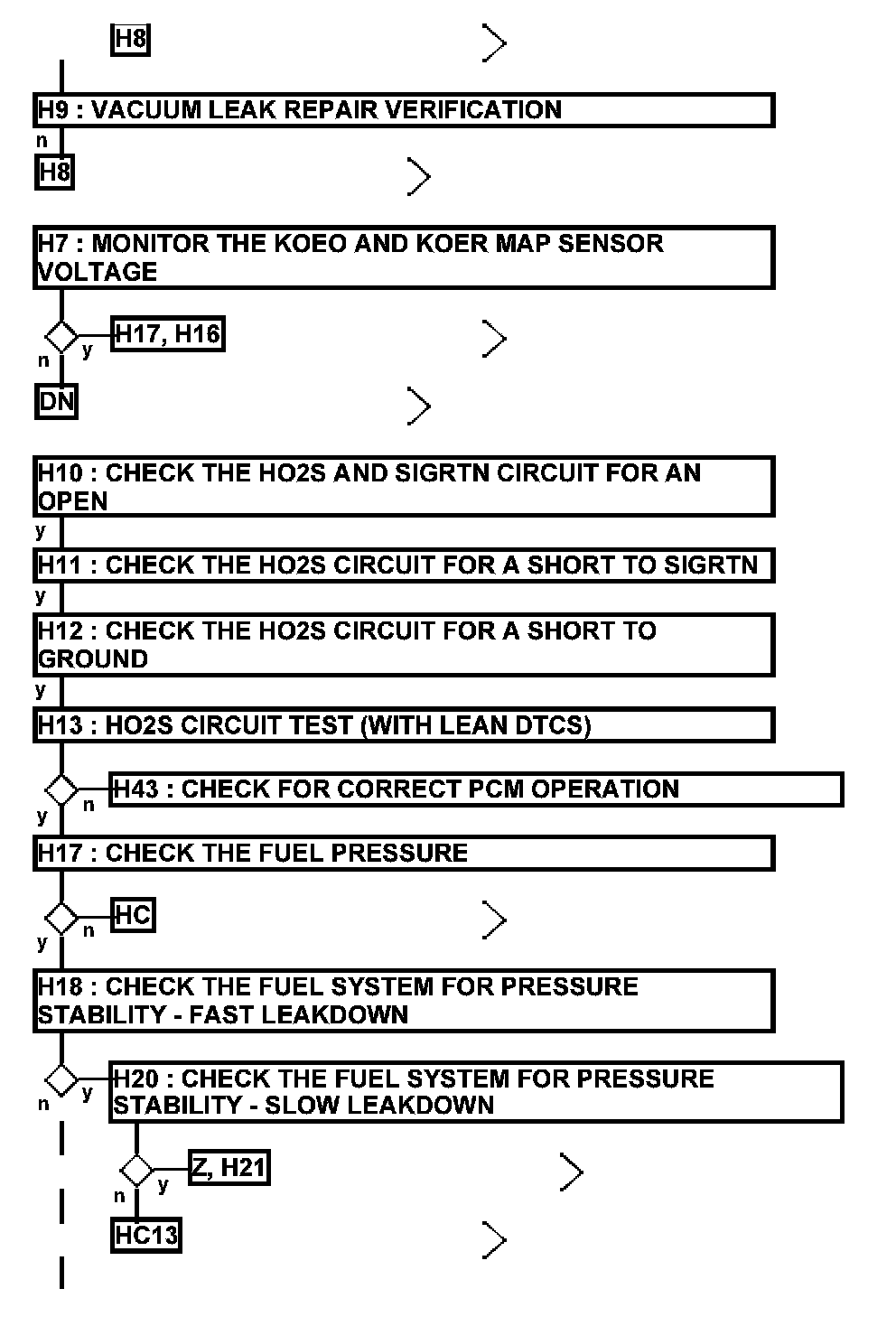

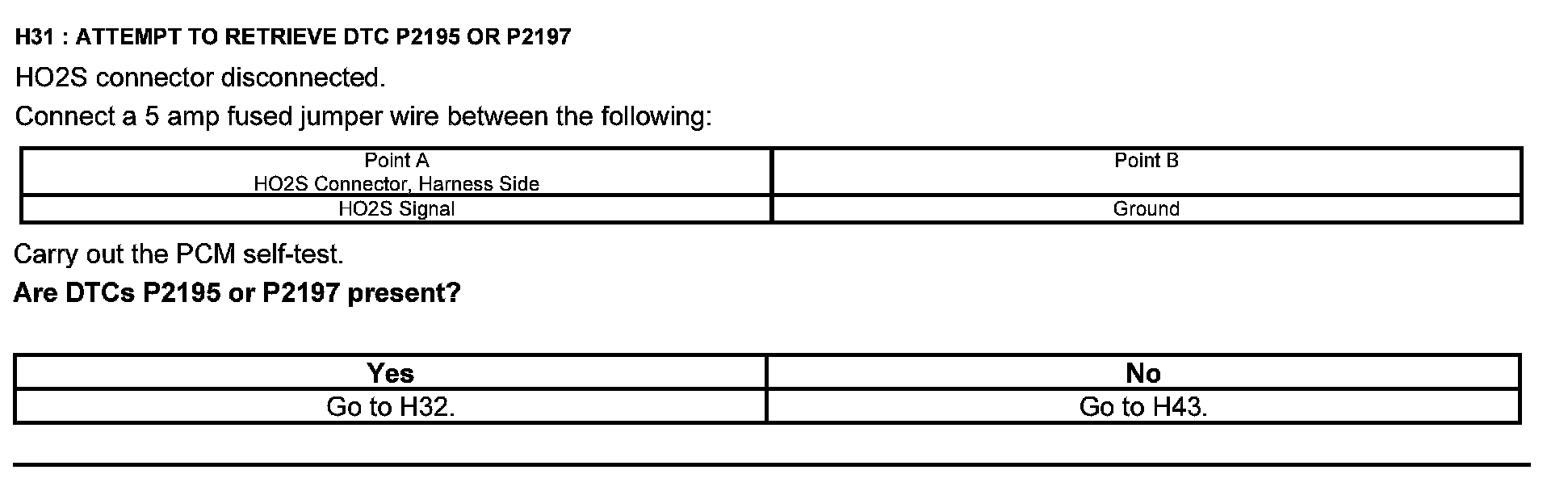

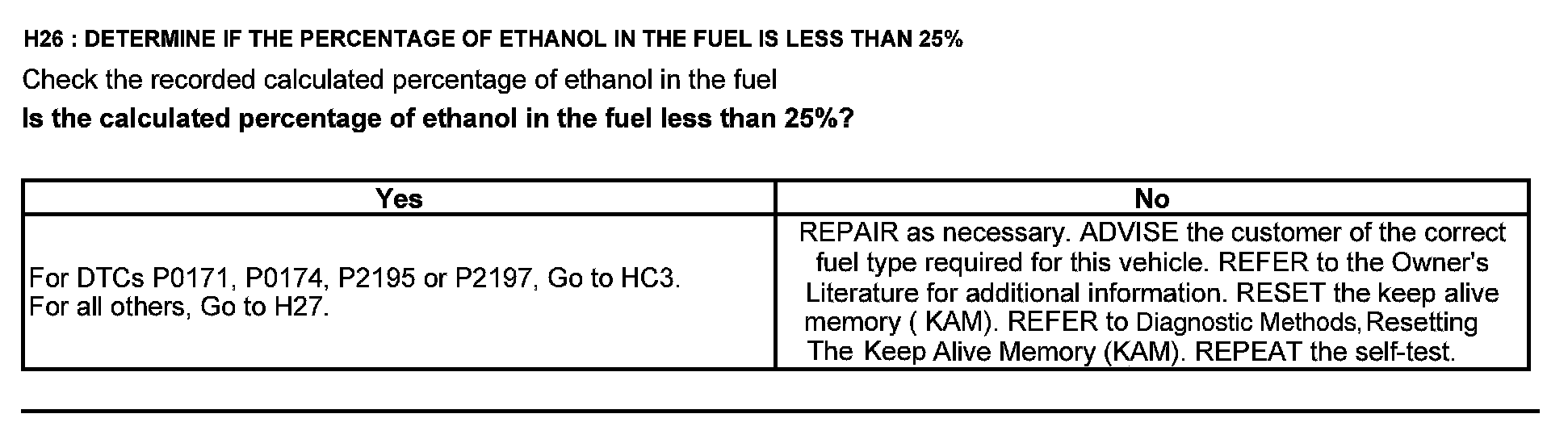

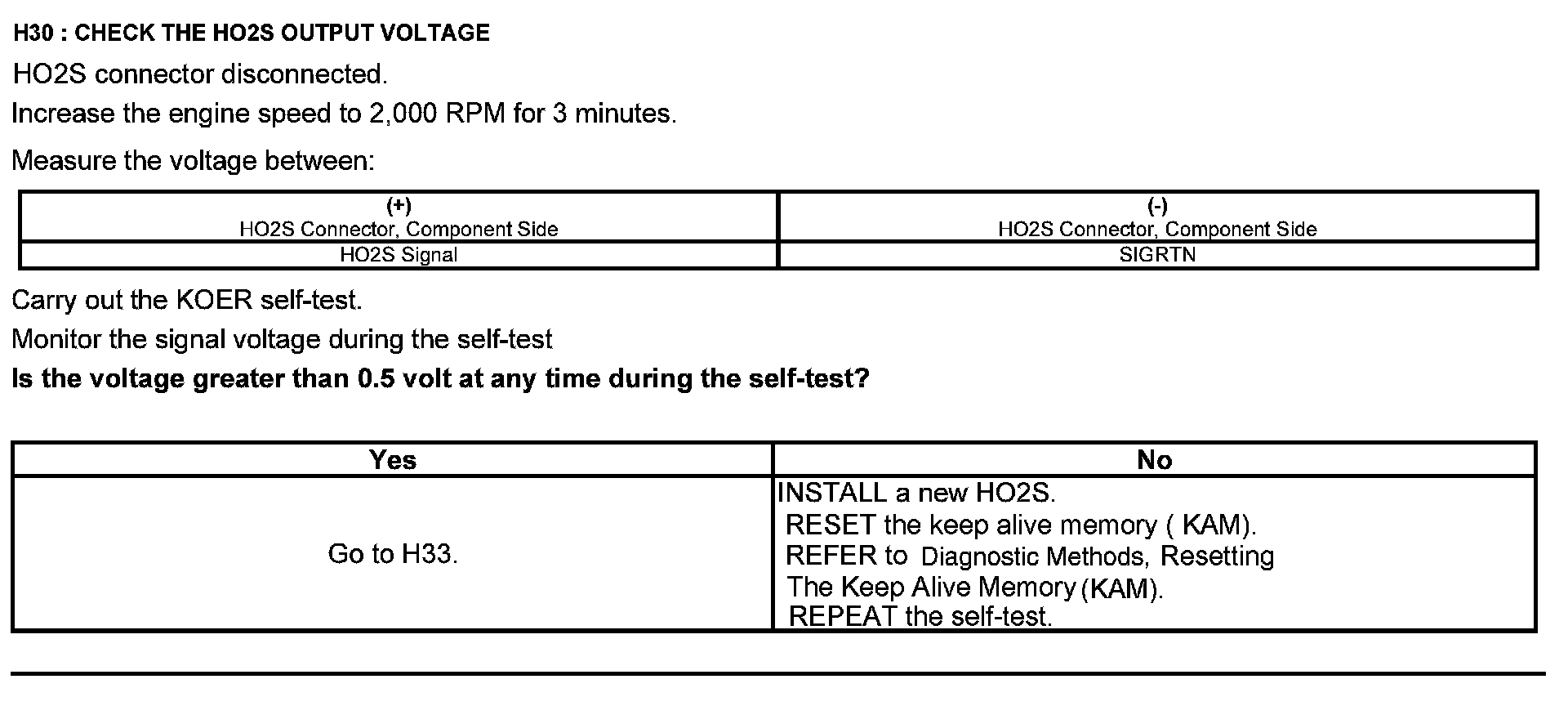

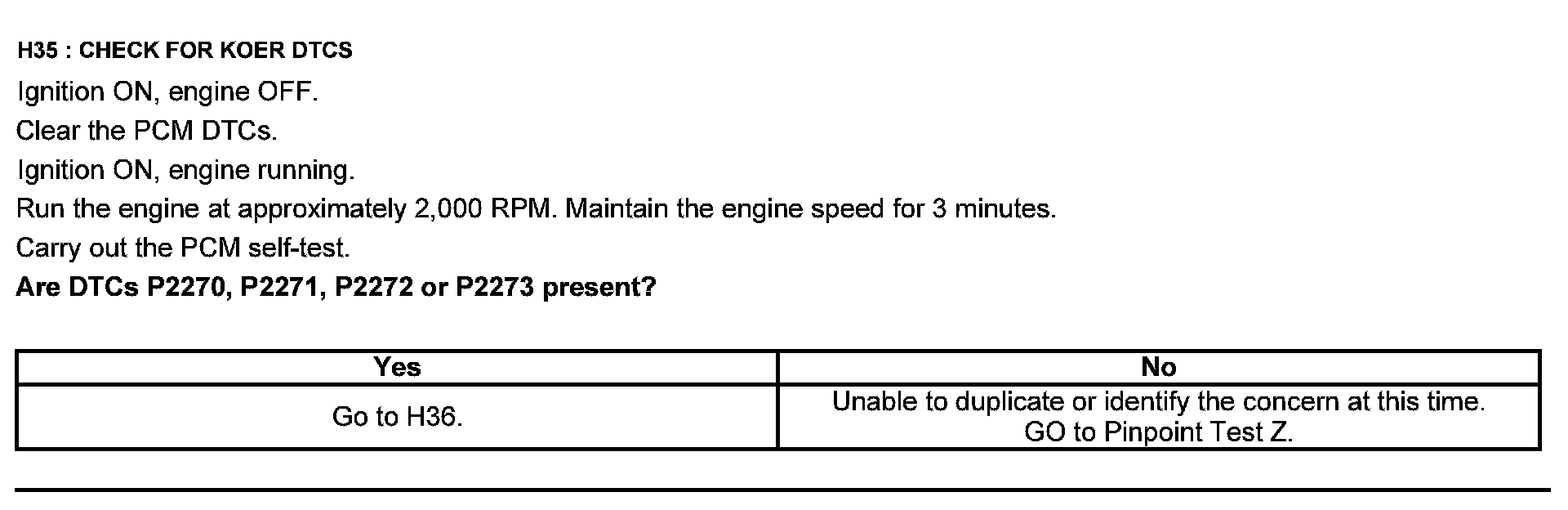

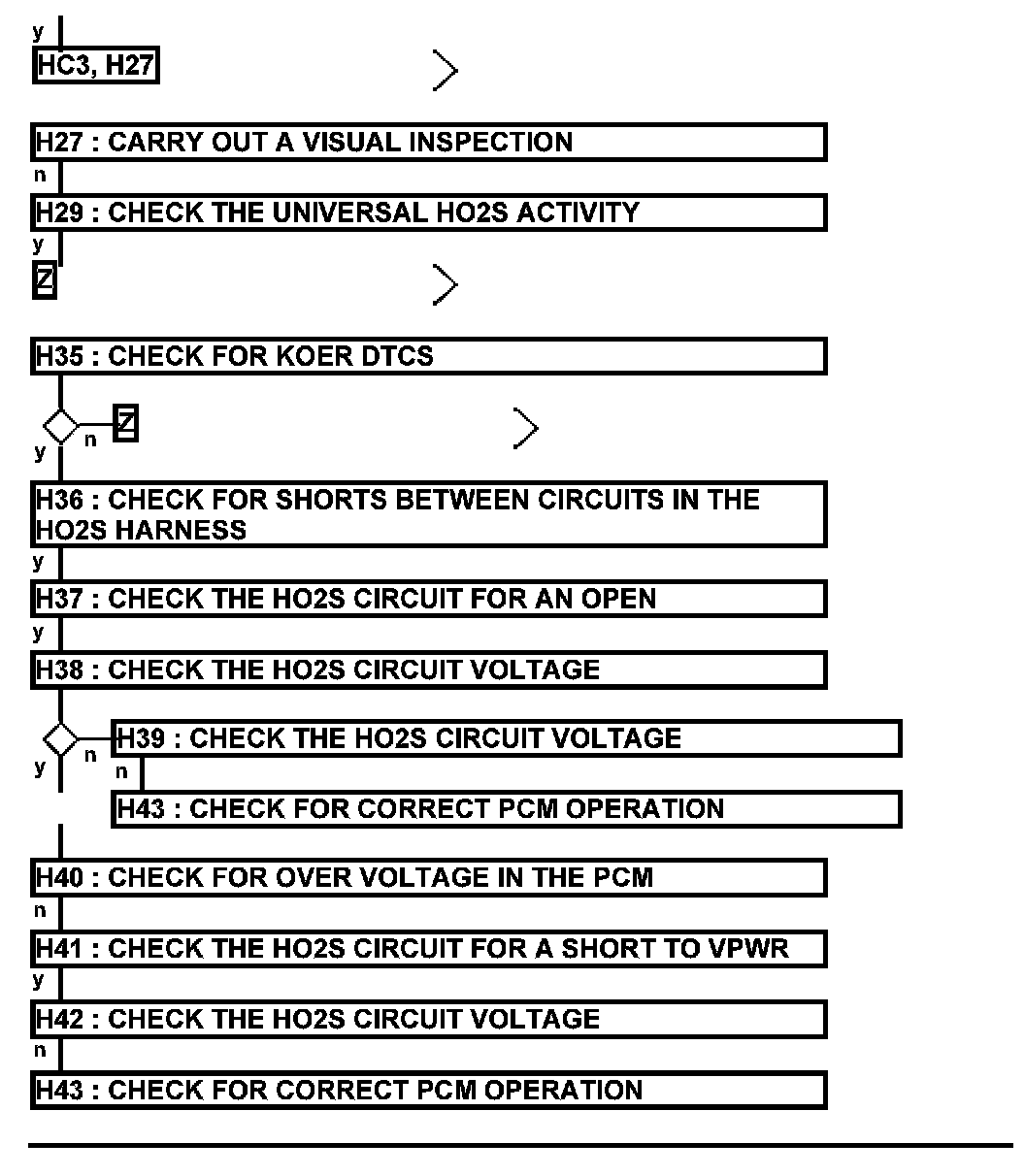

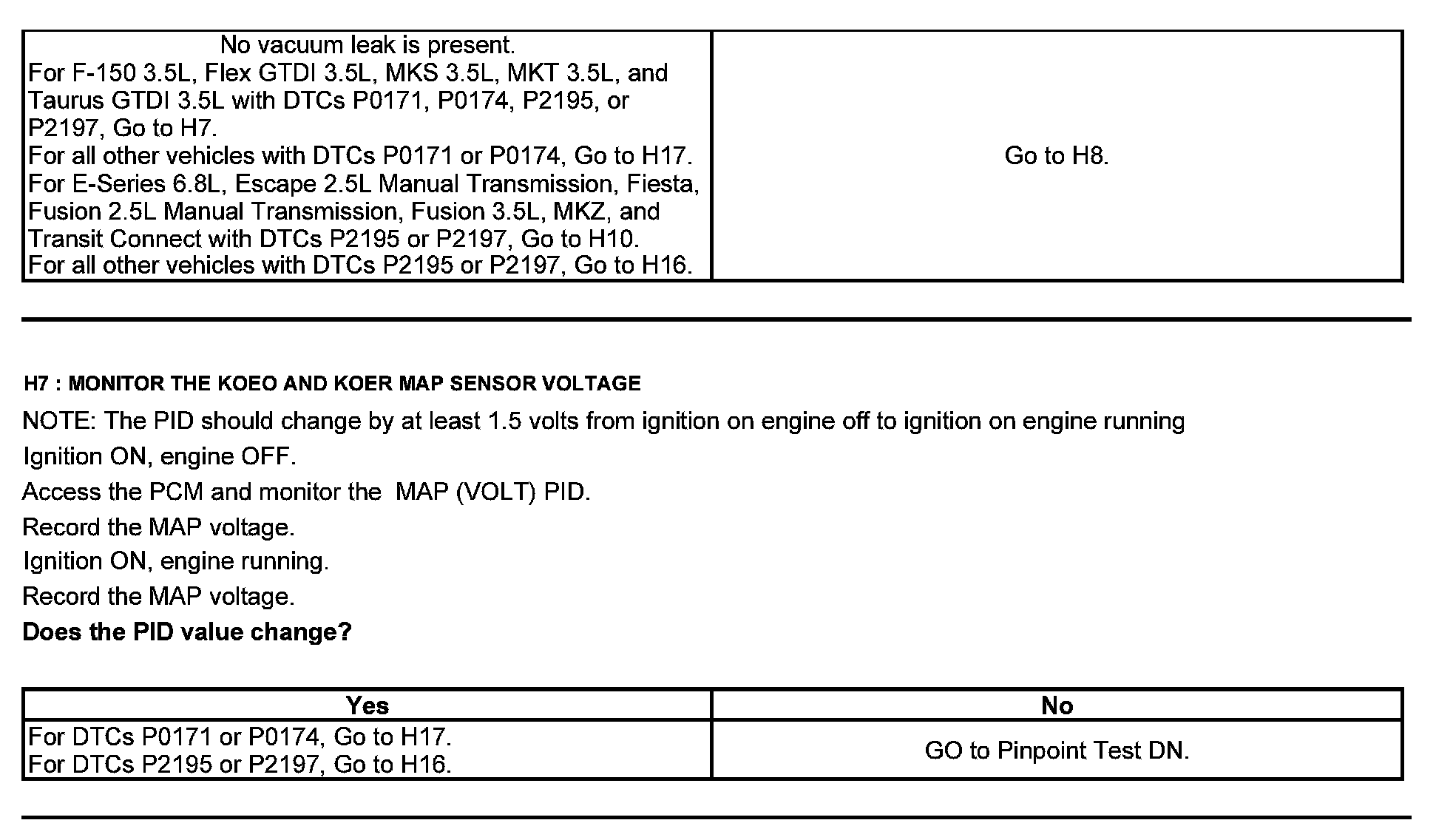

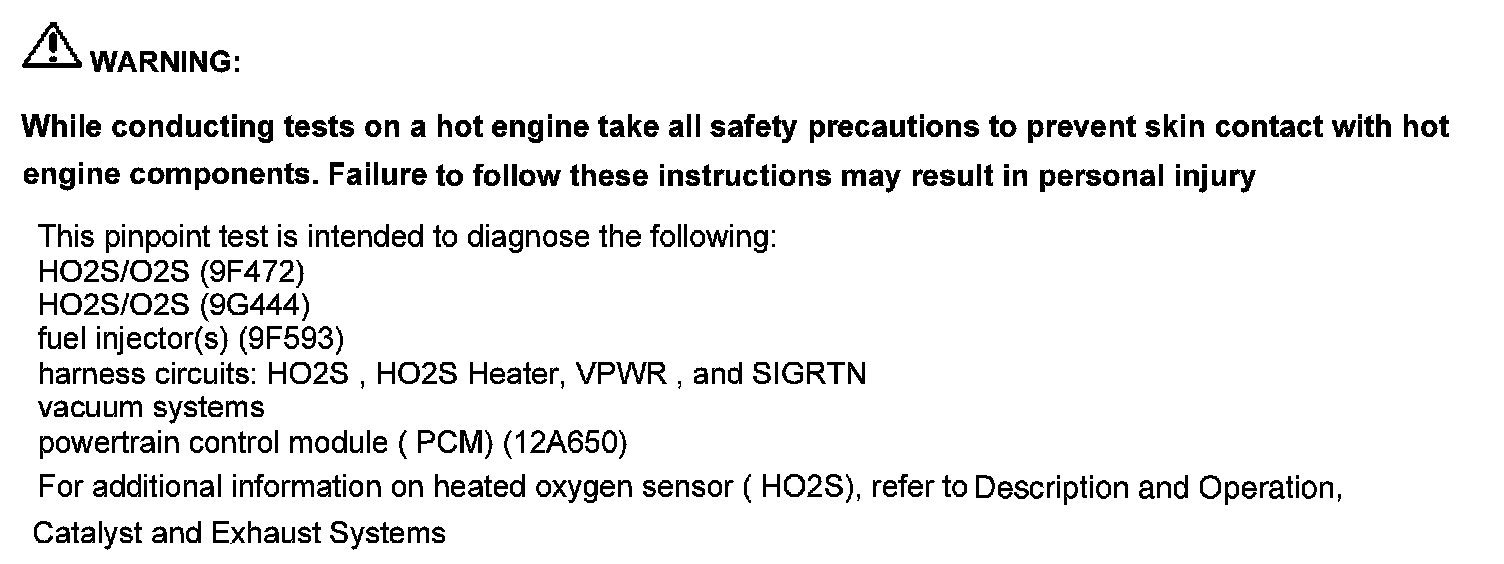

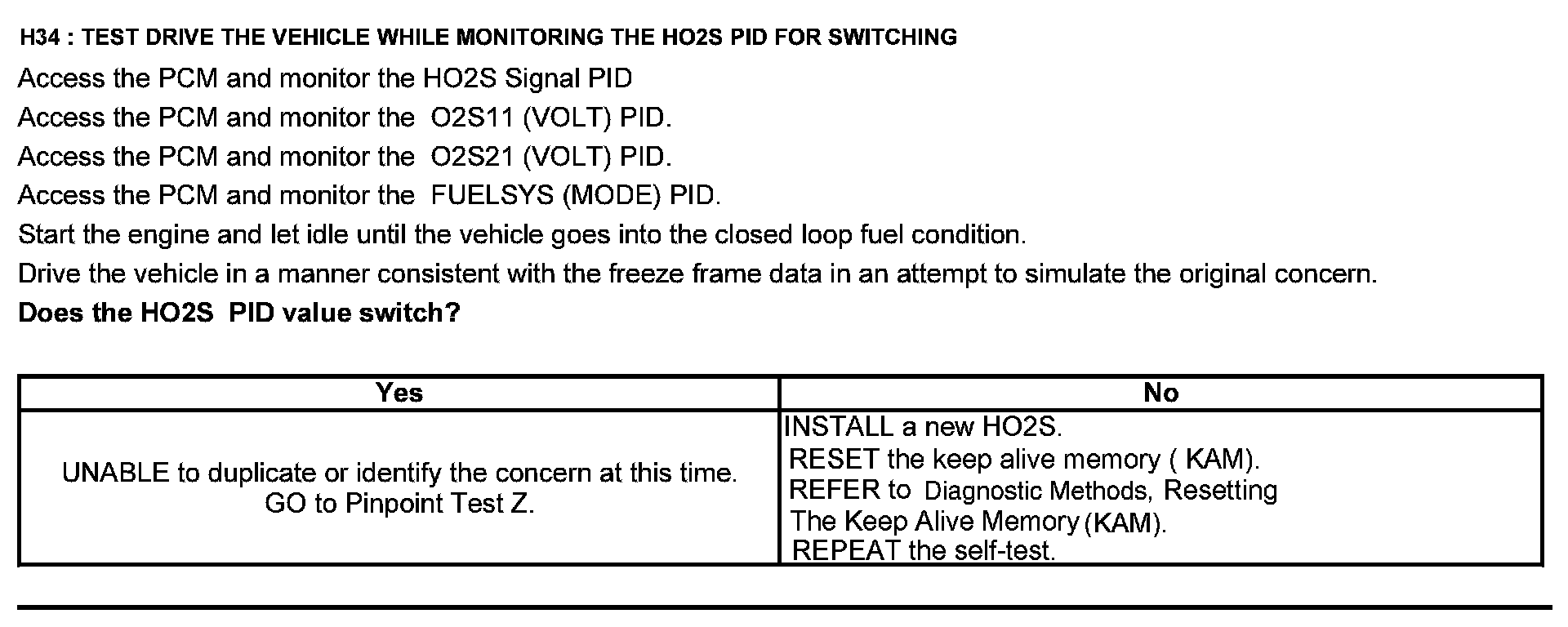

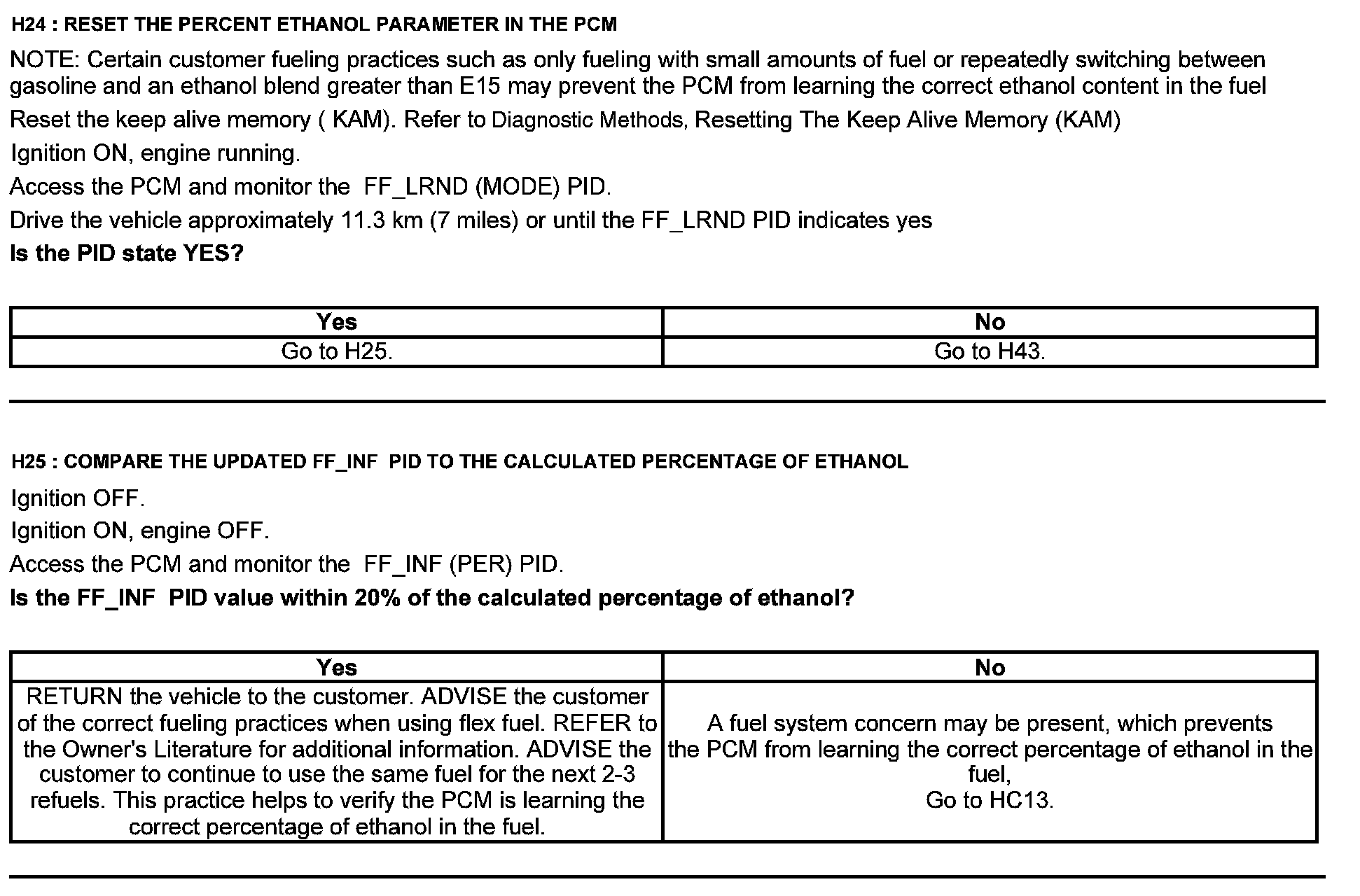

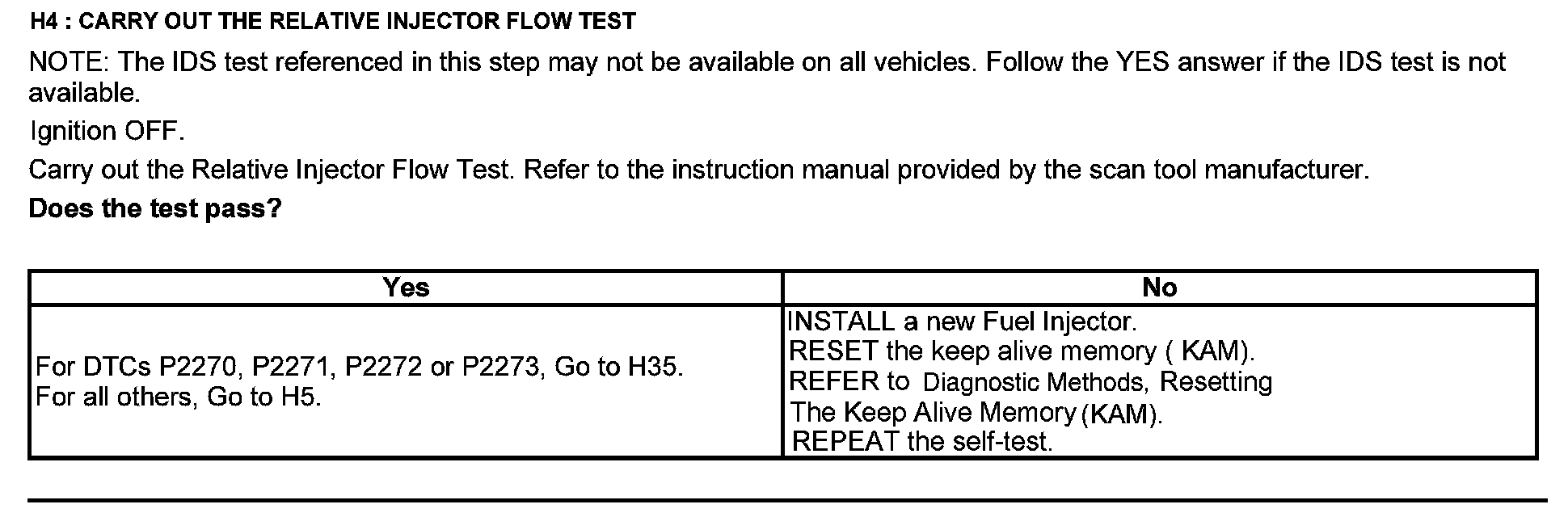

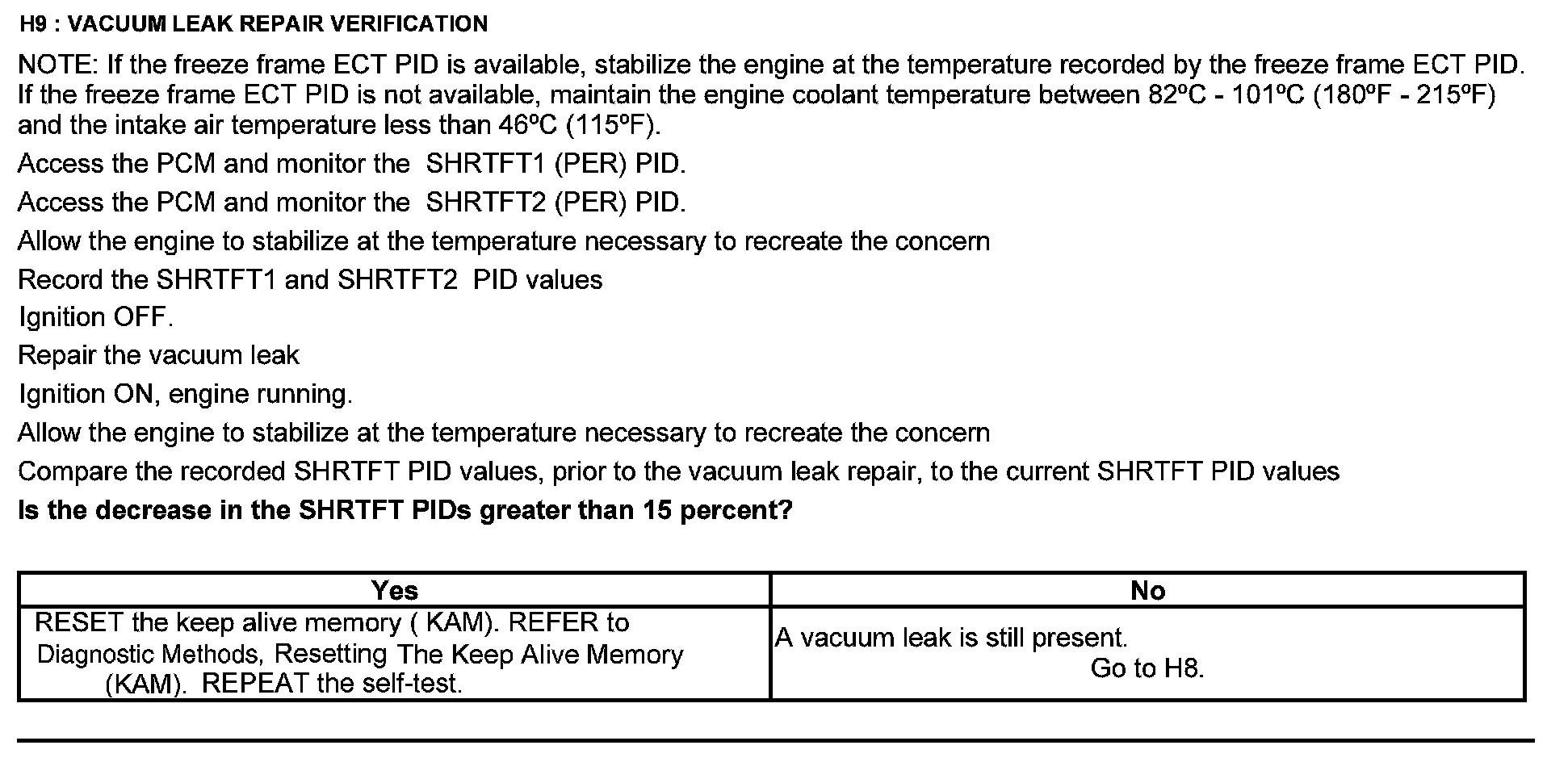

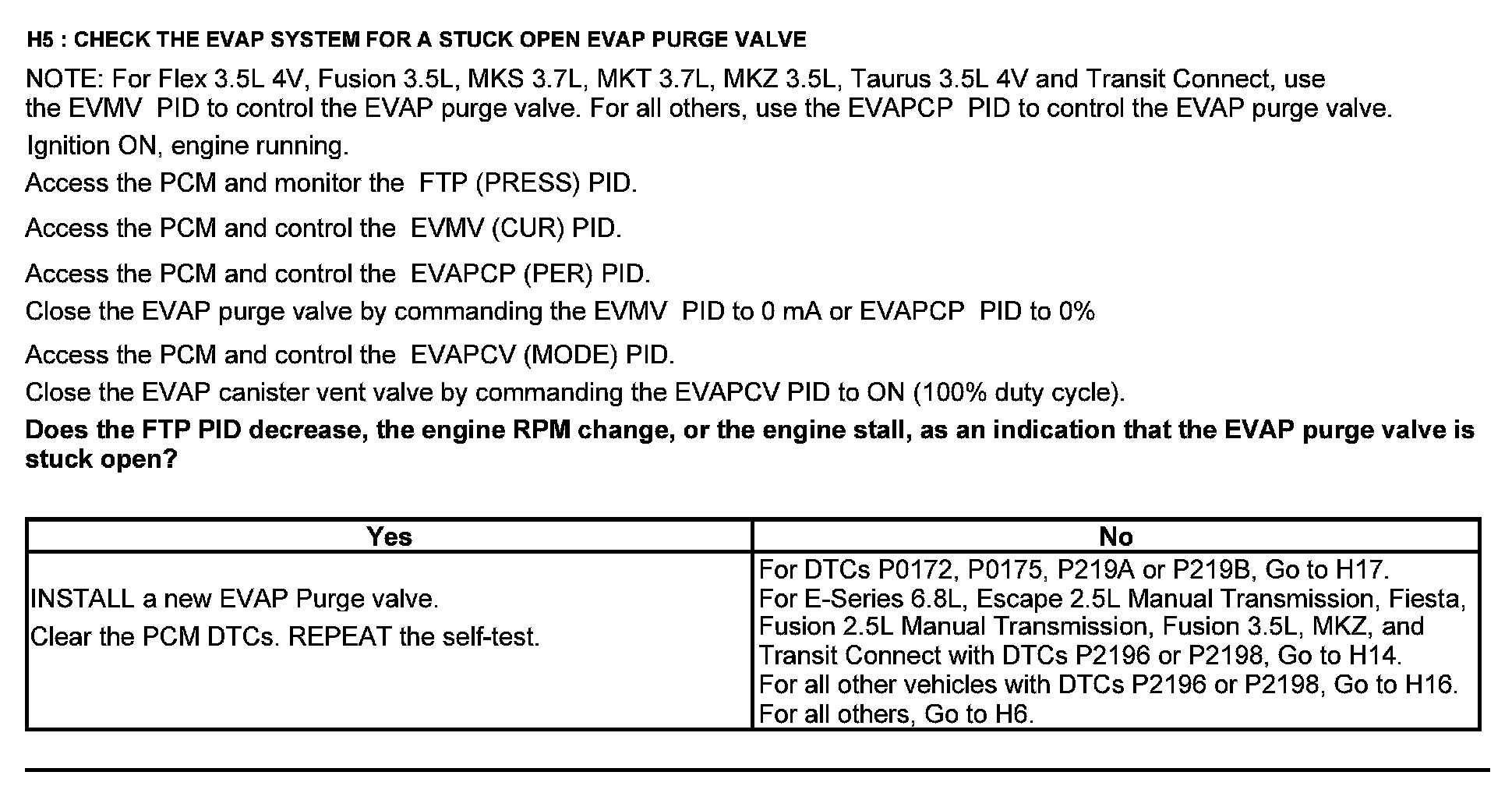

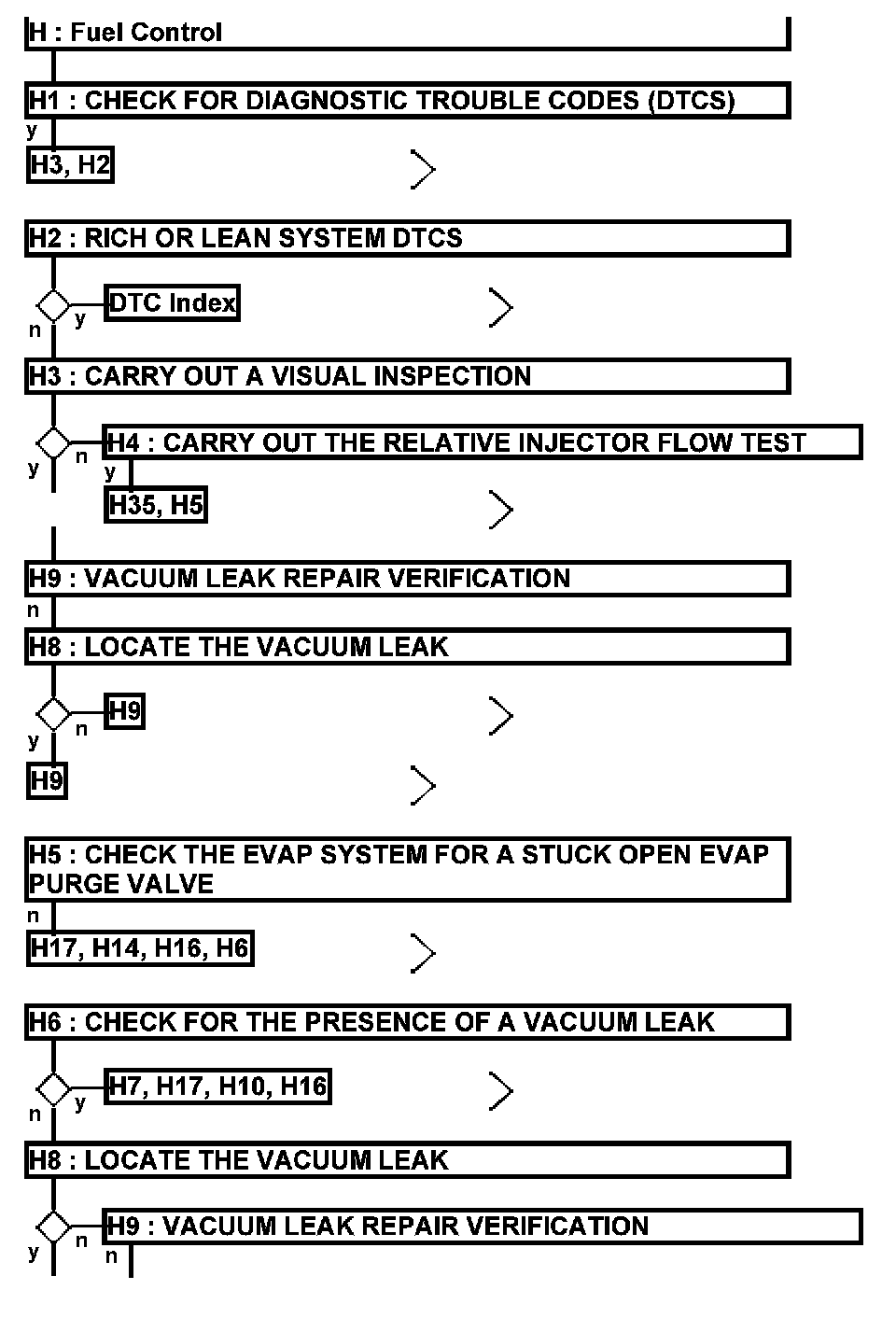

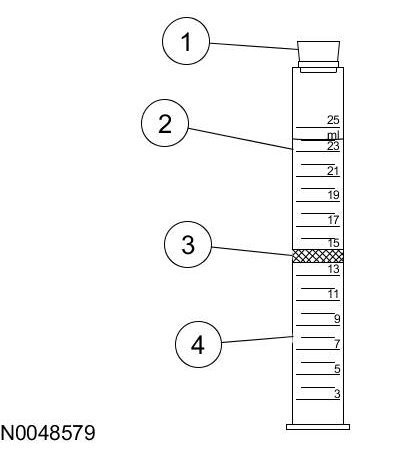

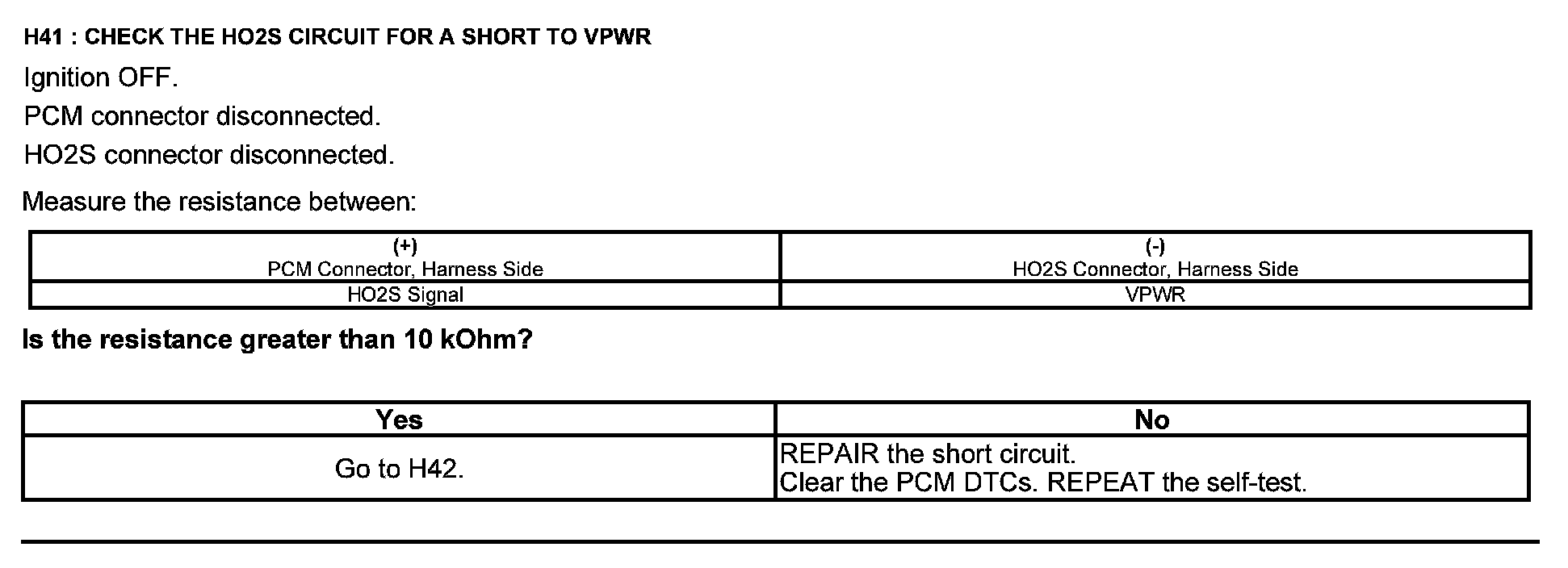

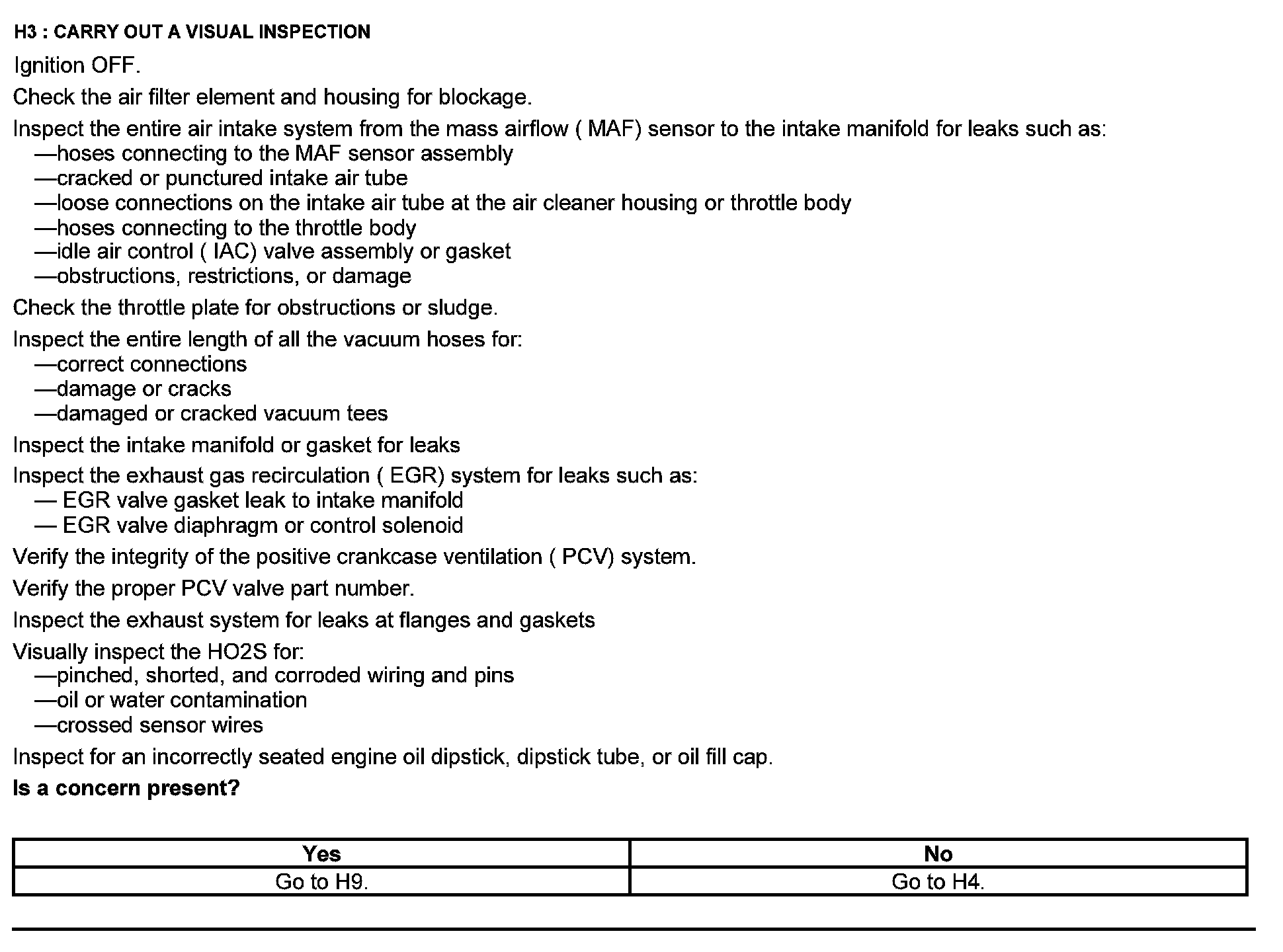

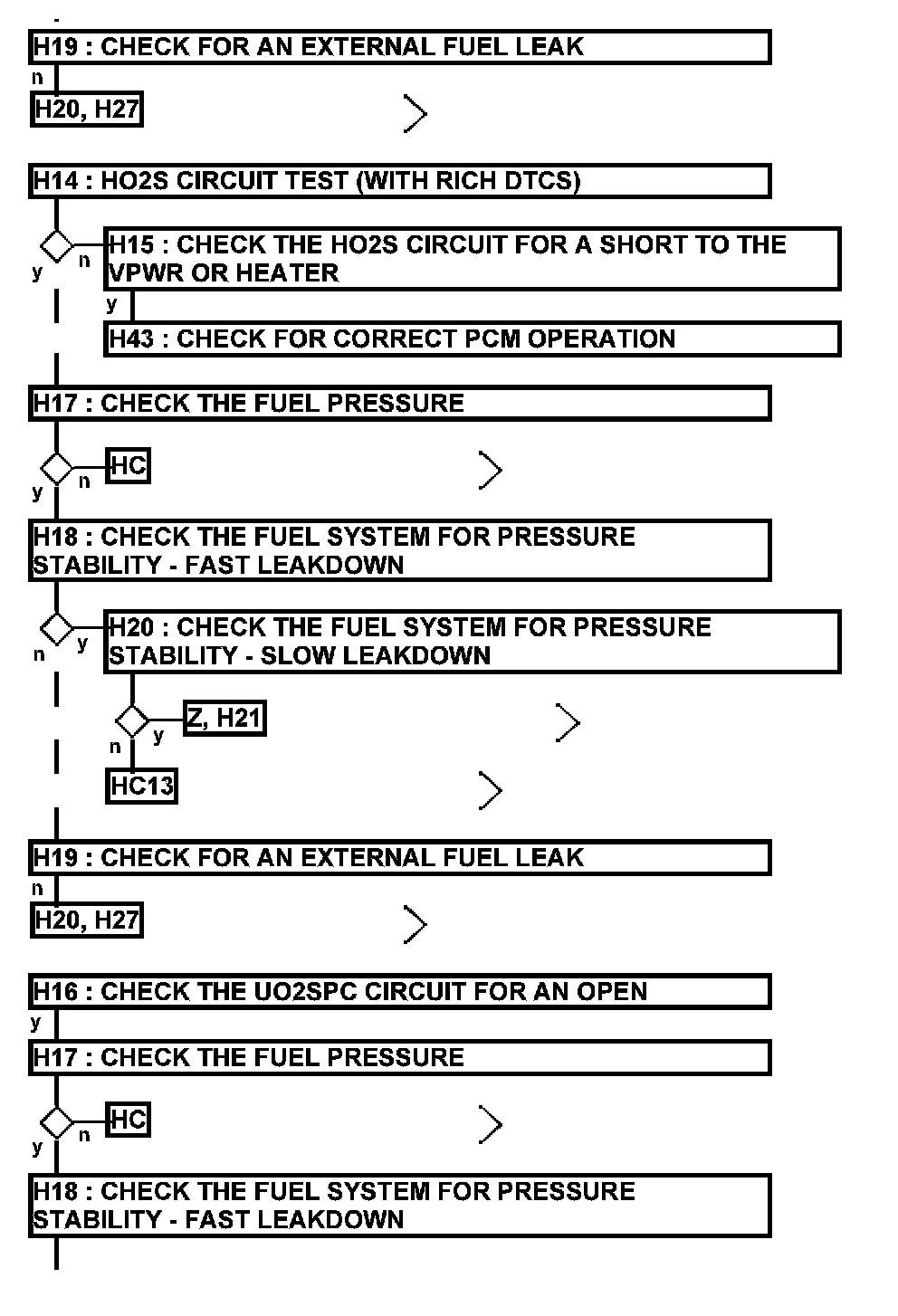

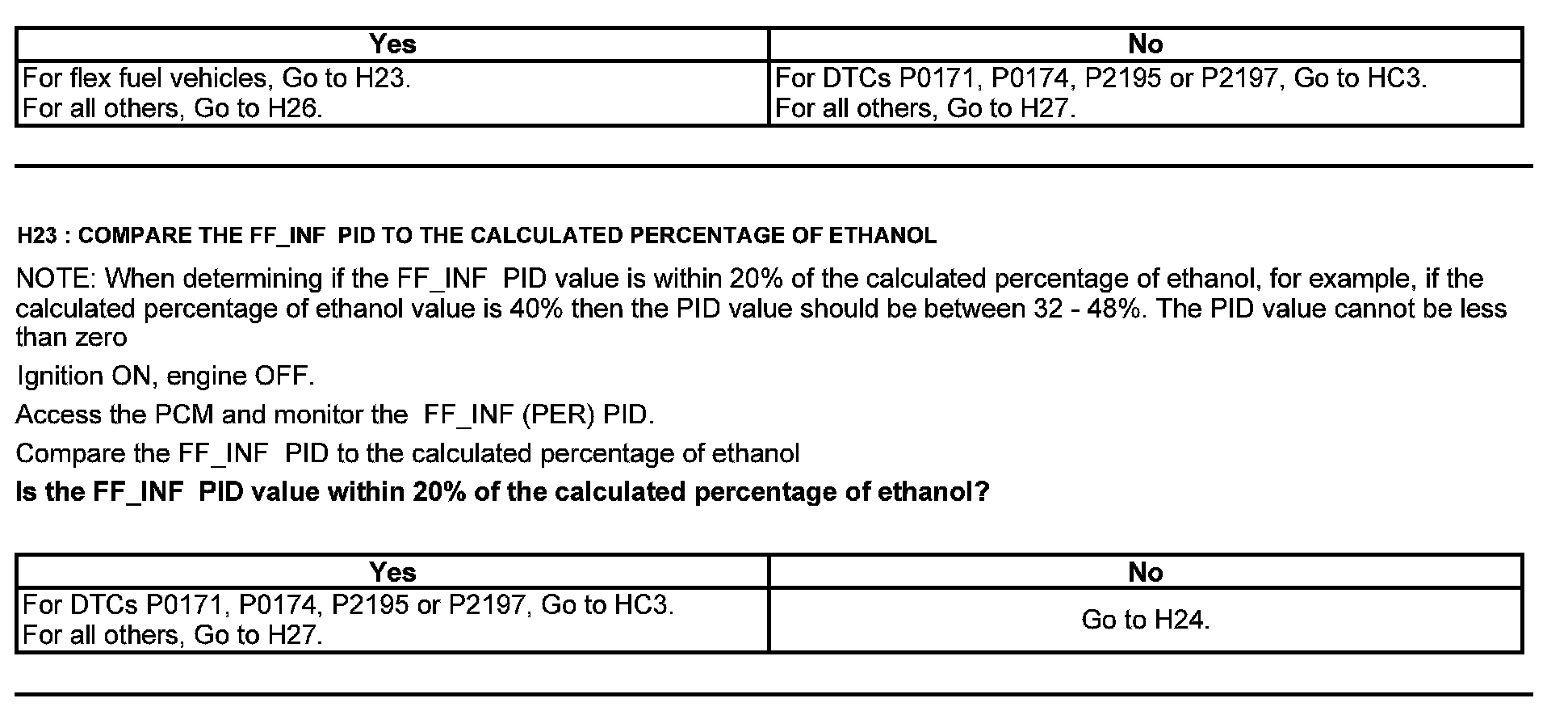

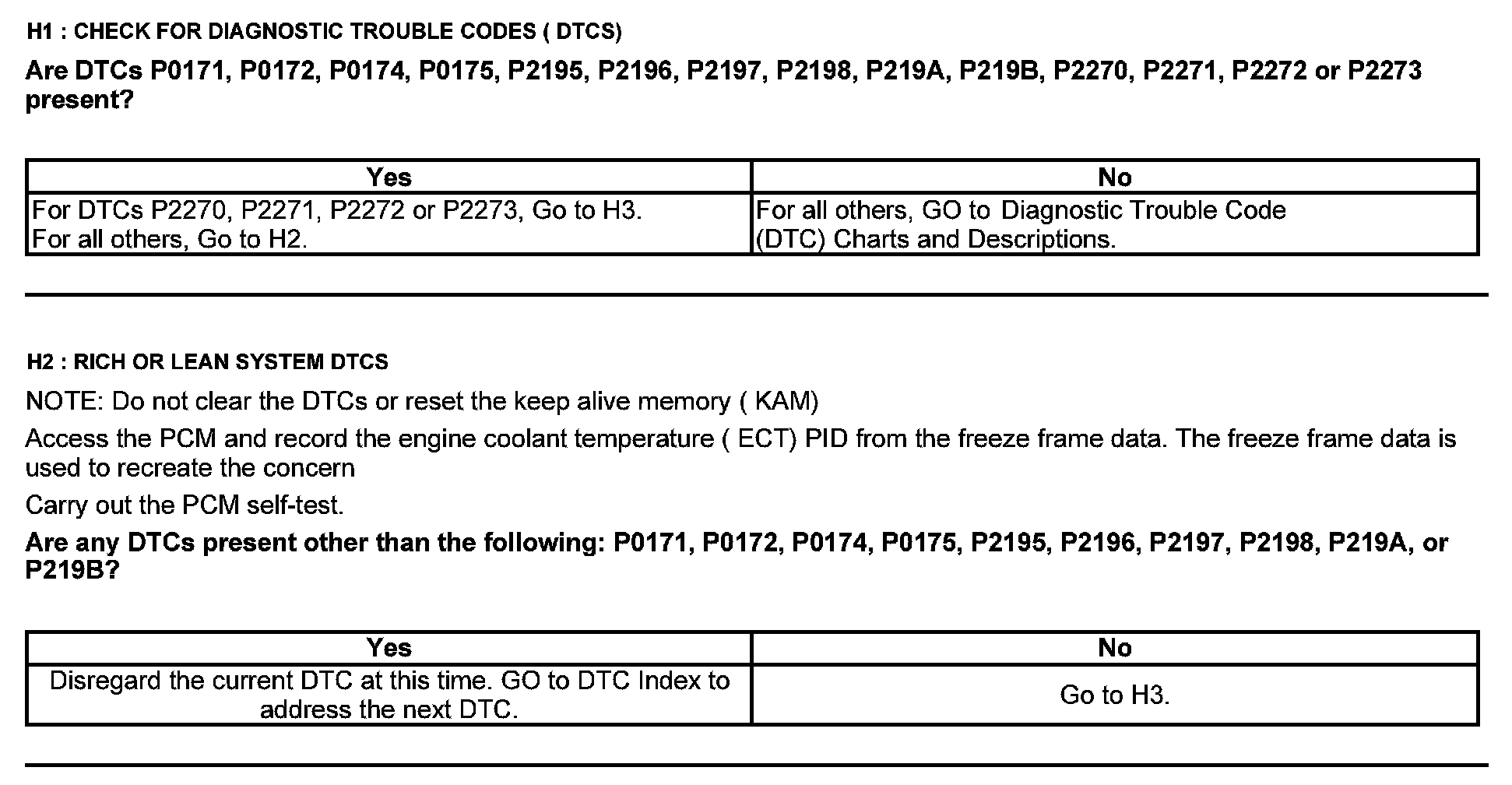

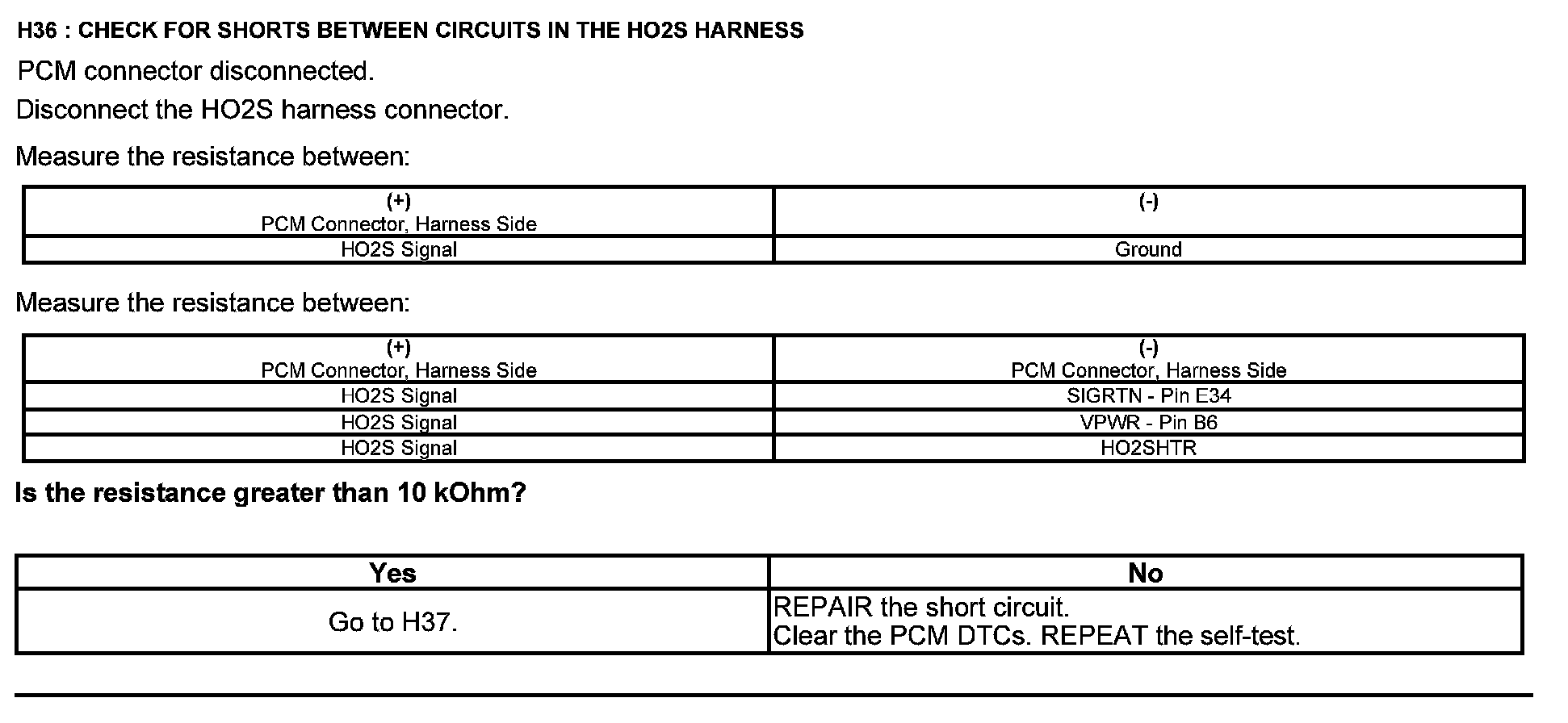

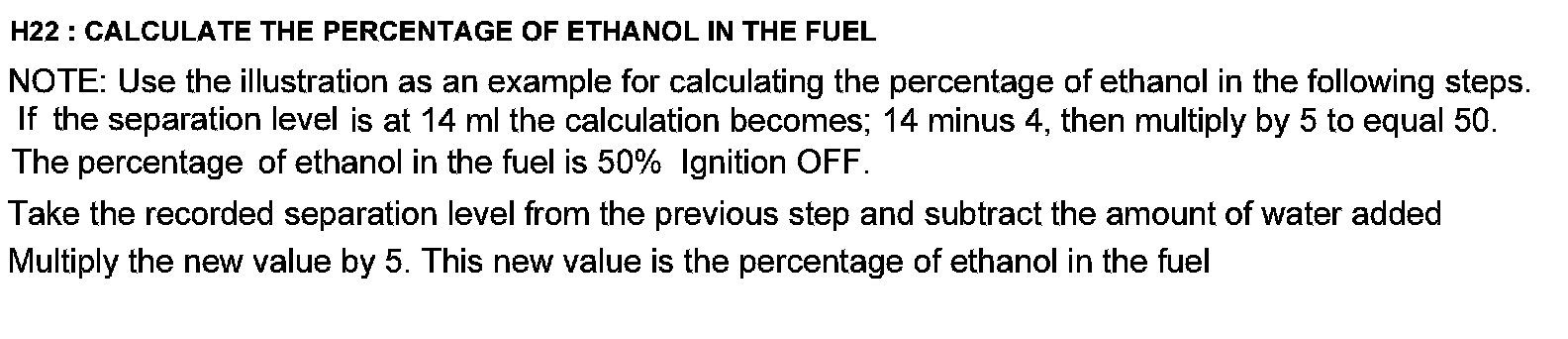

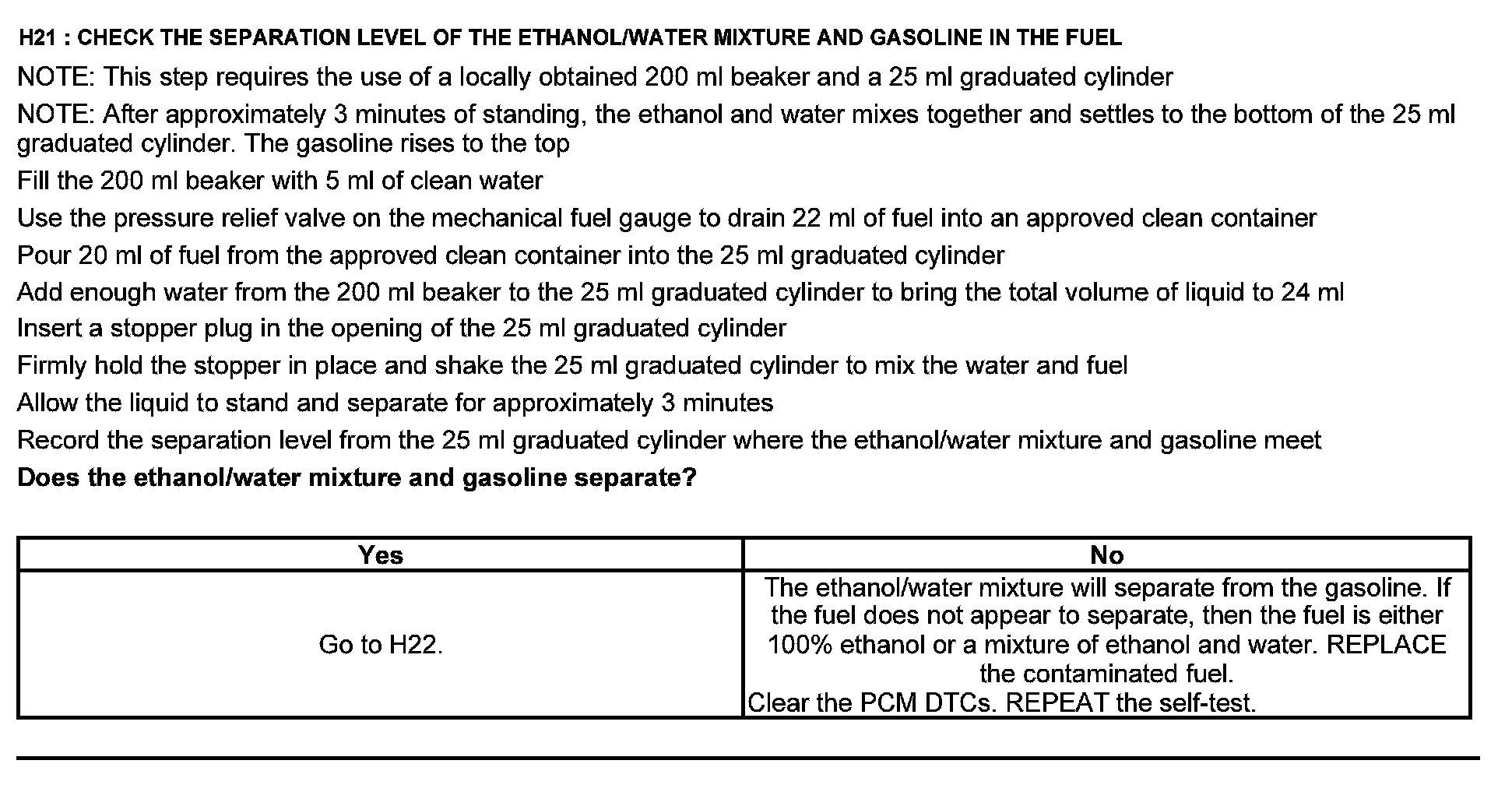

Fuel Control

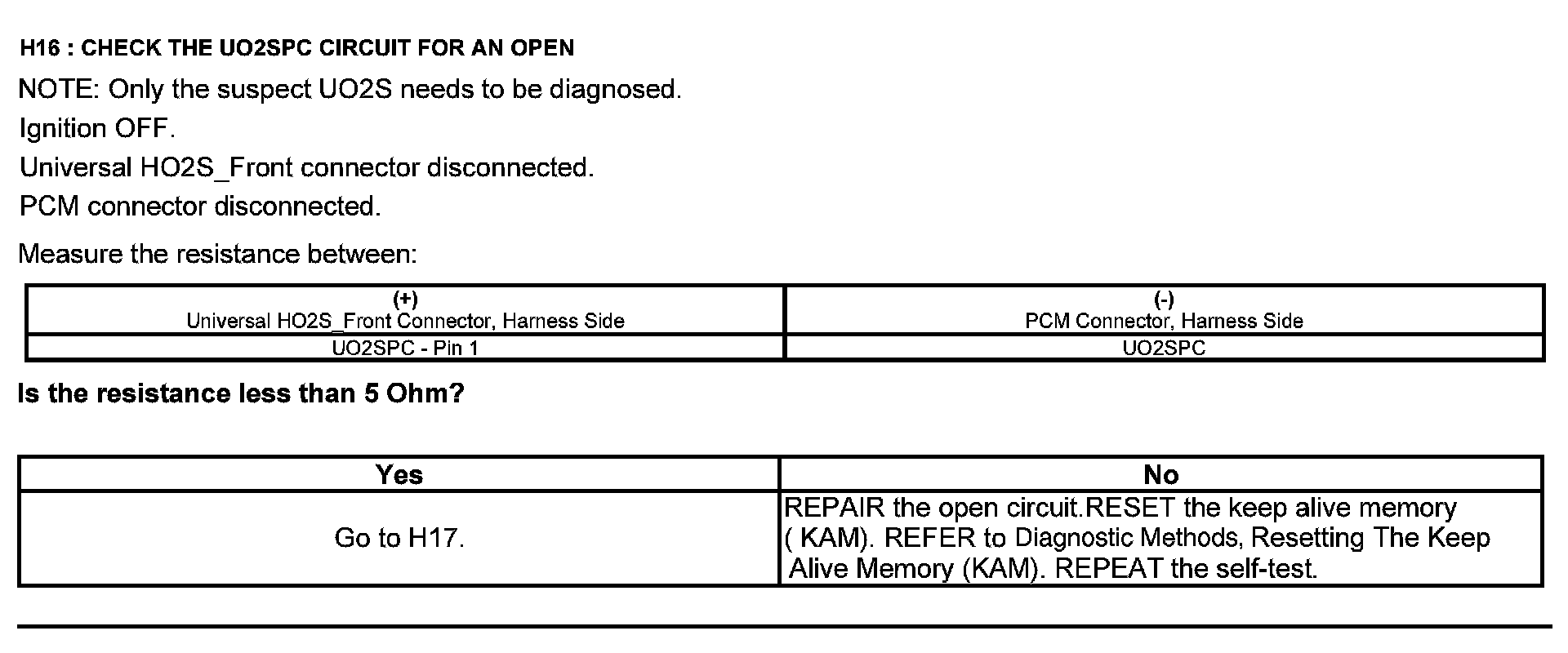

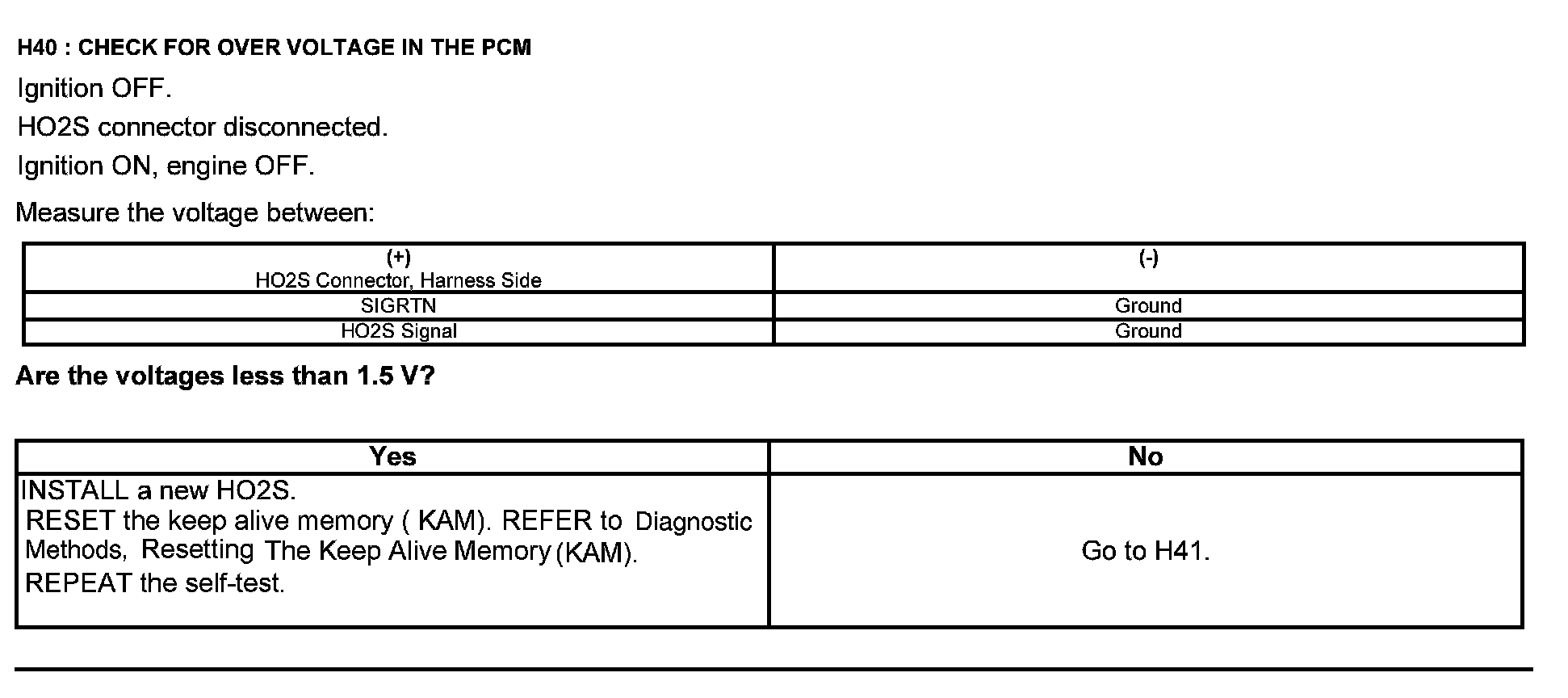

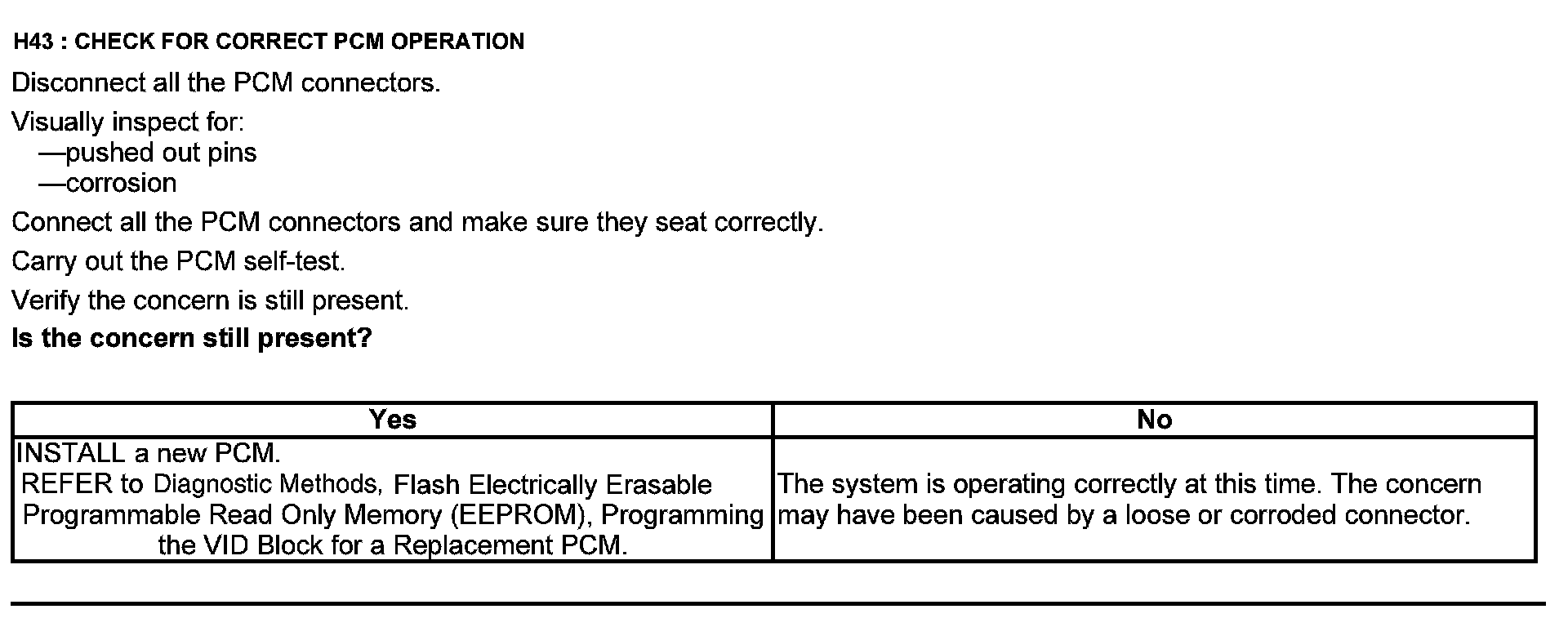

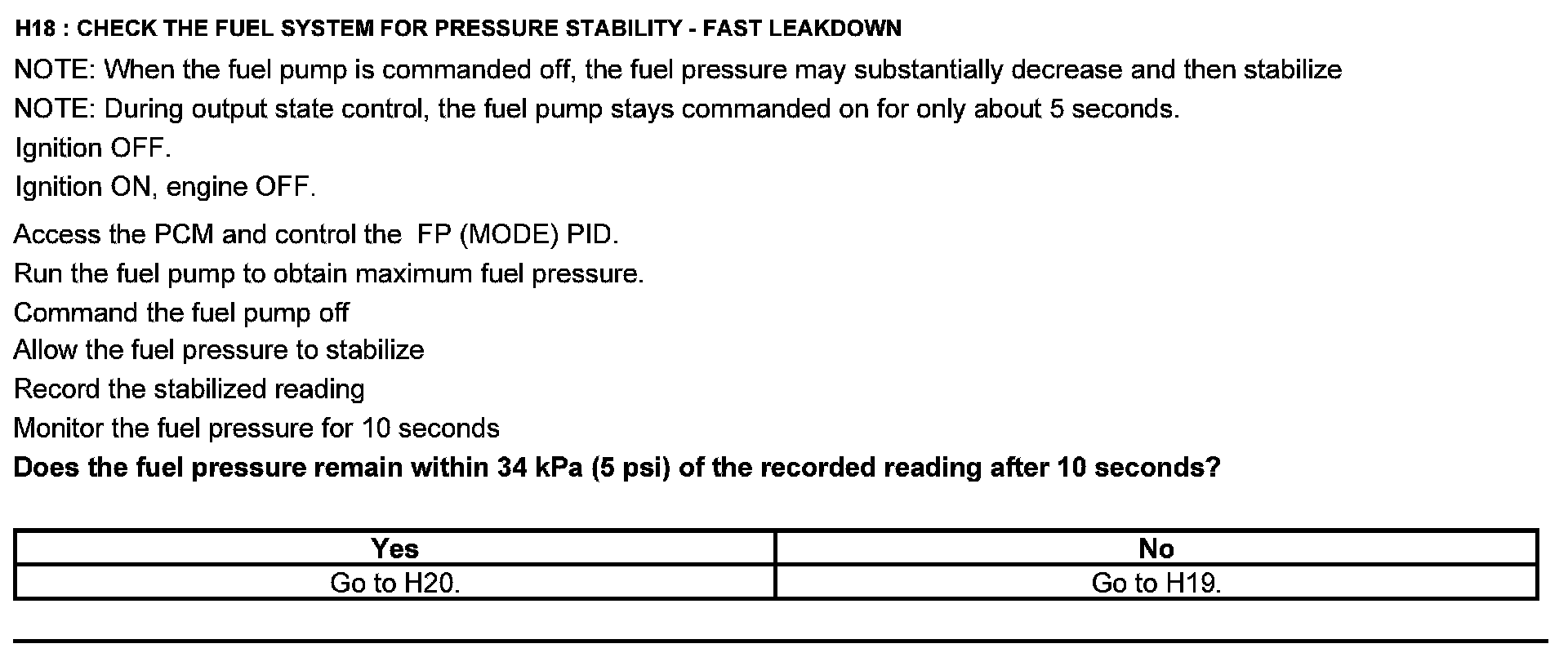

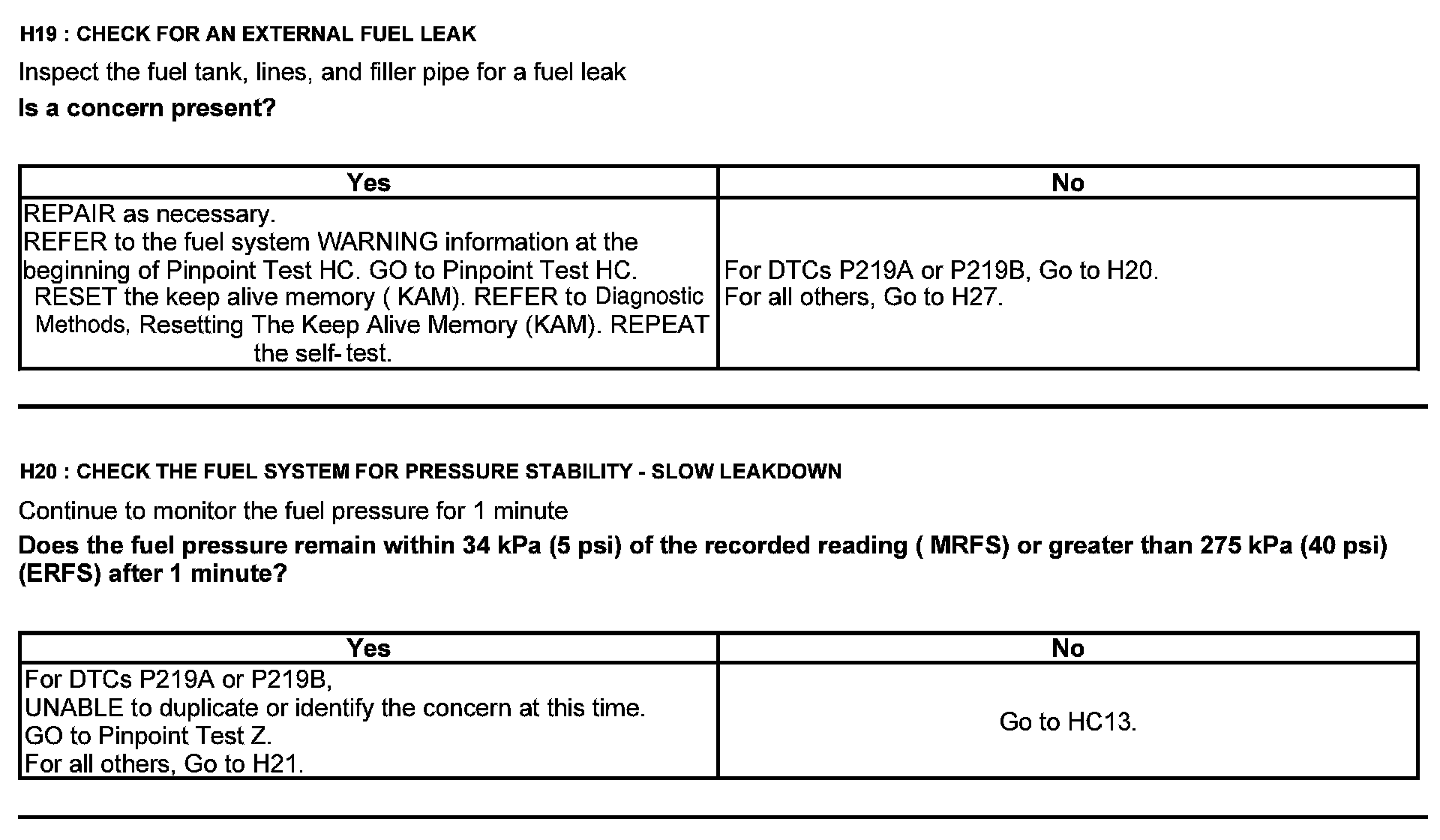

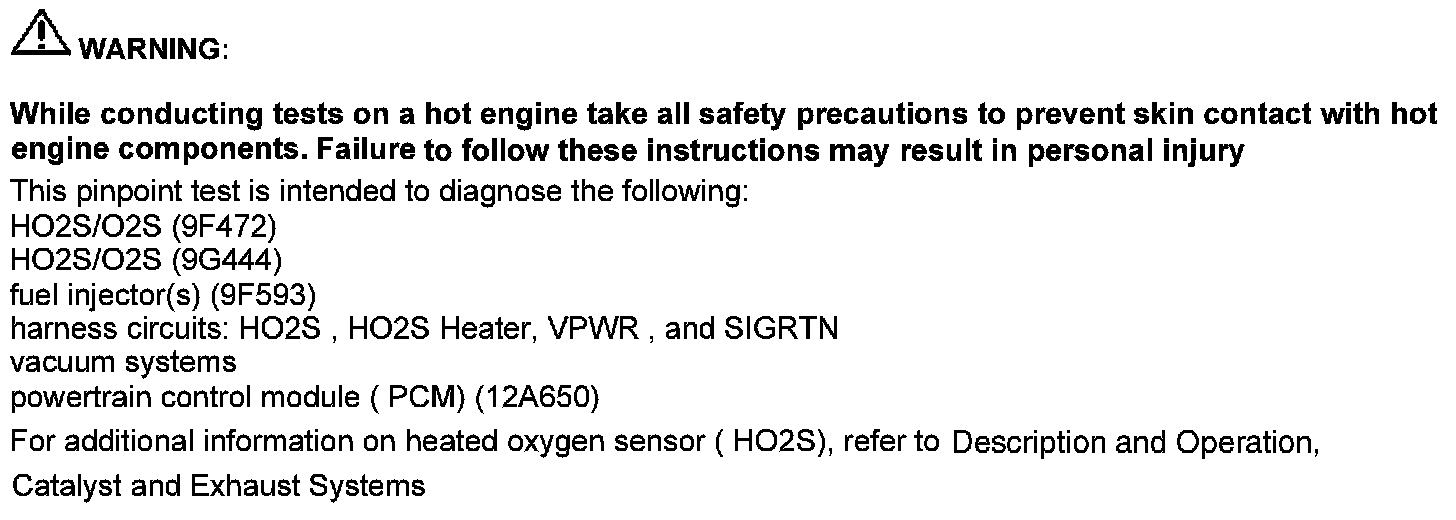

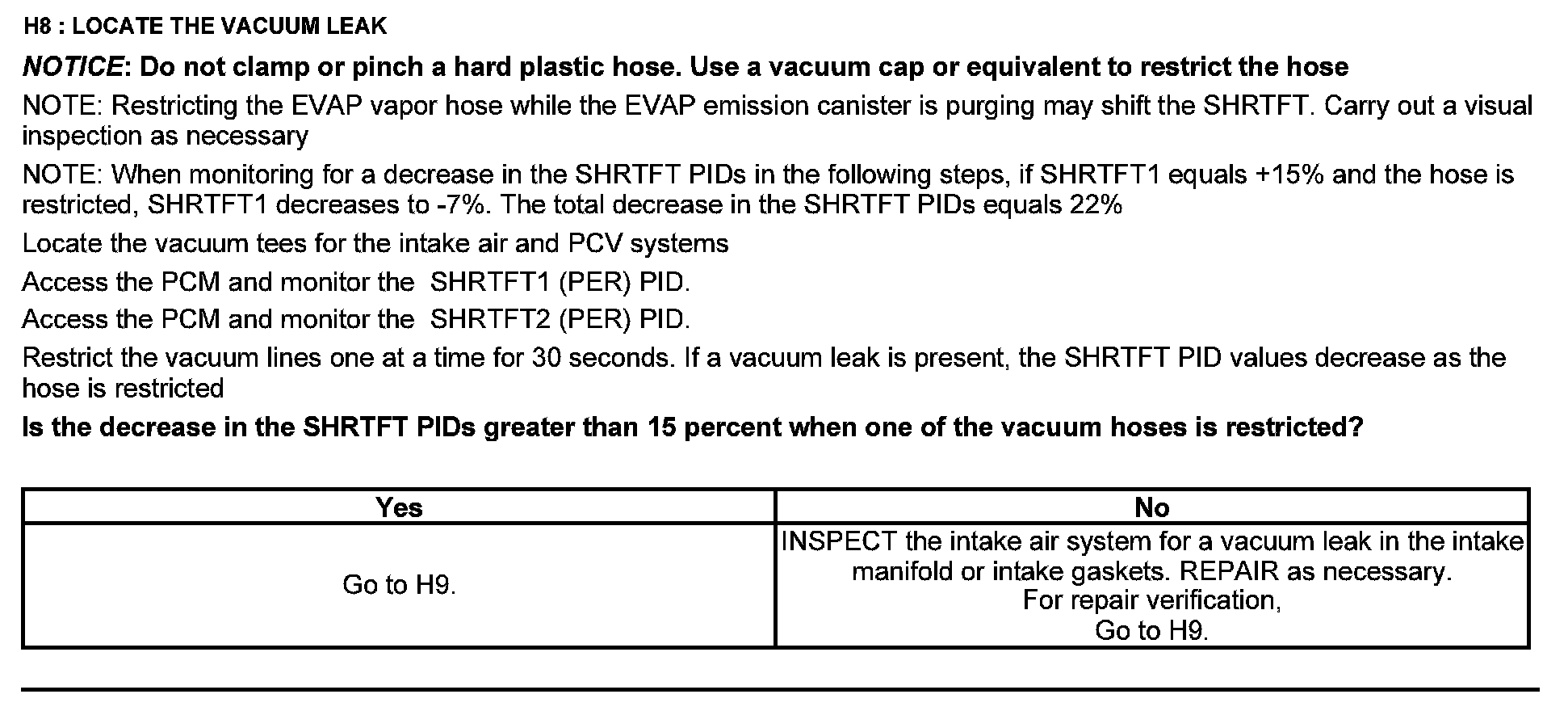

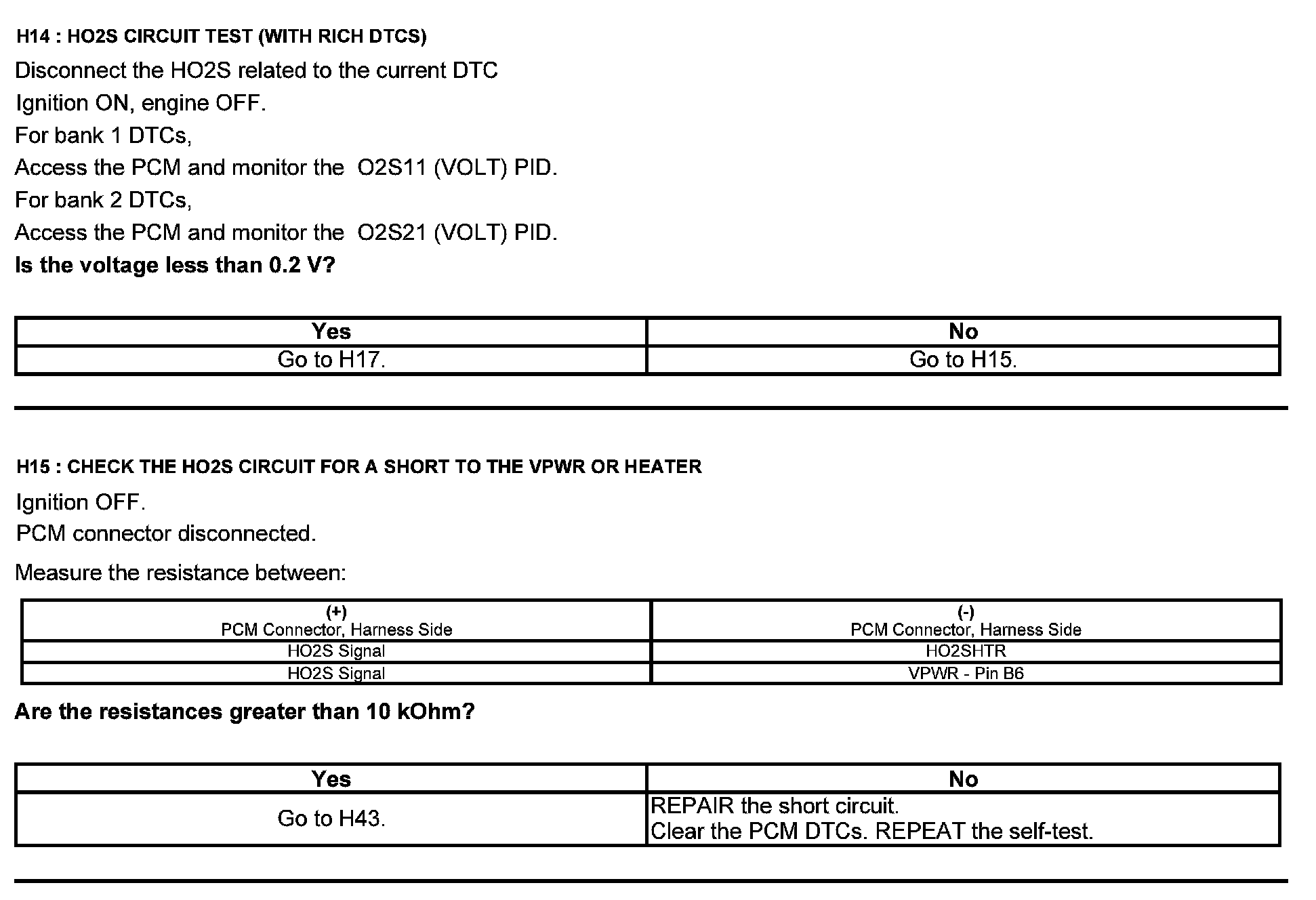

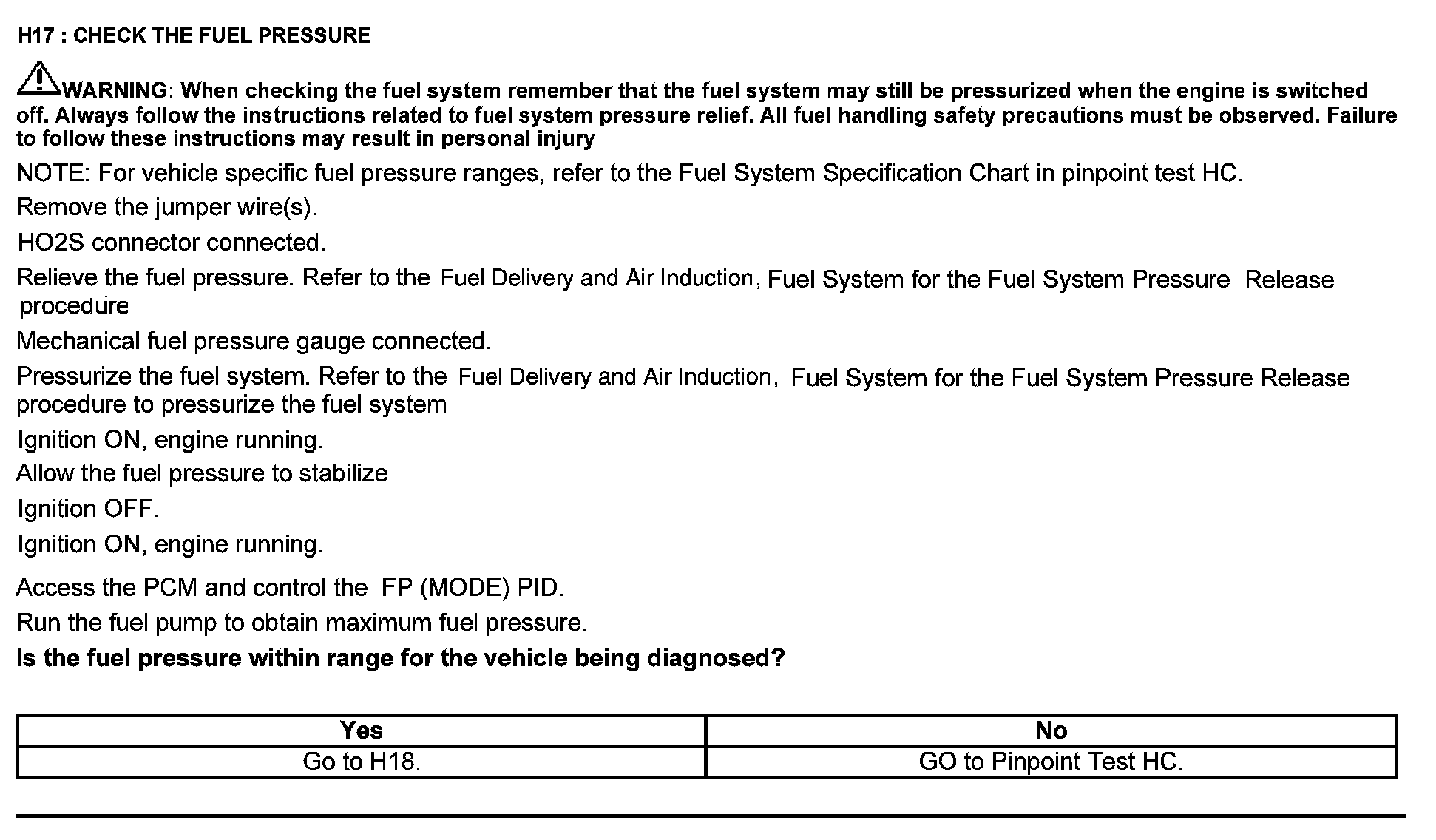

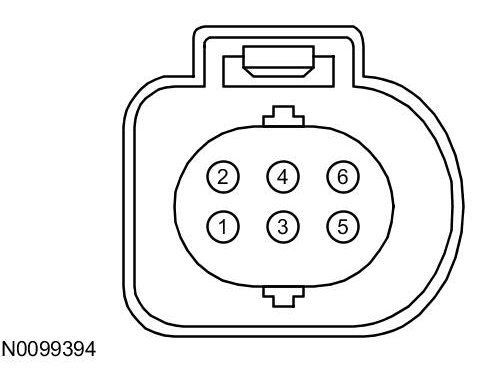

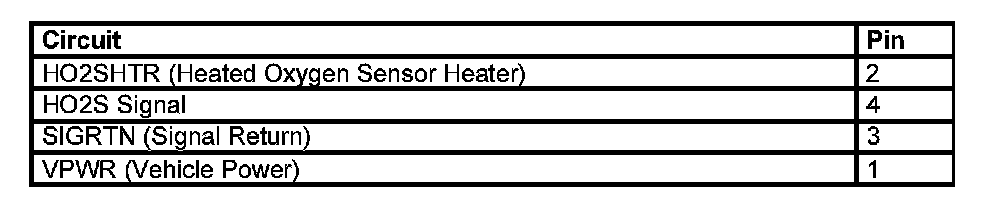

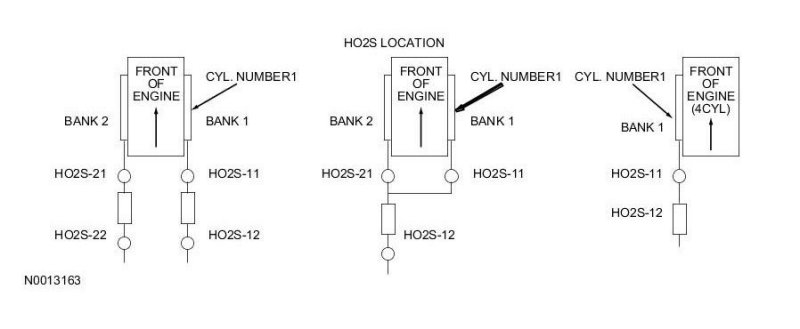

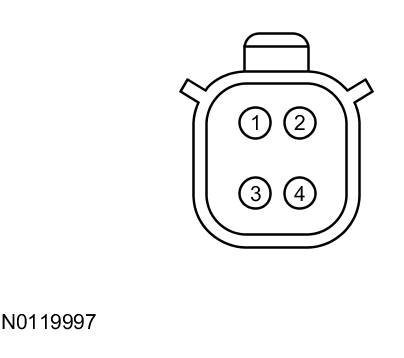

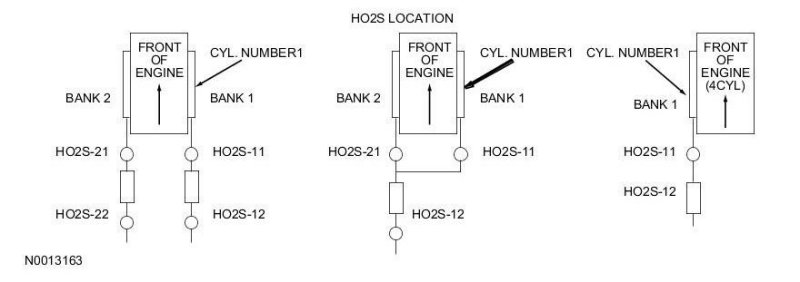

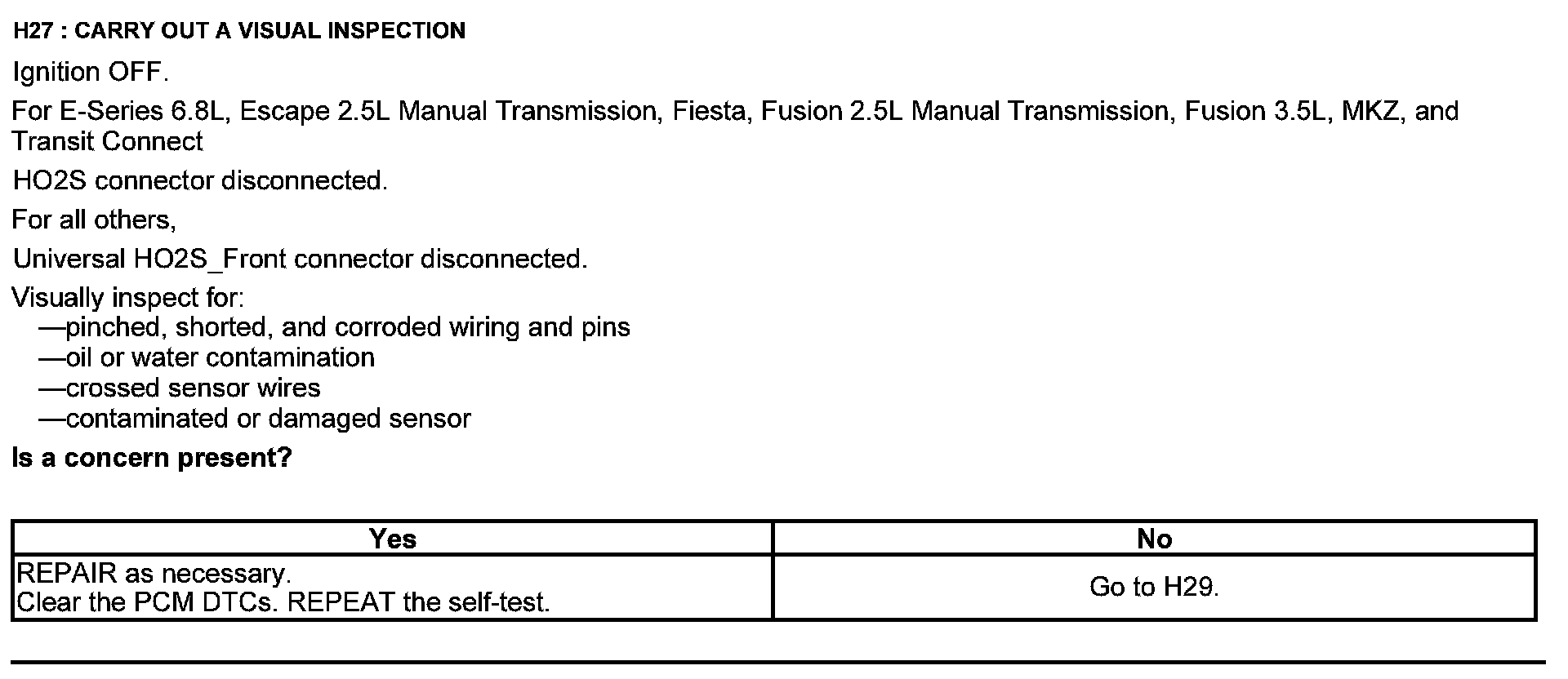

Heated Oxygen Sensor-Rear (HO2S-Rear) Connector - The pin numbering for the connector is in reference to the connector lock tab. Not all connector key combinations are shown.





Harness Side







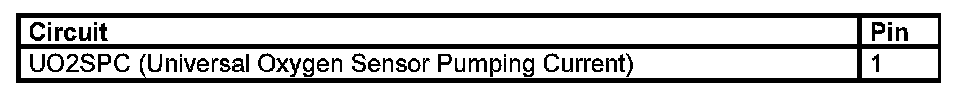

Universal HO2S-Front Connector




Harness Side

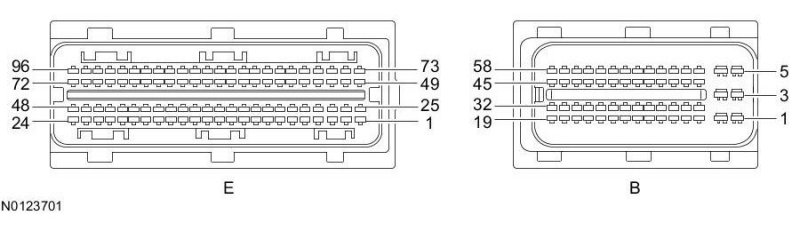

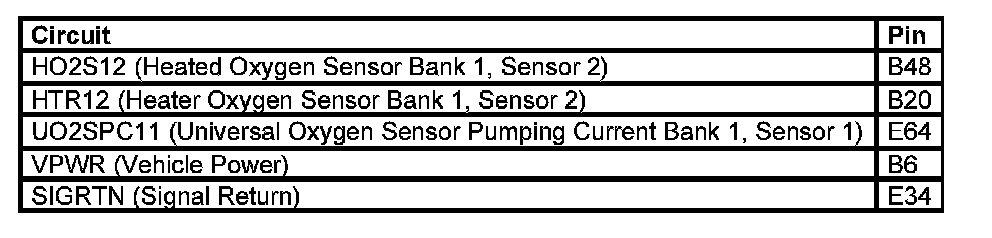

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side



































































































































































































← Back to Pinpoint TestsAll Makes
