Brake Pedal Inputs
Brake Pedal Position (BPP) Switch Connector
Harness Side

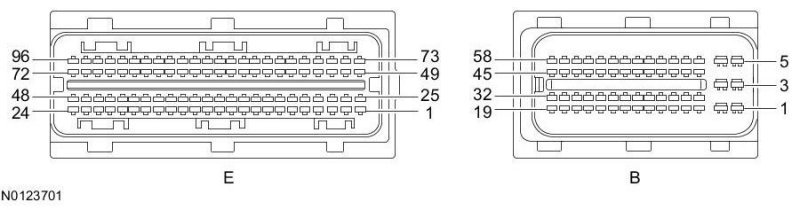

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side

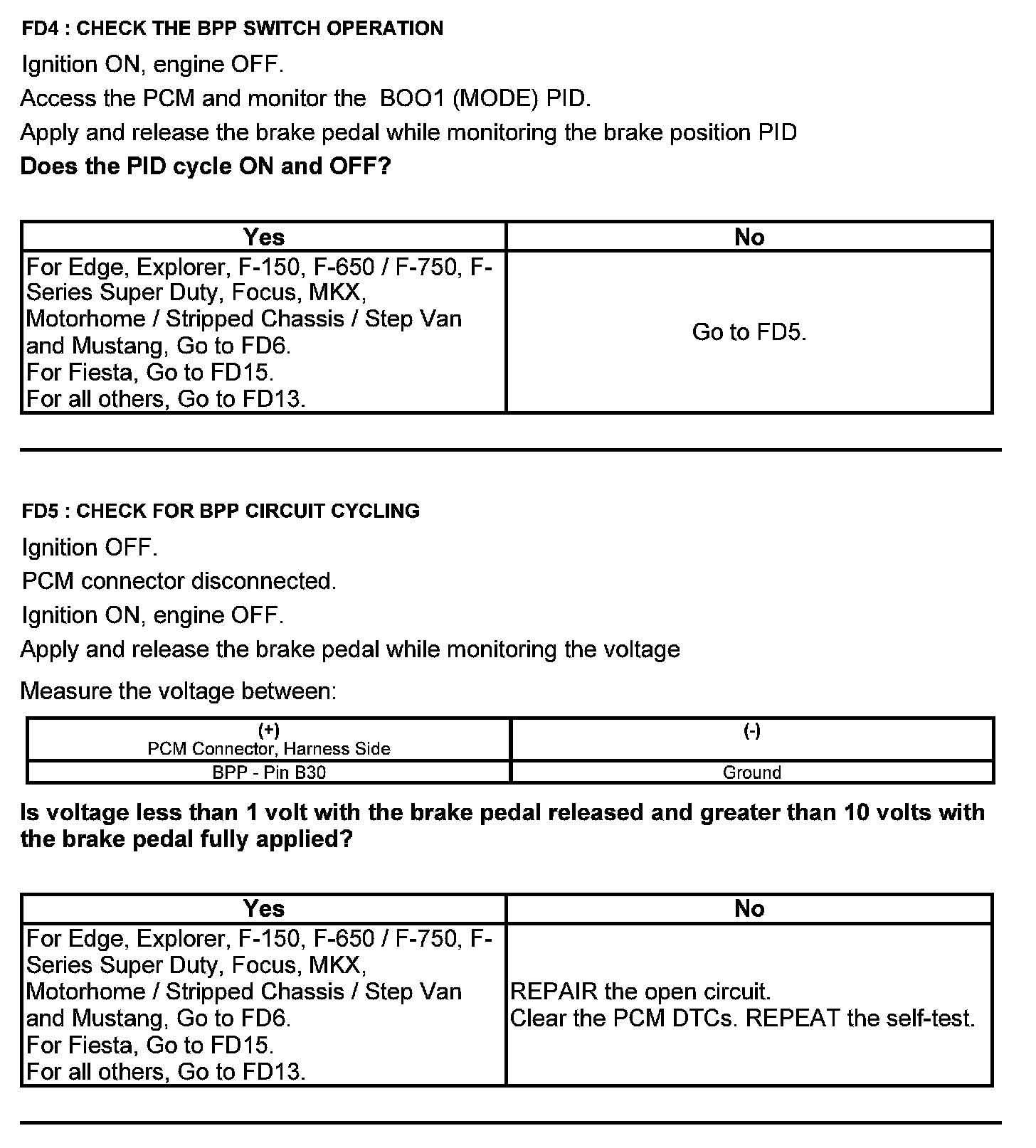

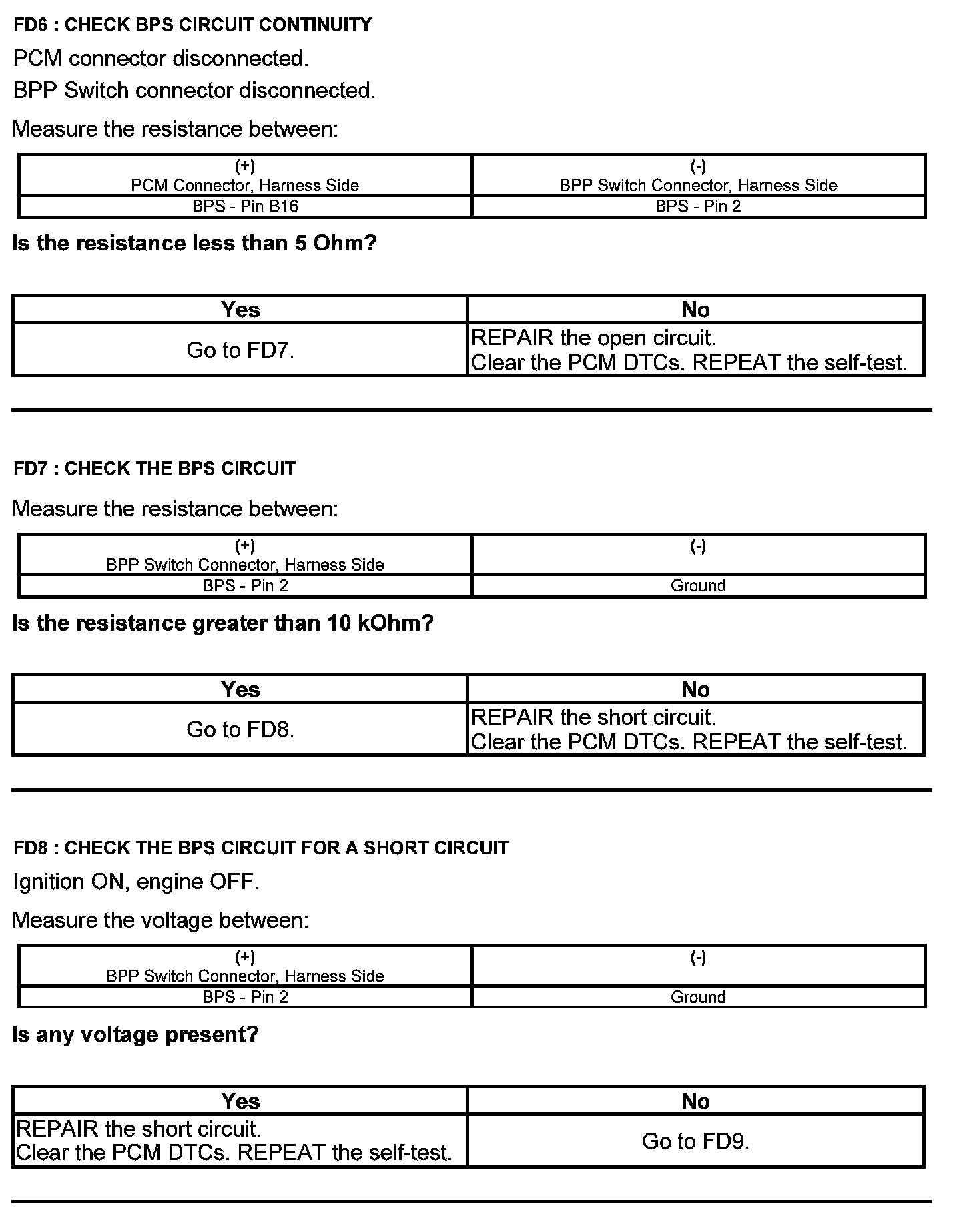

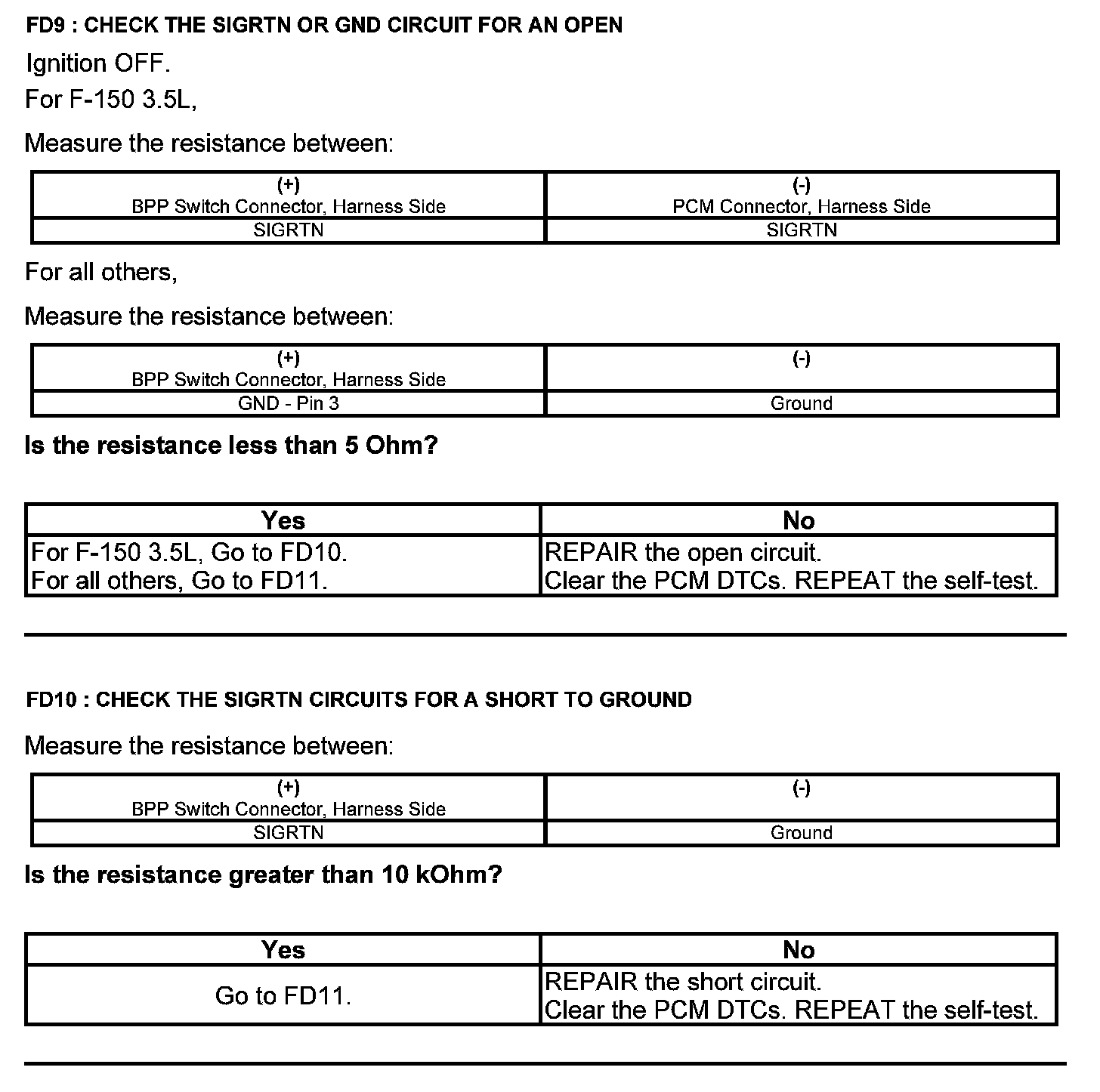

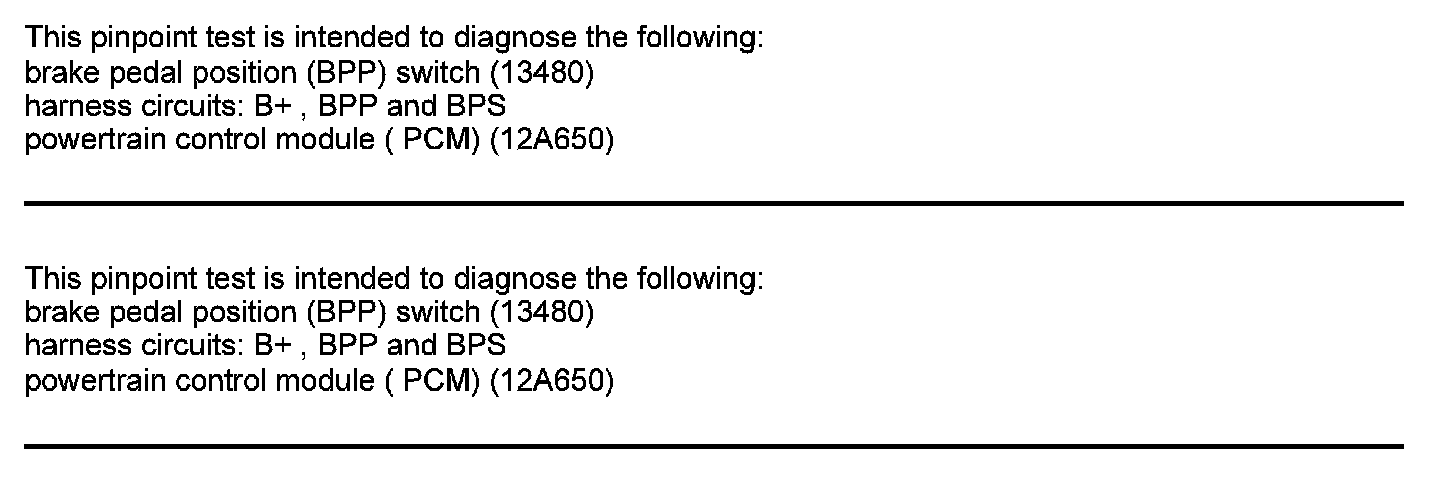

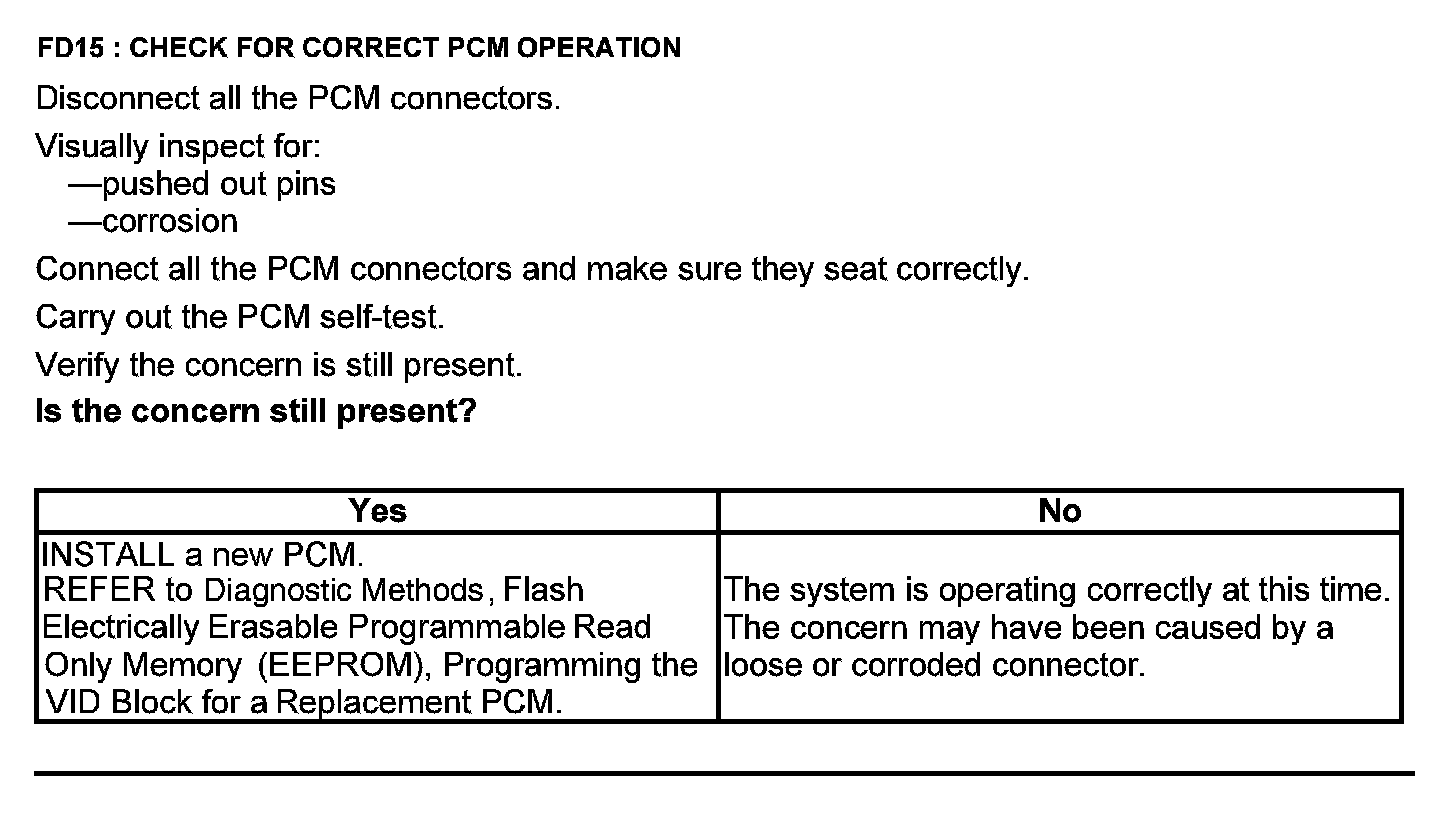

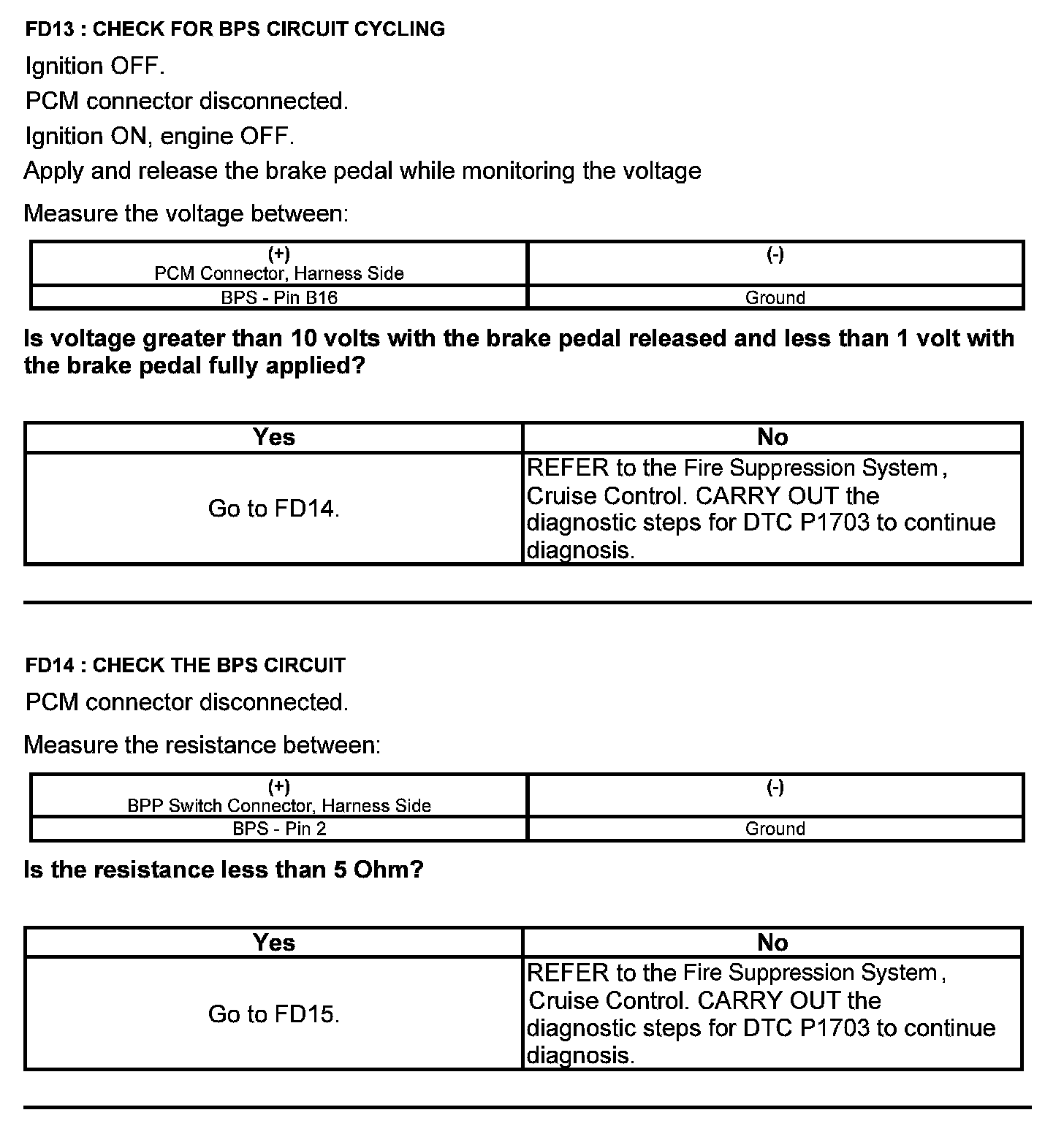

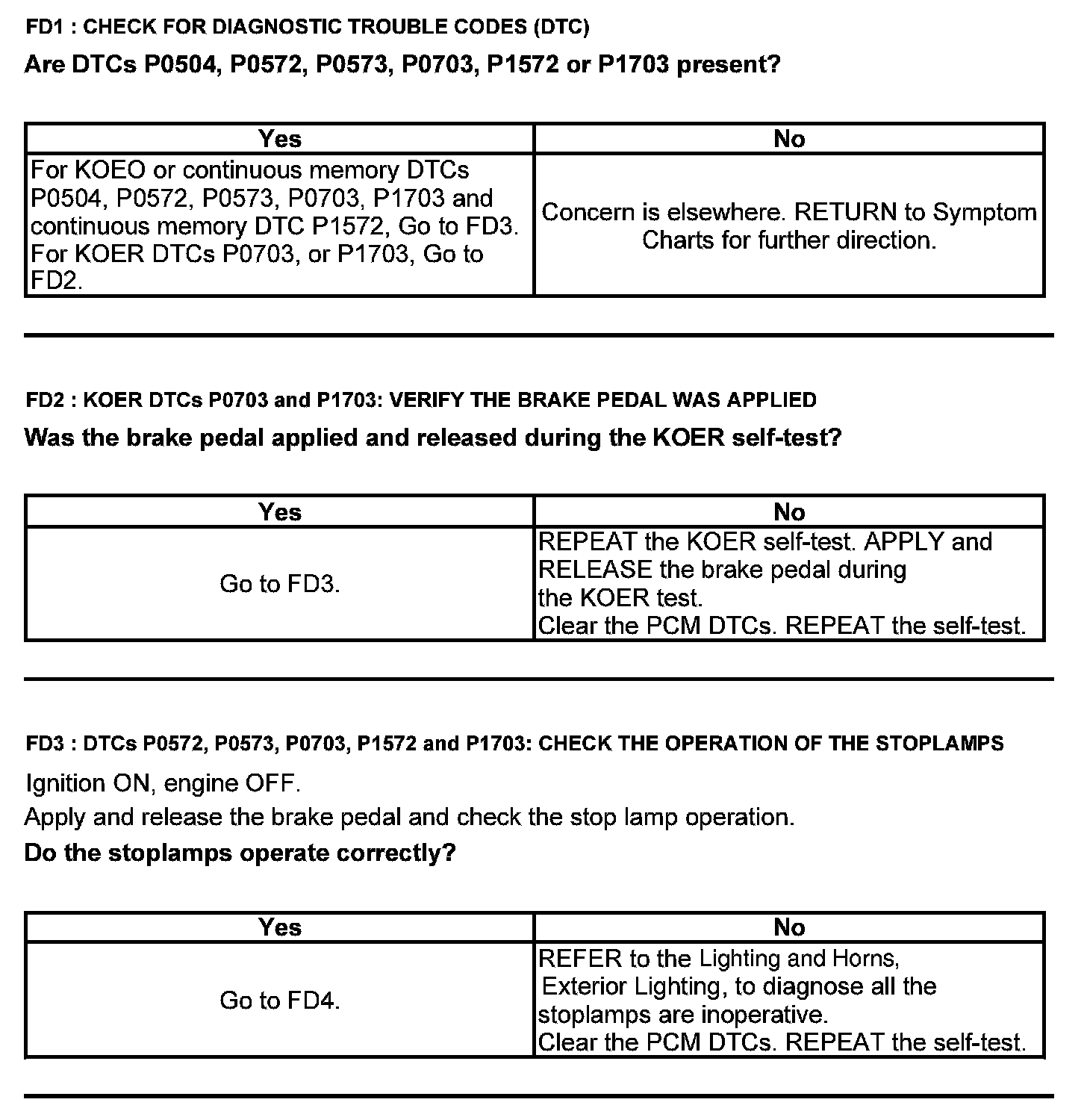

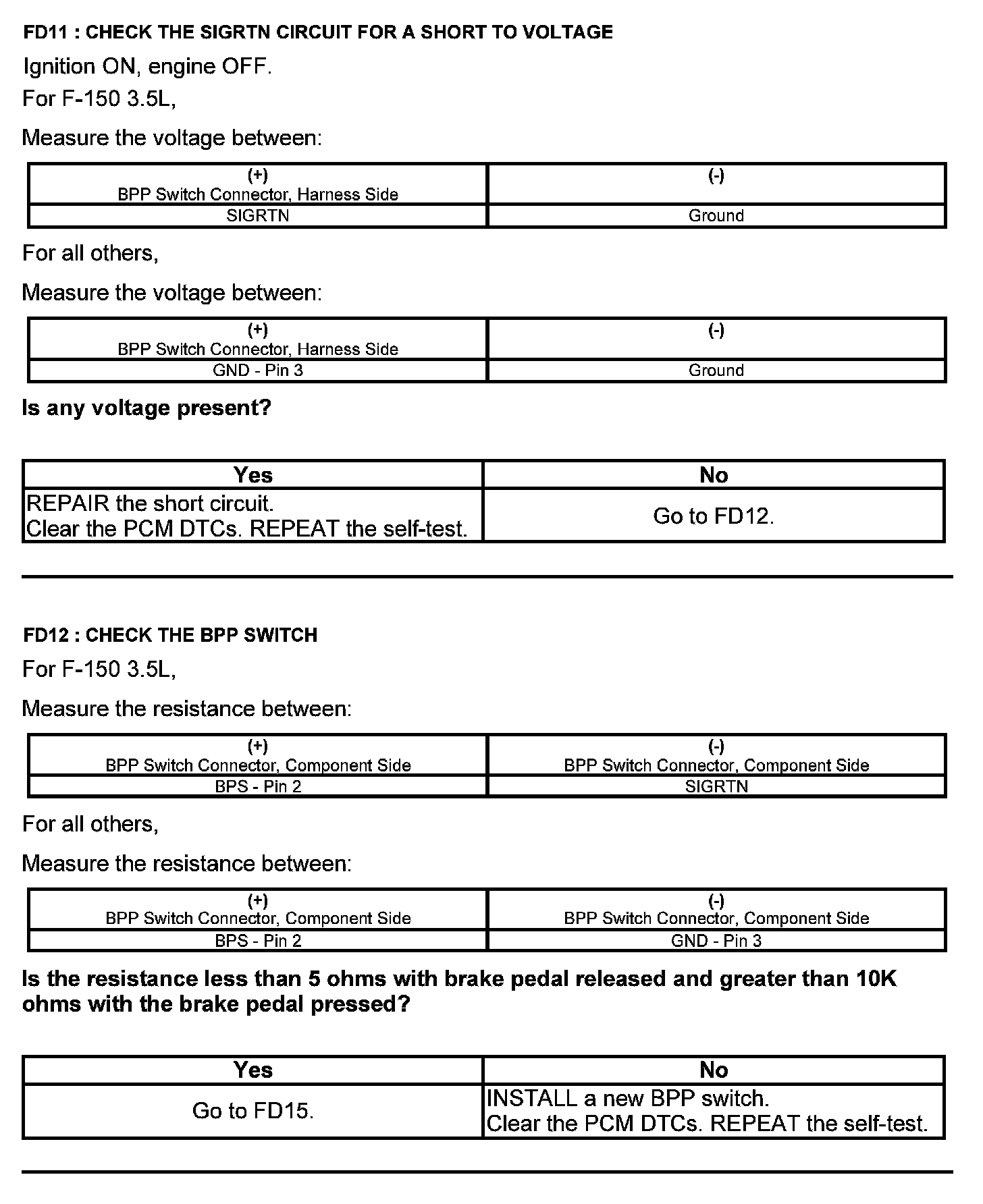

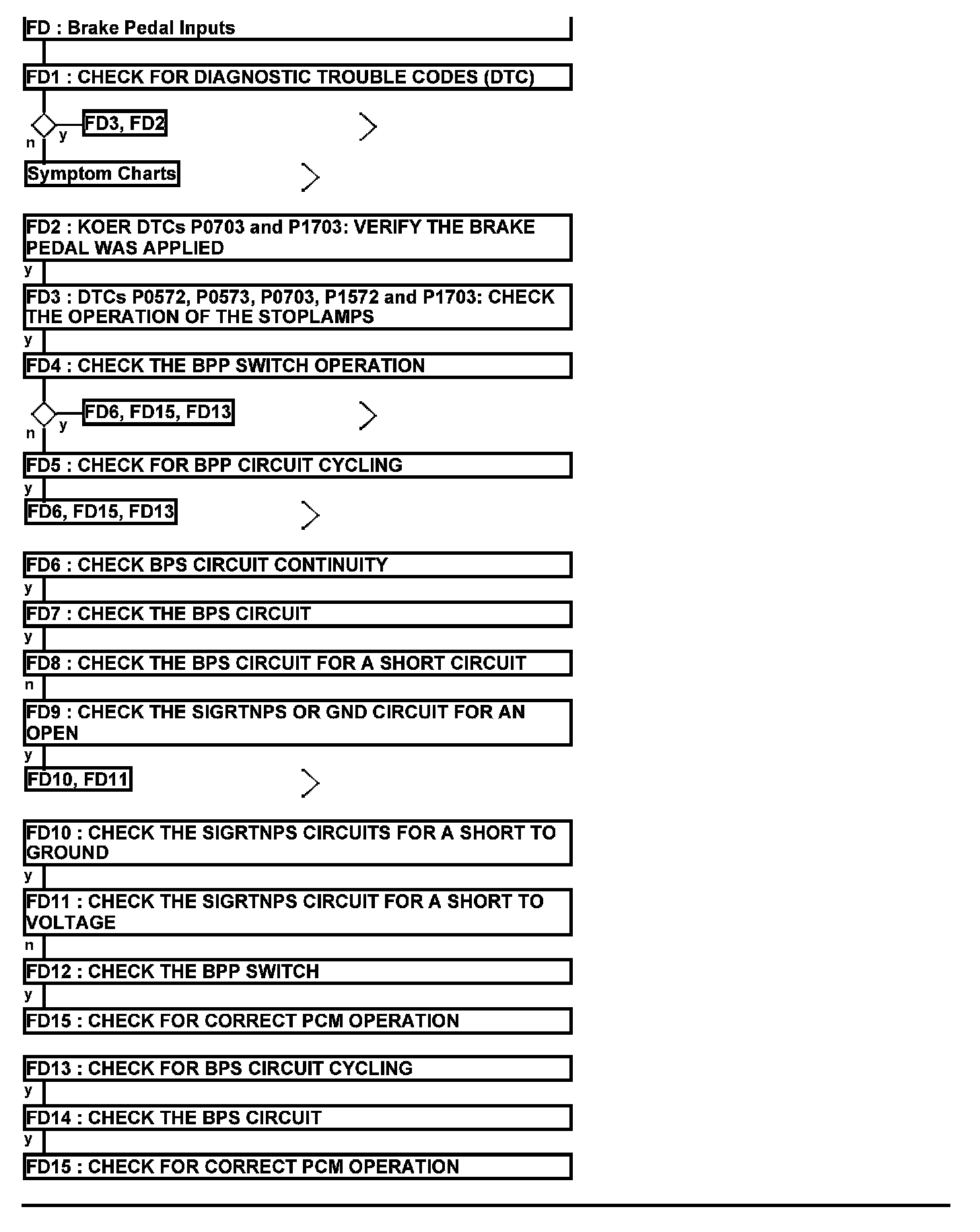

Test FD: Brake Pedal Inputs
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2012 Ford Truck.
Brake Pedal Inputs

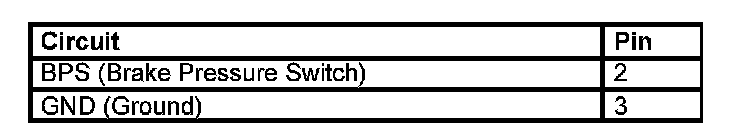

Brake Pedal Position (BPP) Switch Connector
Harness Side

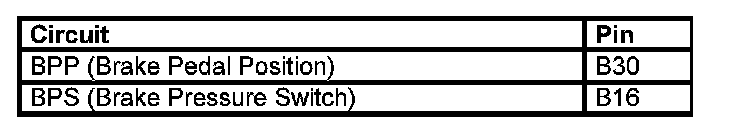

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side
