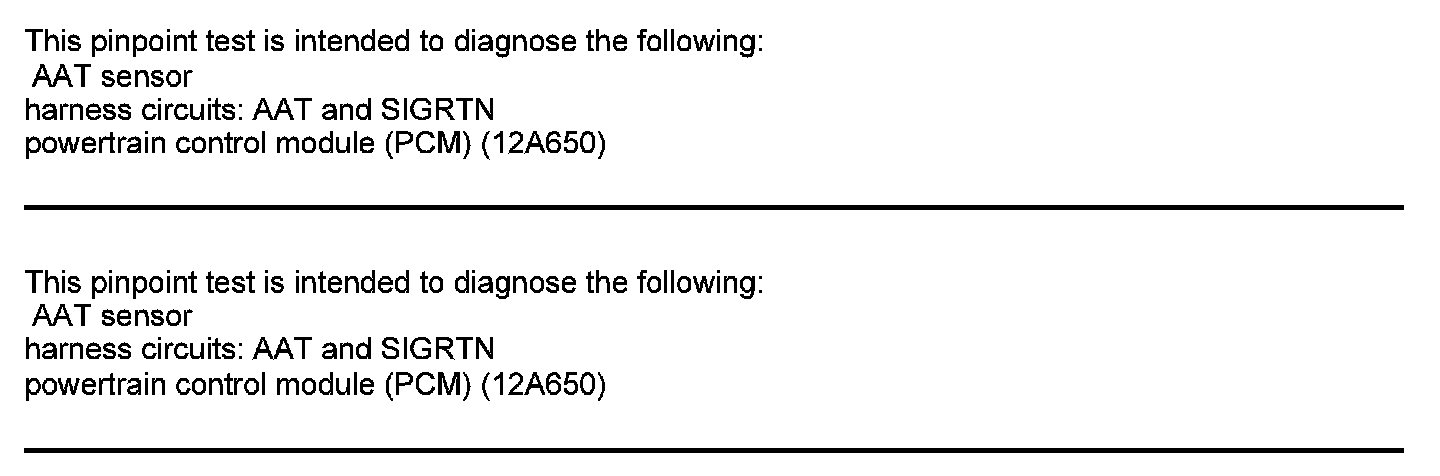

Test FA: Ambient Air Temperature (AAT) Sensor

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2012 Ford Truck.

AI Repair Guides


Ambient Air Temperature (AAT) Sensor

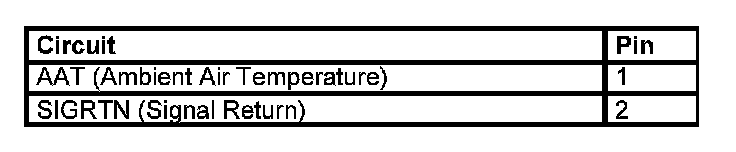

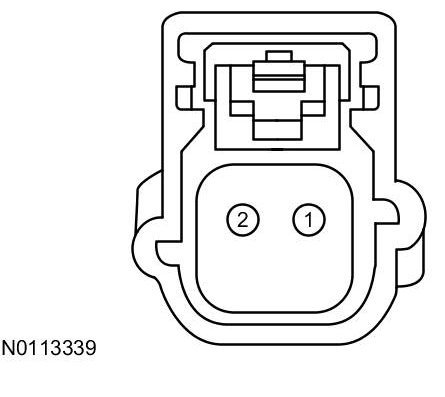

Ambient Air Temperature (AAT) Sensor Connector





Harness Side

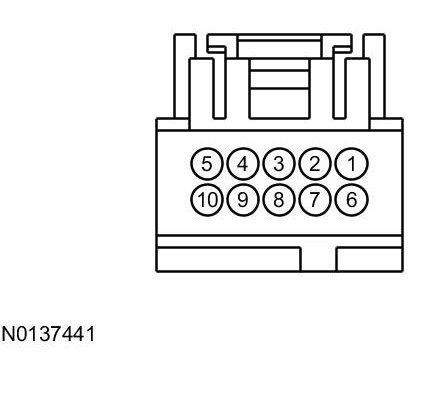

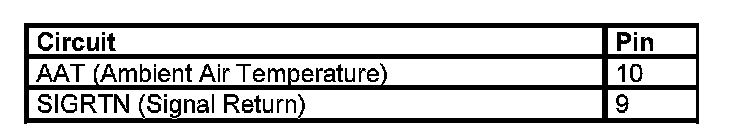

Right Exterior Rear View Mirror Assembly Connector





Harness Side

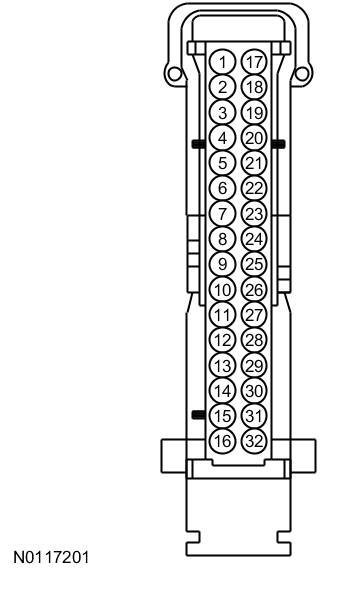

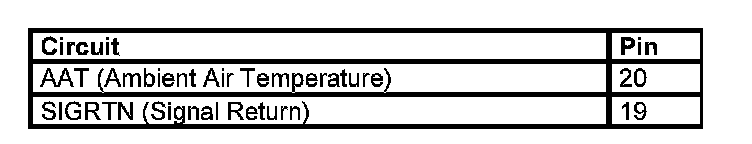

Instrument Panel Cluster (IPC) Connector





Harness Side

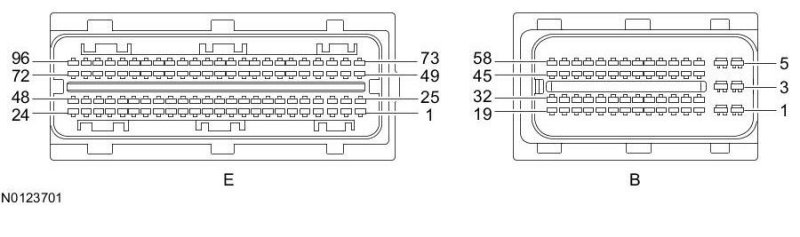

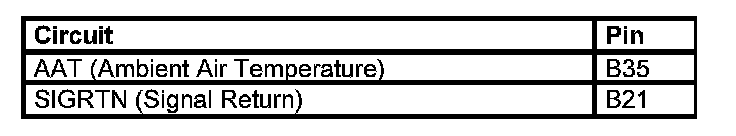

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.




Harness Side
