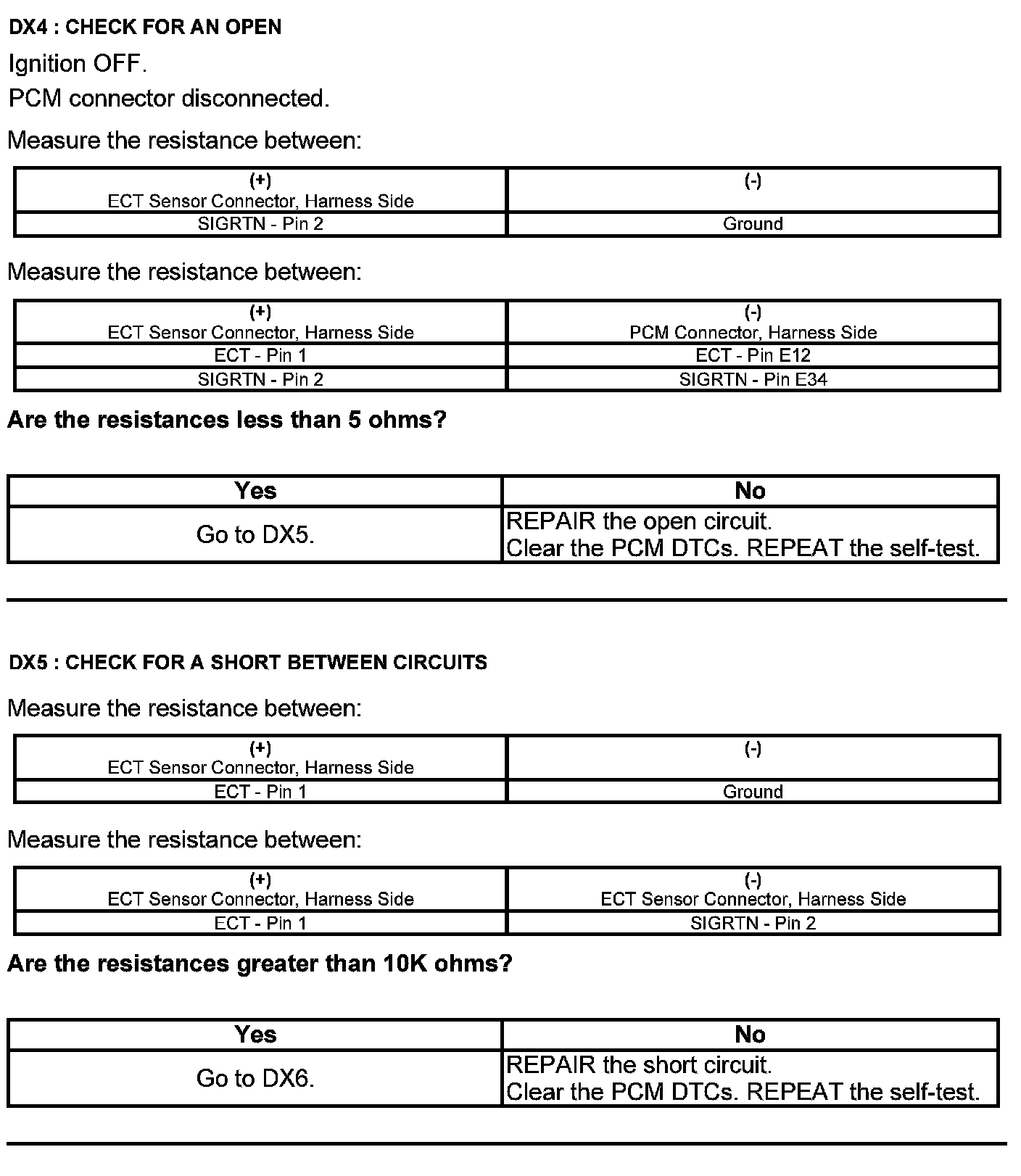

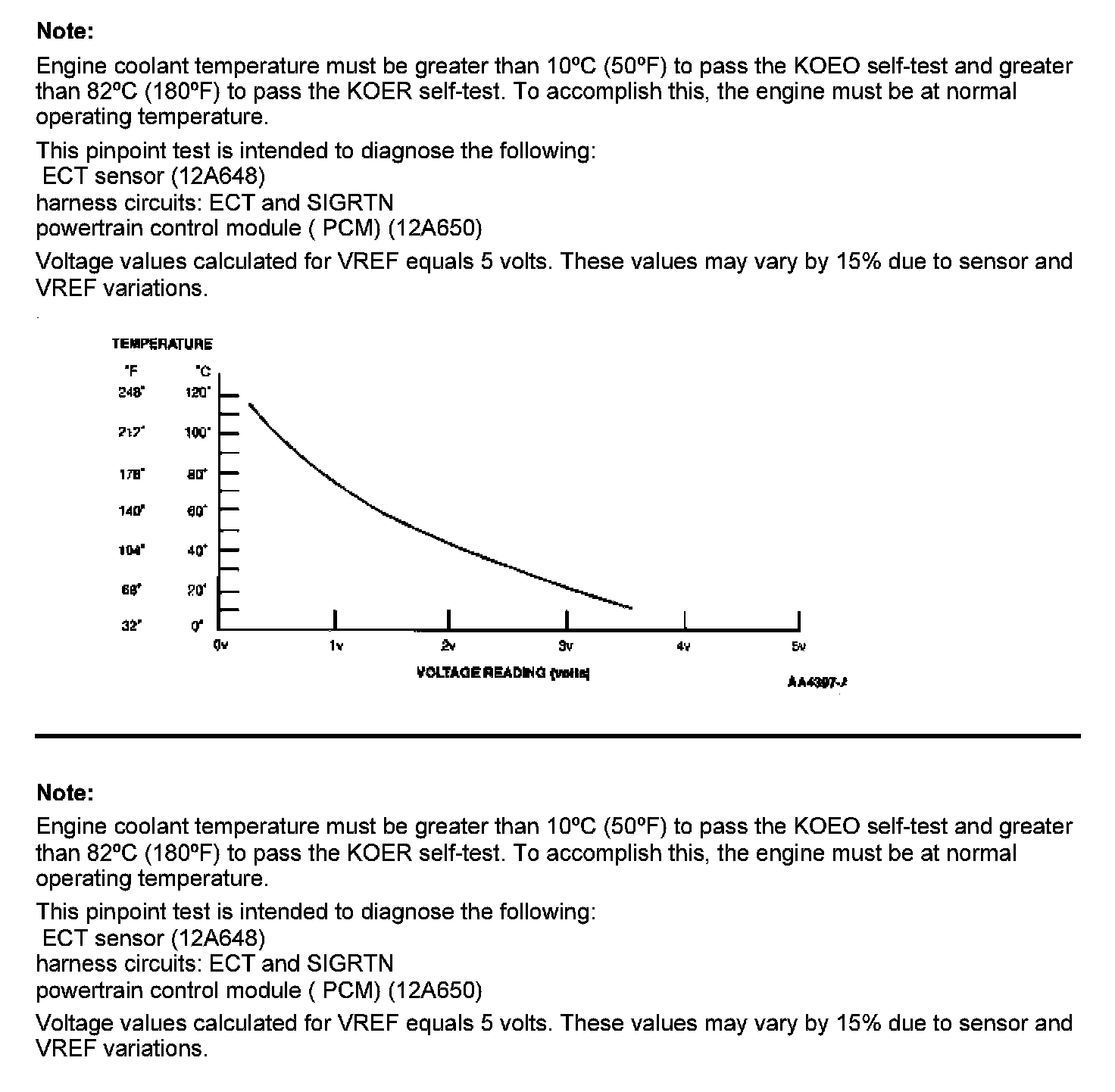

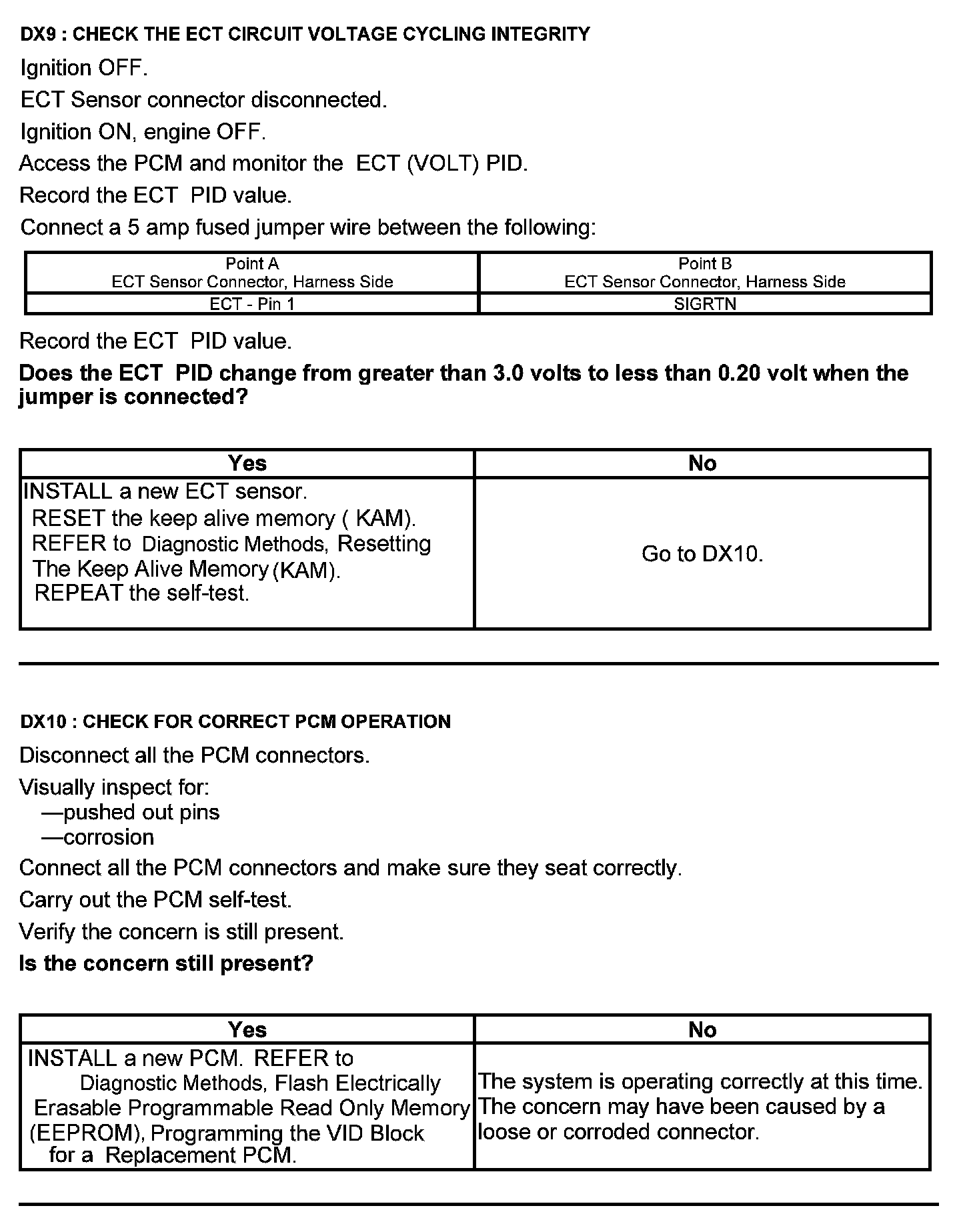

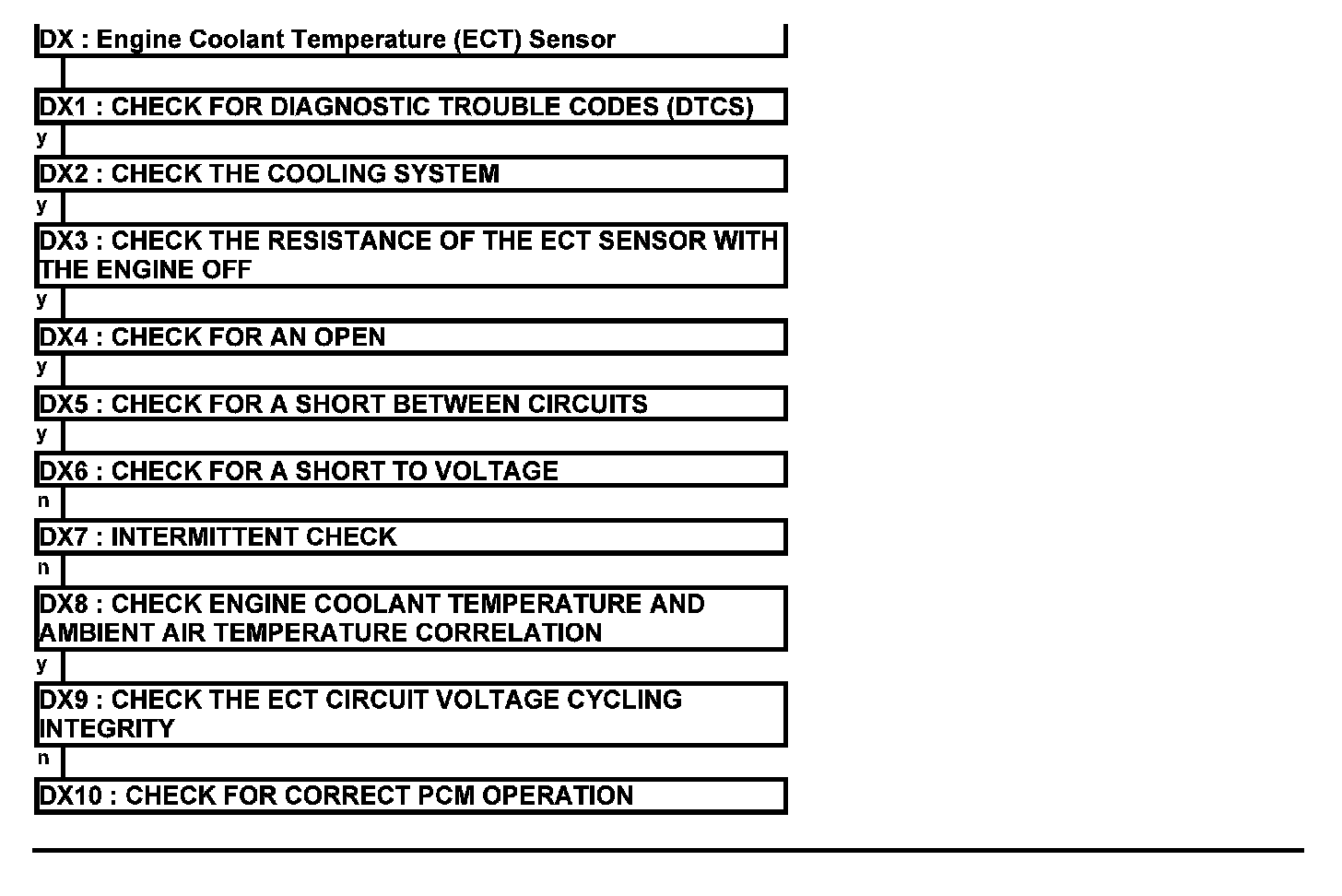

Test DX: Engine Coolant Temperature (ECT) Sensor

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2012 Ford Truck.

AI Repair Guides


Engine Coolant Temperature (ECT) Sensor

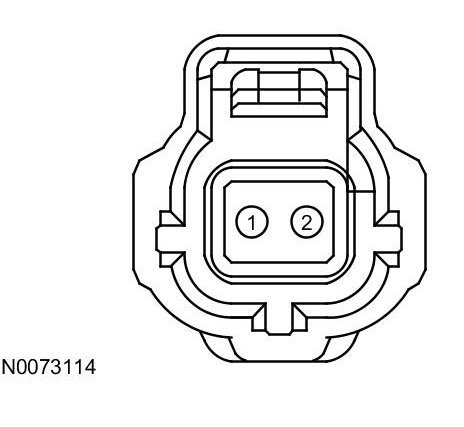

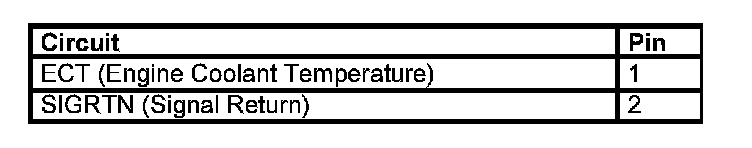

Engine Coolant Temperature (ECT) Sensor Connector





Harness Side

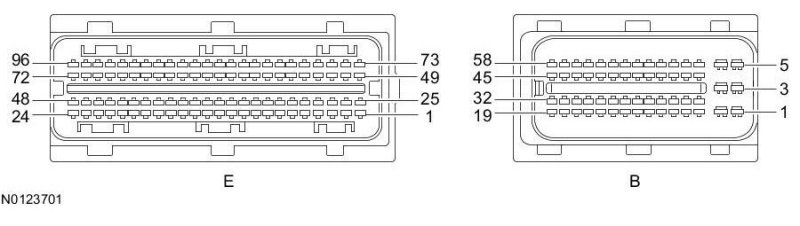

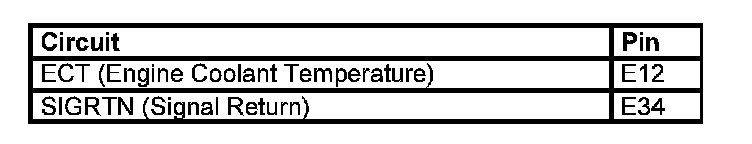

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
