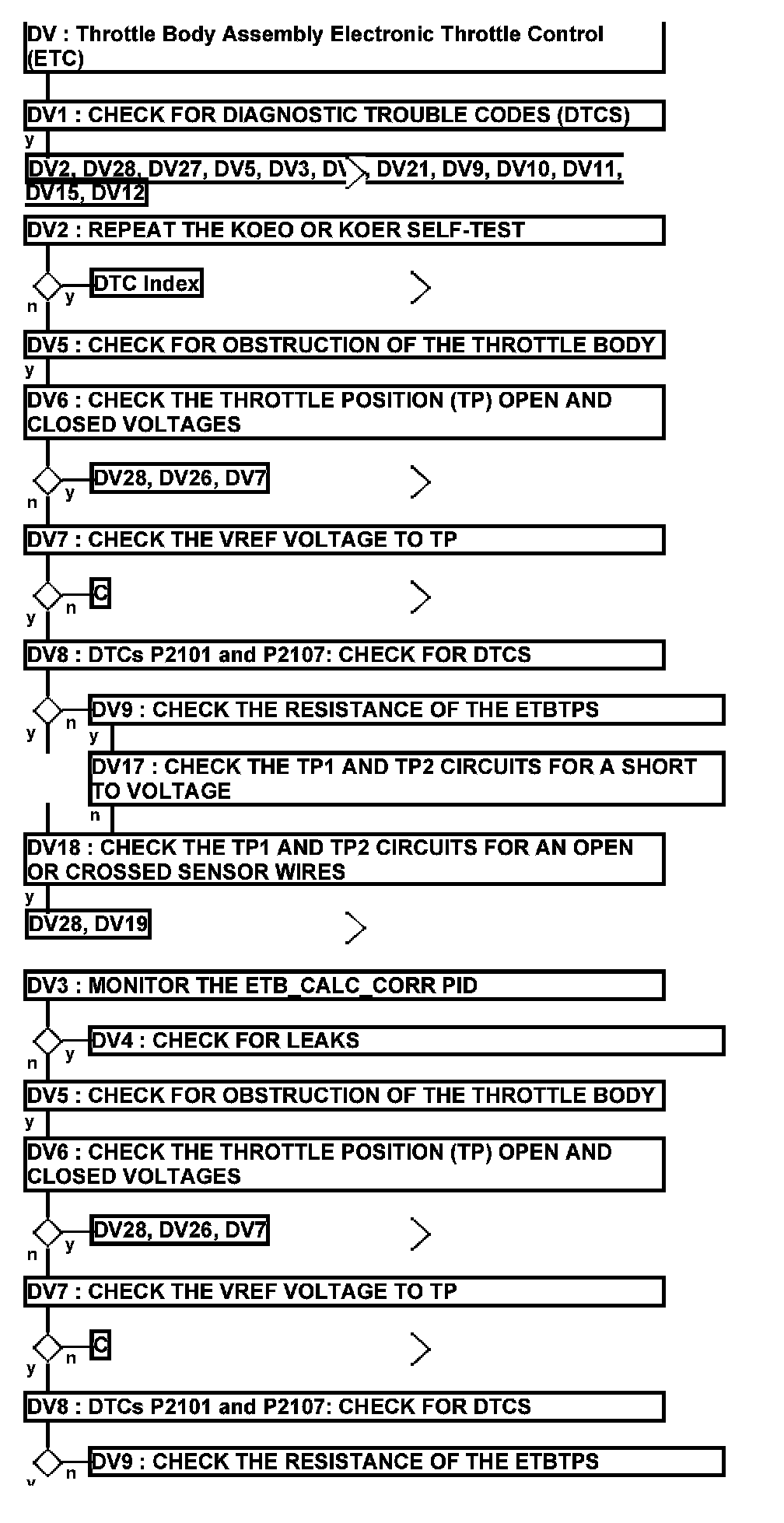

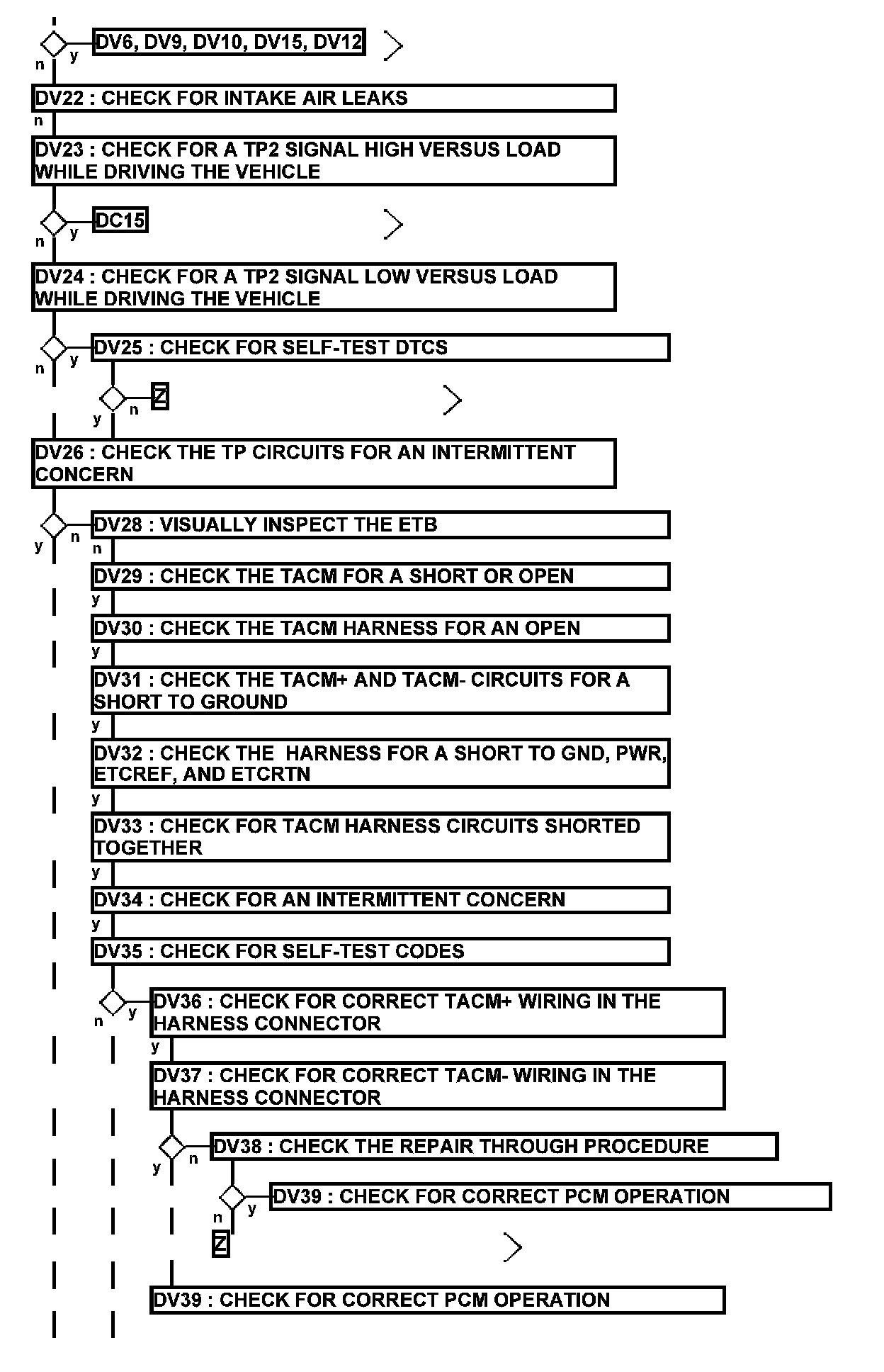

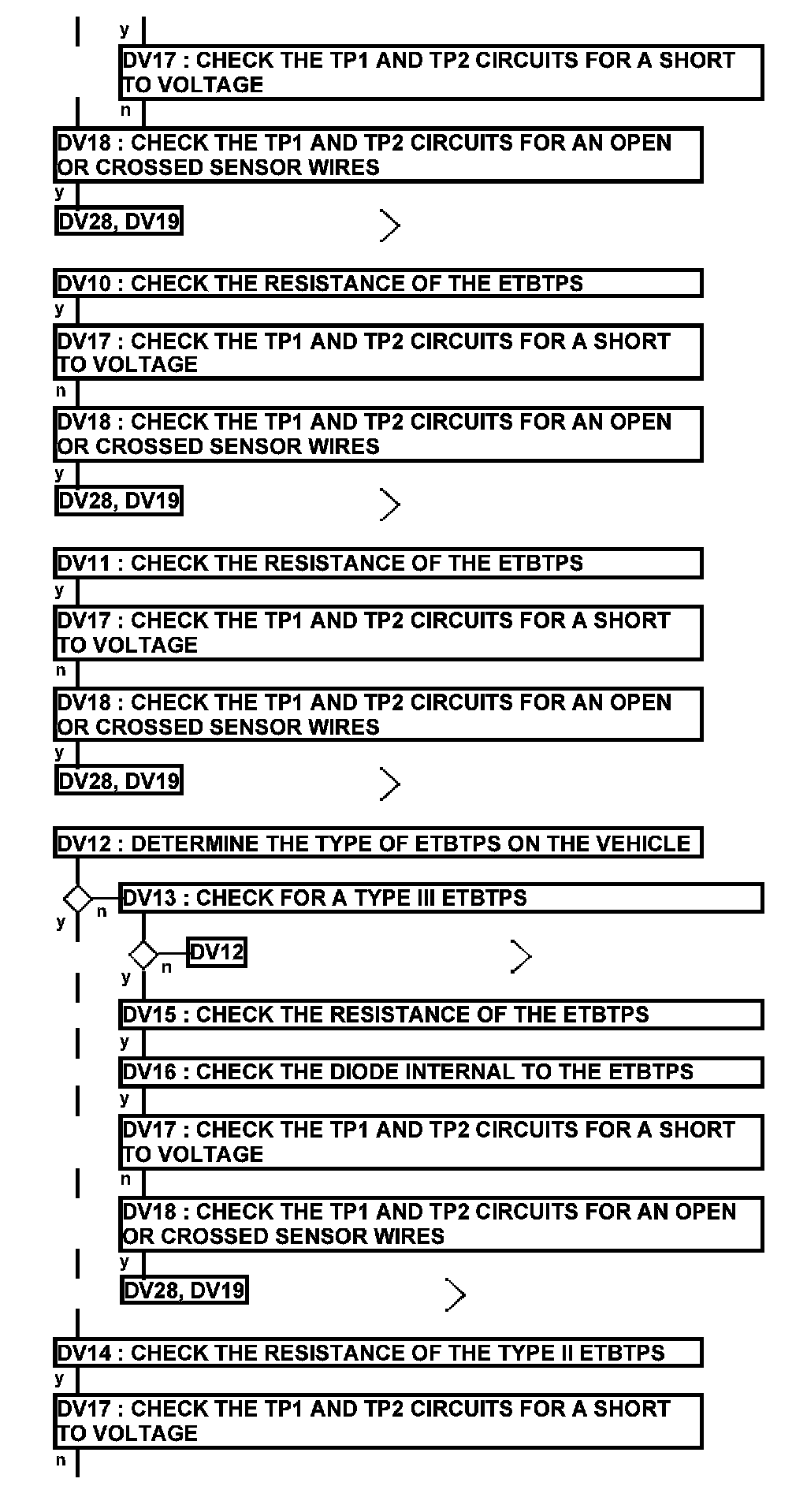

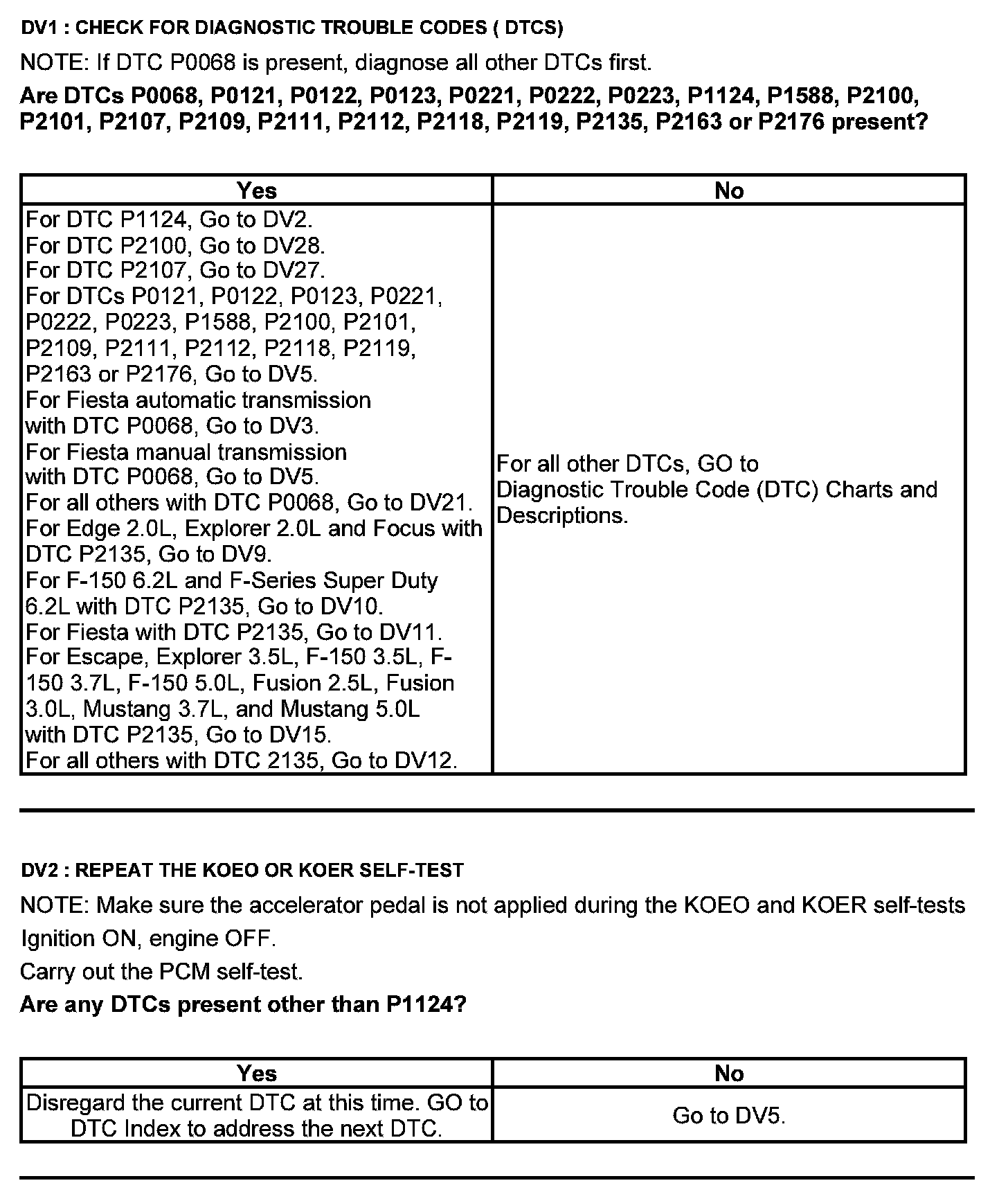

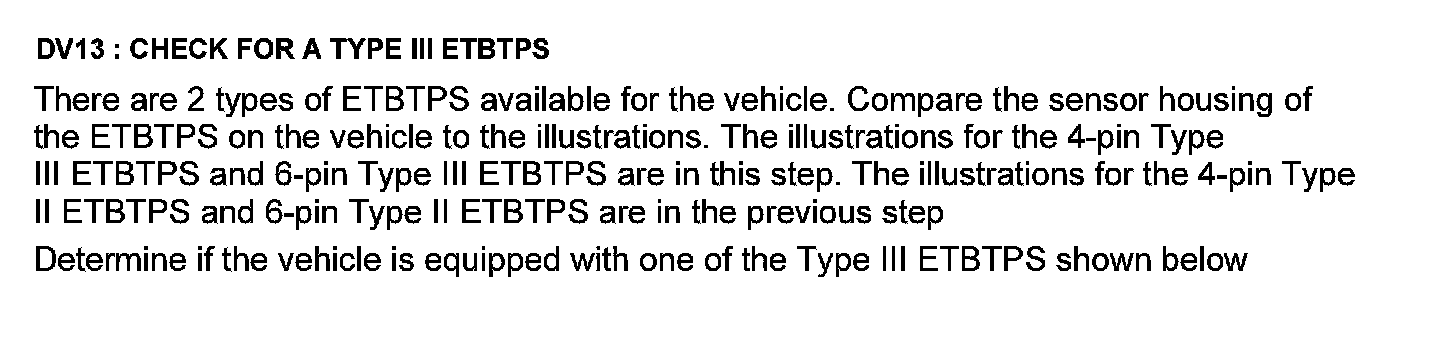

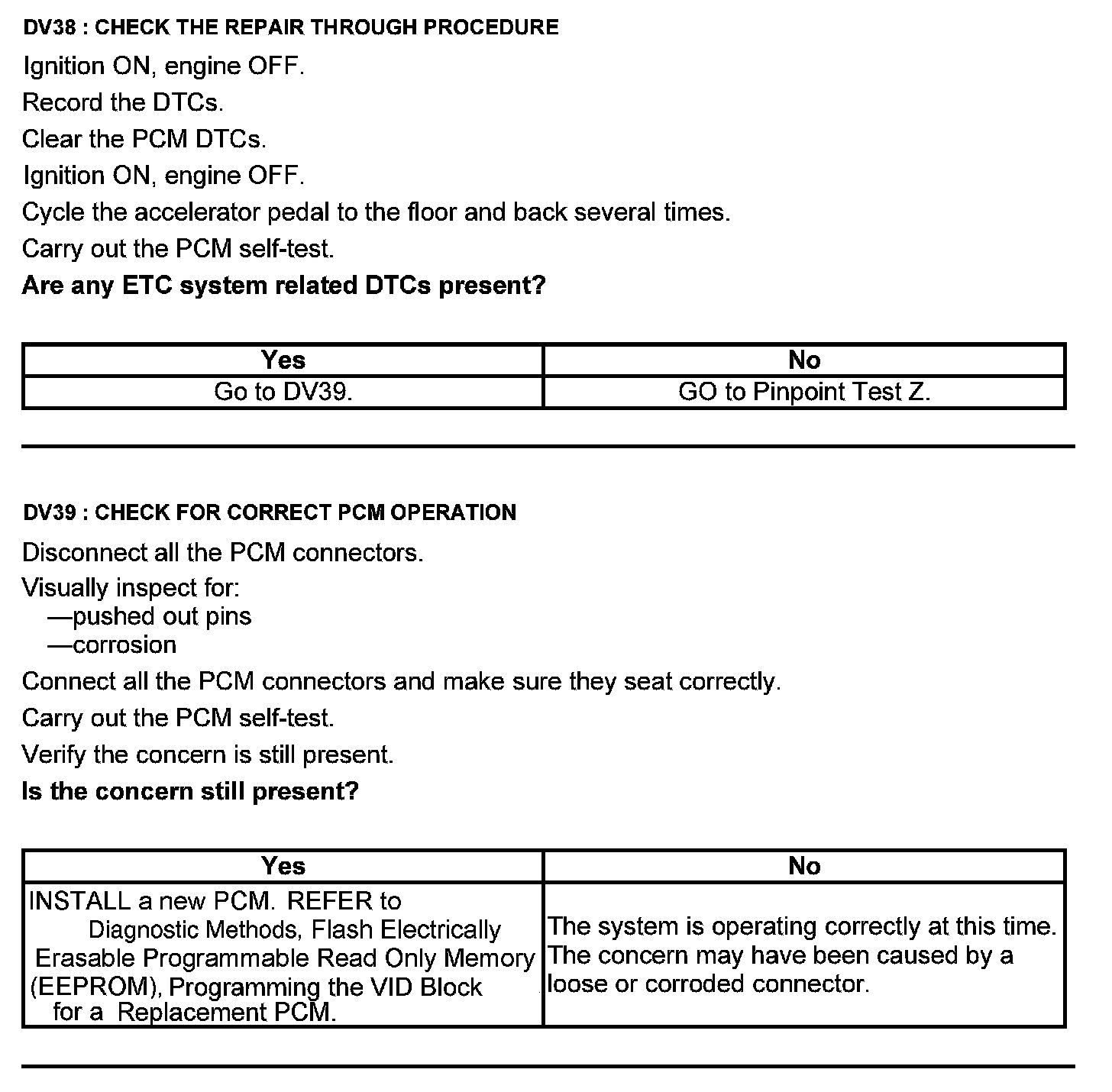

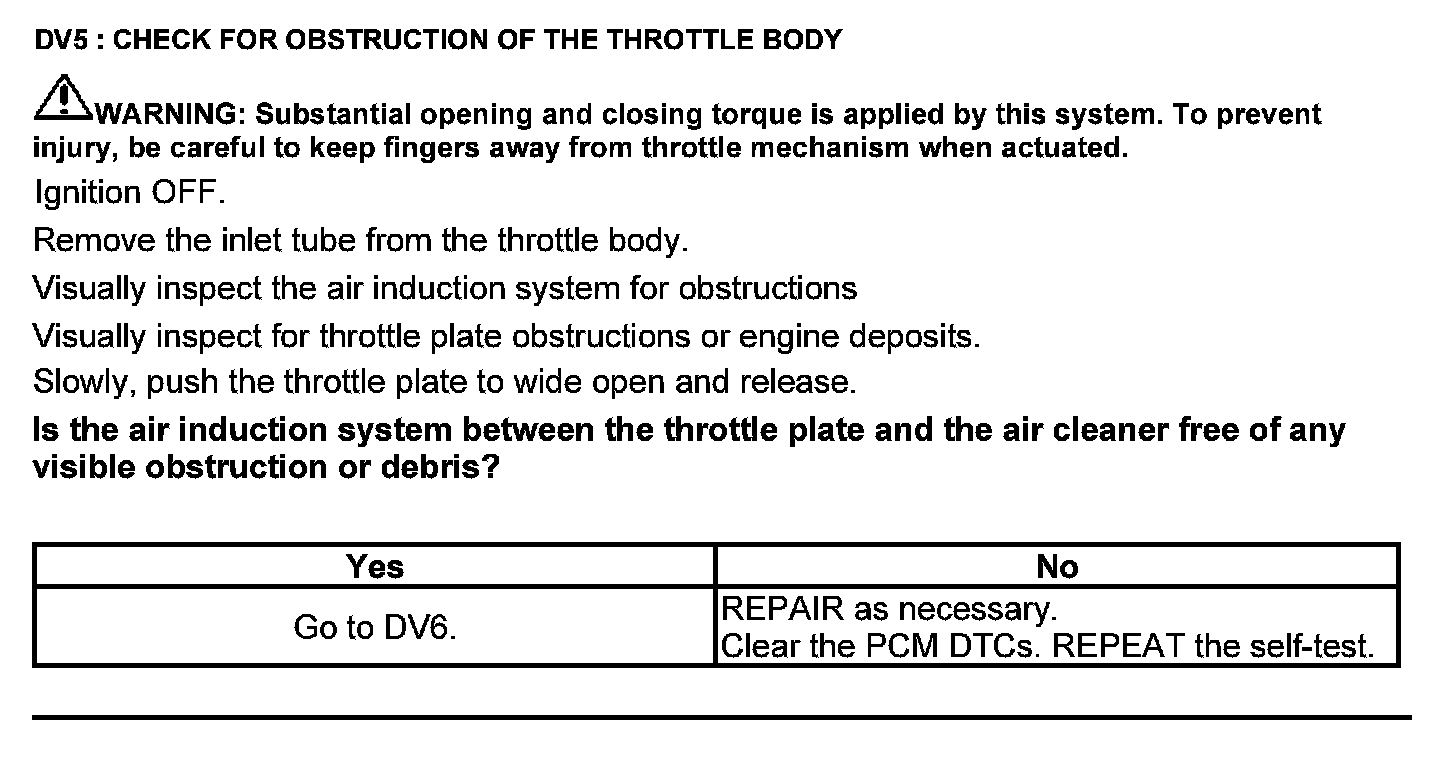

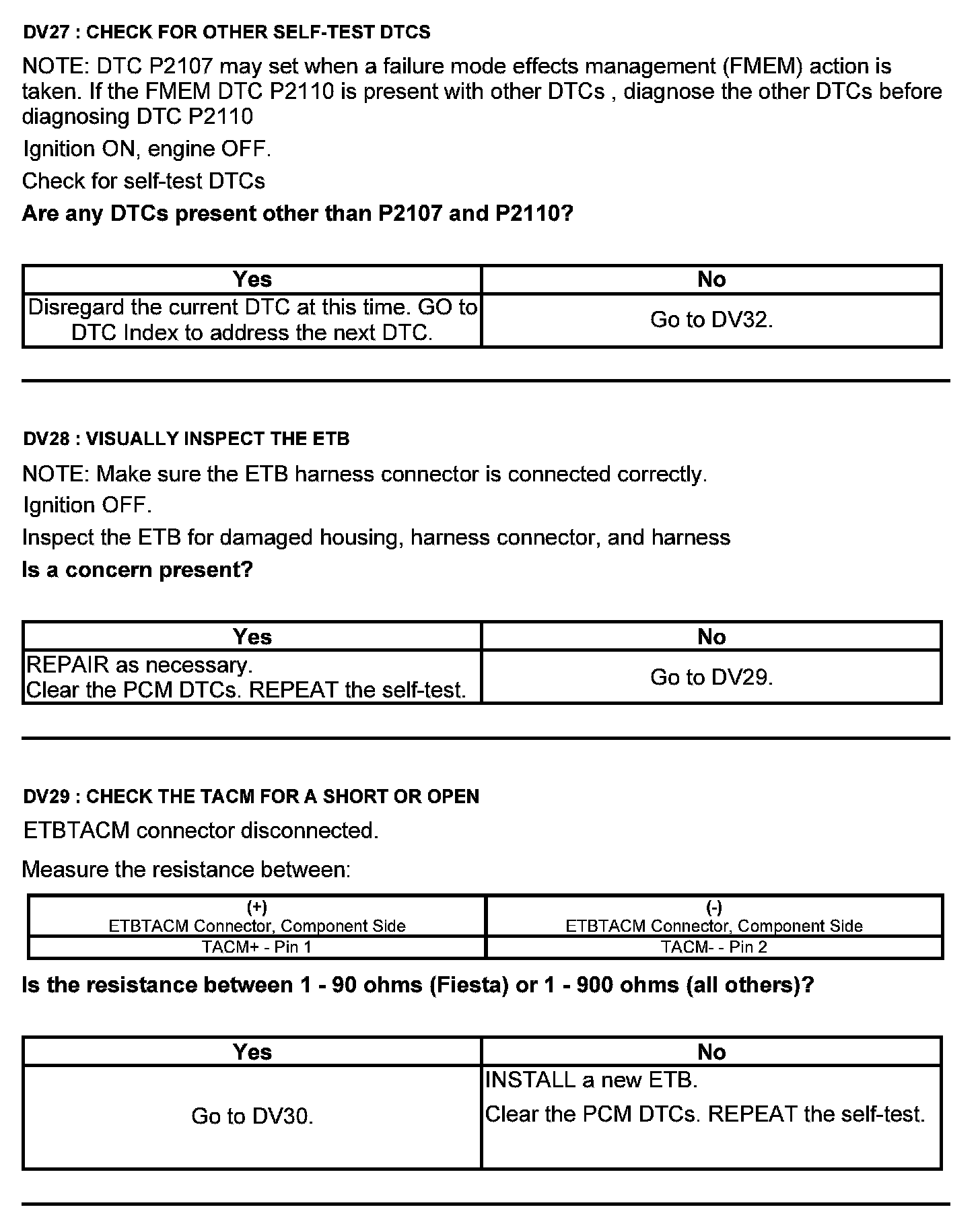

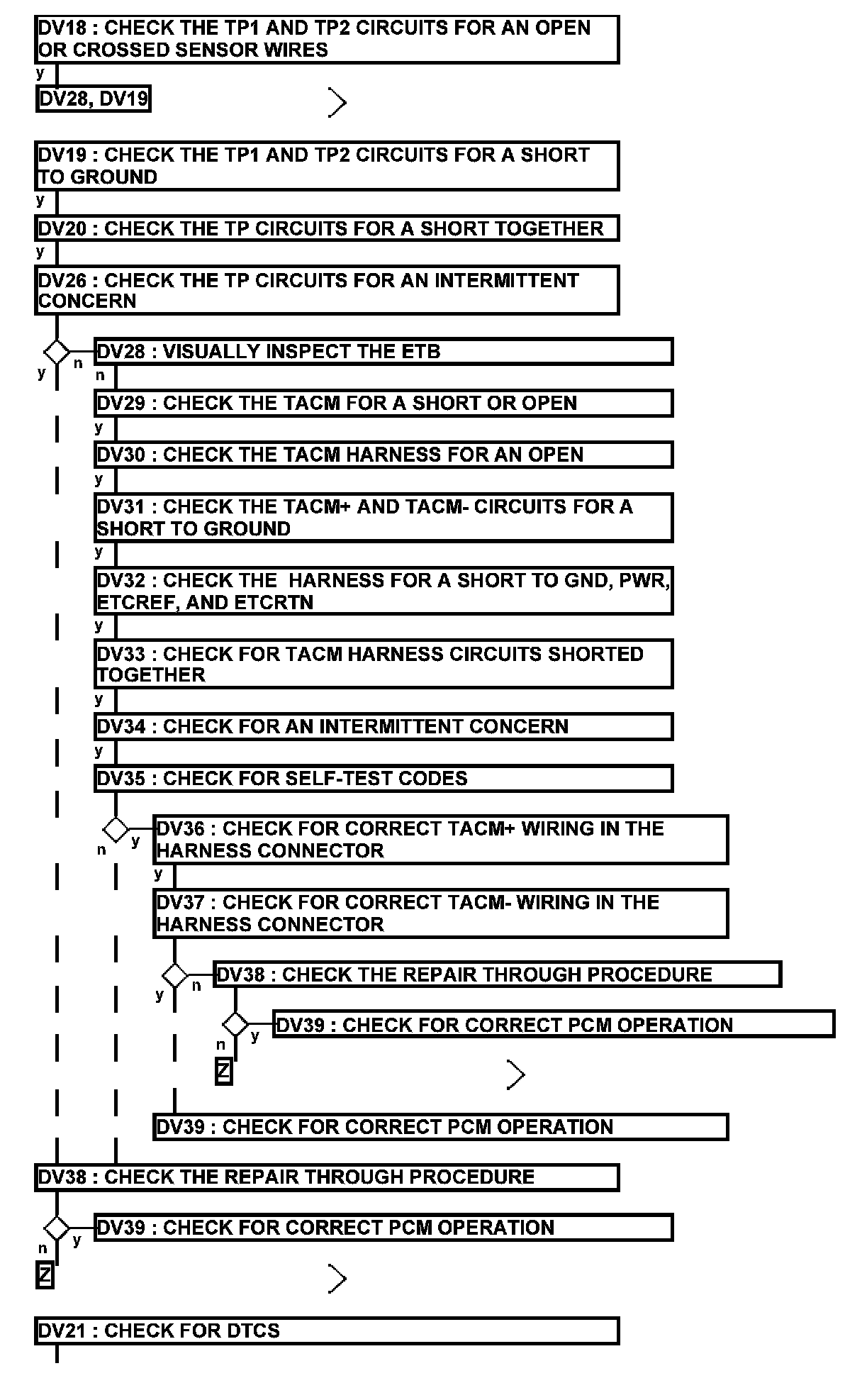

Test DV: Throttle Body Assembly Electronic Throttle Control (ETC)

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2012 Ford Truck.

AI Repair Guides

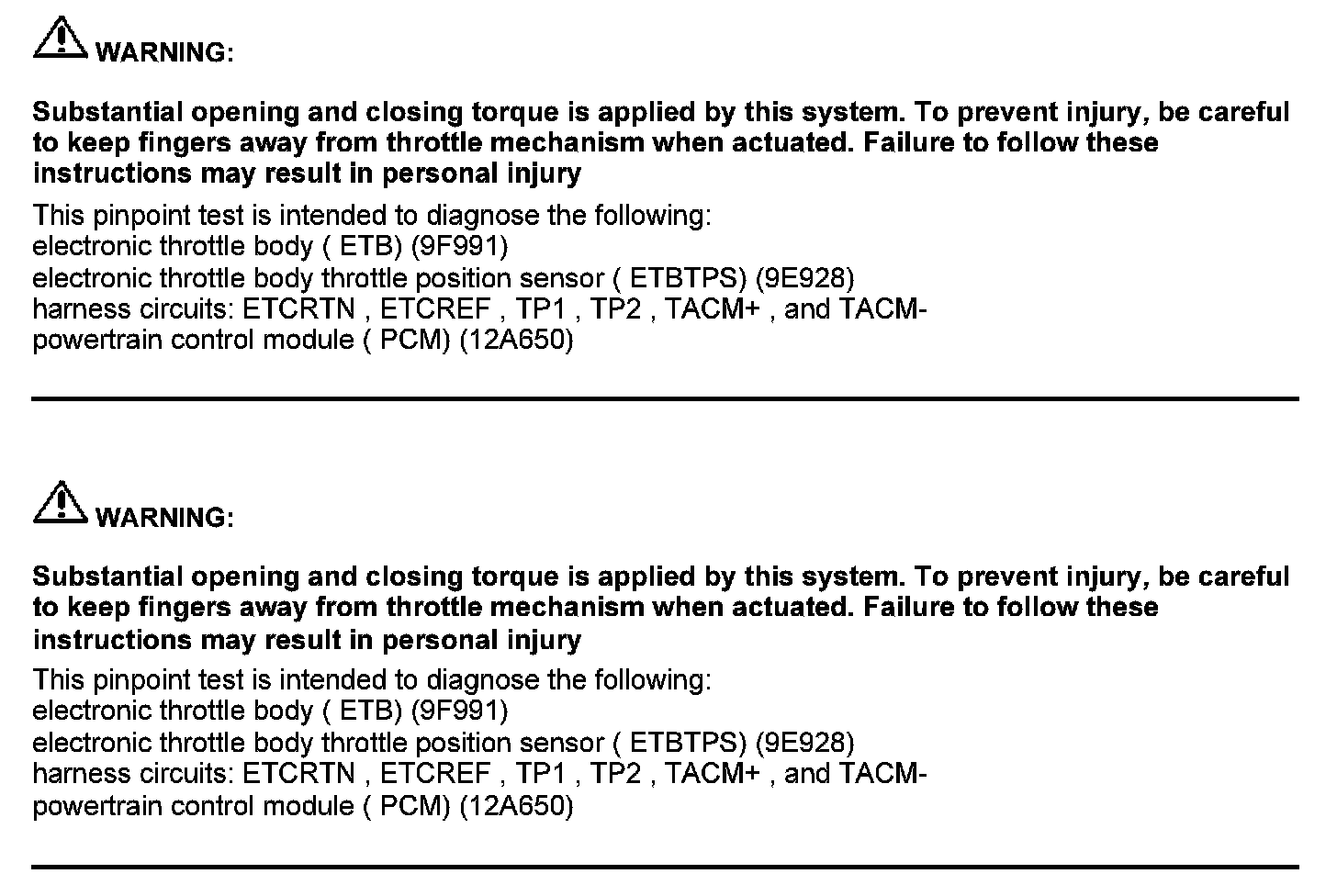

Throttle Body Assembly Electronic Throttle Control (ETC)

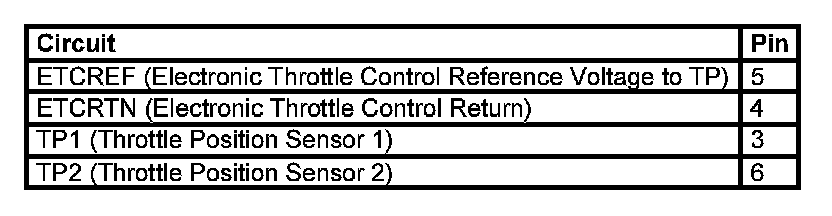

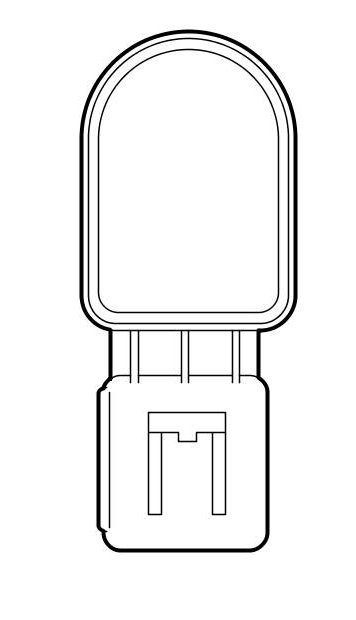

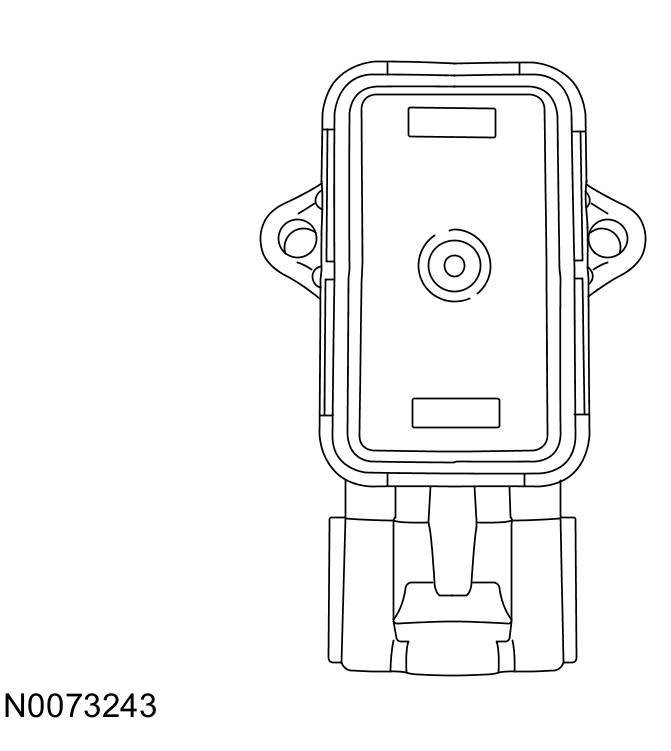

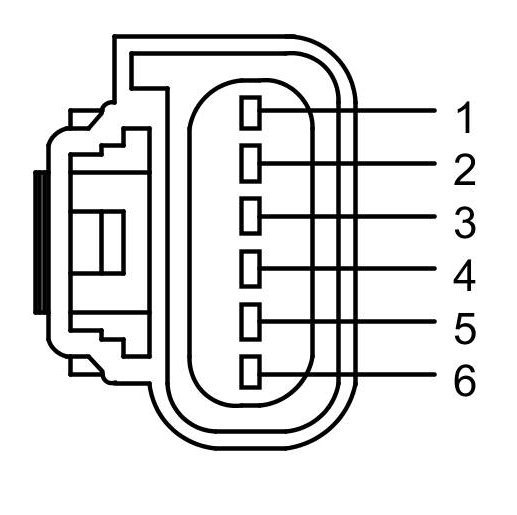

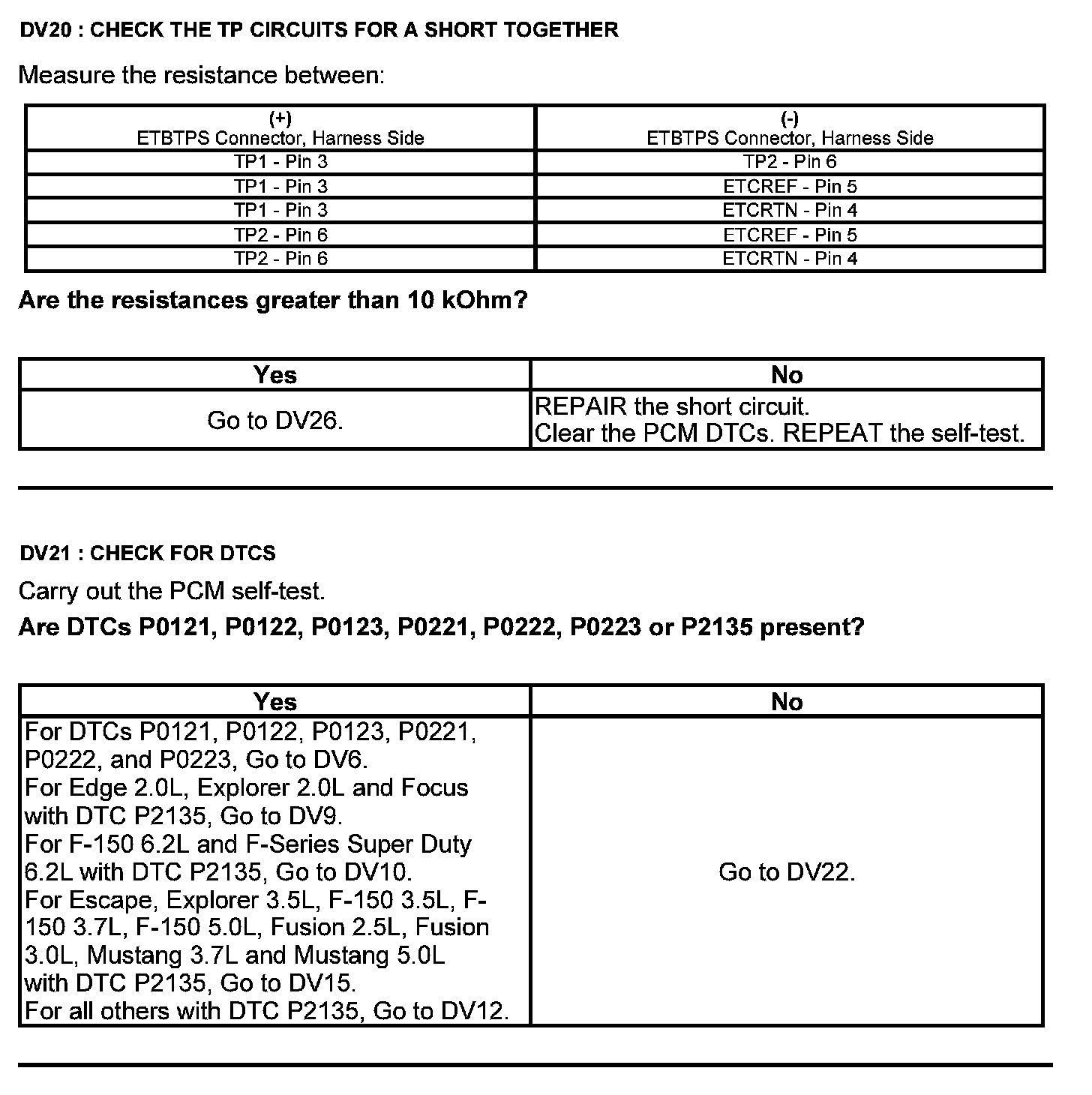

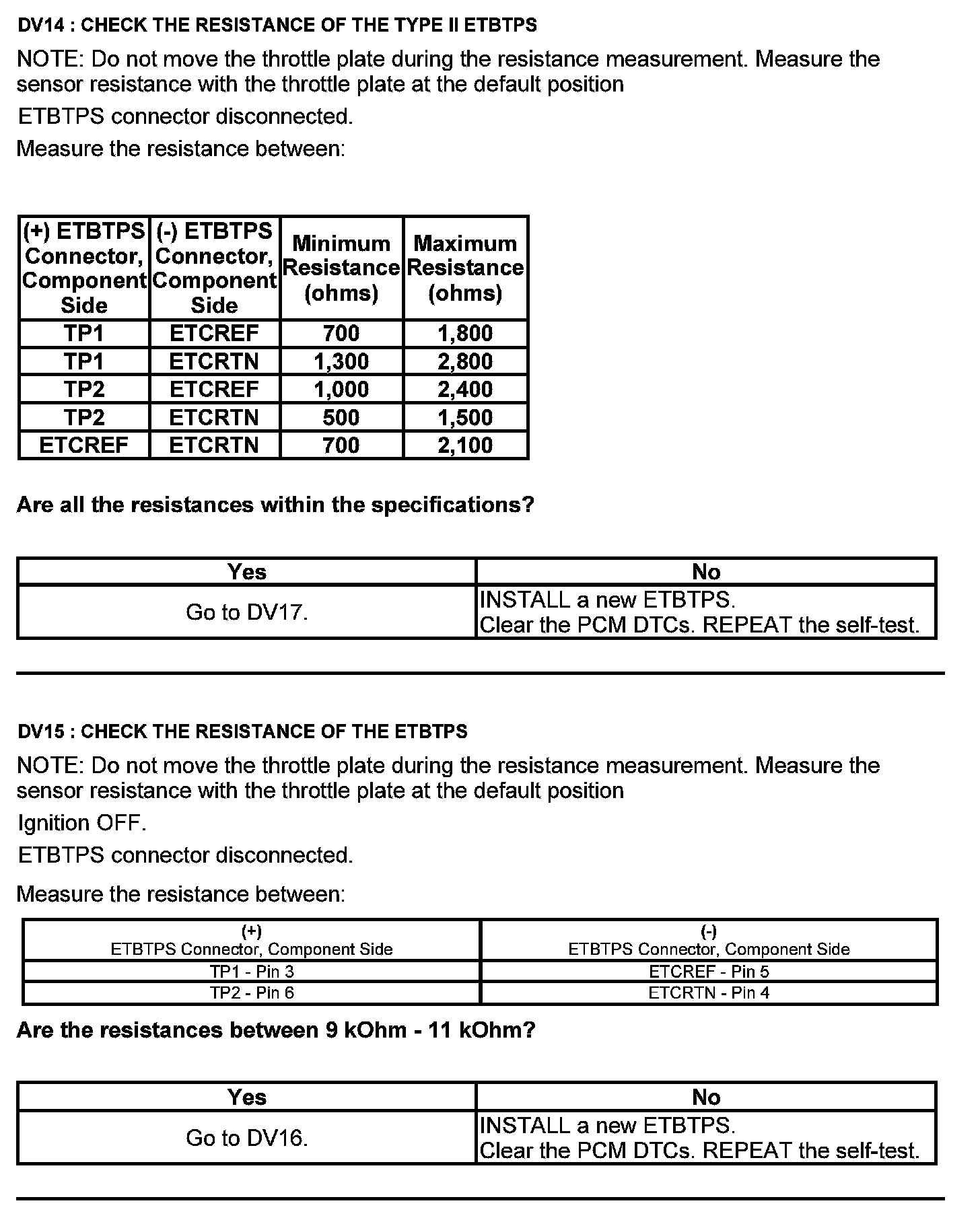

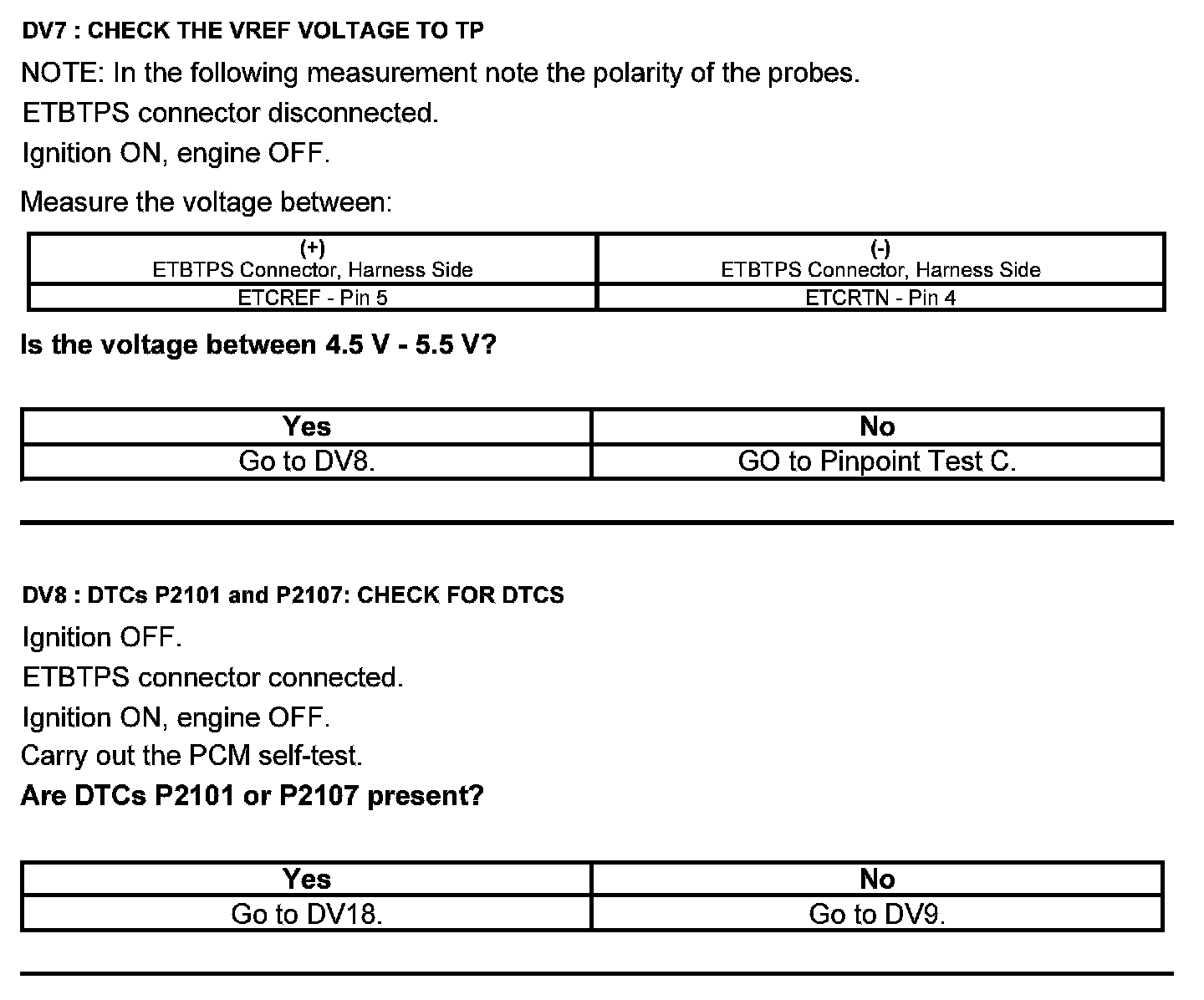

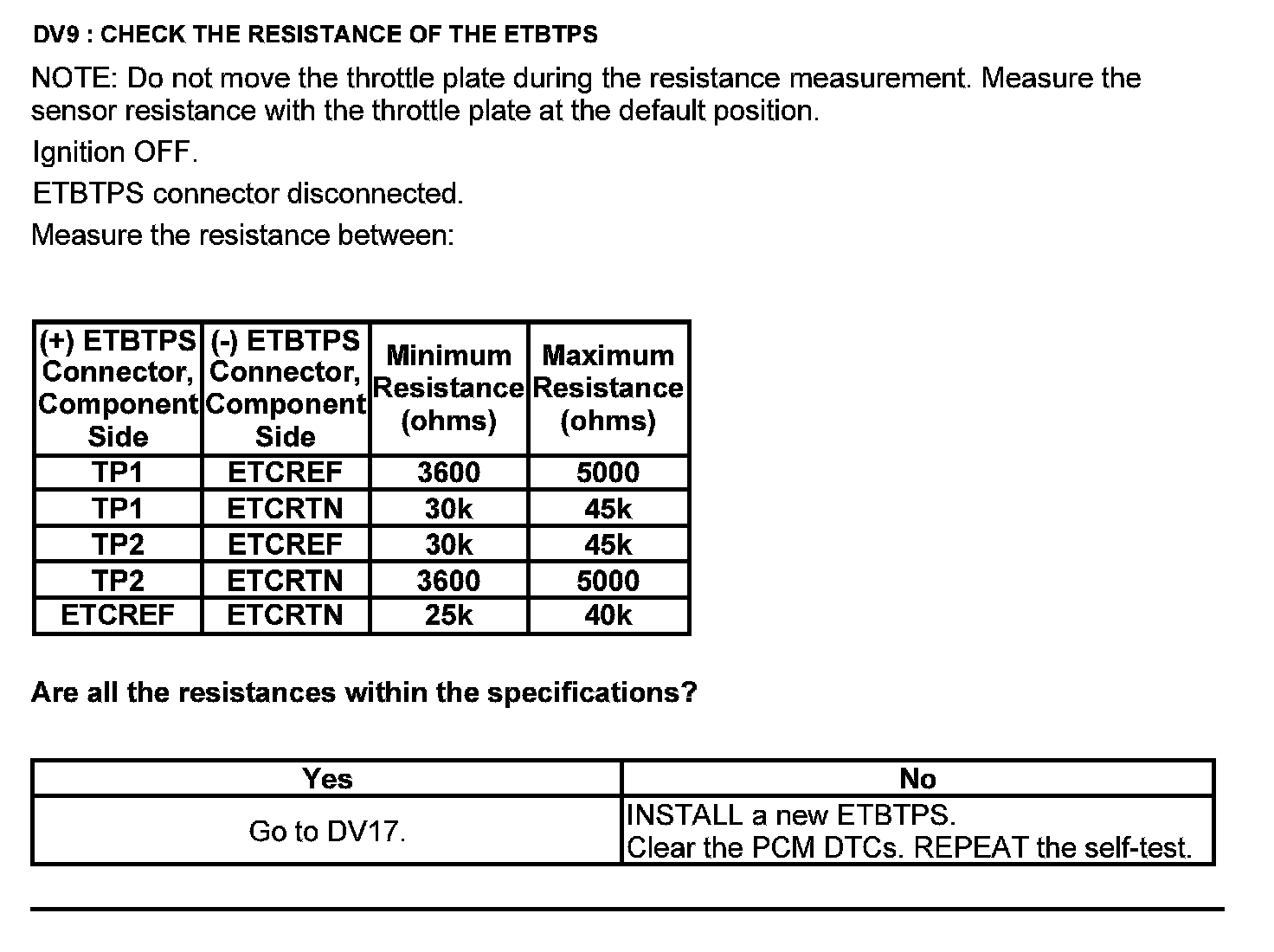

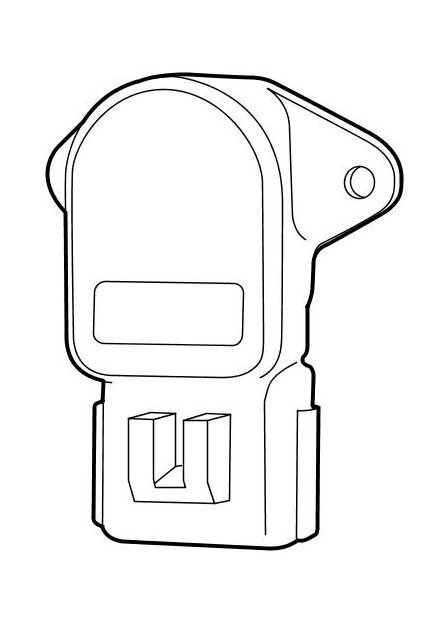

Electronic Throttle Body Throttle Position Sensor (ETBTPS) Connector





Harness Side

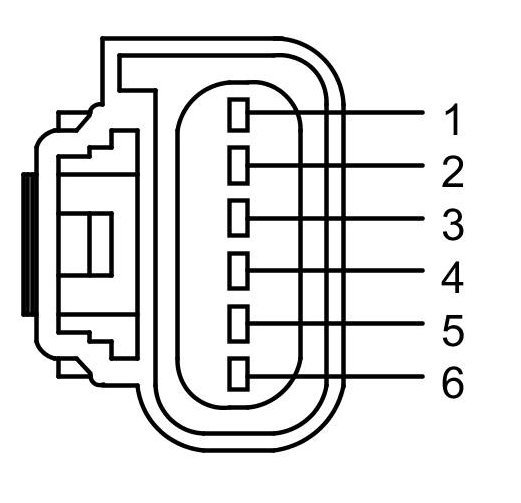

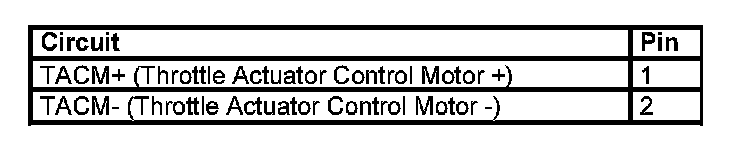

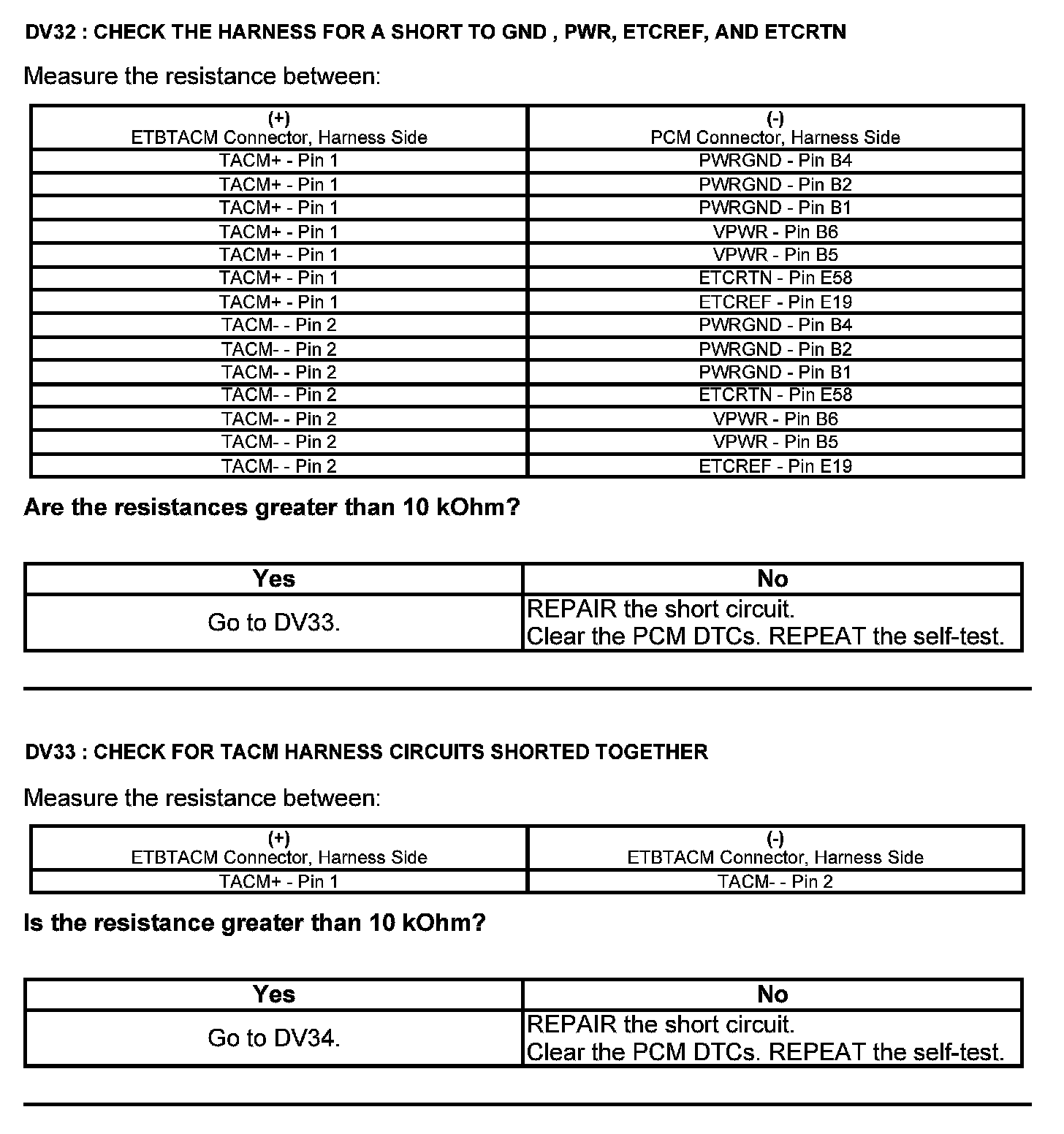

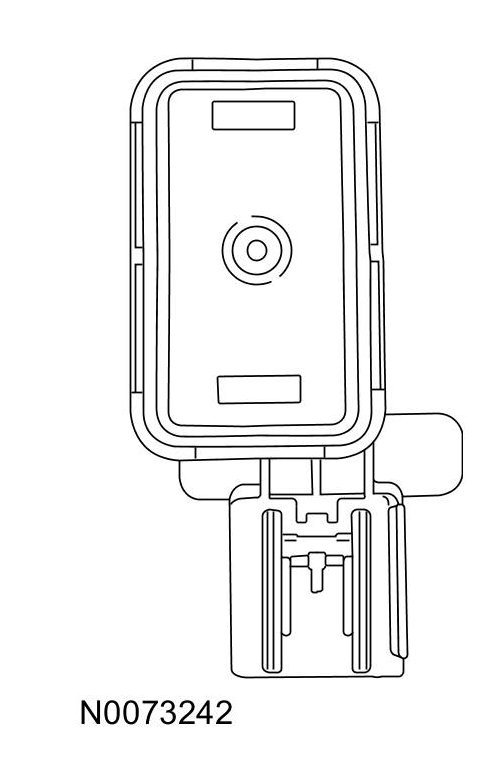

Electronic Throttle Body Throttle Actuator Control Motor (ETBTACM) Connector





Harness Side

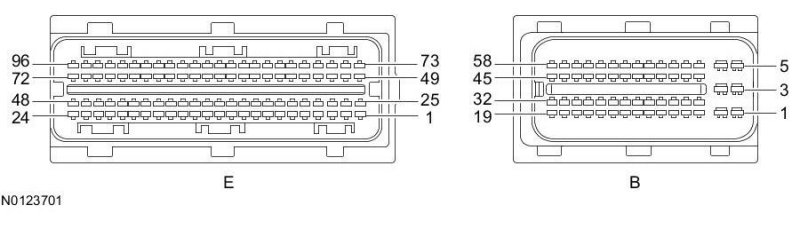

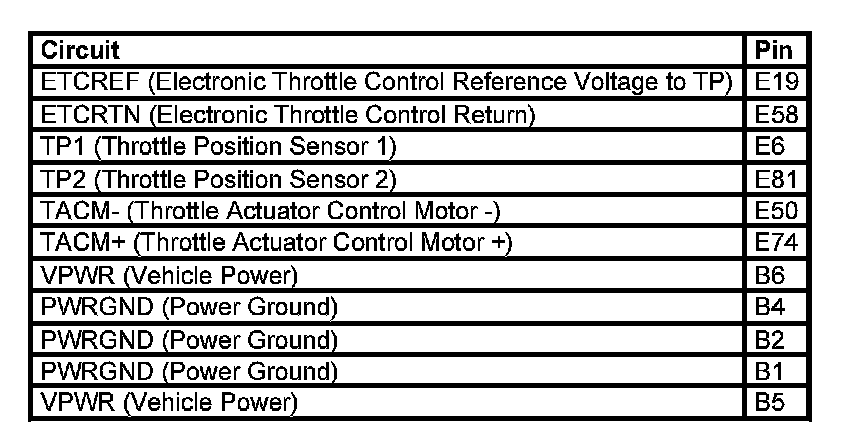

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
