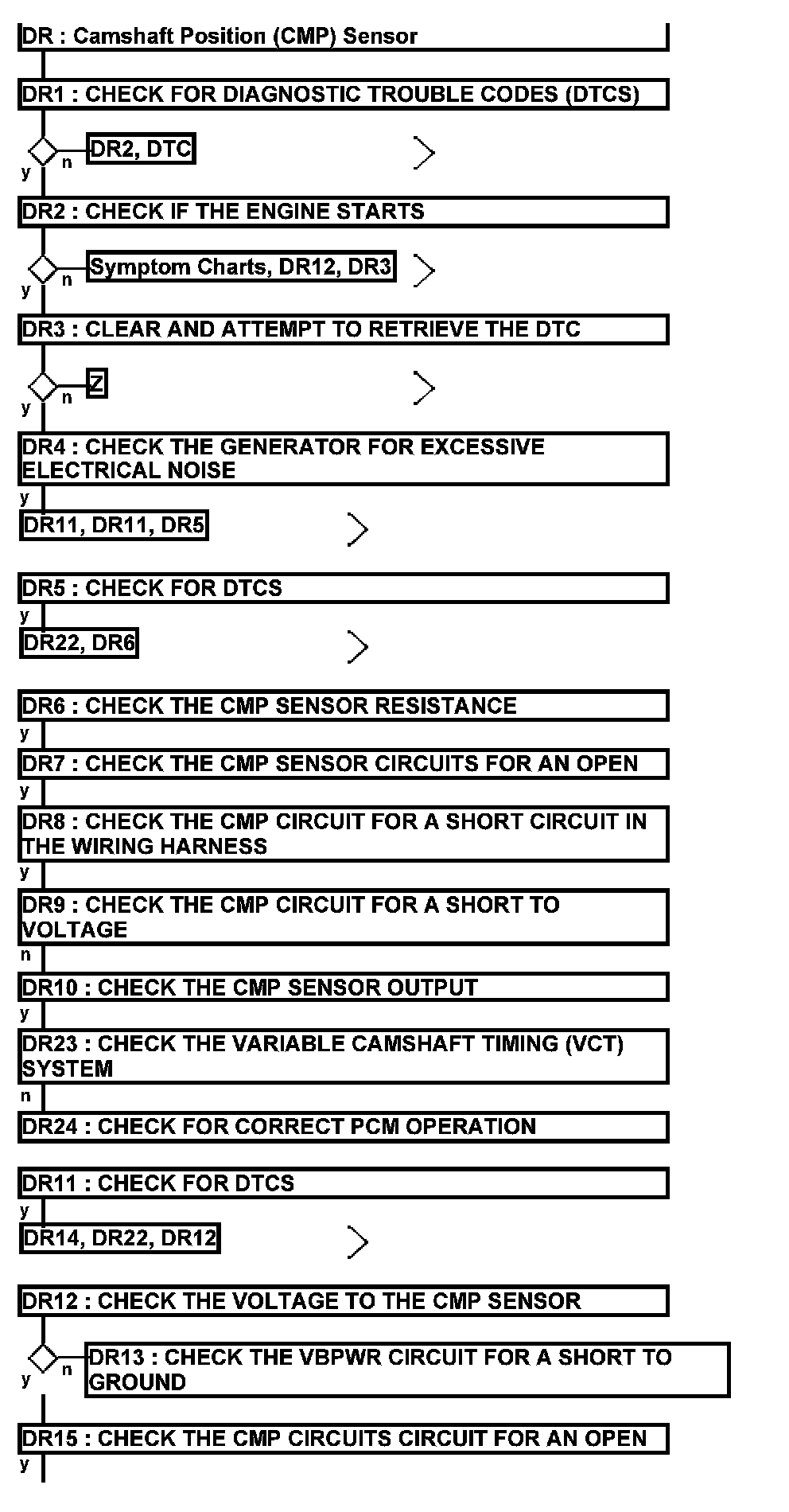

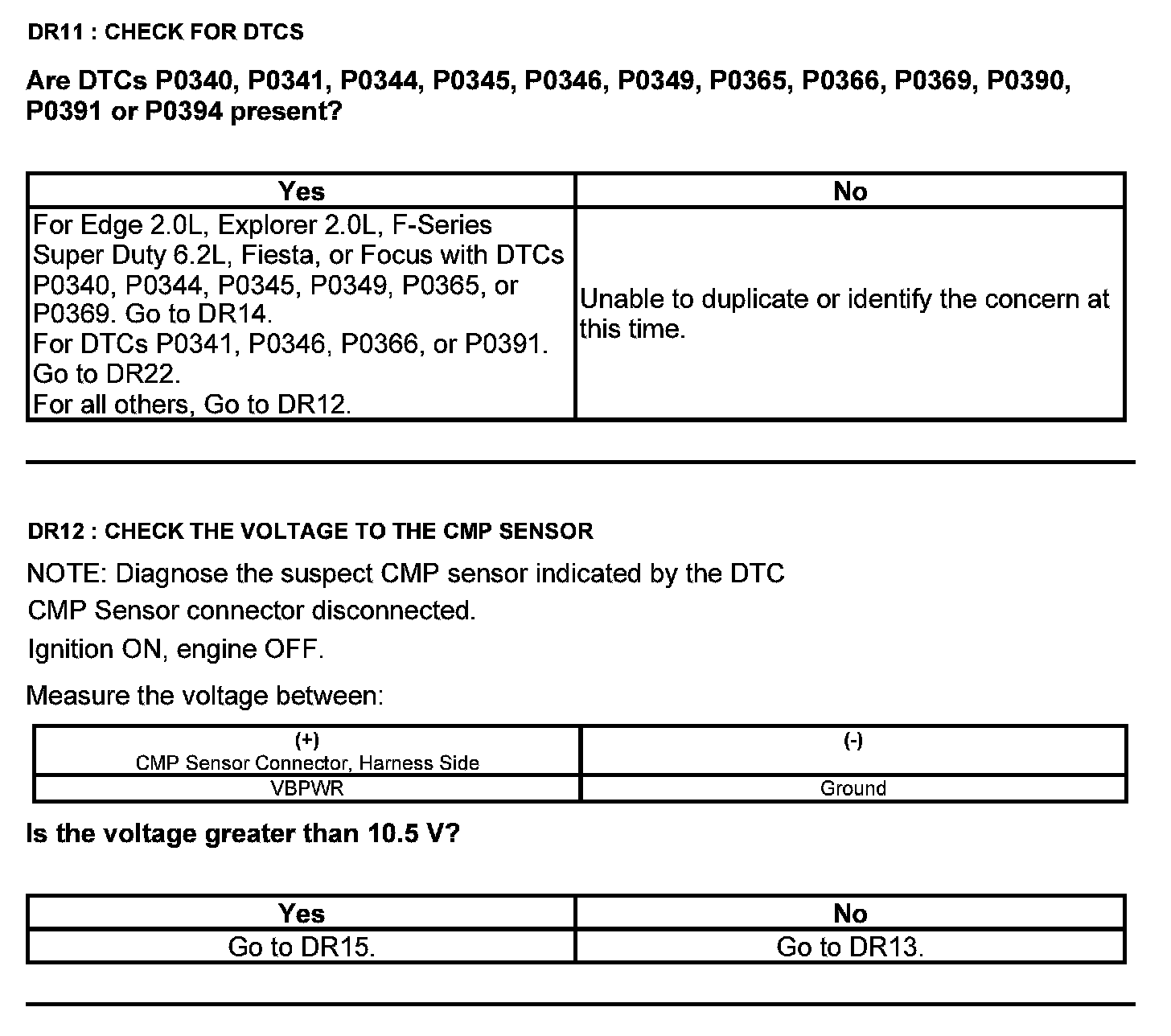

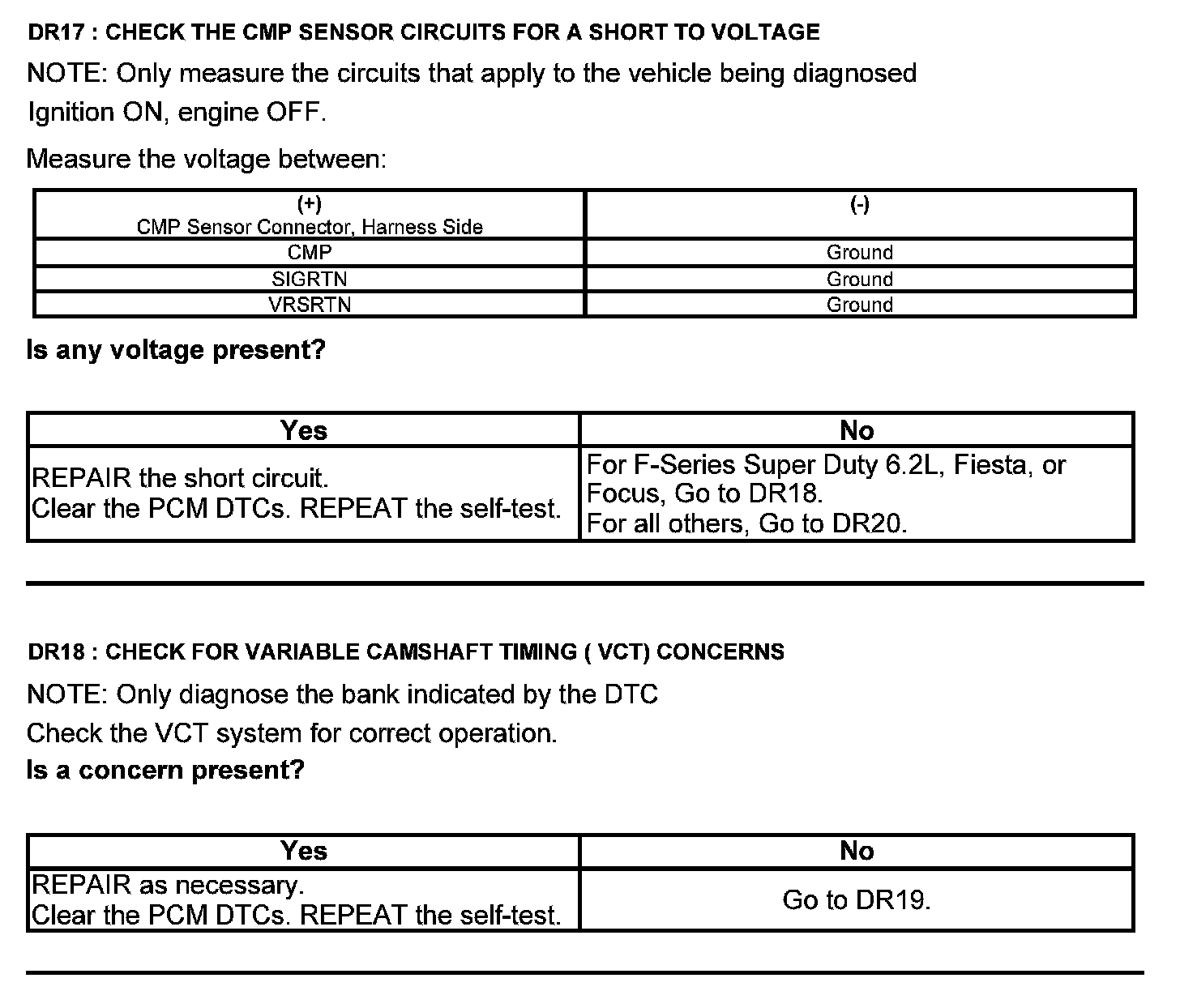

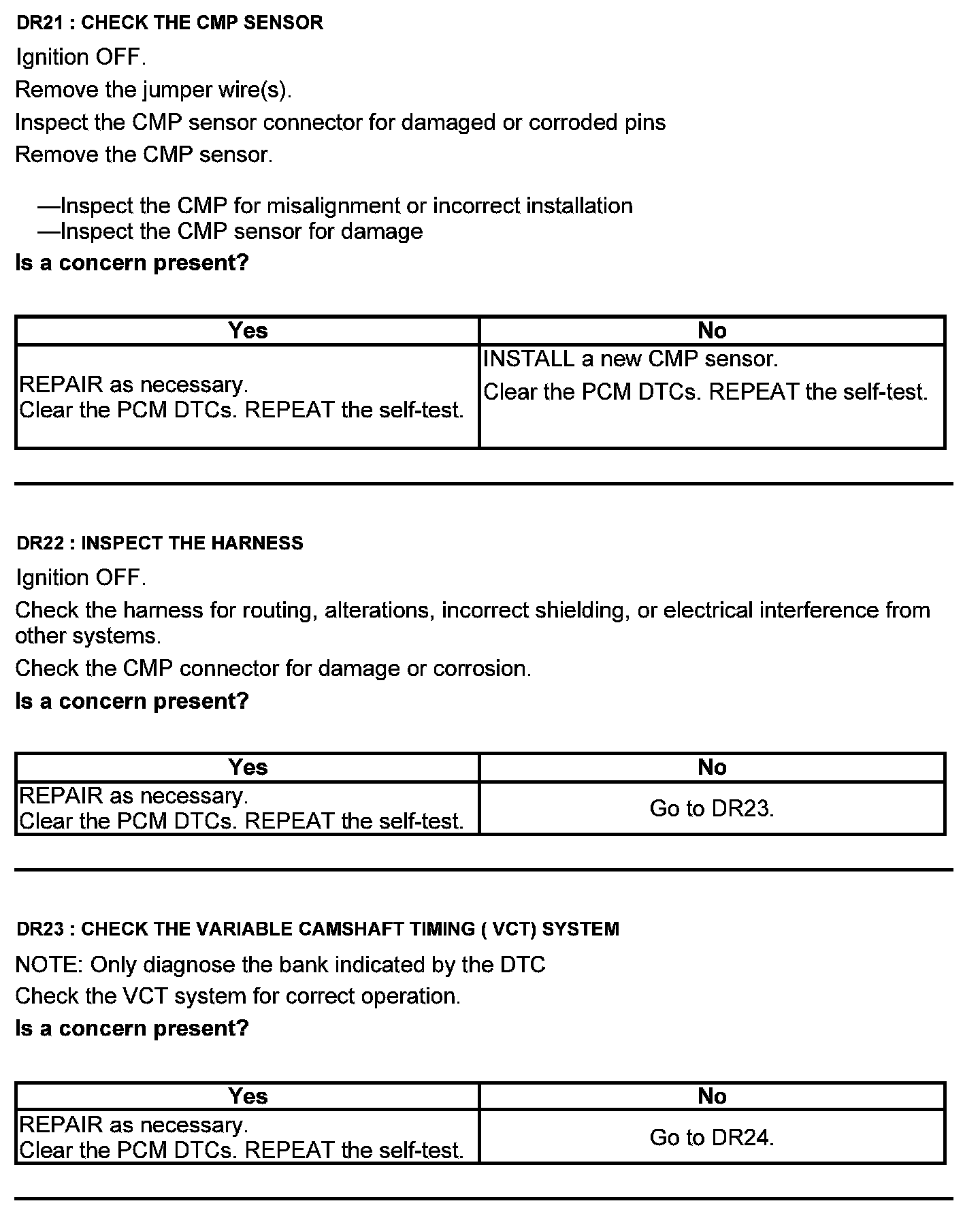

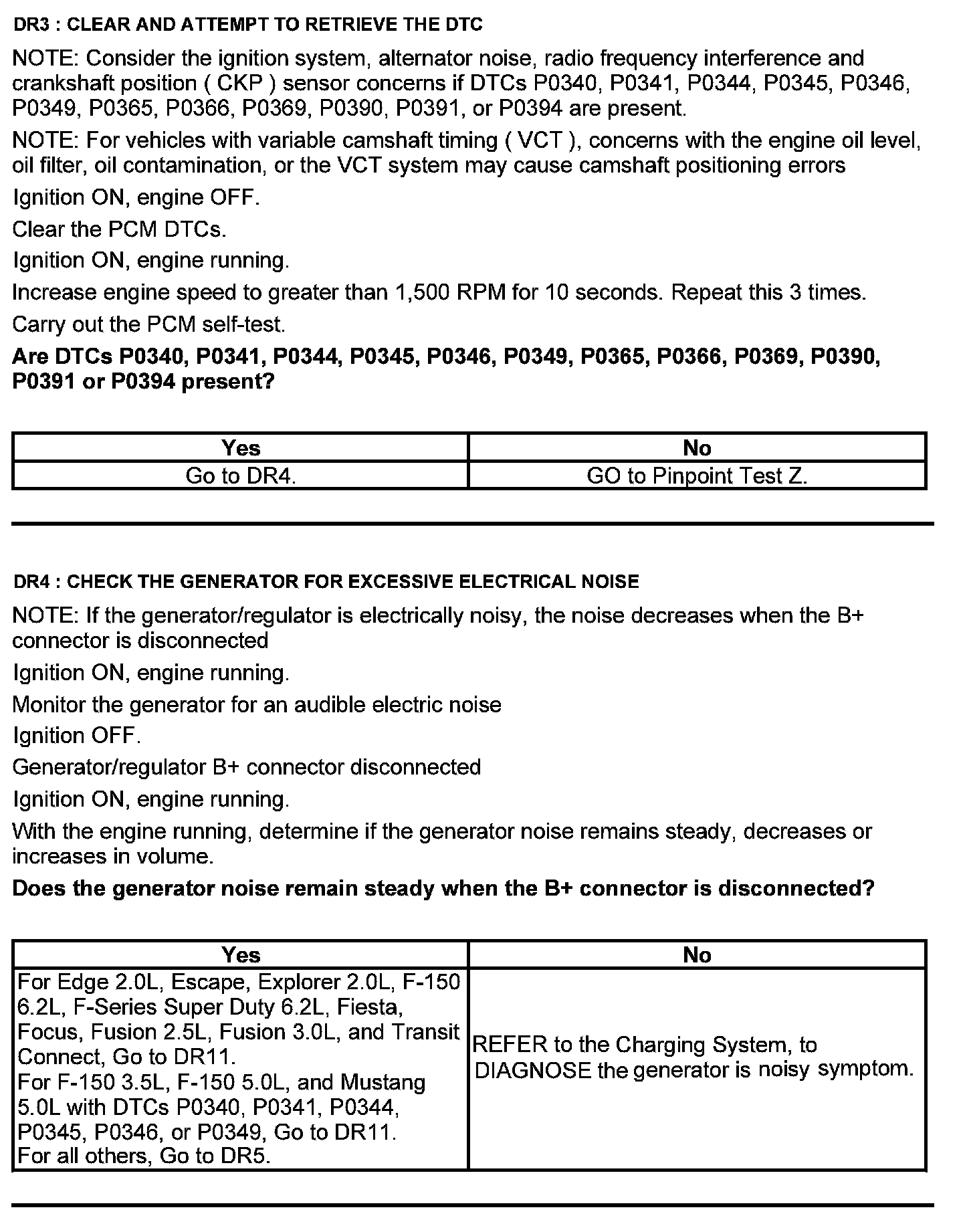

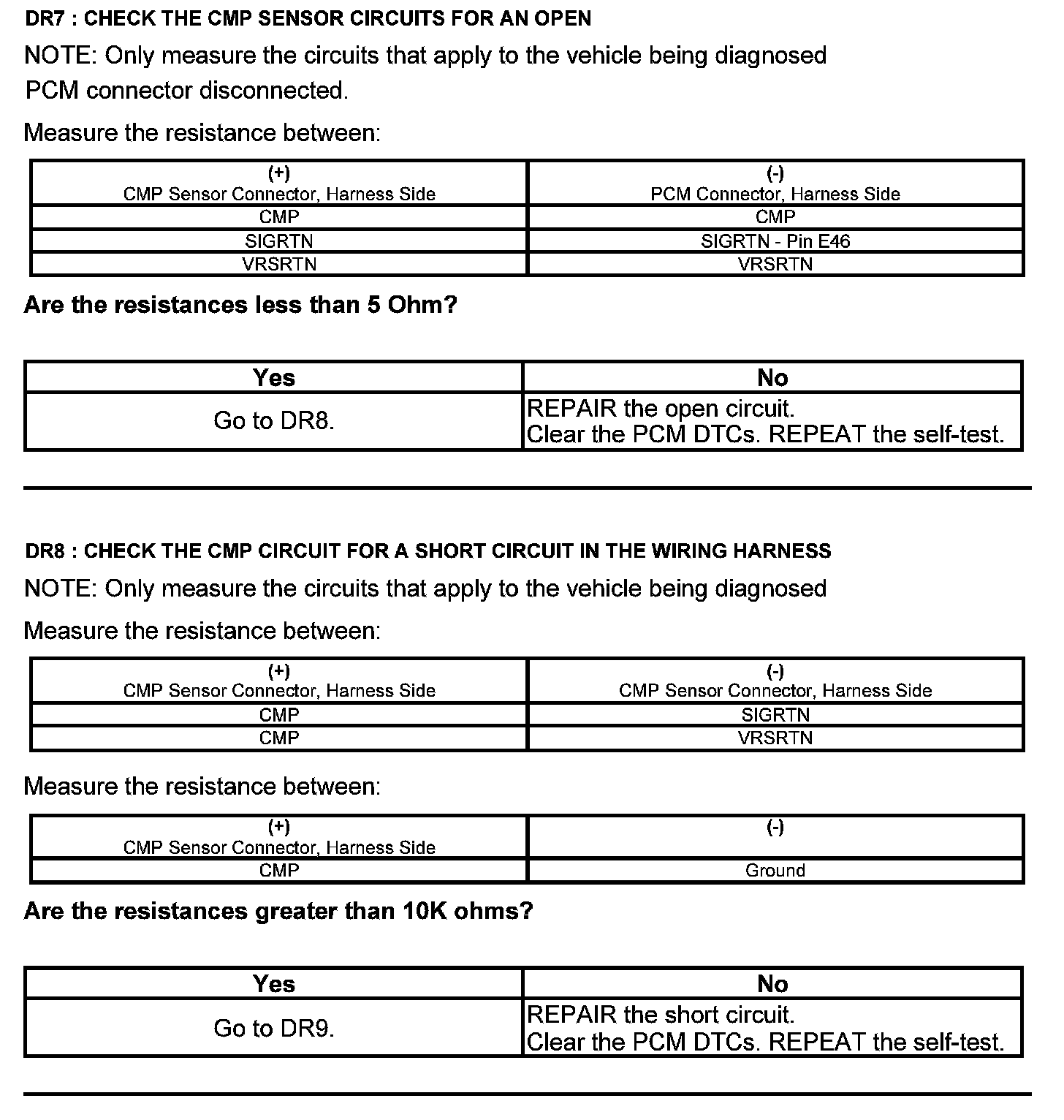

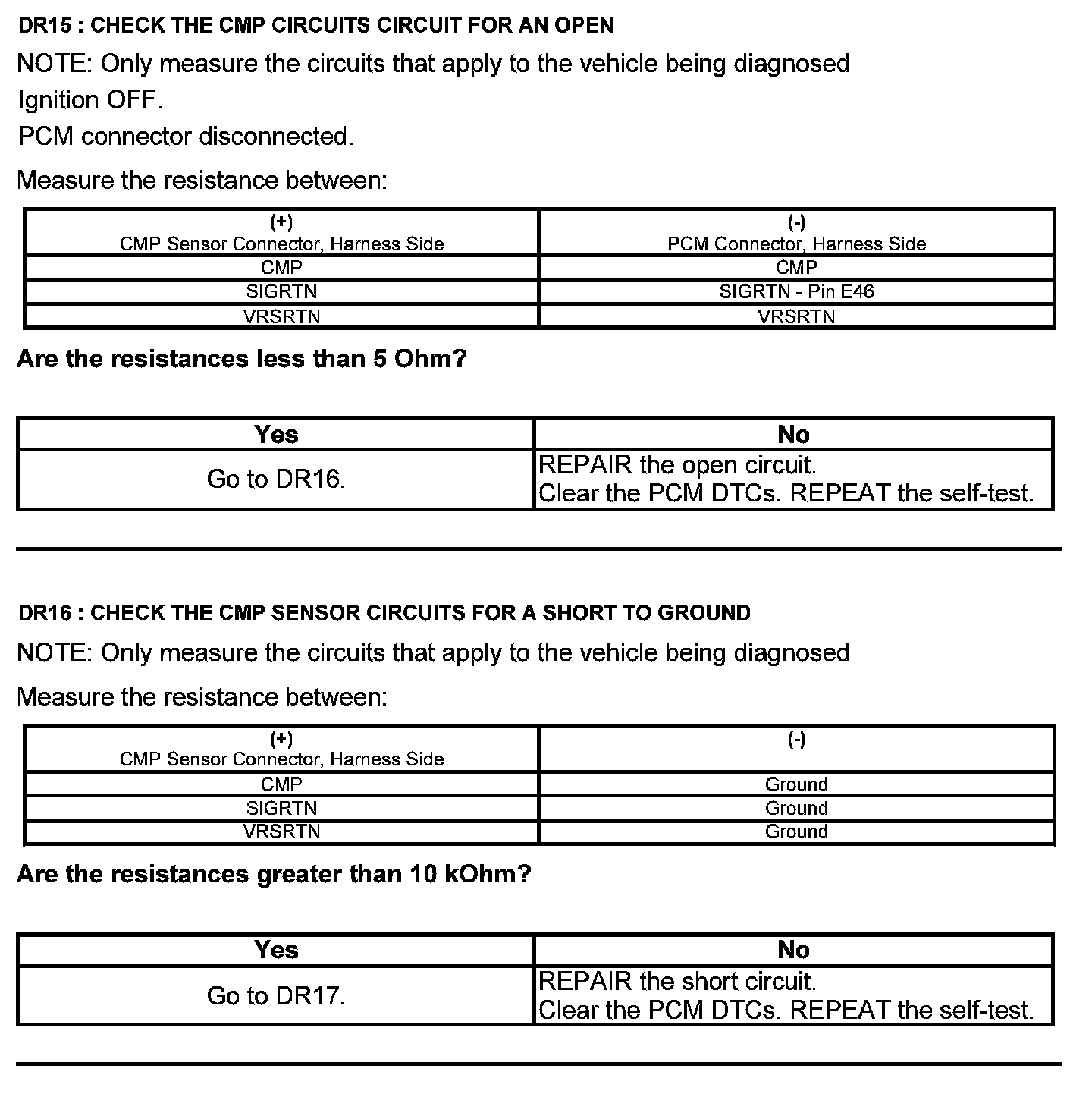

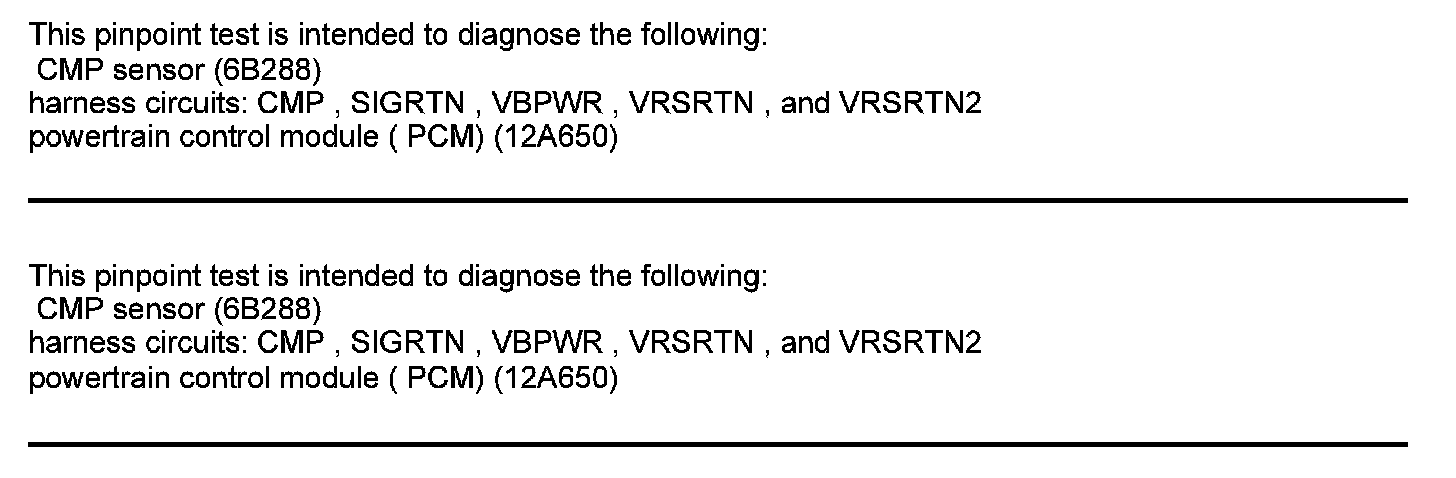

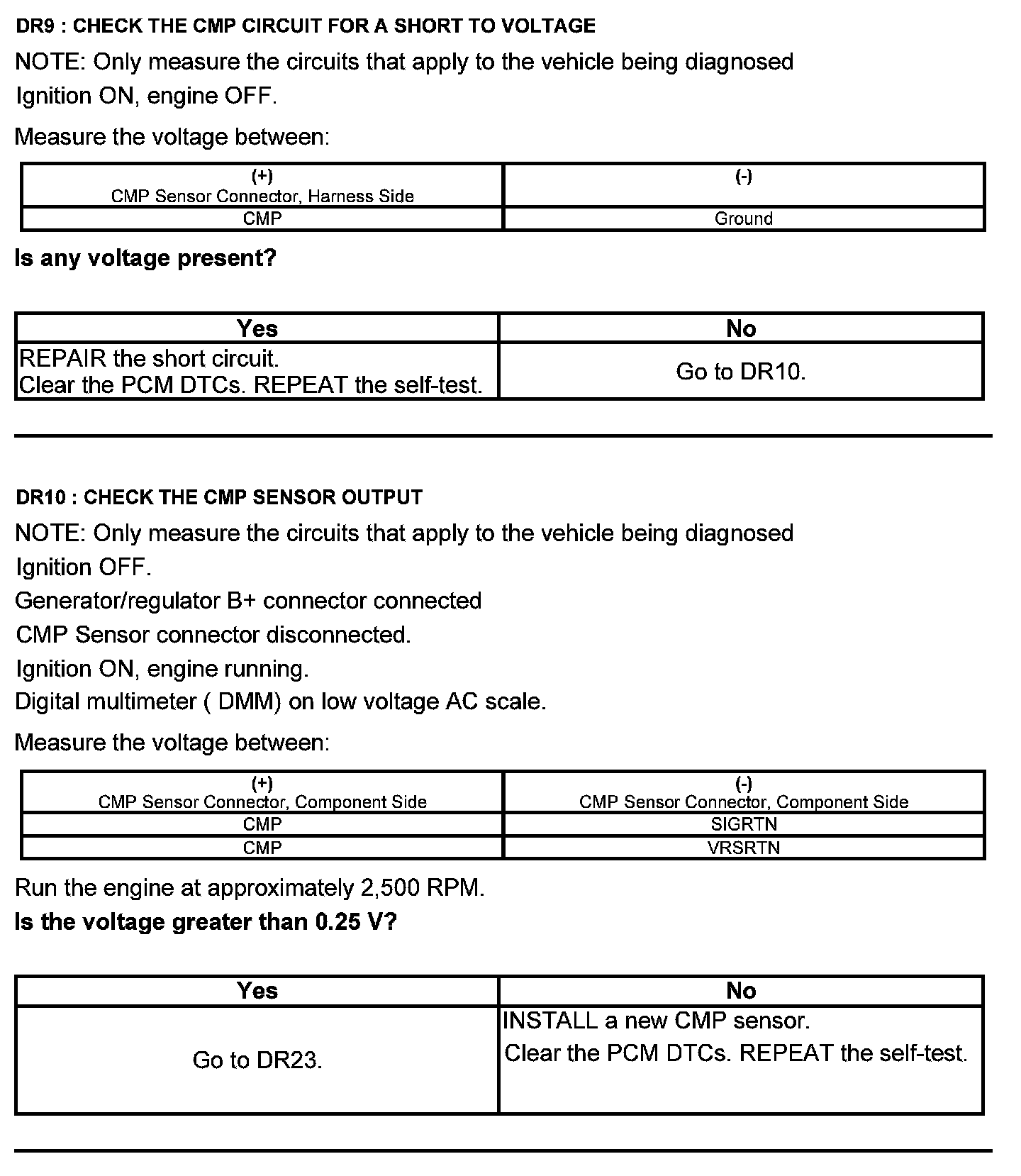

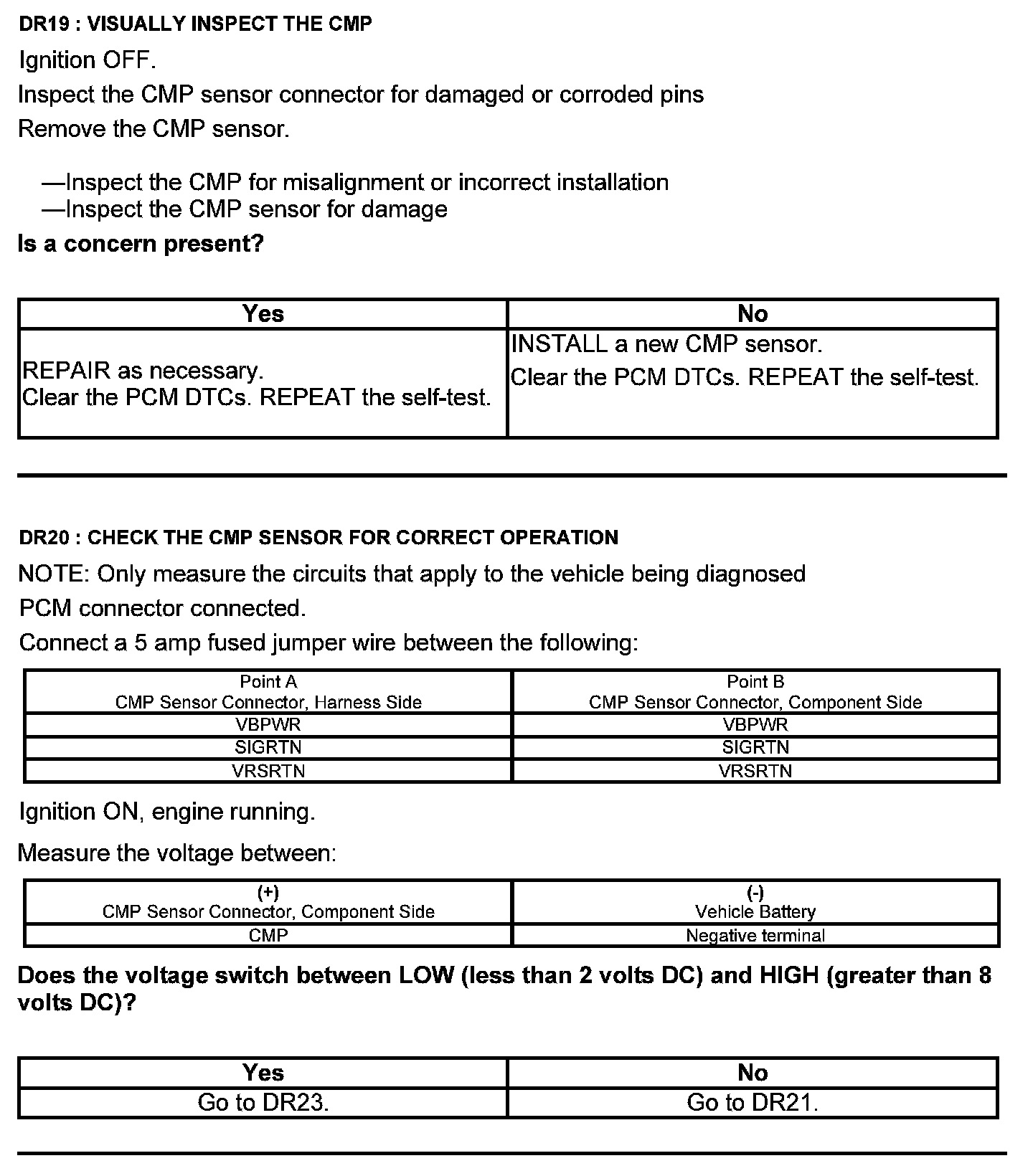

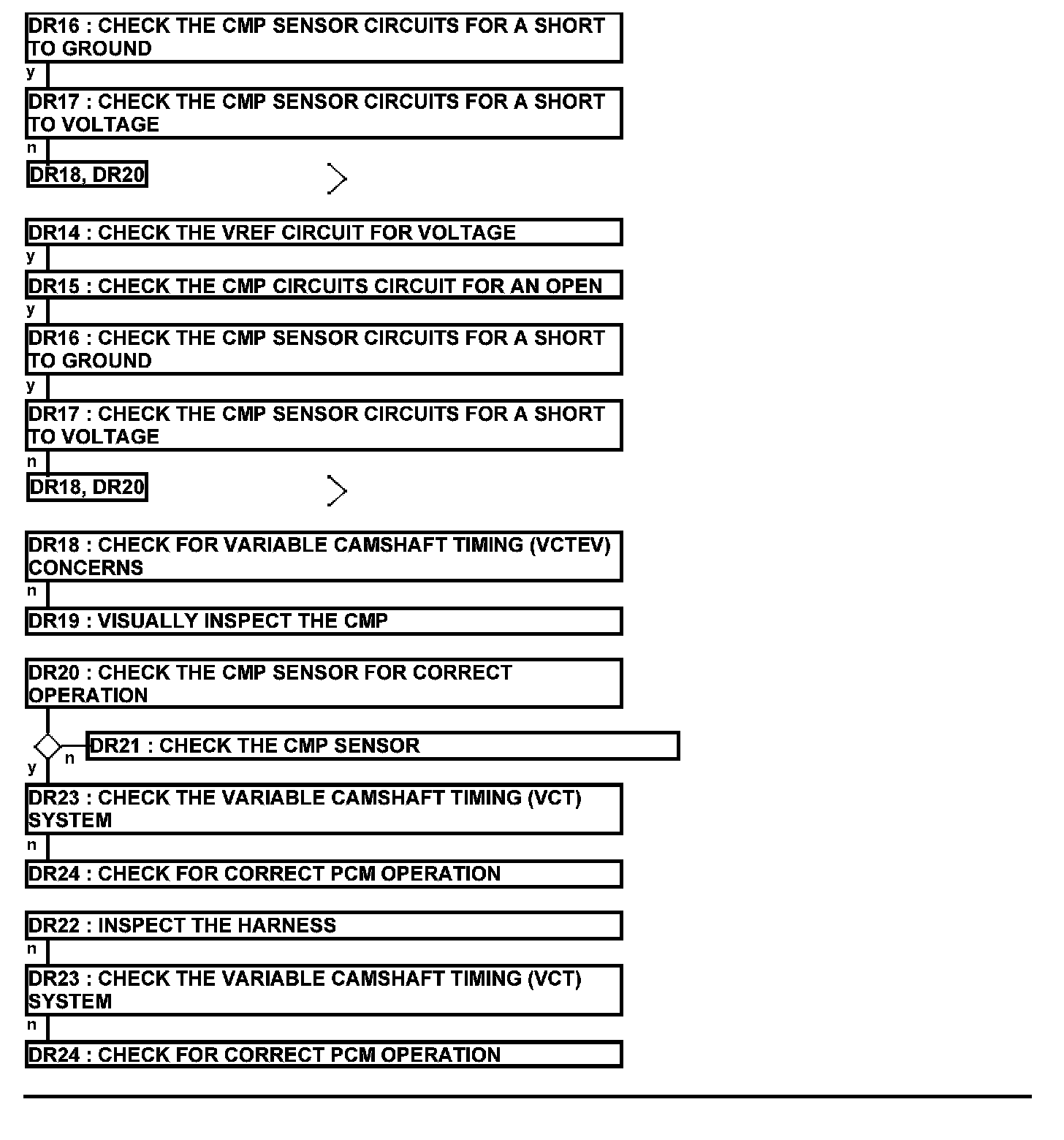

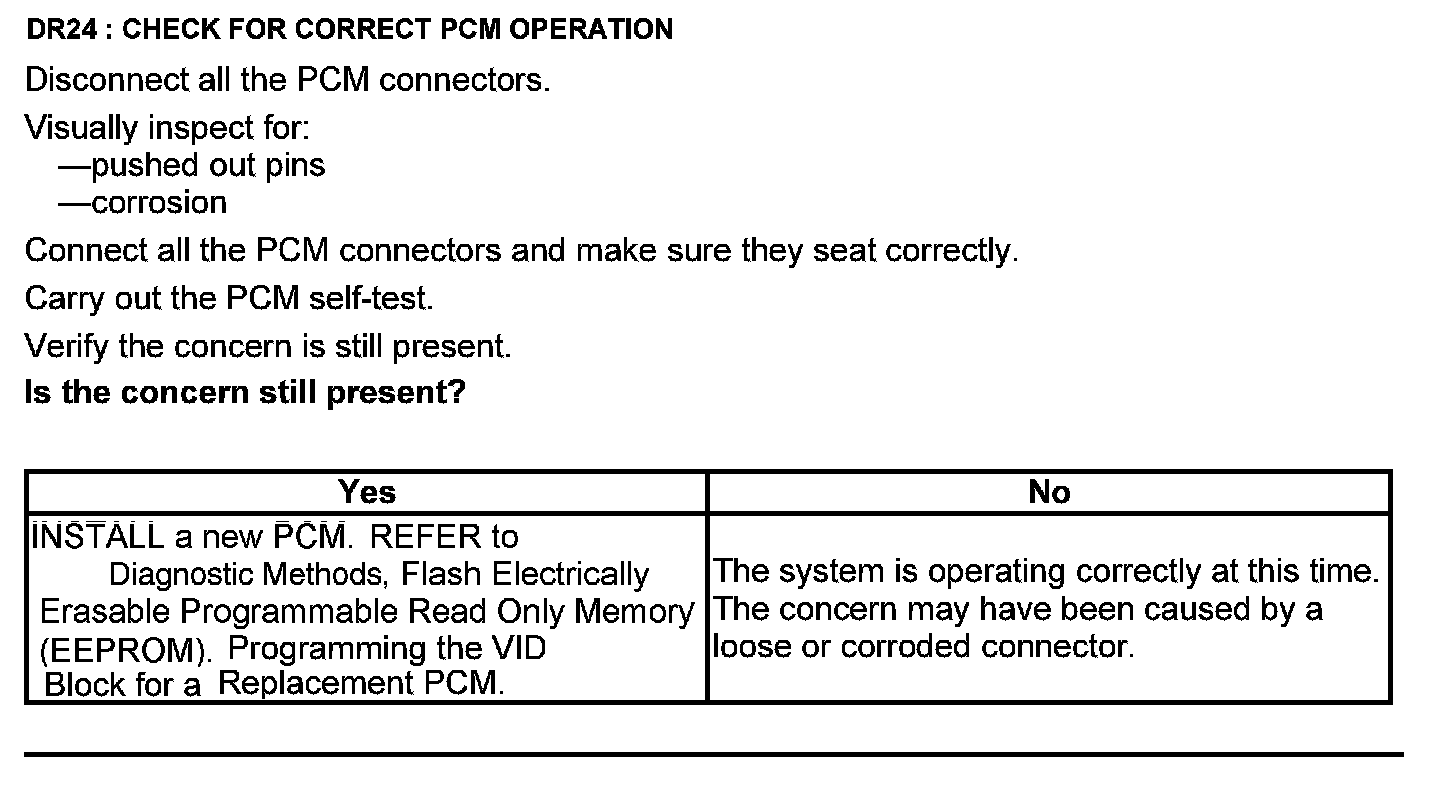

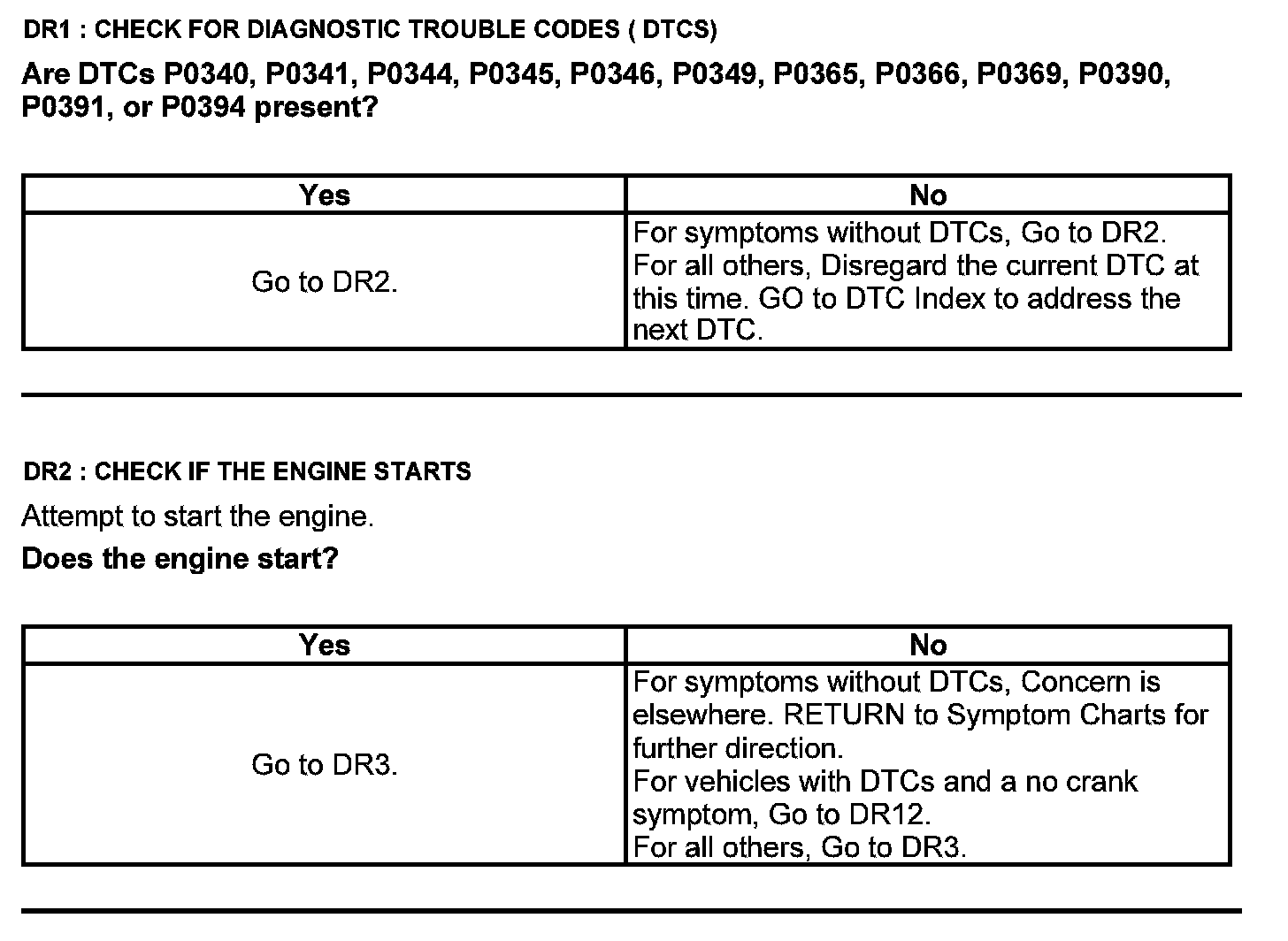

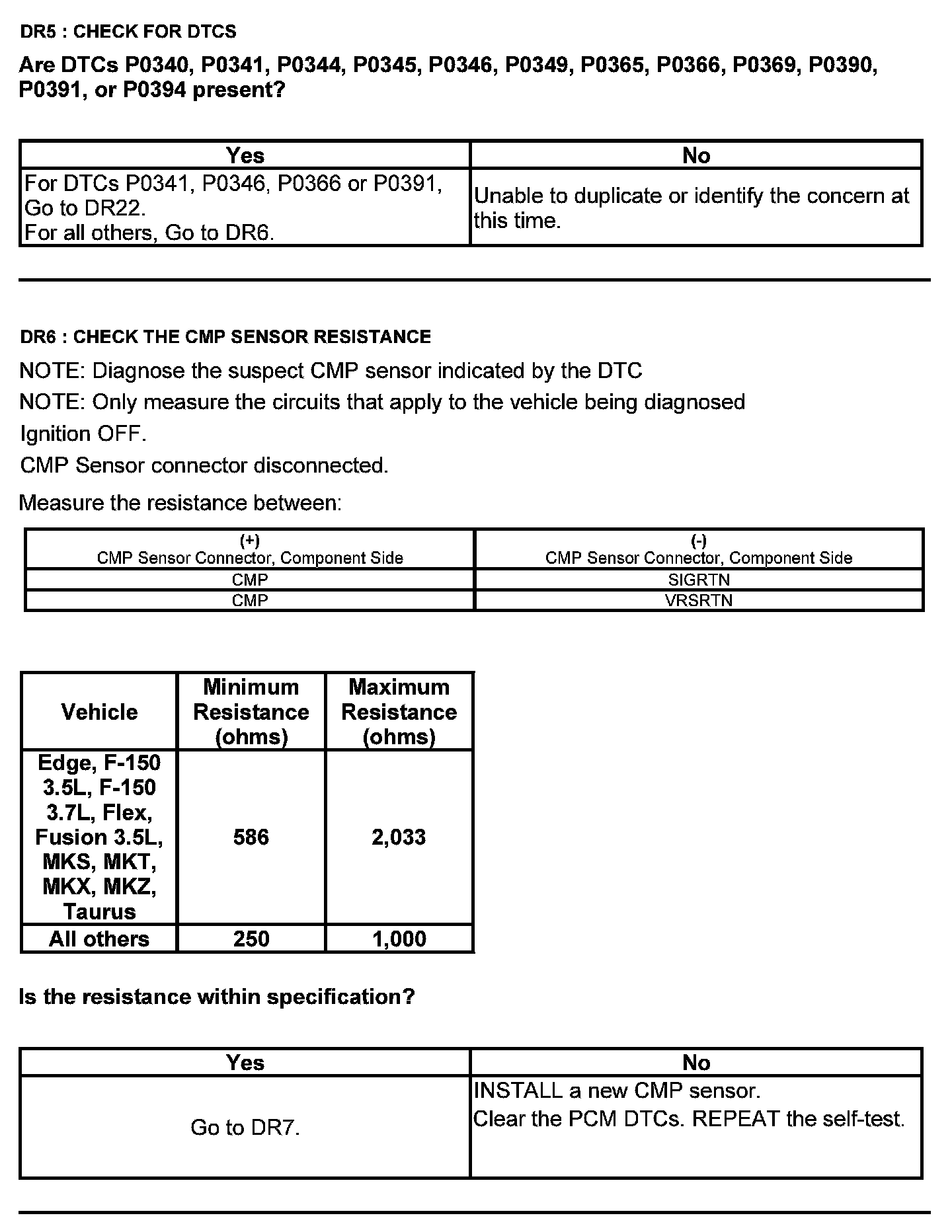

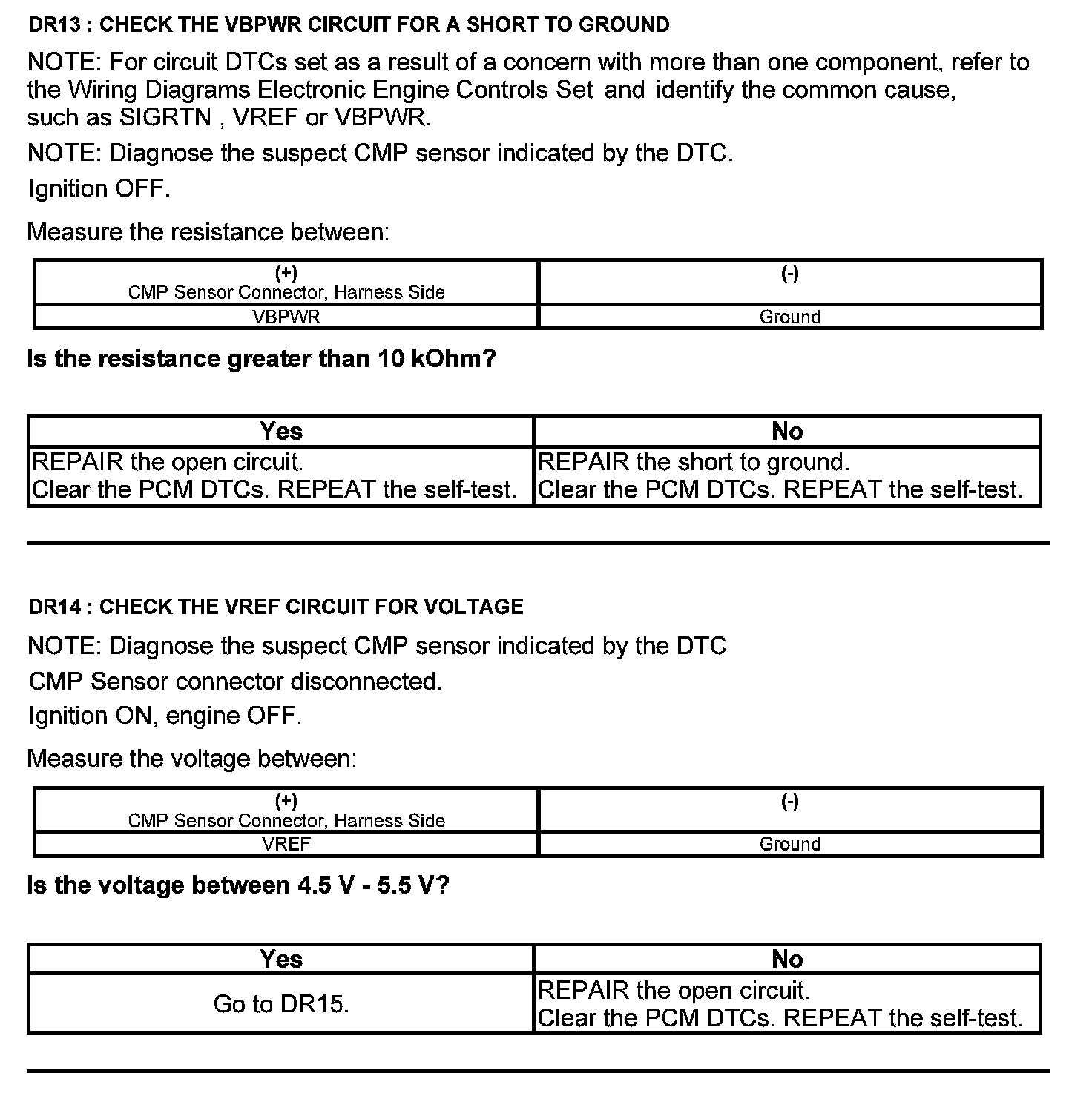

Test DR: Camshaft Position (CMP) Sensor

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2012 Ford Truck.

AI Repair Guides


Camshaft Position (CMP) Sensor

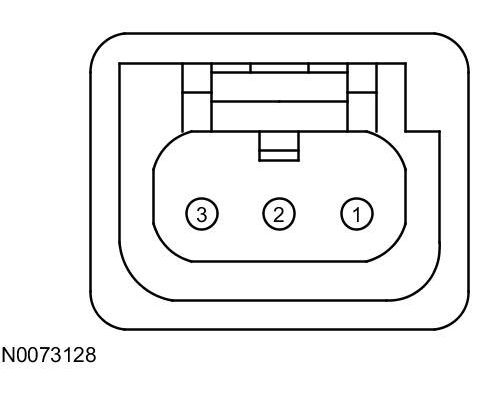

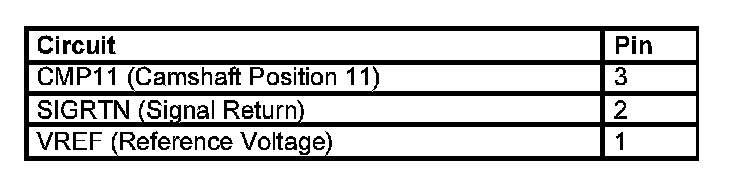

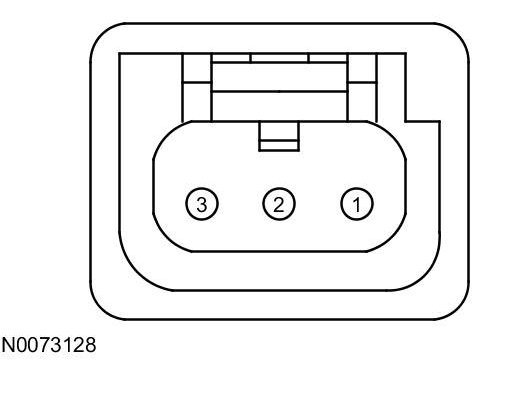

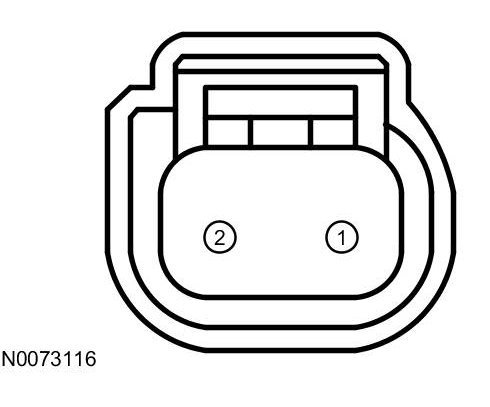

Camshaft Position 11 (CMP11) Sensor Connector





Harness Side






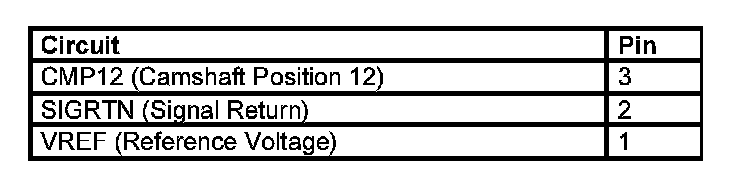

Camshaft Position 12 (CMP12) Sensor Connector





Harness Side

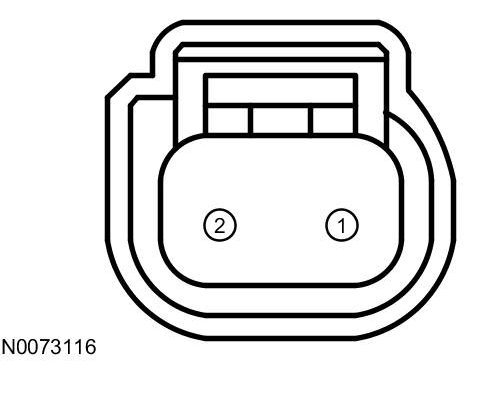

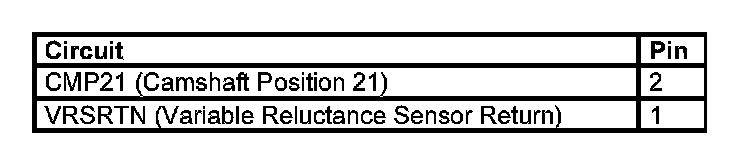

Camshaft Position 21 (CMP21) Sensor Connector





Harness Side

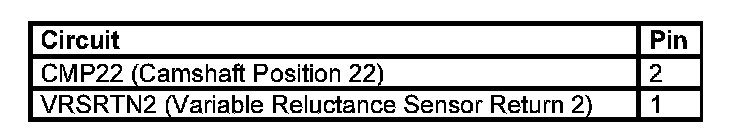

Camshaft Position 22 (CMP22) Sensor Connector





Harness Side

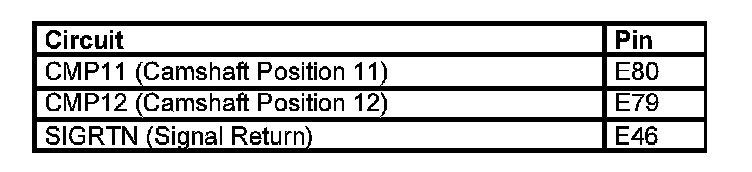

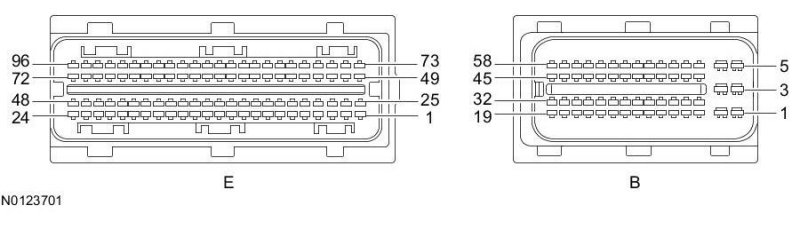

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference values.




Harness Side
