Output Shaft Speed (OSS) Sensor/Vehicle Speed Sensor (VSS)

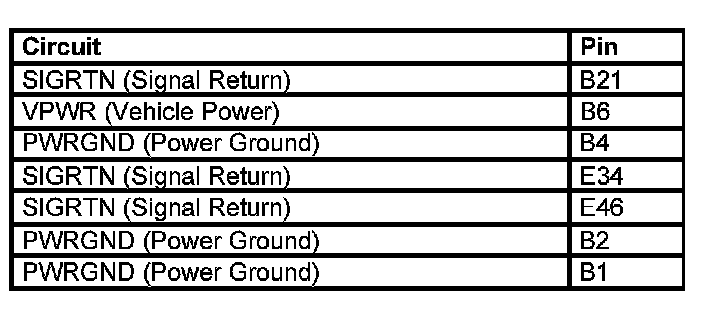

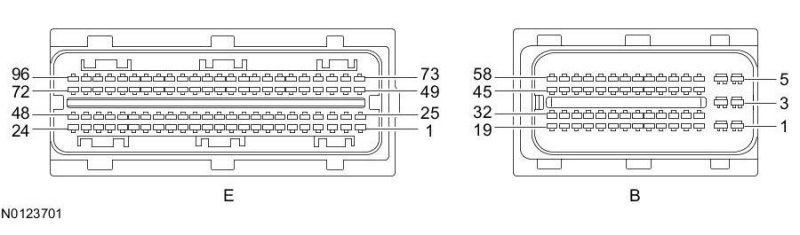

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side

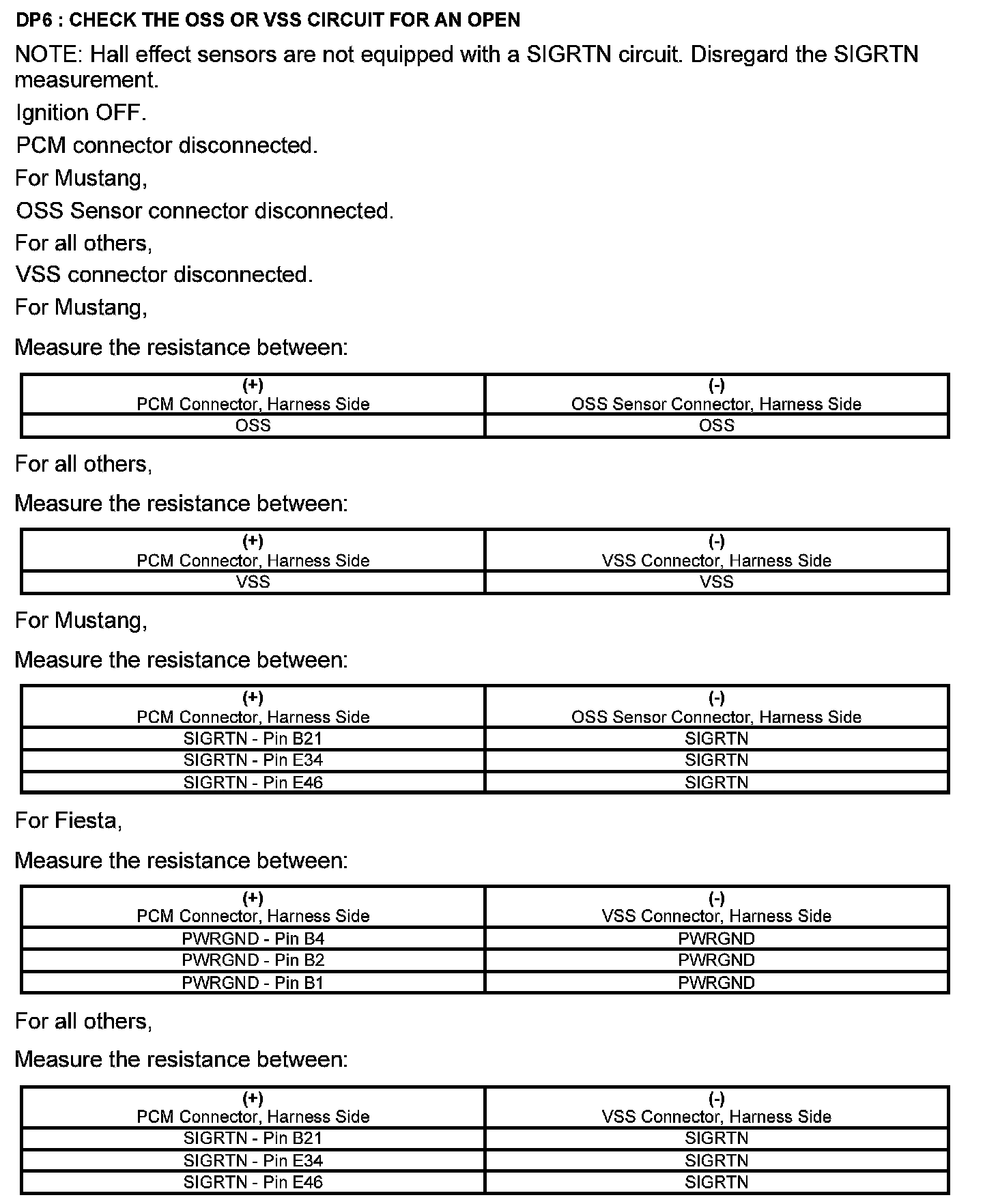

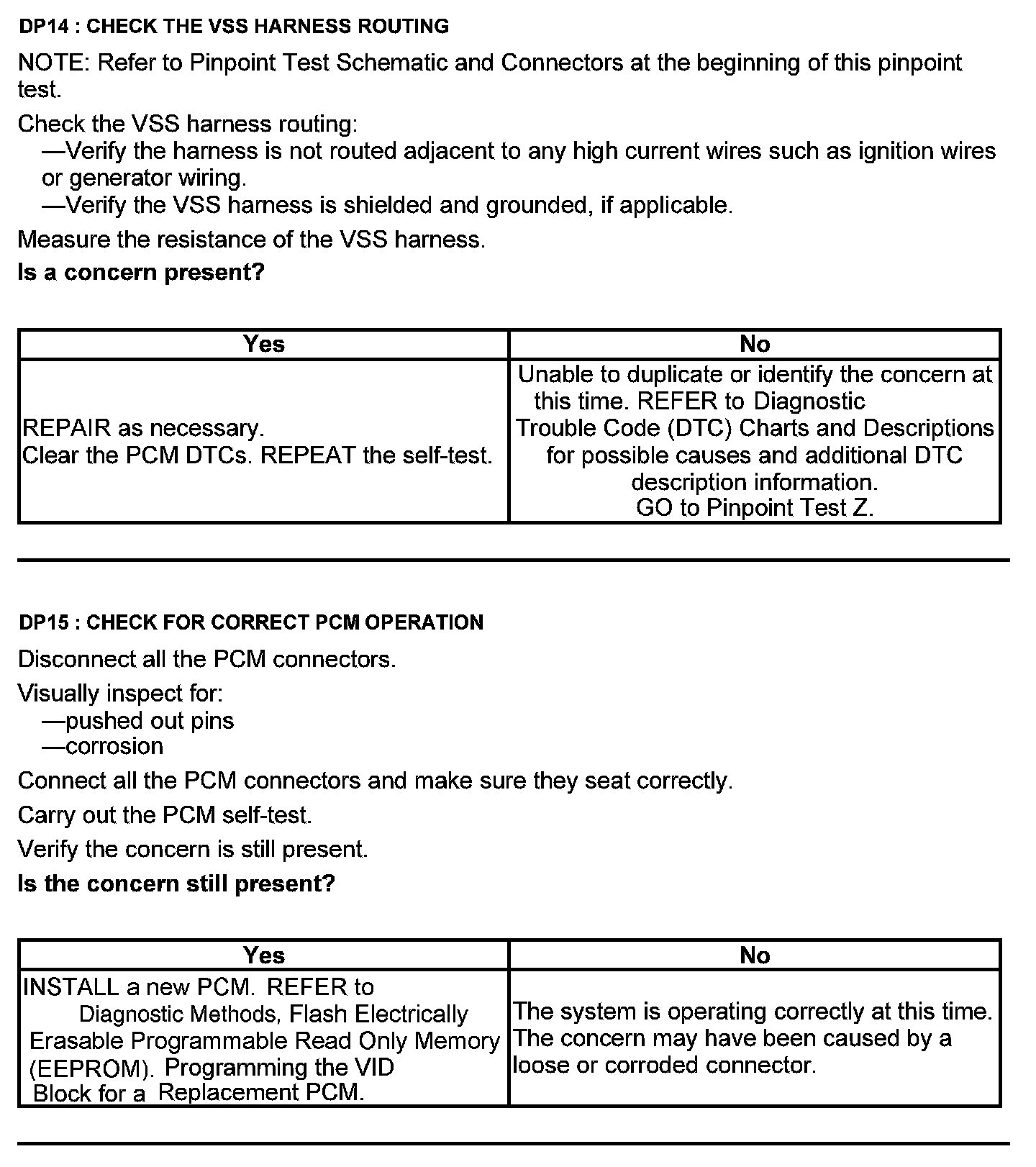

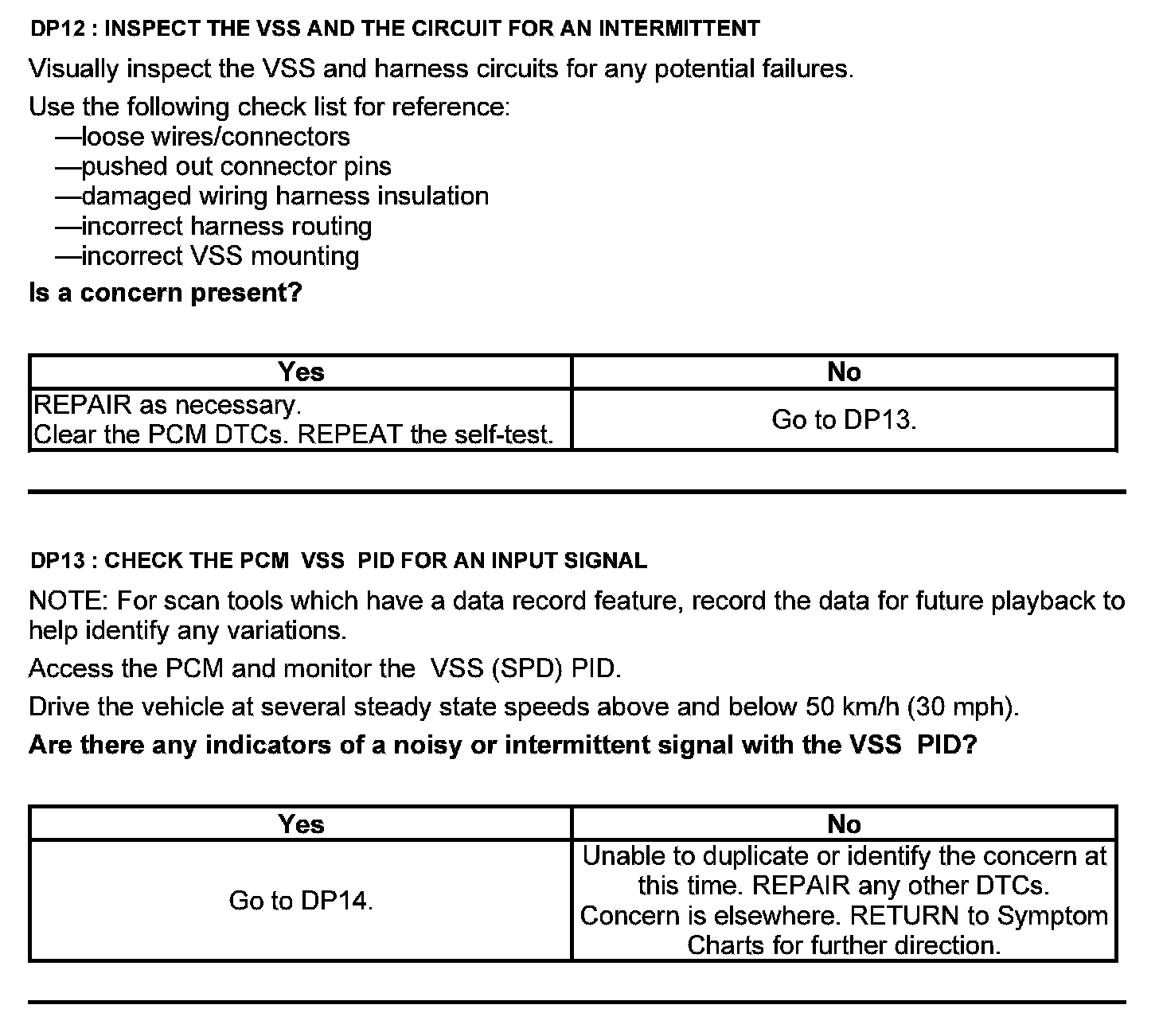

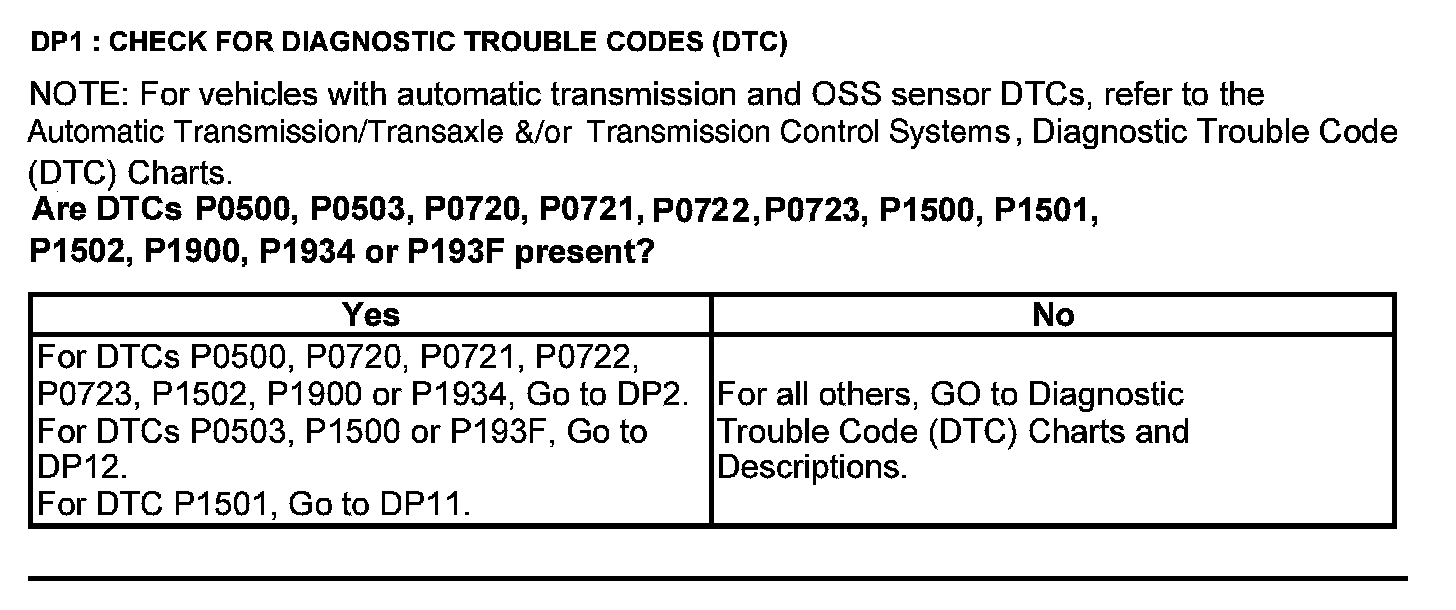

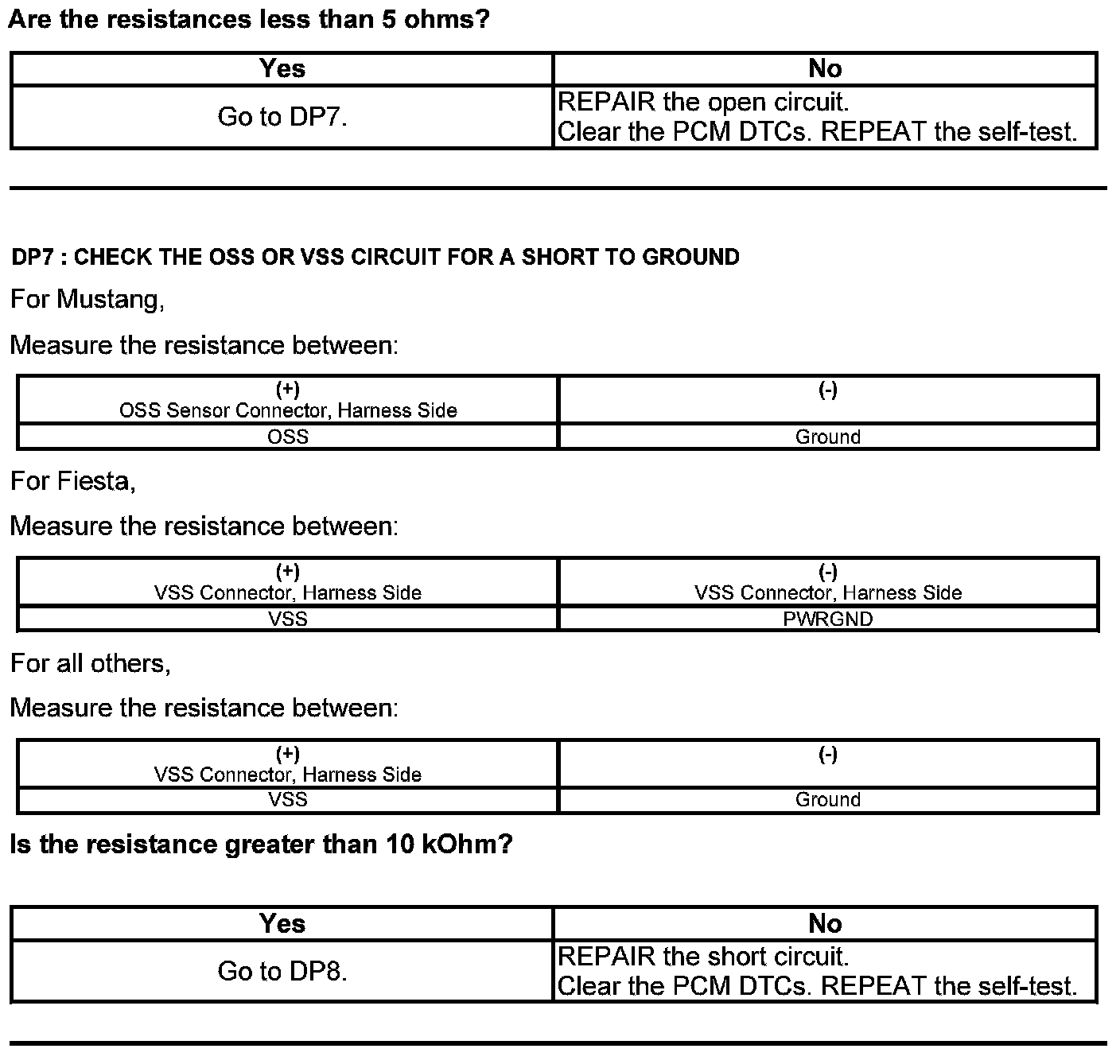

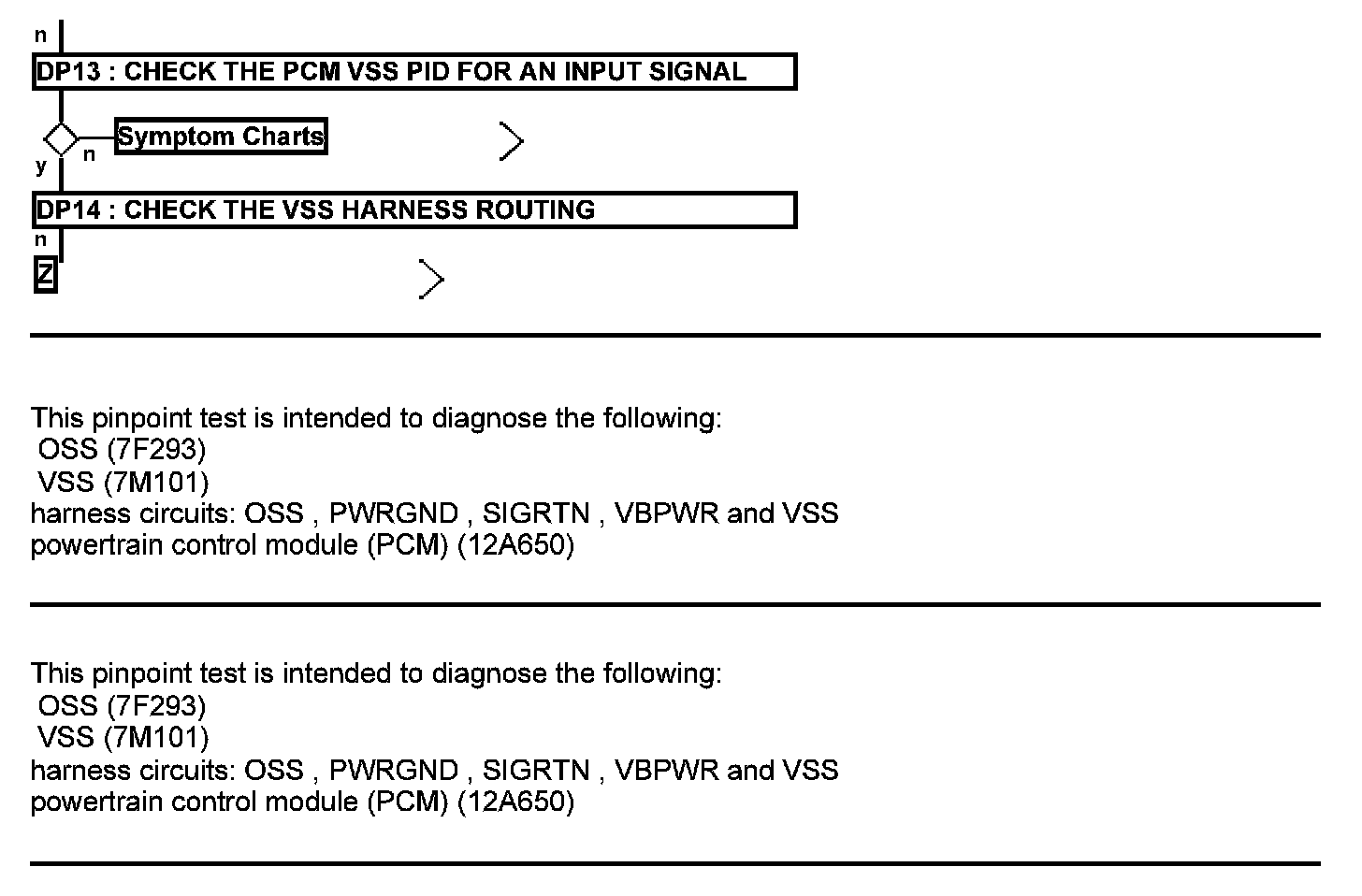

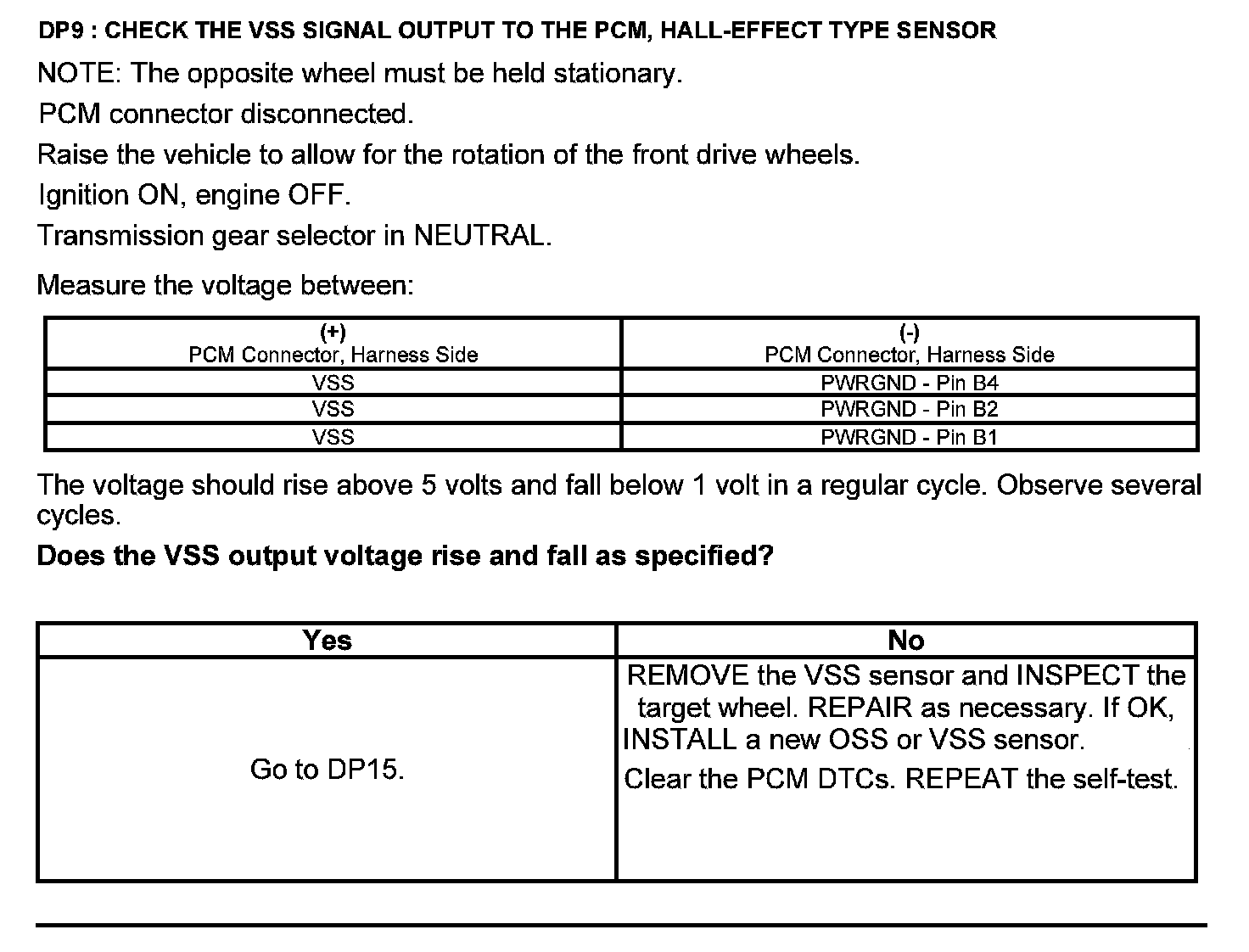

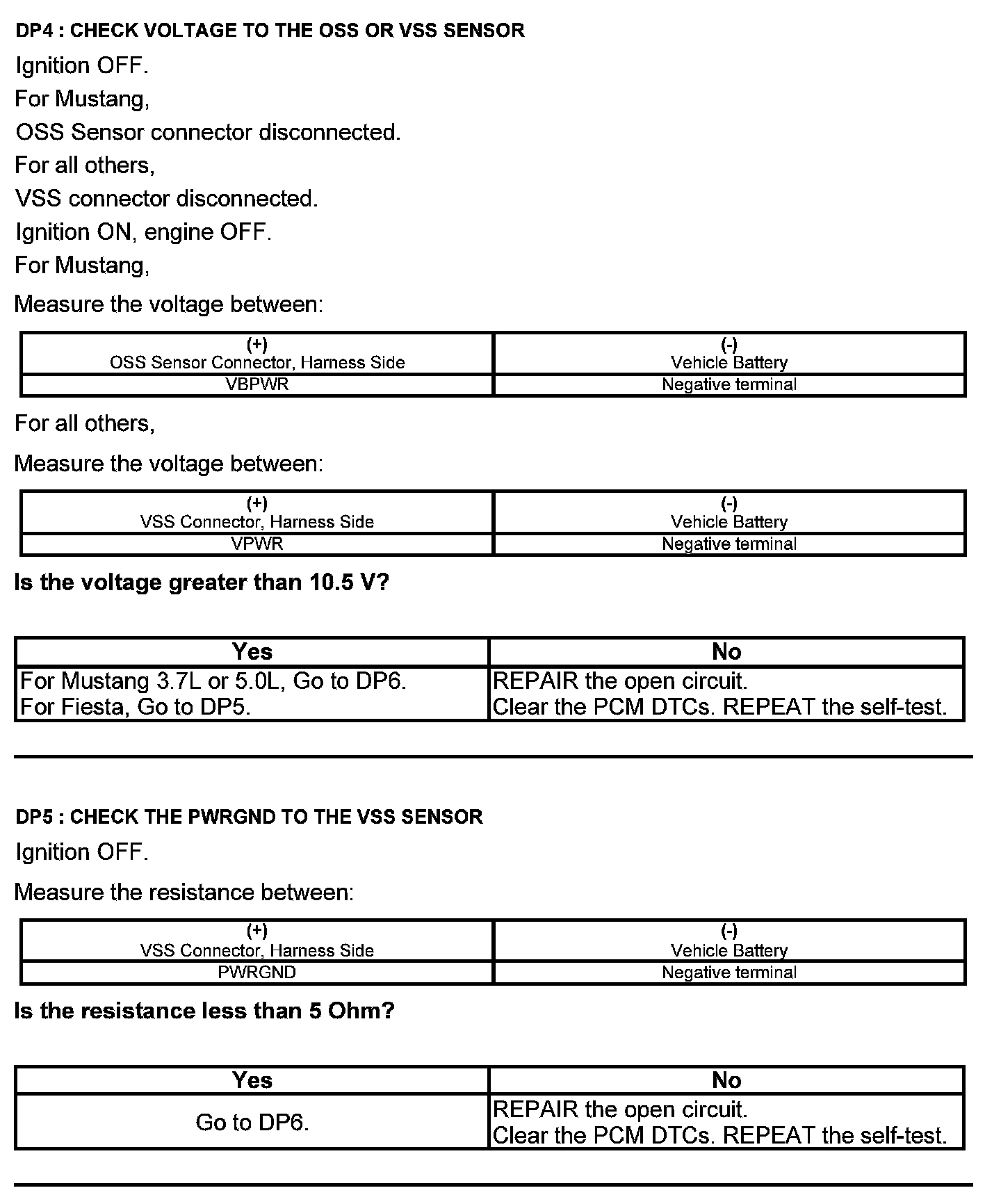

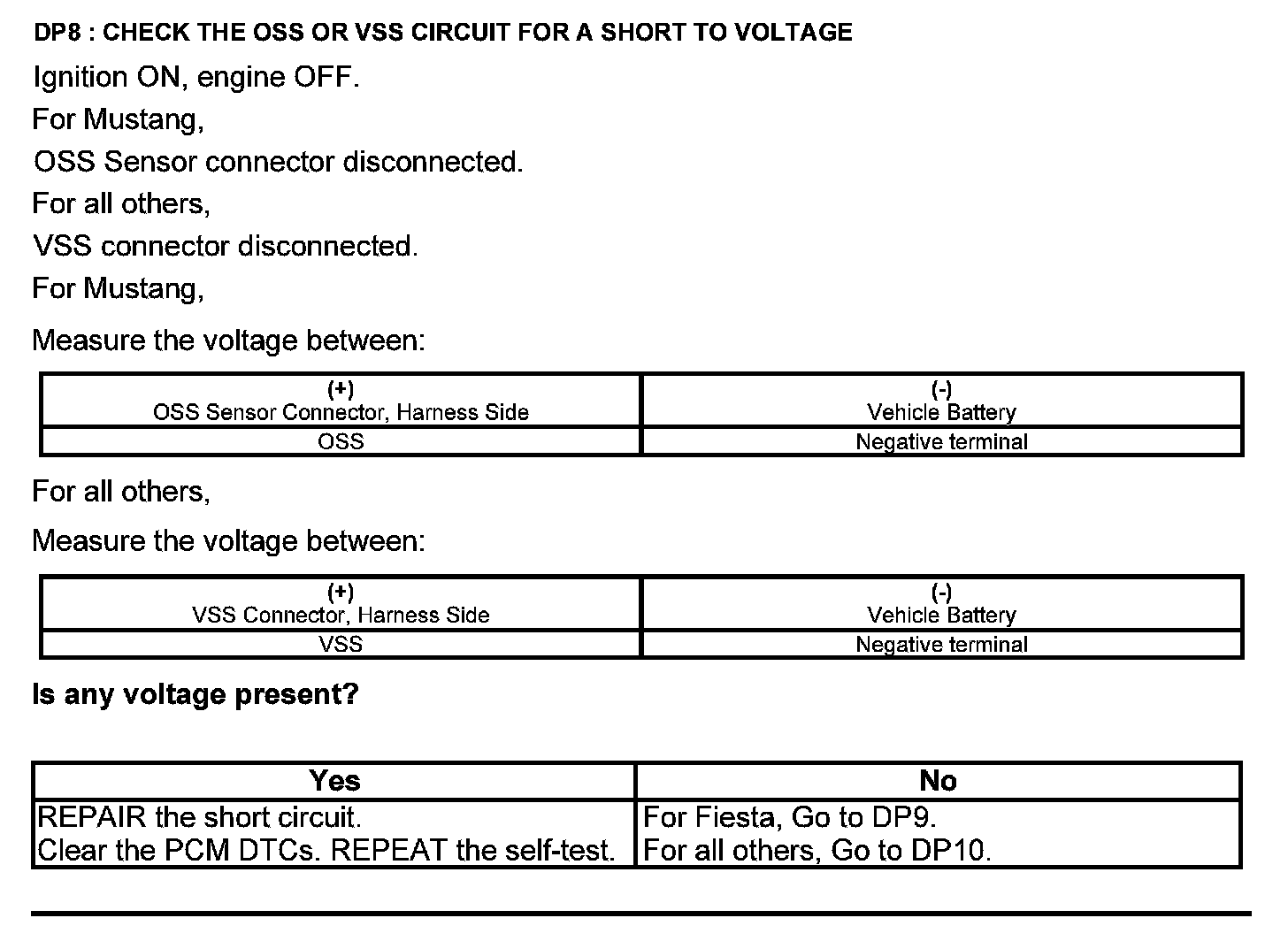

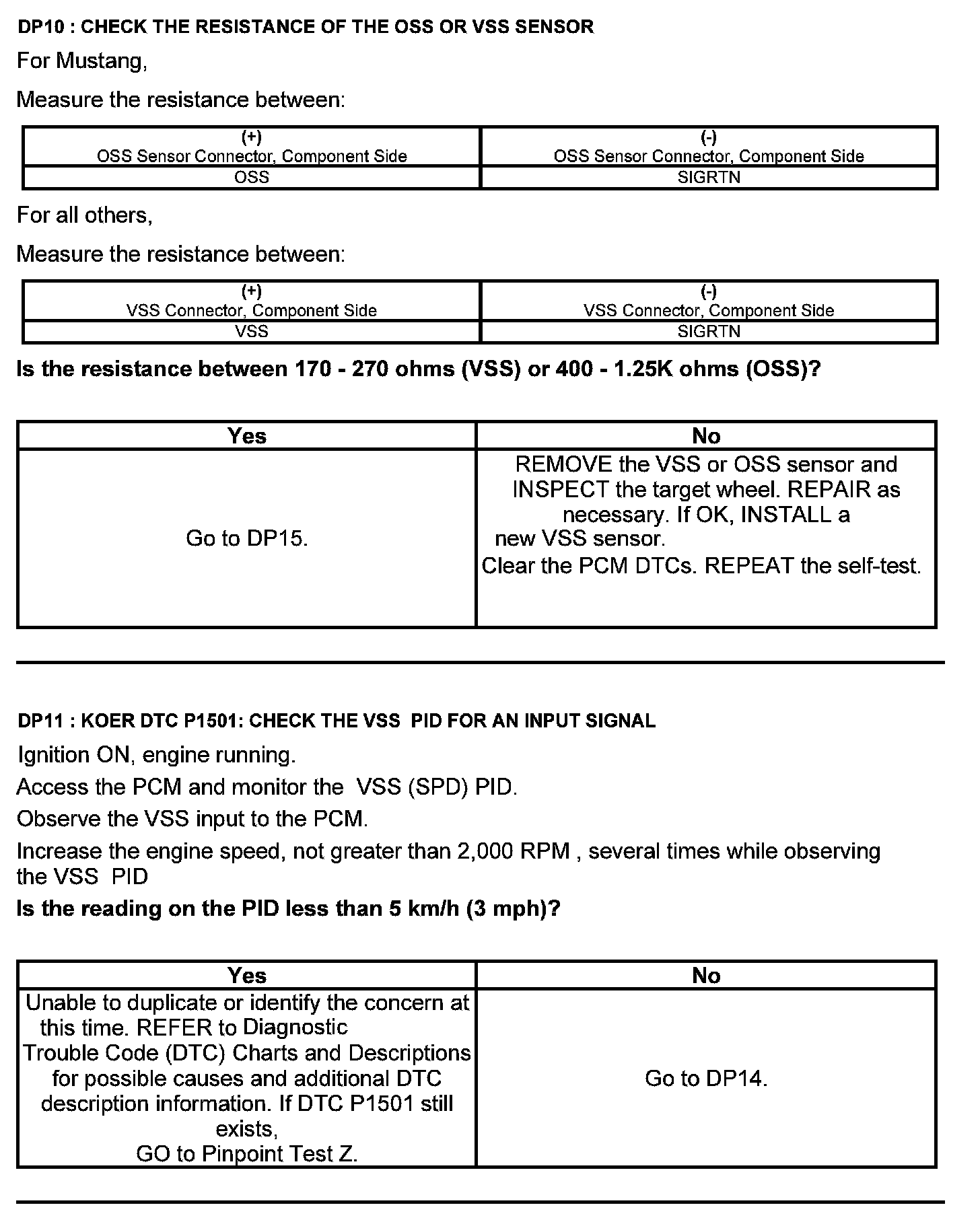

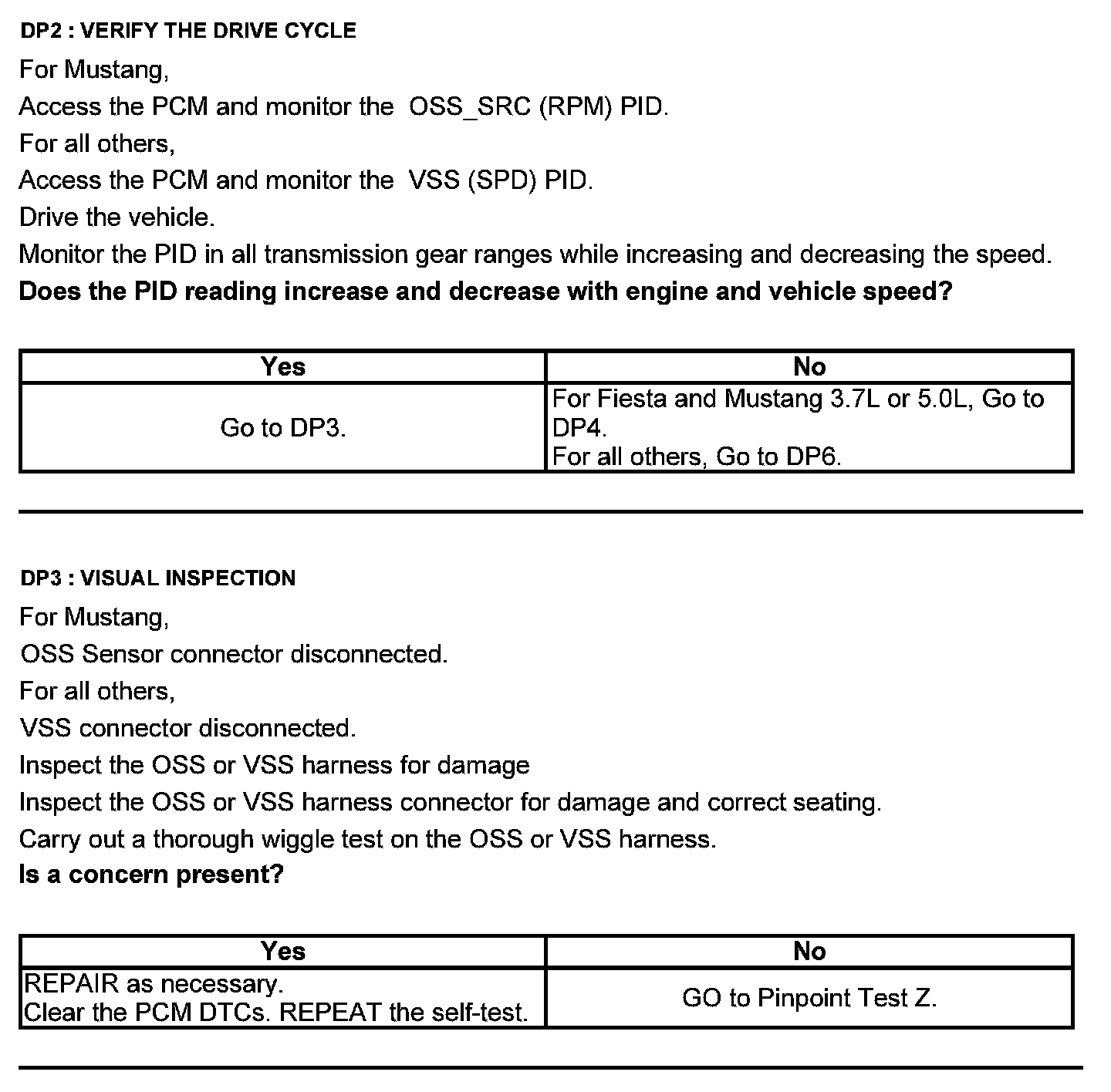

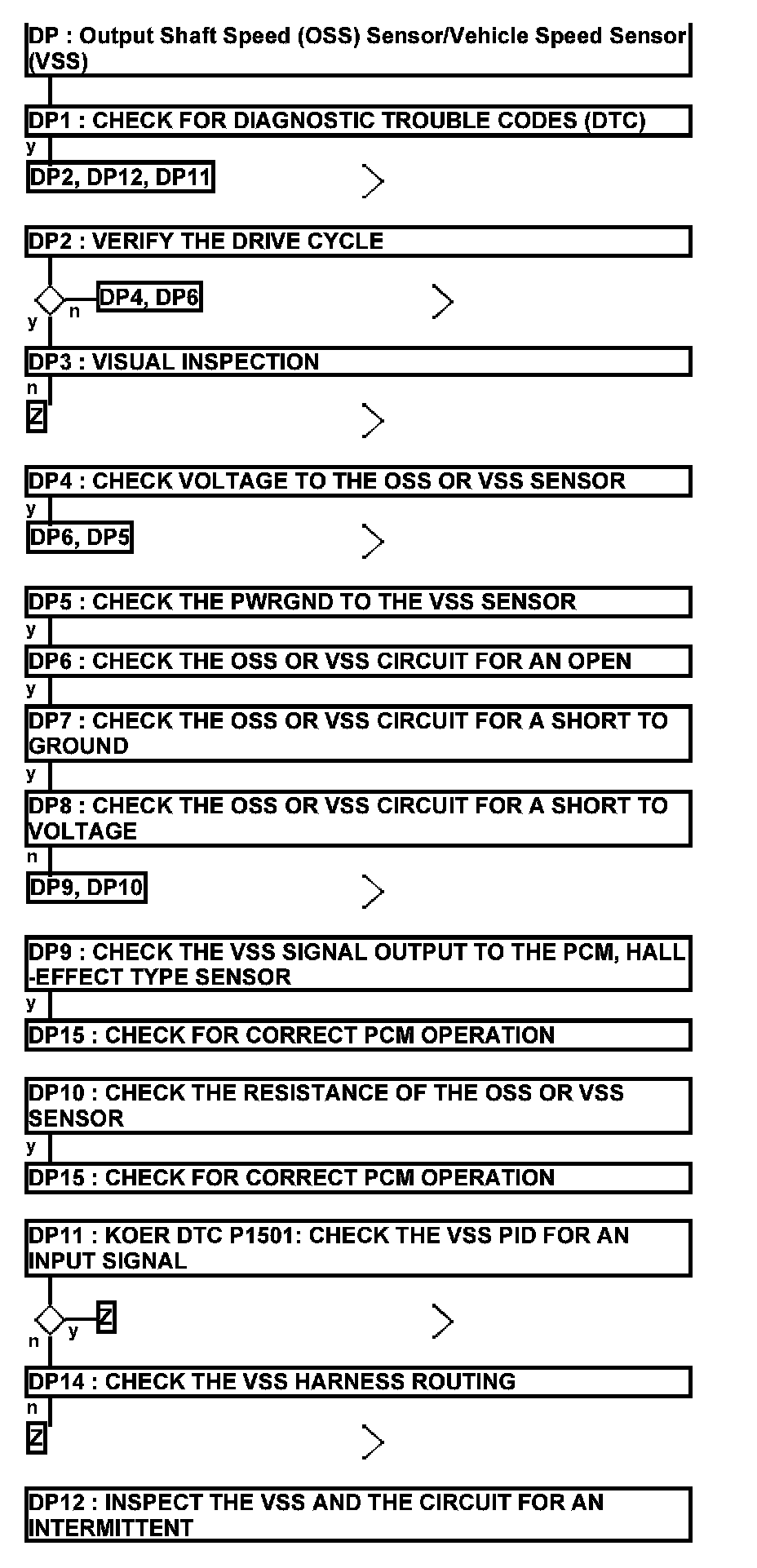

Test DP: Output Shaft Speed (OSS) Sensor/Vehicle Speed Sensor ( VSS)
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2012 Ford Truck.
Output Shaft Speed (OSS) Sensor/Vehicle Speed Sensor (VSS)
Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side
