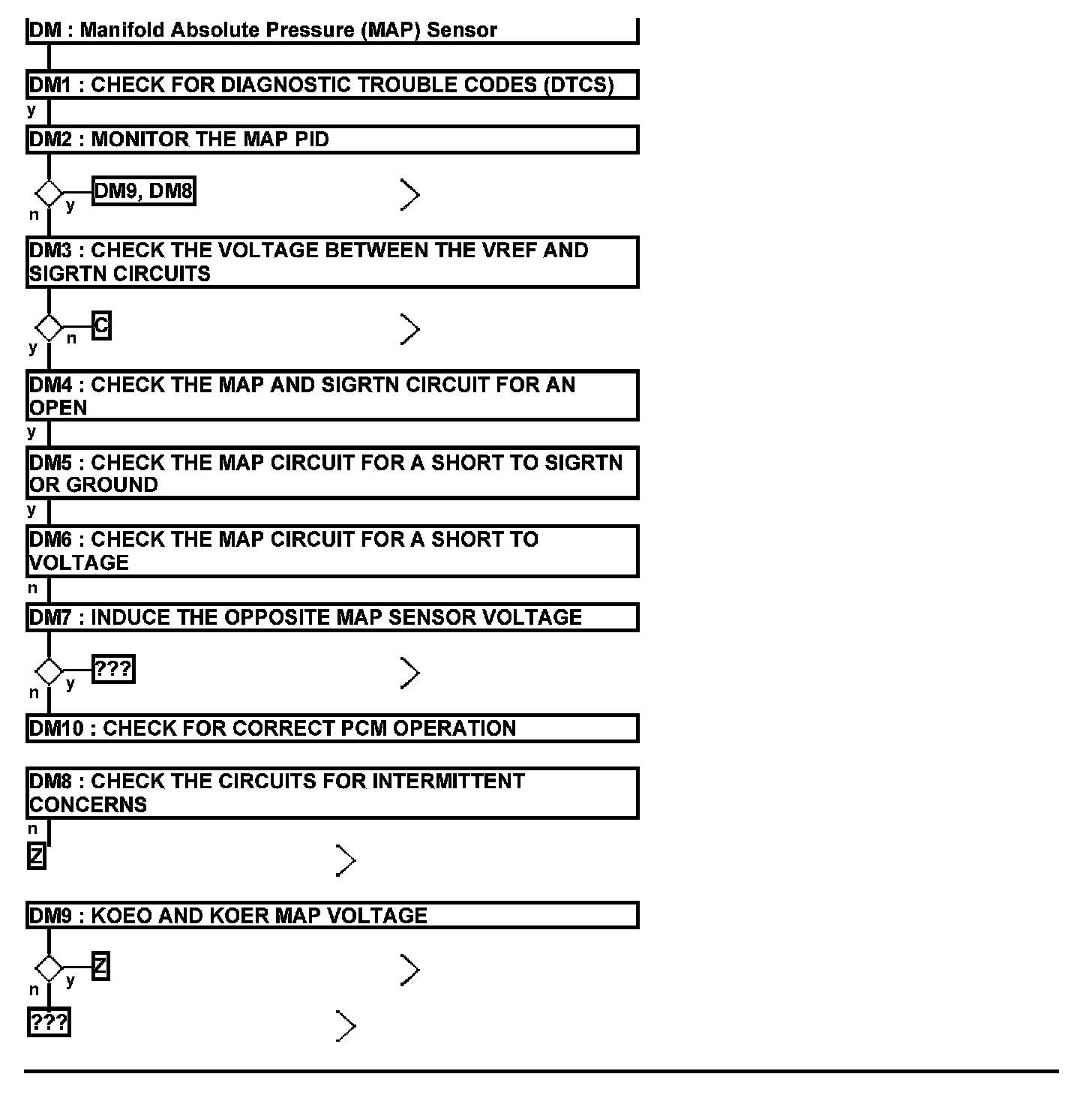

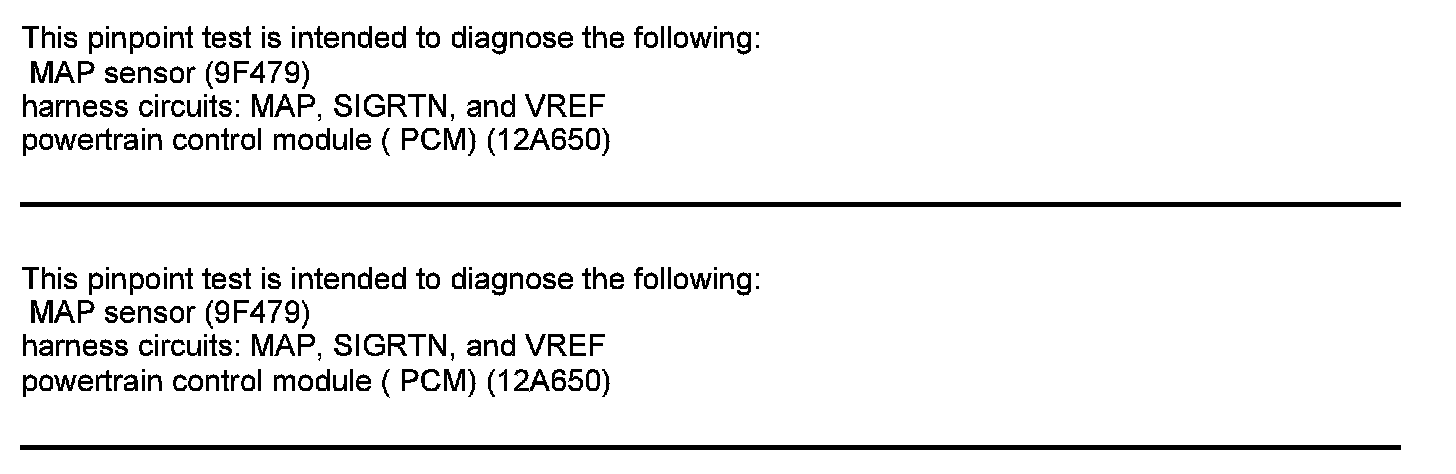

Test DM: Manifold Absolute Pressure (MAP) Sensor

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2012 Ford Truck.

AI Repair Guides


Manifold Absolute Pressure (MAP) Sensor

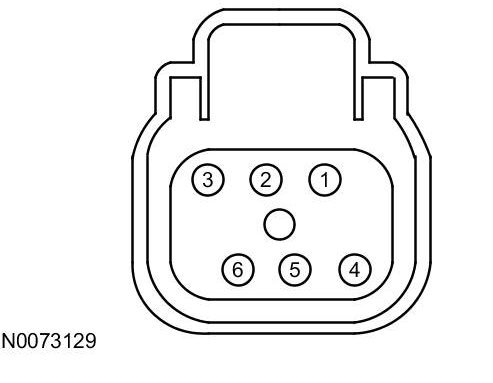

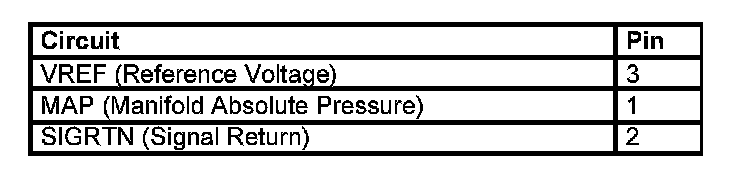

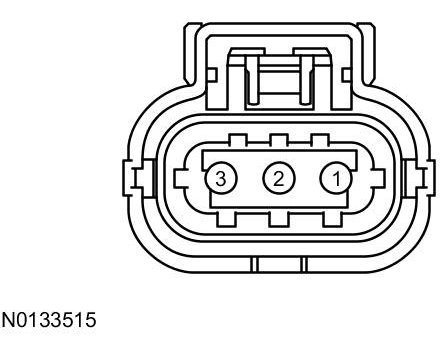

Manifold Absolute Pressure (MAP) Sensor Connector






Harness Side

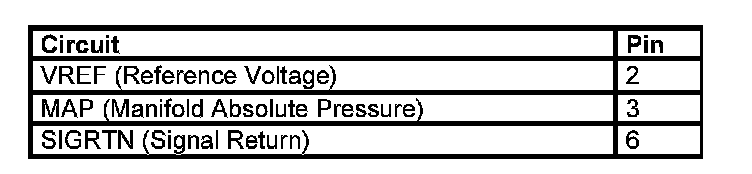

EGR System Module (ESM) Connector





Harness Side

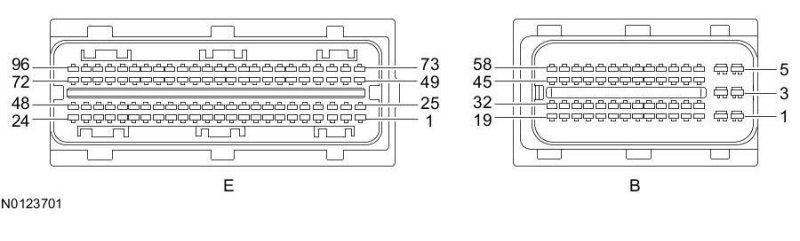

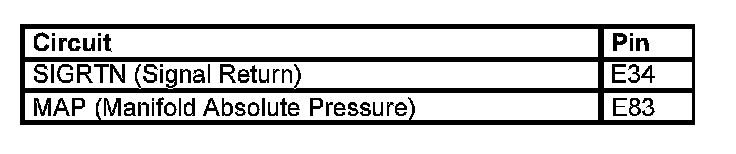

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.






Harness Side
