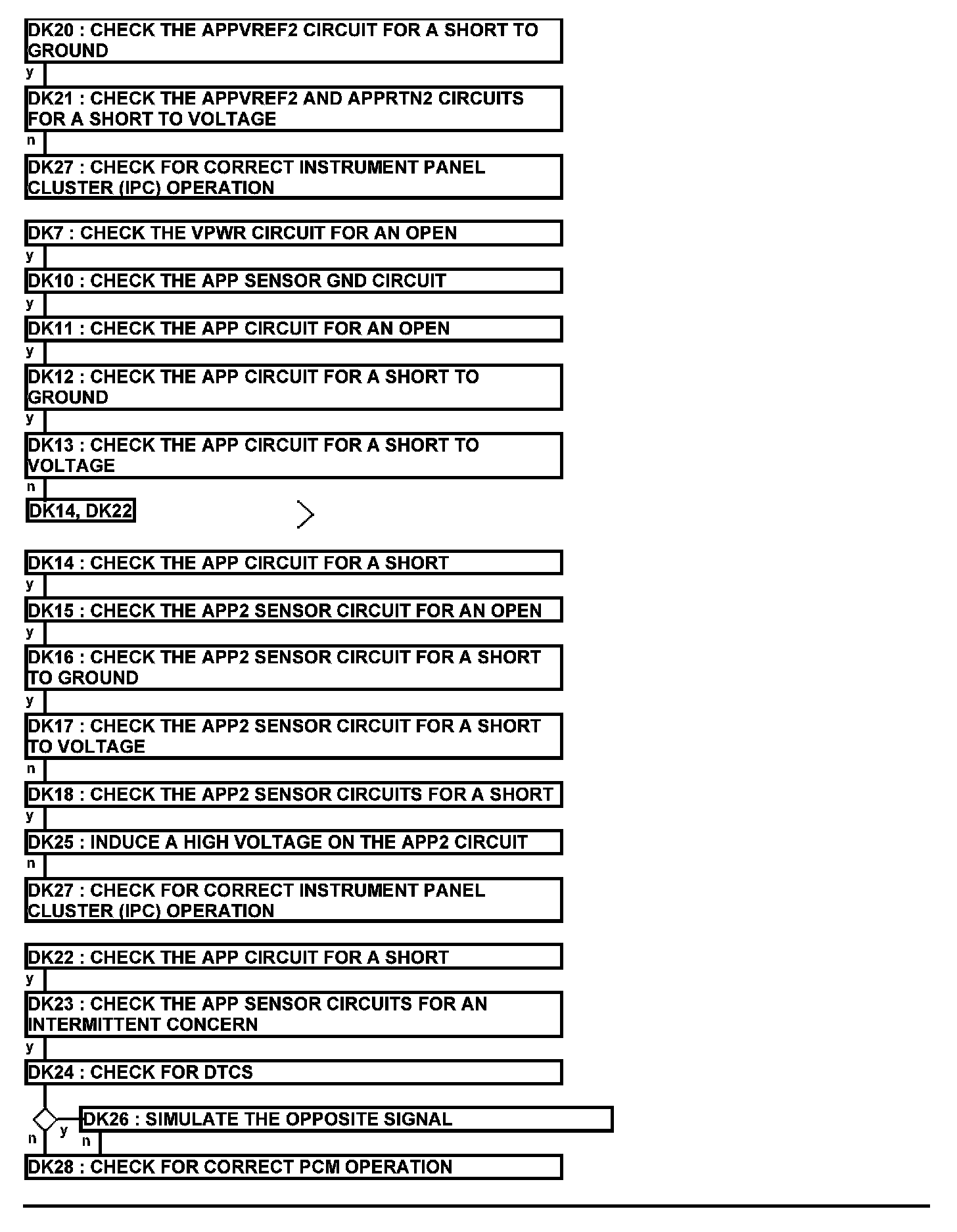

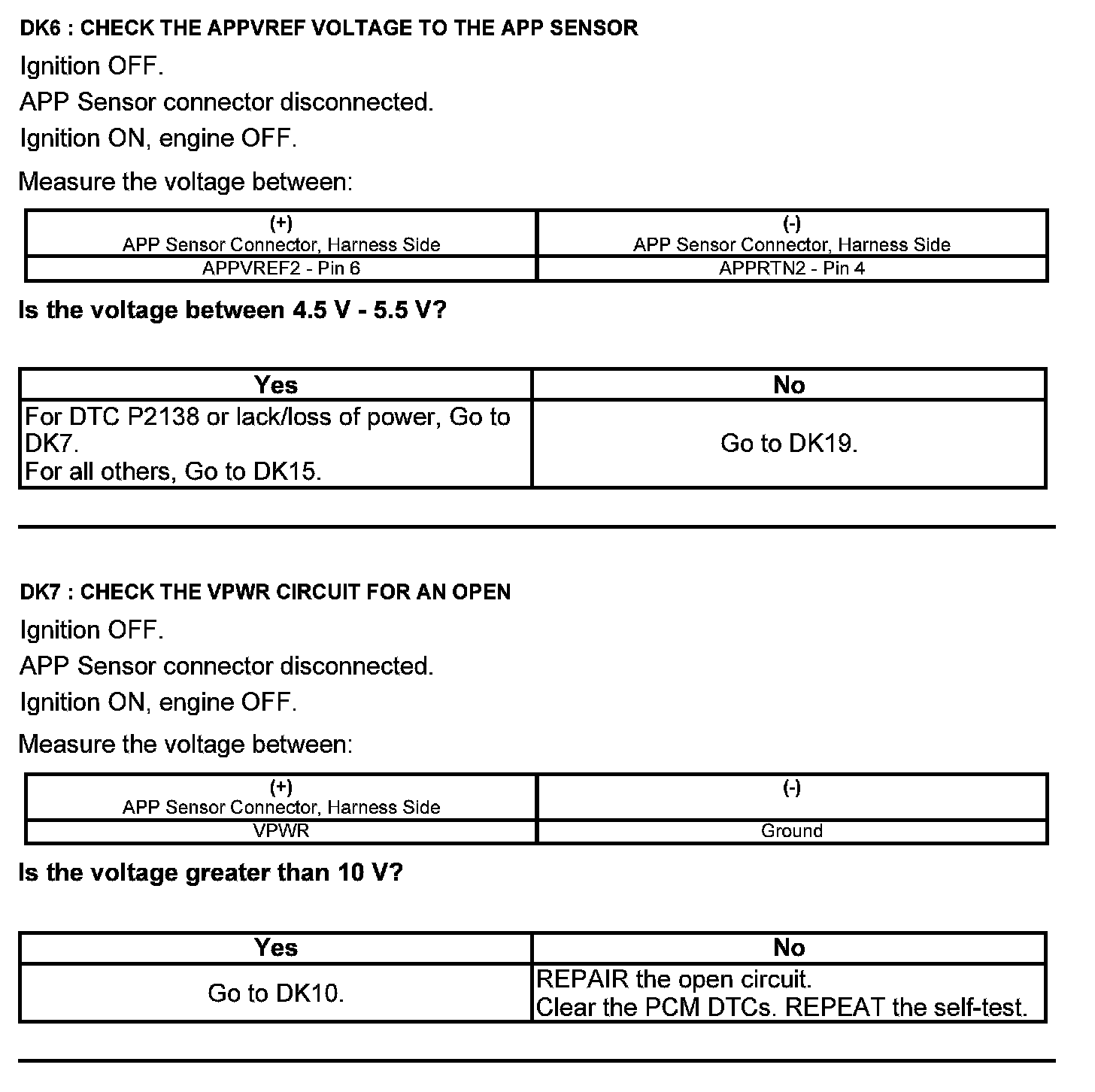

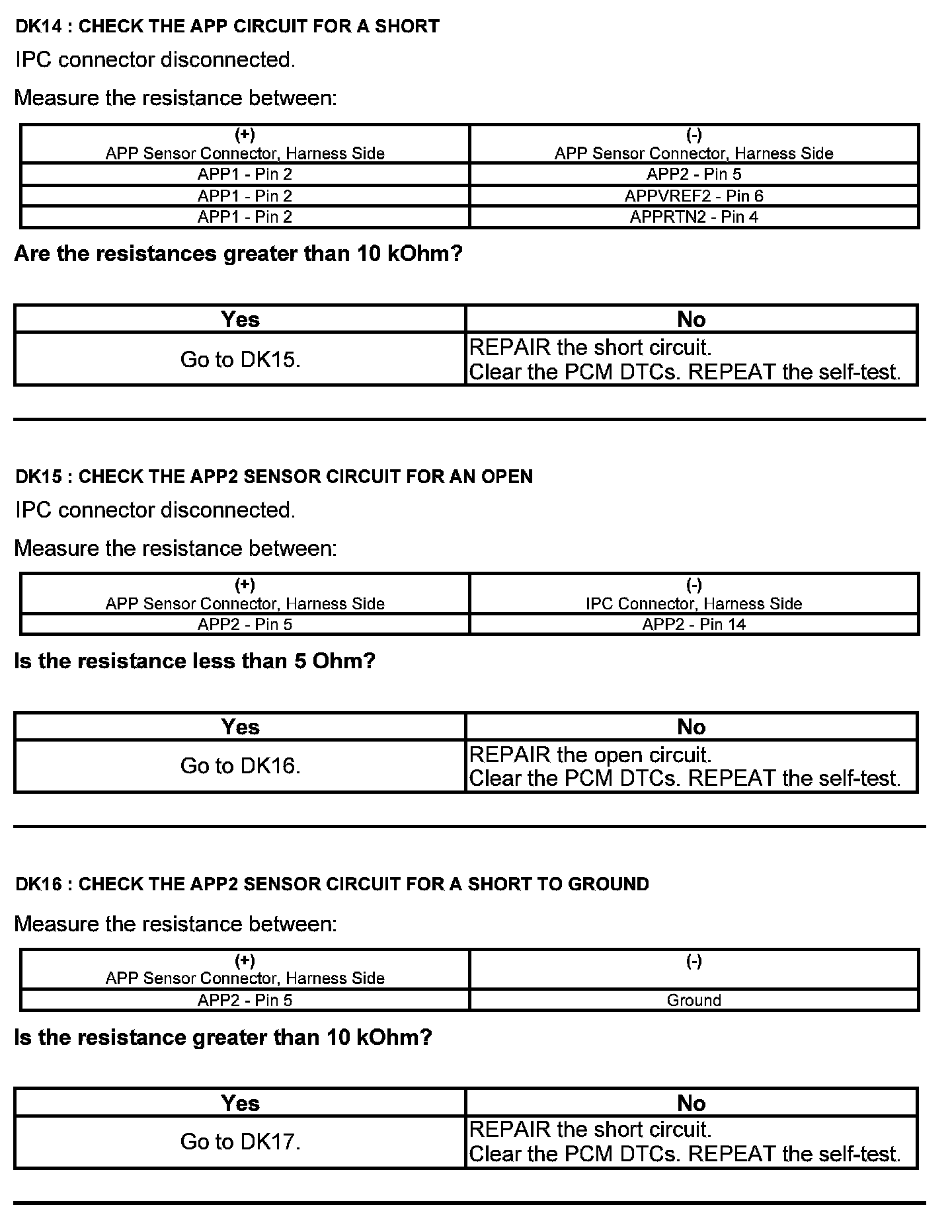

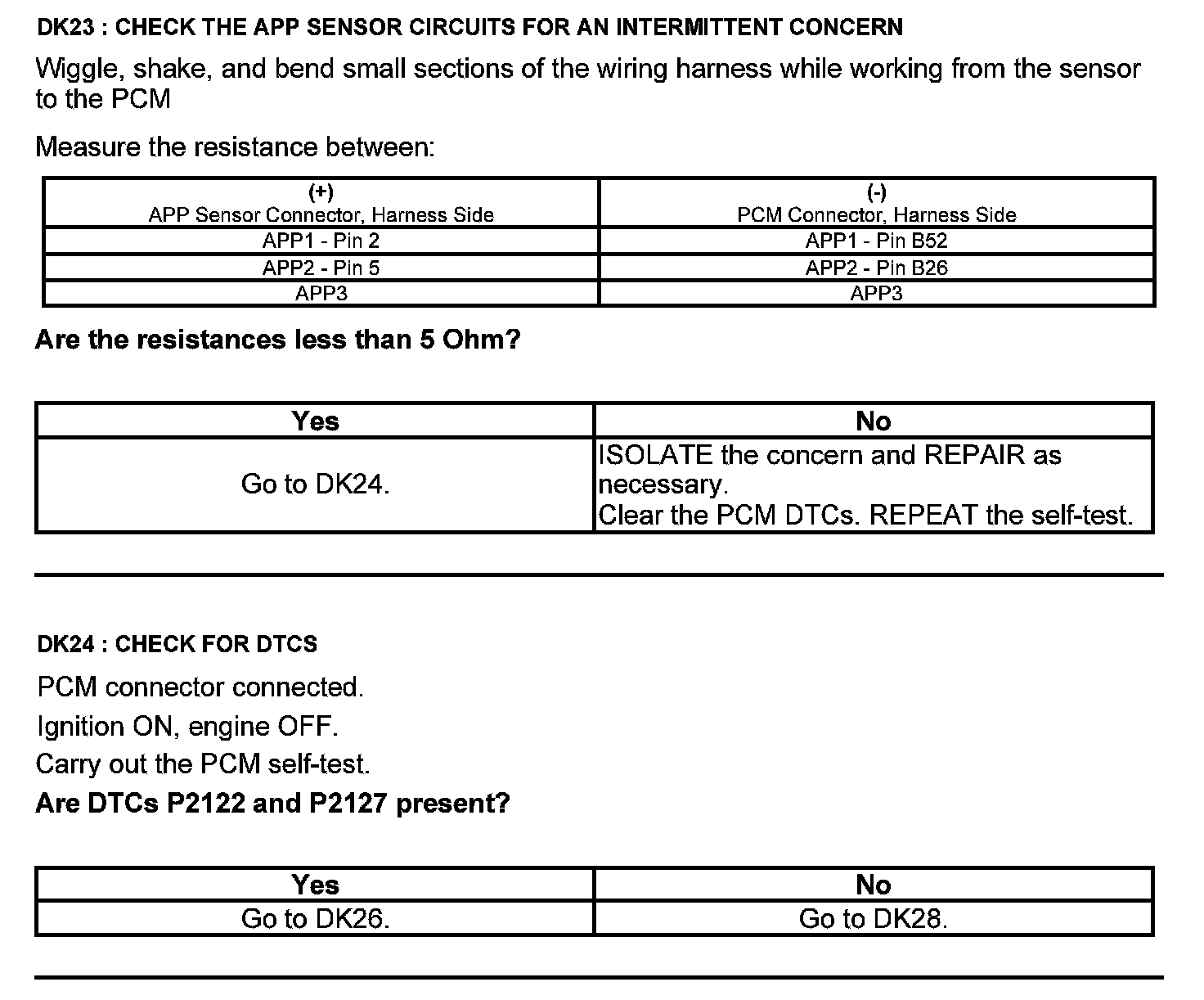

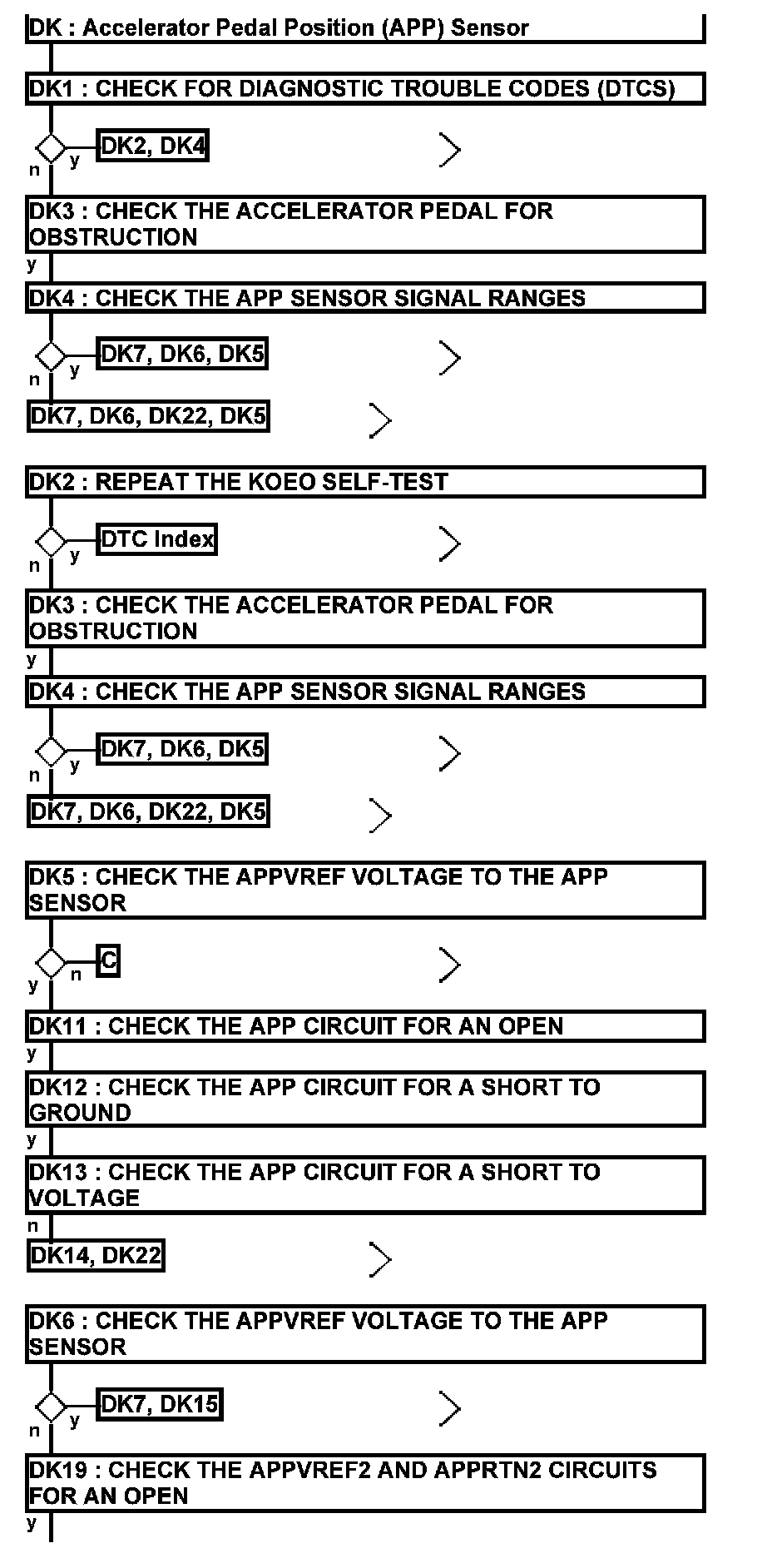

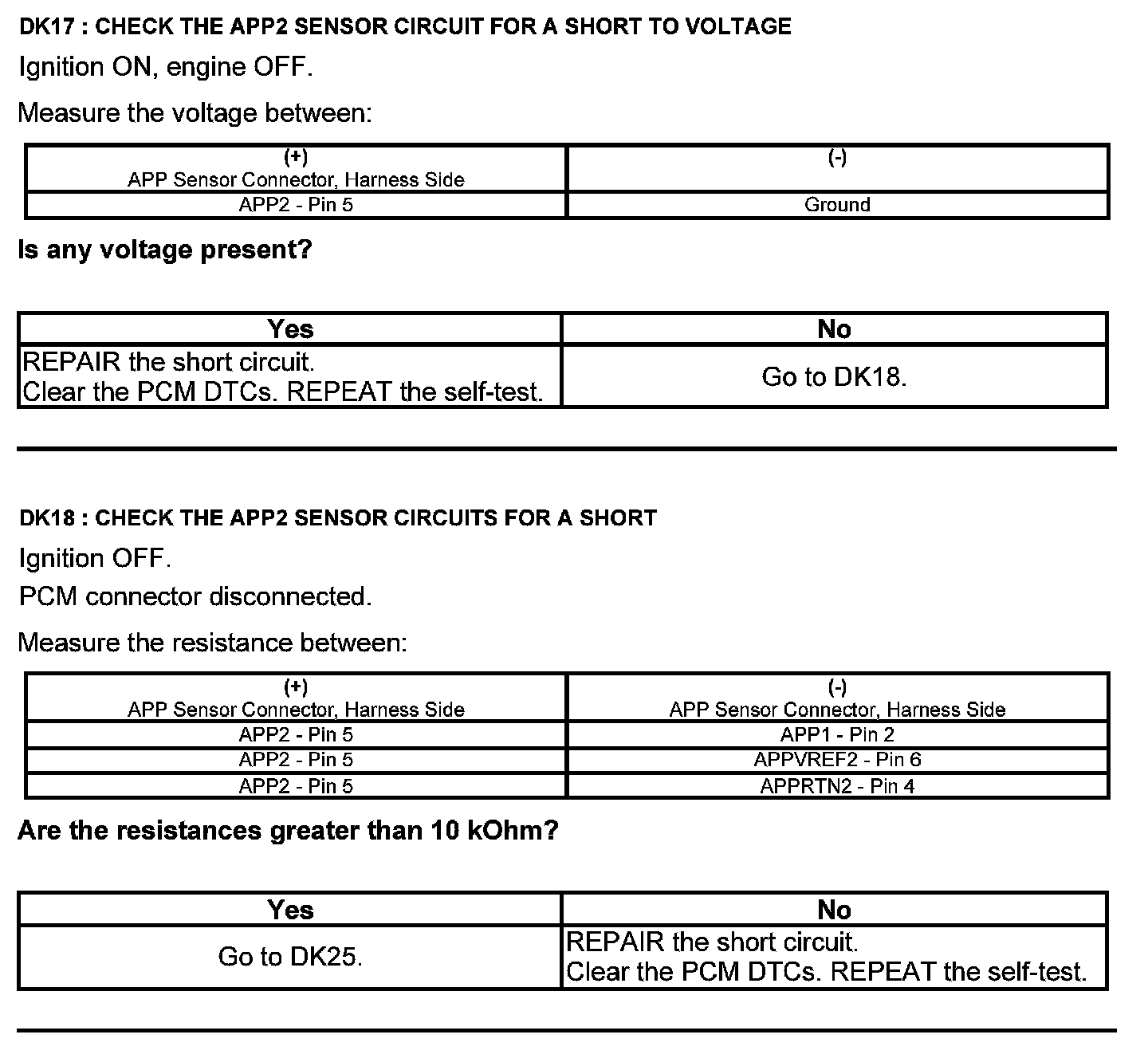

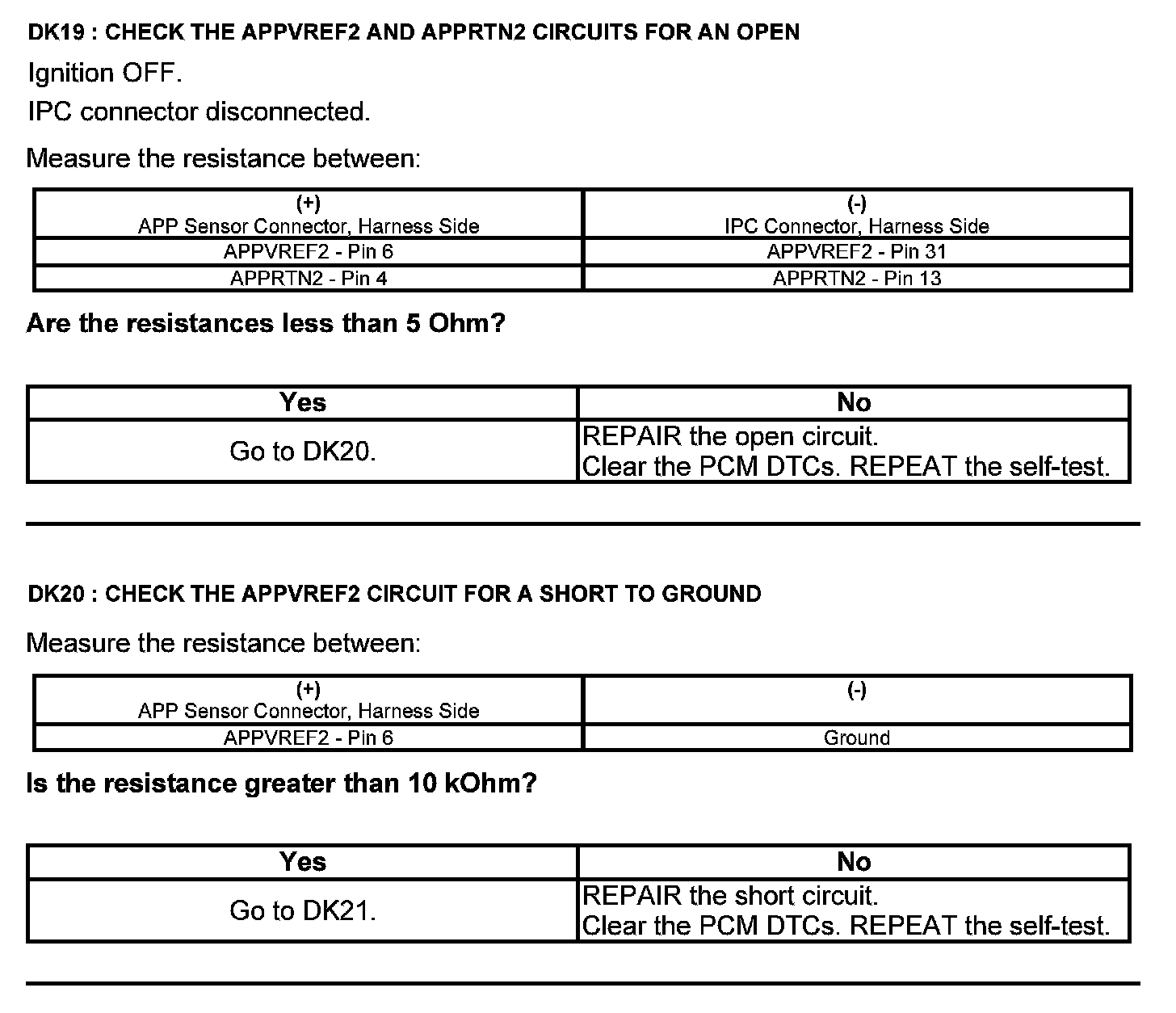

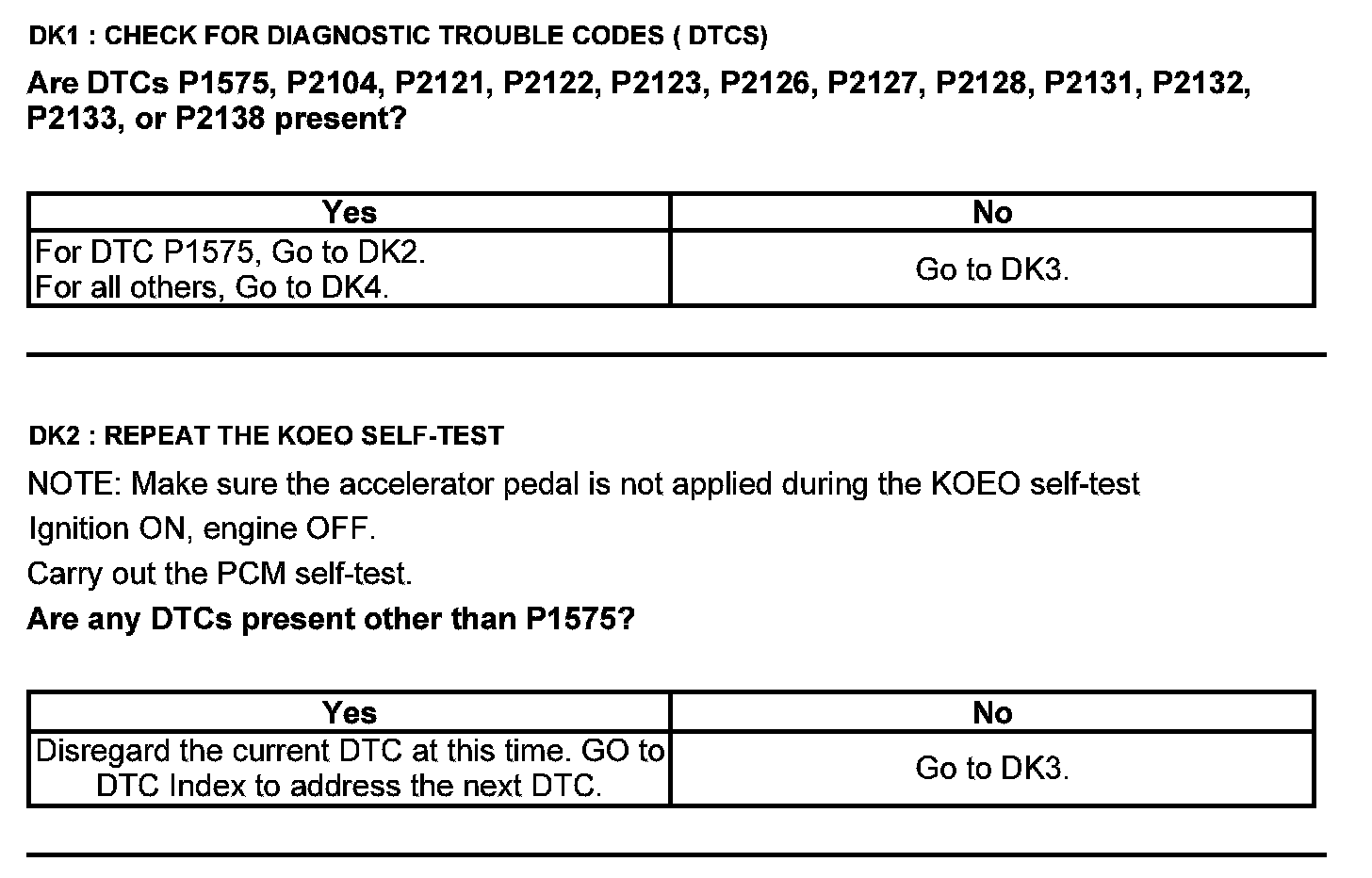

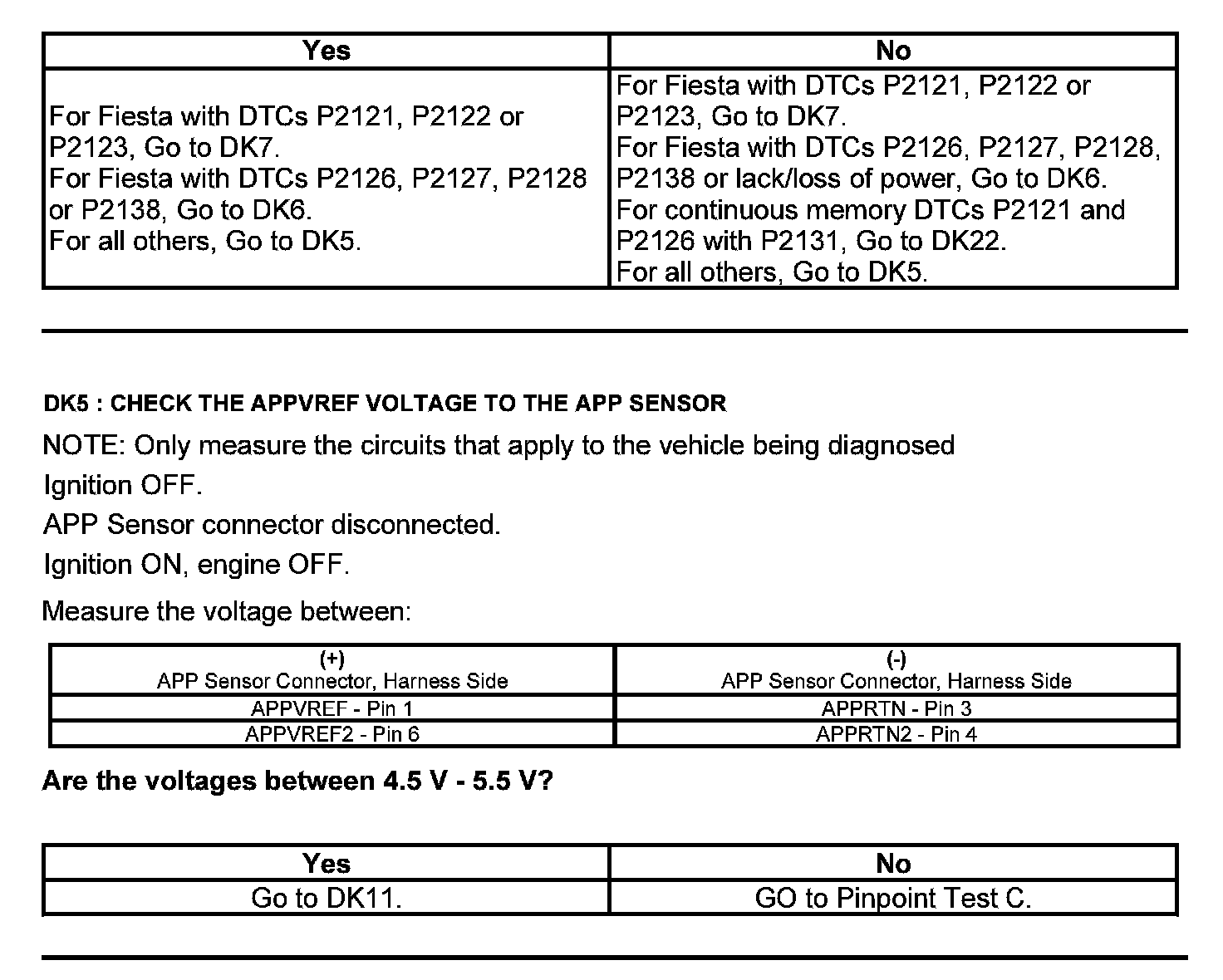

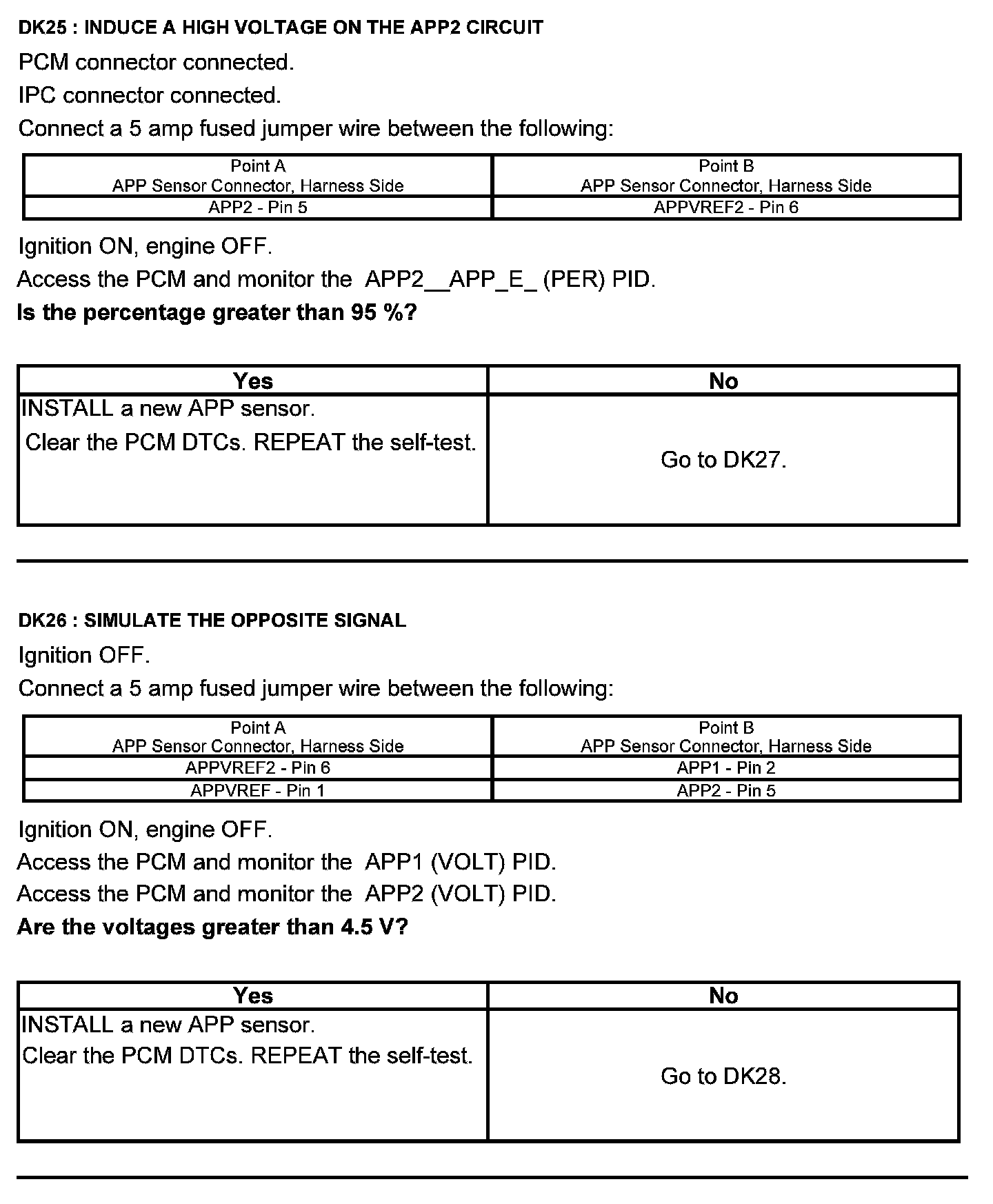

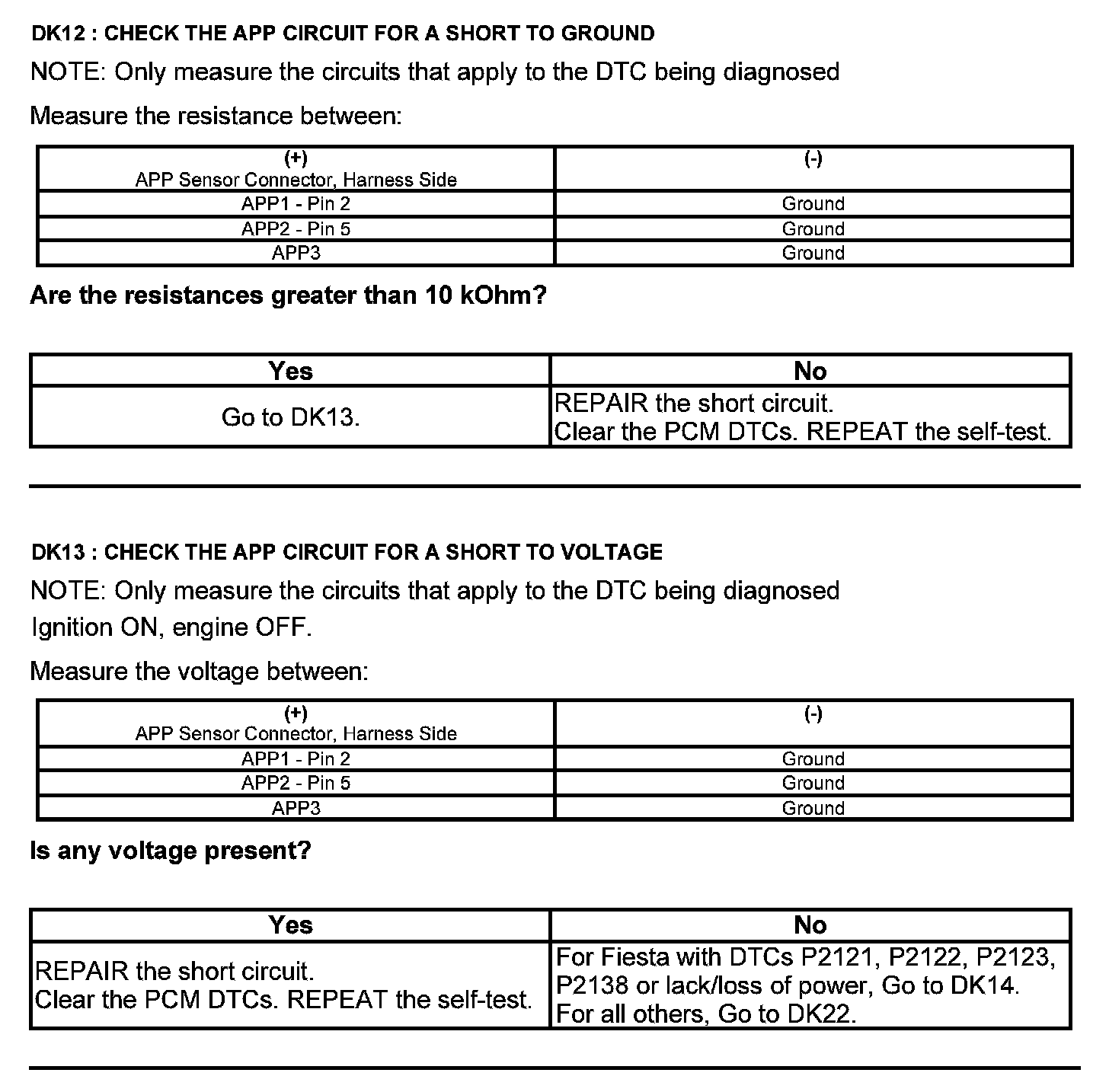

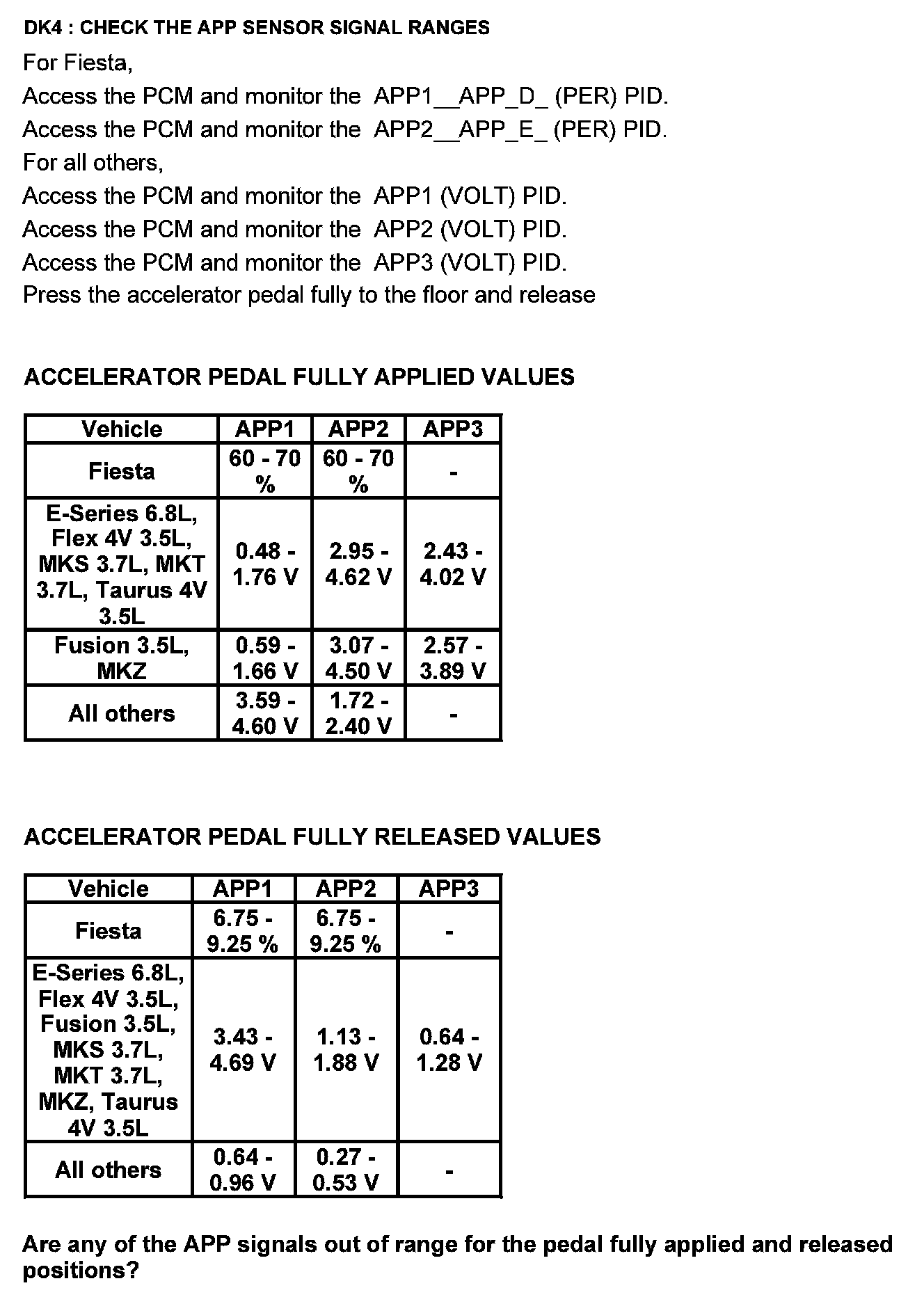

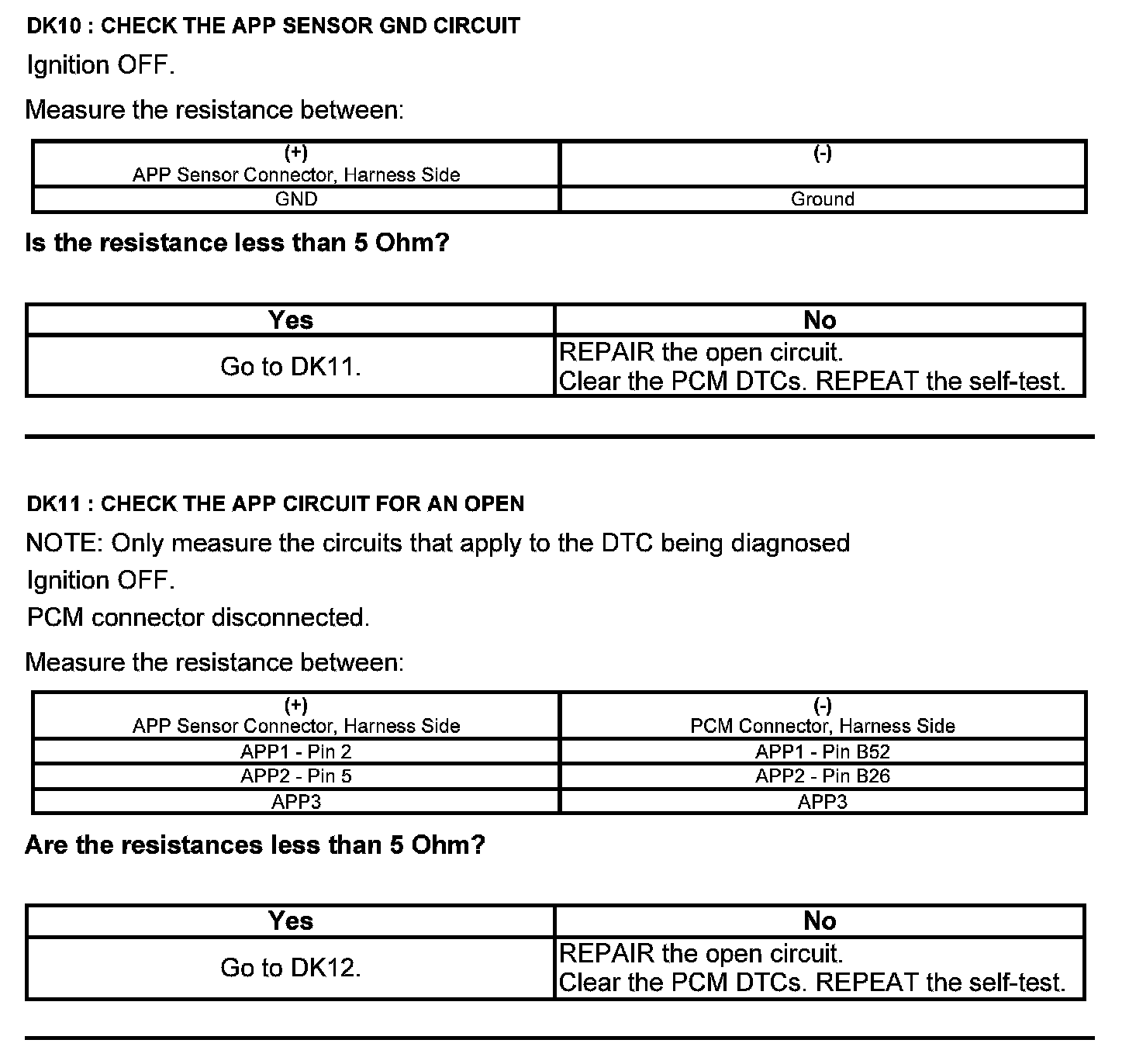

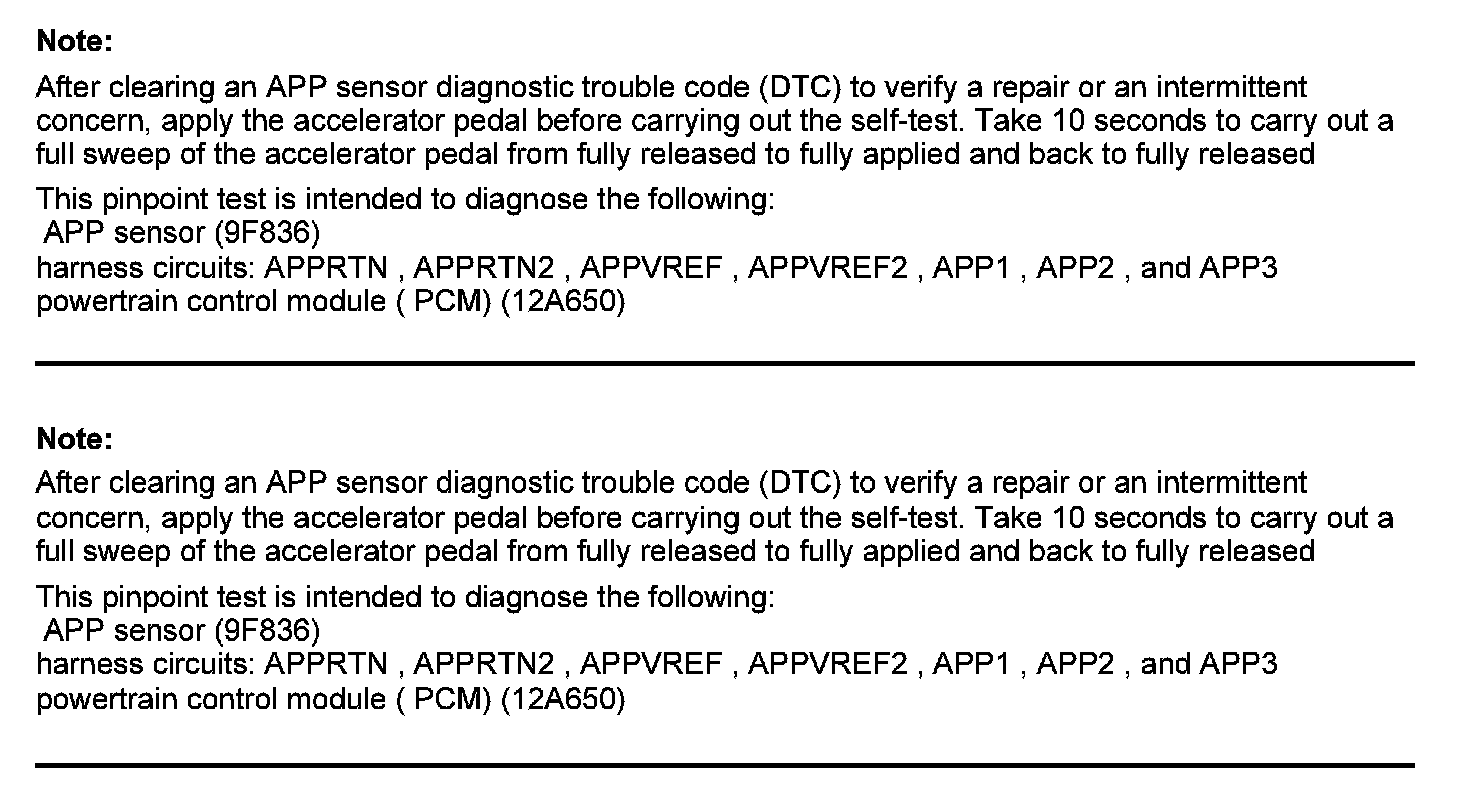

Test DK: Accelerator Pedal Position (APP) Sensor

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2012 Ford Truck.

AI Repair Guides

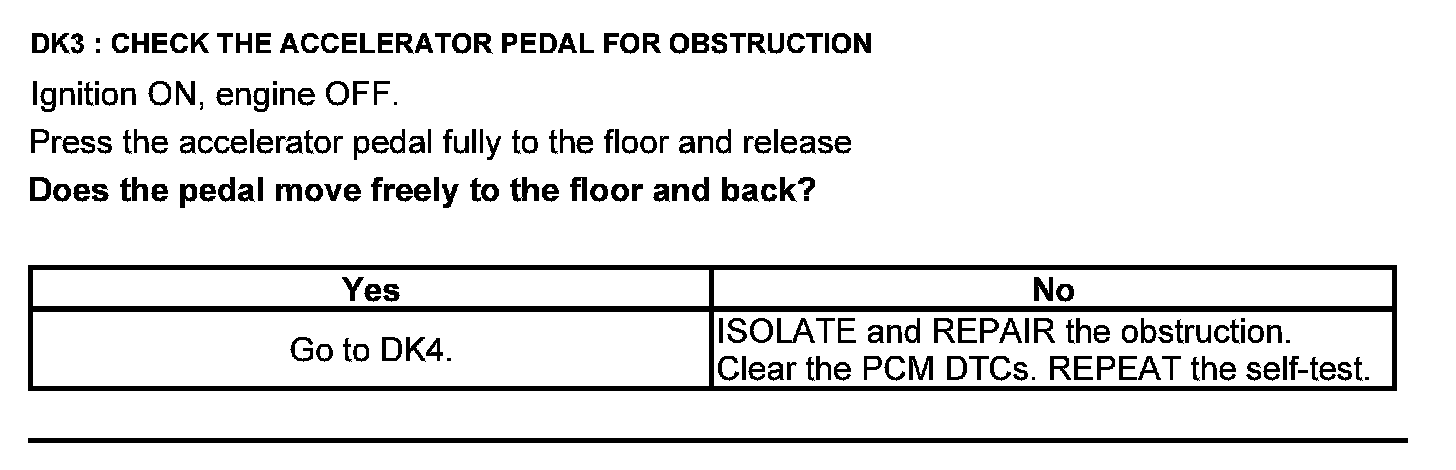

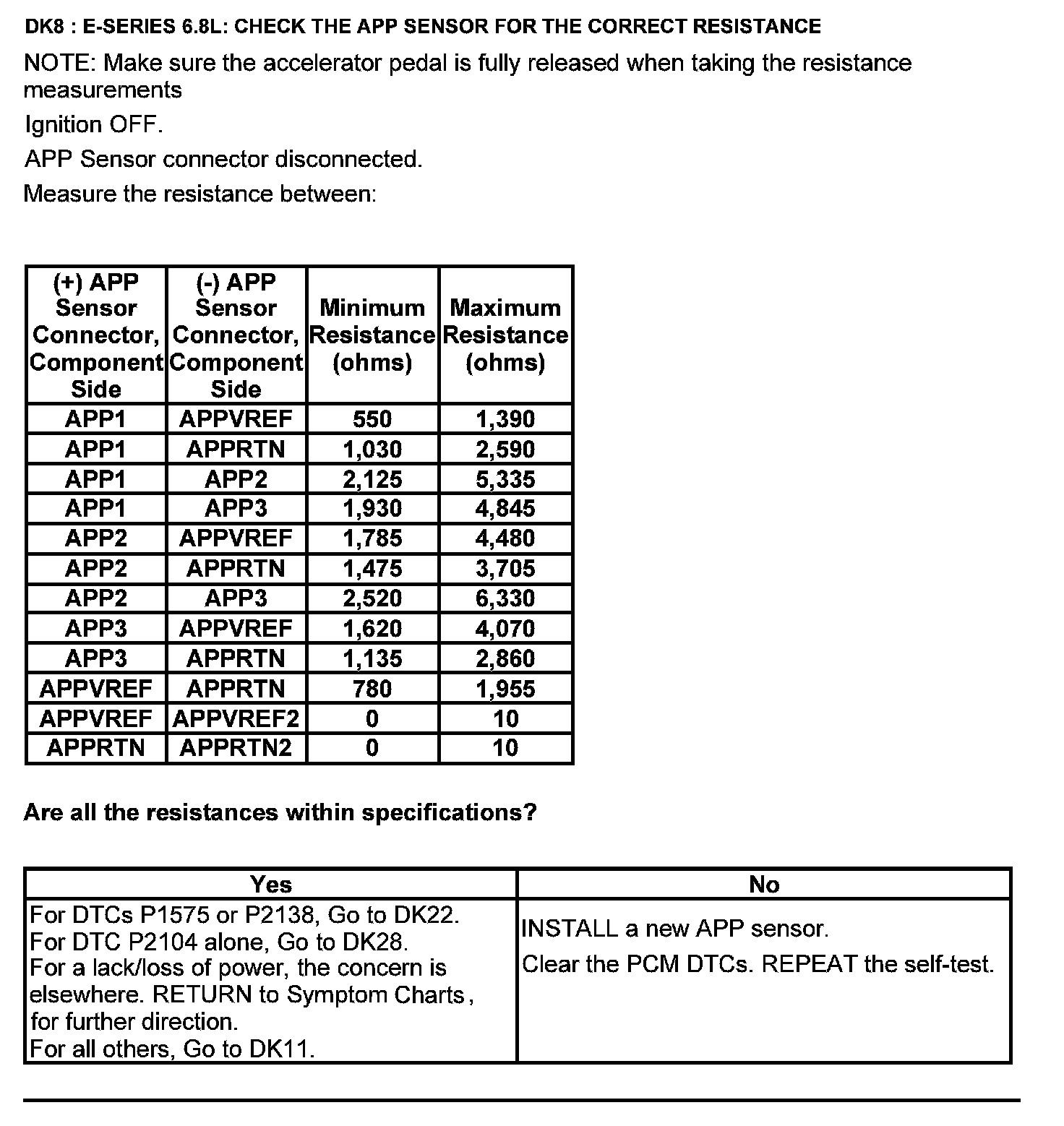

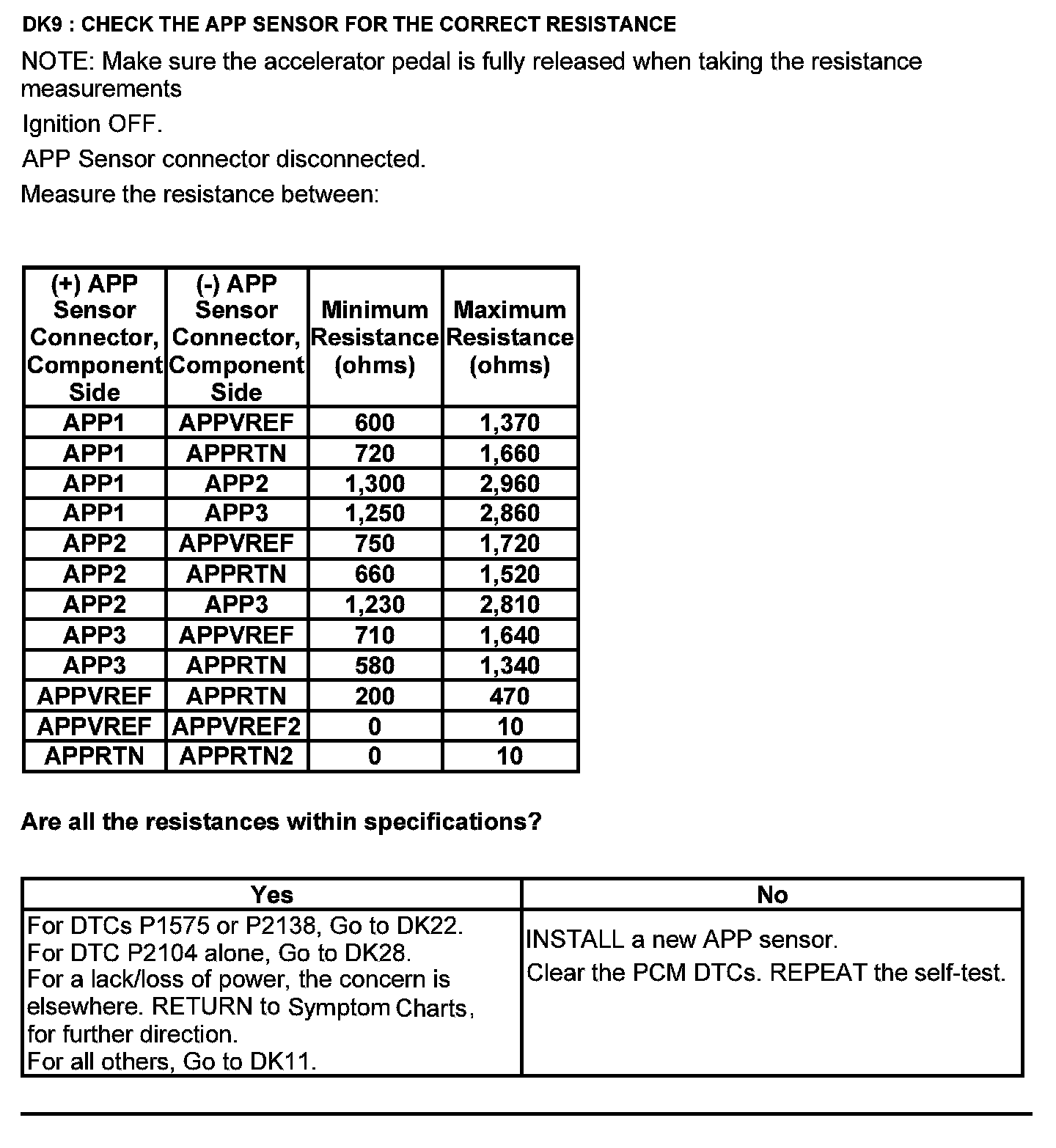

Accelerator Pedal Position (APP) Sensor

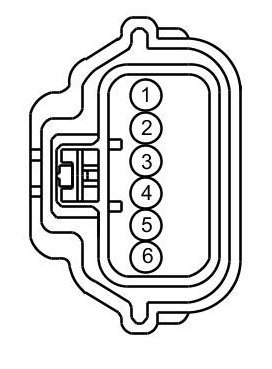

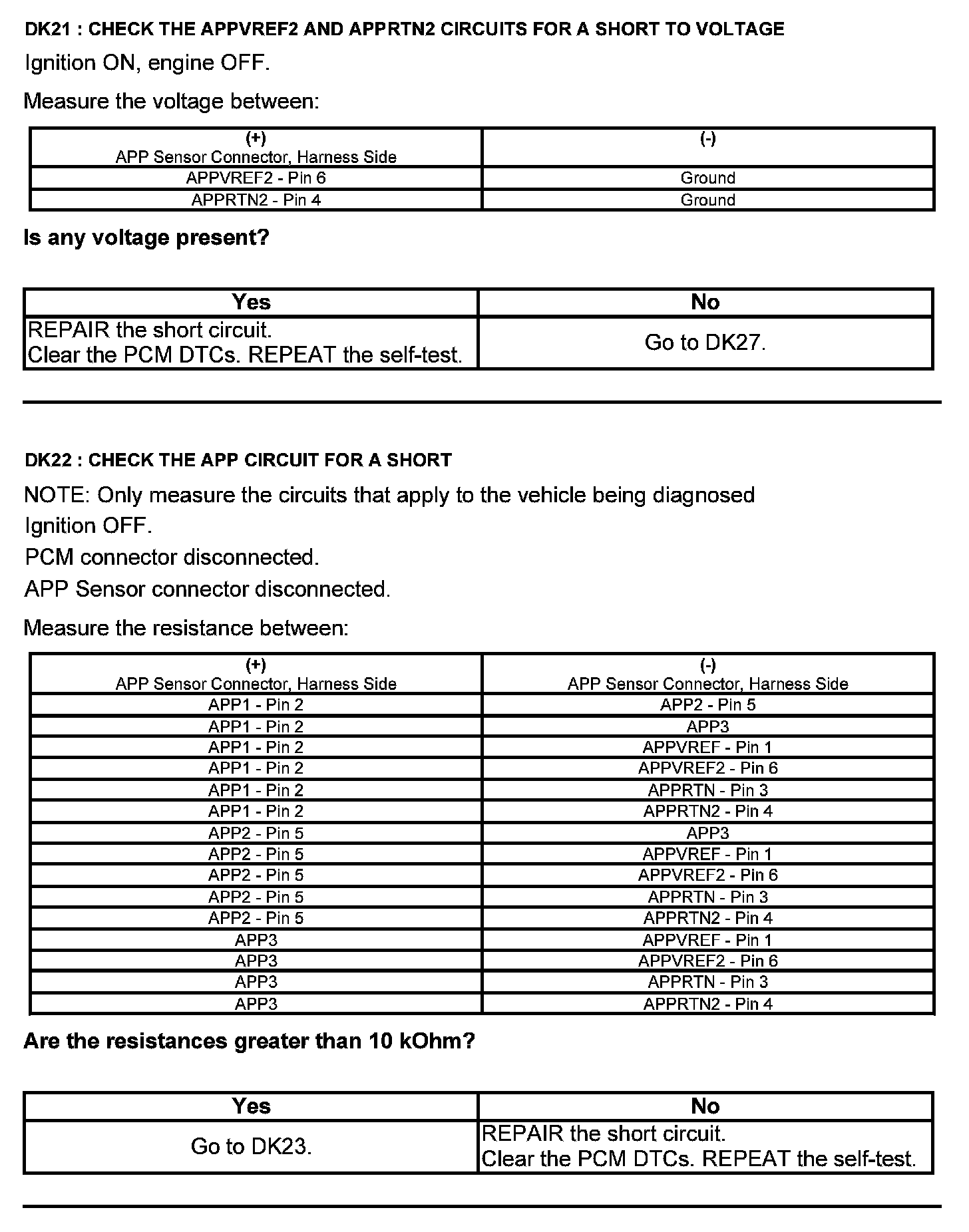

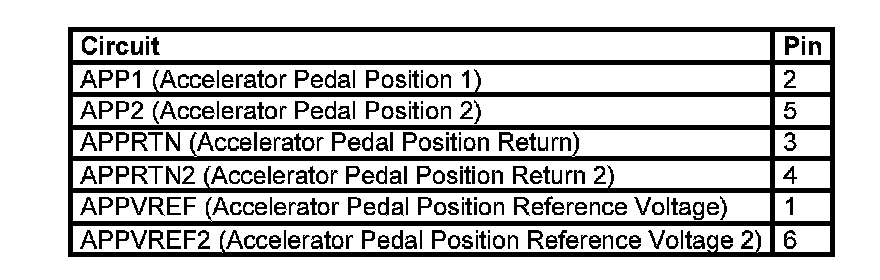

Accelerator Pedal Position (APP) Sensor Connector




Harness Side

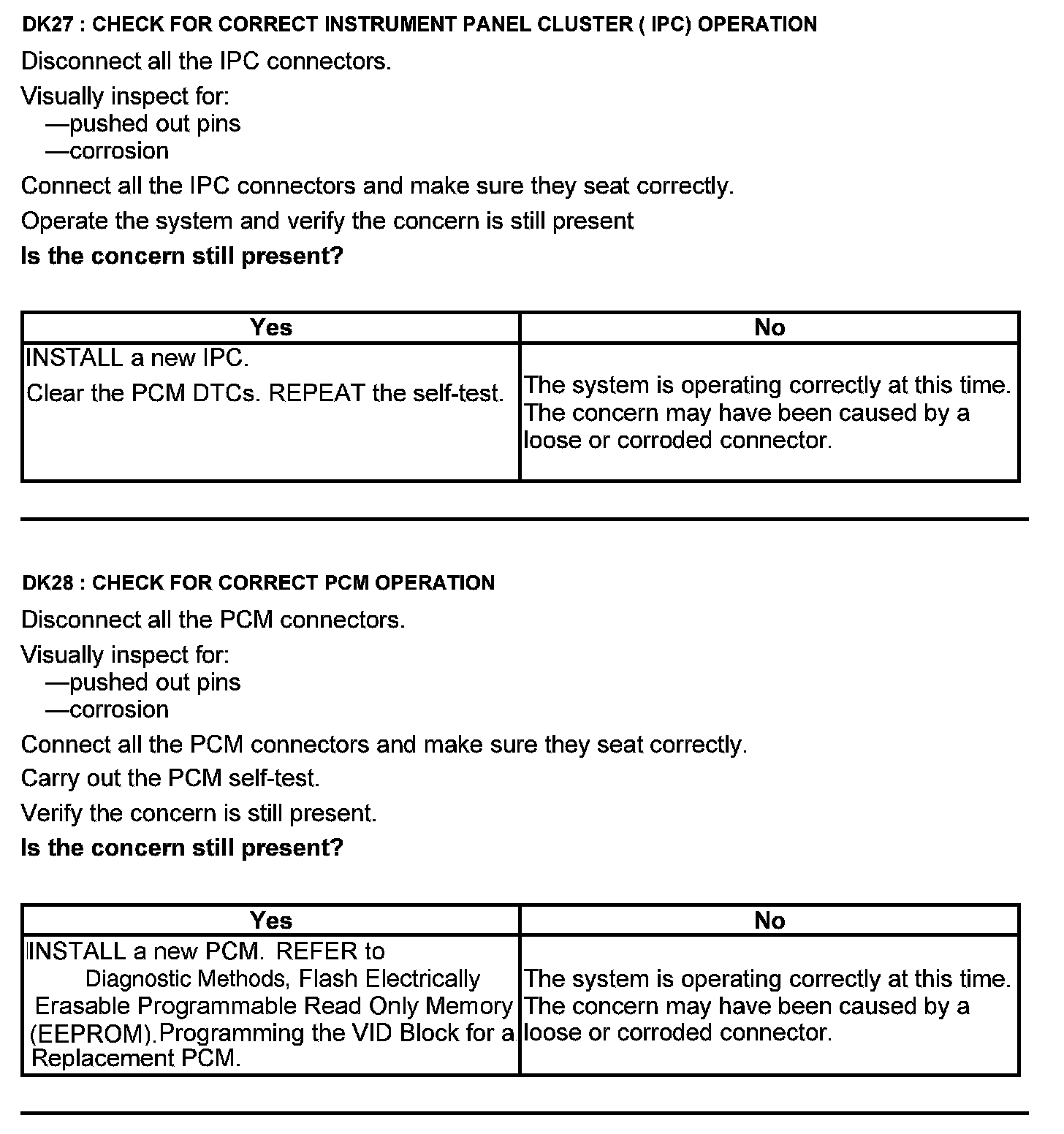

Instrument Panel Cluster (IPC) Connector




Harness Side

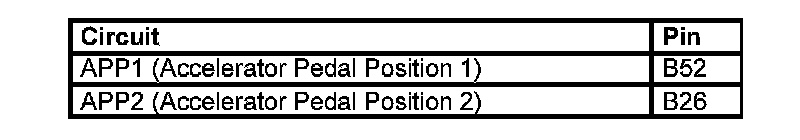

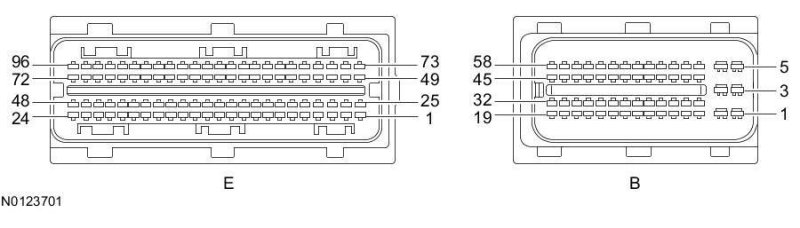

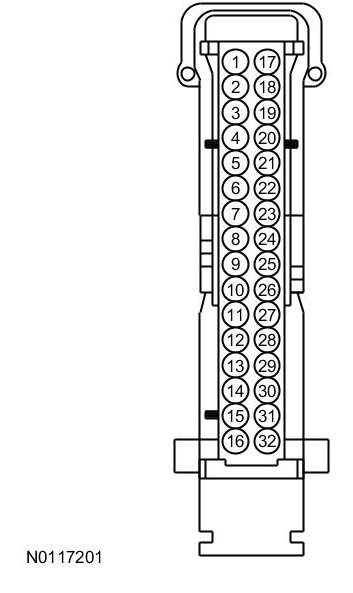

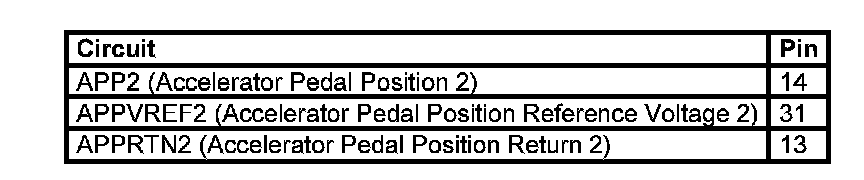

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.




Harness Side
