Direct Fuel Injection Fuel Injector

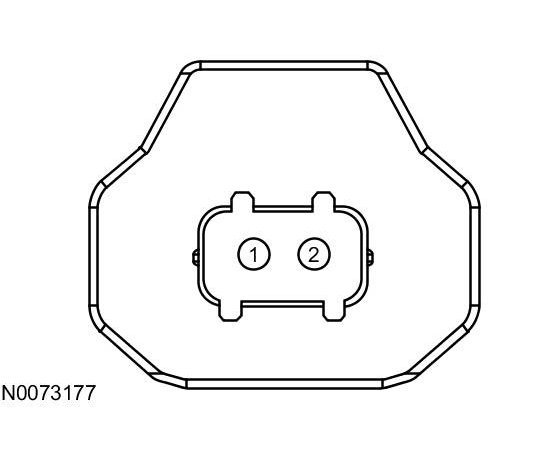

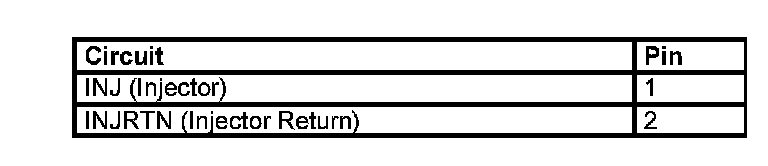

Injector (INJ) Connector
Harness Side

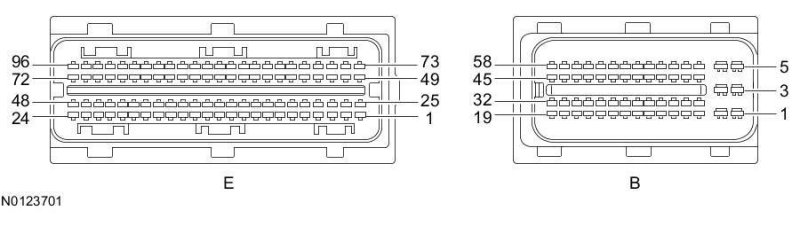

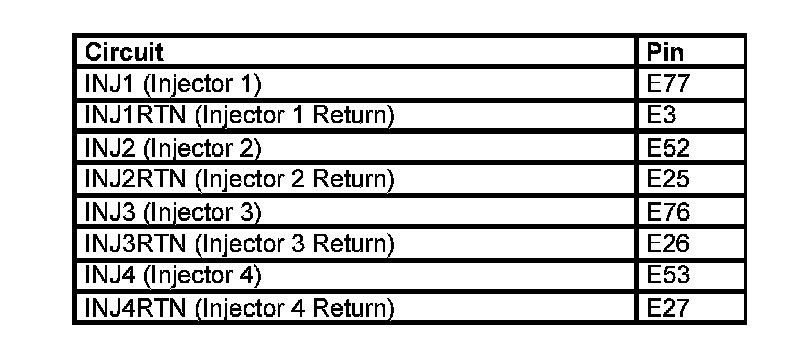

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side

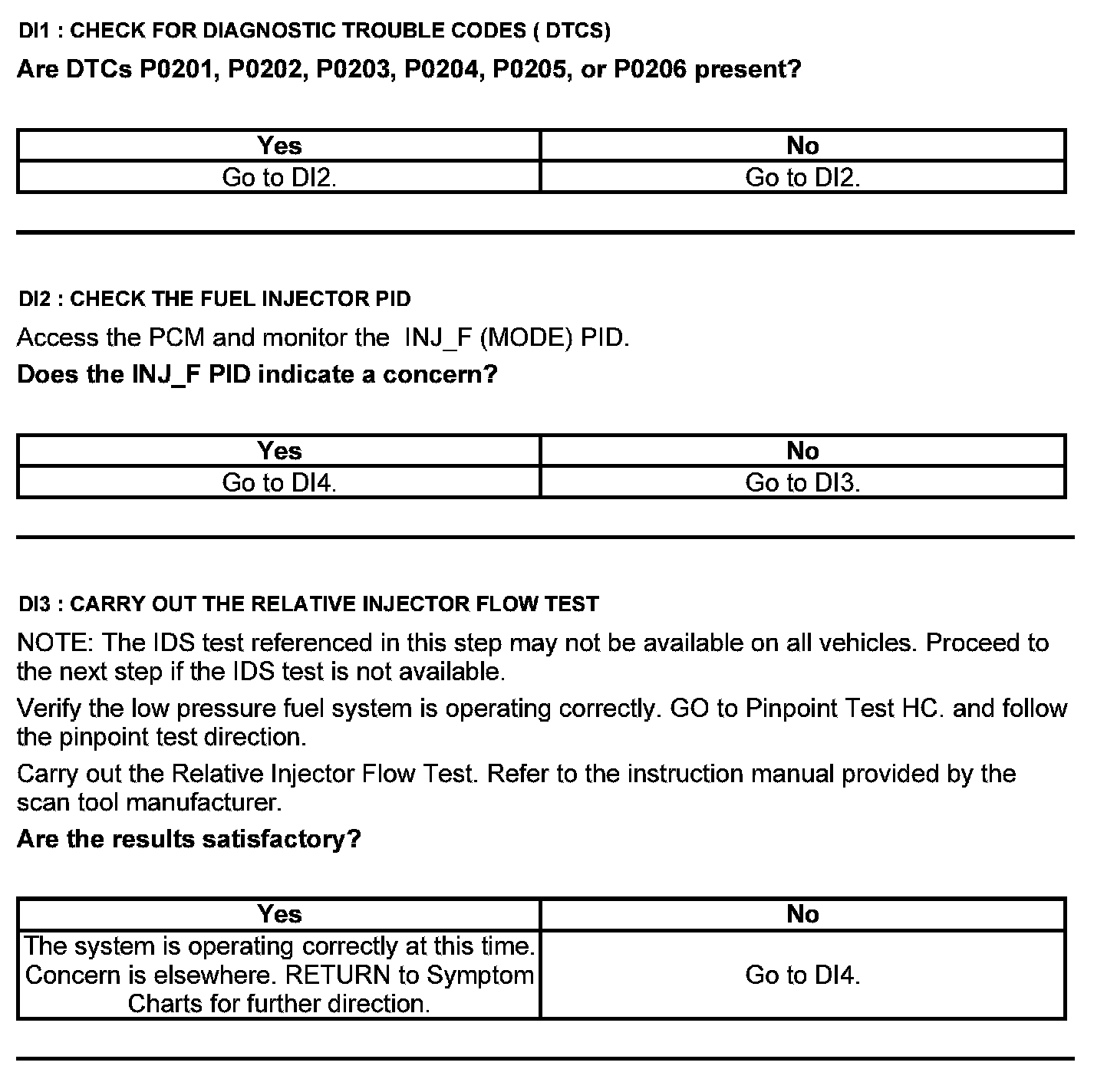

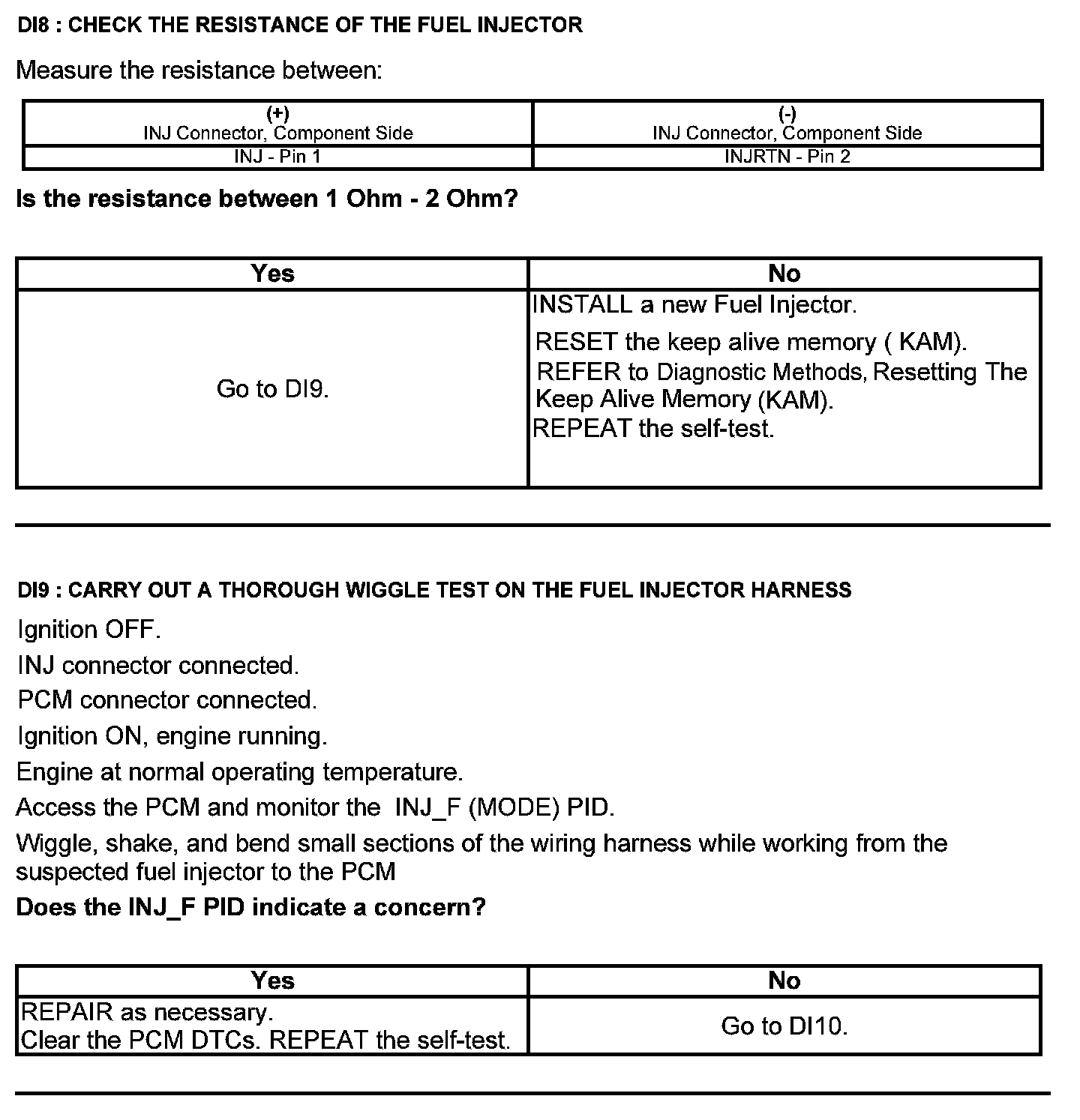

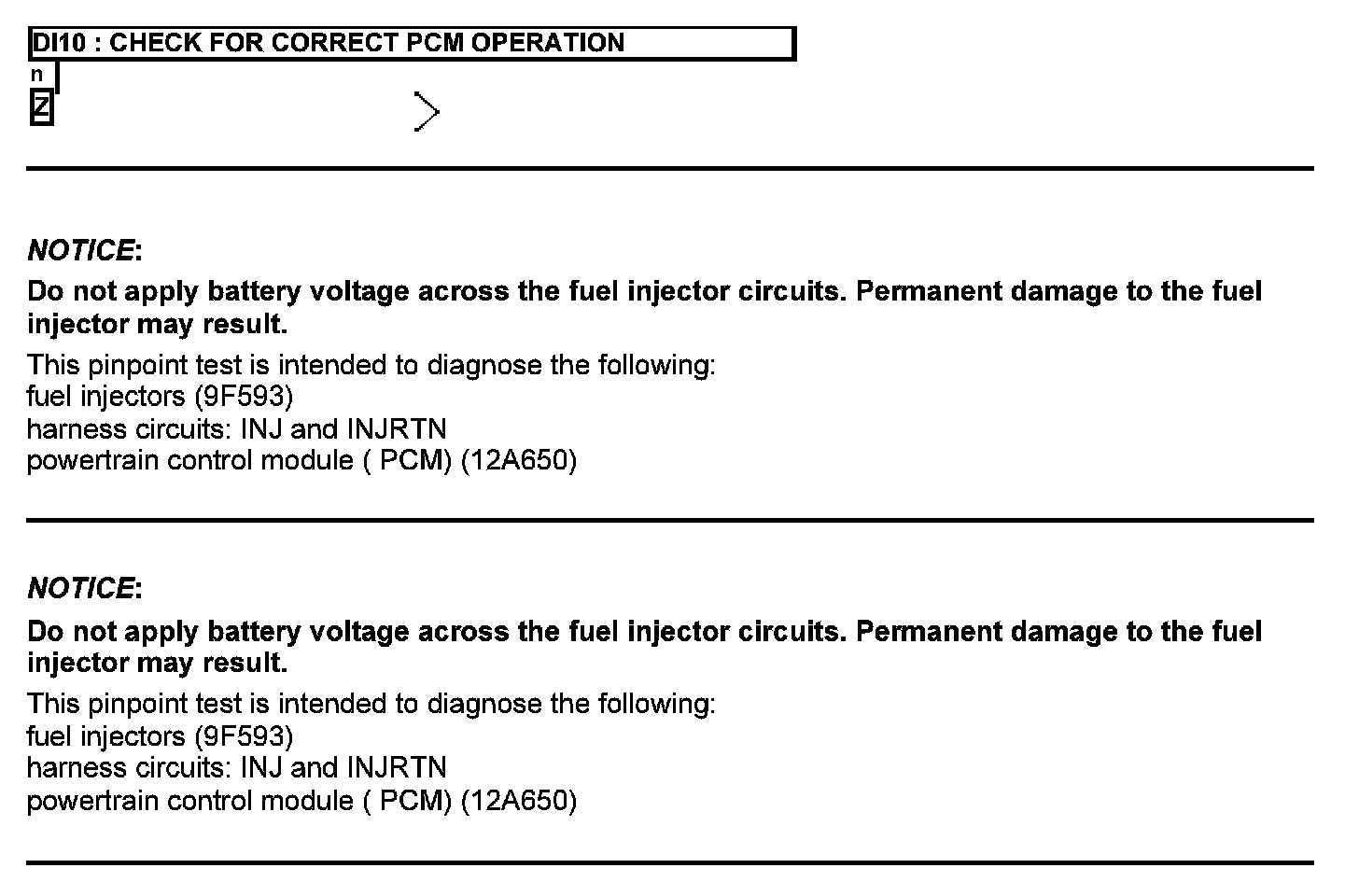

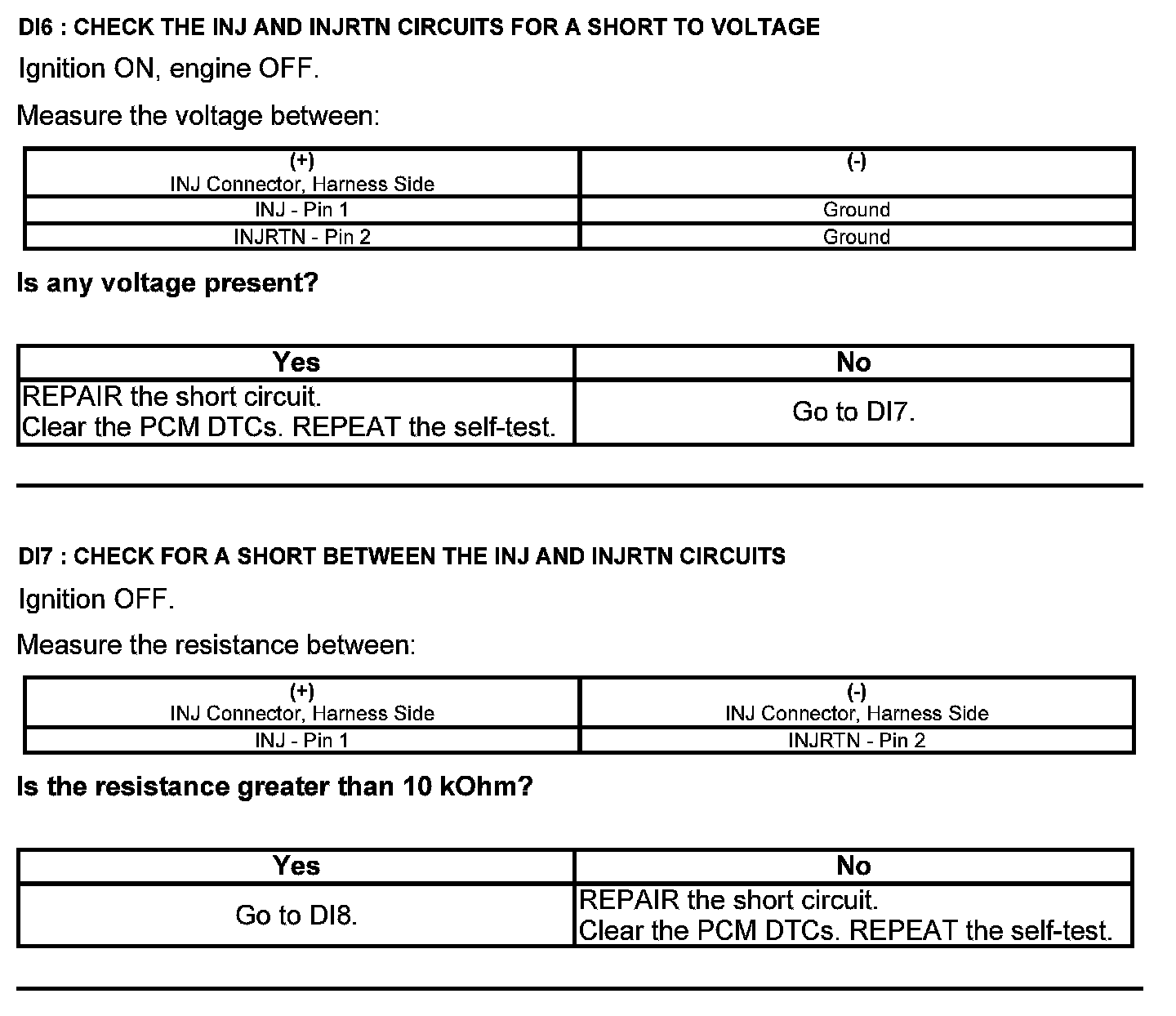

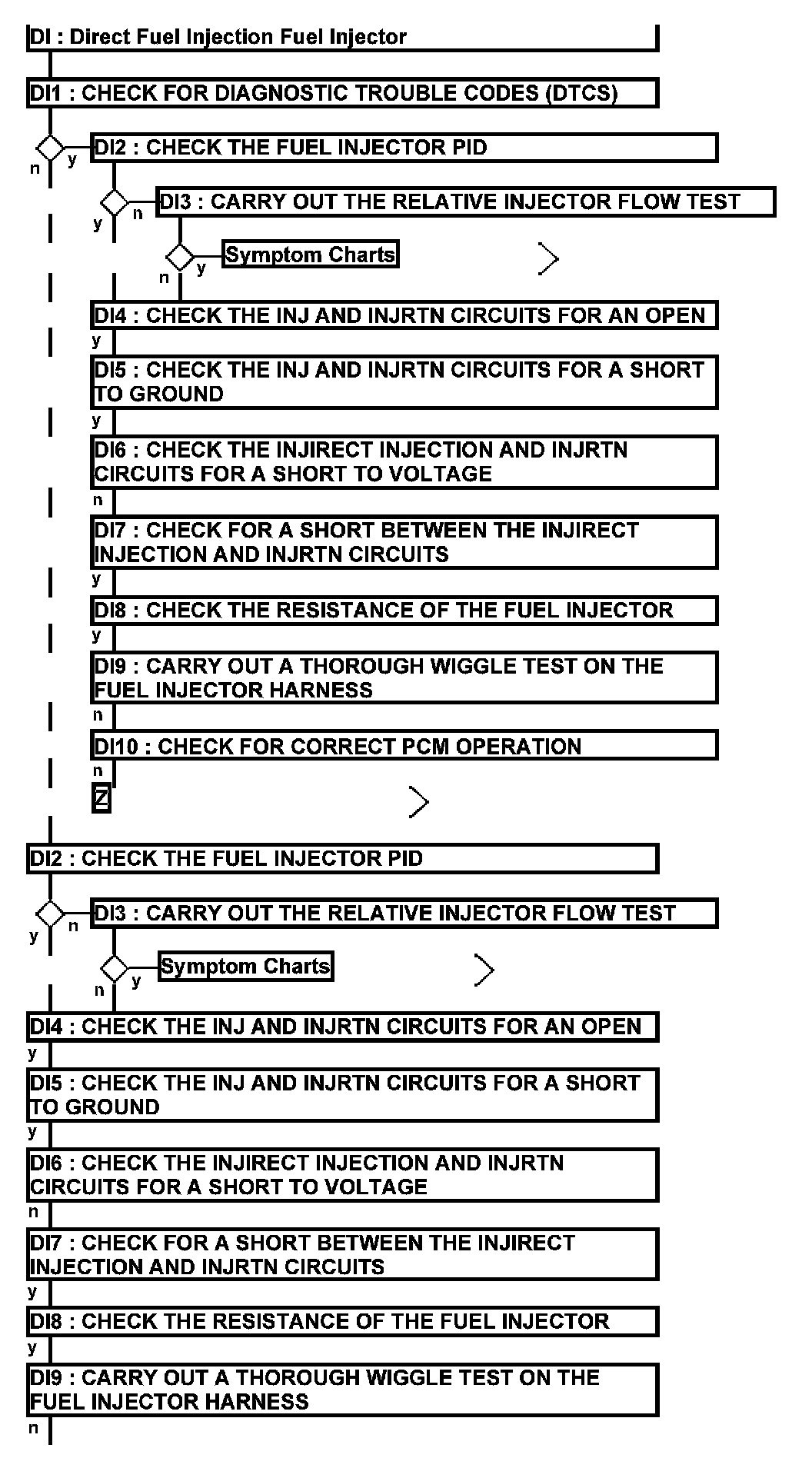

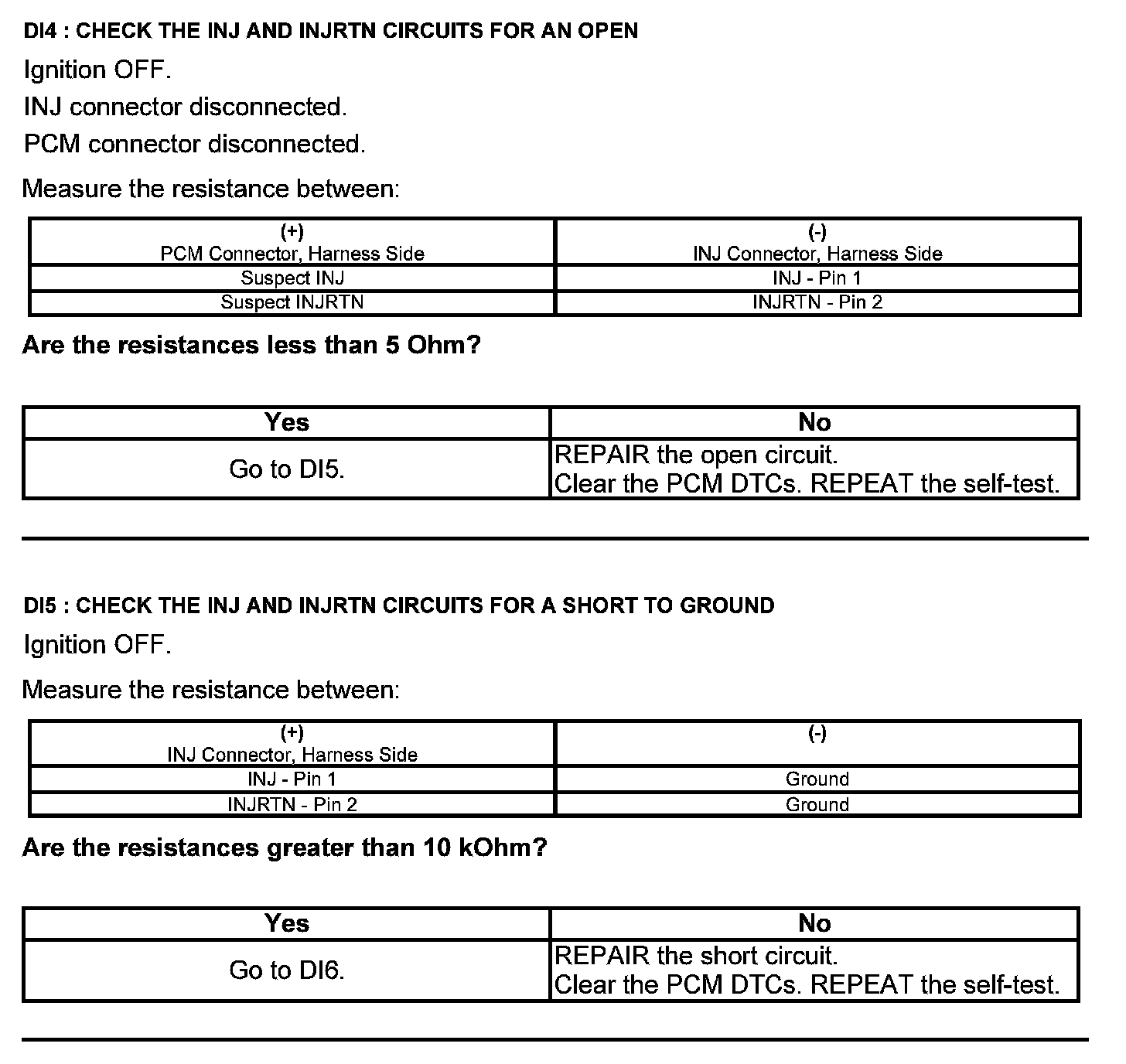

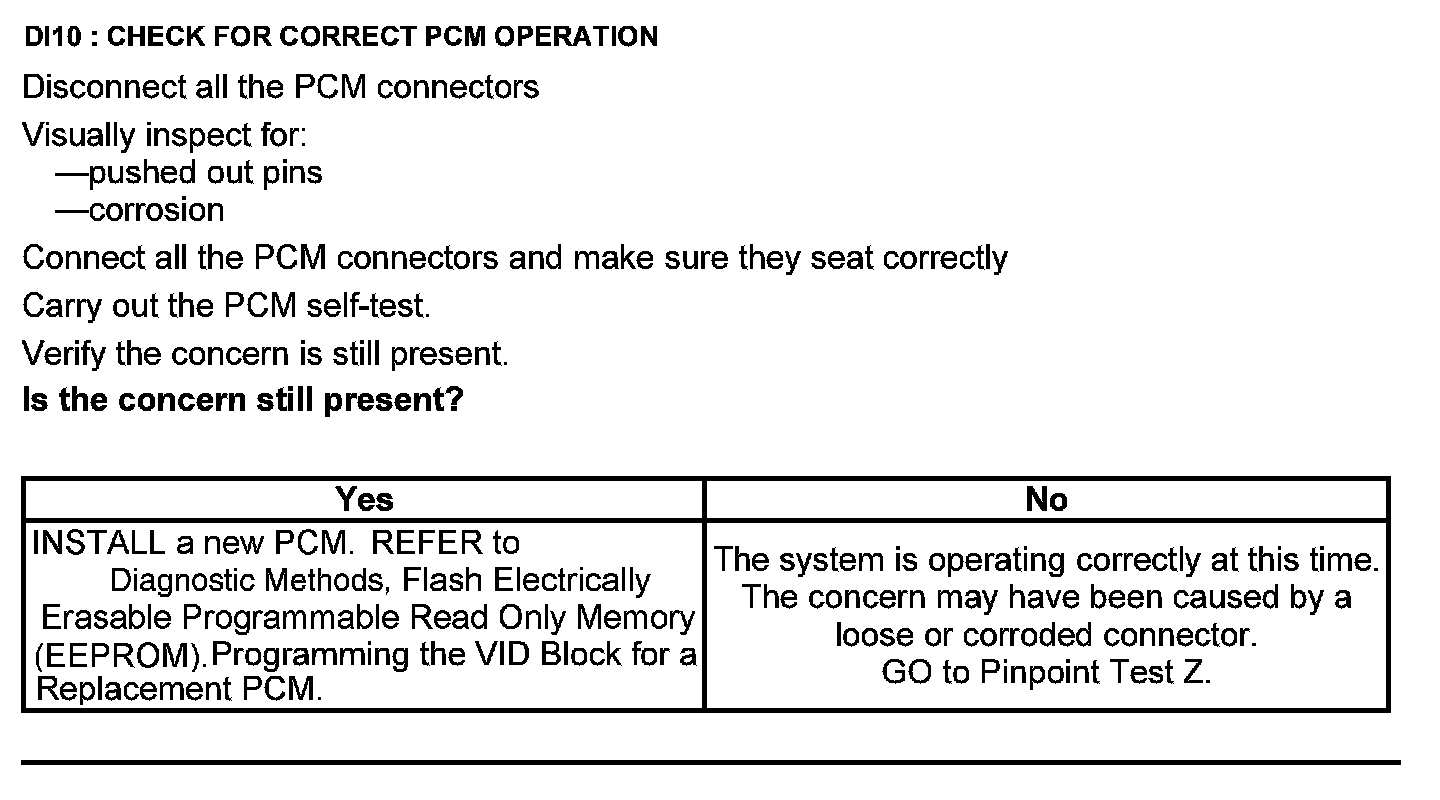

Test DI: Direct Fuel Injection Fuel Injector
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2012 Ford Truck.
Direct Fuel Injection Fuel Injector
Injector (INJ) Connector
Harness Side
Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side
