Knock Sensor (KS)

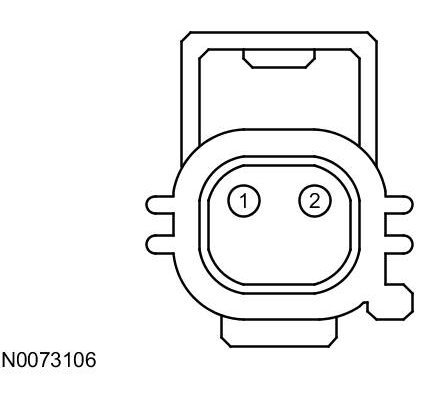

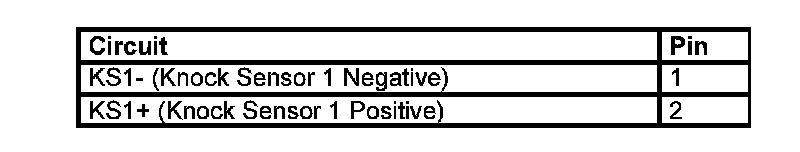

Knock Sensor 1 (KS1) Connector
Harness Side

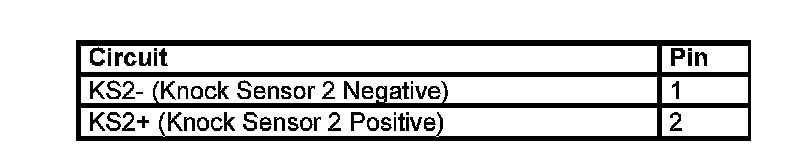

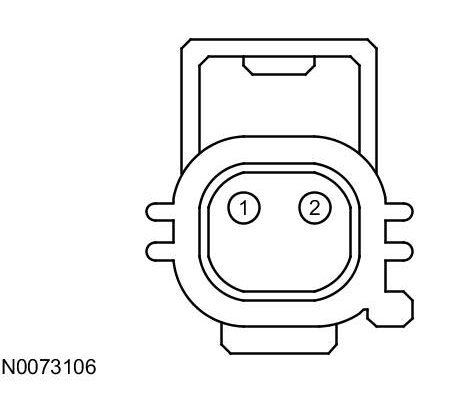

Knock Sensor 2 (KS2) Connector
Harness Side

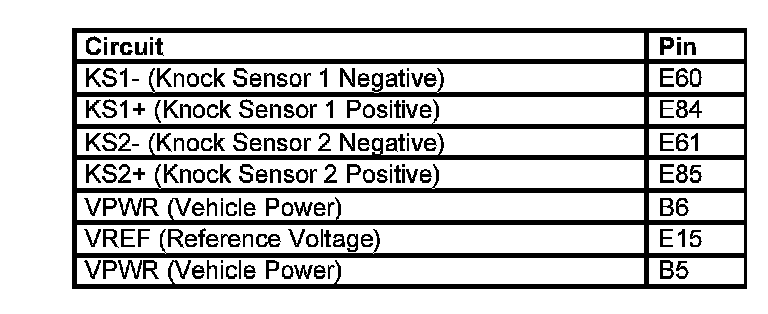

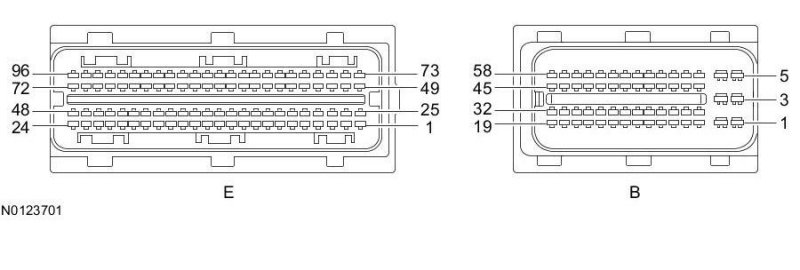

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side

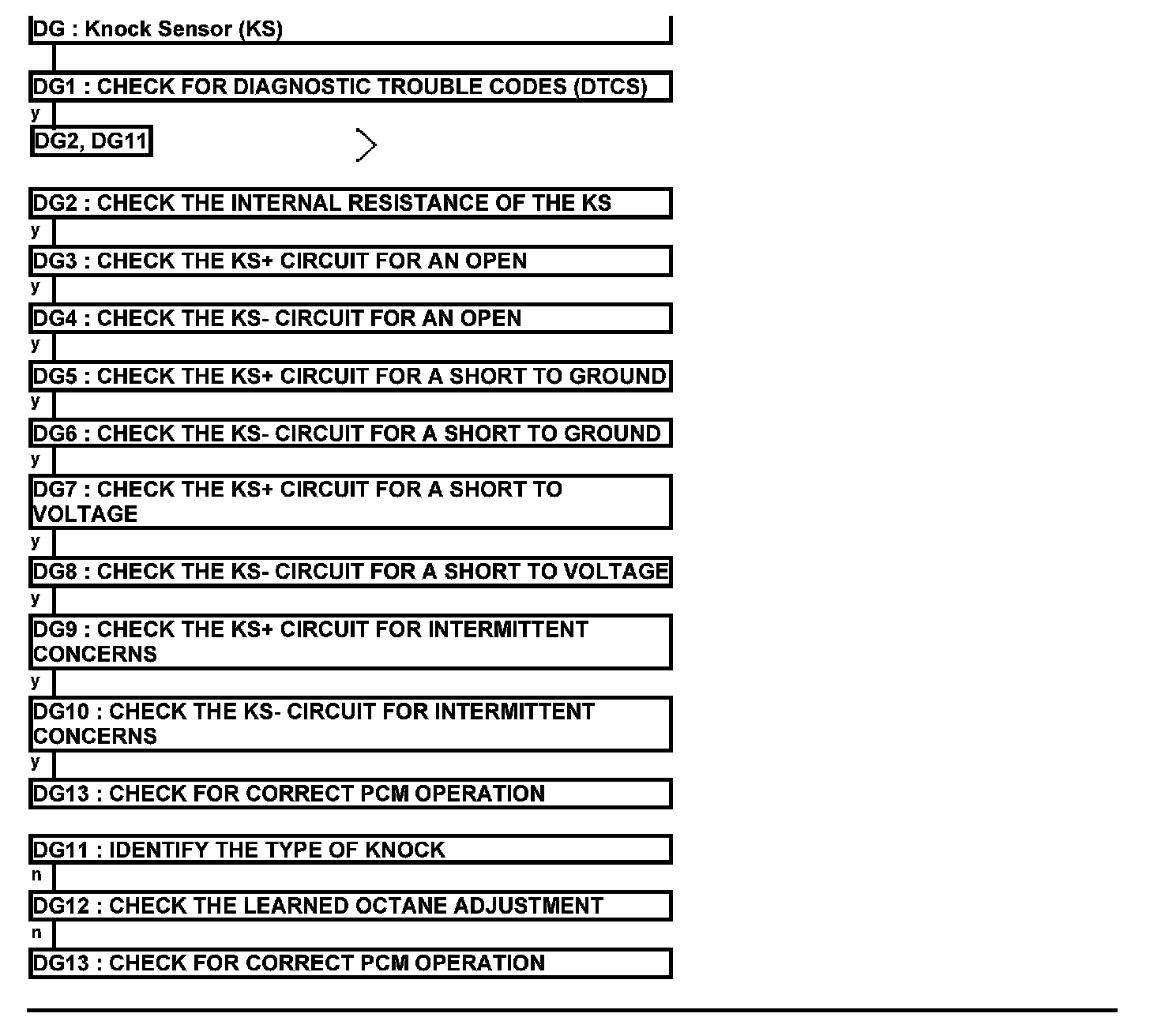

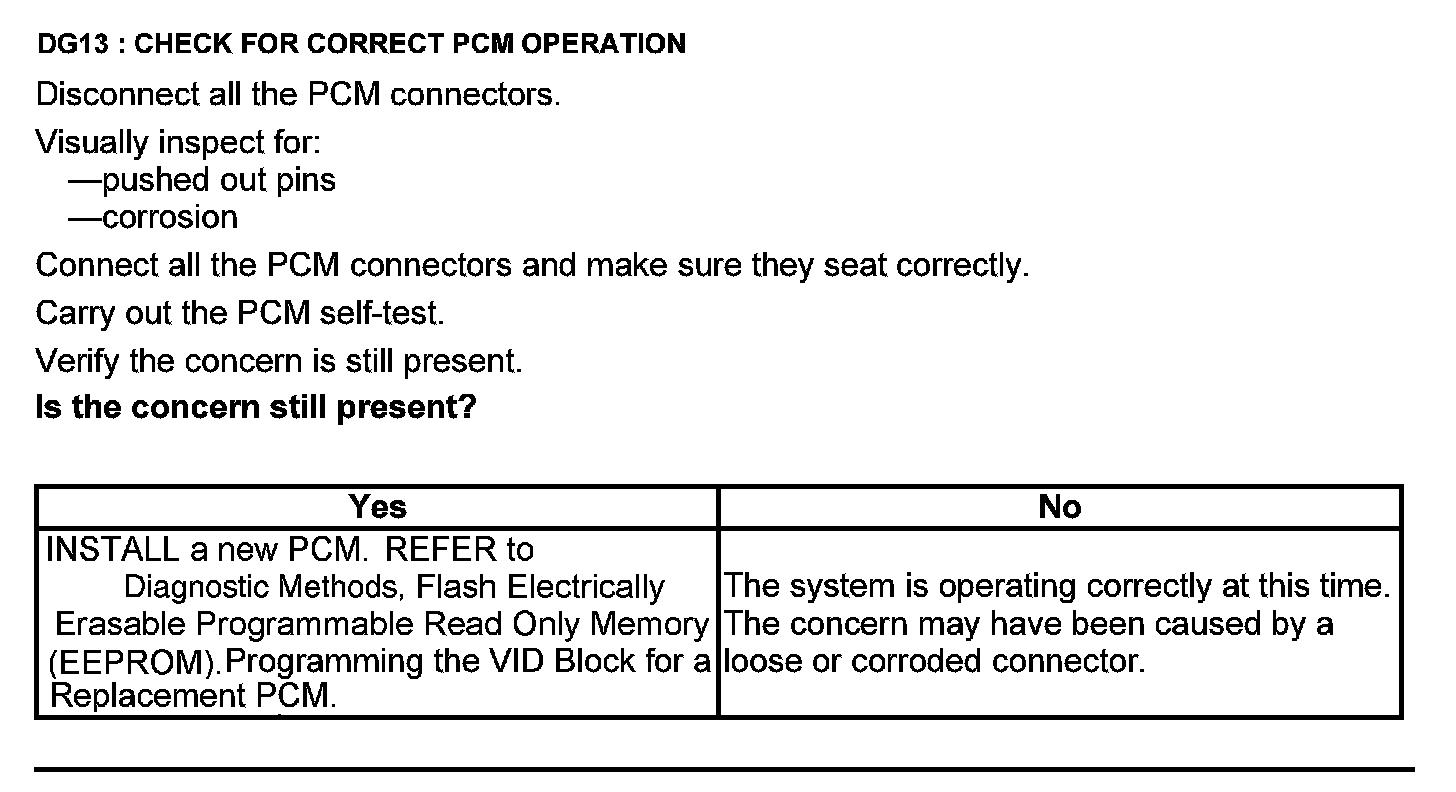

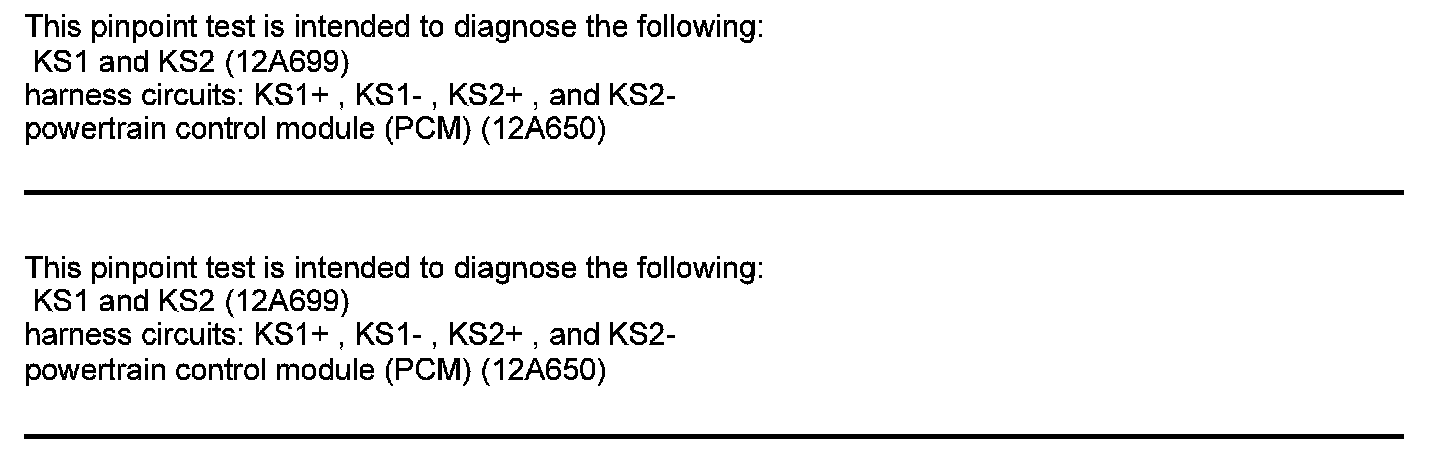

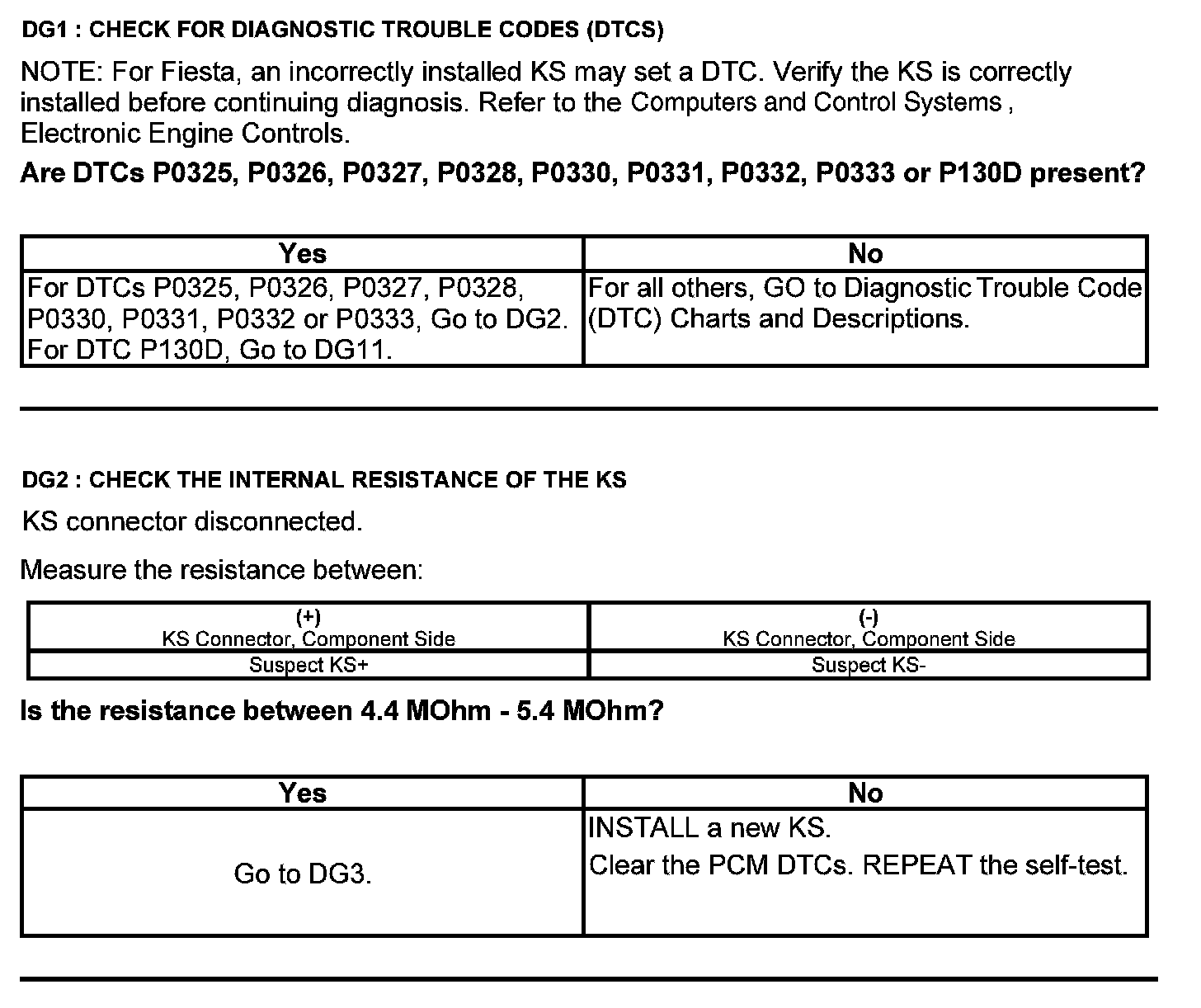

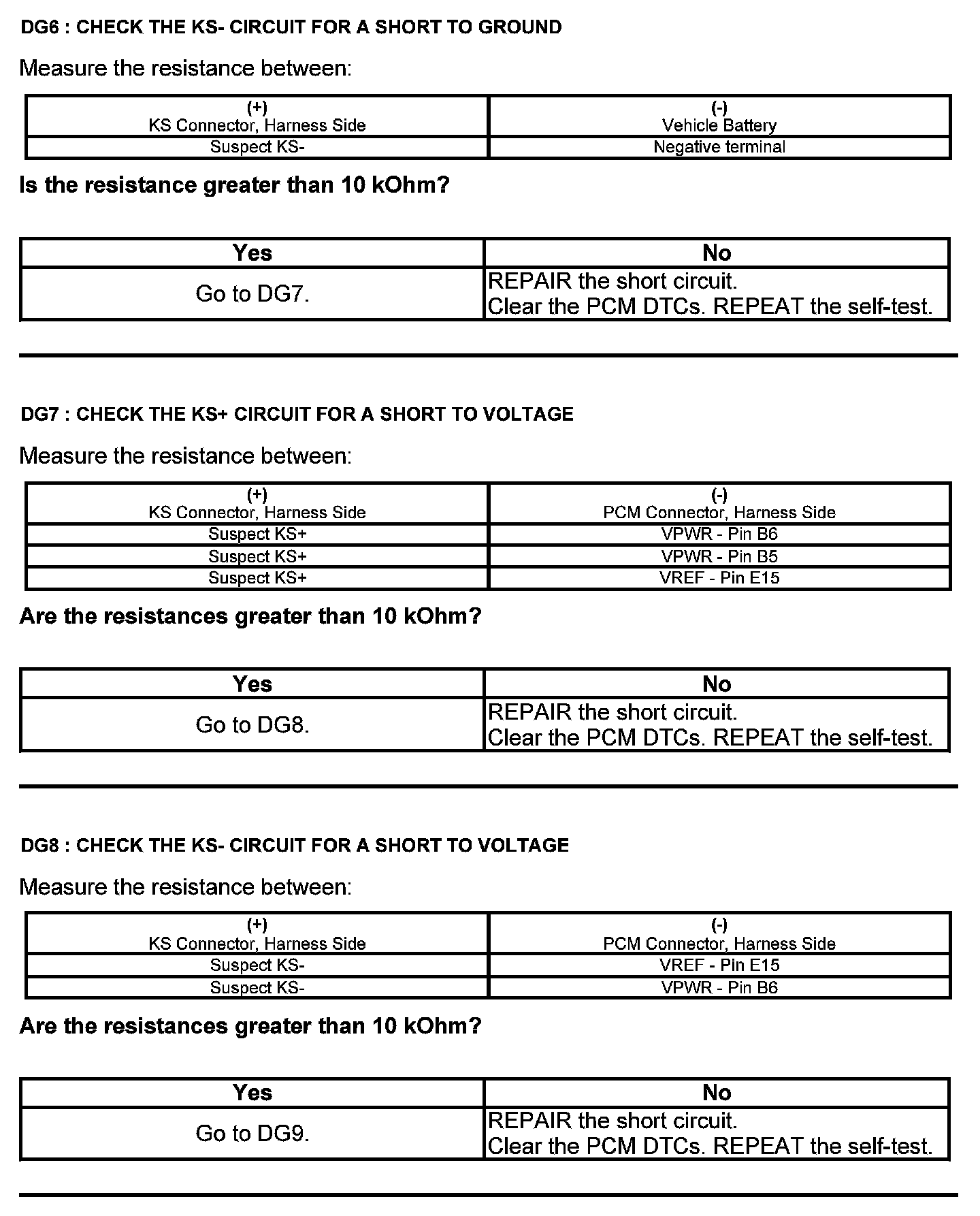

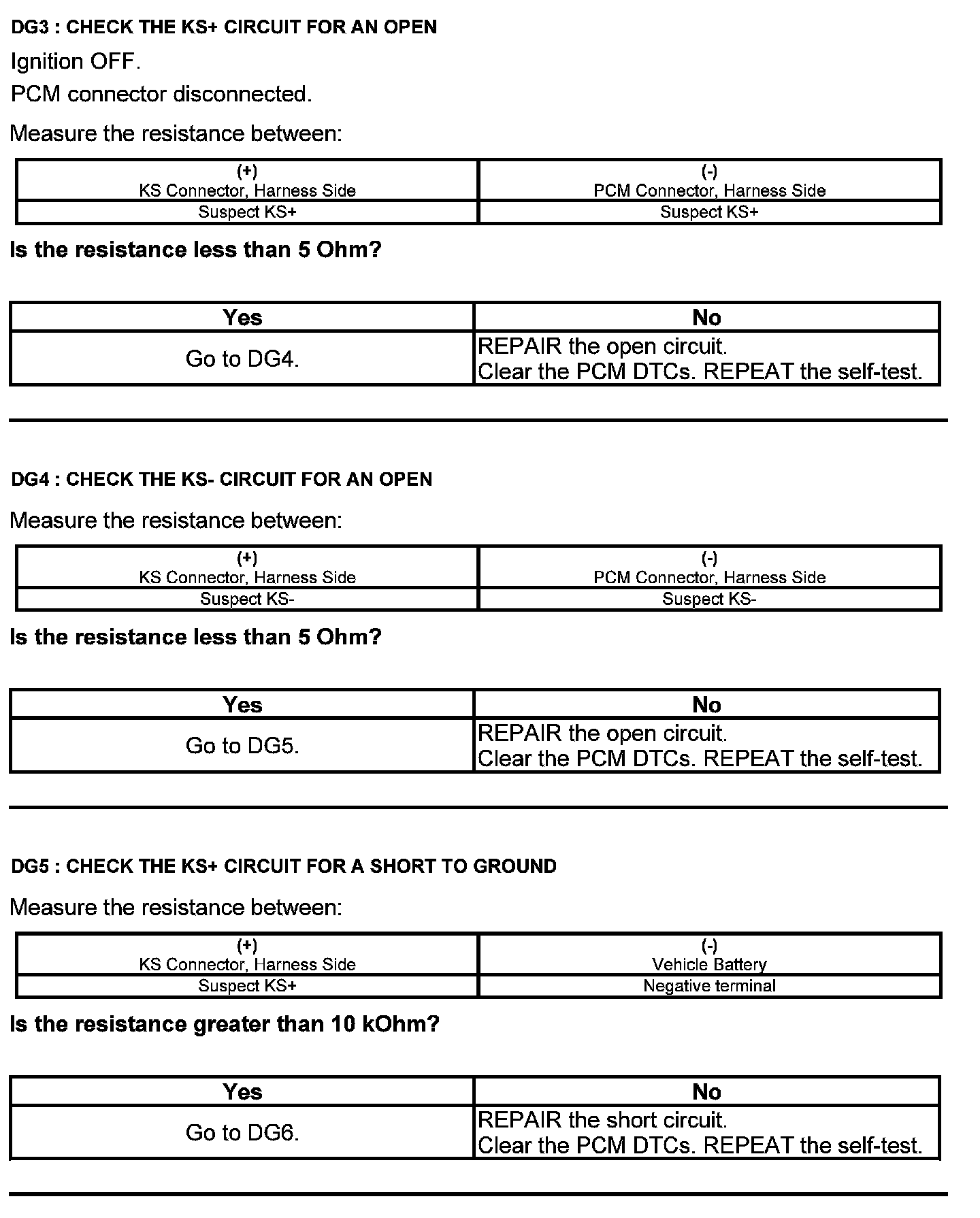

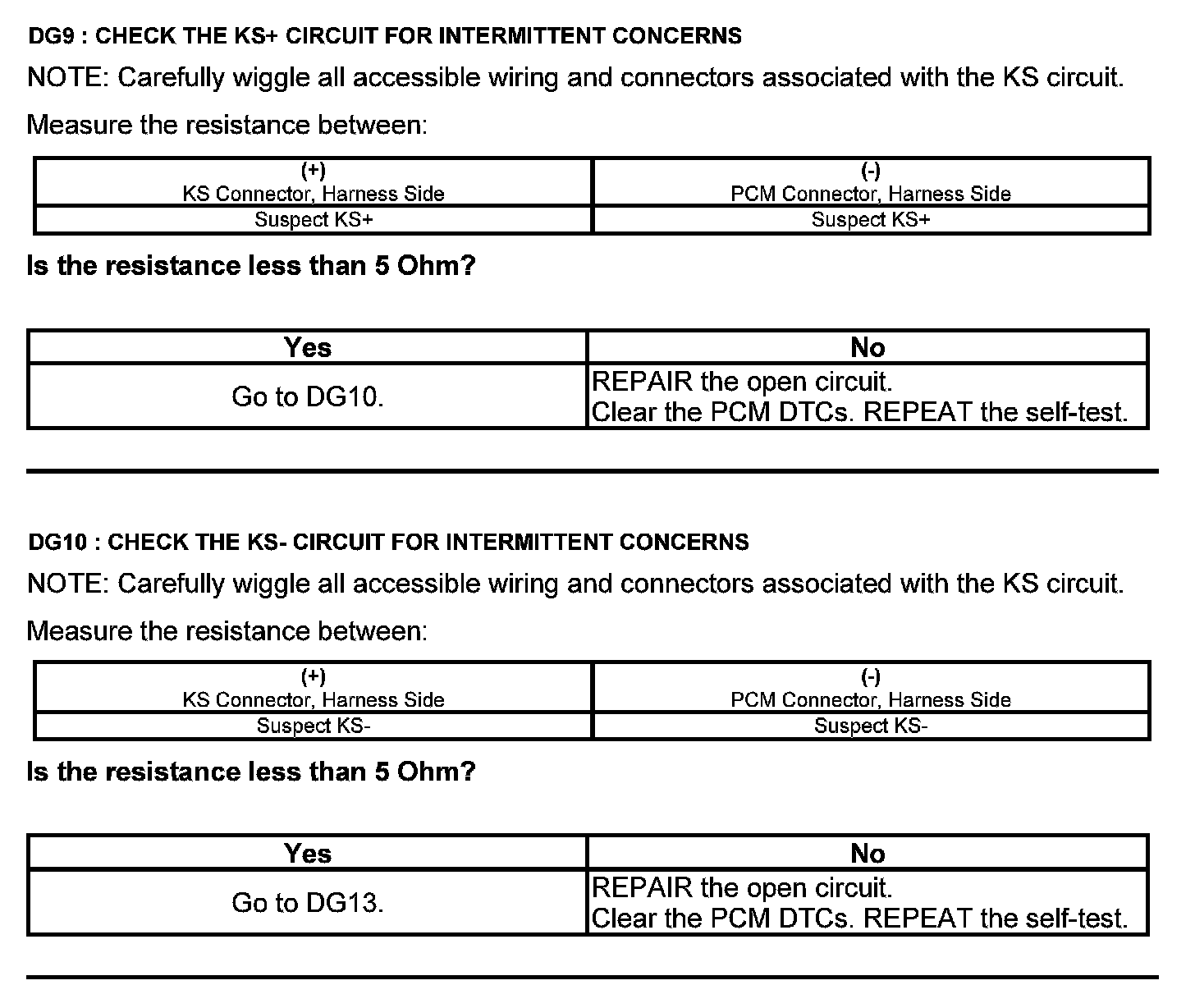

Test DG: Knock Sensor (KS)
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2012 Ford Truck.
Knock Sensor (KS)
Knock Sensor 1 (KS1) Connector
Harness Side
Knock Sensor 2 (KS2) Connector
Harness Side
Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side
