Mass Airflow (MAF) Sensor

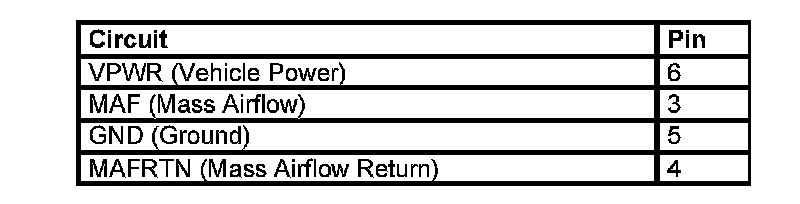

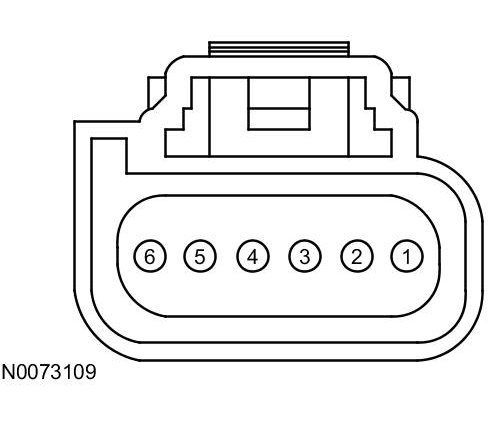

Mass Airflow/Intake Air Temperature (MAF/IAT) Sensor Connector
Harness Side

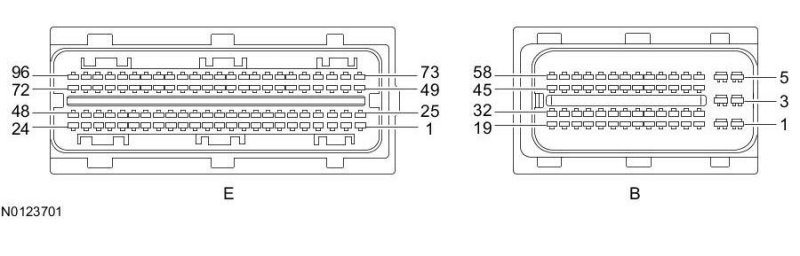

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side

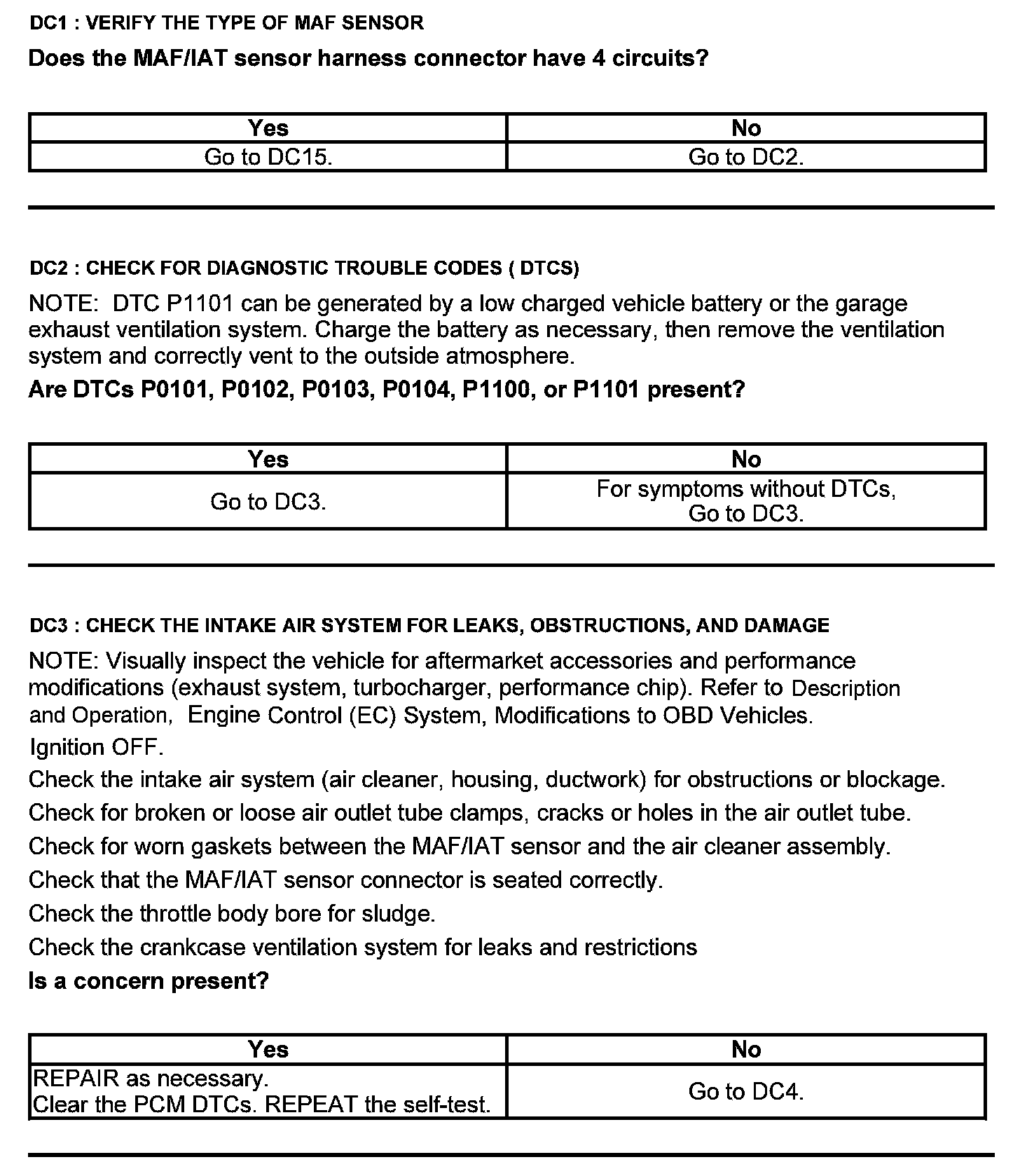

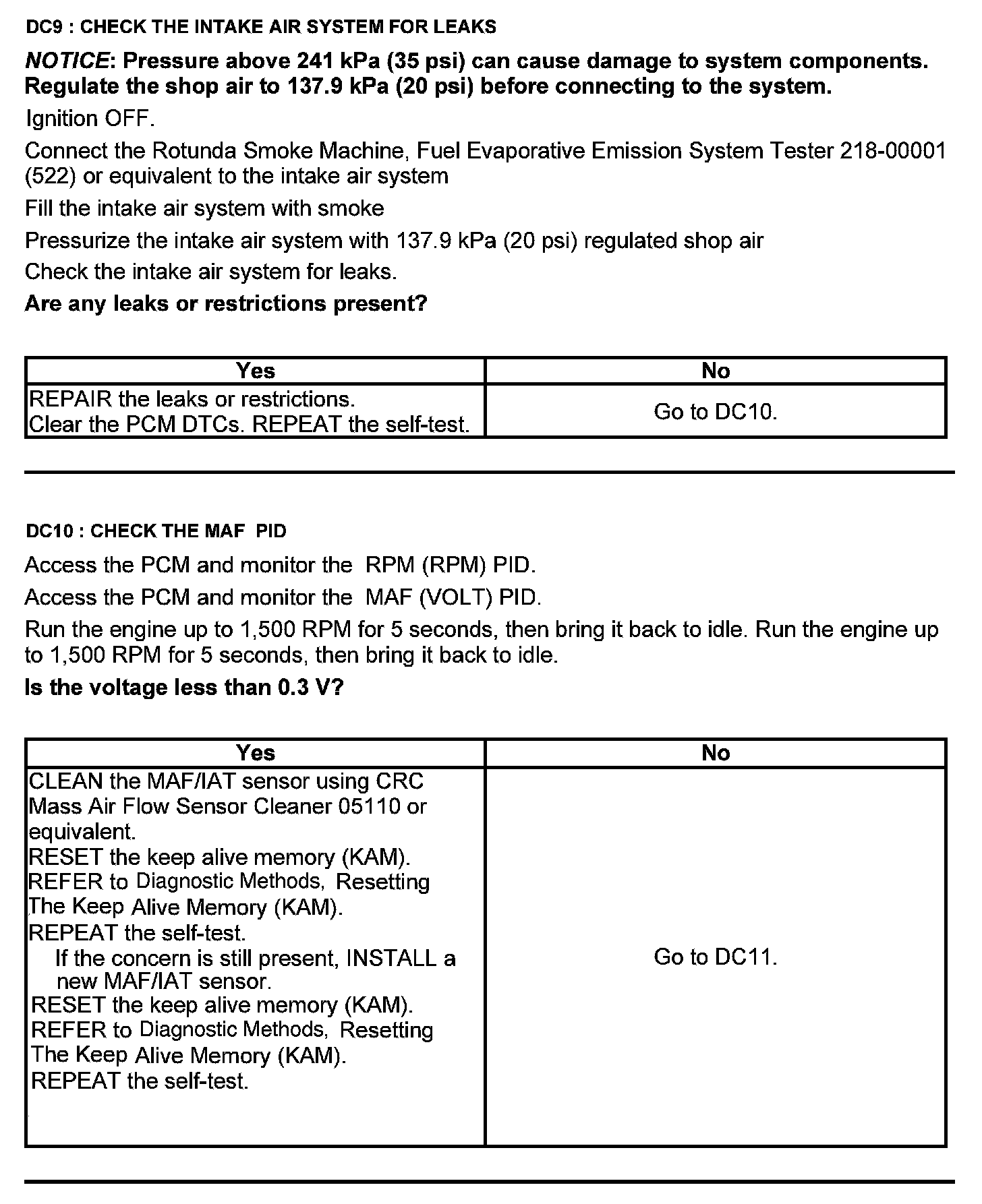

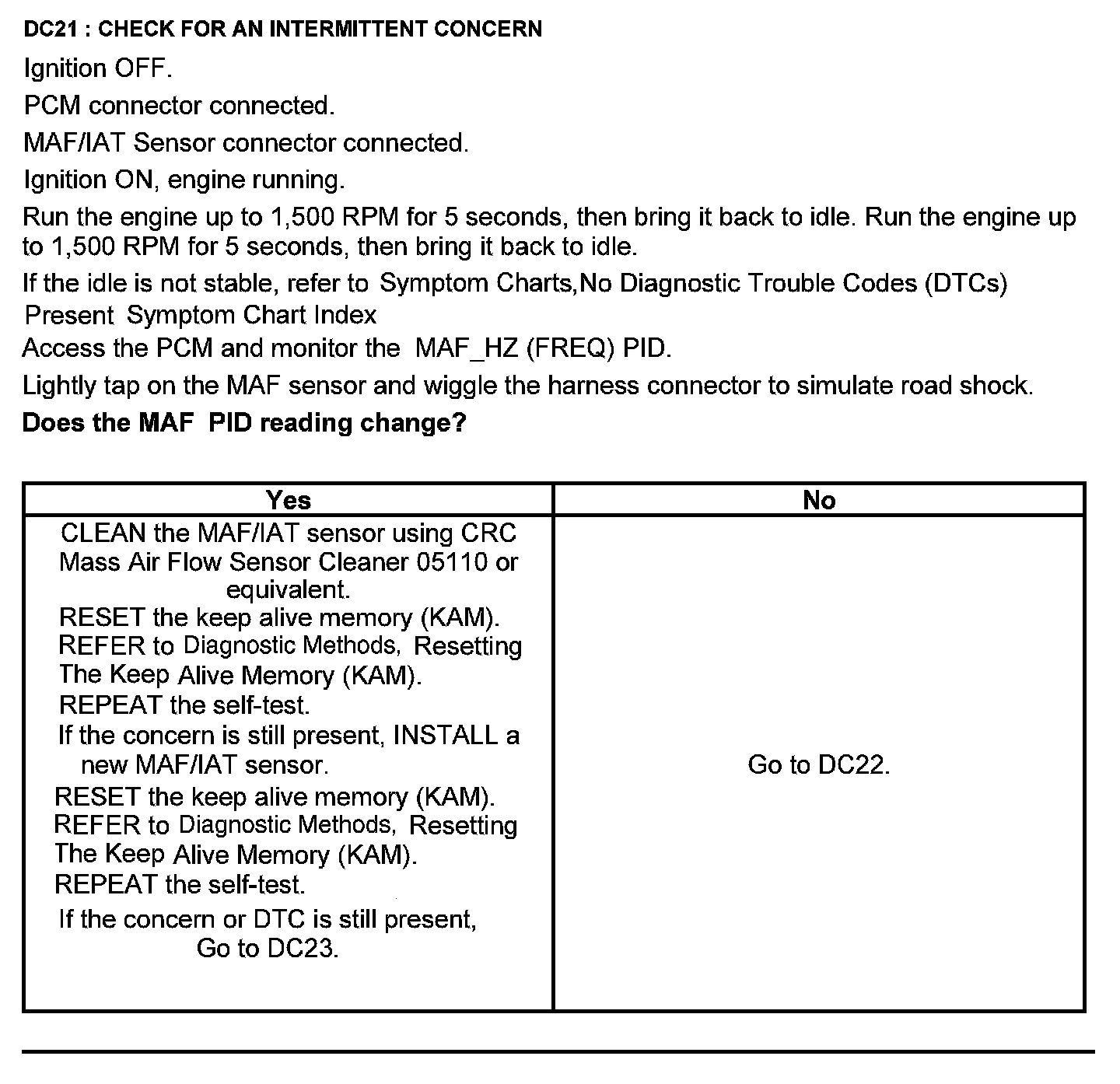

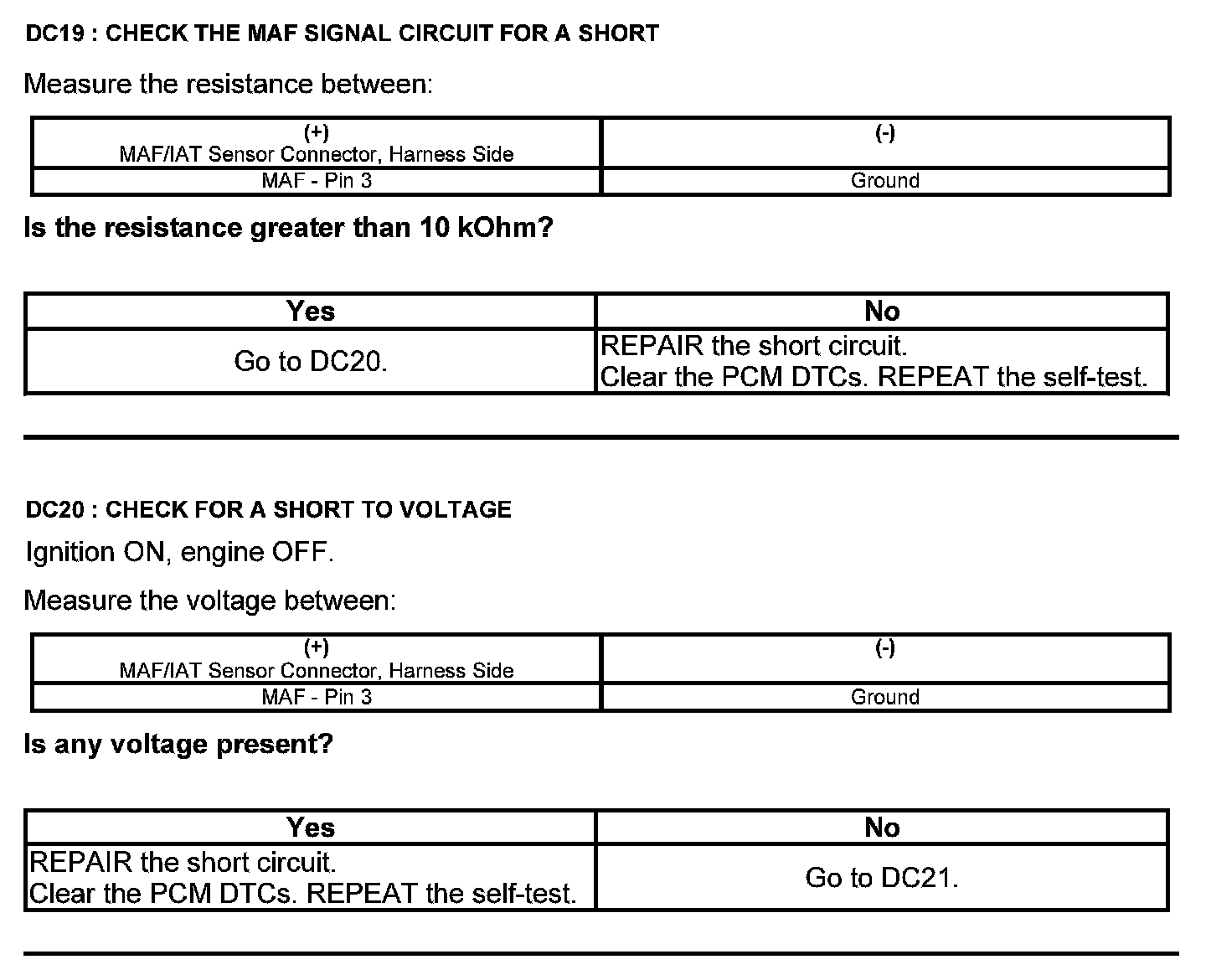

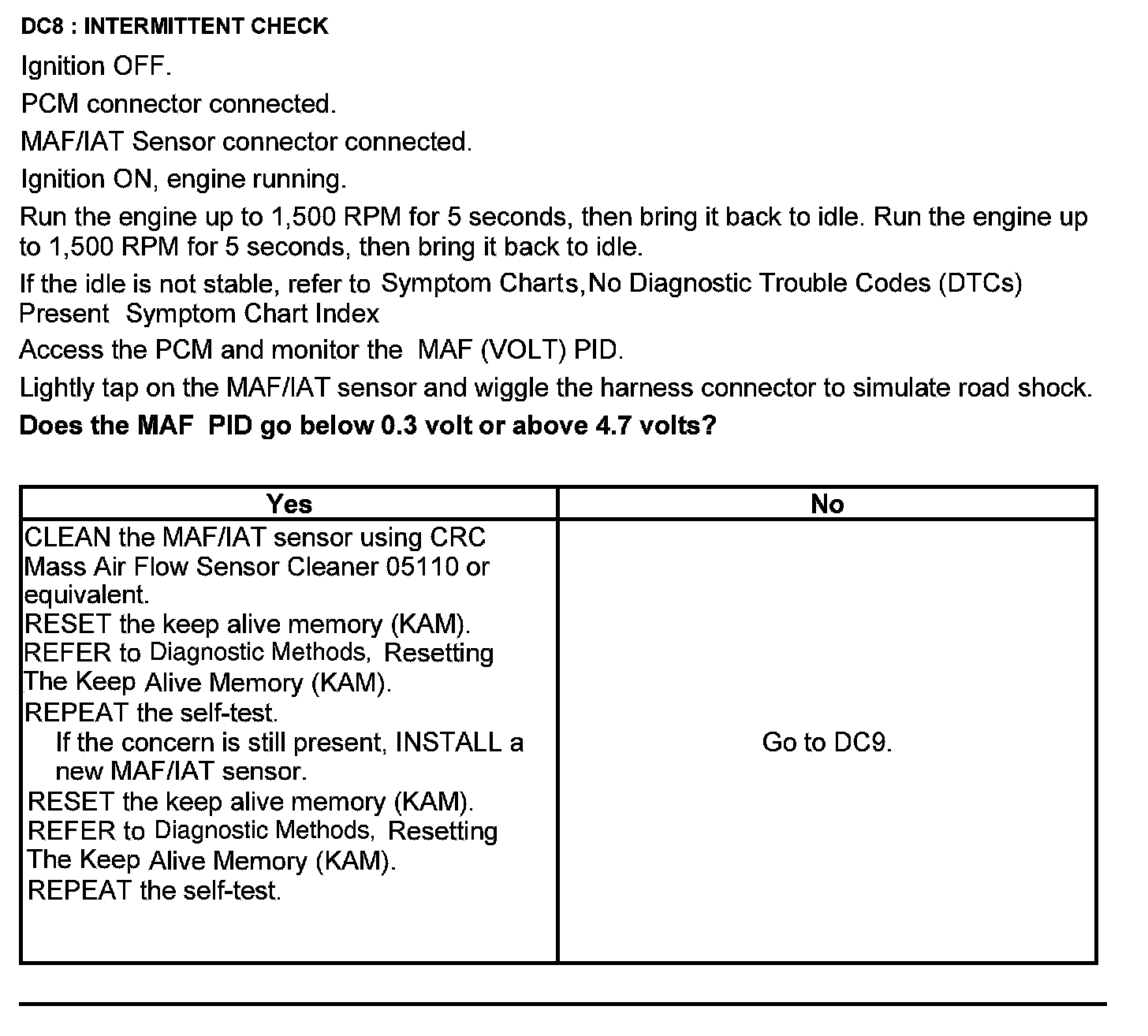

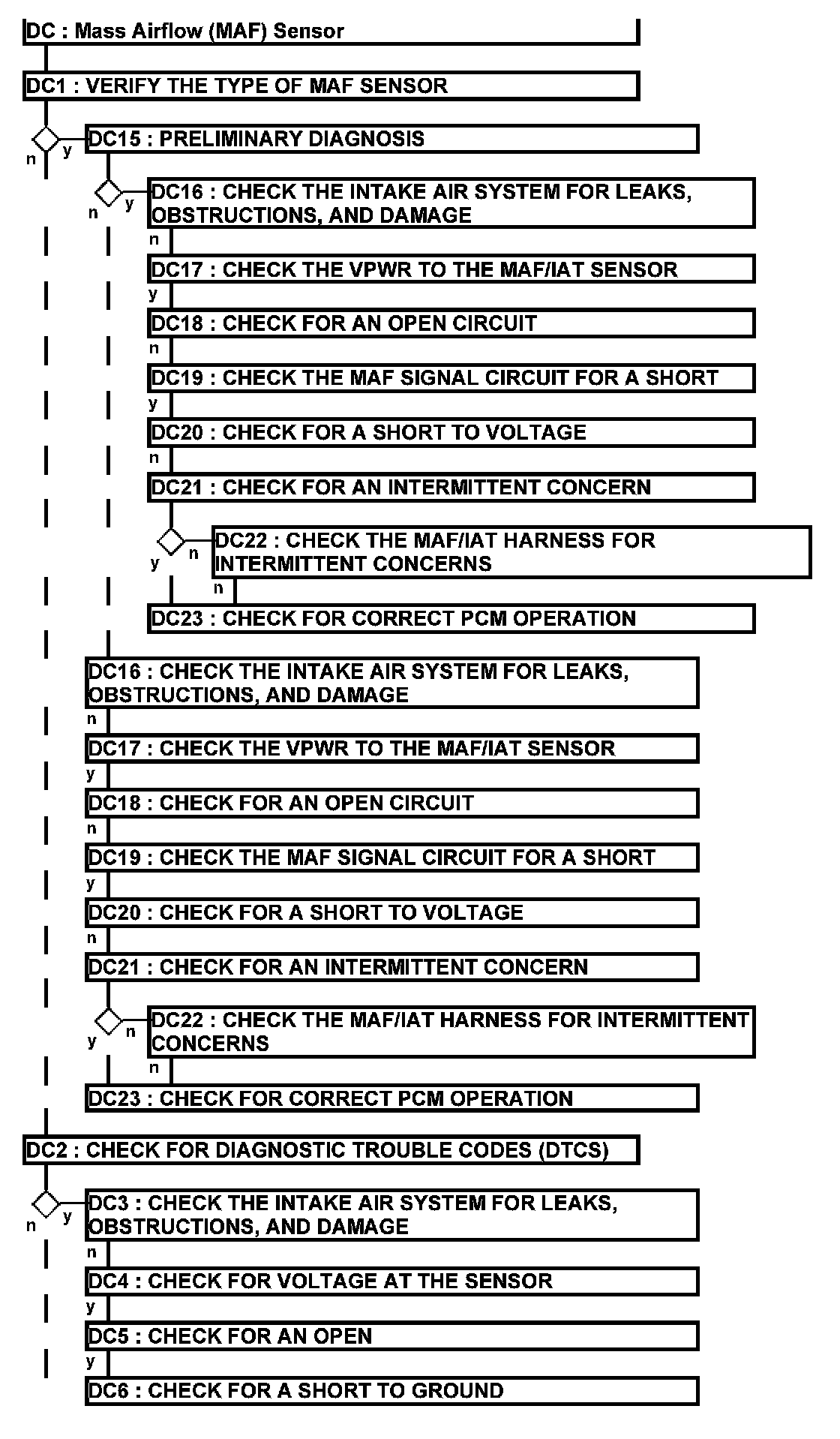

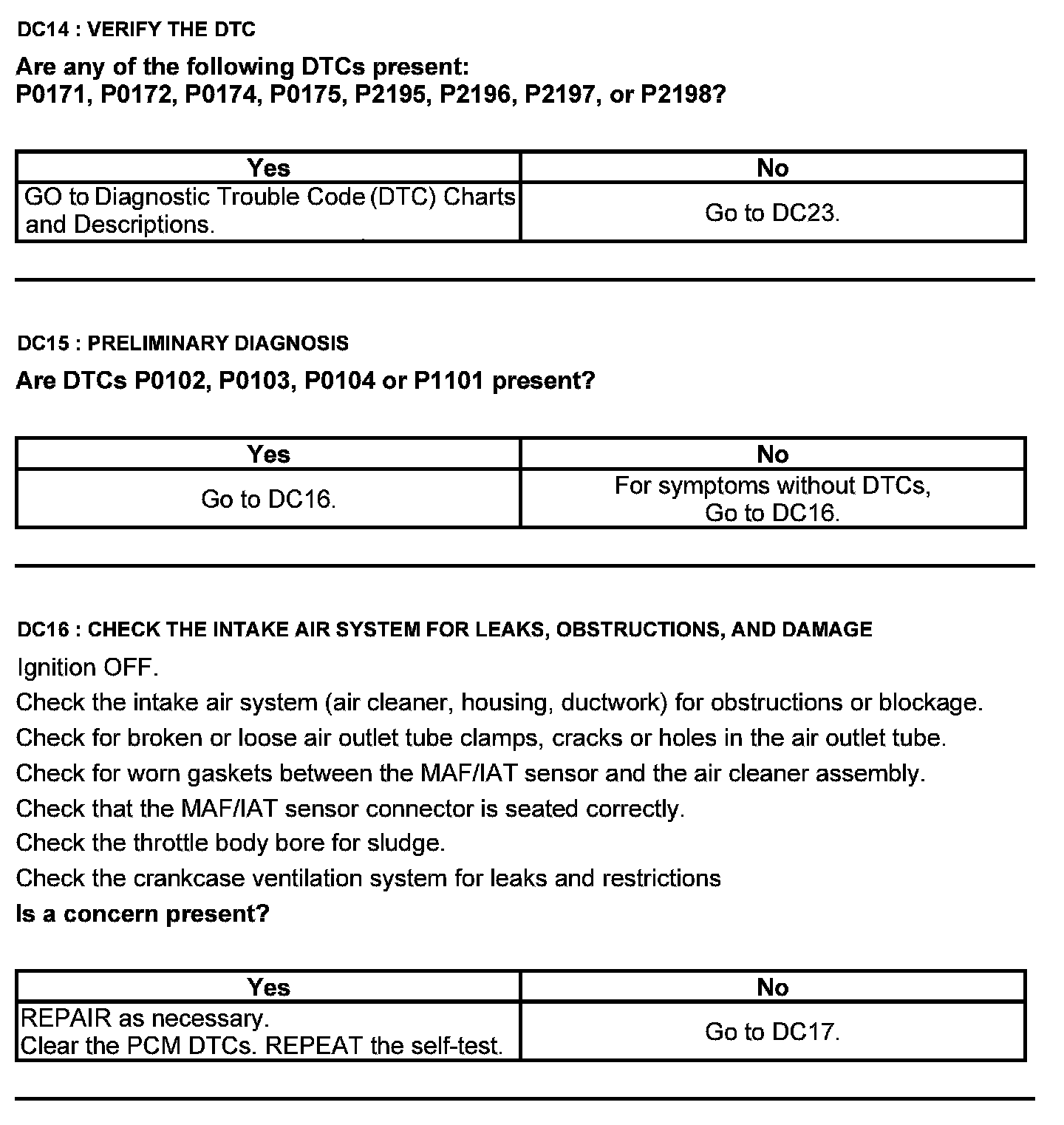

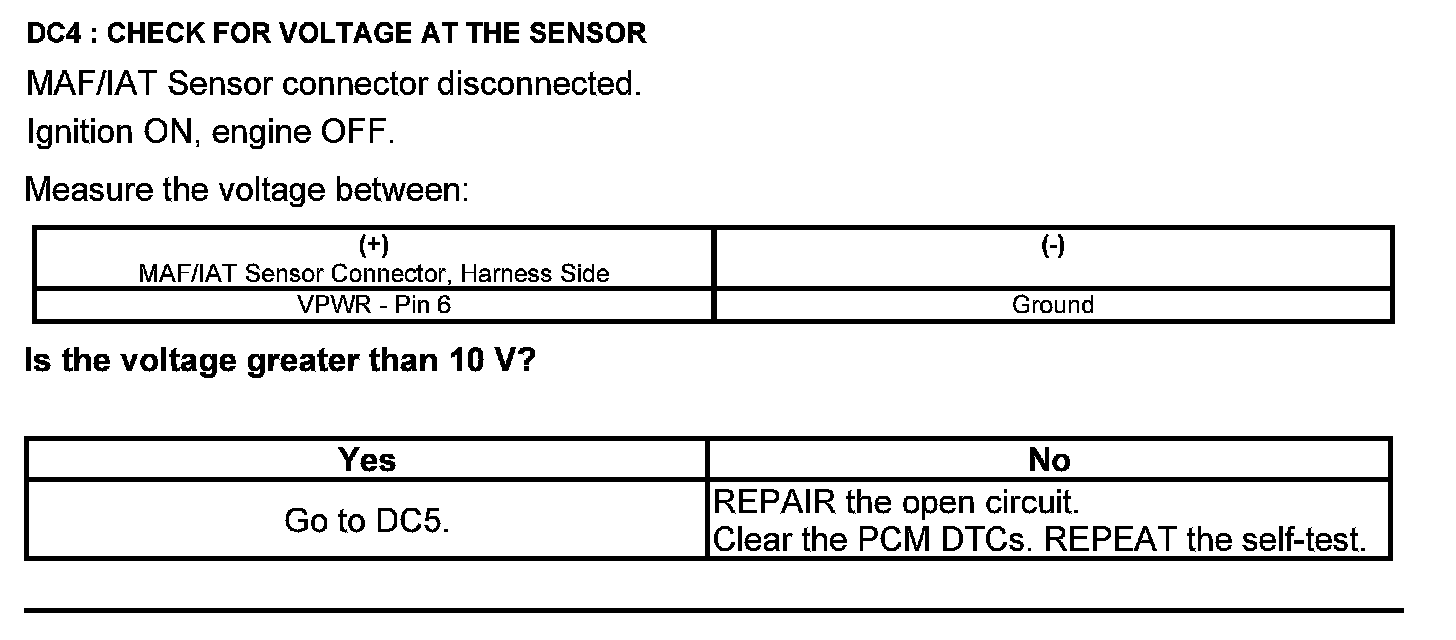

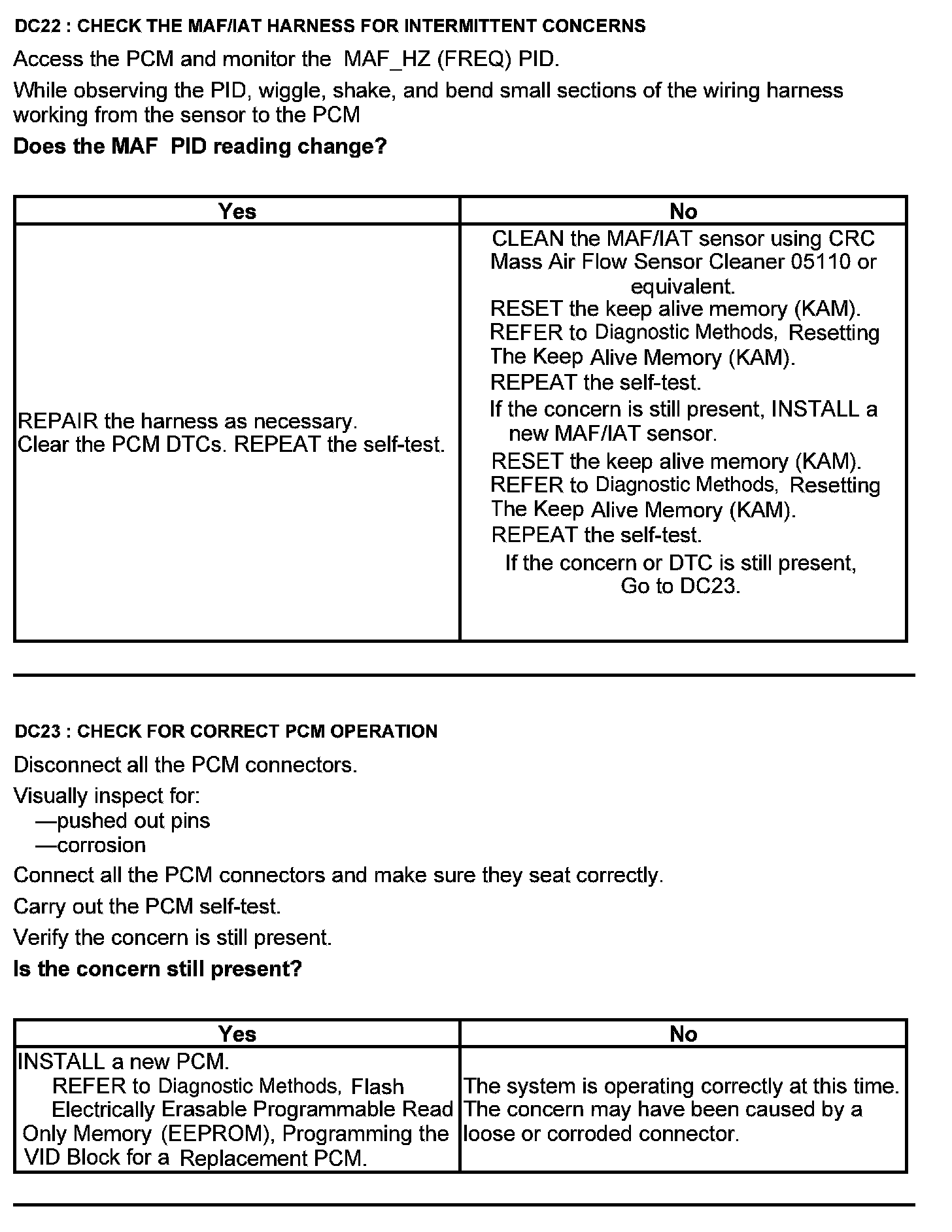

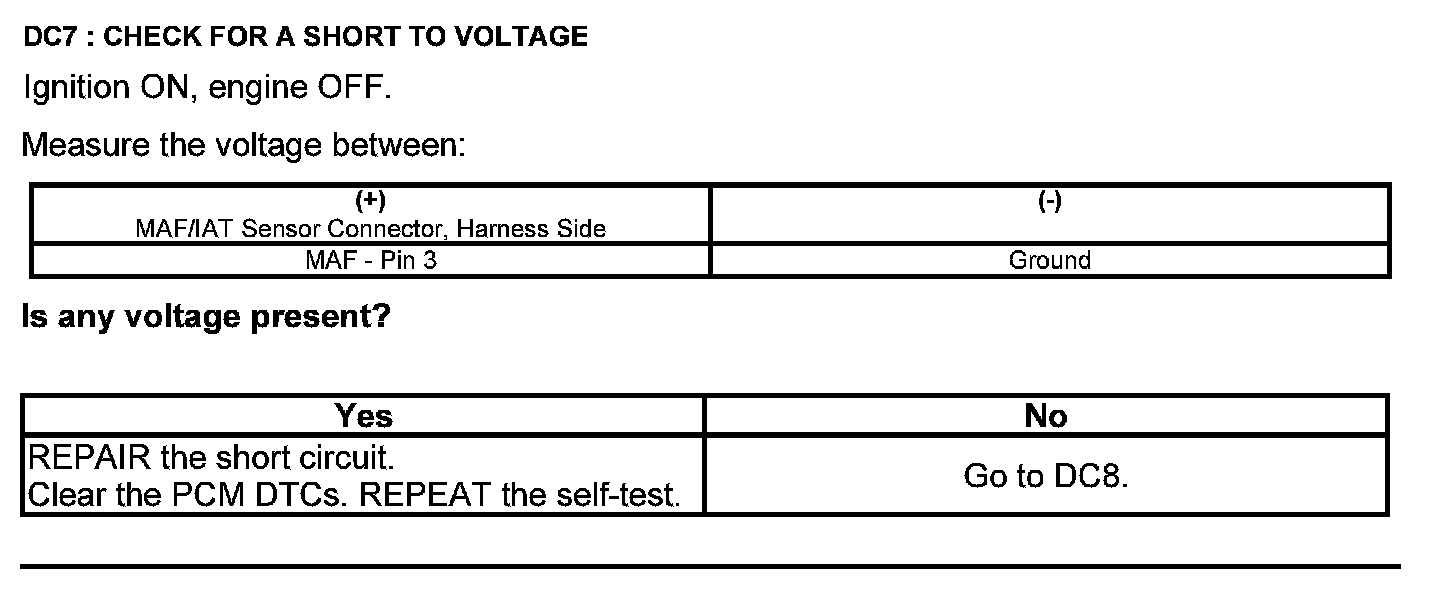

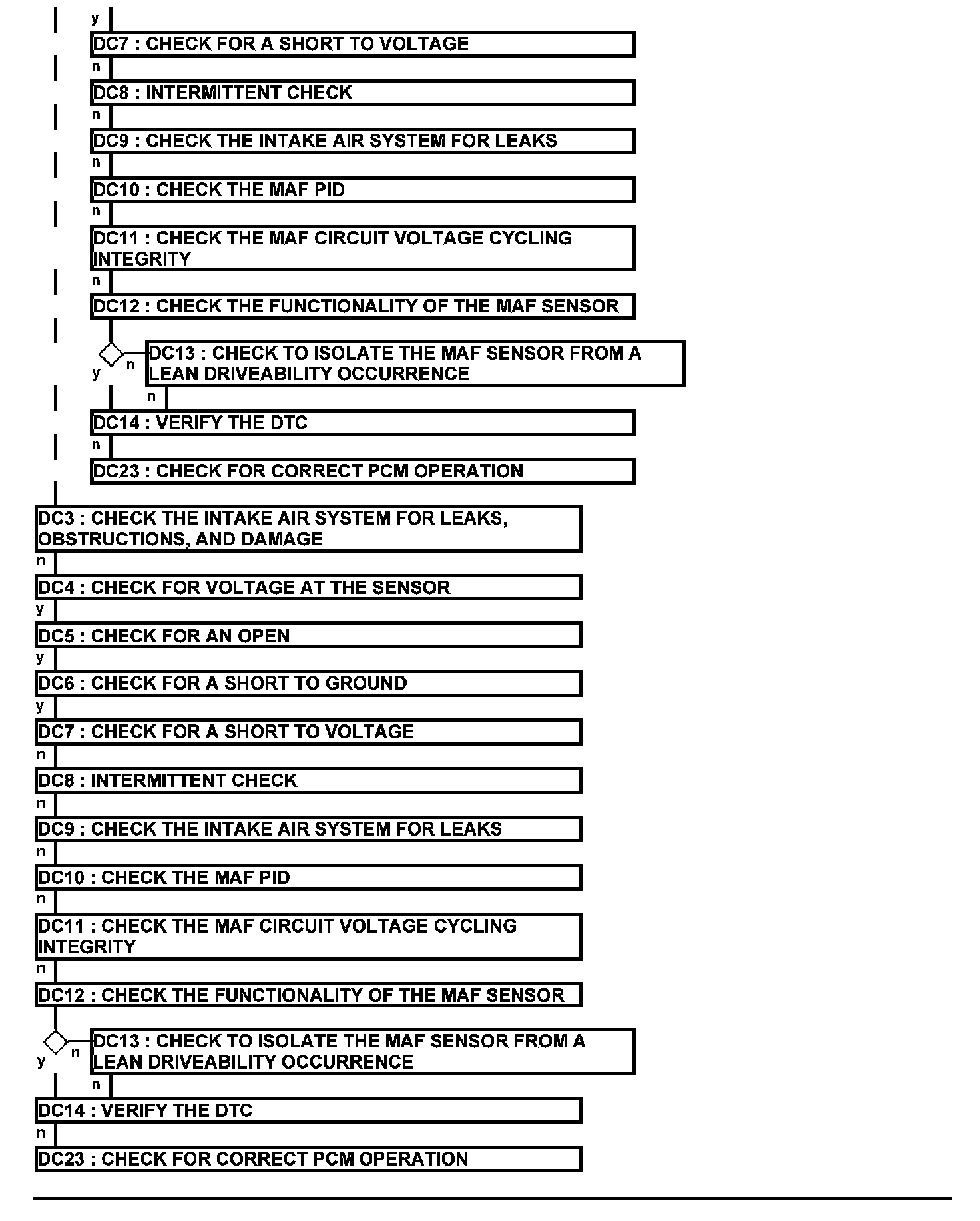

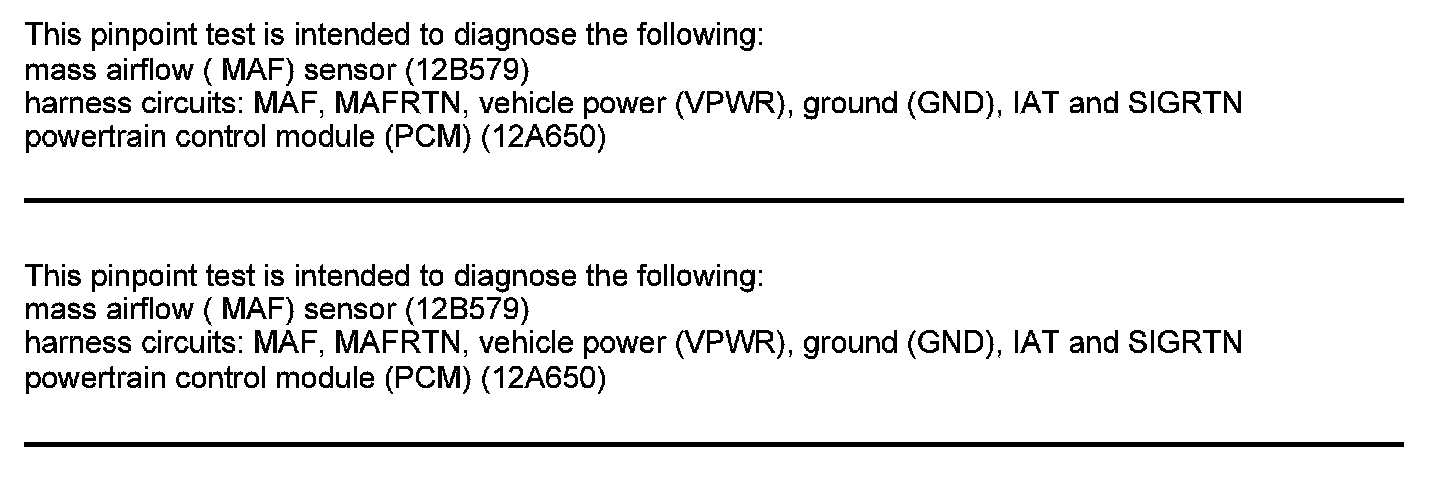

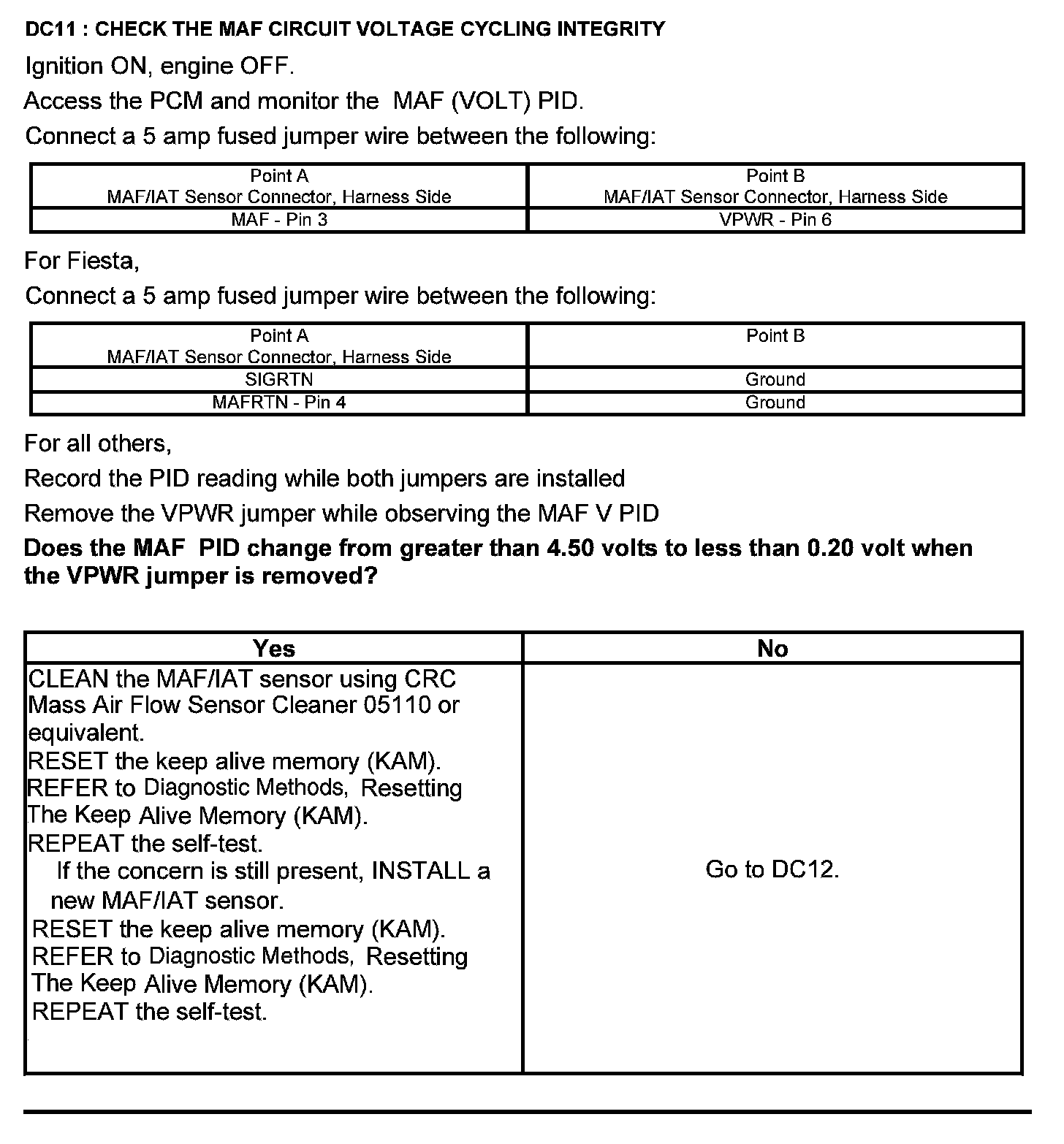

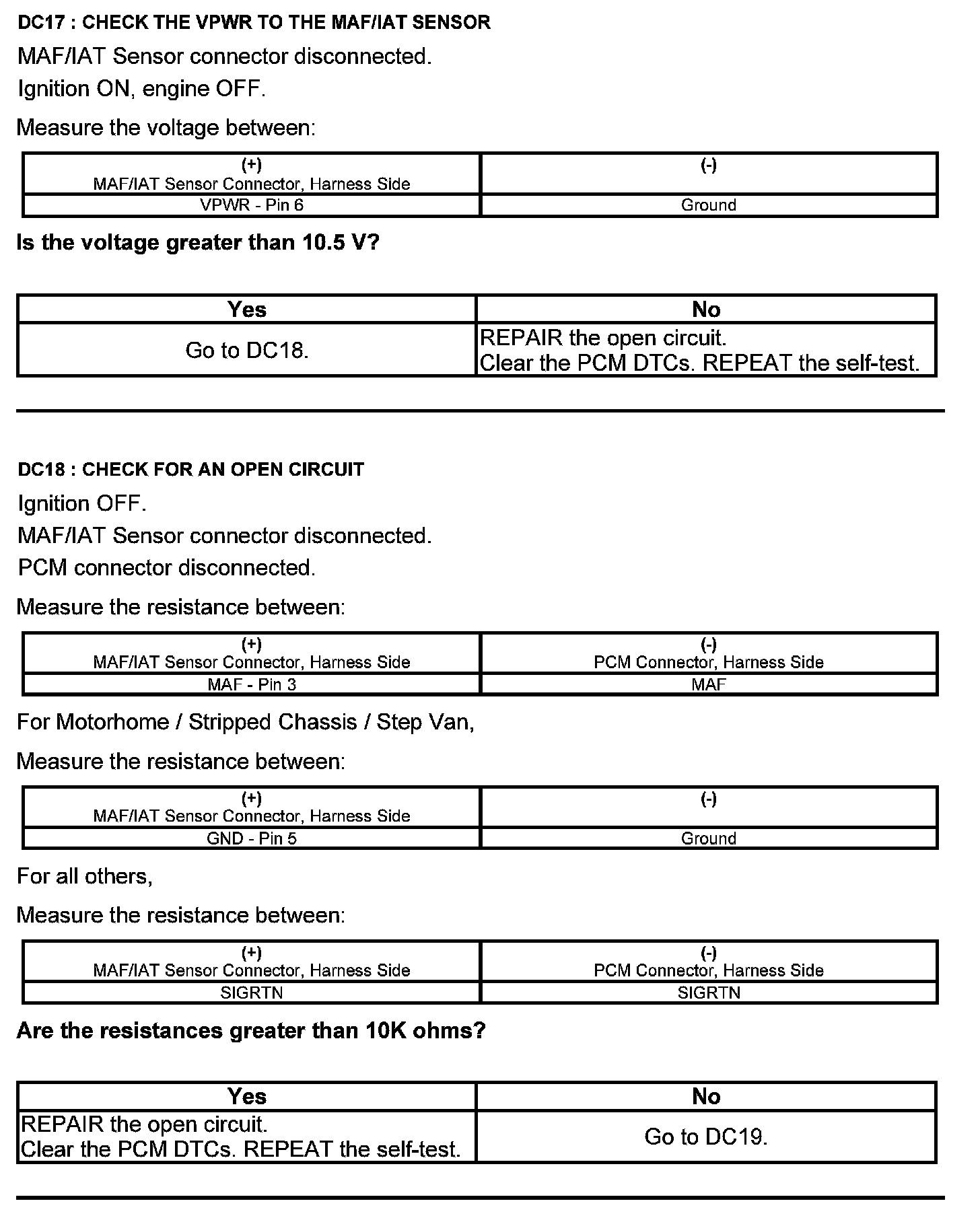

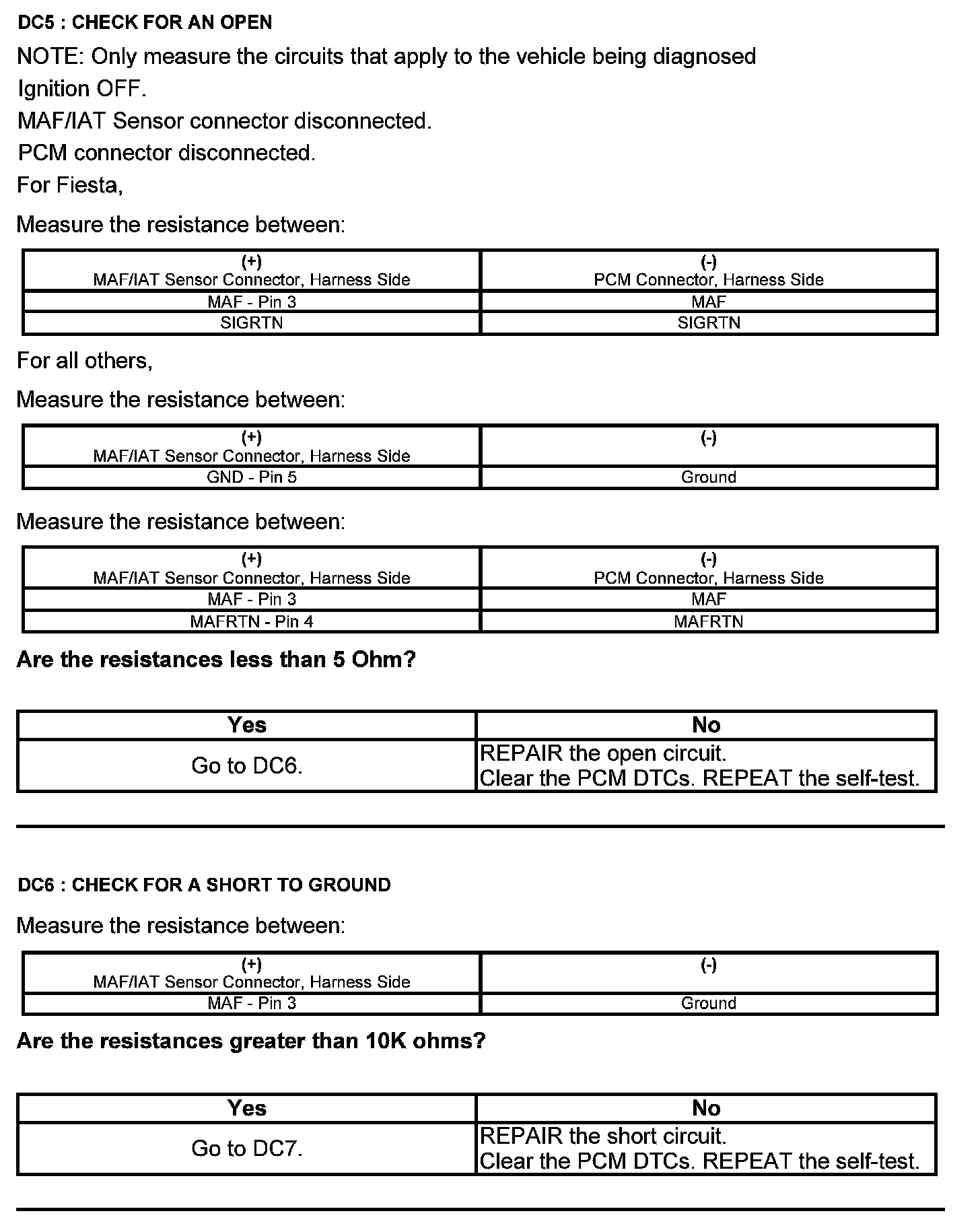

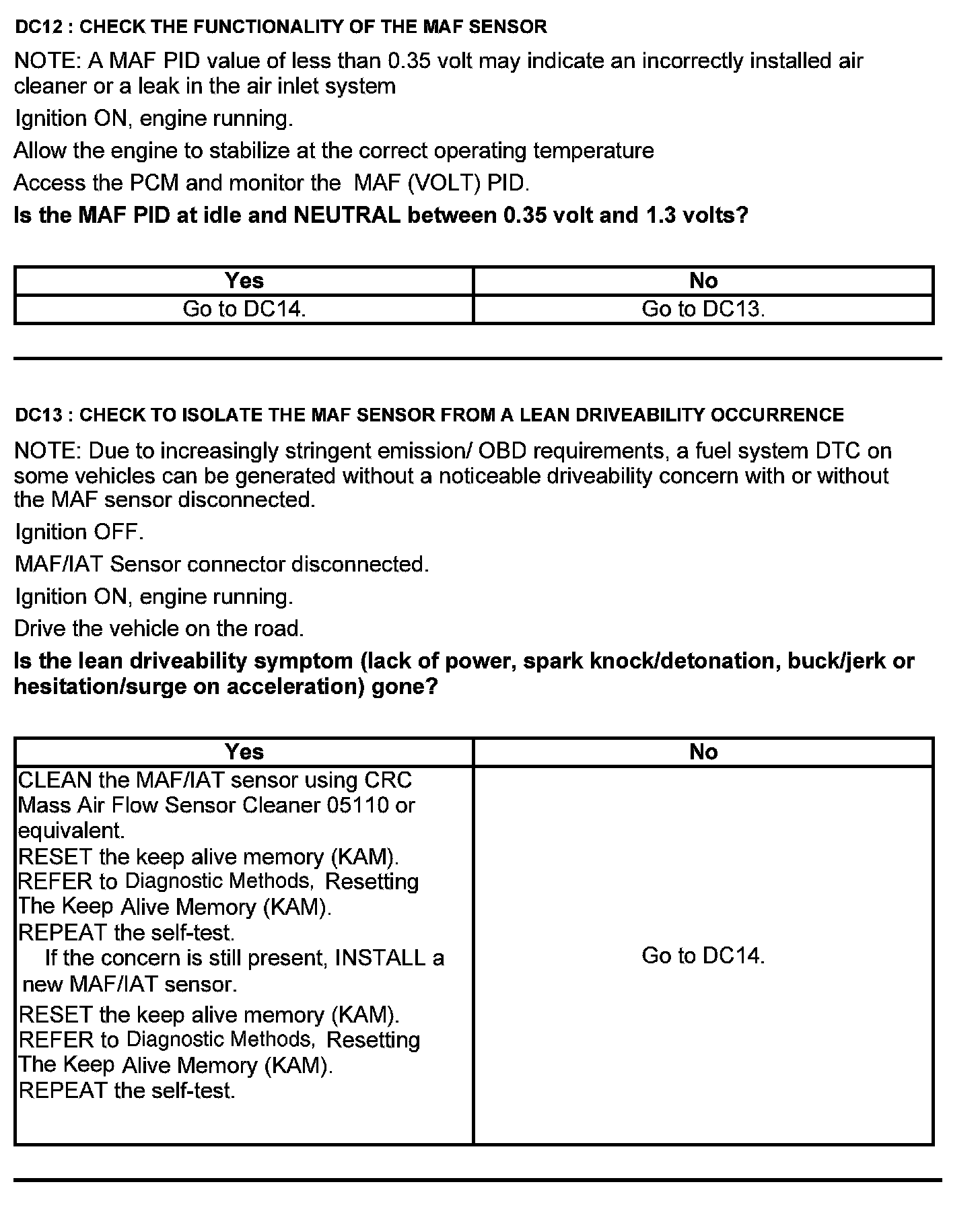

Test DC: Mass Airflow (MAF) Sensor
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2012 Ford Truck.
Mass Airflow (MAF) Sensor
Mass Airflow/Intake Air Temperature (MAF/IAT) Sensor Connector
Harness Side
Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side
