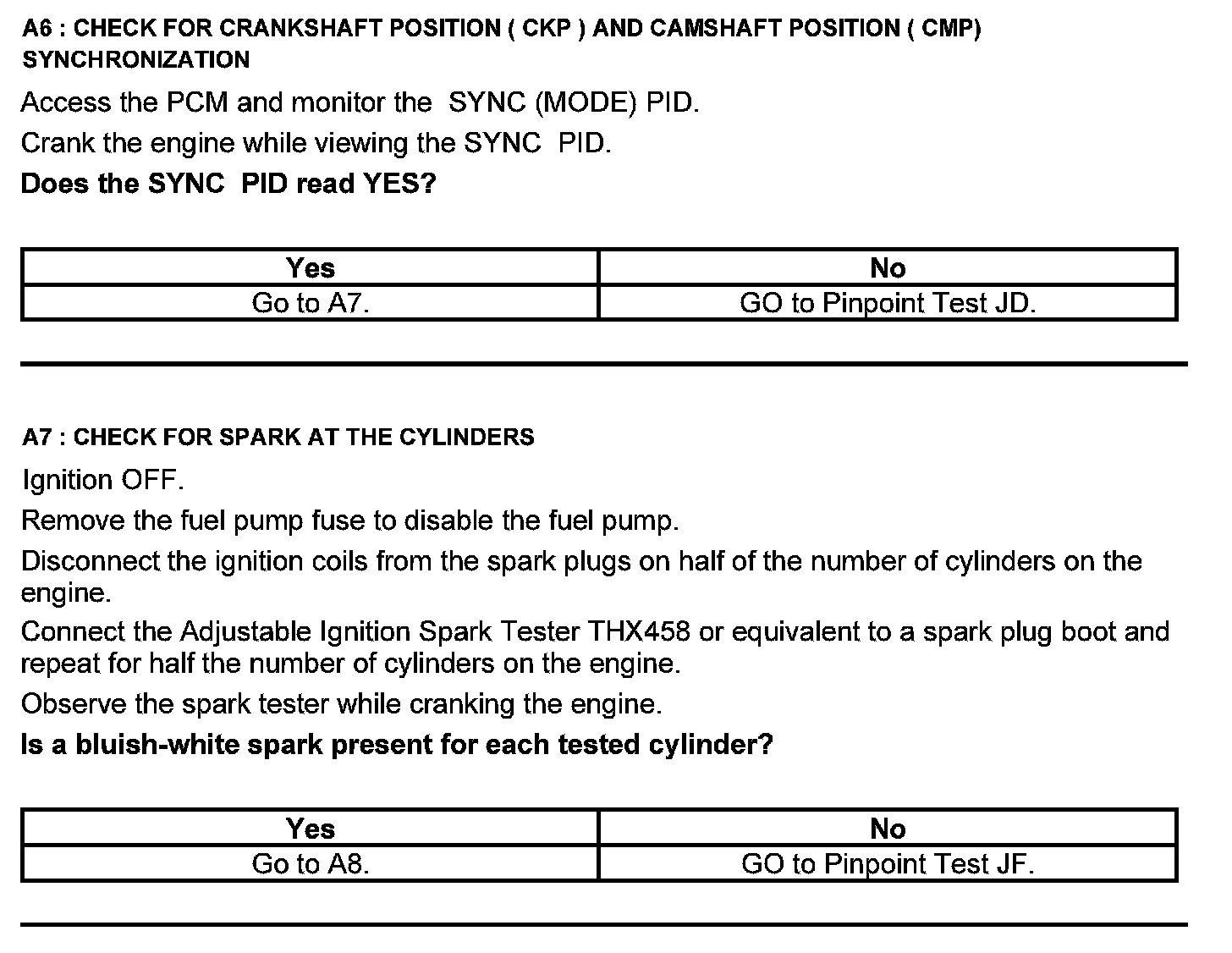

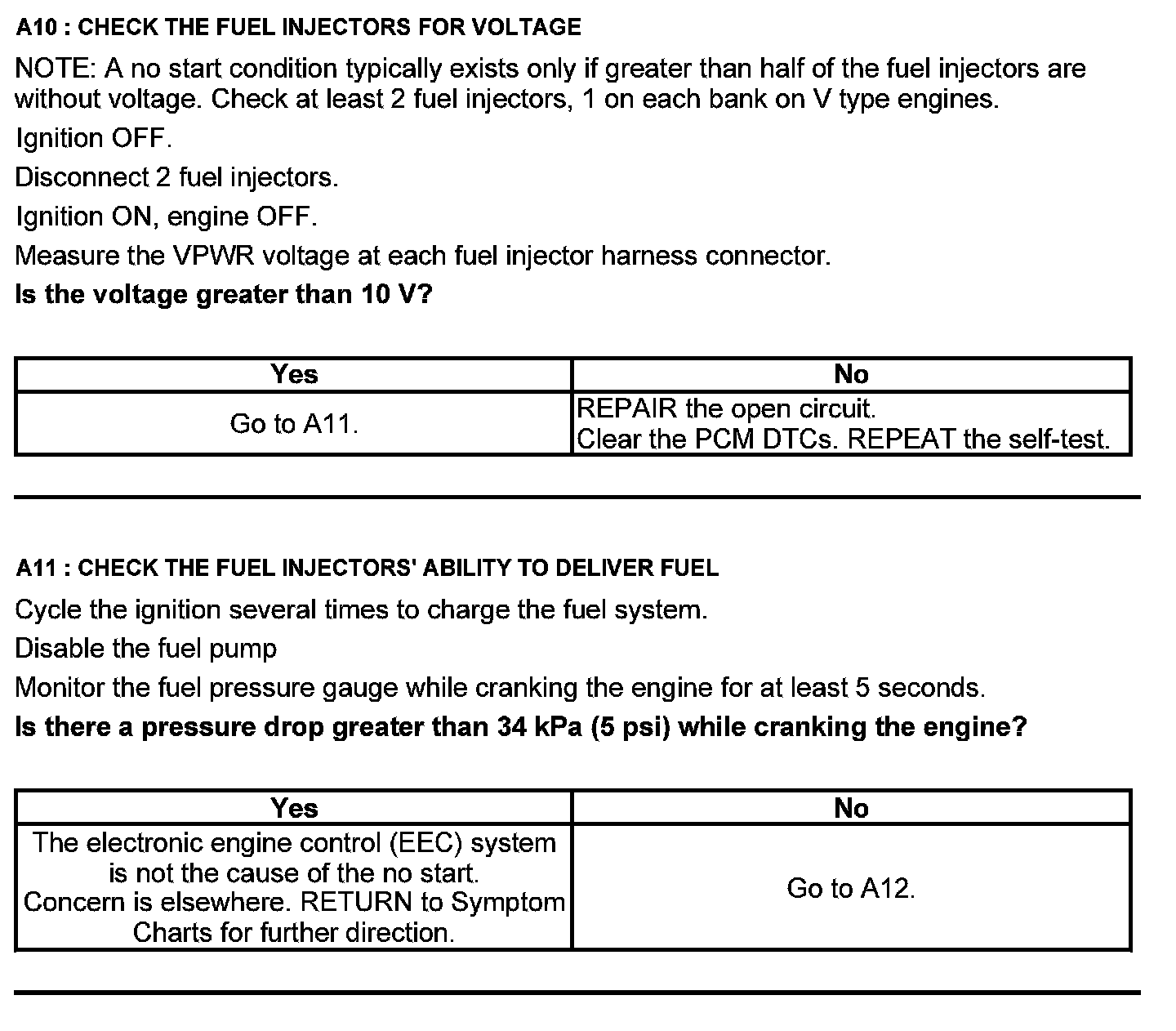

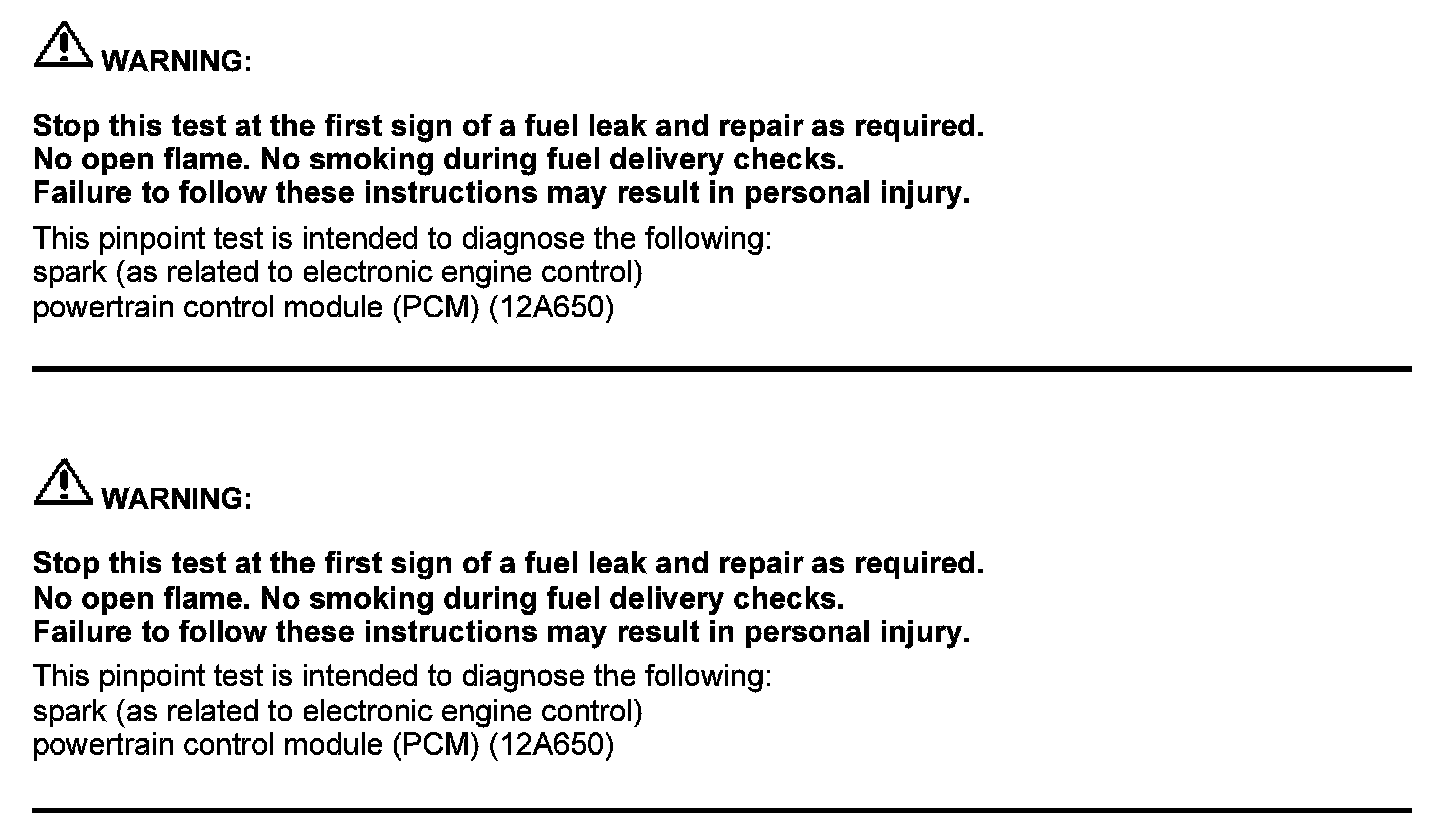

Test A: No Start

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2012 Ford Truck.

AI Repair Guides

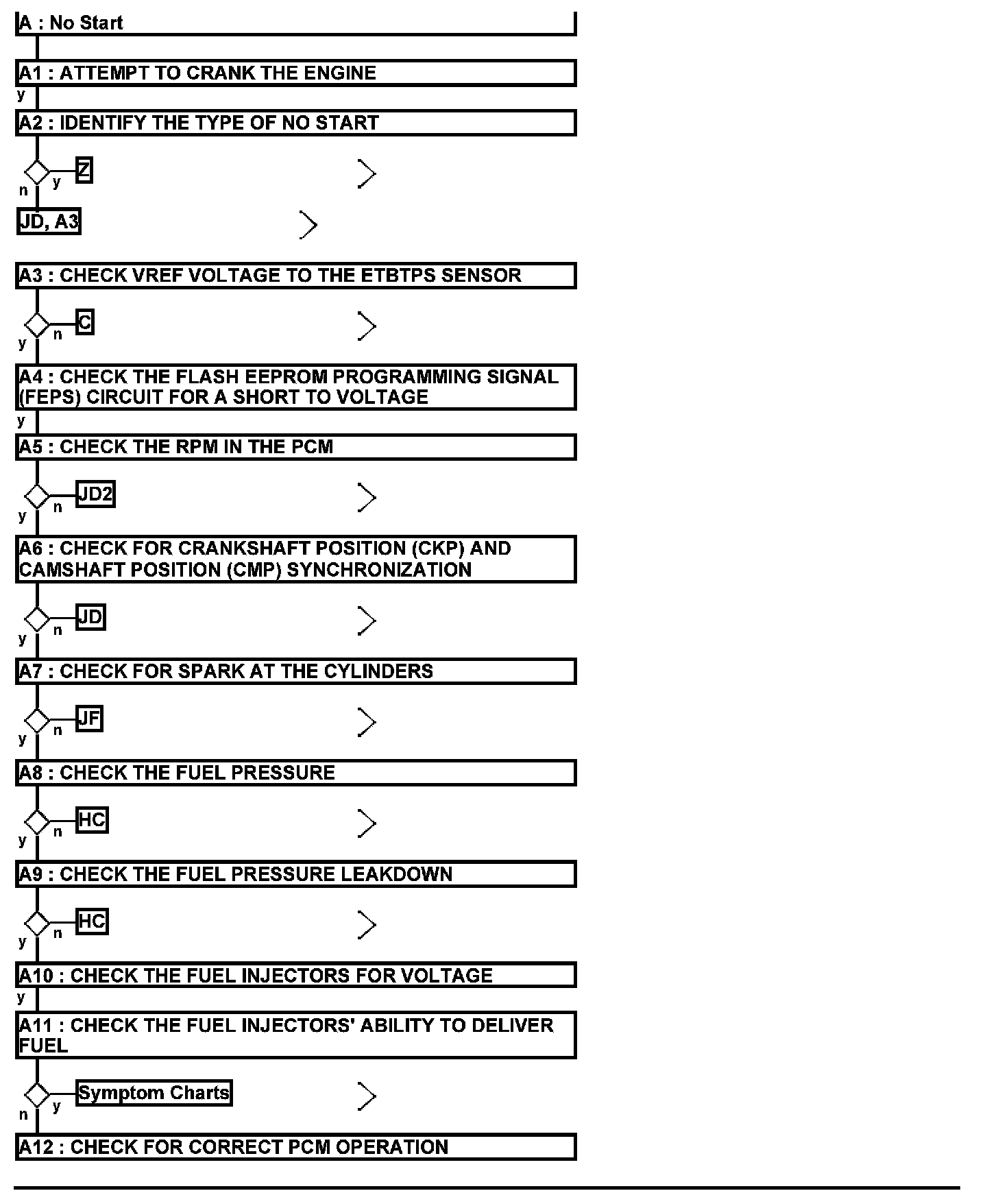

No Start

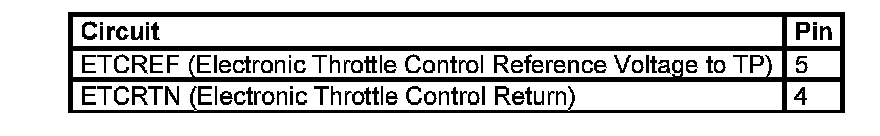

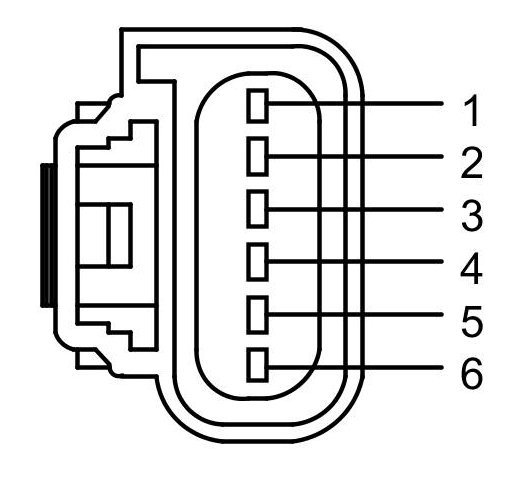

Electronic Throttle Body Throttle Position Sensor (ETBTPS) Connector





Harness Side

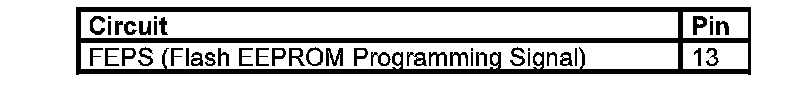

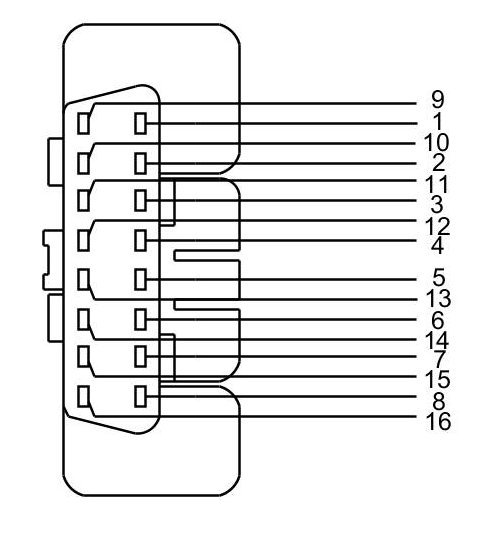

Data Link Connector (DLC)





Harness Side
