Turn Signals: Service and Repair

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2012 Ford Truck.

AI Repair Guides

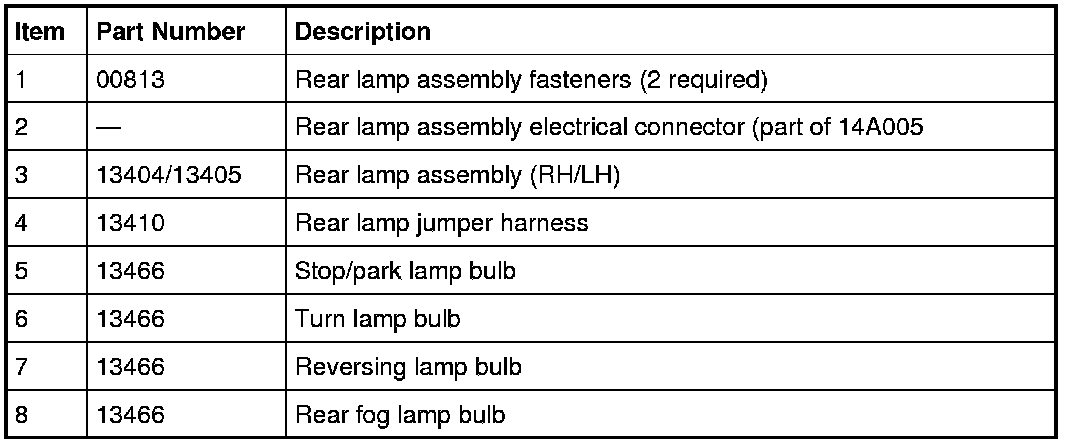

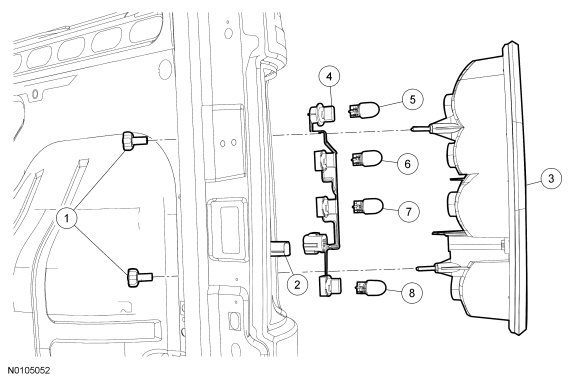

Rear Lamp Assembly

NOTE: The rear door is shown removed for clarity.









Removal and Installation

1. Remove the 2 fasteners and the rear lamp assembly.
- Disconnect the electrical connector.


2. If necessary, remove the bulb from the bulb holder.

3. To install, reverse the removal procedure.
