Climate Control Assembly
Removal and Installation
1. Remove the floor console.

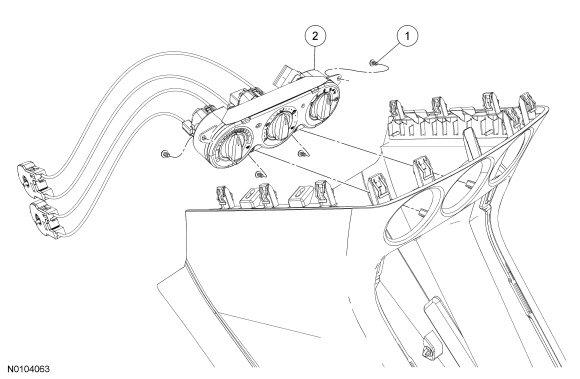

2. Remove the 4 climate control assembly screws.
3. Remove the climate control assembly.
4. To install, reverse the removal procedure.
