Engine Lubrication Components - Exploded View
Oil Filter, Oil Filter Adapter, Oil Cooler and Engine Oil Pressure (EOP) Switch
Transaxle Bolts for Oil Pan Removal
Oil Pan, Oil Pump Screen and Pickup Tube
Oil Pump
Engine Lubrication
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2012 Ford Truck.
Engine Lubrication Components - Exploded View

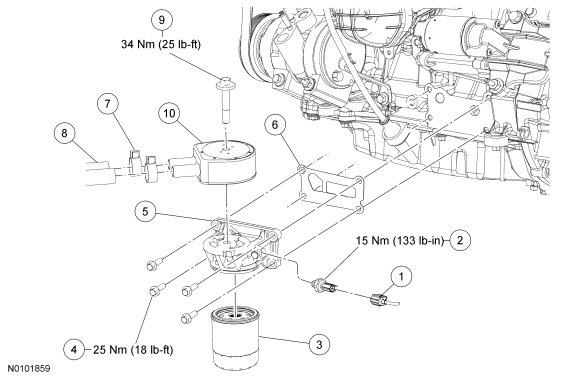

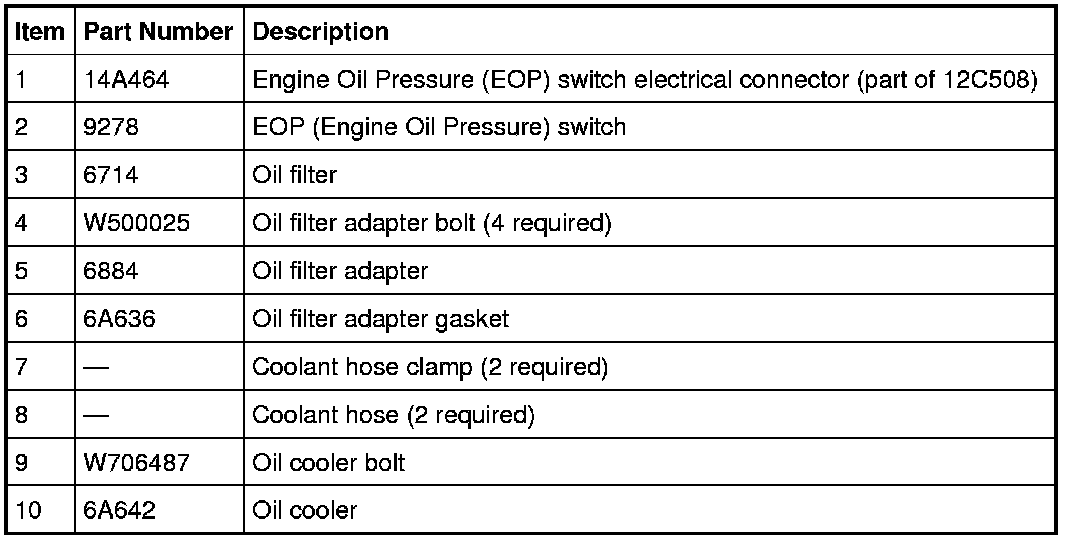

Oil Filter, Oil Filter Adapter, Oil Cooler and Engine Oil Pressure (EOP) Switch

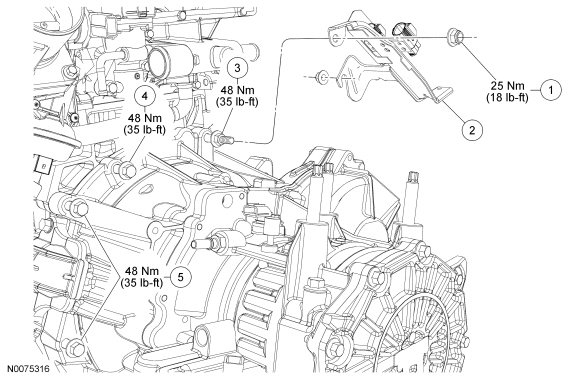

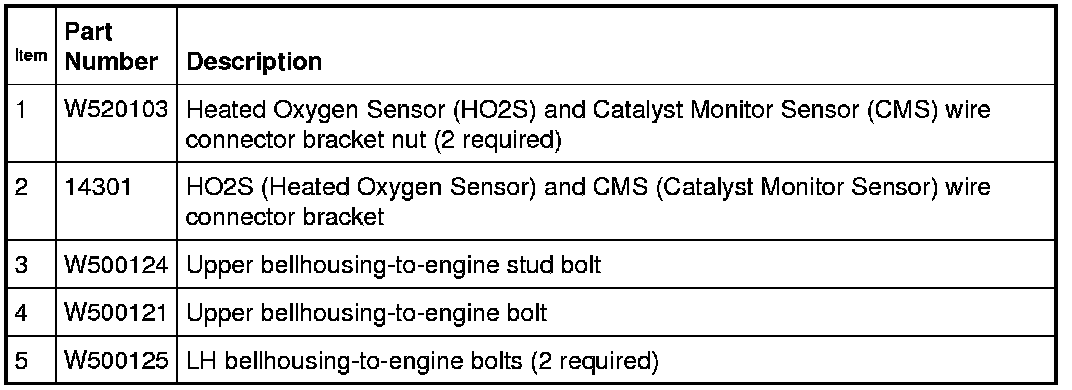

Transaxle Bolts for Oil Pan Removal

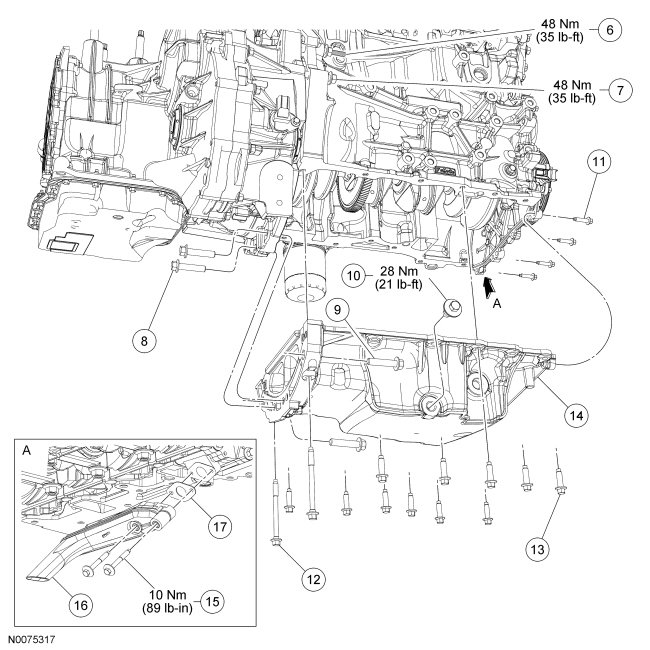

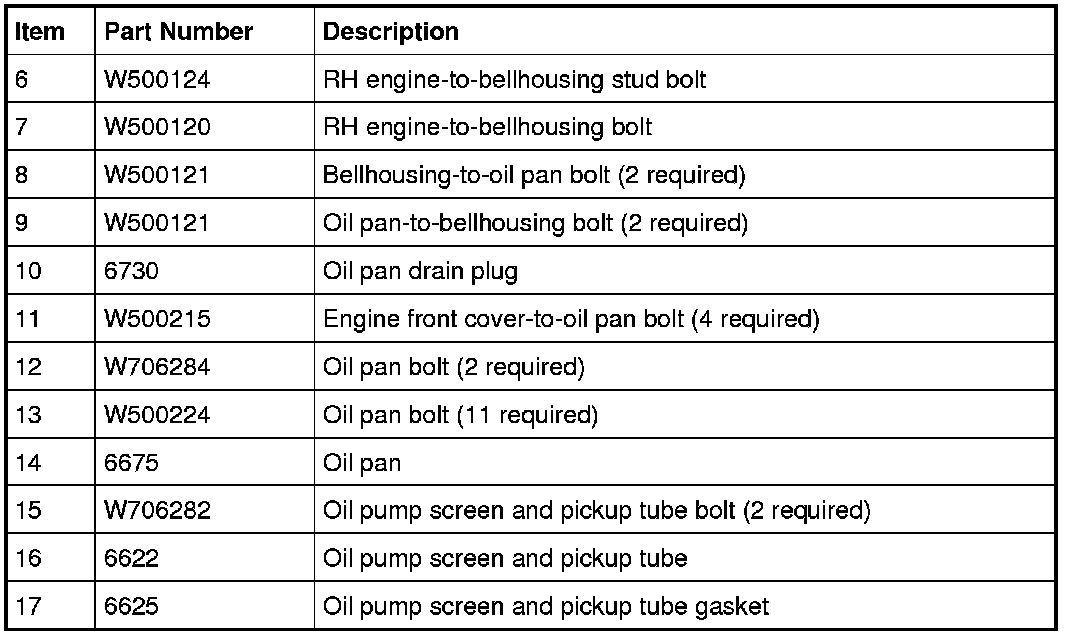

Oil Pan, Oil Pump Screen and Pickup Tube

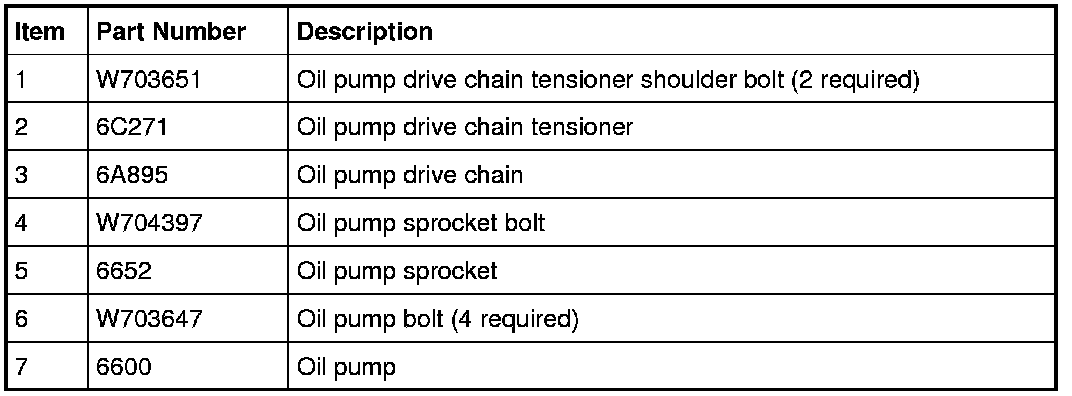

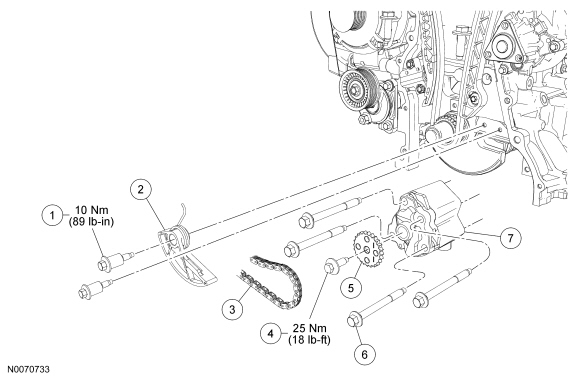

Oil Pump
