Ignition Switch And Key Reminder Switch:





1. Remove the instrument panel under cover.

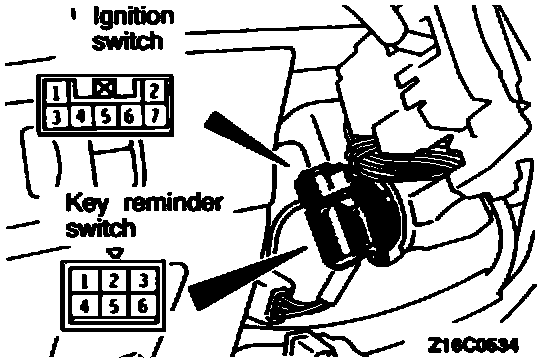

2. Disconnect the wiring connector from the ignition switch and key reminder switch, and connect an ohmmeter to the switch side connector.

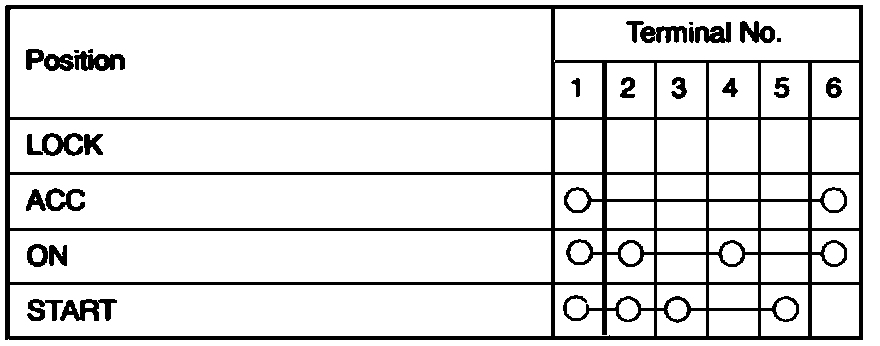

Ignition Switch Continuity Table:





3. Operate the switch, and check the continuity between the terminals.
