Engine Control Module: Service and Repair

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1995 Eagle.

AI Repair Guides

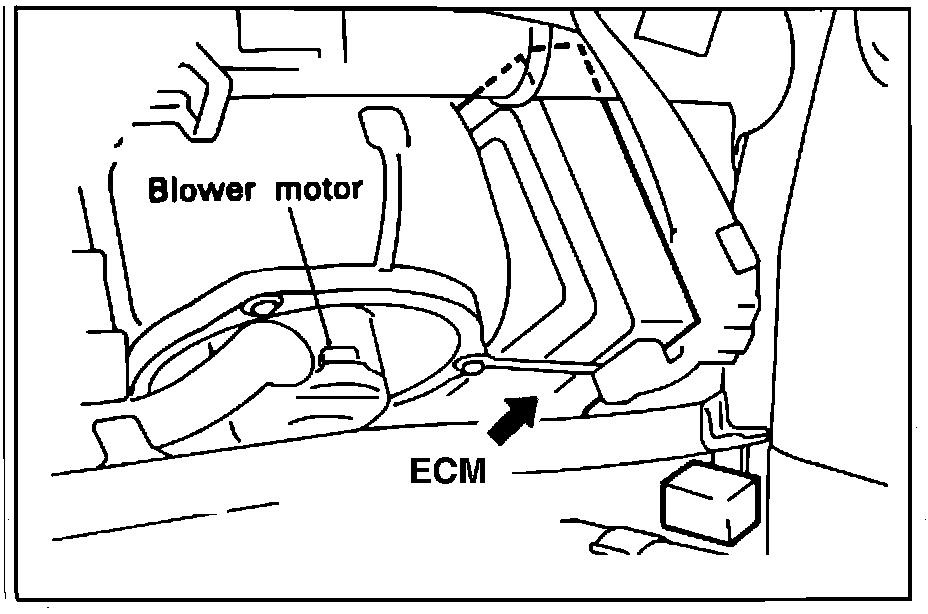

ECM Location:






1. Disconnect the negative battery cable.
2. Remove the glove box.
3. Disconnect the electrical connectors from the Engine Control Module (ECM).
4. Remove the screws and remove the ECM.
5. Install in reverse order.

CAUTION: Do not connect or disconnect the ECM connectors with the negative battery cable connected. A minor spark or voltage surge can damage the ECM.
