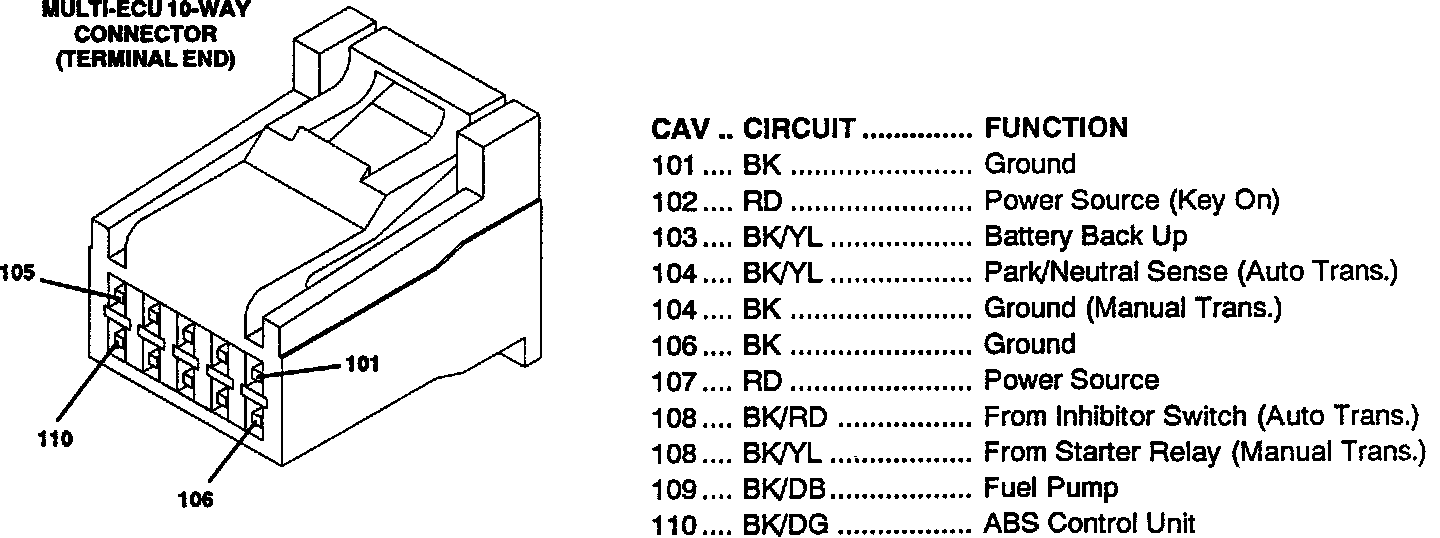

10 Way Connector

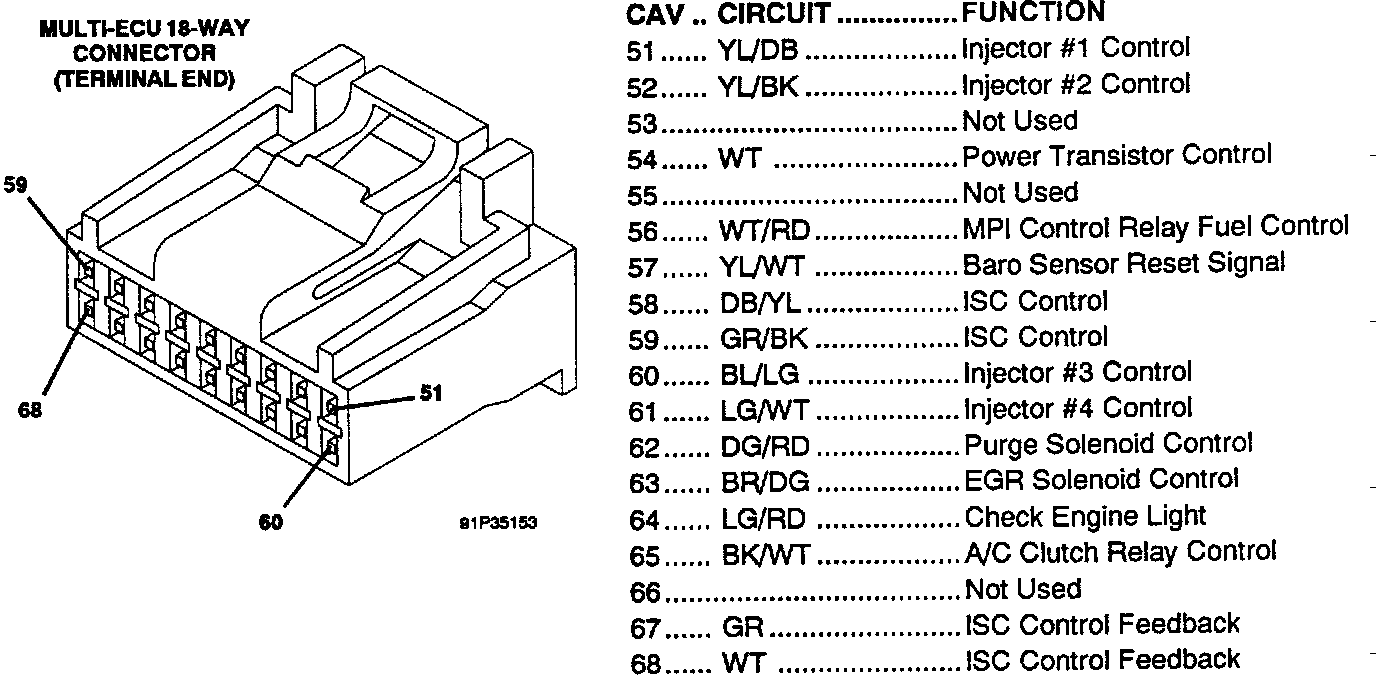

18 Way Connector

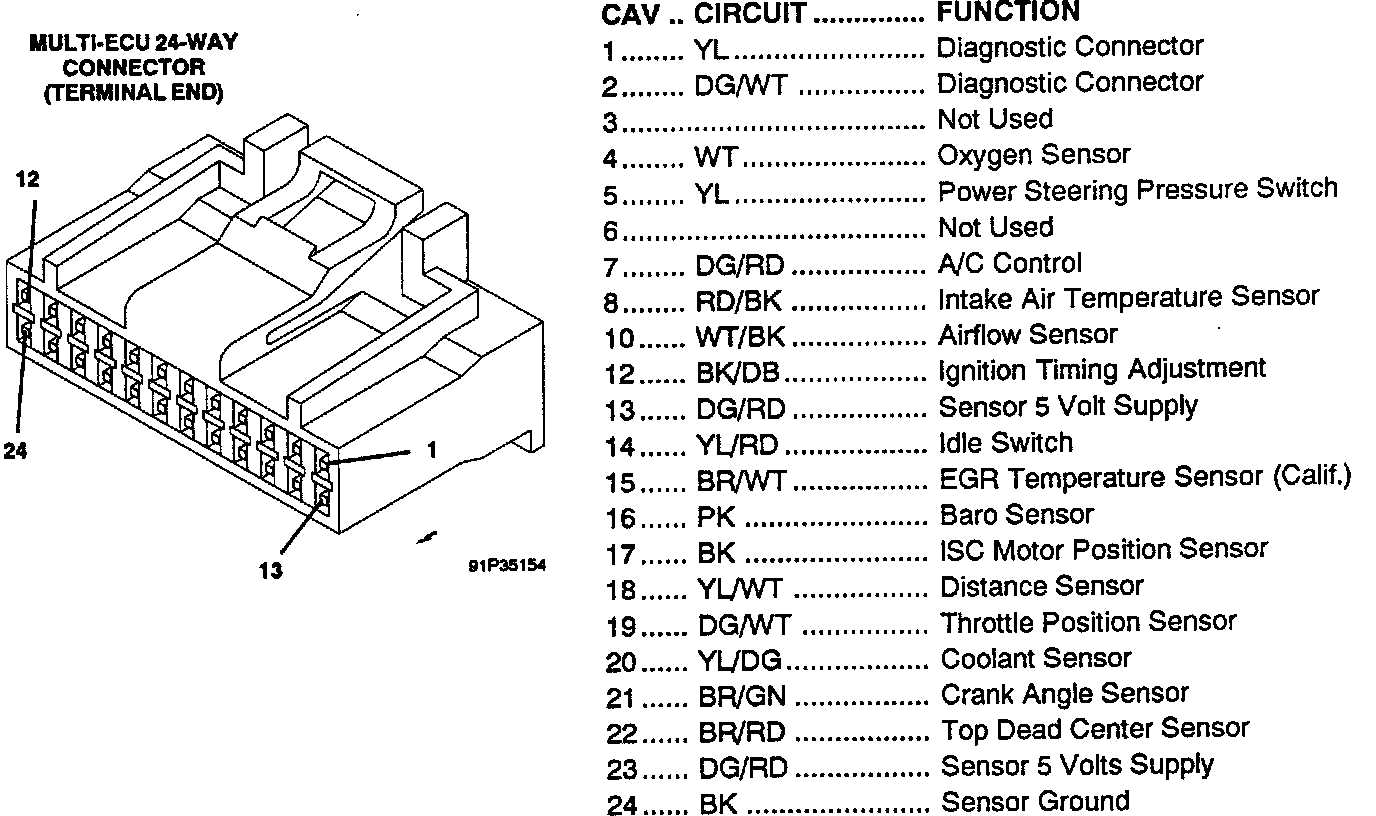

24 Way Connector
Connector Views
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1992 Eagle.
10 Way Connector
18 Way Connector
24 Way Connector
