42RLE AUTOMATIC TRANSMISSION

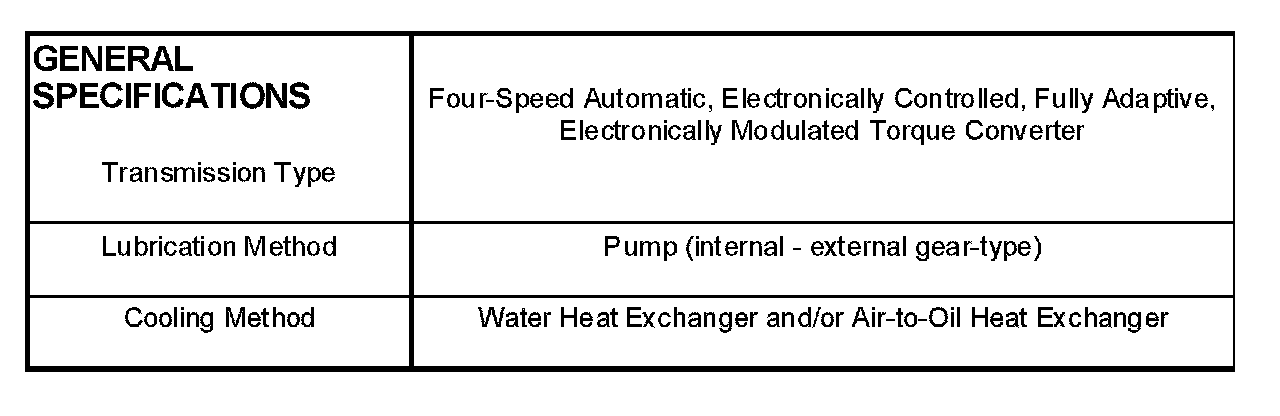

General Specifications:

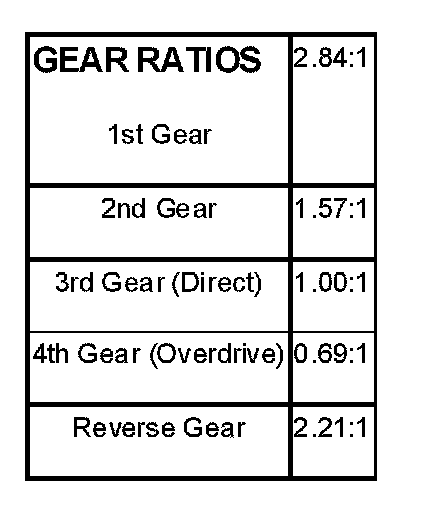

Gear Ratios:

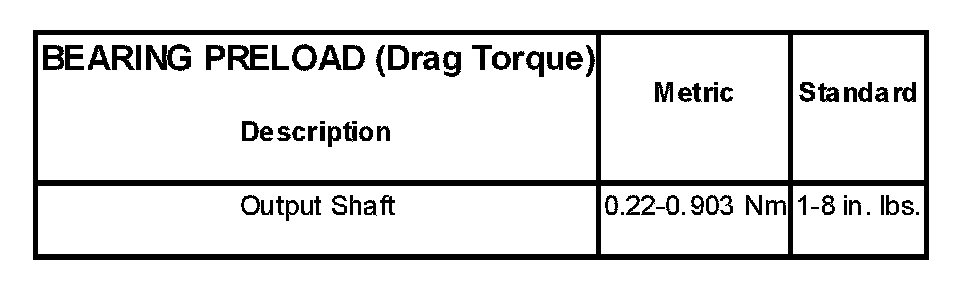

Bearing Preload (Drag Torque):

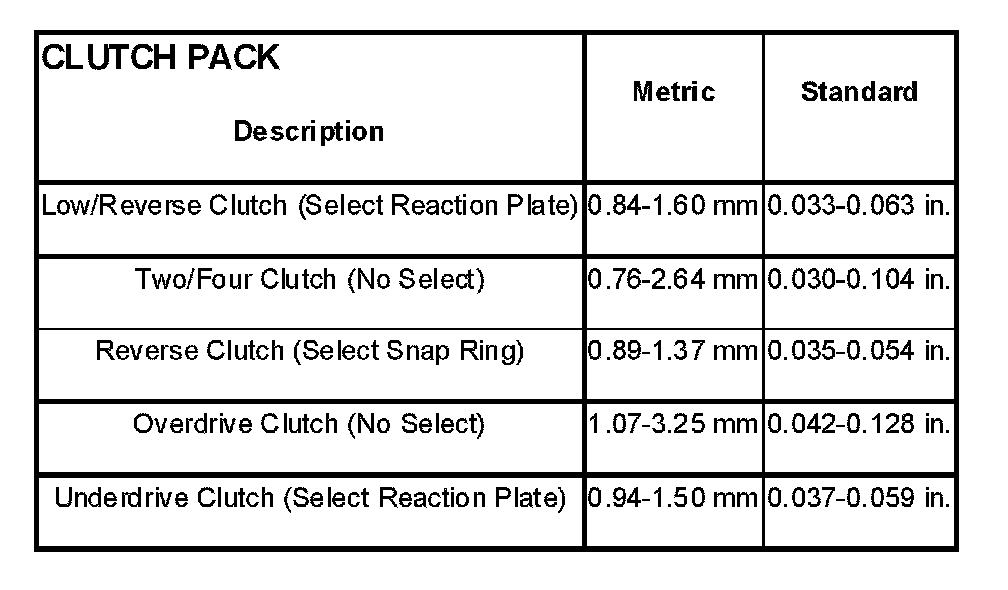

Clutch Pack:

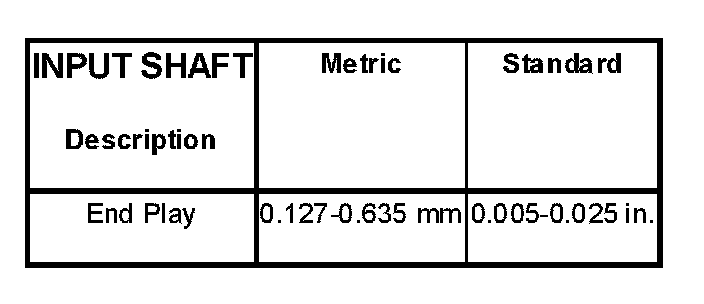

Input Shaft:

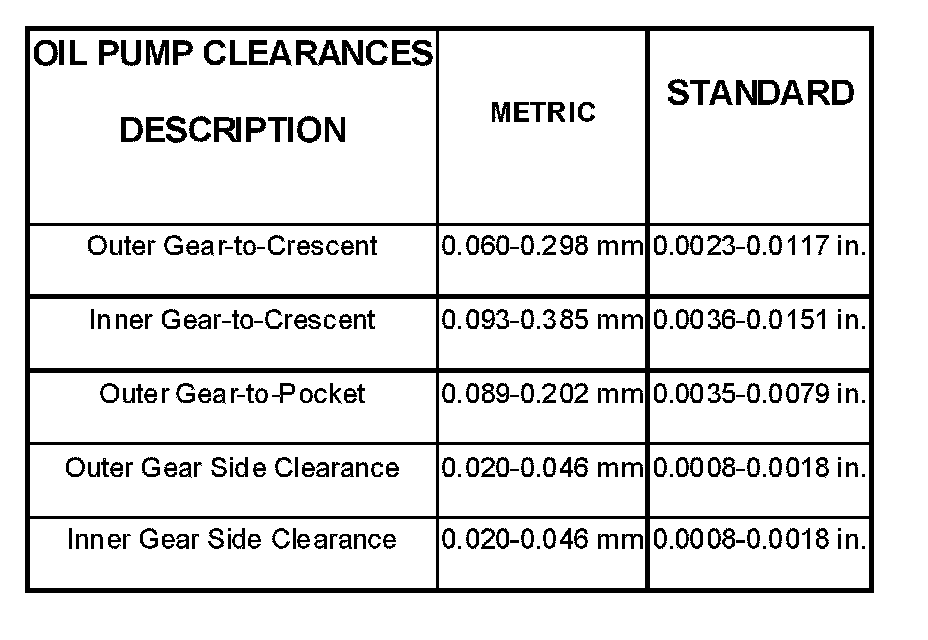

Oil Pump Clearances:

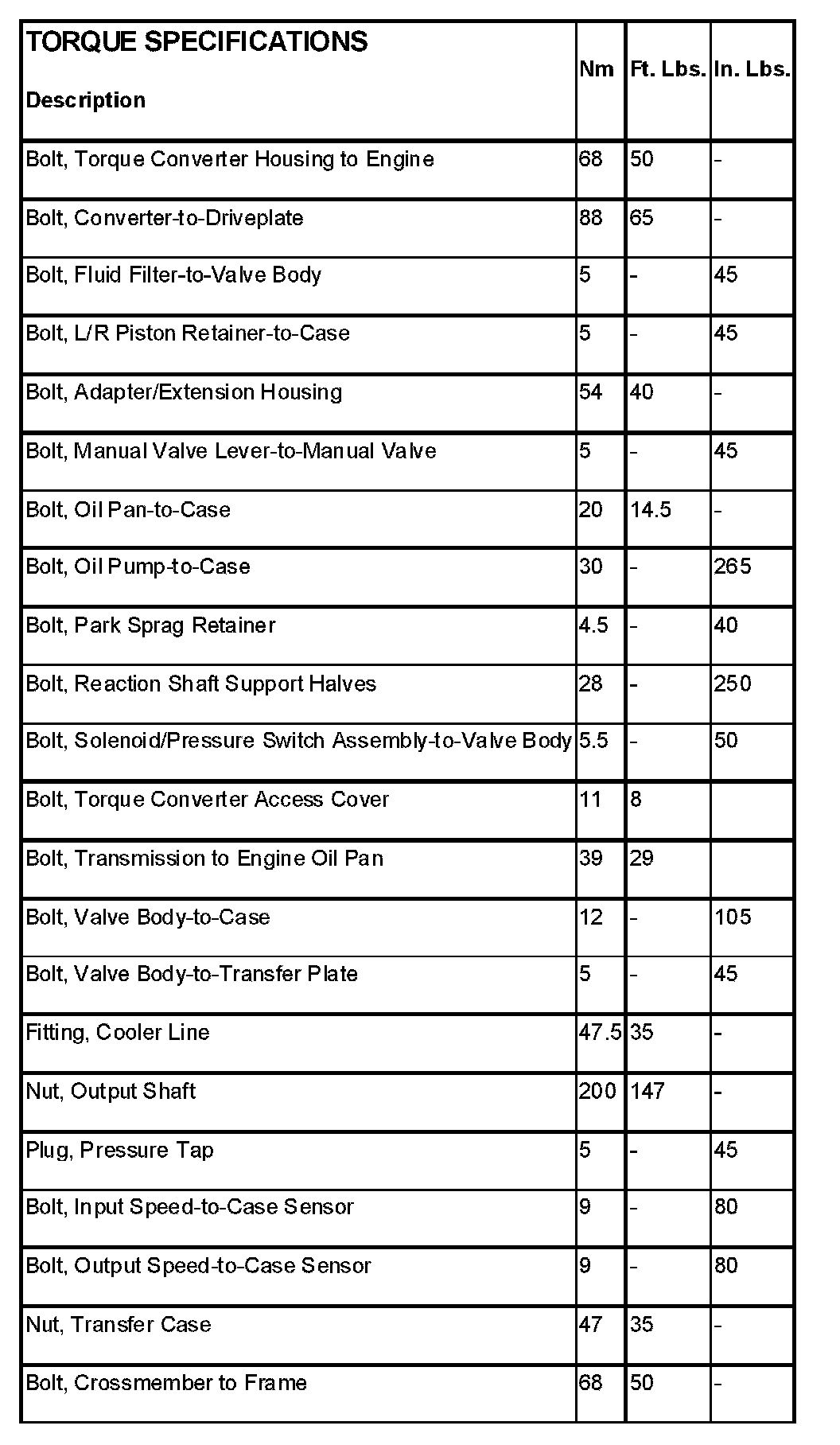

Torque Specifications (Part 1):

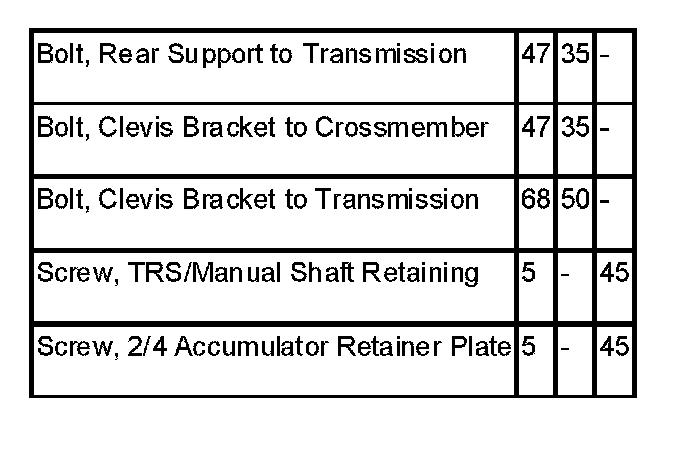

Torque Specifications (Part 2):
