Component ID: 325

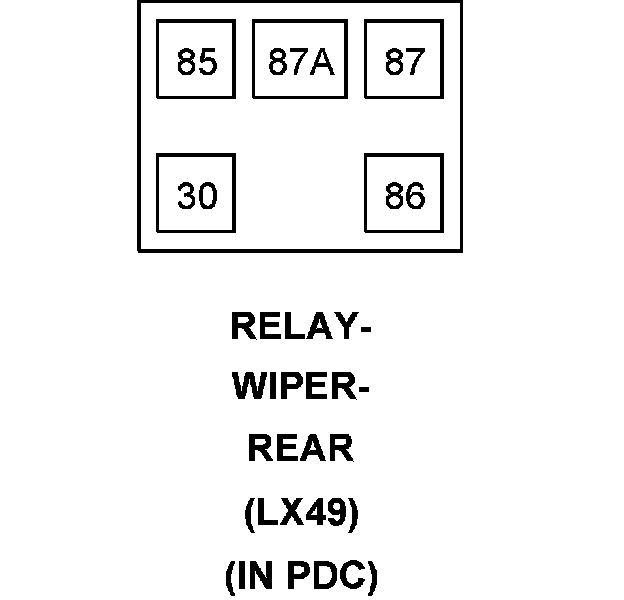

Component : RELAY-WIPER-REAR

Connector:
Name : RELAY-WIPER-REAR
Color :
# of pins : 0
Qualifier : (LX49)




30 REAR WIPER MOTOR CONTROL W13 16BR/LG
85 REAR WIPER RELAY CONTROL W12 20BR/OR
86 FUSED B(+) A909 20RD/TN
87 FUSED B(+) A909 16RD/TN
87A GROUND Z914 20BK/GY
