Sensor-Wheel Speed-ABS-Rear

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2007 Dodge.

AI Repair Guides



Component ID: 541
Component : SENSOR-WHEEL SPEED-ABS-REAR

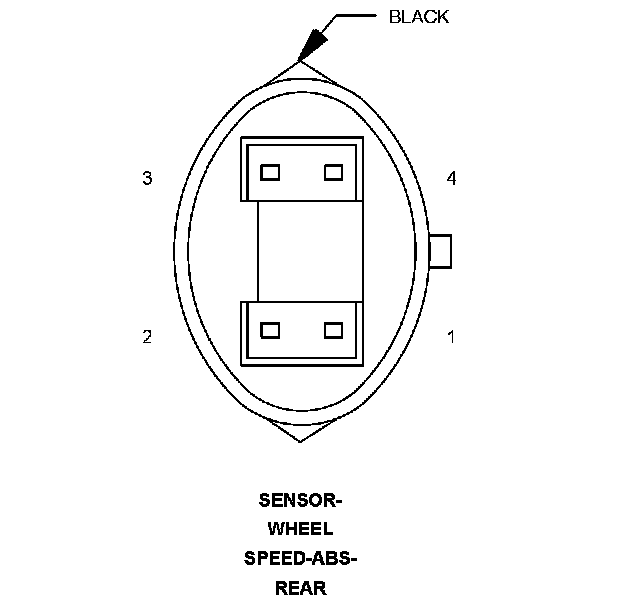

Connector:
Name : SENSOR-WHEEL SPEED-ABS-REAR
Color : BLACK
# of pins : 4




Pin Description Circuit
1 RIGHT REAR WHEEL SPEED SENSOR SUPPLY B2 20DG/LB
2 RIGHT REAR WHEEL SPEED SENSOR SIGNAL B1 20DG/OR
3 LEFT REAR WHEEL SPEED SENSOR SUPPLY B4 20DG/GY
4 LEFT REAR WHEEL SPEED SENSOR SIGNAL B3 20DG/YL

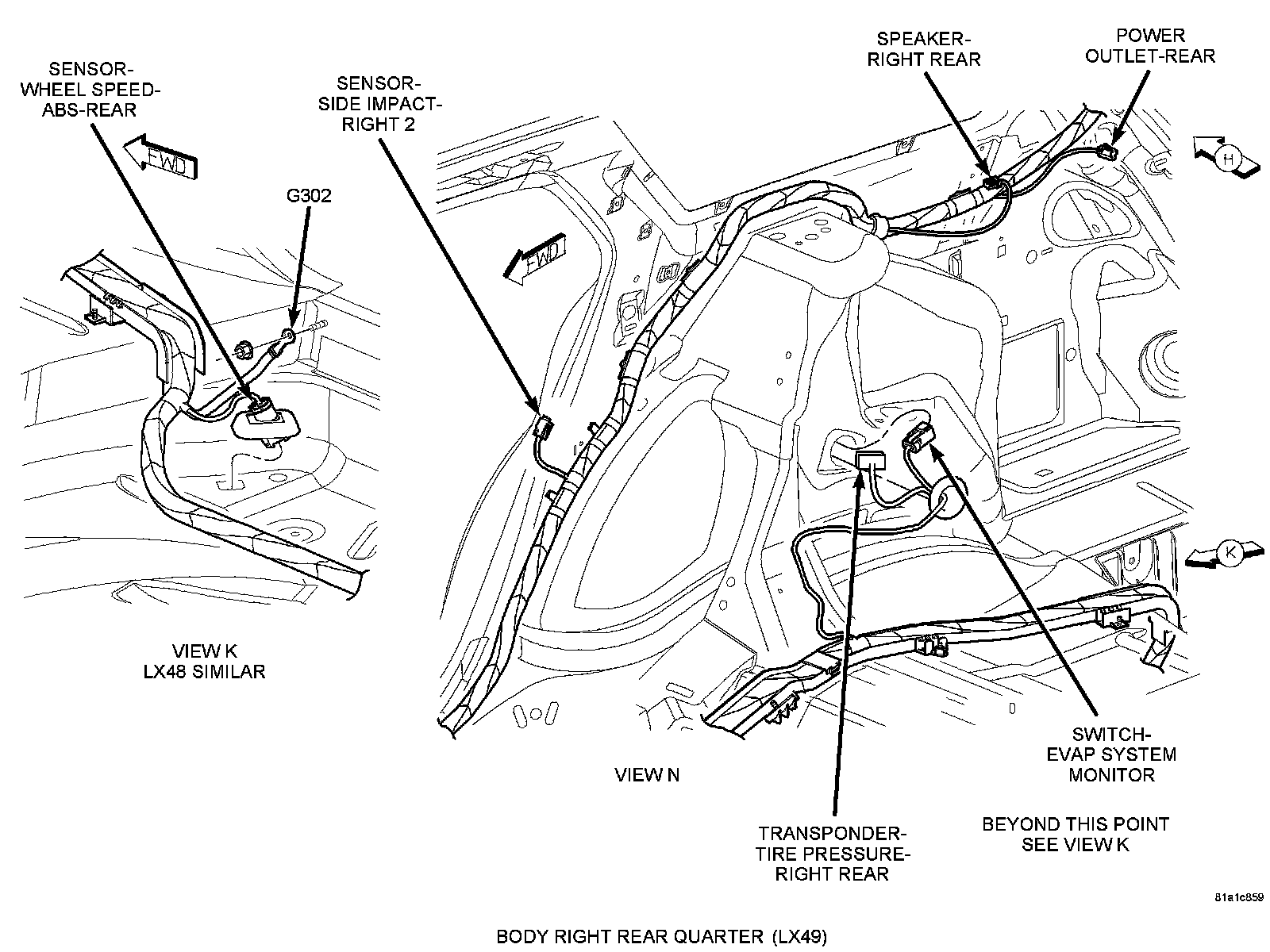

Component Location - 68
