Component ID: 509

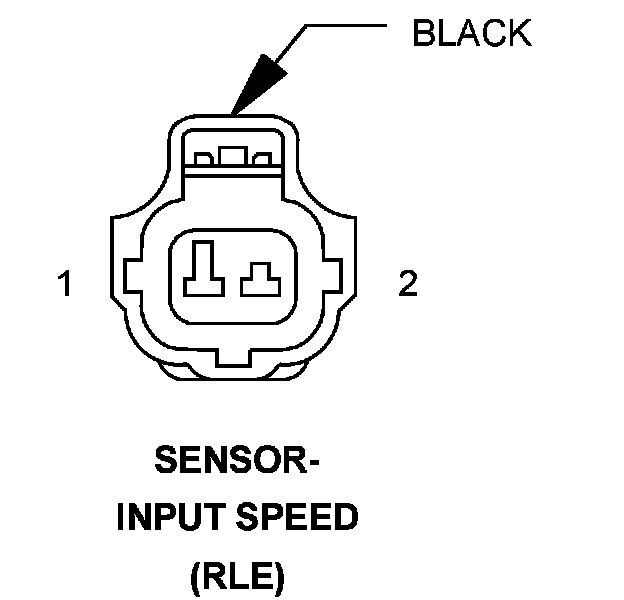

Component : SENSOR-INPUT SPEED

Connector:
Name : SENSOR-INPUT SPEED
Color : BLACK
# of pins : 2
Qualifier : (RLE)

Pin Description Circuit
1 SENSOR GROUND T13 20DG/VT
2 INPUT SPEED SIGNAL T52 20DG/OR

Component Location - 17

Component Location - 20
