Component ID: 565

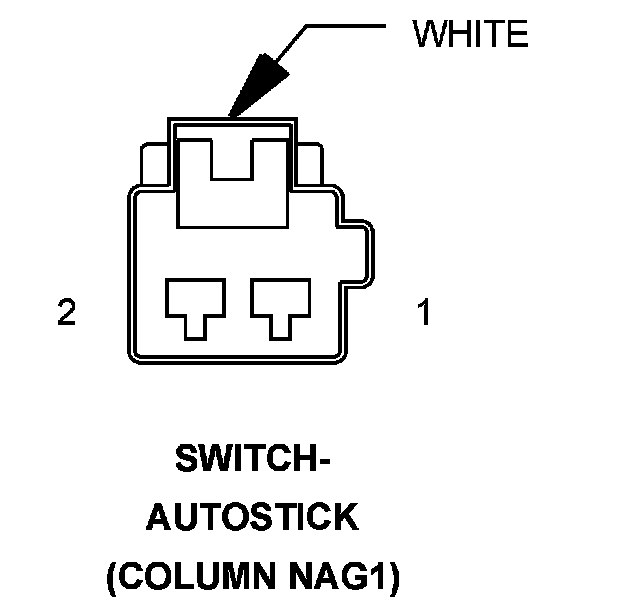

Component : SWITCH-AUTOSTICK
Connector:
Name : SWITCH-AUTOSTICK
Color : WHITE
# of pins : 2
Qualifier : (COLUMN NAG1)
Pin Description Circuit
1 AUTOSTICK SWITCH MUX SUPPLY 22YL
2 AUTOSTICK SWITCH MUX SIGNAL 22GY
Transmission Mode Switch, A/T
