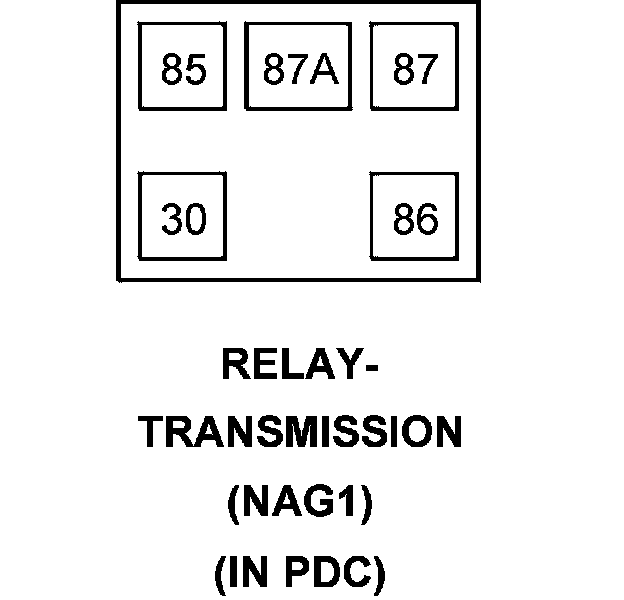

Component ID: 321
Component : RELAY-TRANSMISSION

Connector:
Name : RELAY-TRANSMISSION
Color :
# of pins : 0
Qualifier : (NAG1)




30 B(+) A1 6RD
85 IGNITION SWITCH OUTPUT (RUN-START) F941 20PK/BR
86 GROUND Z914 20BK/GY
87 TRANSMISSION RELAY OUTPUT F2 18PK/YL
87A - -
