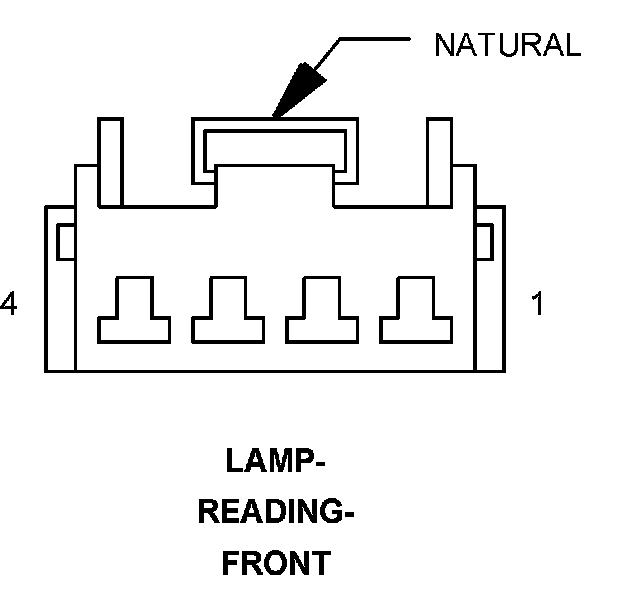

Component ID: 201
Component : LAMP-READING-FRONT
Connector:
Name : LAMP-READING-FRONT
Color : NATURAL
# of pins : 4
Pin Description Circuit
1 - -
2 COURTESY LAMPS DRIVER M24 20YL/WT
3 READING/RAIL LAMPS DRIVER M27 20YL/LB
4 GROUND Z909 20BK/LG
Component Location - 72
