Component ID: 599

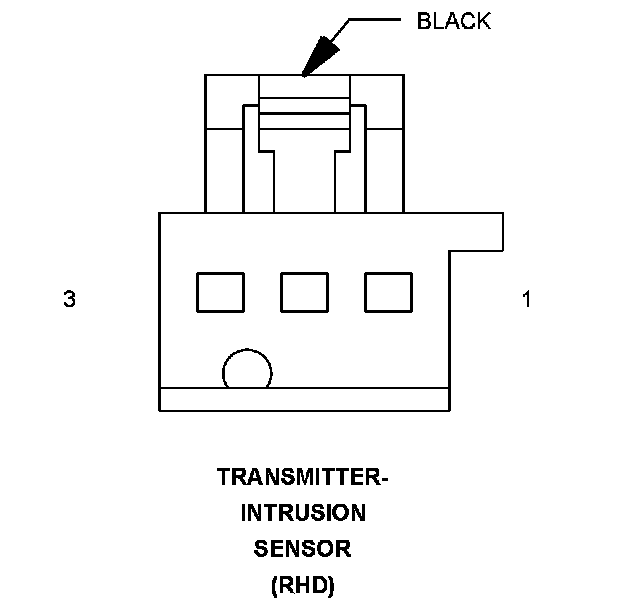

Component : TRANSMITTER-INTRUSION SENSOR
Connector:
Name : TRANSMITTER-INTRUSION SENSOR
Color : BLACK
# of pins : 3
Qualifier : (RHD)
Pin Description Circuit
1 INTRUSION TRANSMITTER SENSOR SIGNAL A645 20RD/VT
2 - -
3 INTRUSION TRANSMITTER SENSOR GROUND G945 20VT/DG
