6.1L ENGINE

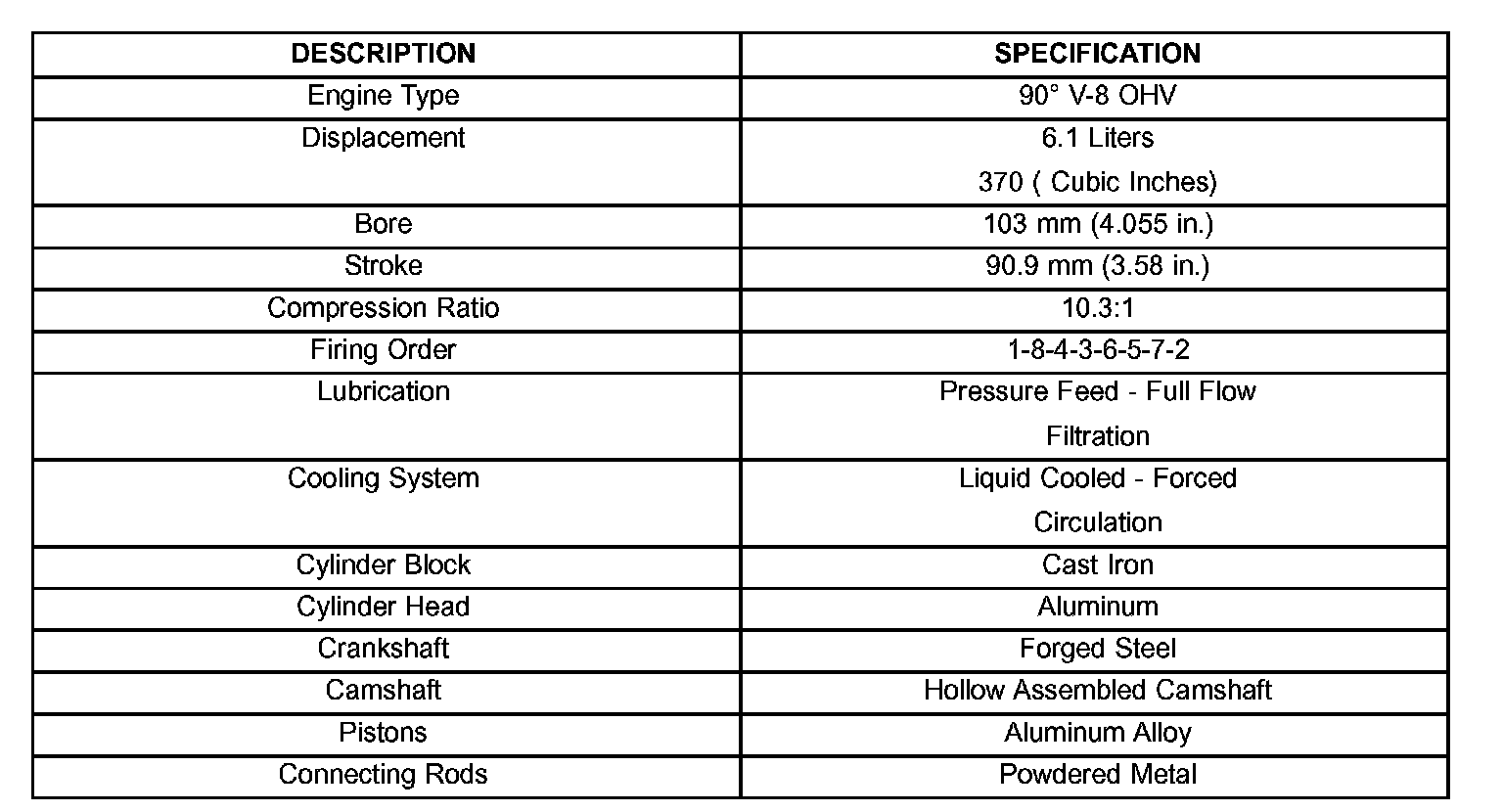

GENERAL DESCRIPTION:

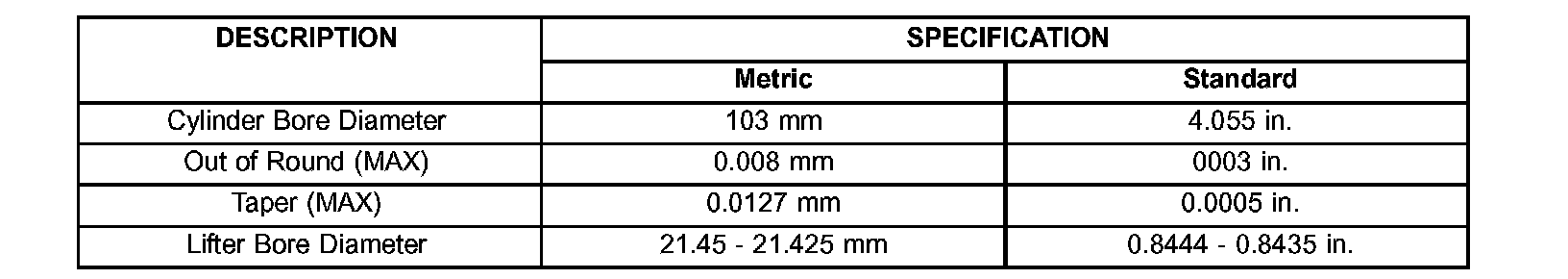

CYLINDER BLOCK:

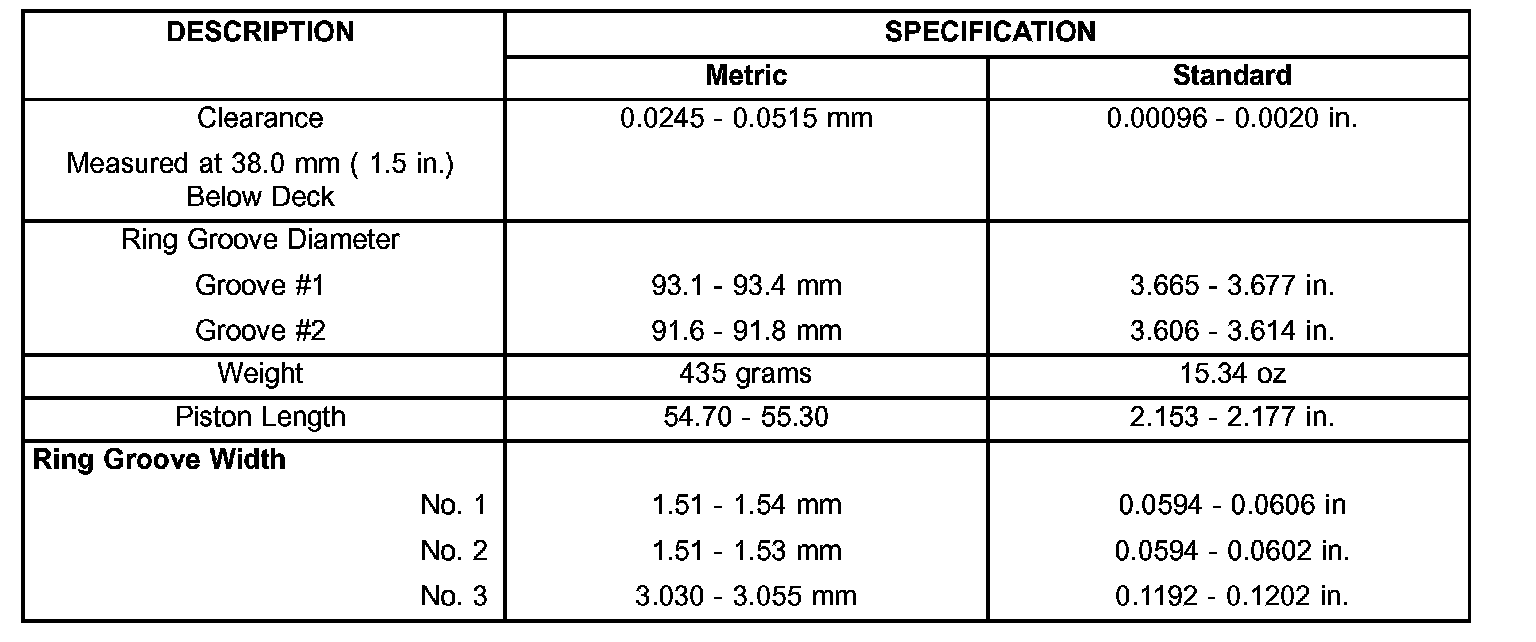

PISTONS:

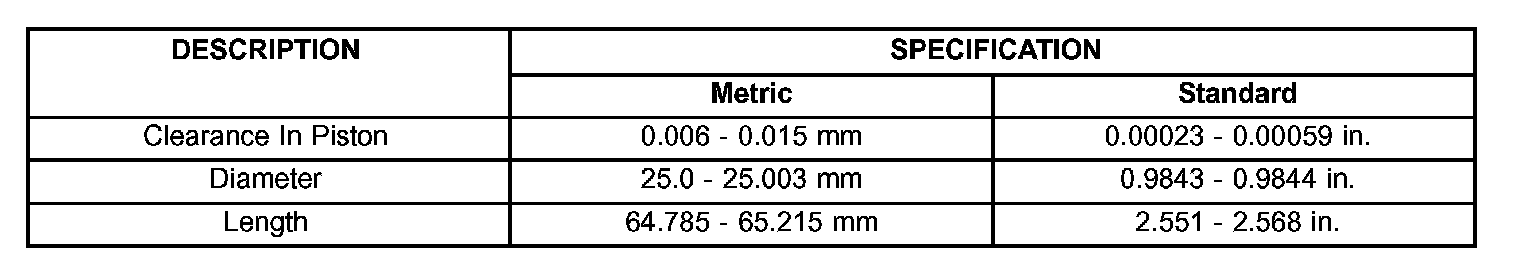

PISTON PINS:

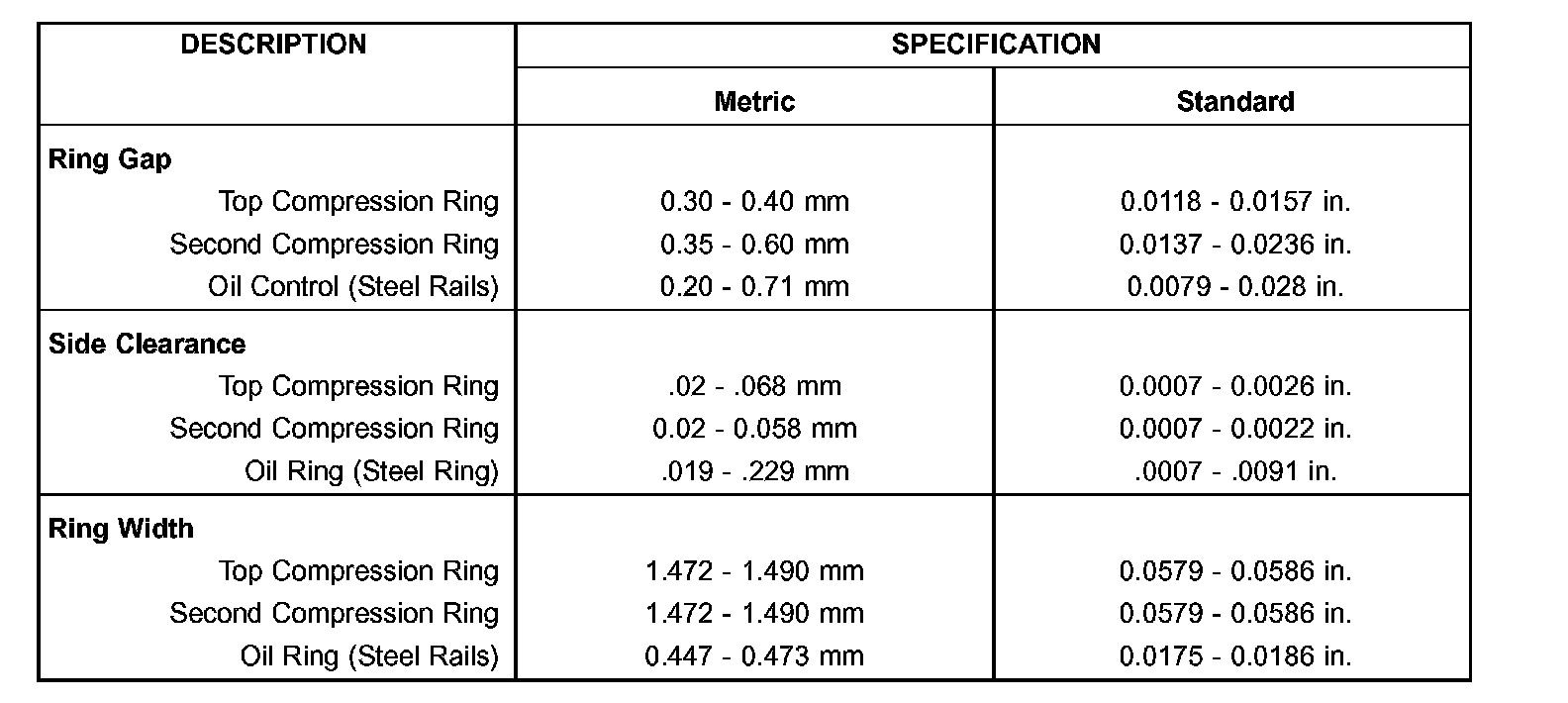

PISTON RINGS:

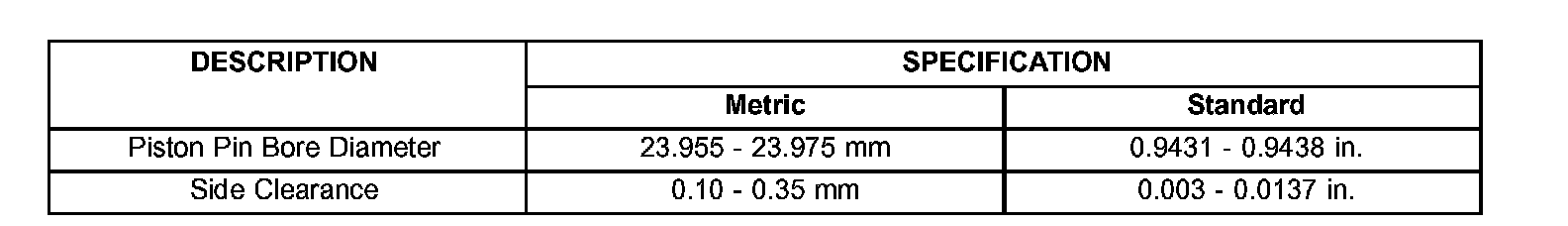

CONNECTING RODS:

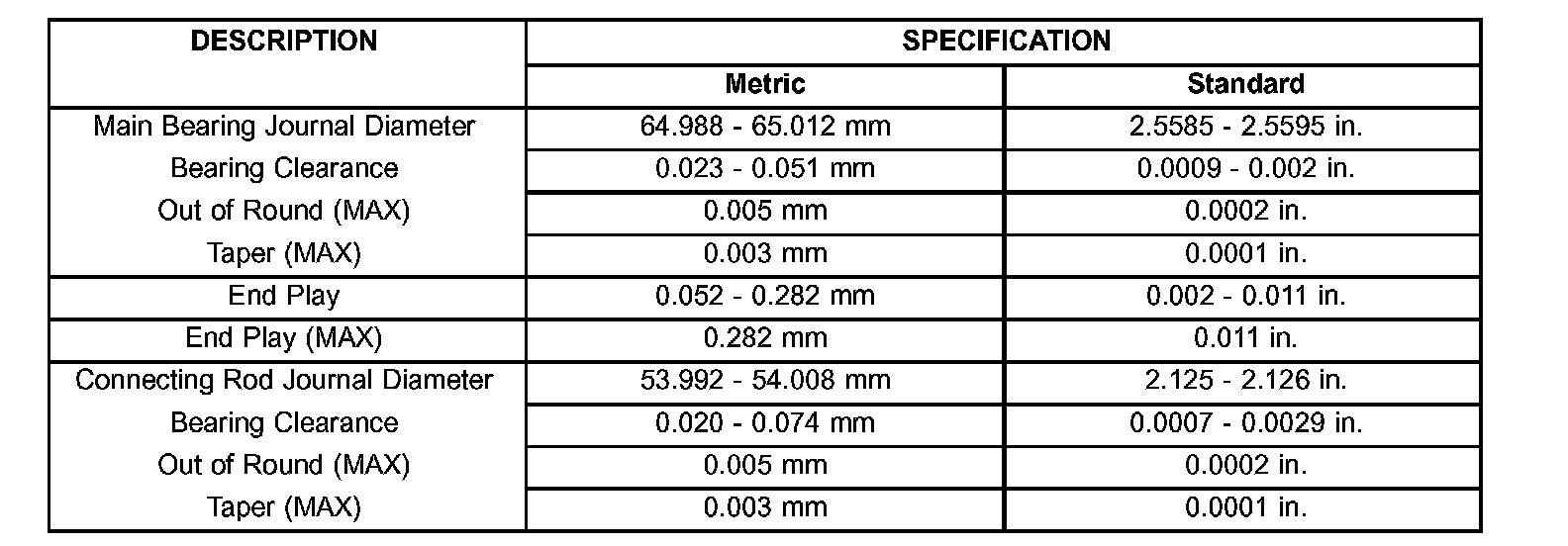

CRANKSHAFT:

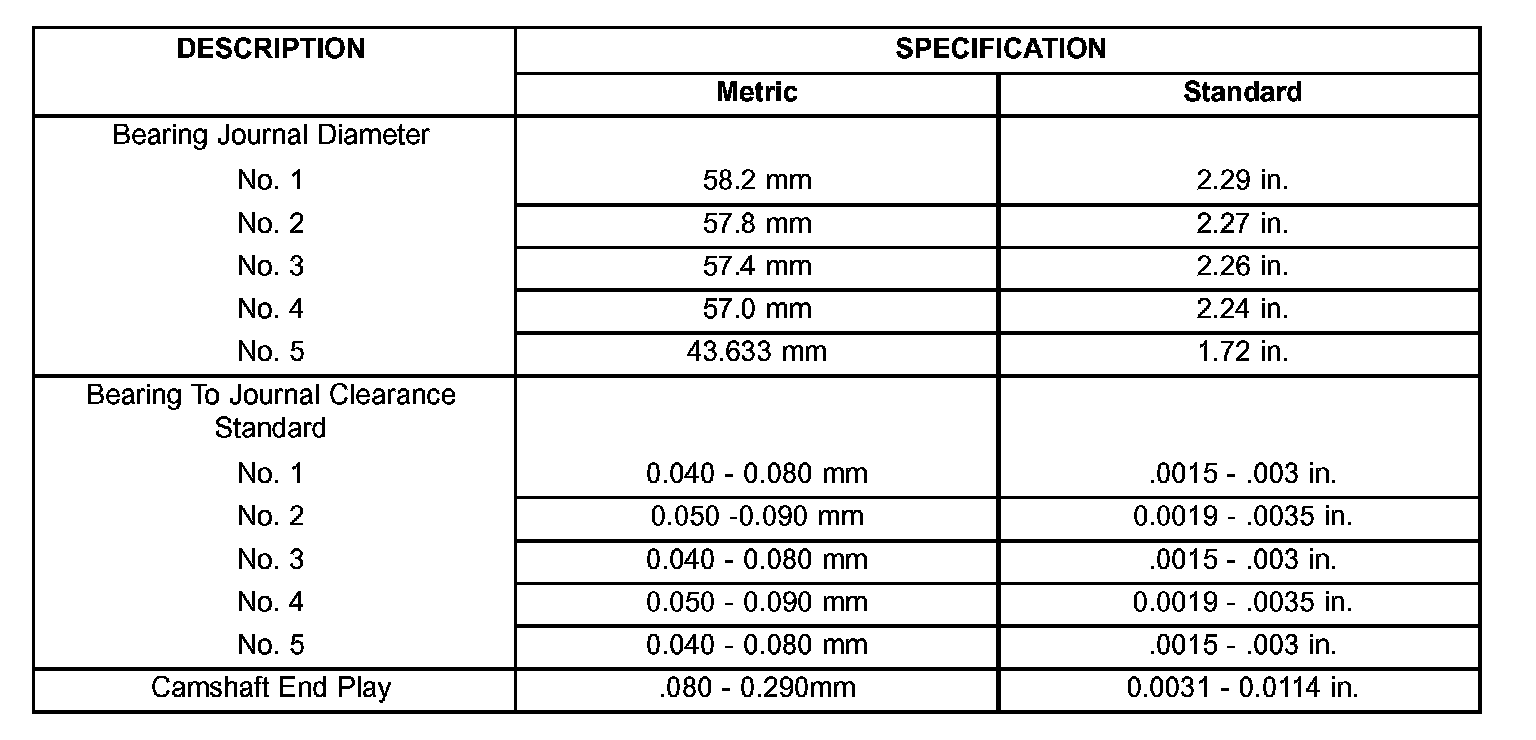

CAMSHAFT:

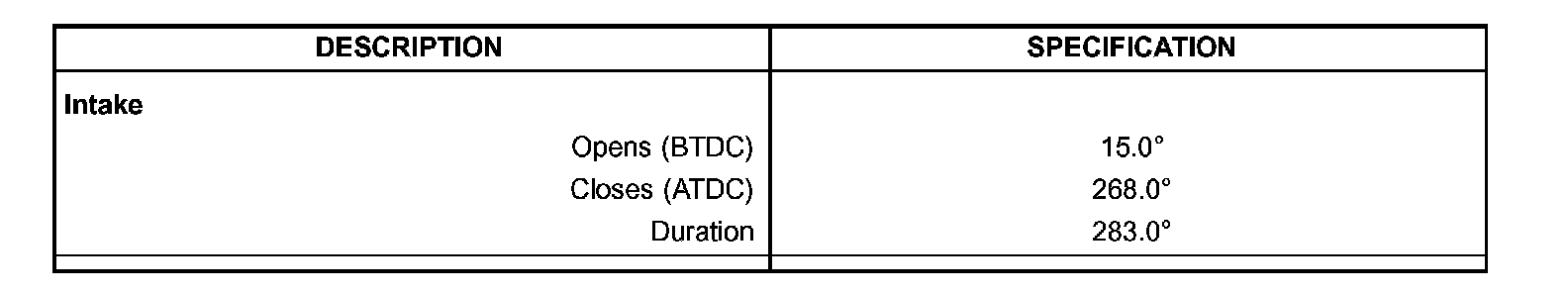

VALVE TIMING @ SAE 0.006":

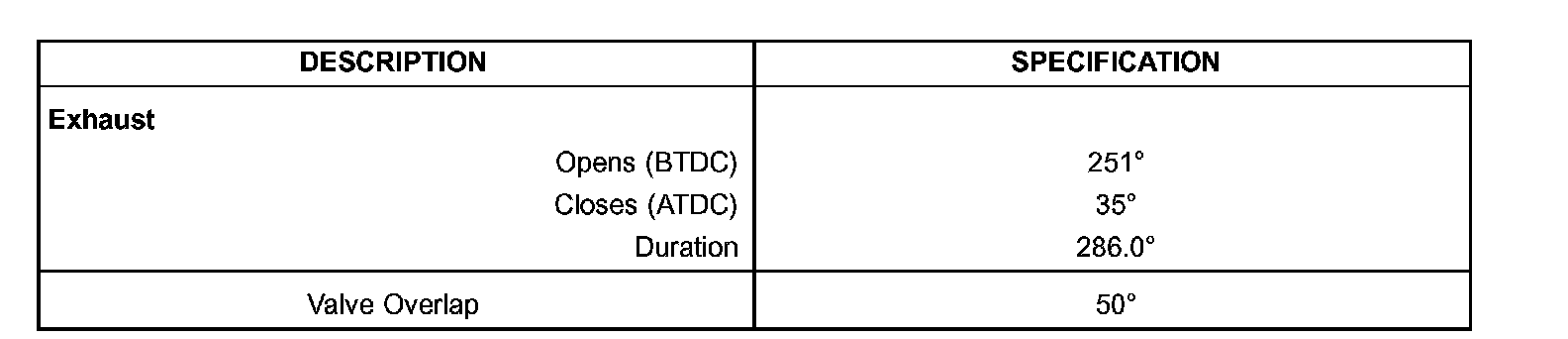

VALVE TIMING @ SAE 0.006":

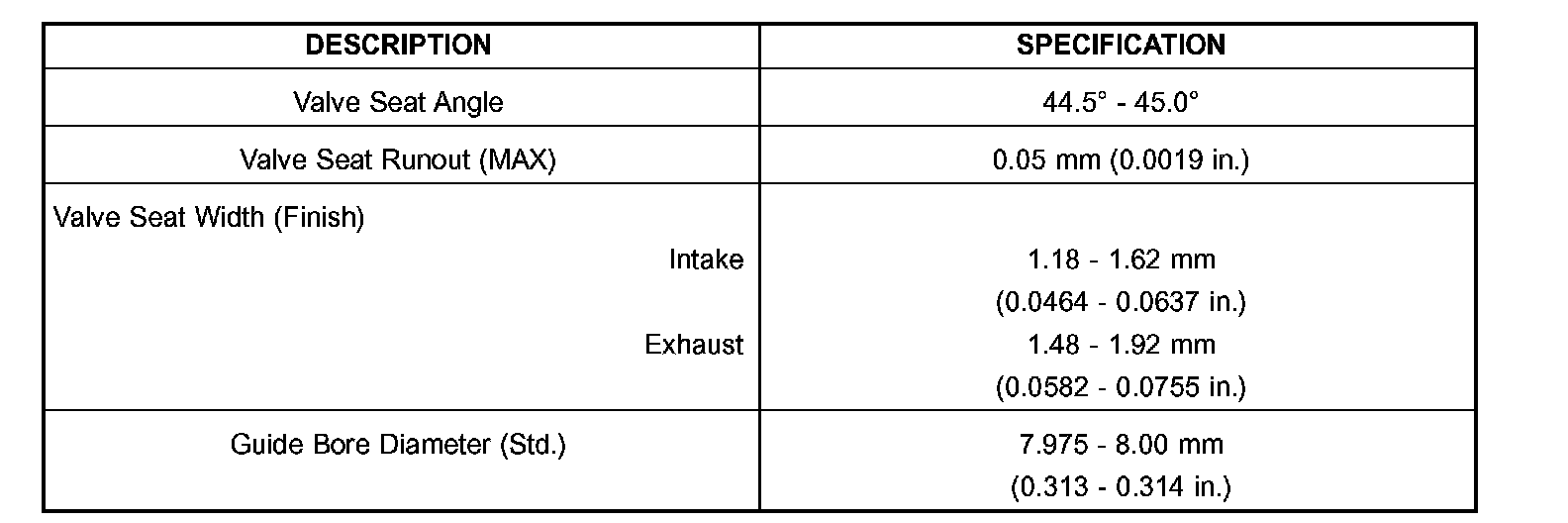

CYLINDER HEAD:

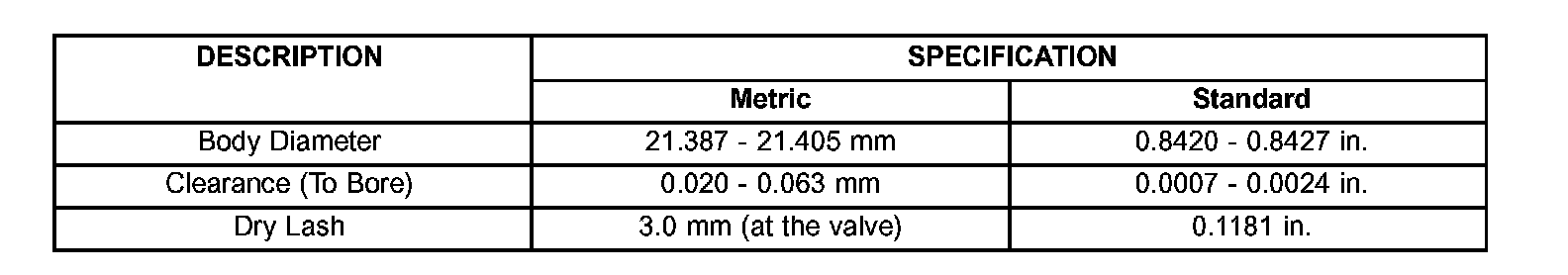

HYDRAULIC TAPPETS:

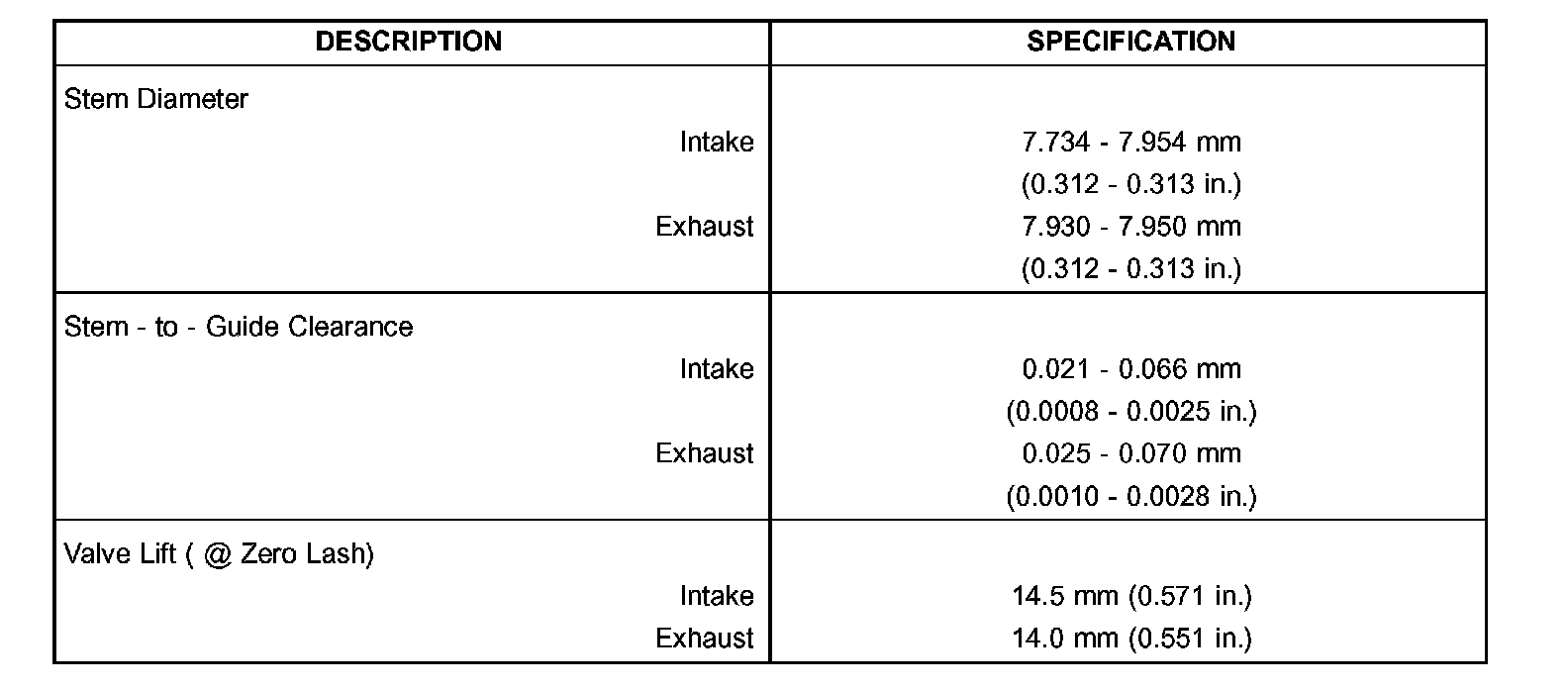

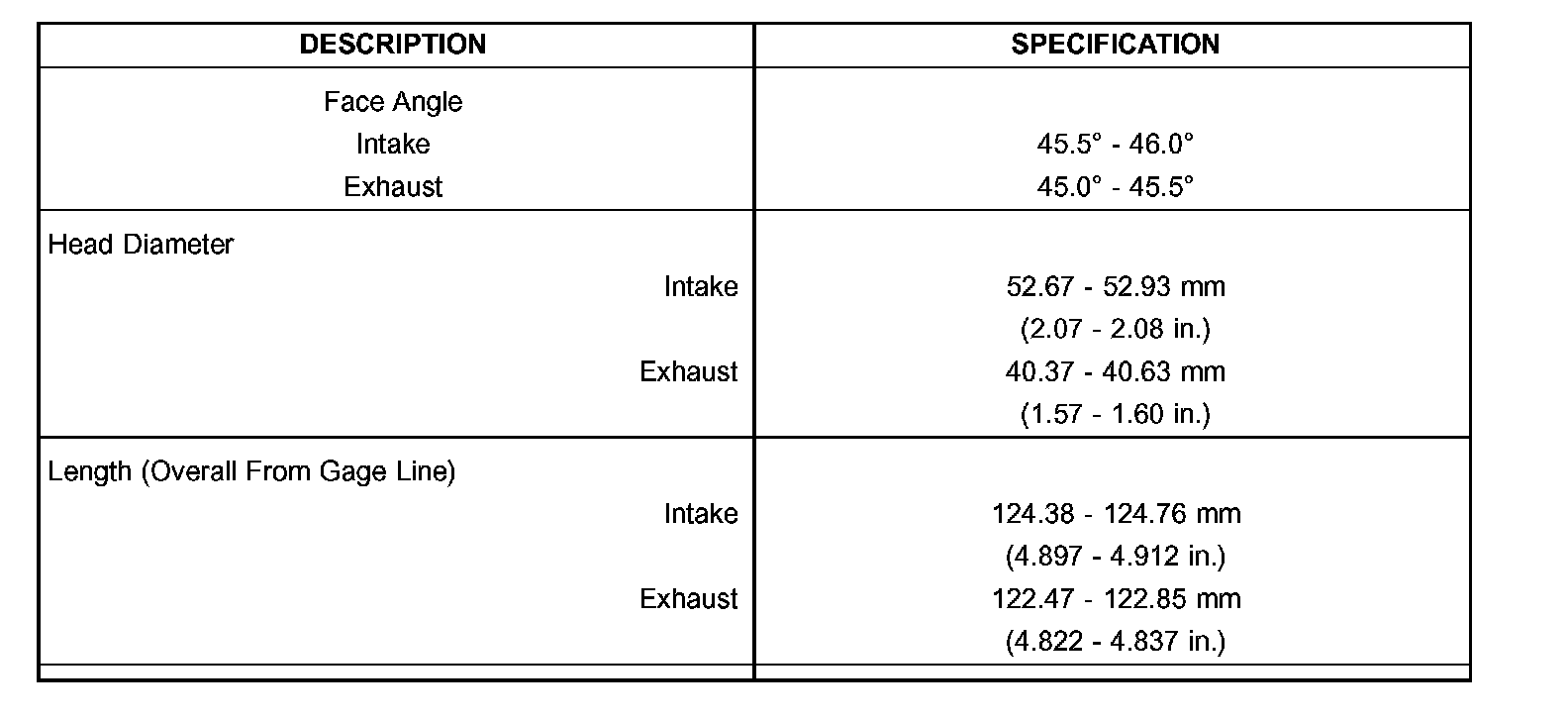

VALVES:
VALVES:

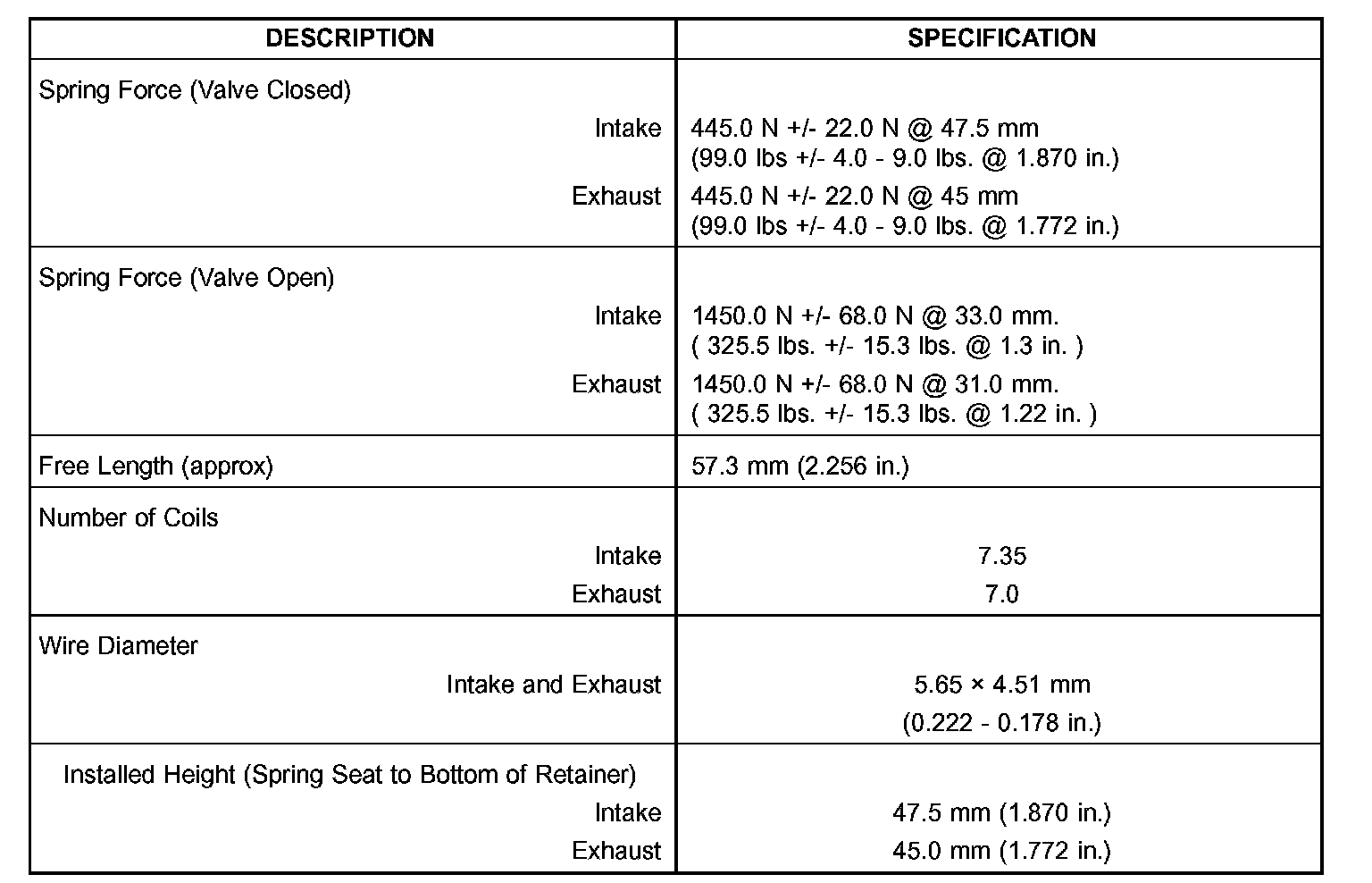

VALVE SPRING:

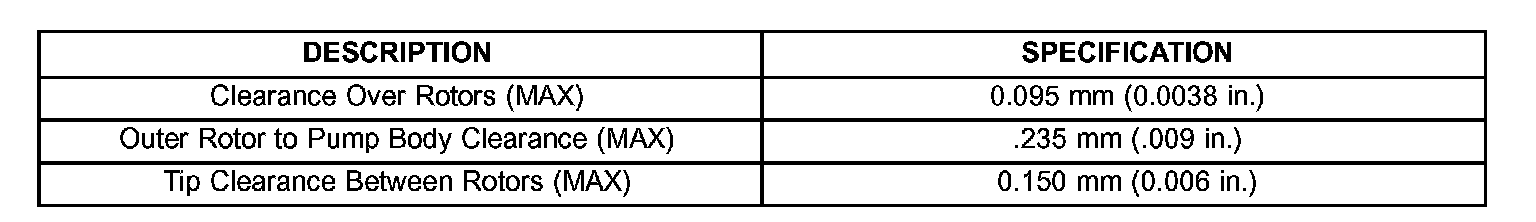

OIL PUMP:

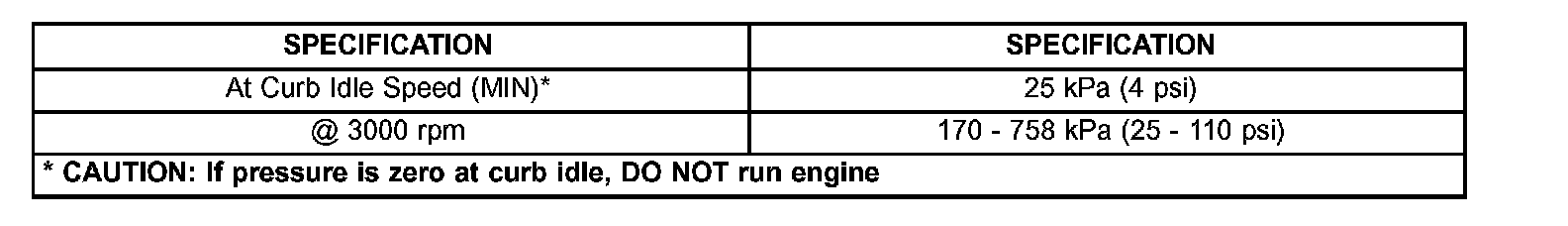

OIL PRESSURE:
